Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1) ANS-Create the templates as shown in Figures. Take the size of the title block as per industry standards or
you can assume it as per the size of the paper. Use text and attributes wherever required. After creating
the title block you need to save it as a block with names: Custom1_titleblock and Custom2_titleblock,
respectively.

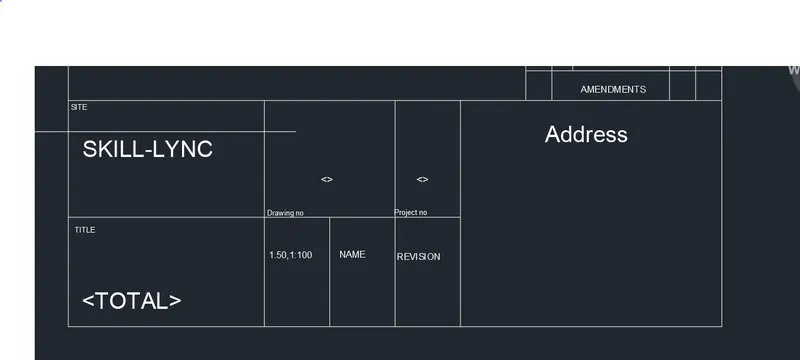

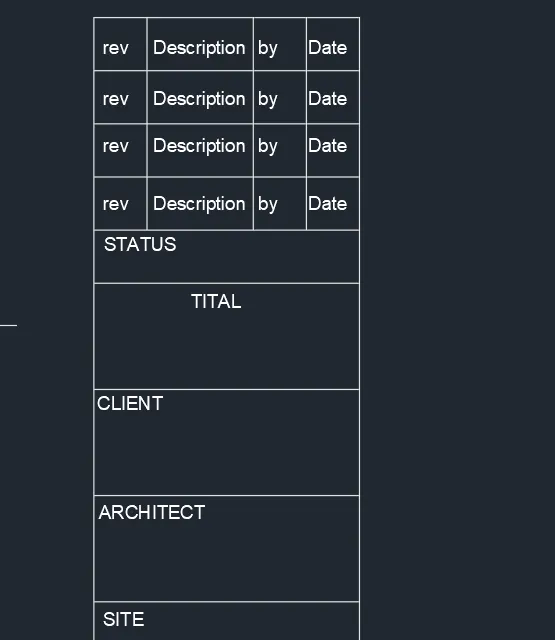

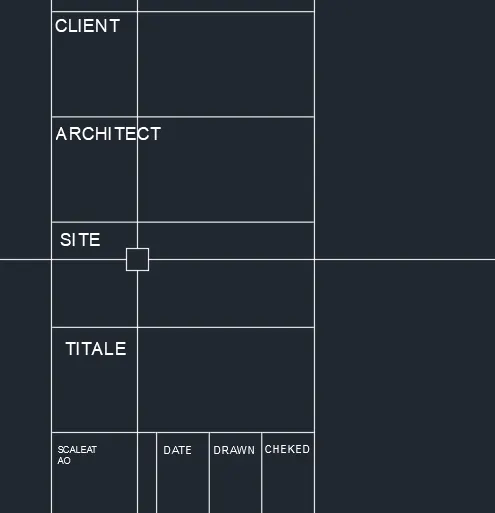

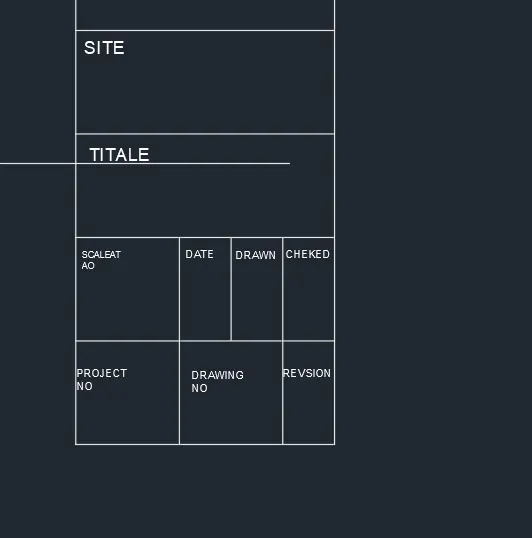

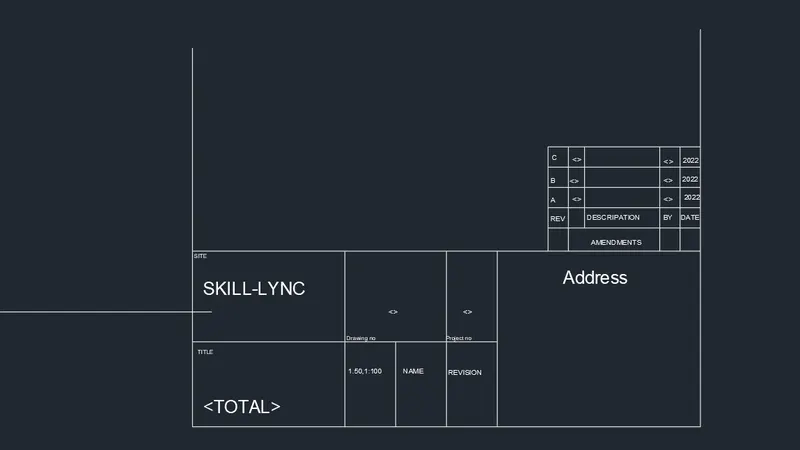

AIM :- TO CREATE THE CUSTUM-TITAL BOX1,AND TITAL TOOLBOX2 USING AUTOCAD SOFT

PROCEDURE:-

TO USING LINE, MTEXT COMMAND CREAT TITAL BOX

FINAL RESULT

2ANS-Create the doors type for warehouse as shown in the Figure. You need to create each door type as per
standard size or given dimensions. Create the blocks of this door type after creating them.

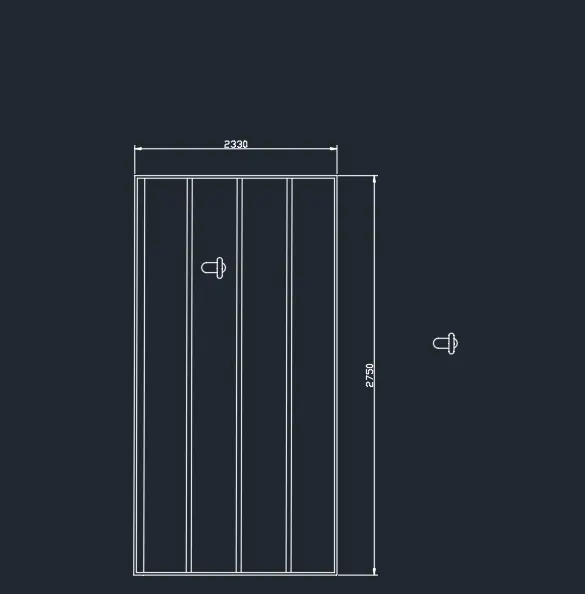

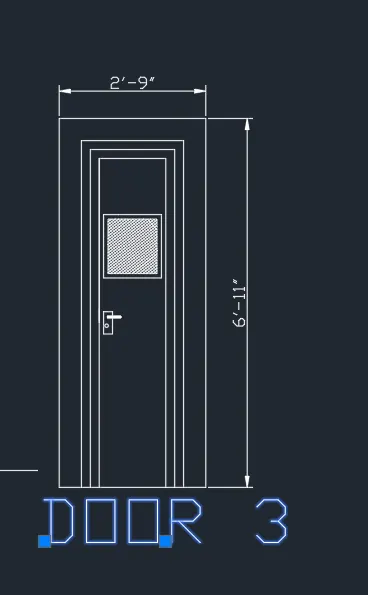

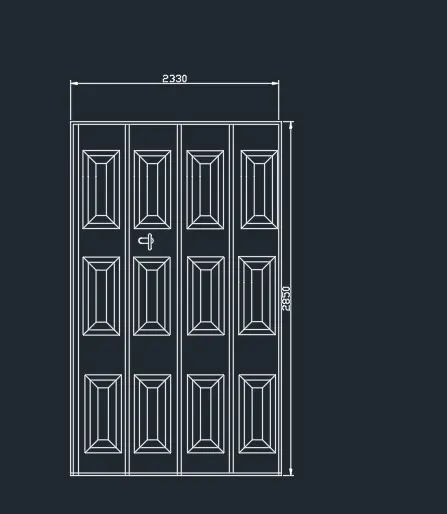

AIM:-TO CREATE WORKSHOP DOOR

PROCEDUR :- TO CRAETE THE DOOR USING LINE, RECTANGLE,FILLET,OFFSET AND CREAT THE BLOCK

FINAL RESULT:-

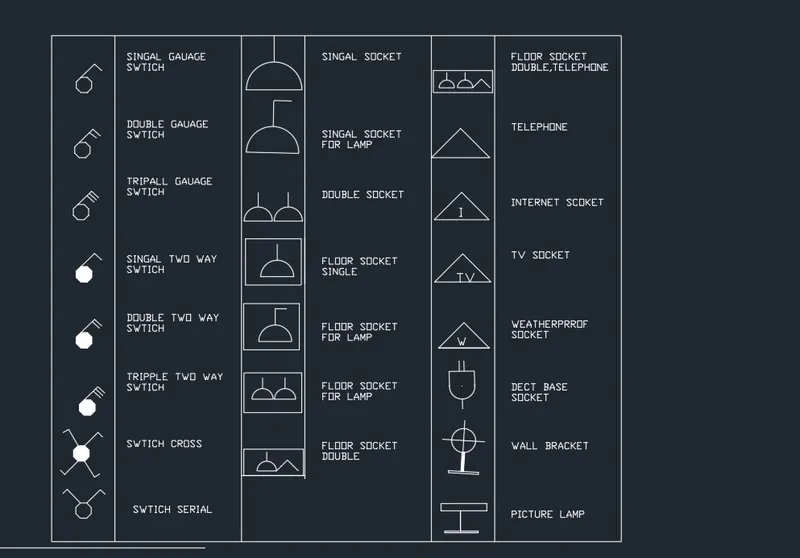

3)ANS:-Create each symbol as a block with the name given in the legend. After creating the blocks arrange
them in the legend as shown in the Figure.

AIM:- DRAW ELECTRICAL SYMBOL CREAT THEN BOLCK

PROCEDURE:-

USING LINE,CIRCLE,ARC,MTEXT,FILLET OFFSET KEY CREATE ELECTRICAL SYMBOL

FINAL RESULT:-

-

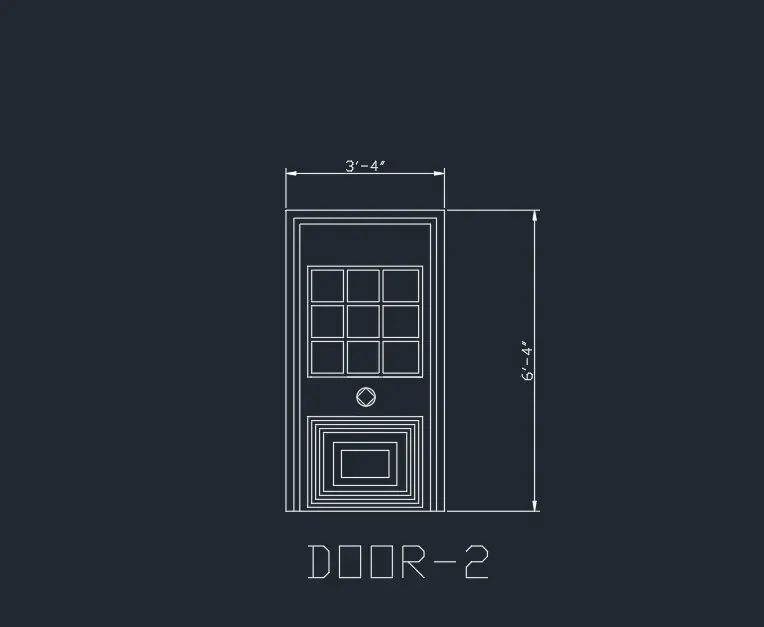

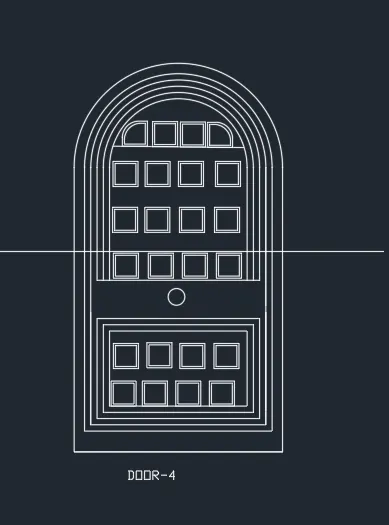

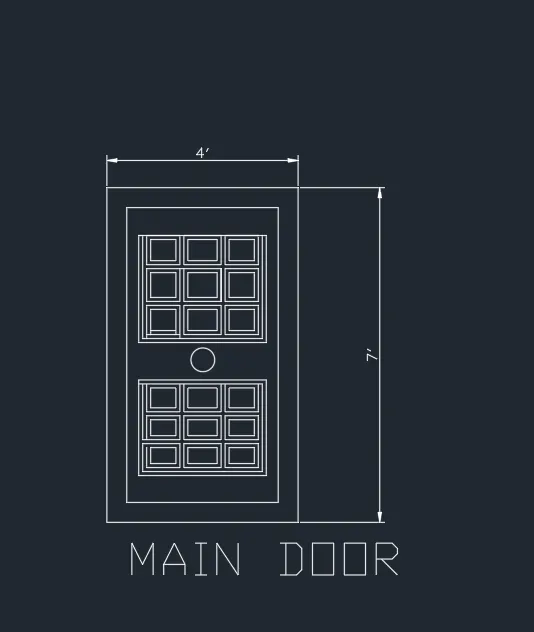

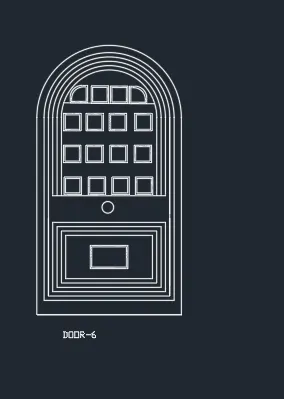

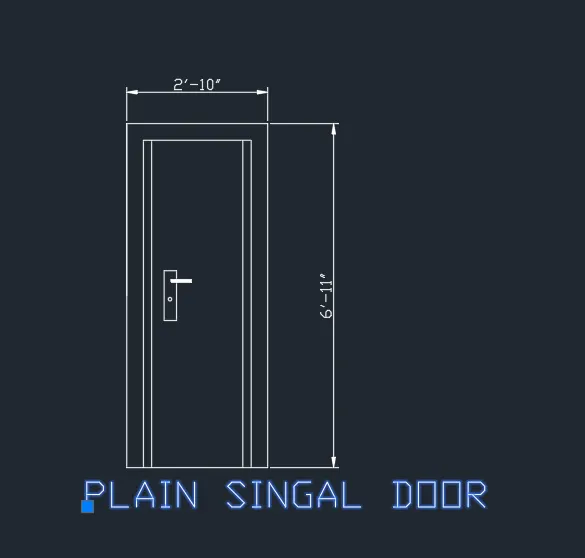

4)ANS:- AIM:-Create the door type for residential building as a block. Save the name of the blocks as type. Use given
dimensions or assume dimensions as per industry standards.

PROCEDURE:-USING LINE,CIRCLE,ARC,MTEXT,FILLET OFFSET RECTANGLE AND CREATE BLOCK

RESULT

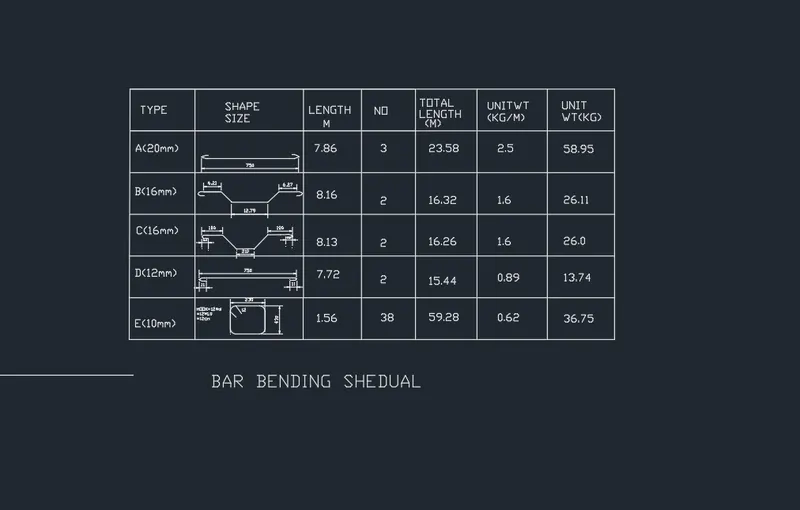

5)ANS:-AIM:-Create each shape as a block as shown in the Figure. Save the block and insert them on the table as
shown in the Figure. creating Bar Bending Shedual
