Creating Architectural and Structural model with 3D rendering using REVIT

Question:1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

Answer: Multi-Unit Residential Apartment

Question:2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

Answer: Building is in Bangalore, detached building

height of building is 21.7 meter which is less than 24 meter standard

Type 2 construction, Subdivison A-4 Apartment

Fire zone 1

Rear and front clearance = 8 meter minimum

Question:3) Using the structural model, include the following components based on the type of structure selected

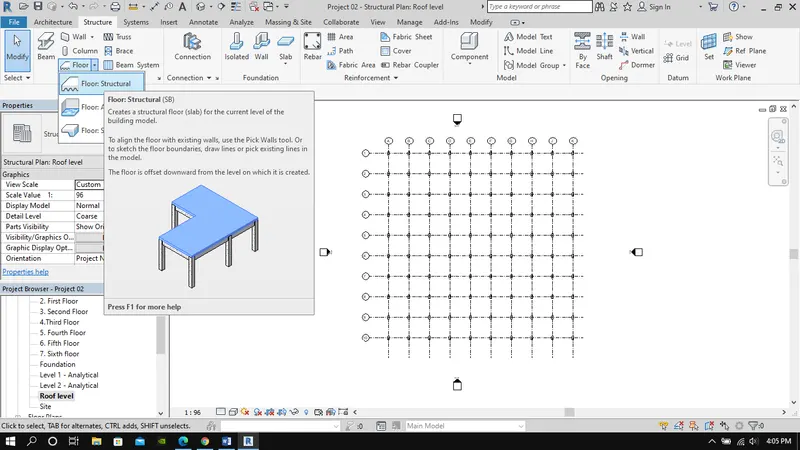

Step 1:) X & Y grids at 3500 mm apart

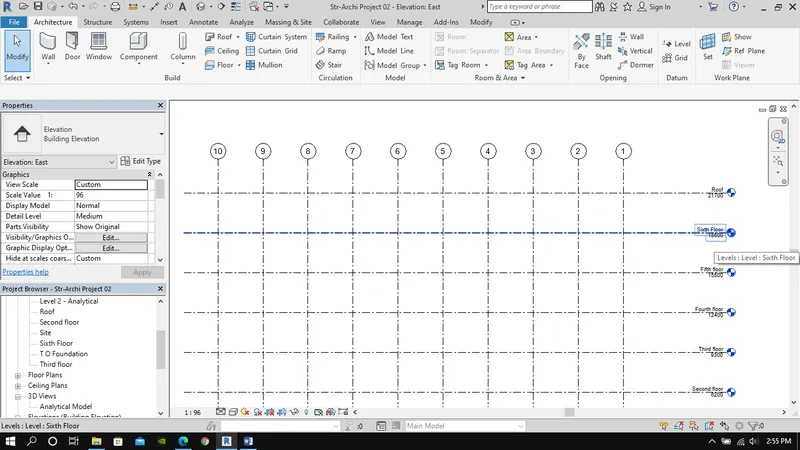

Step 2:) Levels at 3100 mm apart

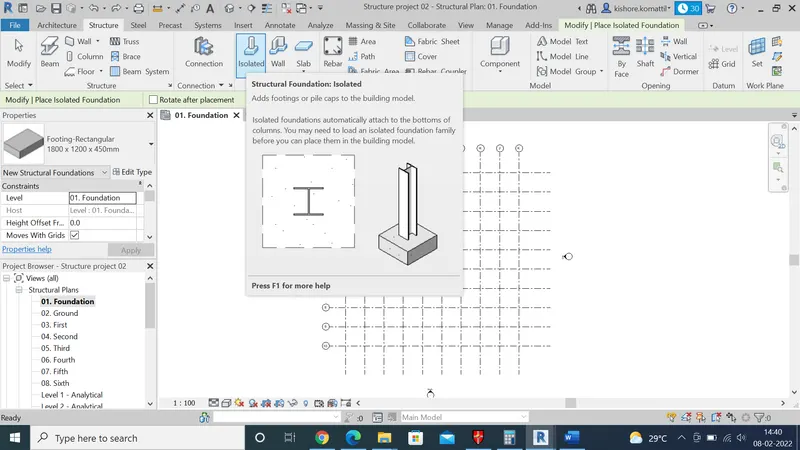

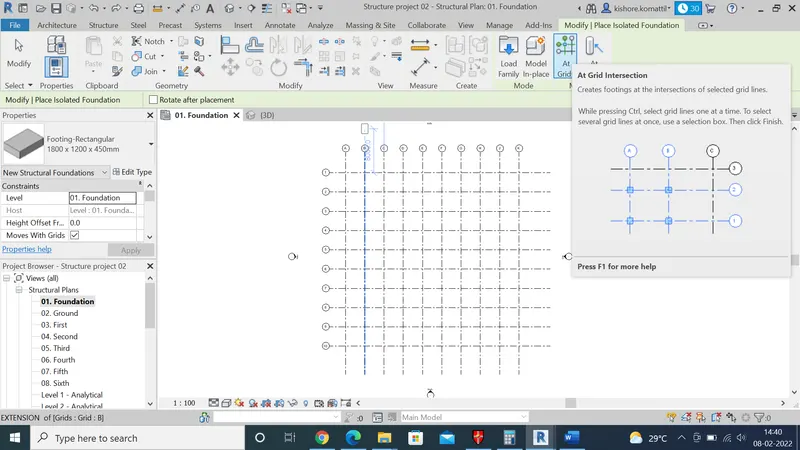

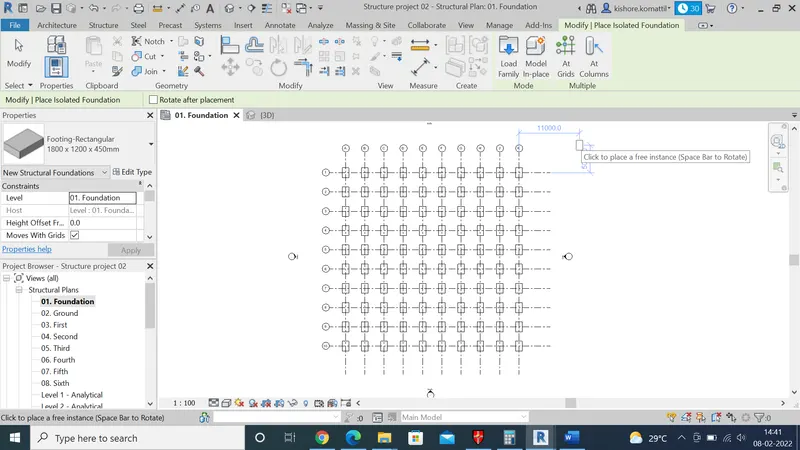

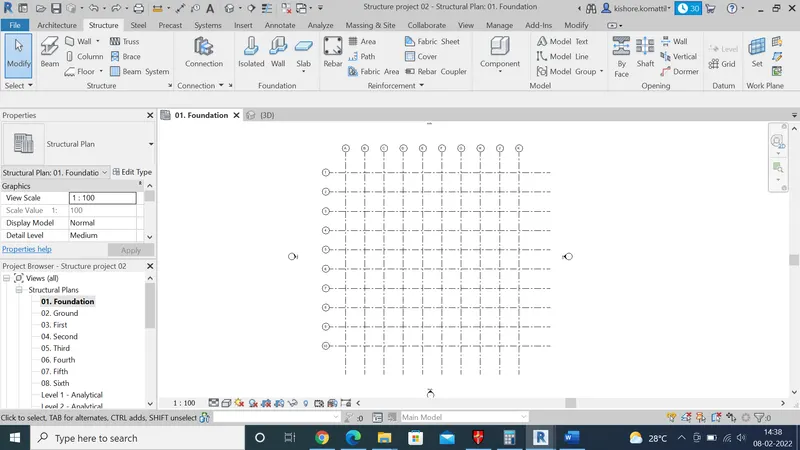

Step 3:)Foundation – Isolated Foundation

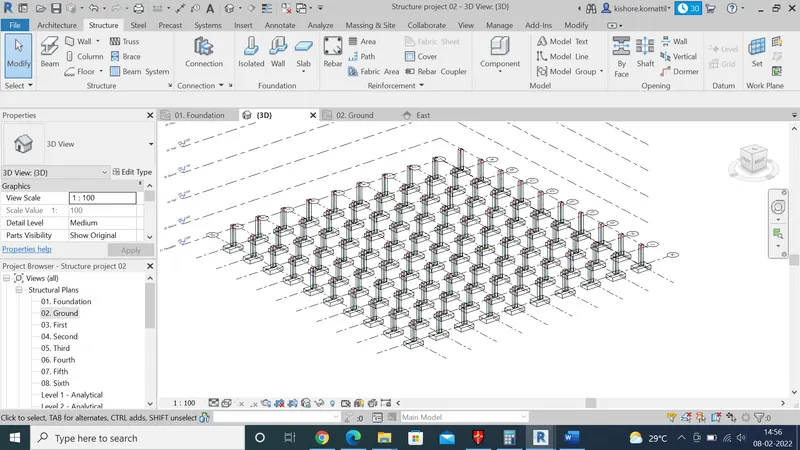

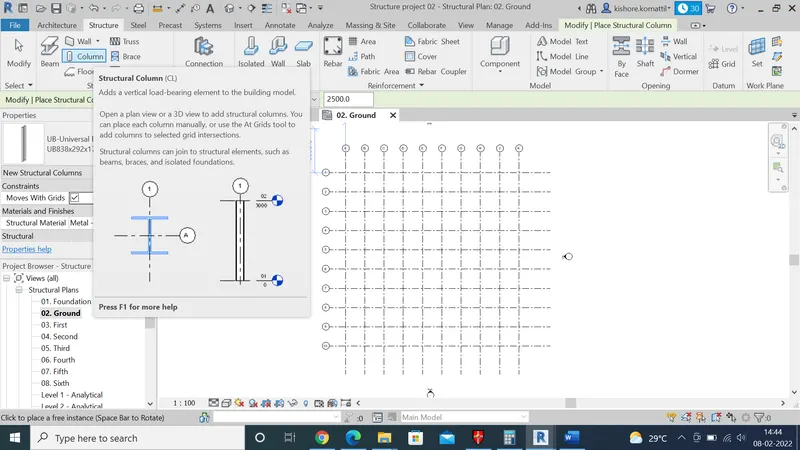

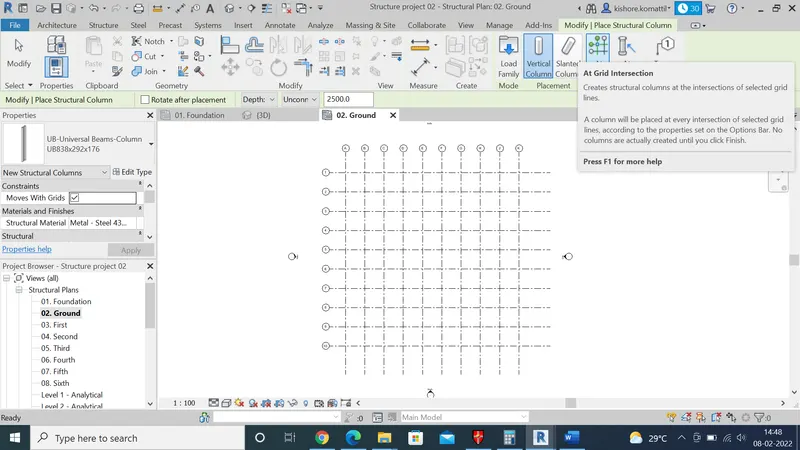

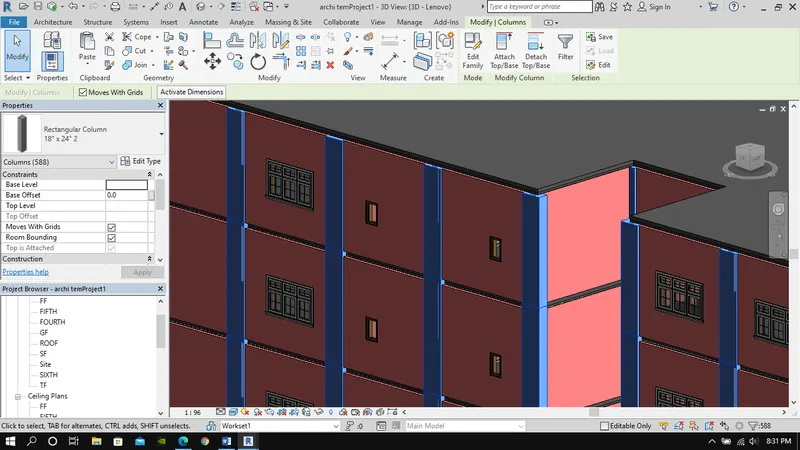

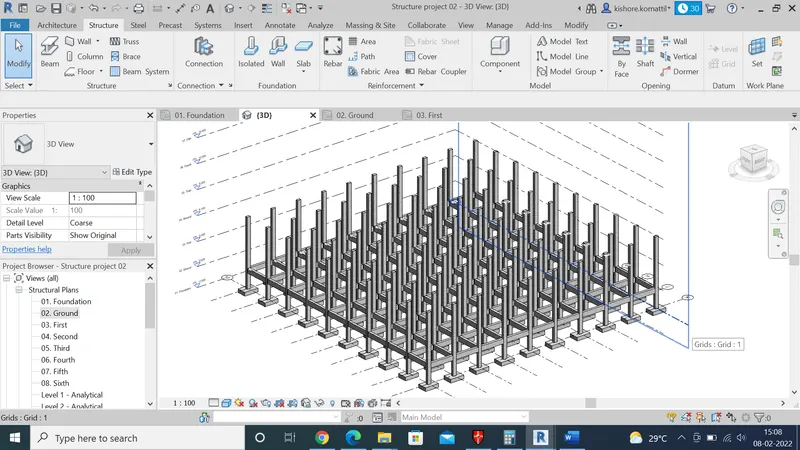

Step:4) Columns

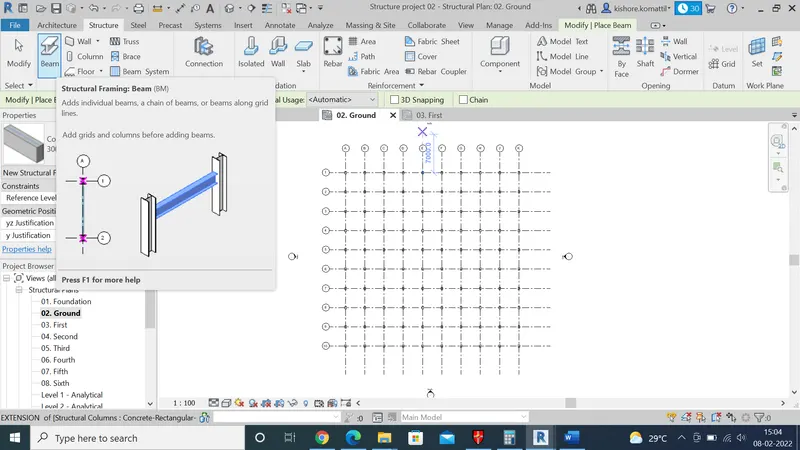

Step 5:) Beams Connected to Columns

Step:6) Roof Framing

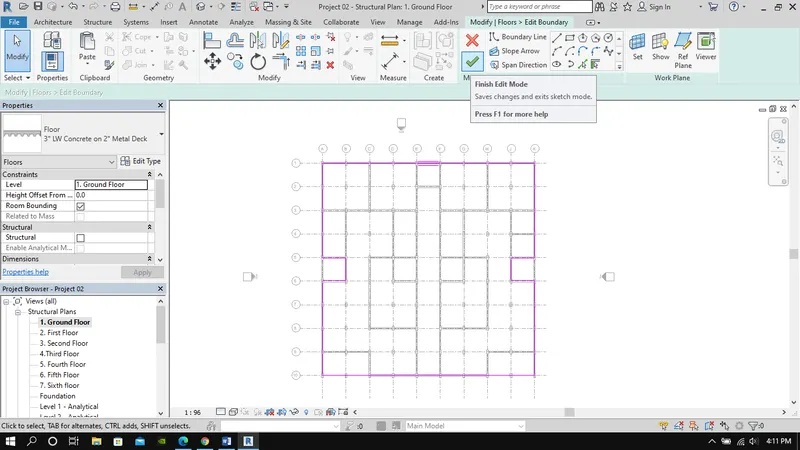

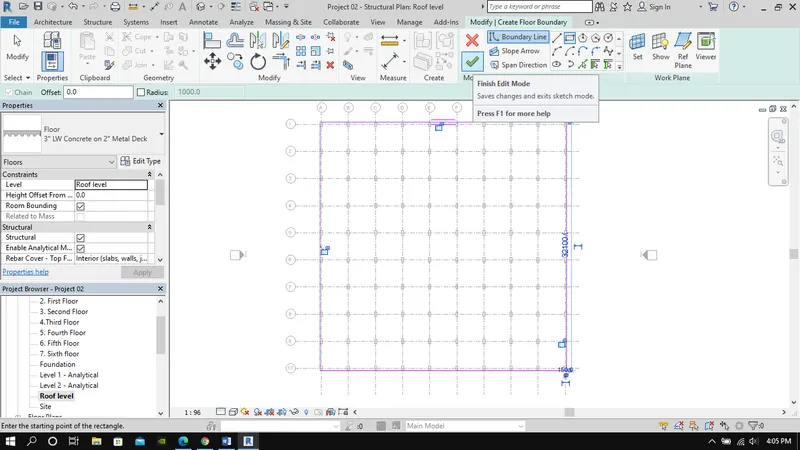

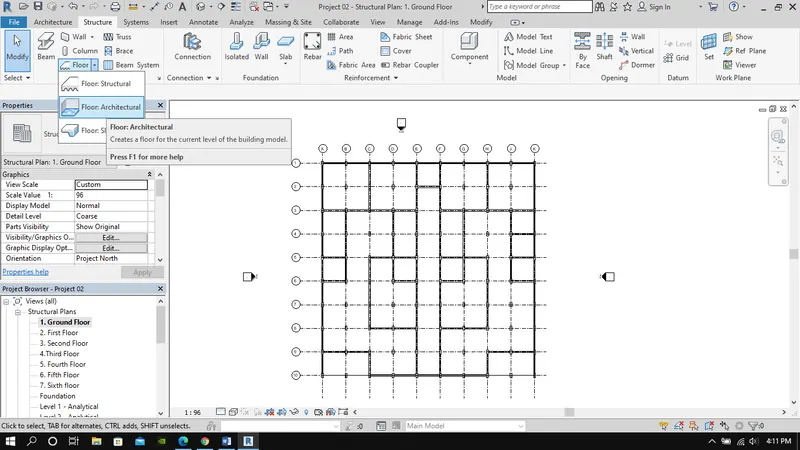

Step:7) Floor

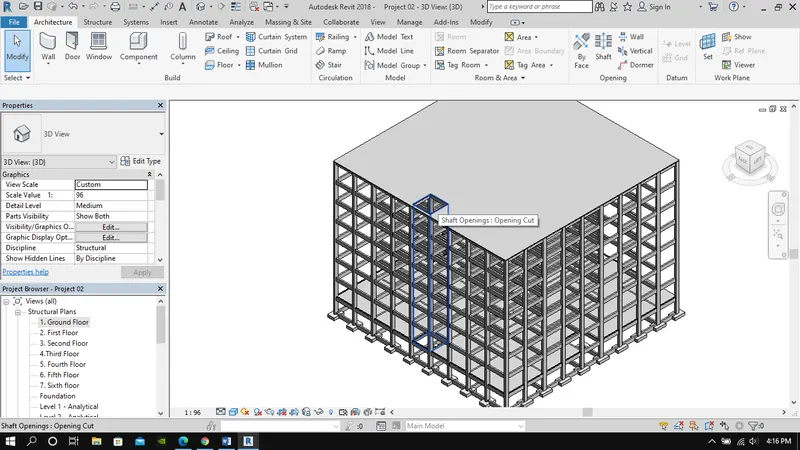

Step:8) Floor Openings for Elevators and Stairs

Shaft opening for lift

Stairs

Result: Structural components added

Question:4) Using the architectural model, include the following components based on the type of structure selected

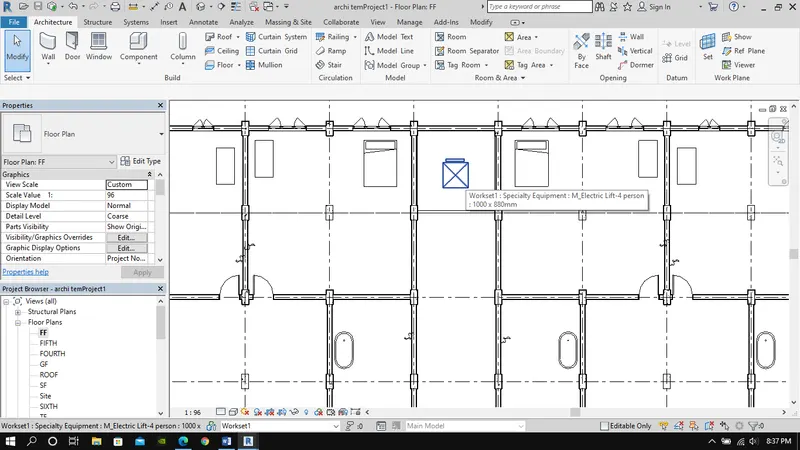

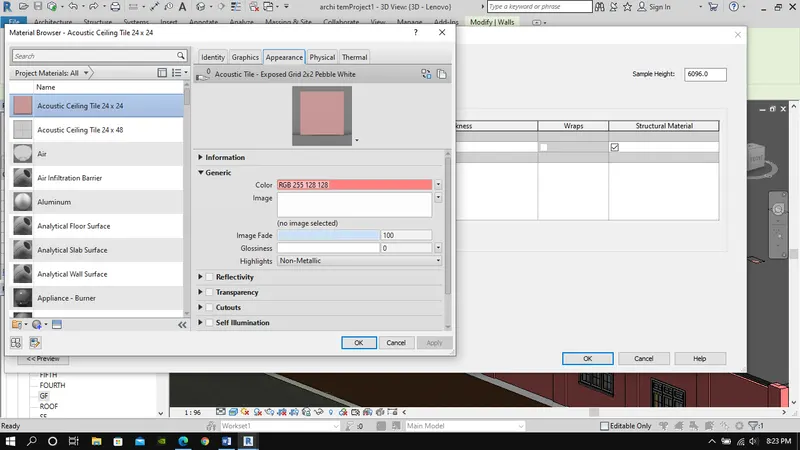

a. Wall Layout with appropriate material and finishing

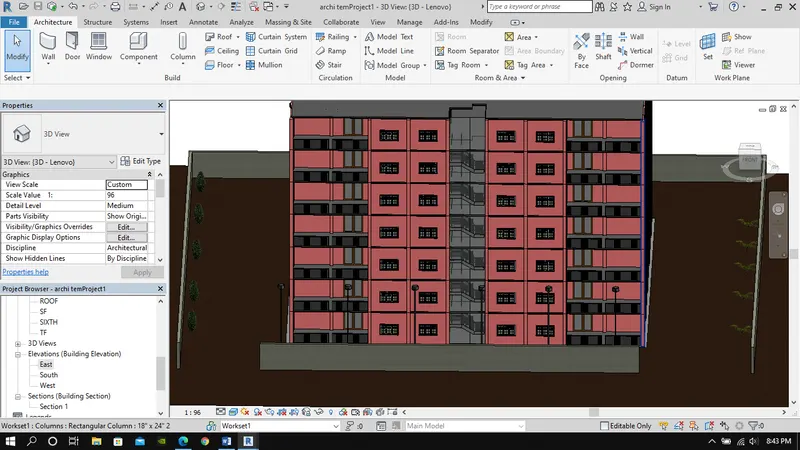

b. Exterior façade with fancy finish

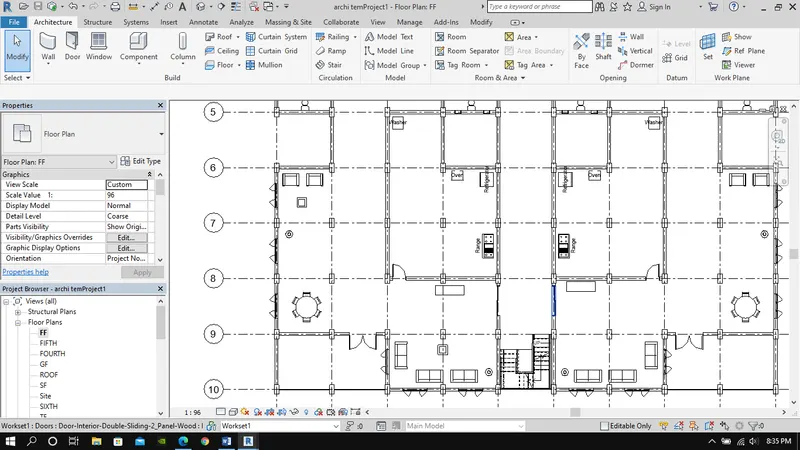

c. Interior partition walls to size rooms ( mirror flat in same floor)

d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)

e. Add components such as stairs Elevators

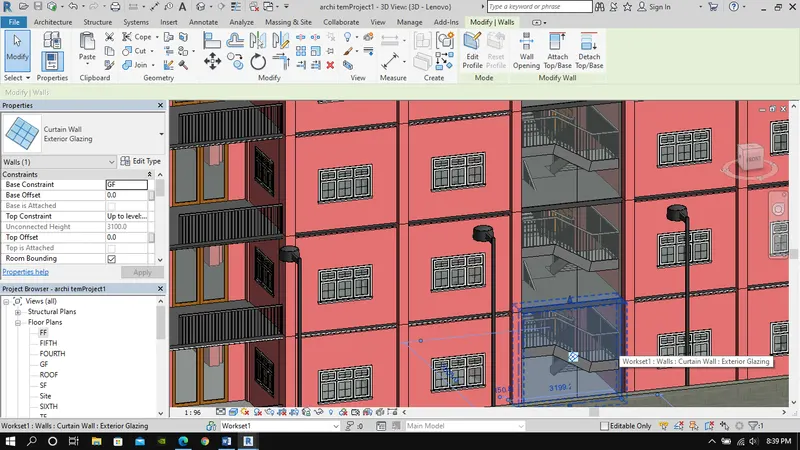

f. Have at-least one side of the building with curtain walls and glass panels

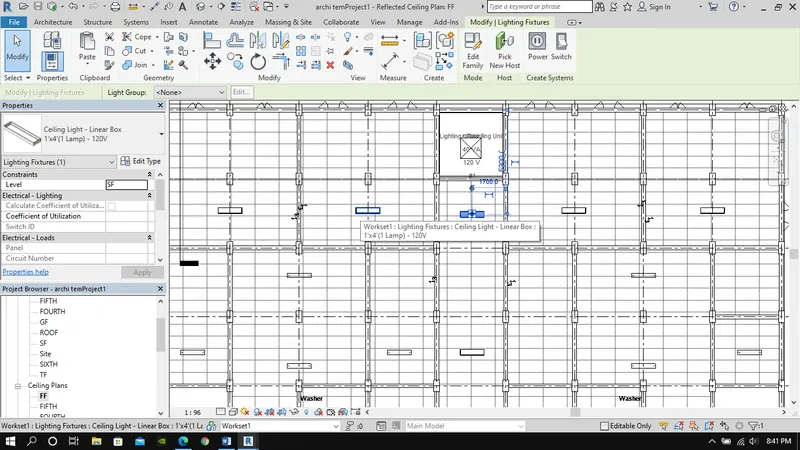

g. Include interior and exterior lighting fixtures

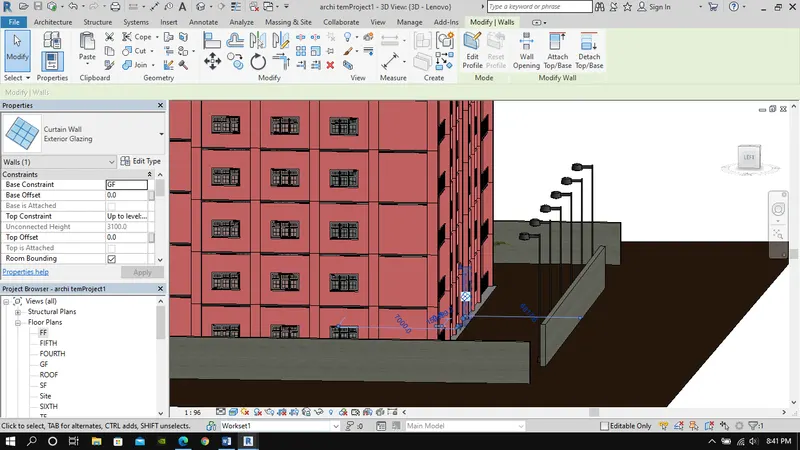

h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

Result: Architecture model was created

Question:5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

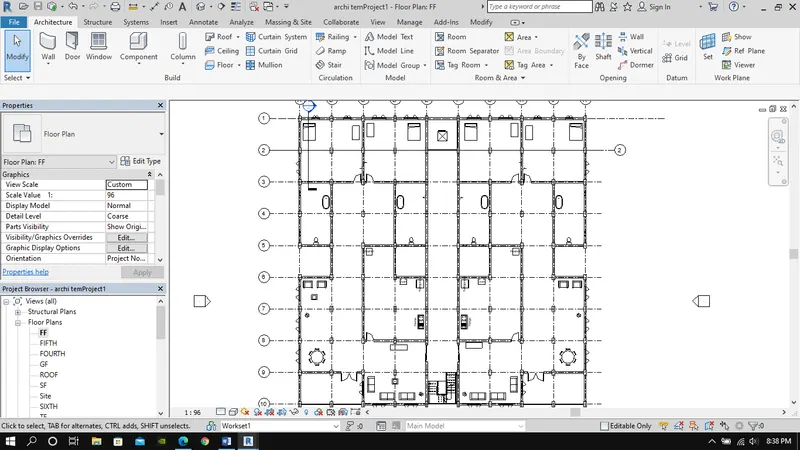

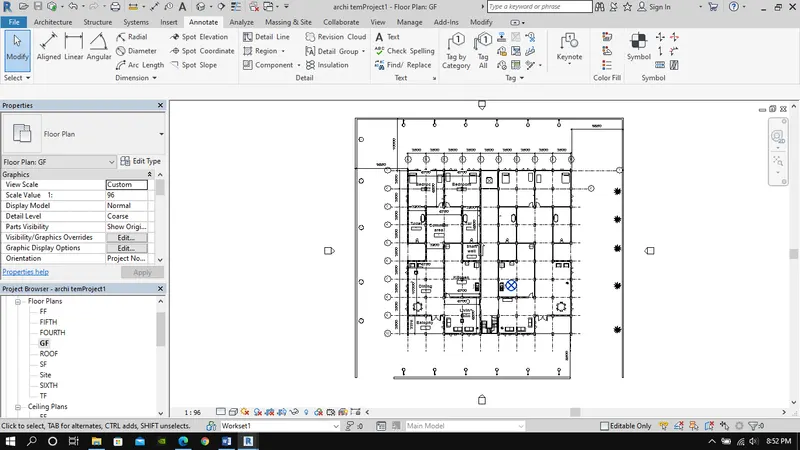

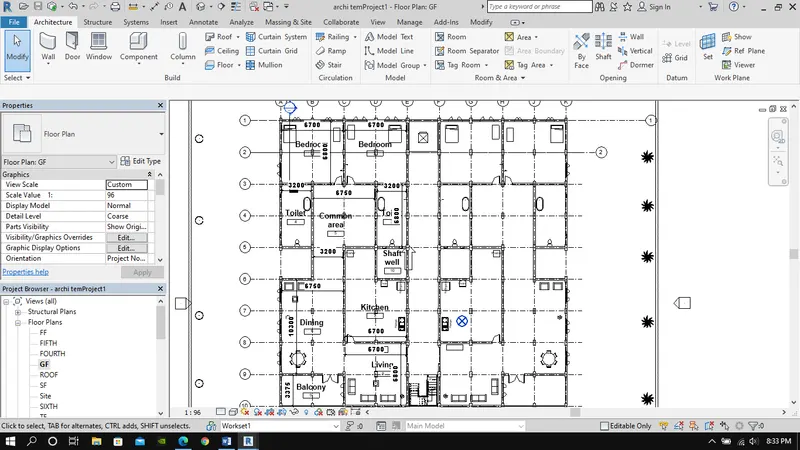

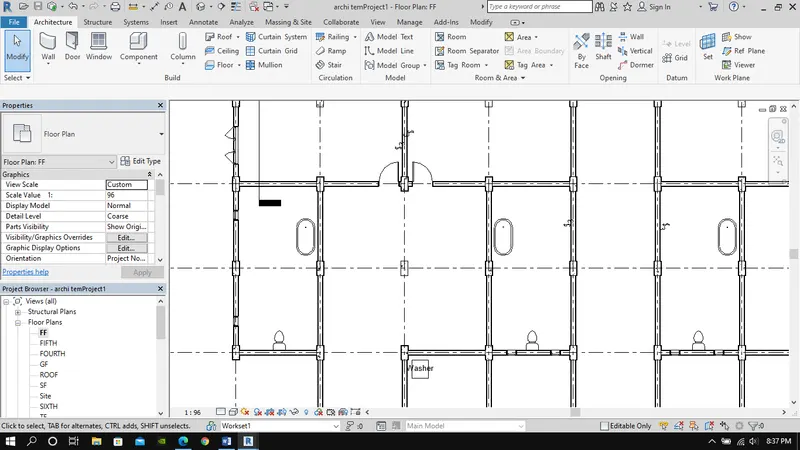

a. Floor Plans with Annotations

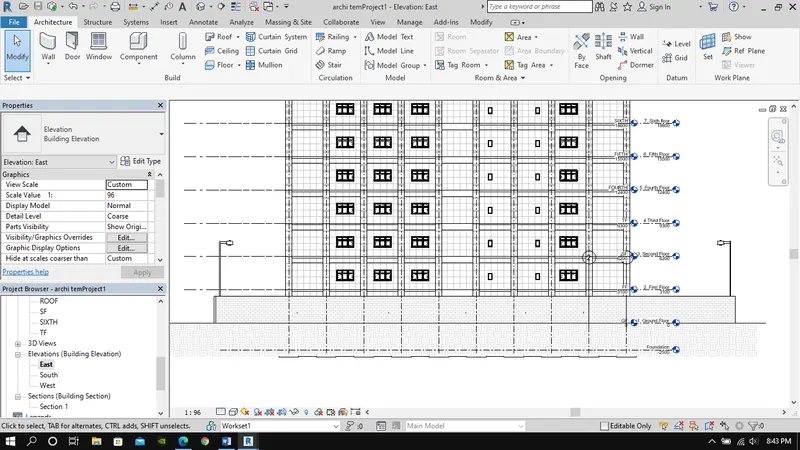

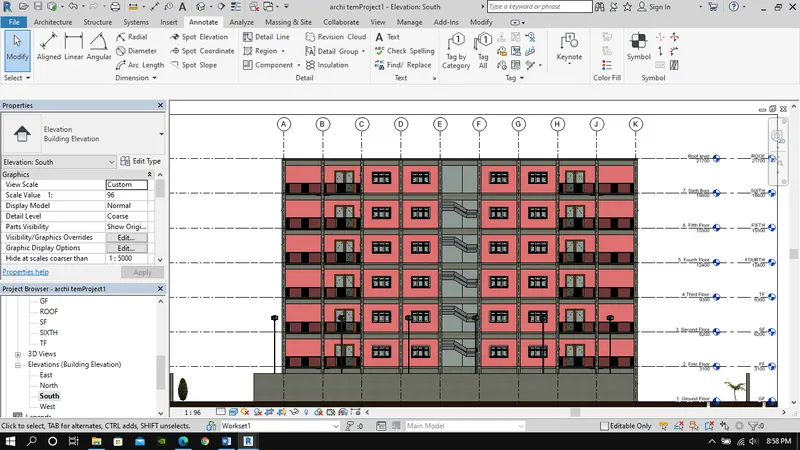

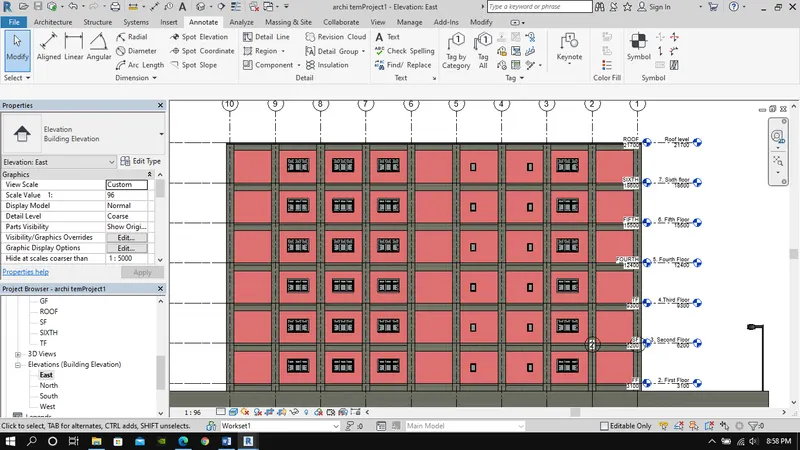

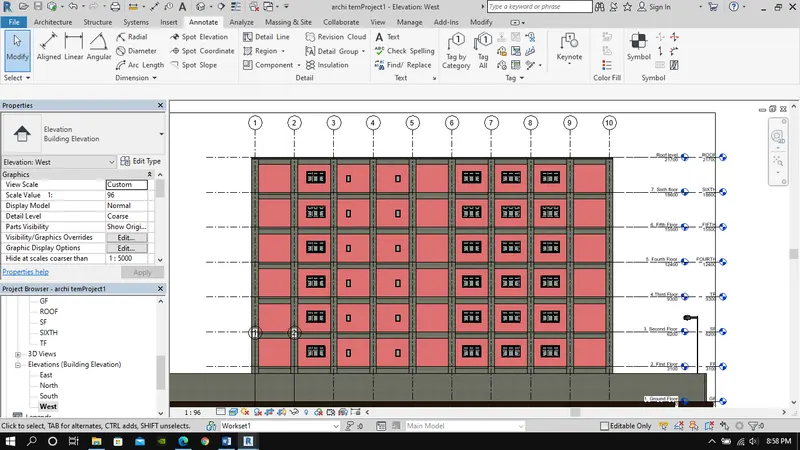

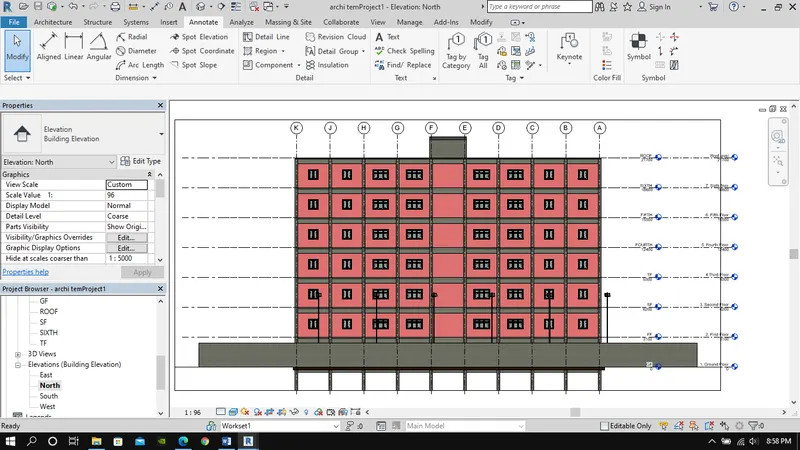

b. Elevations

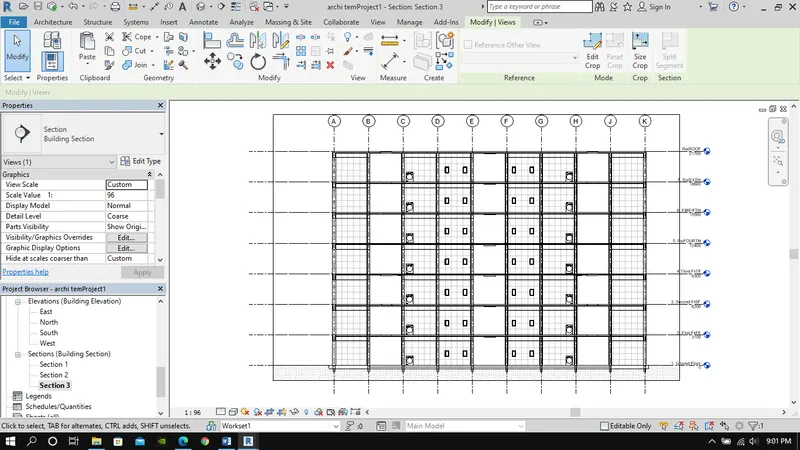

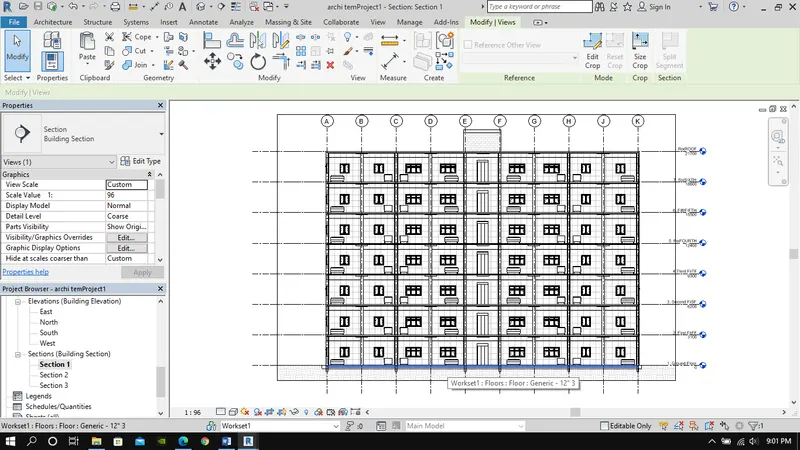

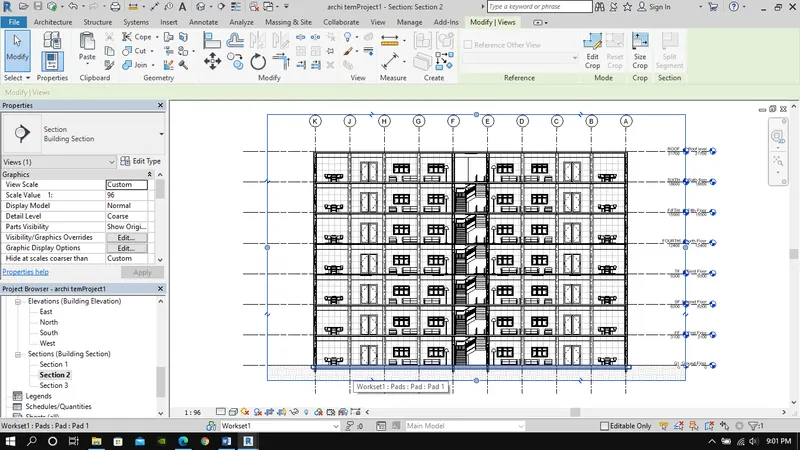

c. Sections

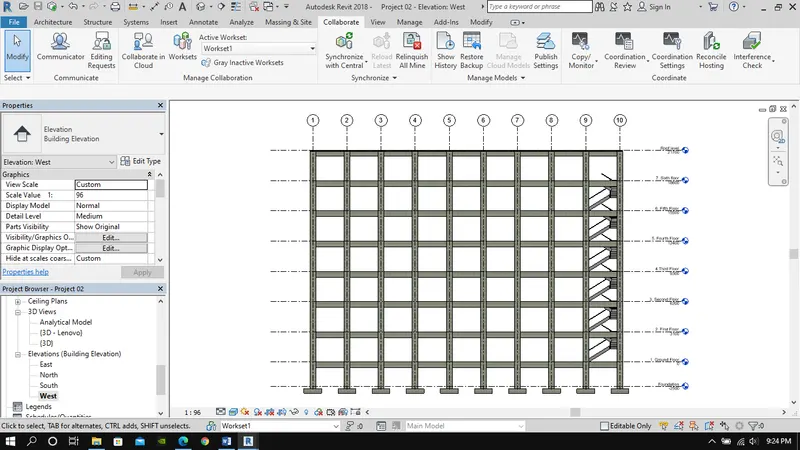

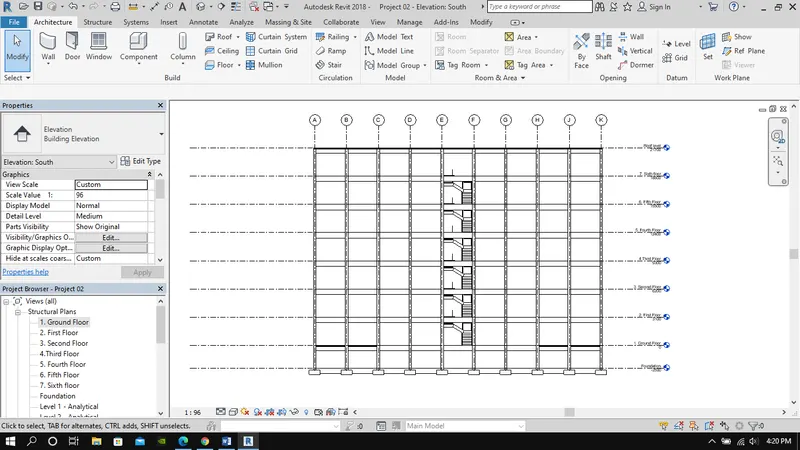

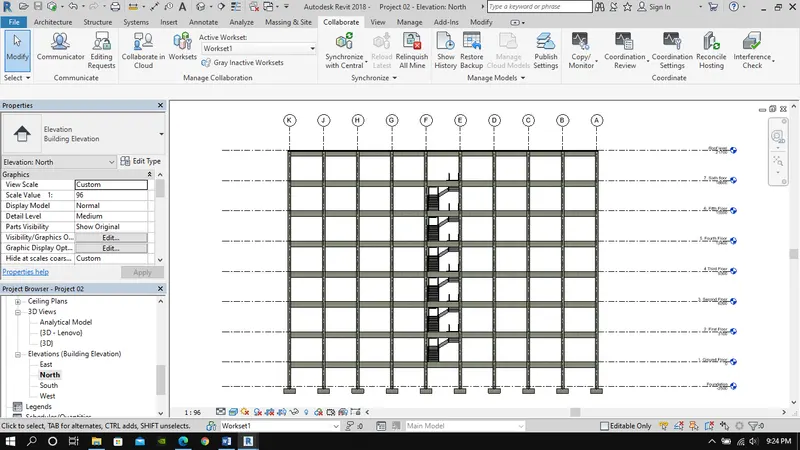

Structural elevations

Result: Details from architectural & structural layouts

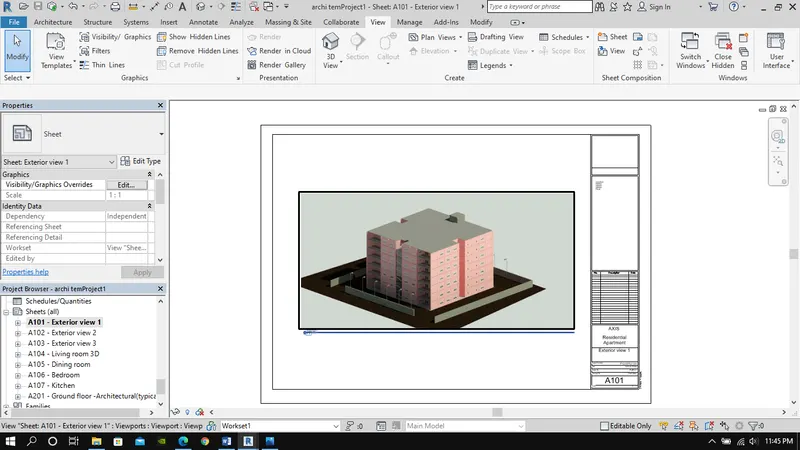

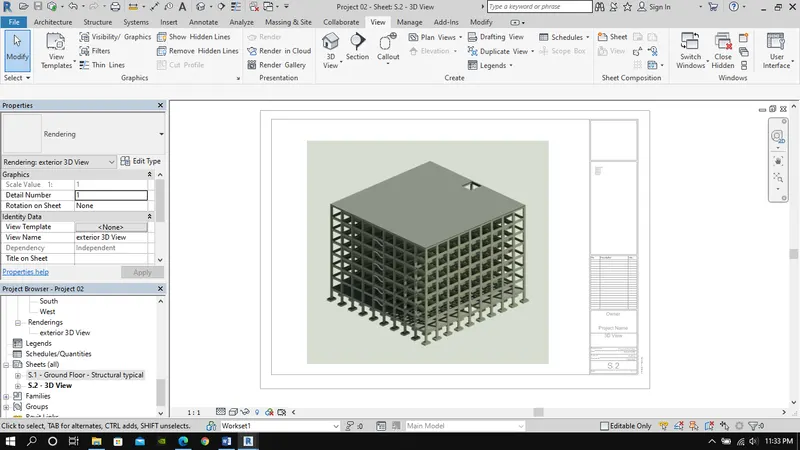

Question:6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

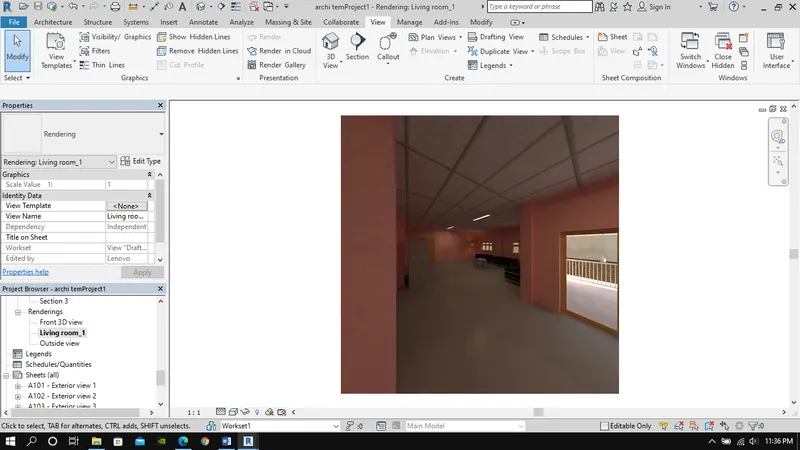

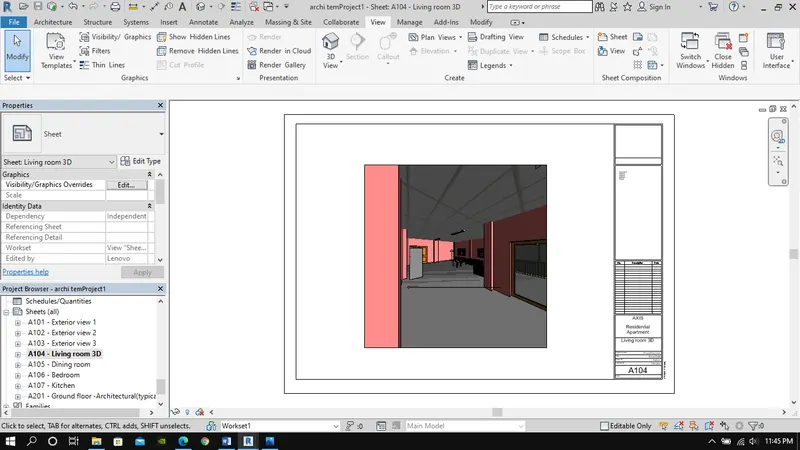

a. Rendering from interior rooms

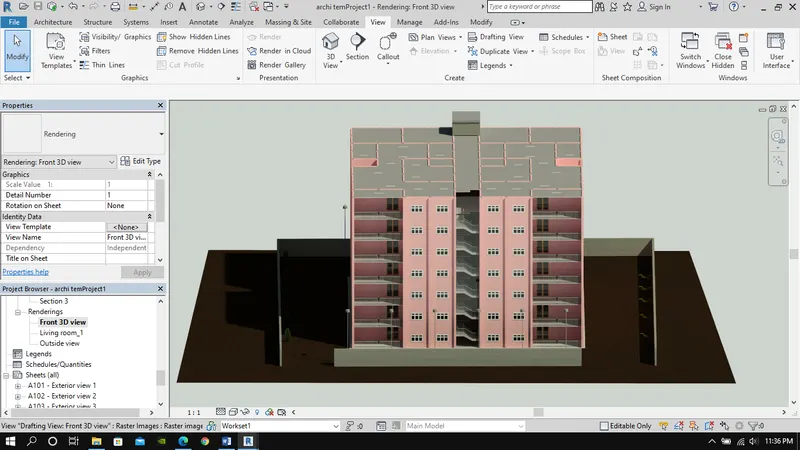

b. Rendering from out showing topographic features

c. Rendering through structural framing

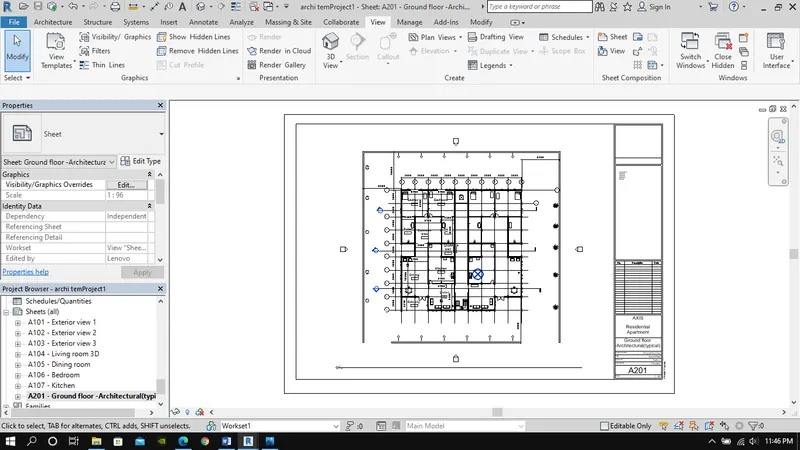

Question:7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model

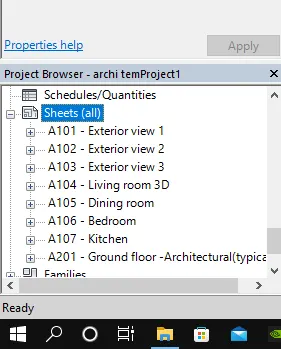

Step 1:)

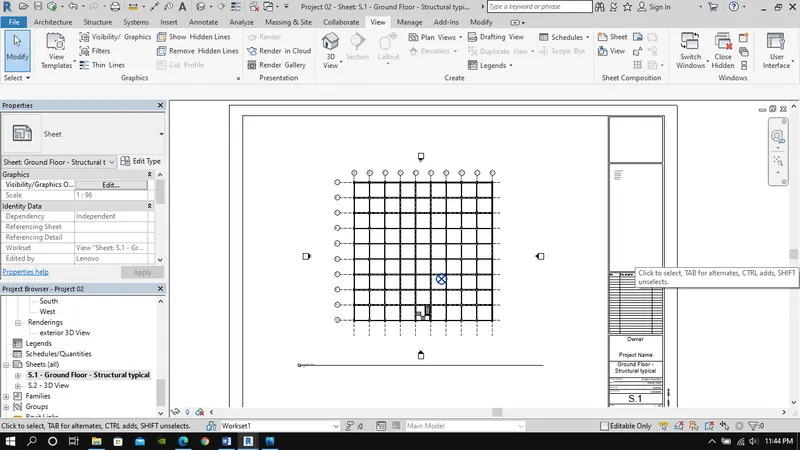

Step 2:) Structural sheet

Step 3:) Architectural sheet

Result: Sheets ready for printing
