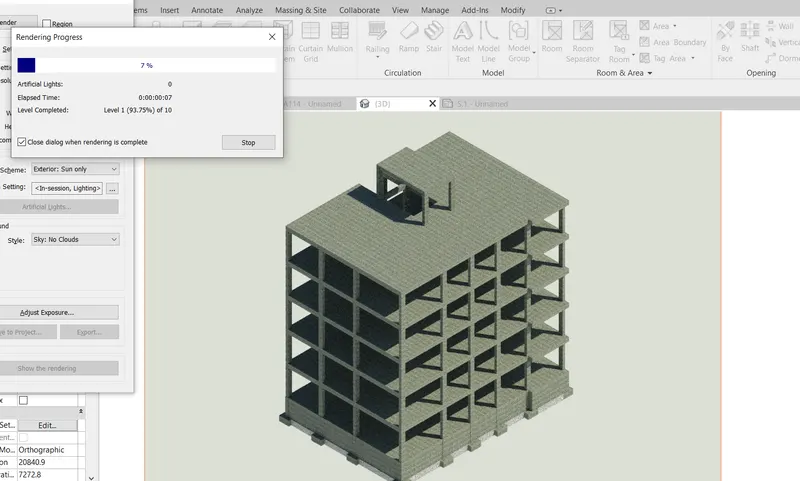

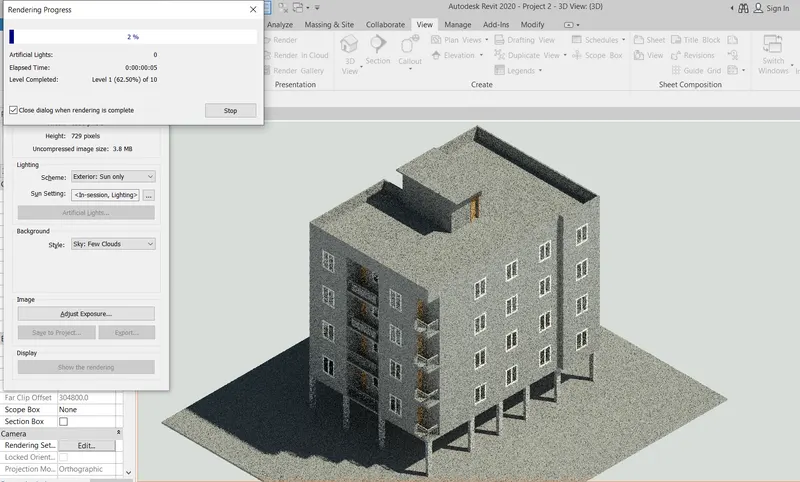

Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
AIM : TO CREATE MULTIPLE STORE RESIDENTIAL BUILDING UNIT
PROCEDURE :
HERE I AM SELECT THE MULTI UNIT RESIDENTIAL APARTMENT
THIS ONE I CAN DO IT

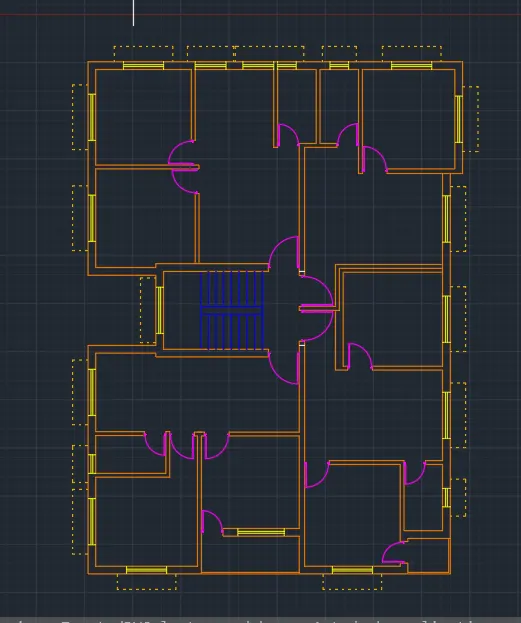

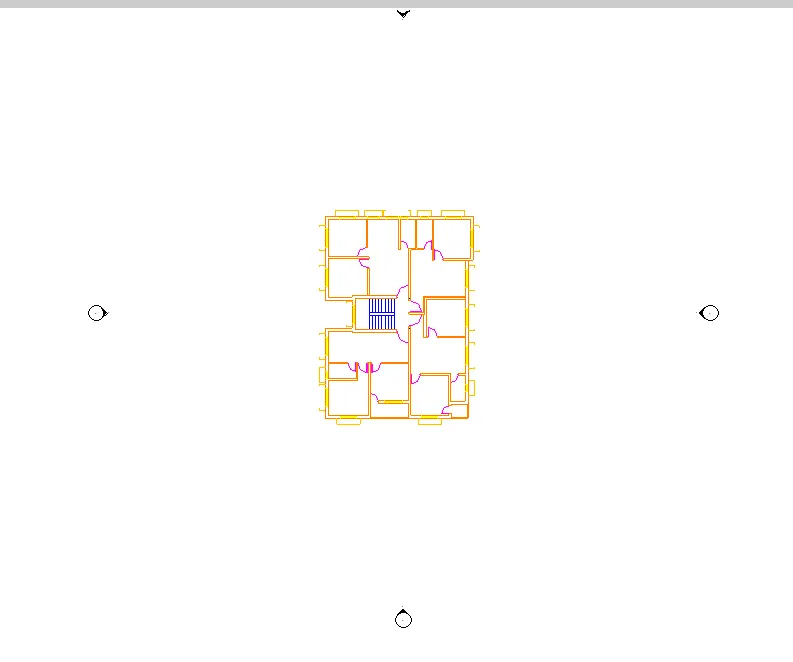

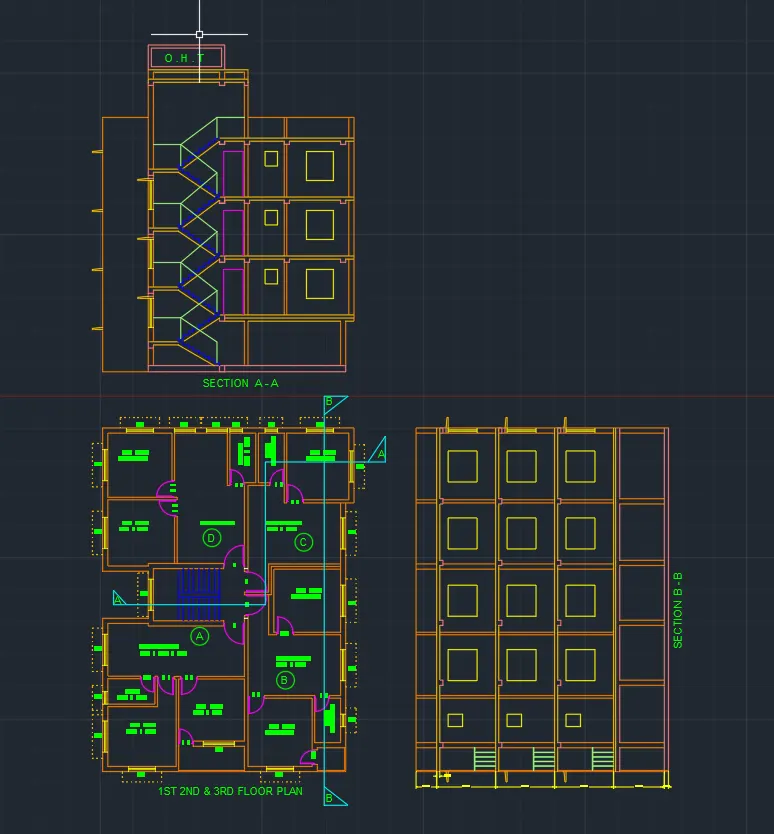

AUTOCAD FILE
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
AIM : TO SET GEOGRAPHIC AND LOCATION DETAILS FOR YOUR PROJECT MODELING.
PROCEDURE :

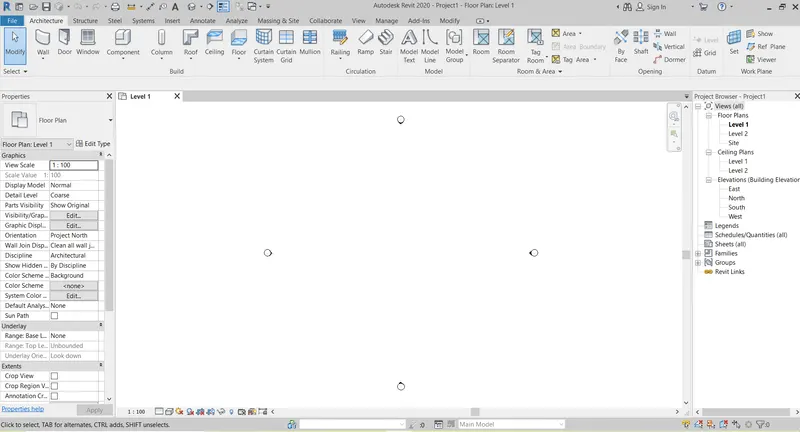

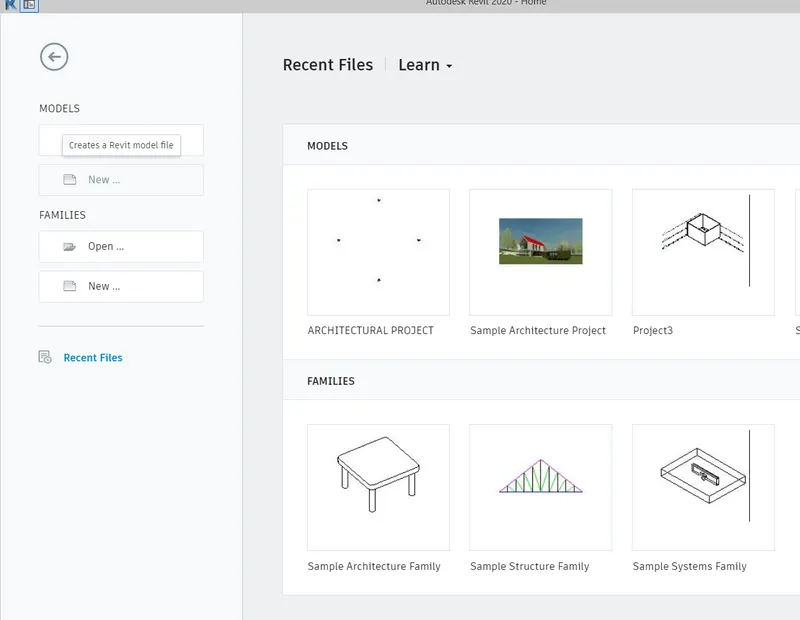

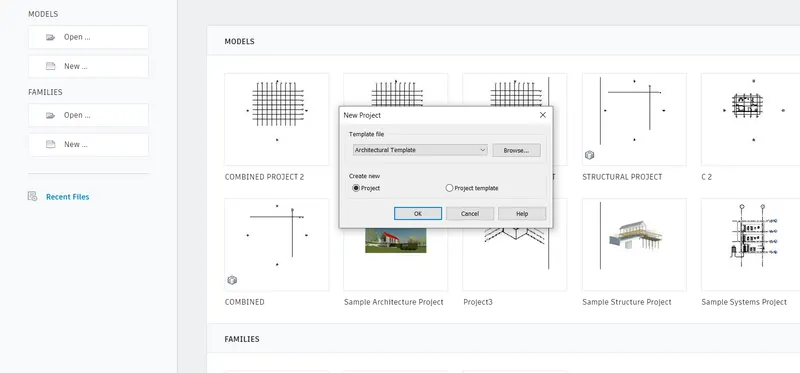

STEP 1 : TO OPEN REVIT SOFTWARE
DOBLE CLICK ON REVIT ICON
CLICK ON NEW IN HOME PAGE

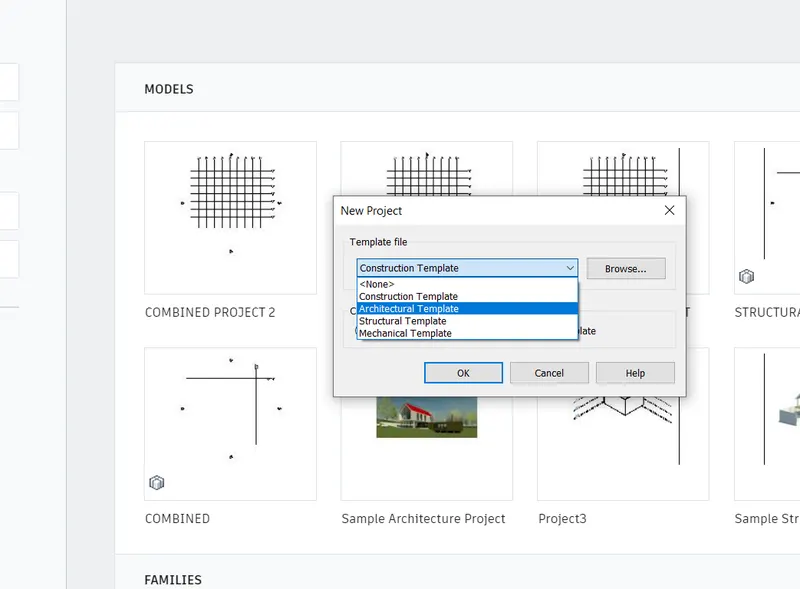

SELECT THE TAPLATE FILE AS ARCHITECTURAL TEMPLATE
CREATE NEW AS PROJECT
FINALY CLICK ON OK

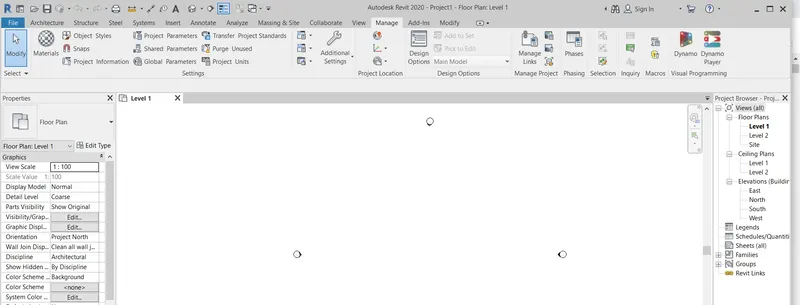

STEP 2 : TO ADD THE REQUIRED PROJECT LOCATION
GO TO MANAGE TAB
THEN GO TO PROJECT LOCATION OPTION
CLICK ON THE LOCATION
TO SET THE LOCATION AS YOUR REQUIRED LOCATION
STEP 3 : TO SAVE THE PROJECT
GO TO FILE TAB
SLECT ON SAVE
GIVE THE FILE LOCATION
GIVE THE FILE NAME
RESULT :
TO SETED THE REQUIRED LOCATION ON MY PROJECT
3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

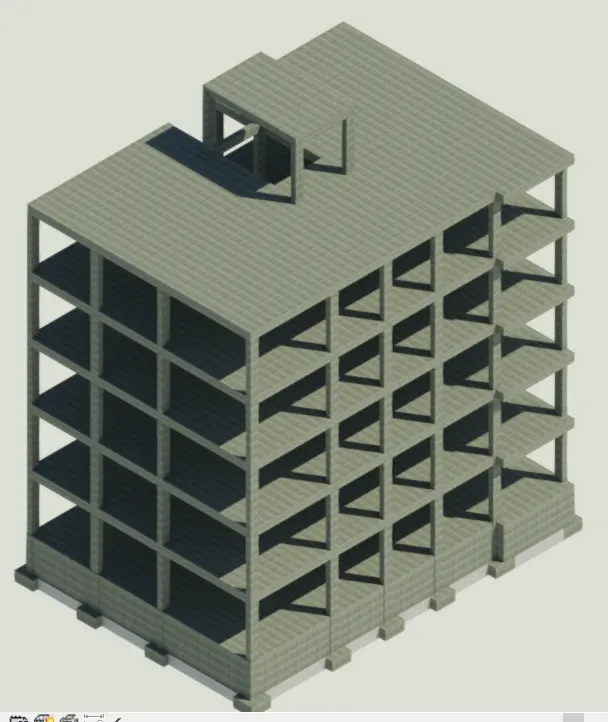

AIM : TO CREATE THE MULTI STORY RESIDENTIAL UNIT ON STRUCTURAL DATILES BY USING STRUCTURAL TEMPLATE
TO CREATE THE COMPONENTS AS
FOUNDATION BASED ON YOUR PROJECT
COLUMNS
BEAMS CONNECTED WITH COLUMNS
ROOF FRAMING
FLOORS
FLOORS OPENING
PROCEDURE :
STEP 1 : TO OPEN NEW ARCHITECTURAL TEMPLATE.
GO TO REVIT 2020 ICON
DOBLE CLICK ON REVIT
ON THE HOME PAGE CLICK ON NEW
SELECT ARCHITECTURAL FILE
CLICK ON OK
.

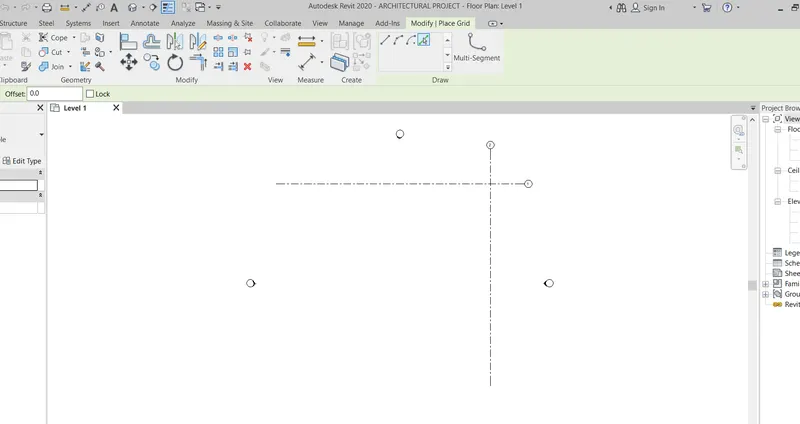

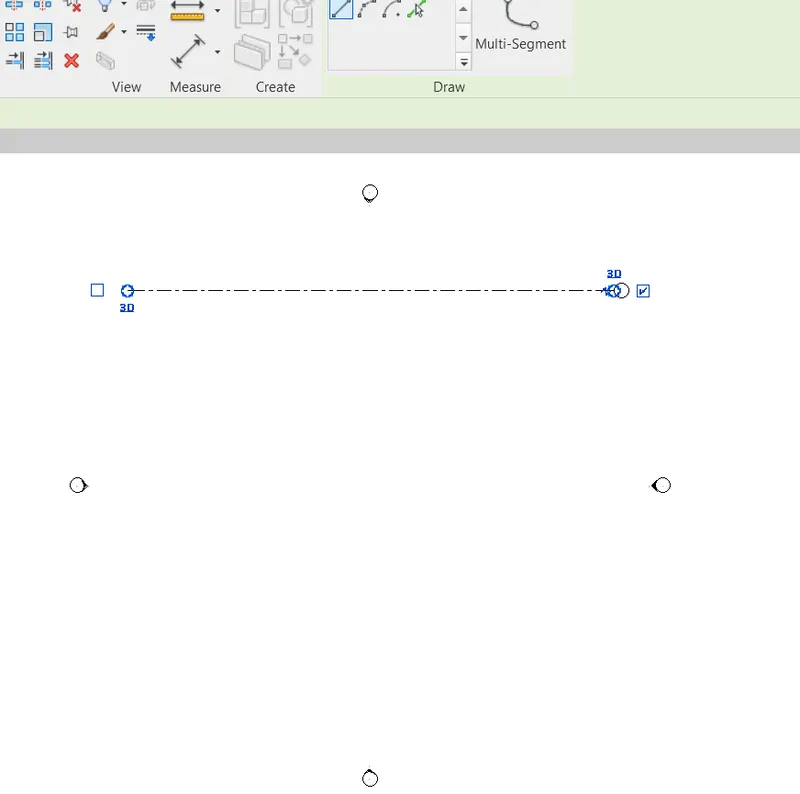

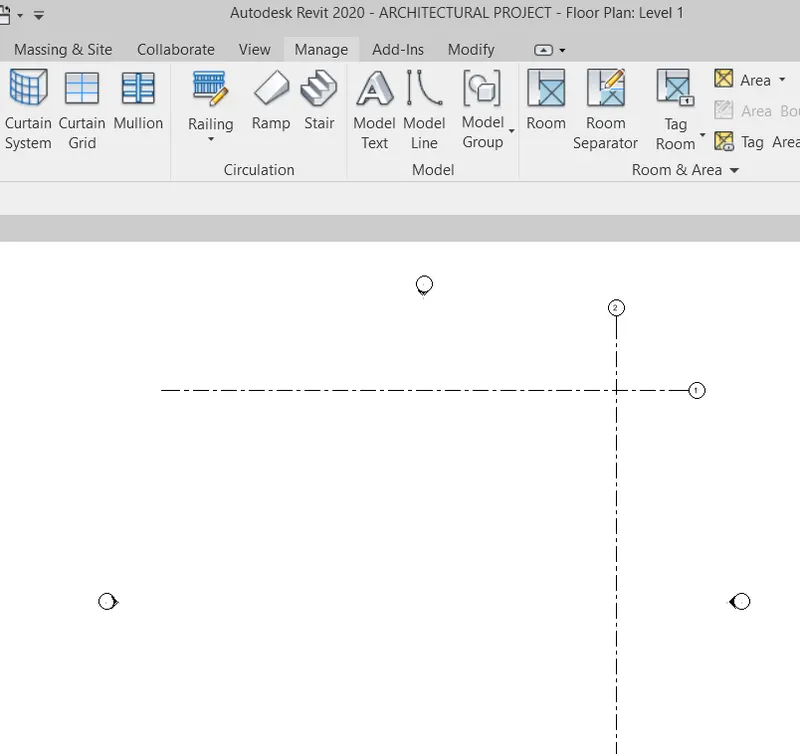

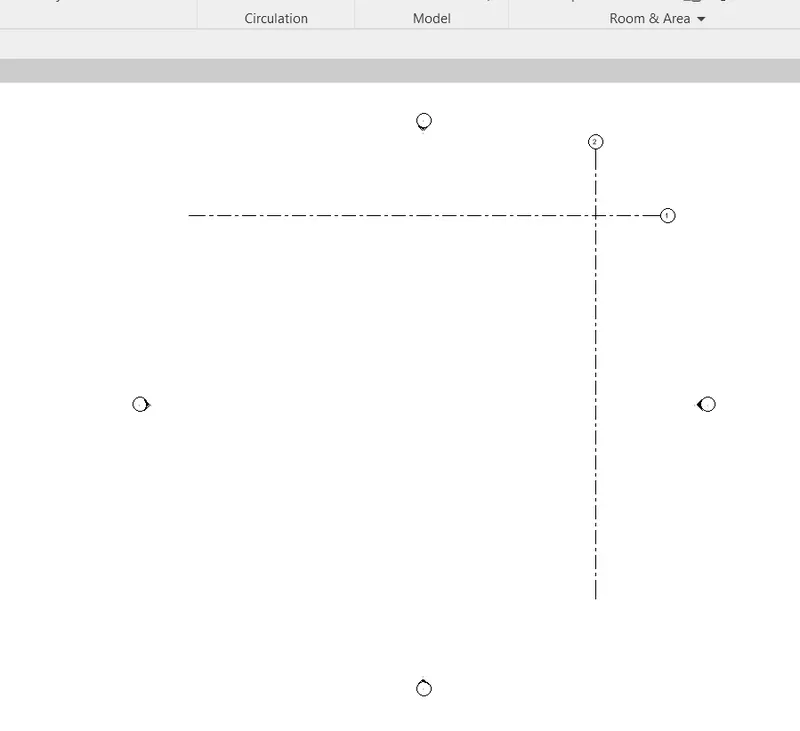

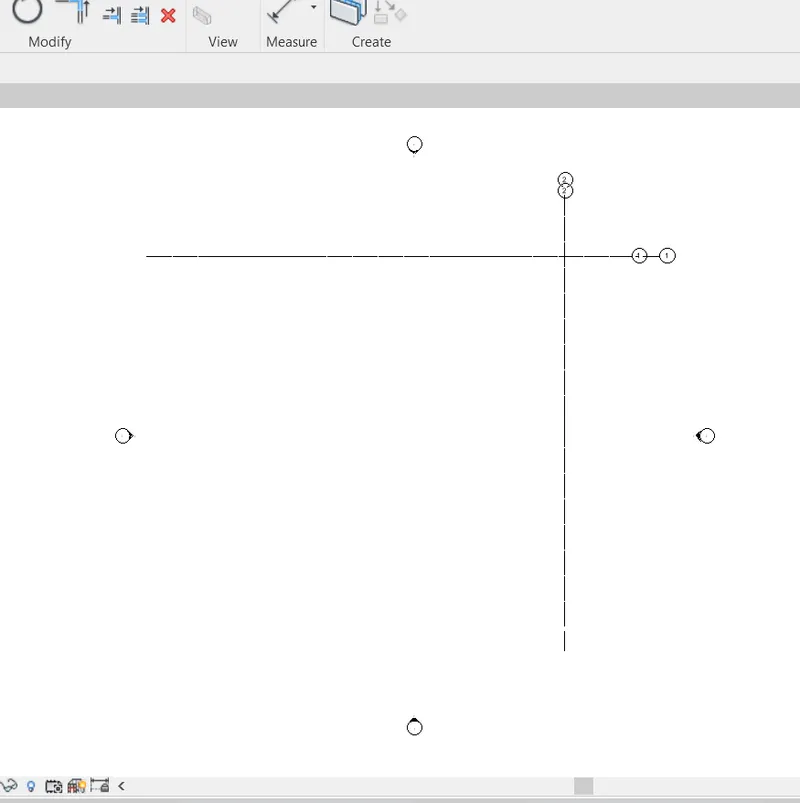

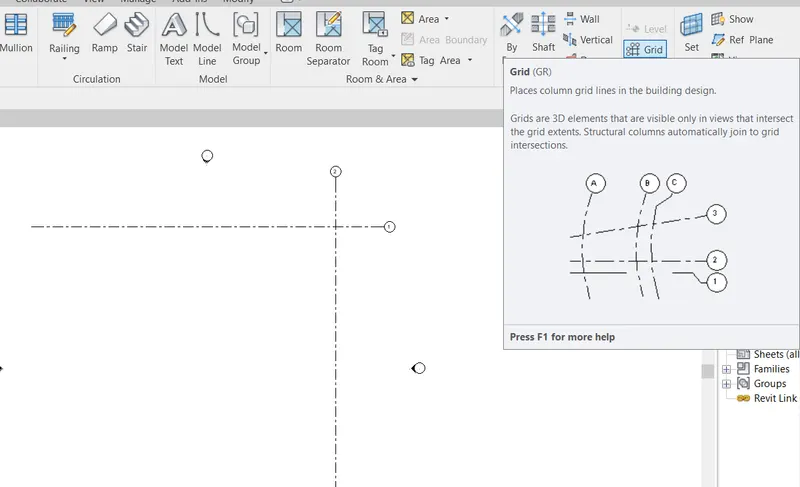

STEP 2 : TO DRAW THE GRID LINES AND BASE POINT
GO TO ARCHITECTURAL TAB
GO TO DATUM OPTION

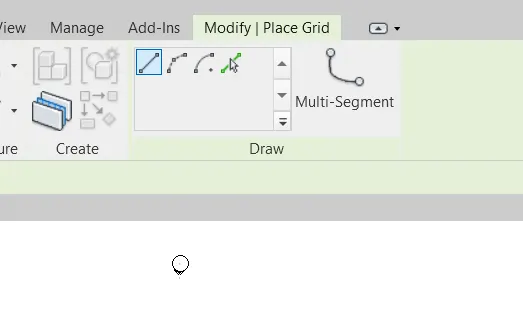

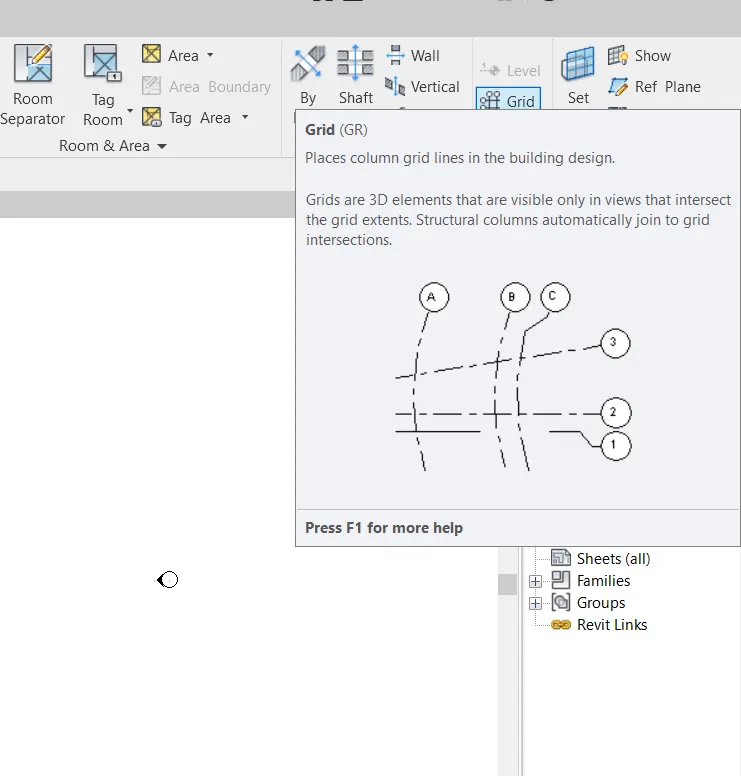

TAKE GRID LINE
TAKE REQURIED DRAW COMMANED
DRAW THE REQUIRED LAYOUT

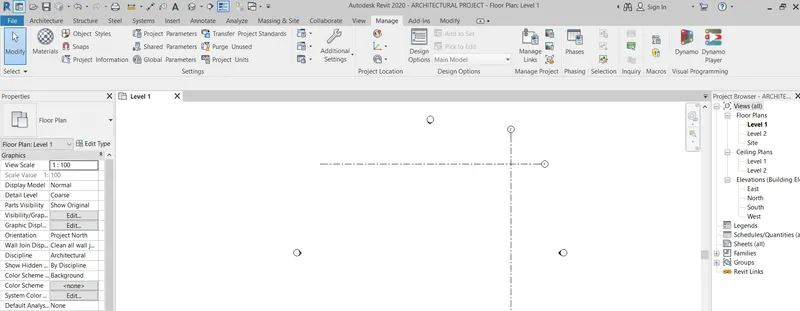

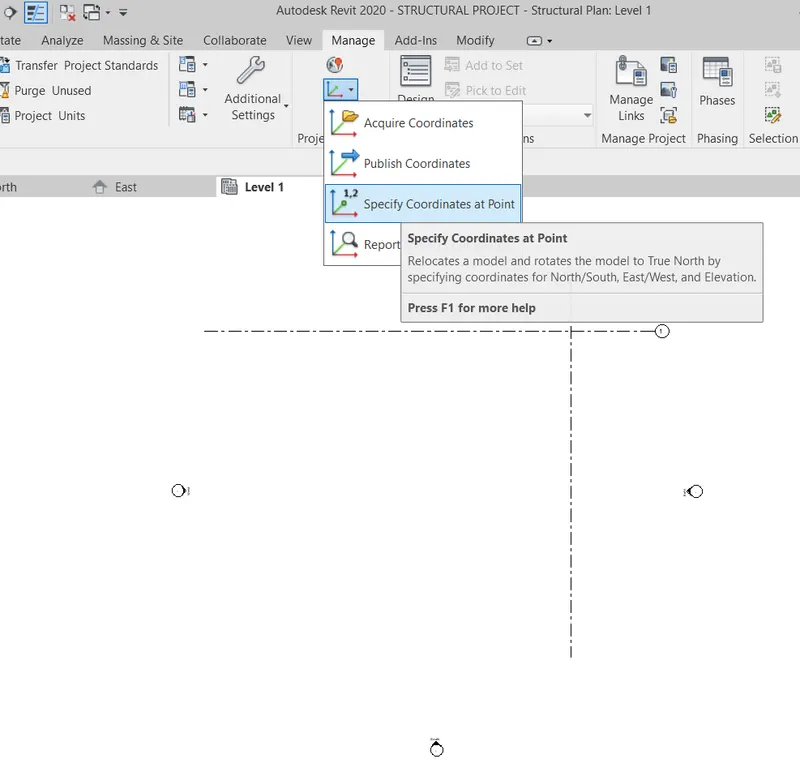

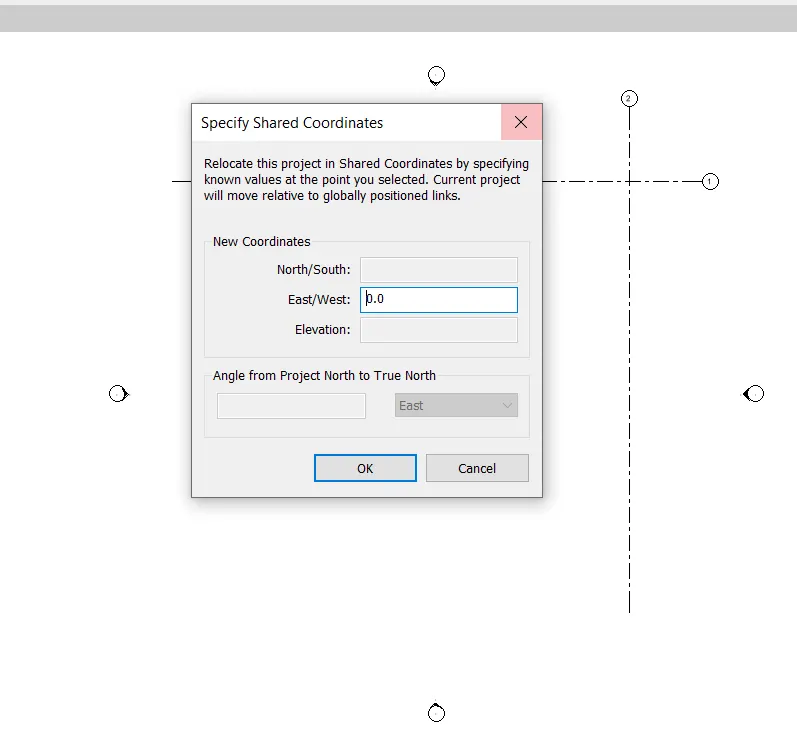

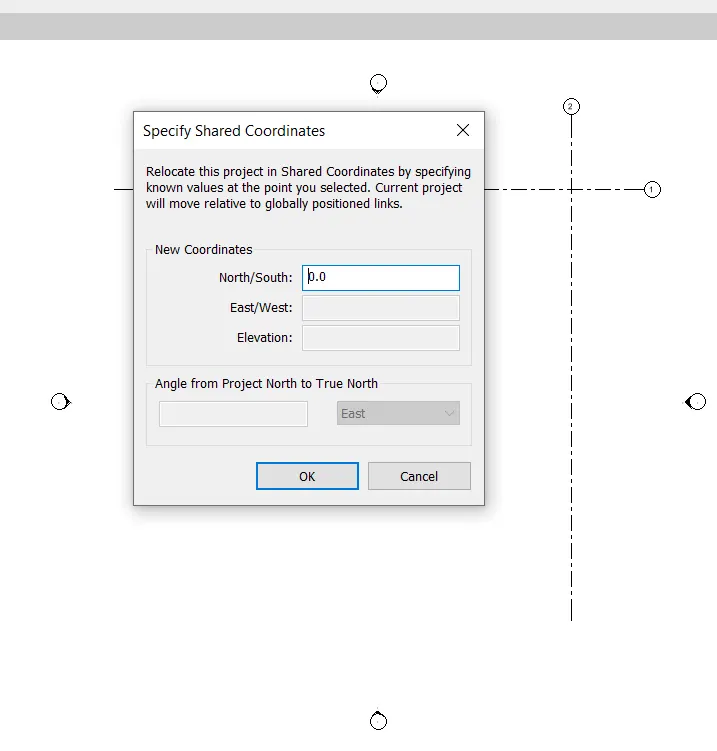

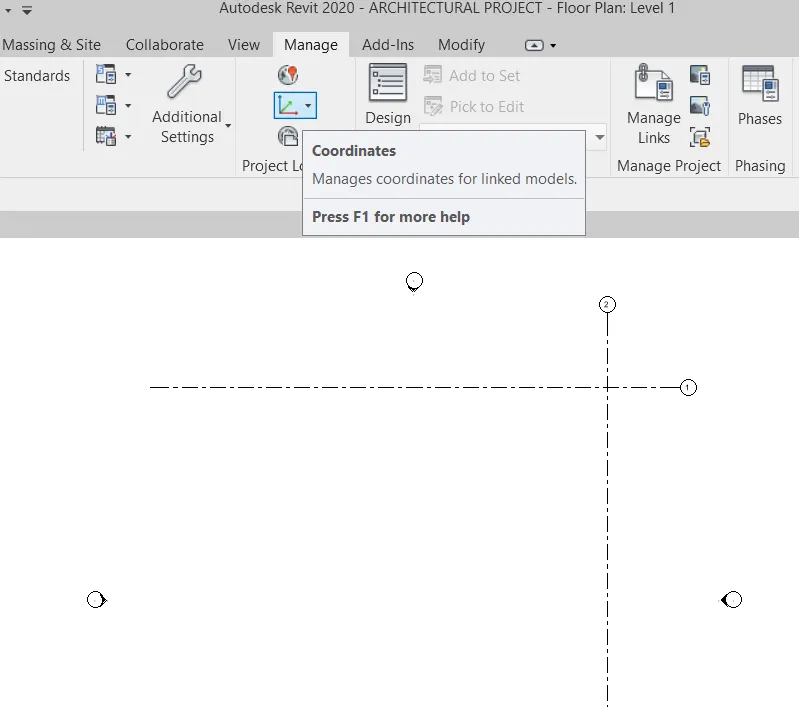

STEP 3 : TO SETTING PROJECT COORDINATES
GO TO MANAGE TAB
GO TO COORDINATES
TAKE SPECIFY COORDINATES AT POINT

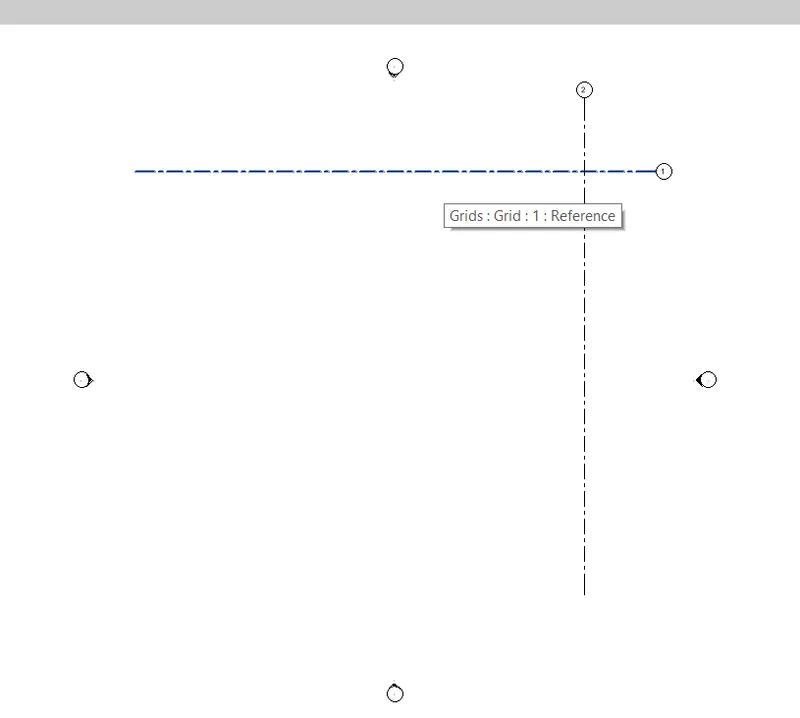

CLICK ON THE VERTICAL GRIDLINE AND SET EAST/WEST AS 00 AS SHOWN IN THE BELOW
AS WELL AS
CLICK ON THE VERTICAL GRIDLINE AND SET NORTH/SOUTH AS 00 AS SHOWN IN THE BELOW

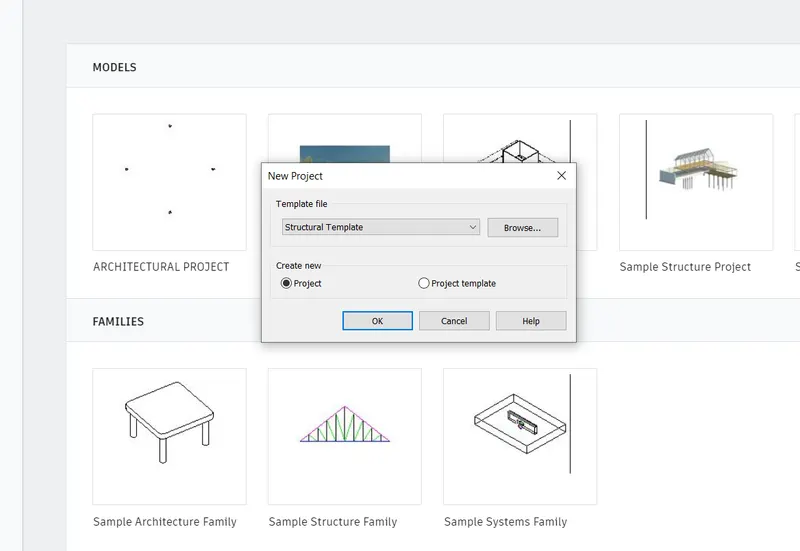

STEP 4 : TO OPEN NEW STRUCTURAL TEMPLATE.
GO TO REVIT 2020 ICON
DOBLE CLICK ON REVIT
ON THE HOME PAGE CLICK ON NEW
SELECT STRUCTURAL TEMPLATE
CLICK ON OK

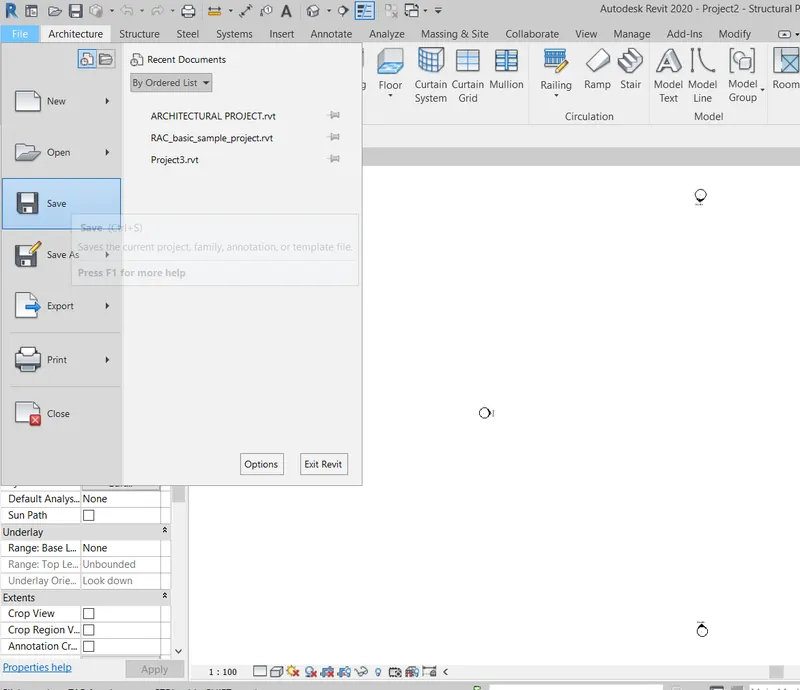

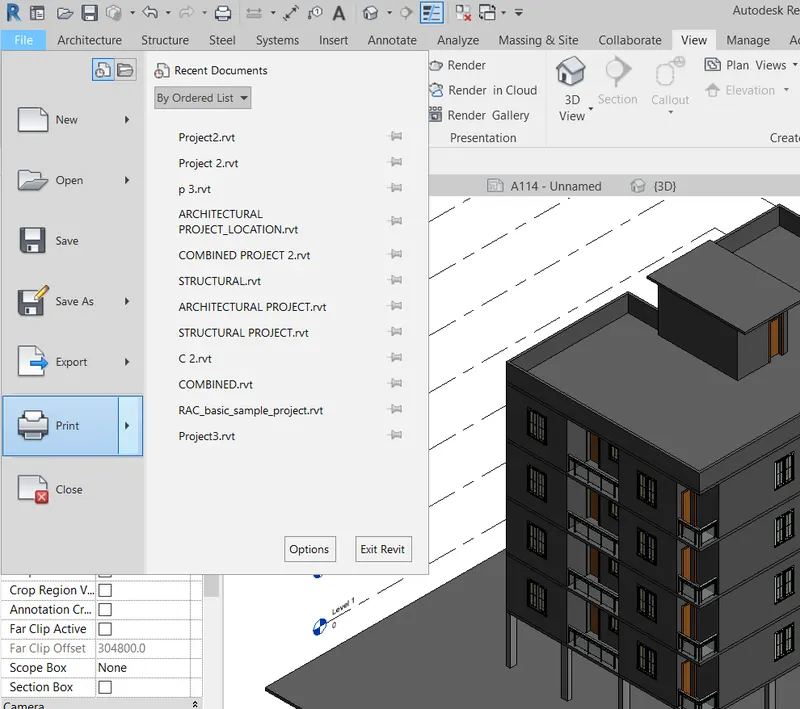

STEP 5 : TO SAVE THE PROJECT
GO TO FILE TAB
SLECT ON SAVE
GIVE THE FILE LOCATION
GIVE THE FILE NAME

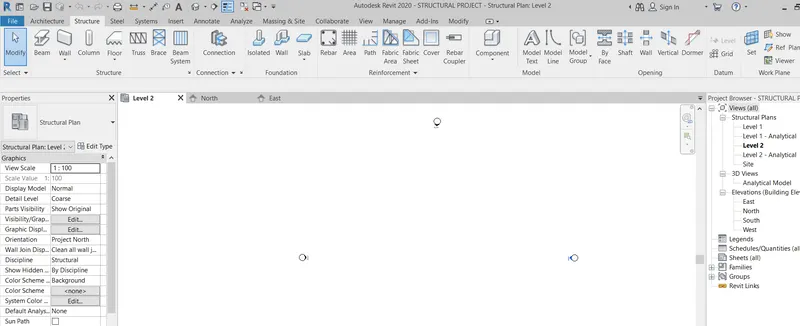

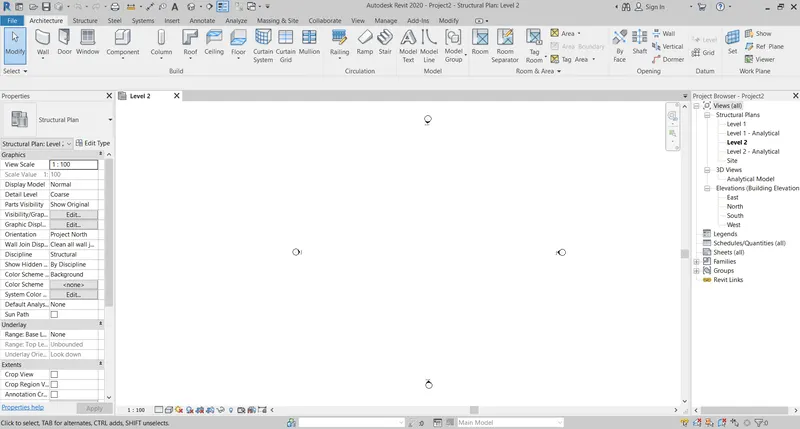

STEP 6 : TO DRAW THE GRID LINES AND BASE POINT
GO TO STRUCTURAL TAB
GO TO DATUM OPTION
TAKE GRID LINE
TAKE REQURIED DRAW COMMANED
DRAW THE REQUIRED LAYOUT

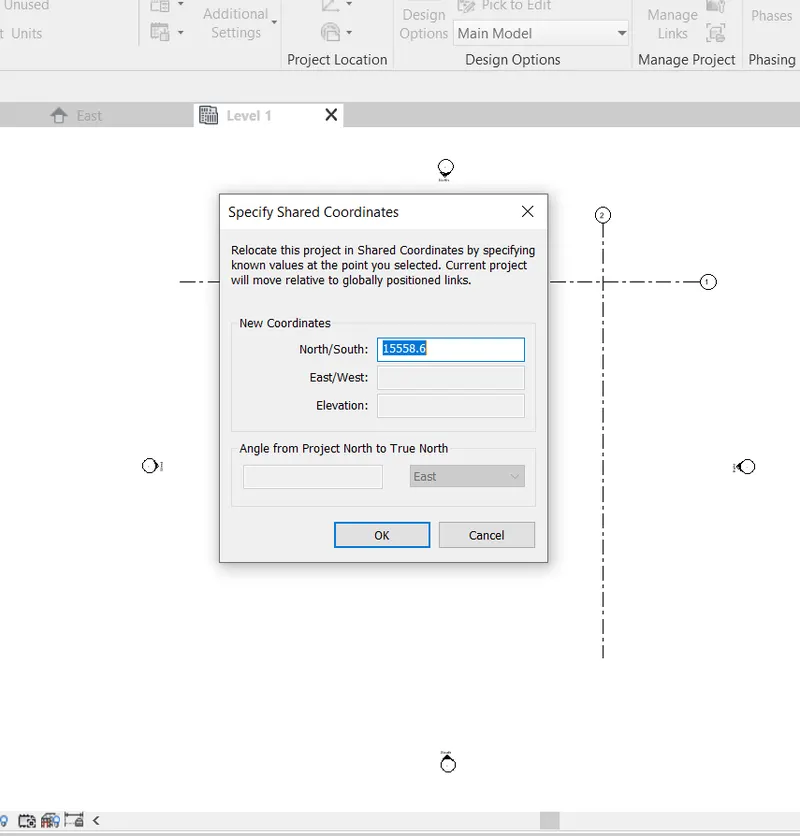

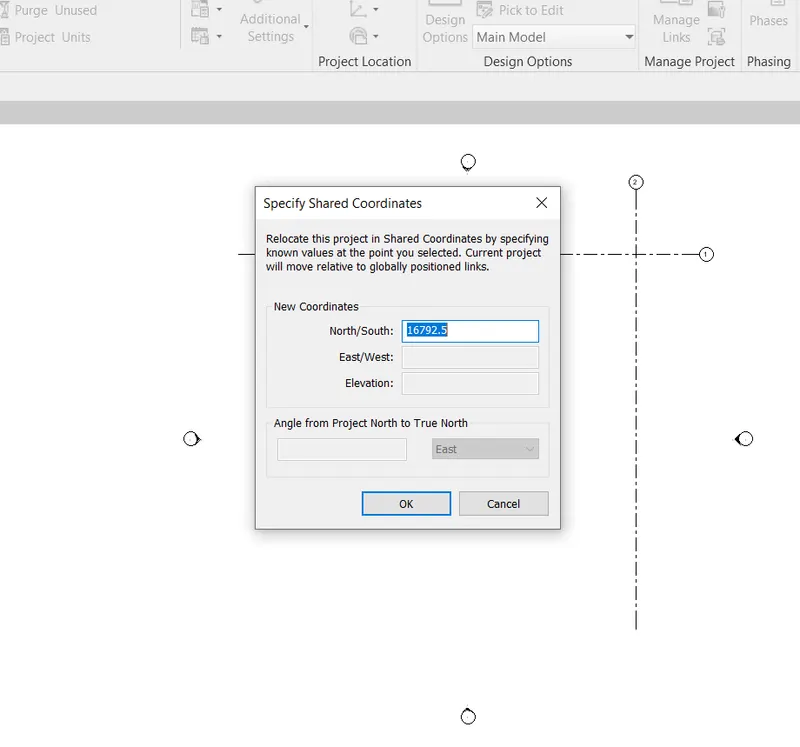

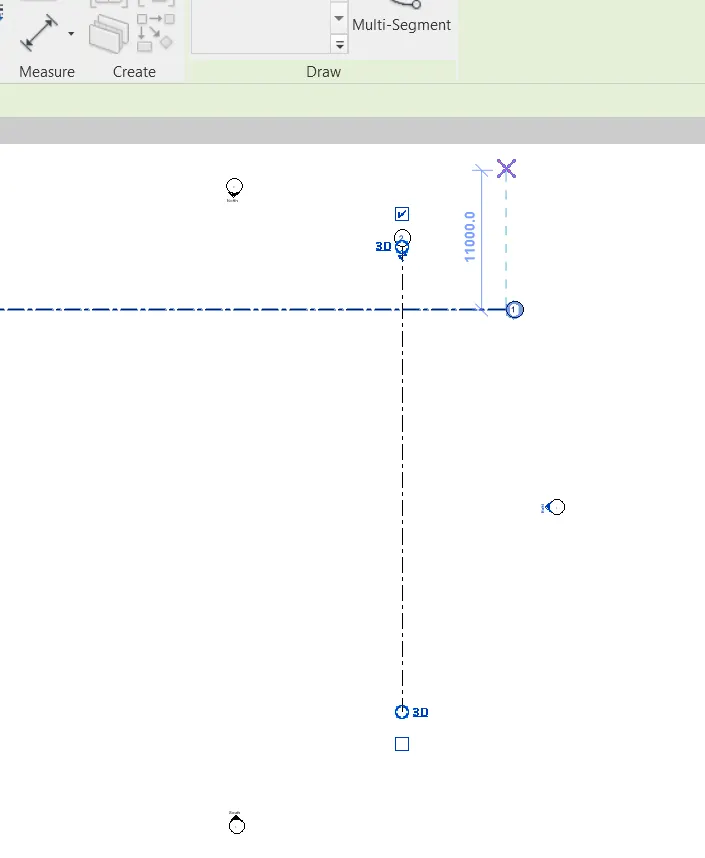

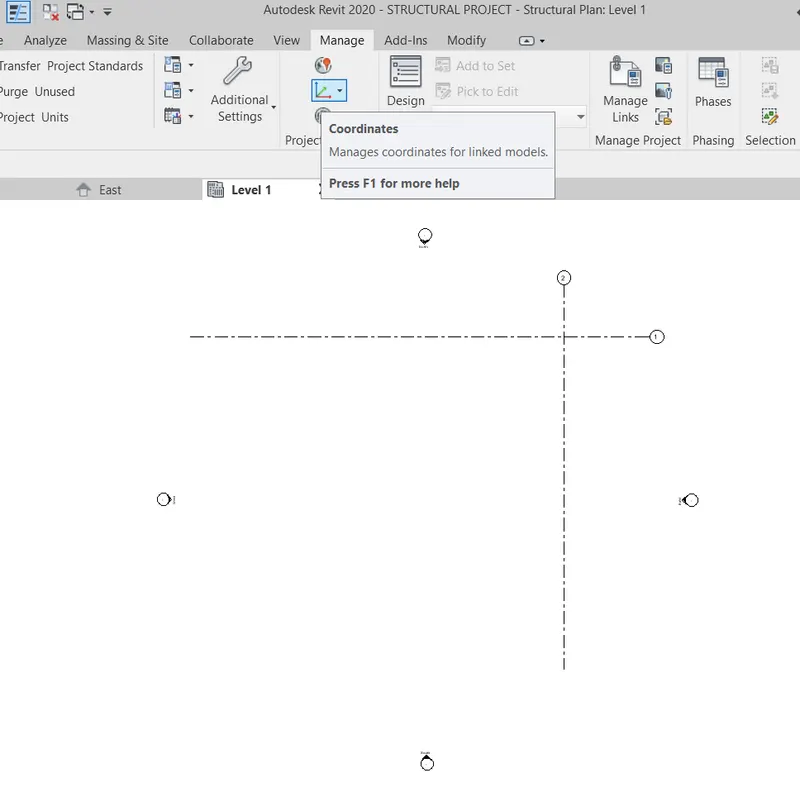

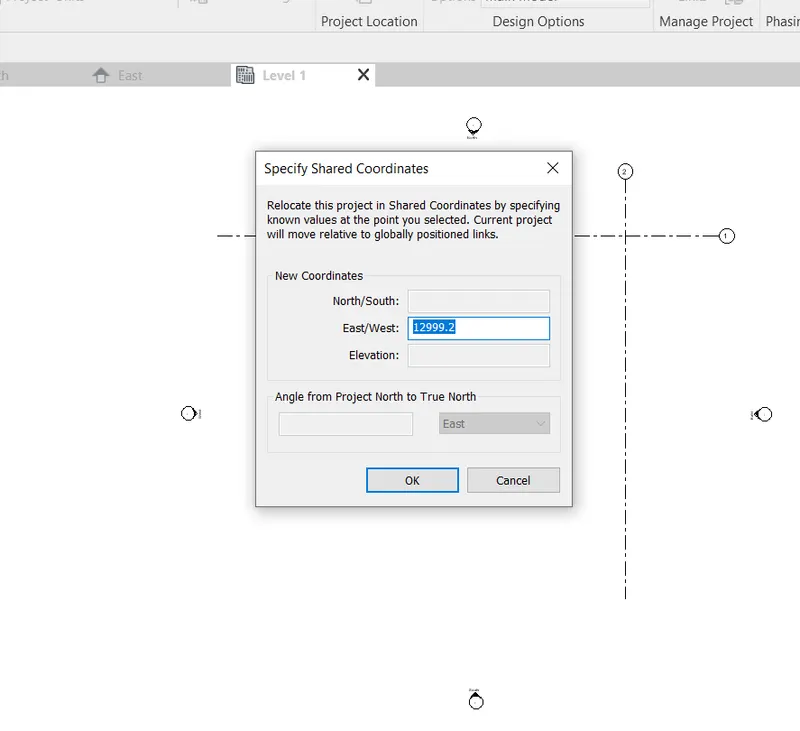

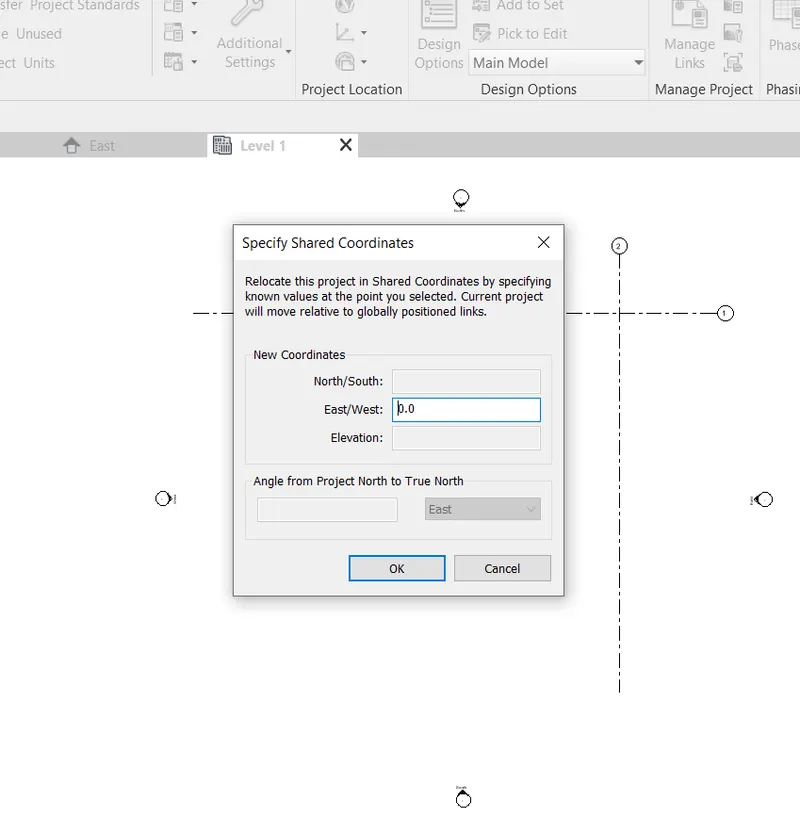

STEP 7 : TO SETTING PROJECT COORDINATES
GO TO MANAGE TAB
GO TO COORDINATES
TAKE SPECIFY COORDINATES AT POINT
CLICK ON THE VERTICAL GRIDLINE AND SET EAST/WEST AS 00 AS SHOWN IN THE BELOW
AS WELL AS
CLICK ON THE VERTICAL GRIDLINE AND SET NORTH/SOUTH AS 00 AS SHOWN IN THE BELOW

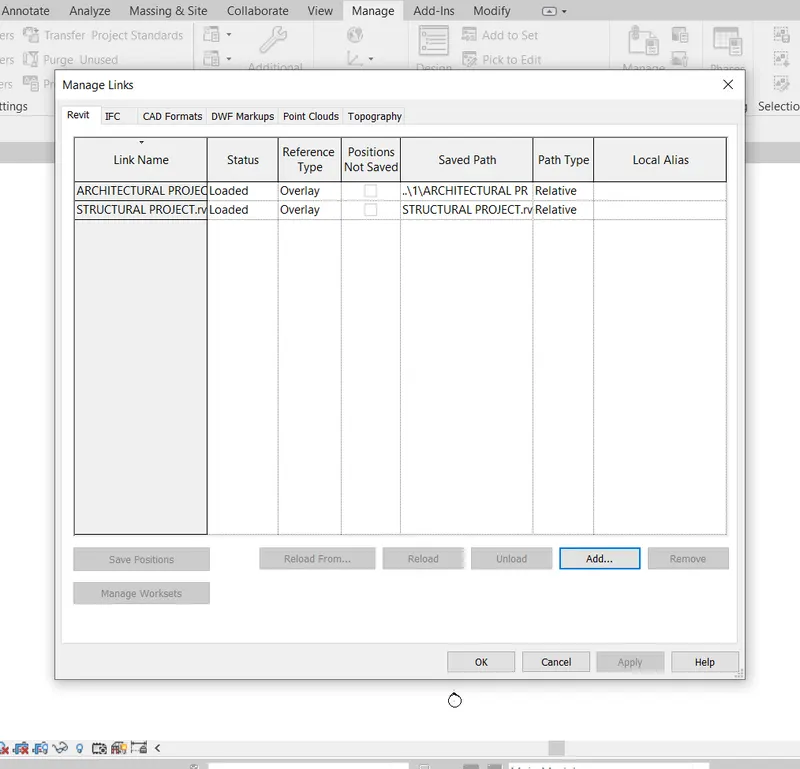

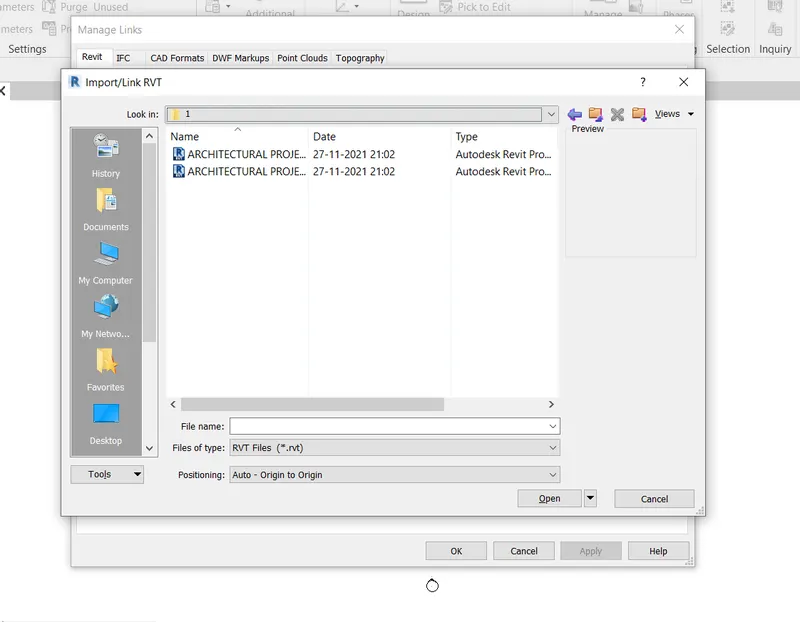

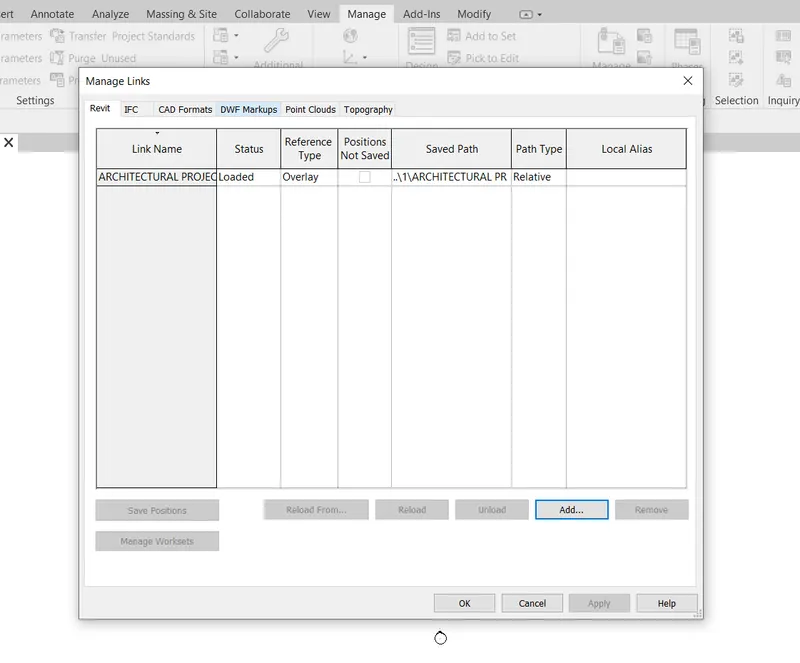

STEP 8 : TO COMBINED THE ARCHITECTURAL AND STRUCTURAL FILES
GO TO MANAGE TAB

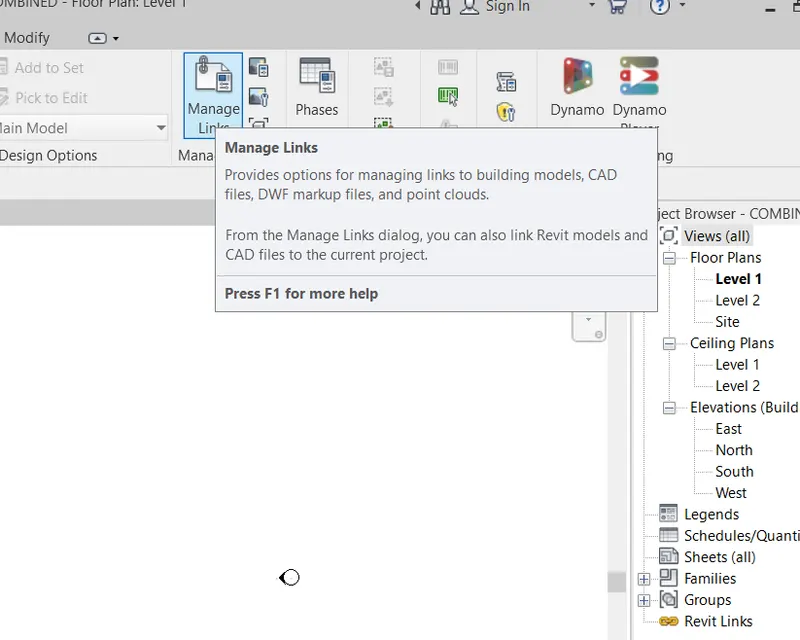

CLICK ON MANAGE LINKS
THEN CLICK ON ADD
THEN ADD BOTH ARCHITECTURAL AND STRUCTURAL FILES
AFTER ADDING LINKS GO TO THE MANAGE TAB
CLICK ON RELOCATE PROJECT BY CLICKING ON INTERSECTING POINTS

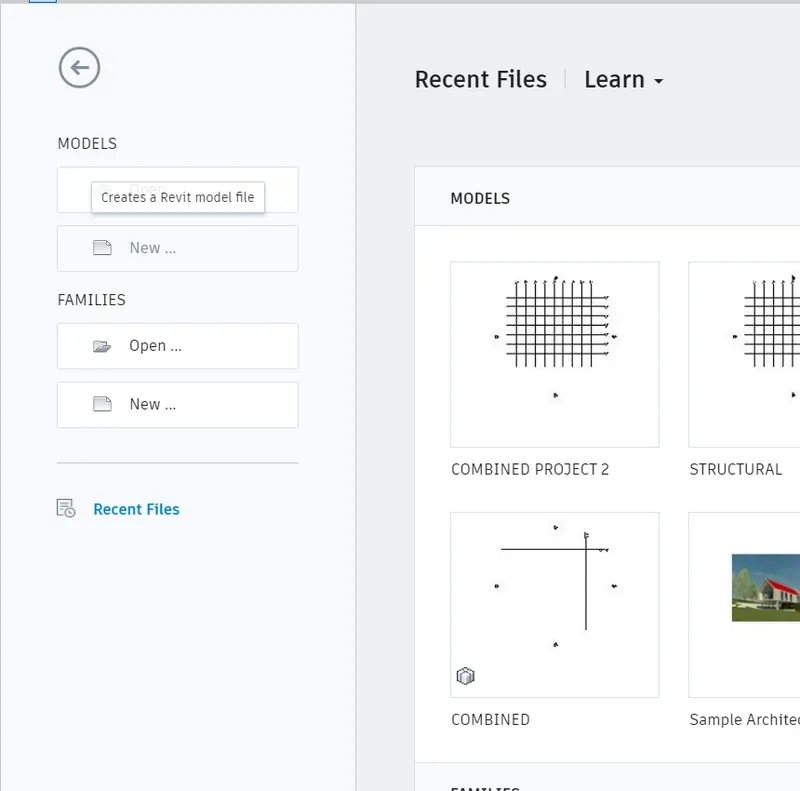

SETP 9 : TO RE OPEN THE ARECHITECTURAL MODEL
GO TO REVIT 2020 ICON
DOBLE CLICK ON REVIT
ON THE HOME PAGE
SELECT ARECHITECTURAL MODEL

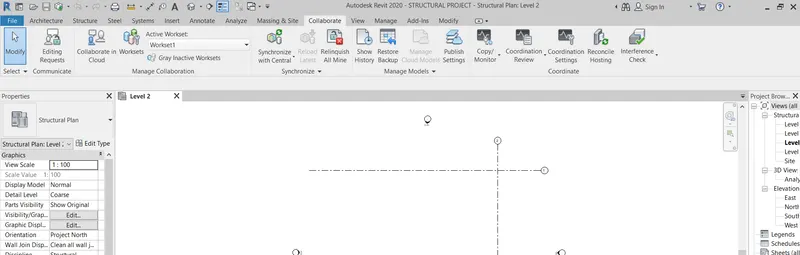

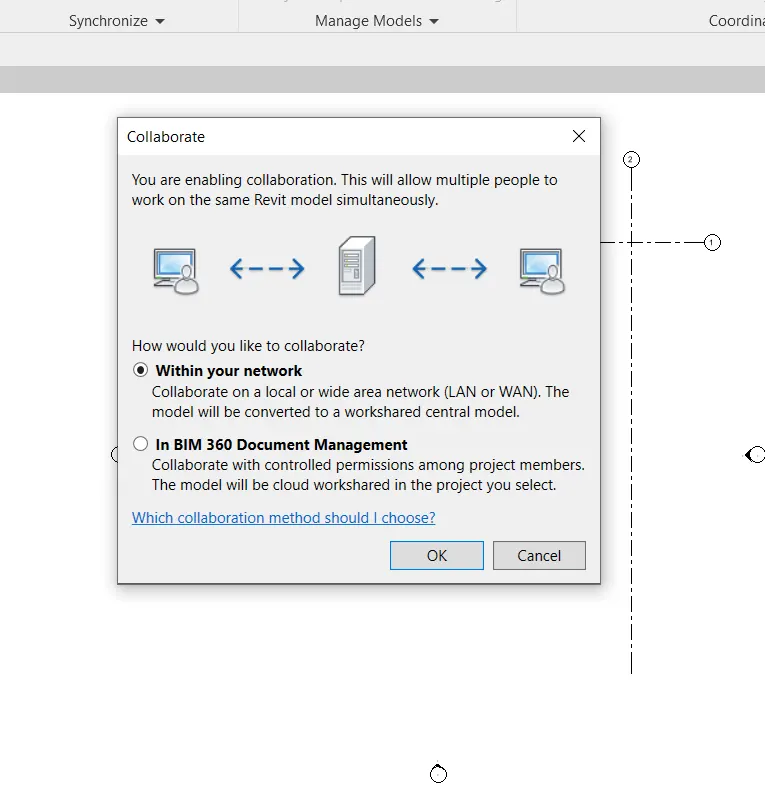

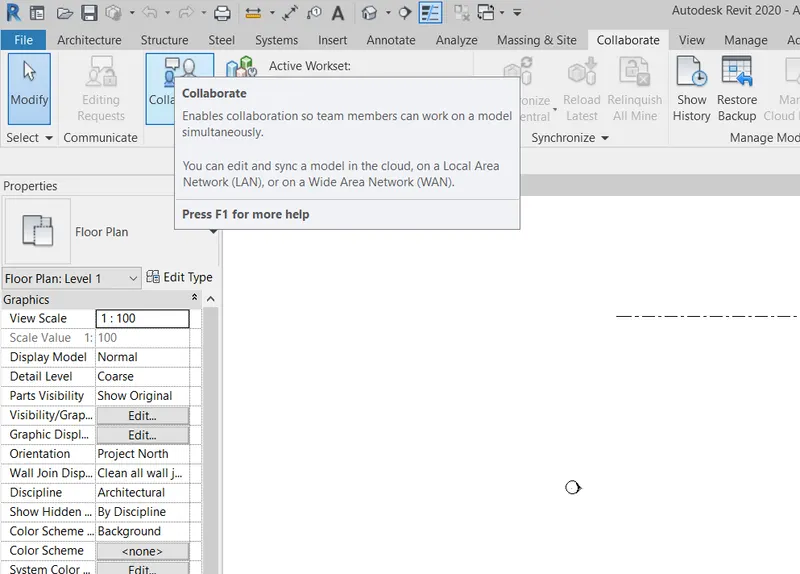

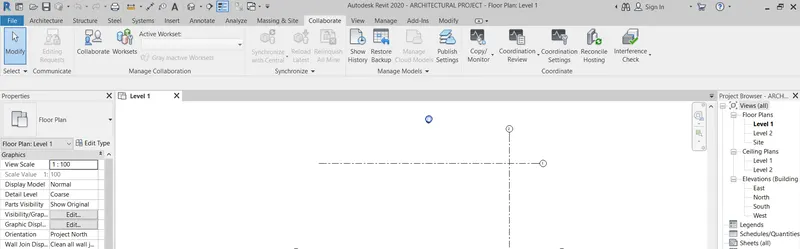

STEP 10 : TO USE COLLABORATE TOOL AND SAVE IT AS A CENTRAL MODEL.
GO TO COLLABORATE TAB
CLICK ON COLLABORATE FROM MANAGE COLLABORATION PANEL
SAVE FILE TO CONTINUE
CLICK ON WITH IN YOUR NETWORK
SAVE THE FILE TO A CENTRAL MODEL.

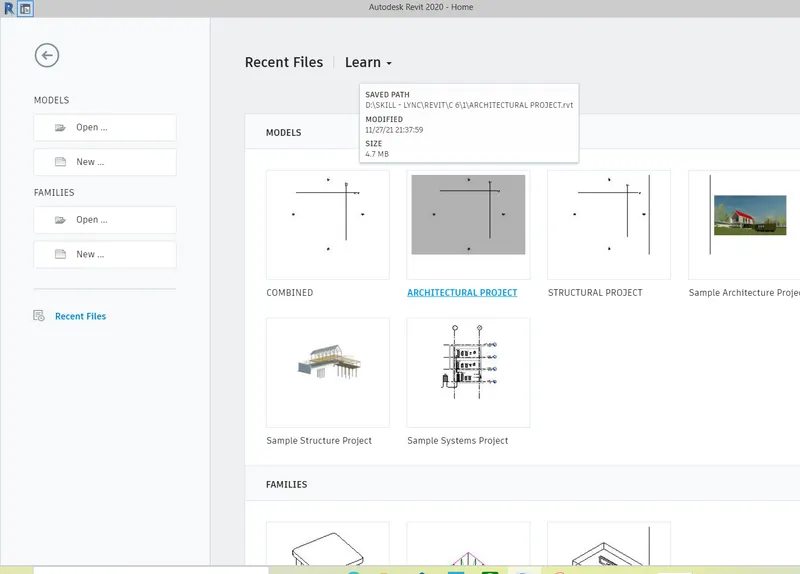

STEP 11 : OPENING ARCHITECTURAL MODE AND TO SYNCHRONIZE THE CHANGES FROM THE THE LOCAL COPY TO THE CENTRAL FILE OF THE ARCHITECTURAL MODEL.
GO TO REVIT 2020 ICON
DOBLE CLICK ON REVIT
ON THE HOME PAGE
CLICK ON ARCHITECTURAL MODEL

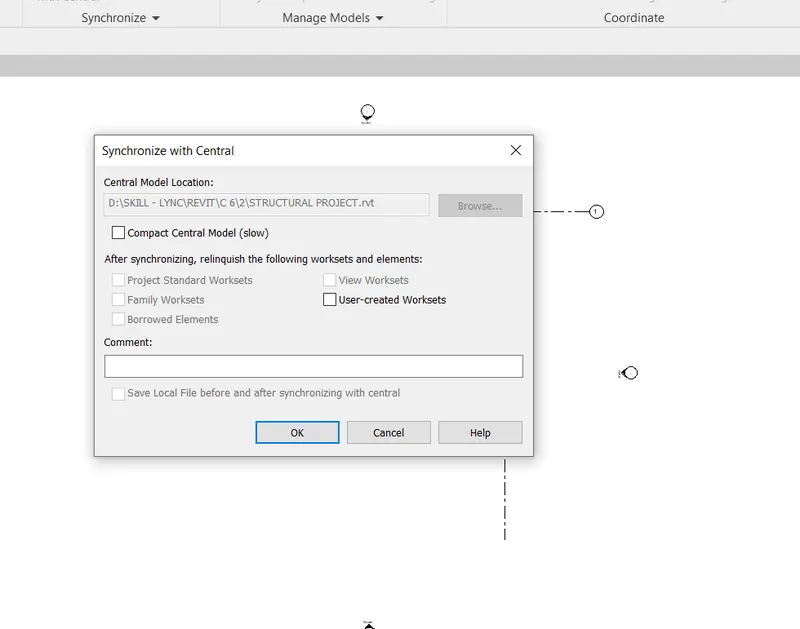

STEP 12 : SYNCHRONIZING WITH CENTRAL FILE
GO TO COLLABORATE TAB
THEN GO TO SYNCHRINIZE WITH CENTAL
THEN SELECT SYNCHRONIZE AND MODIFY SETTINGS
FROM THE POPUP CLICK ON BROWSE TO SELECT A COMBINED FILE
CLICK ON OK
STEP 13 : TO OPEN THE STRUCTURAL MODEL AND TO SYNCHRONIZE THE CHANGES FROM THE THE LOCAL COPY TO THE CENTRAL FILE OF THE STRUCTURAL MODEL.
GO TO REVIT 2020 ICON
DOBLE CLICK ON REVIT
ON THE HOME PAGE CLICK ON OPEN
THEN GO TO FILE LOCATION
CLICK ON STRUCTURAL MODEL
STEP 14 : SYNCHRONIZING WITH CENTRAL FILE
GO TO COLLABORATE TAB
THEN GO TO SYNCHRINIZE WITH CENTAL
THEN SELECT SYNCHRONIZE AND MODIFY SETTINGS
FROM THE POPUP CLICK ON BROWSE TO SELECT A COMBINED FILE
CLICK ON OK
STEP 15 : OPENING STRUCTURAL MODEL
GO TO REVIT 2020 ICON
DOBLE CLICK ON REVIT
ON THE HOME PAGE
CLICK ON MODEL

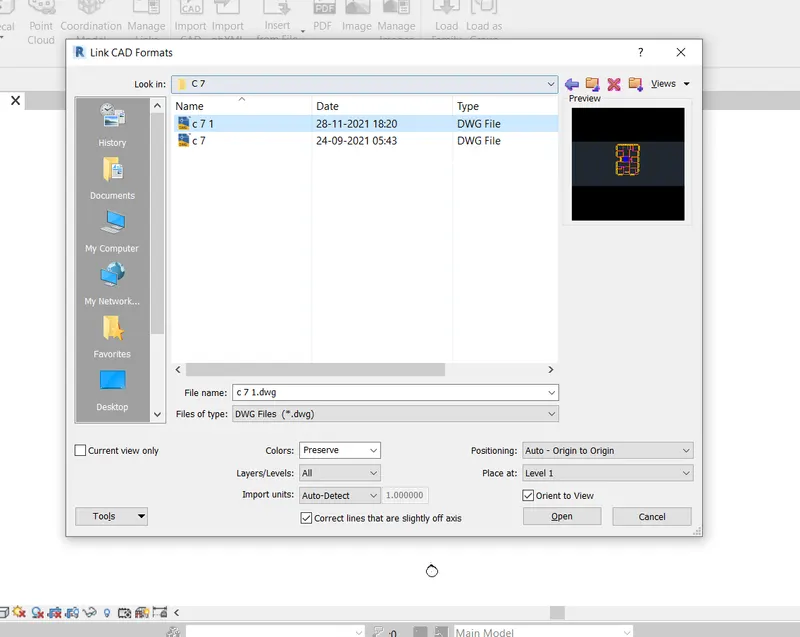

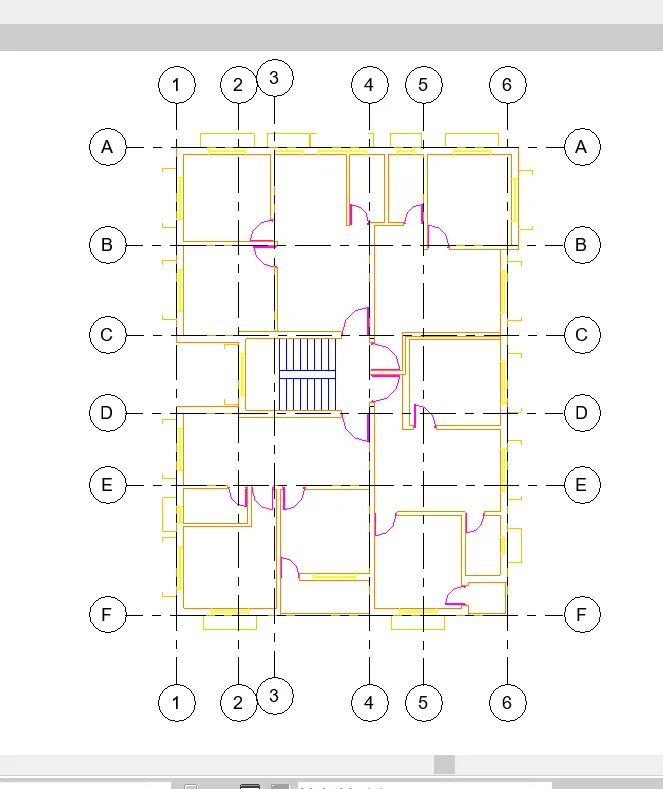

STEP 16 : TO LINK THE AUTOCAD FILE

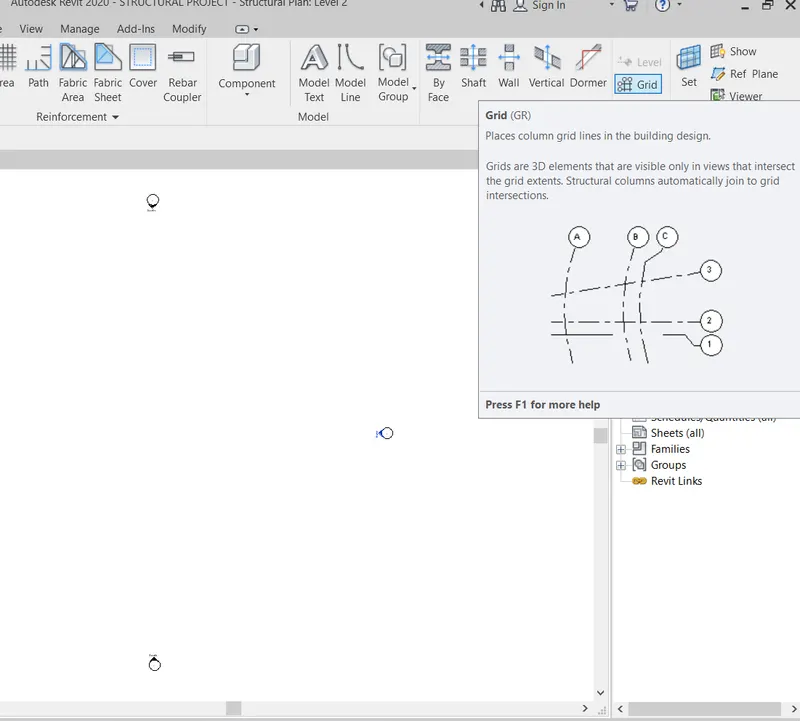

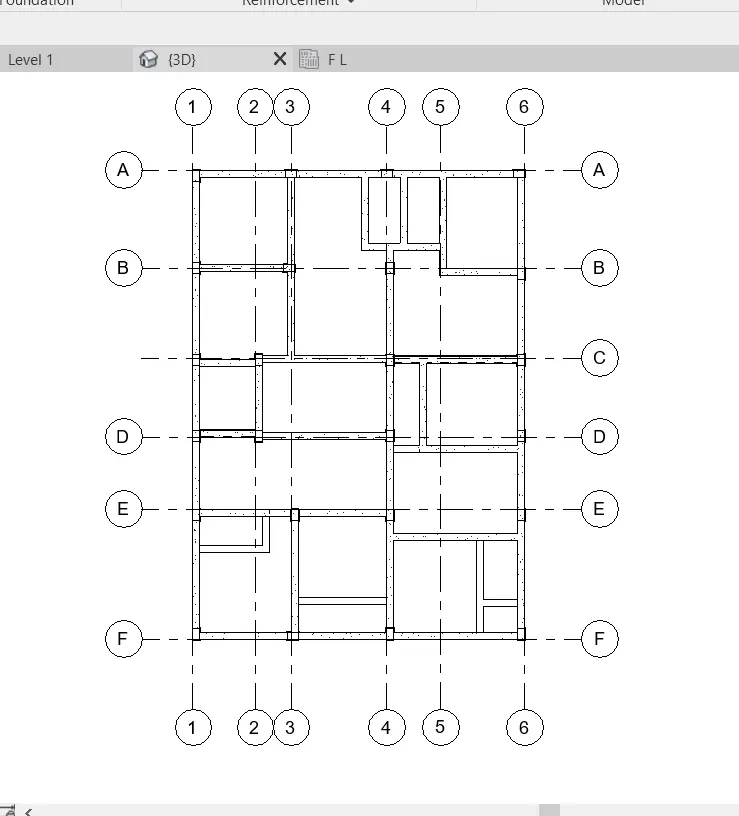

STEP 17 : TO DRAW THE GRID LINES
GO TO STRUCTURAL TAB
GO TO DATUM OPTION
TAKE GRID LINE
TAKE REQURIED DRAW COMMANED
DRAW THE REQUIRED LAYOUT

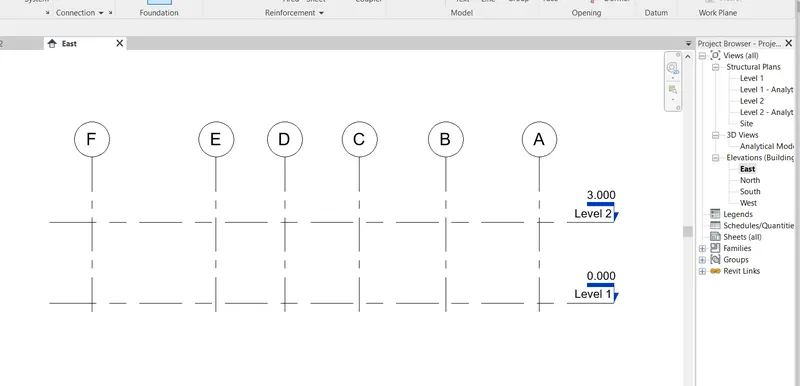

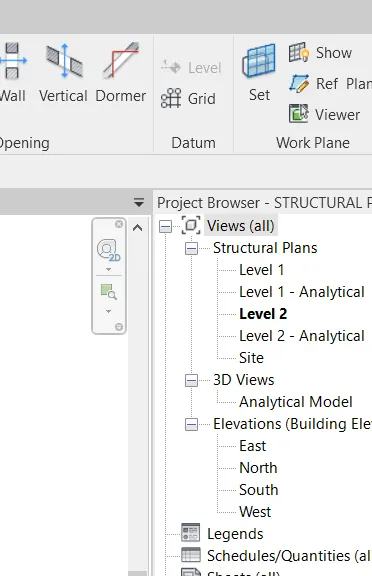

STEP 18 : TO ADDING THE LEVELS
GO ANY ELEVATION VIEW
GO TO STRUCTURAL TAB
GO TO DATUM OPTION
TAKE LEVELS OPTIONS
TAKE REQURIED DRAW COMMANED
AND DRAW THE LEVELS AS YOUR REQUIRED

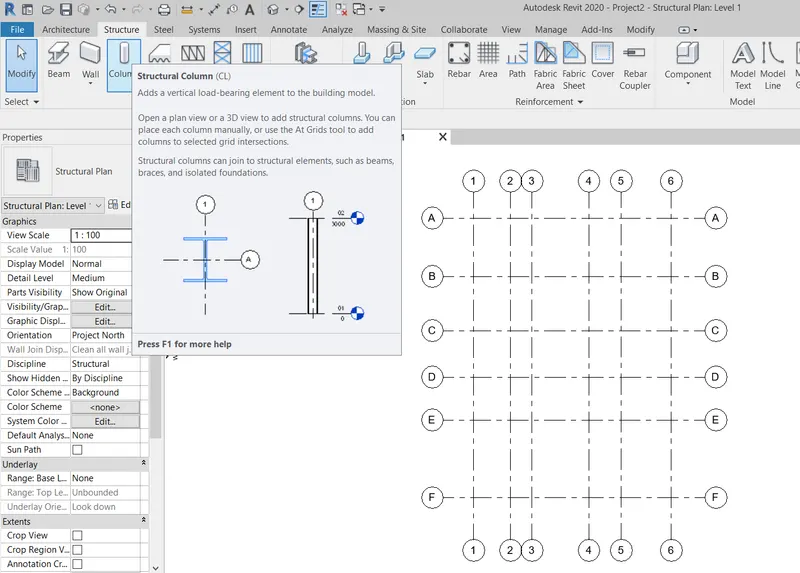

STEP 19 : TO ADDING THE COLUMNS
COLUMNS SIZE IS 250 mm X 400 mm
GO TO STRUCTURAL TAB
SELECT THE COLUMN
THEN GO TO SELECT PRAMETERS IN PROPERTIES TAB
SELECT THE RECTANGULAR RCC COLUMN
GO TO EDIT TYPE IN PROPERTIES TAB
THEN CHANGE THE REQUIRED NAME
THEN CHANGE THE REQUIRED DIMENSIONS
THEN CLICK ON OK
THEN PLACE THE COLUMN AS YOUR REQUIRED LAYOUT

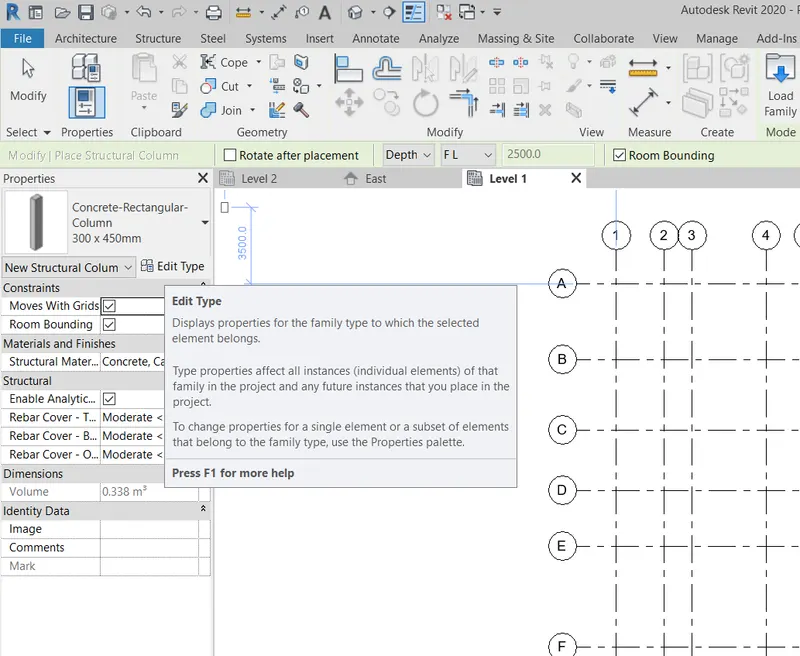

STEP 20 : TO ADDING THE PEDESTAL
PEDESTAL SIZE IS 300 mm X 450 mm
GO TO STRUCTURAL TAB
SELECT THE COLUMN
THEN GO TO SELECT PRAMETERS IN PROPERTIES TAB
SELECT THE RECTANGULAR RCC COLUMN
GO TO EDIT TYPE IN PROPERTIES TAB
THEN CHANGE THE REQUIRED NAME
THEN CHANGE THE REQUIRED DIMENSIONS
THEN CLICK OK
THE PLACE THE PEDESTAL AS YOUR REQUIRED LAYOUT

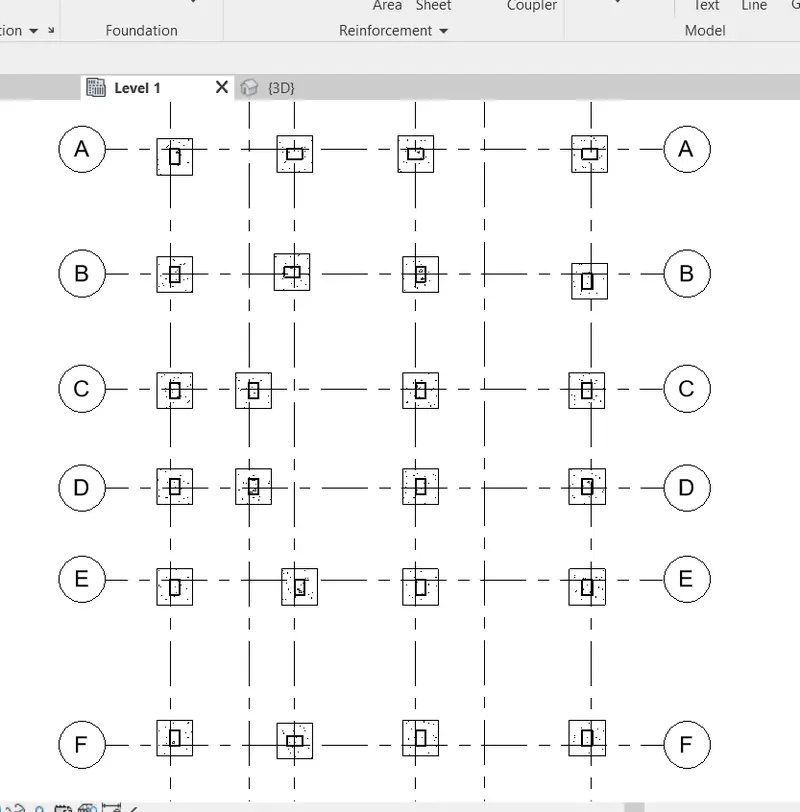

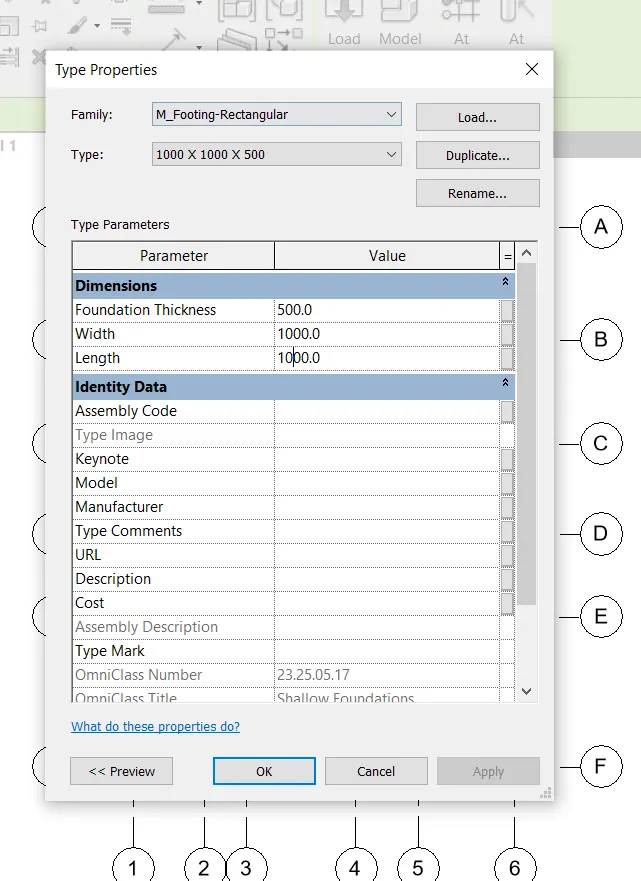

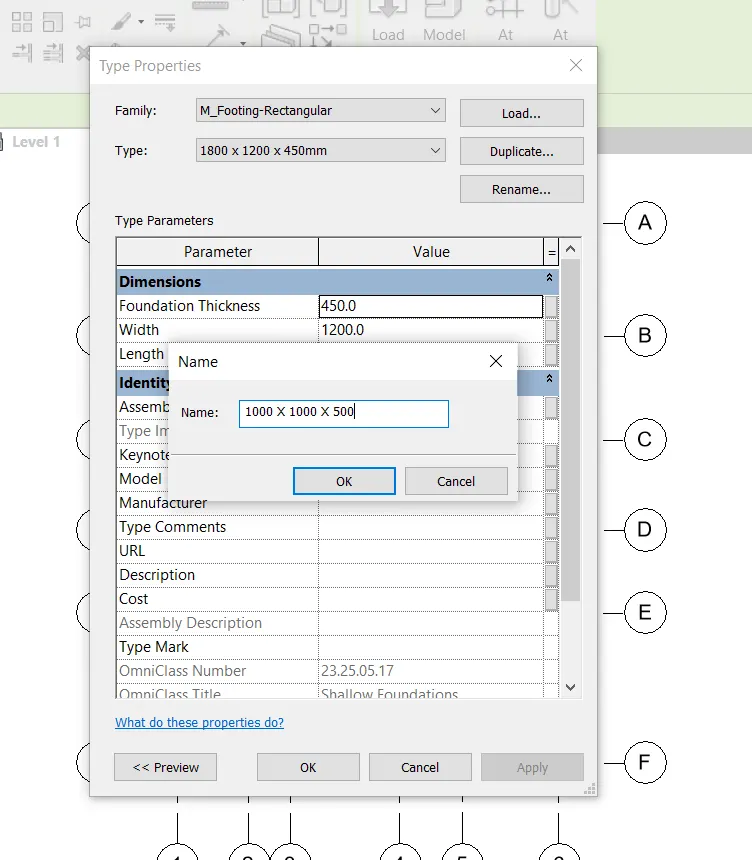

STEP 21 : TO ADDING THE ISOLATED FOUNDATION
ISOLATED FOUNDATION SIZE IS 1000 mm X 100 mm X 500 mm
GO TO STRUCTURAL TAB
THEN SELECT THE ISOLATED FOUNDATION

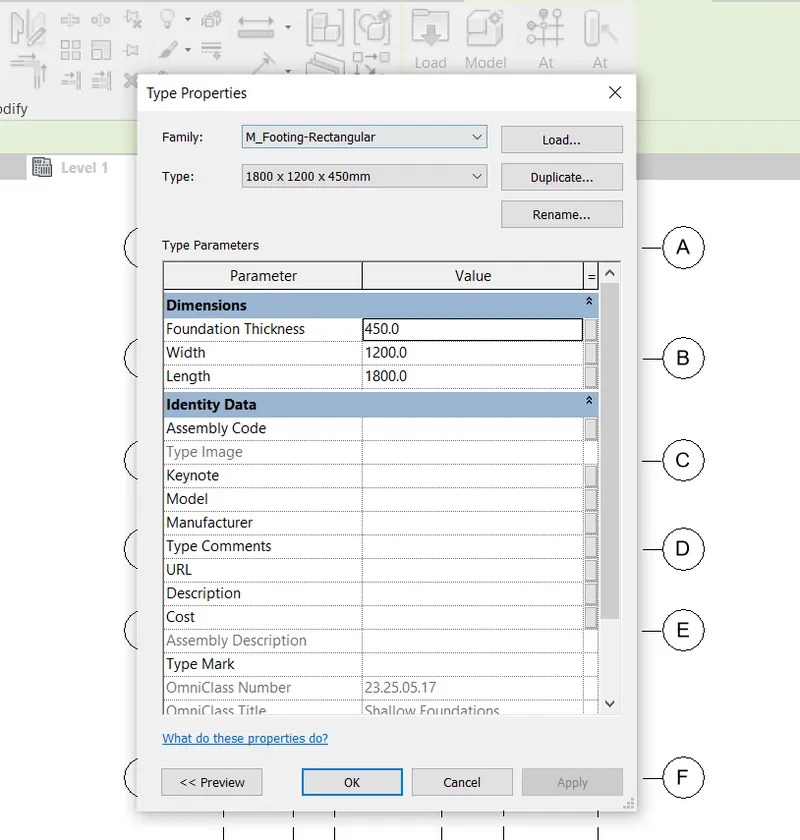

THEN GO TO EDIT TYPE IN PROPERTIES PANEL
THEN CHANGE THE NAME AS YOUR REQUIRED
THEN GIVE THE REQUIRED DIMENSIONS
CLICK ON OK
THEN PLACE ISOLATED FOUNDATION AS YOUR REQUIRED LAYOUT

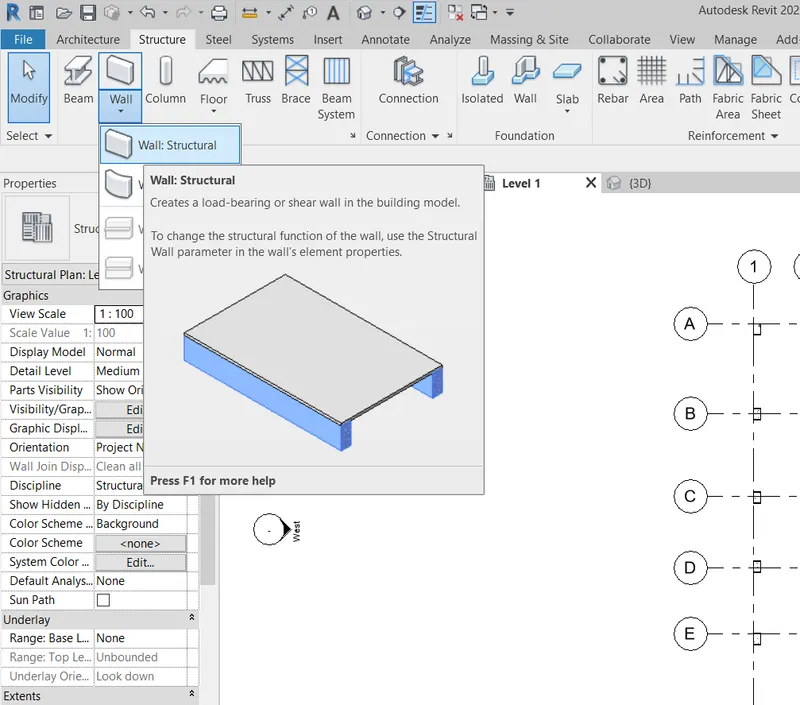

STEP 22 : TO ADDING THE WALL IN FOUNDATION
WALL FOUNDATION THICKNESS IS 250 mm
GO TO STRUCTURAL TAB
CLICK ON WALL DROP DOWN ARROW
TAKE WALL STRUCTURAL
GO TO EDIT TYPE IN PROPERTIES PANEL
TO CHANGE THE NAME AS YOUR REQUIRED NAME
GO TO EDIT OPTION
TO CHANGE THE THICKNESS AS YOUR REQUIRED
STEP 23 : TO ADDING THE STRUCTURAL FOUNDATION WALL
STRUCTURAL FOUNDATION WALL THICKNESS IS 400 mm
GO TO STRUCTURAL TAB
GO TO STRUCTURAL FOUNDATION WALL
GO TO EDIT TYPE IN PROPERTIES PANEL
TO CHANGE THE REQUIRED DIMENSIONS AS YOUR REQUIRED
CLICK ON OK
THEN DRAW THE WALL AS YOUR REQUIRED LAYOUT

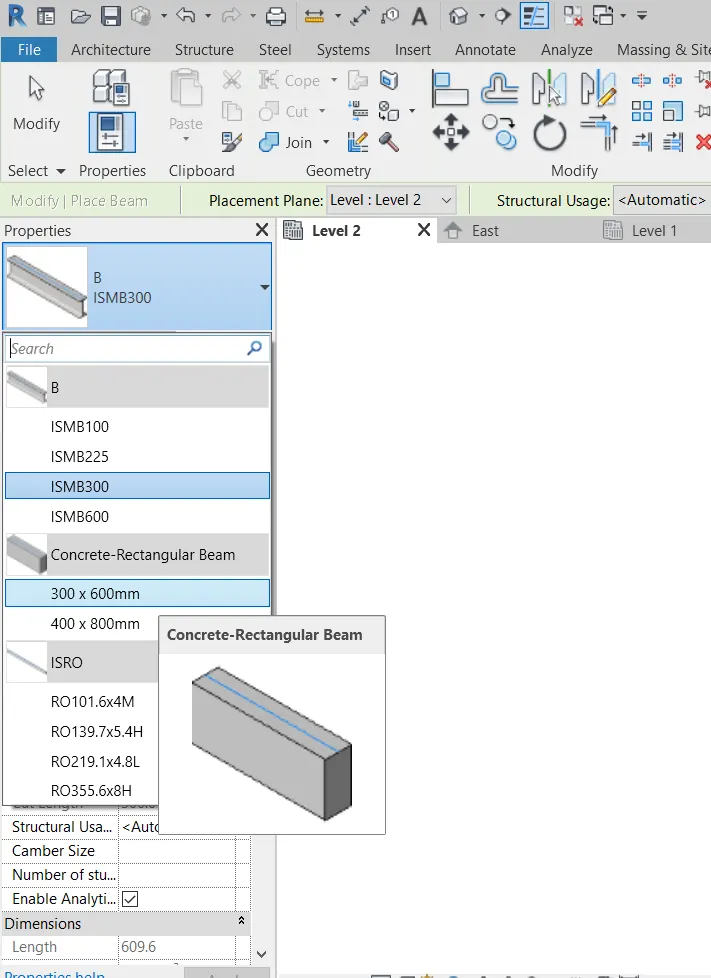

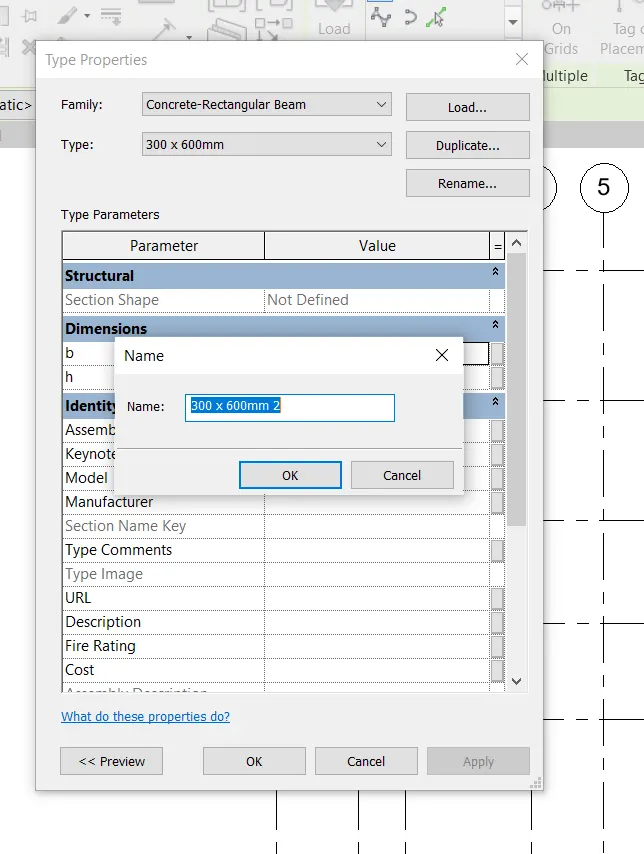

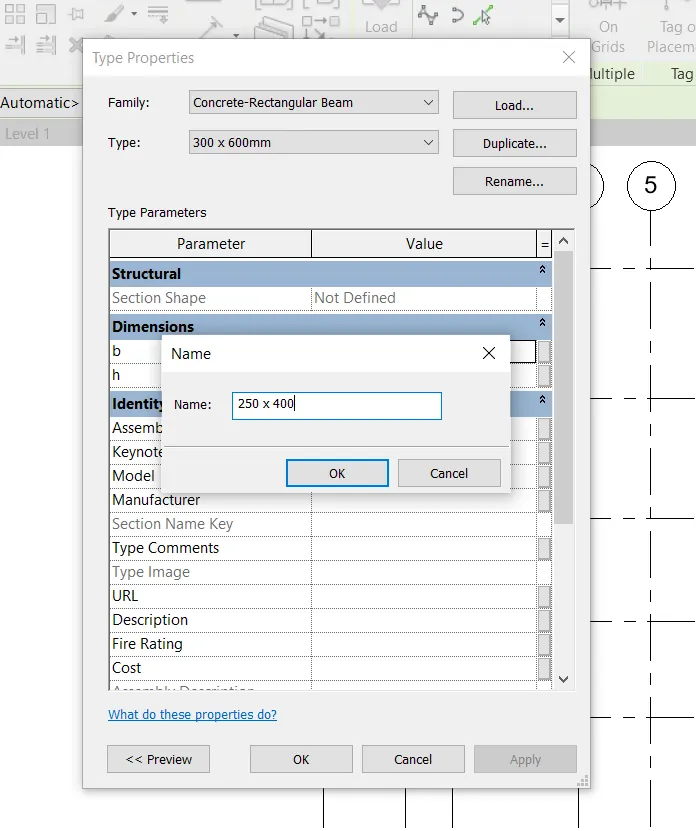

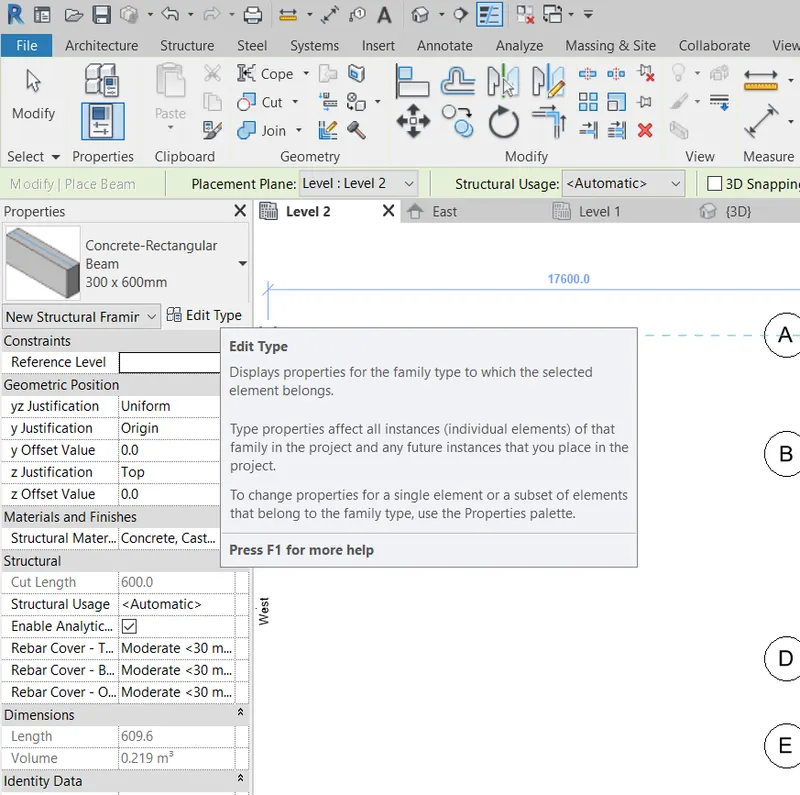

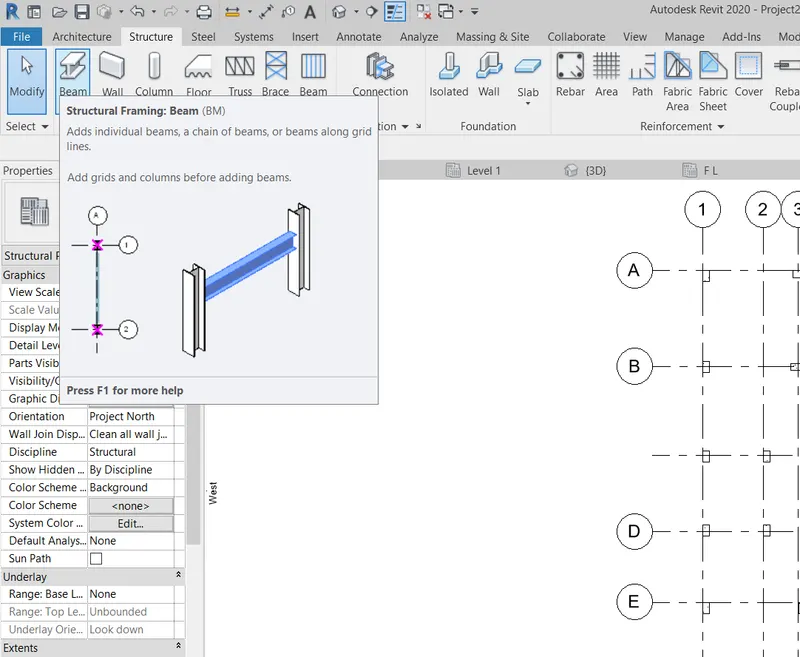

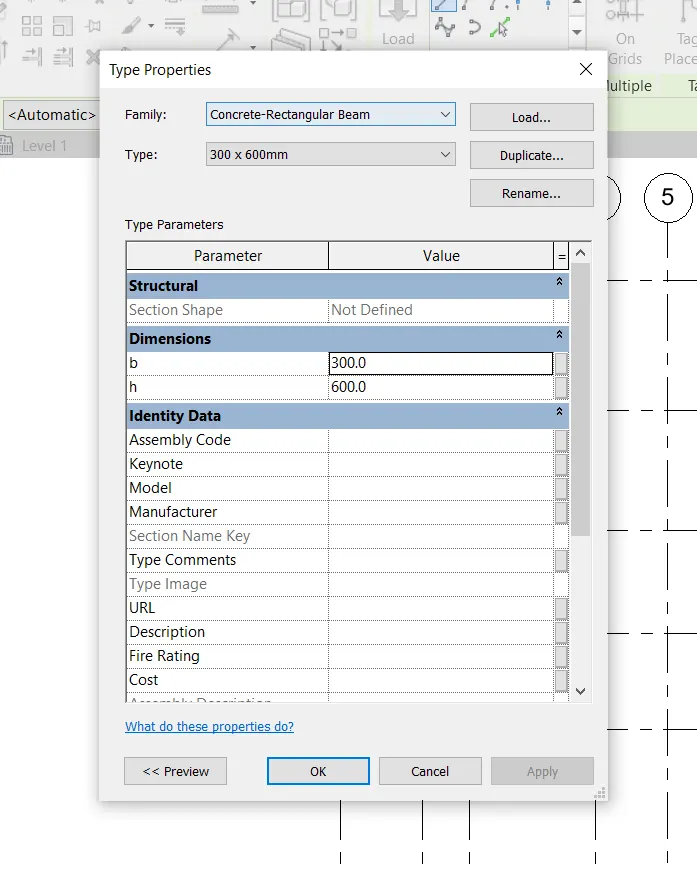

STEP 24 : TO ADDING THE BEAMS

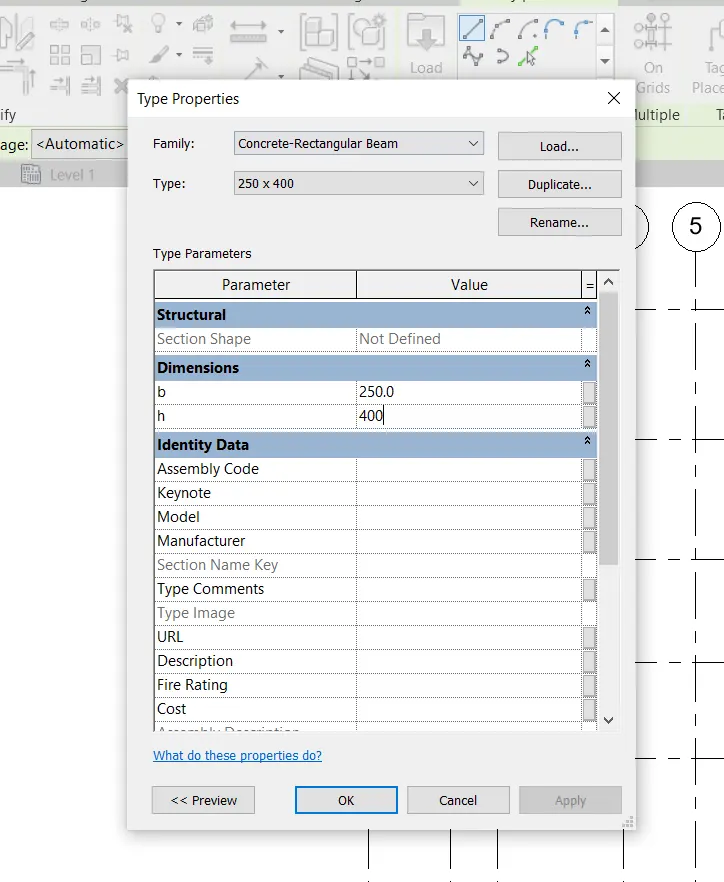

BEAMS SIZE IS 250 mm X 400 mm
GO TO STRUCTURAL TAB
TAKE BEAM OPTION
GO TO EDIT TYPE
TO CHANGE THE NAME AS YOUR REQUIRED
THEN GIVE THE REQUIRED DIMENSIONS
CLICK ON OK
THE PLACE THE BEAMS AS YOUR REQUIRED LAYOUT

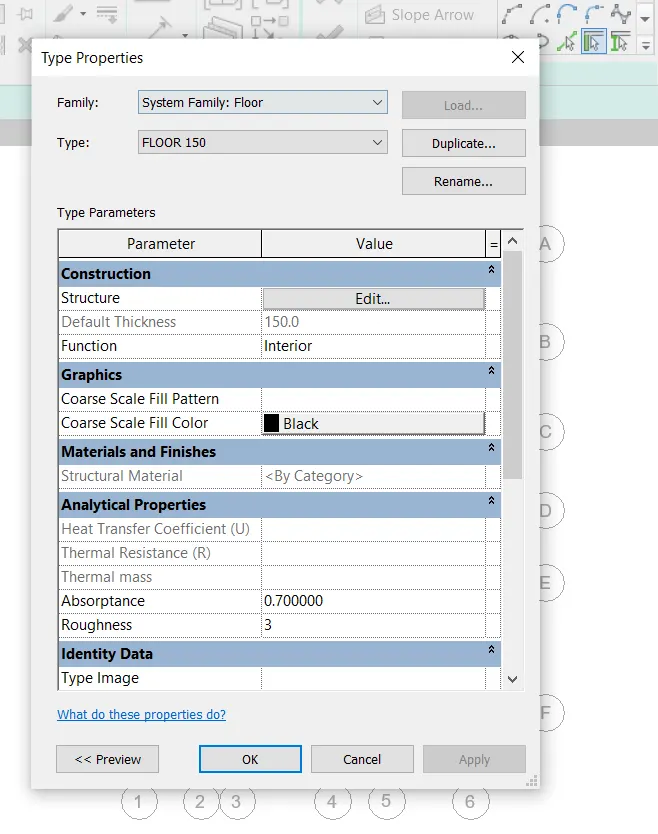

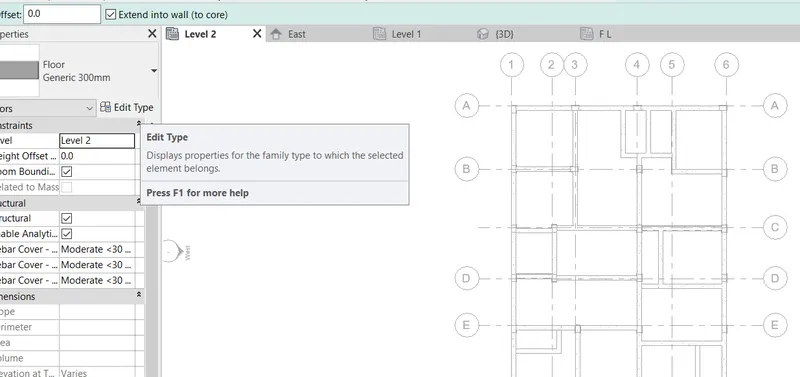

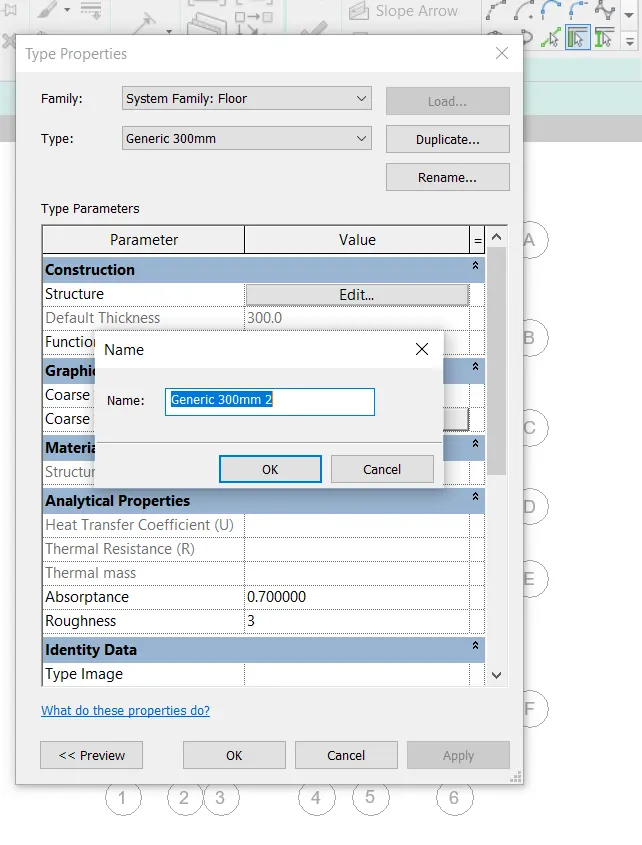

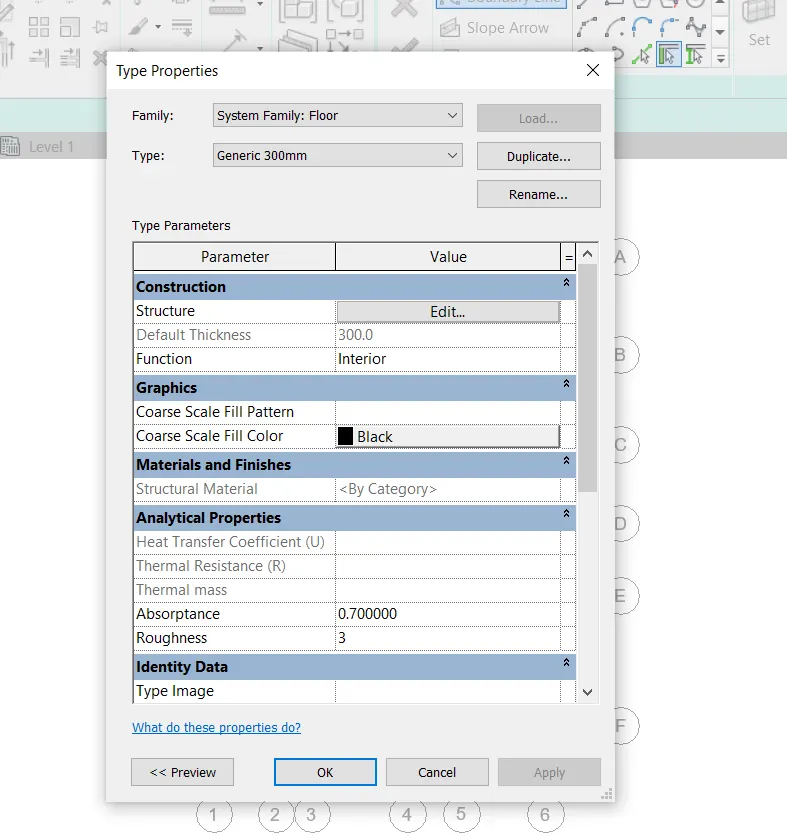

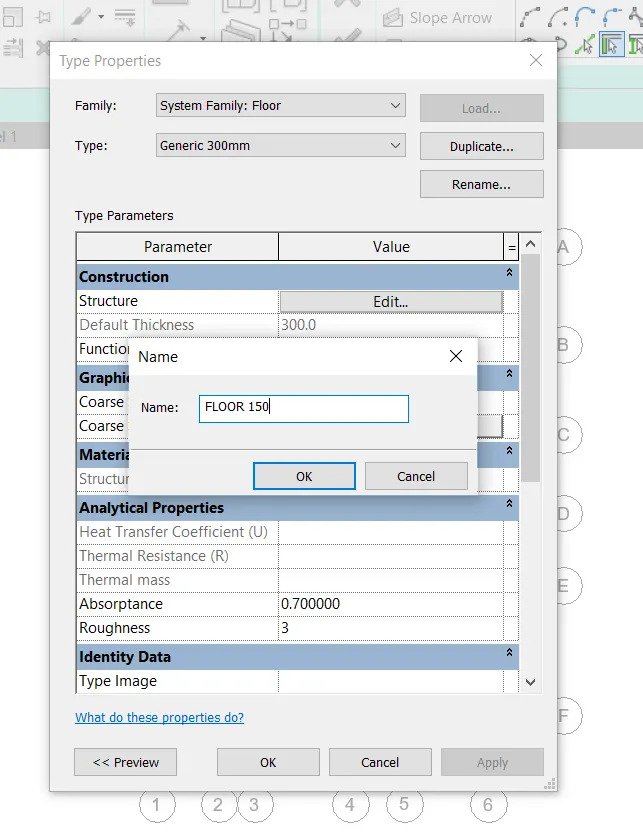

STEP 25 : TO ADDING THE FLOOR / SLAB
SLAB THICKNESS IS 150 mm
GO TO STRUCTURAL TAB
SELECT THE FLOOR DROP DOWN ARROW
TAKE STRUCTURAL FLOOR
GO TO EDIT TYPE IN PROPERTIES PANEL
TO CHANGE THE NAME AS YOUR REQUIRED
GO TO EDIT OPTION
GIVE THE REQUIRED DIMENSIONS
CLICK ON OK
TO PLACE FLOOR AS YOUR REQUIRED LAYOUT

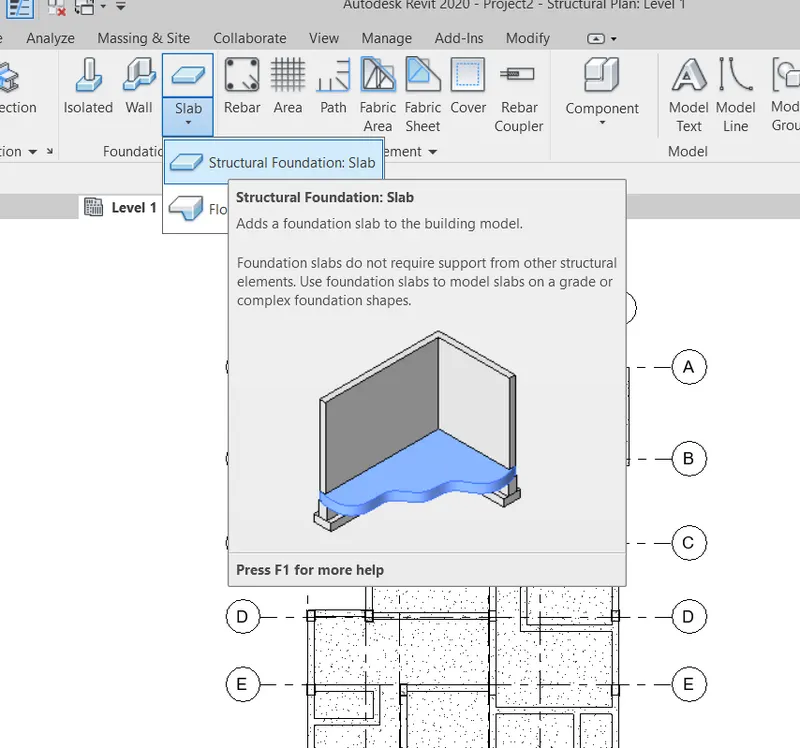

STEP 26 : TO ADDING THE STRUCTURAL FOUNDATION SLAB
STRUCTURAL FOUNDATION SLAB THICKNESS IS 150 mm
GO TO REQUIRED LEVEL IN PROJECT BROWSER
GO TO STRUCTURAL TAB
SLECT THE SLAB DROP DOWN ARROW
TAKE STRUCTURAL FOUNDATION SLAB
GO TO EDIT TYPE IN PROPERTIES PANEL
CHANGE THE NAME AS YOUR REQUIRED
GO TO EDIT OPTION
TO CHANGE THE DIMENSIONS AS YOUR REQUIRED
CLICK ON OK
FINALY CLICK ON OK
THEN TAKE REQUIRED DRAW COMMAND
THEN DRAW THE SLAB AS YOUR REQUIRED LAYOUT

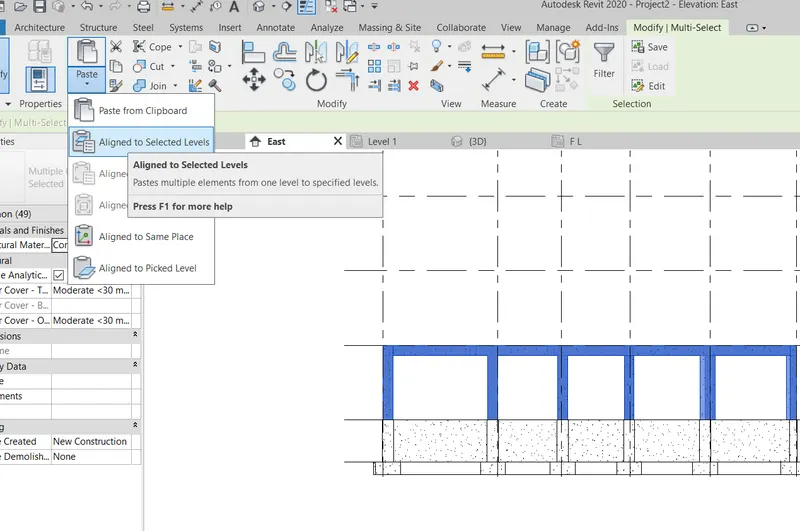

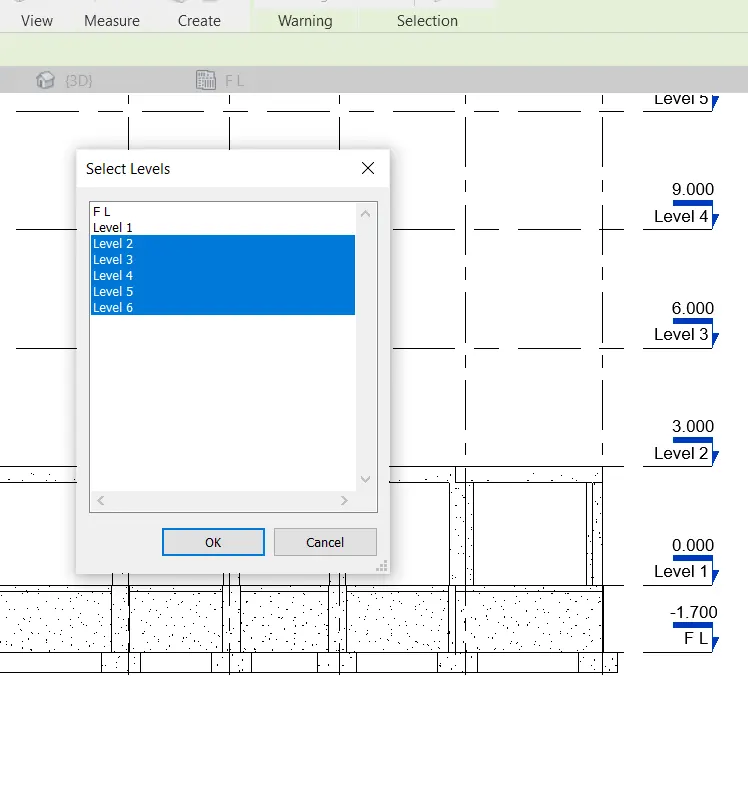

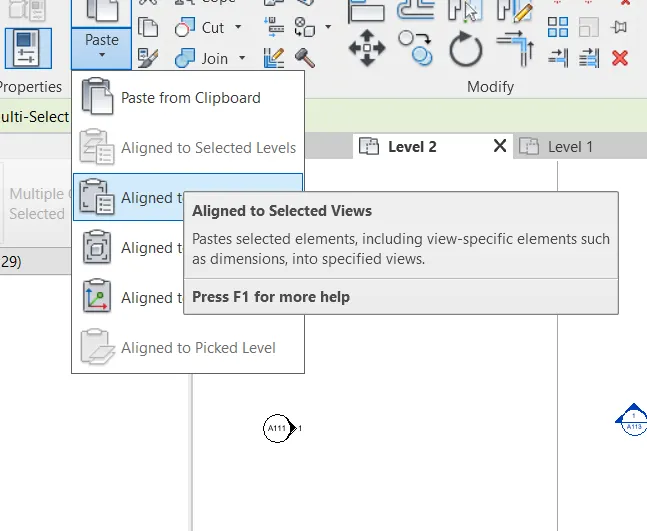

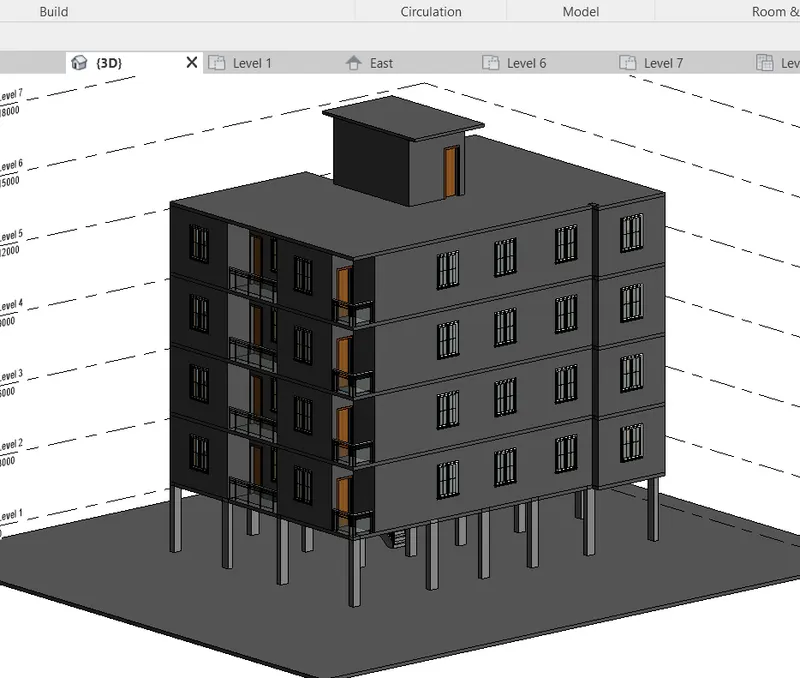

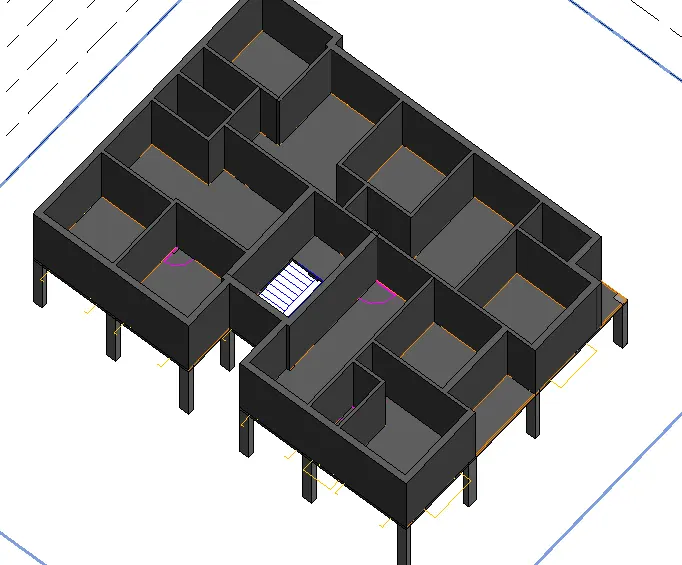

STEP 27 : TO CREATE THE NO OF FLOORS
SELECT THE REQUIRED FLOOR PLAN
THEN SELECT THE COPY CLIPBOARD OPTION IN MODIFY TAB
THE GO TO PASTE DROP DOWN ARROW
SELECT THE ALINE SELECTED LEVELS
THEN SELECT THE REQUIRED LEVELS
THEN CLICK ON OK
RESULT :

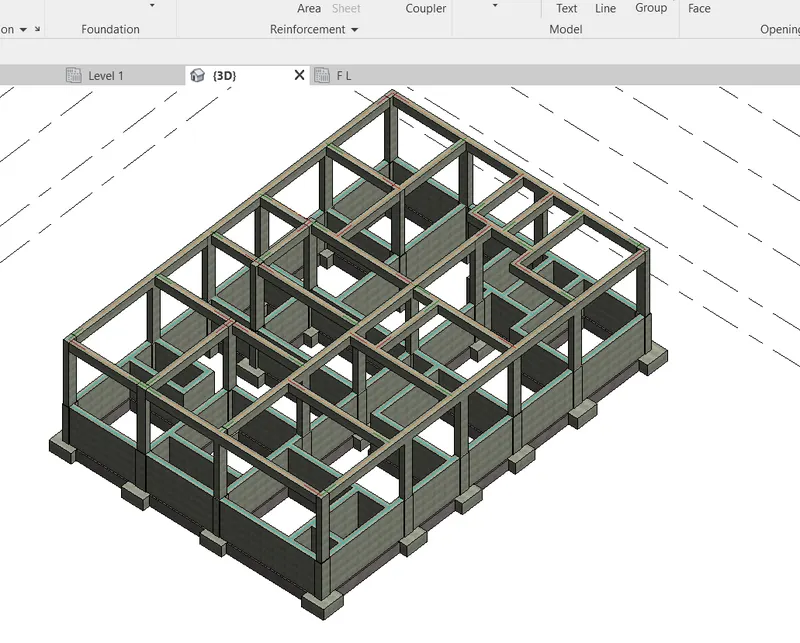

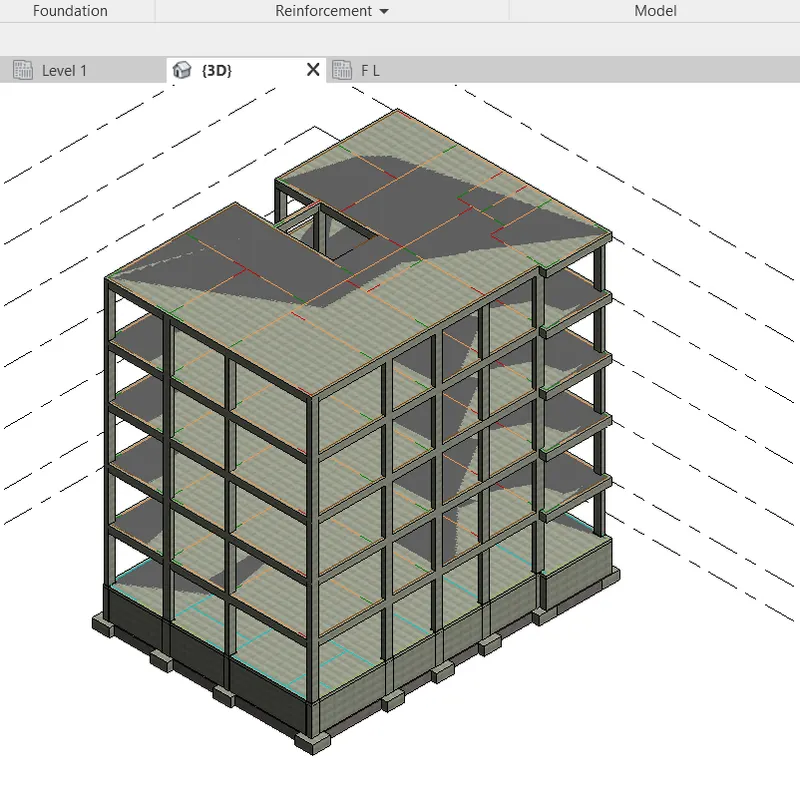

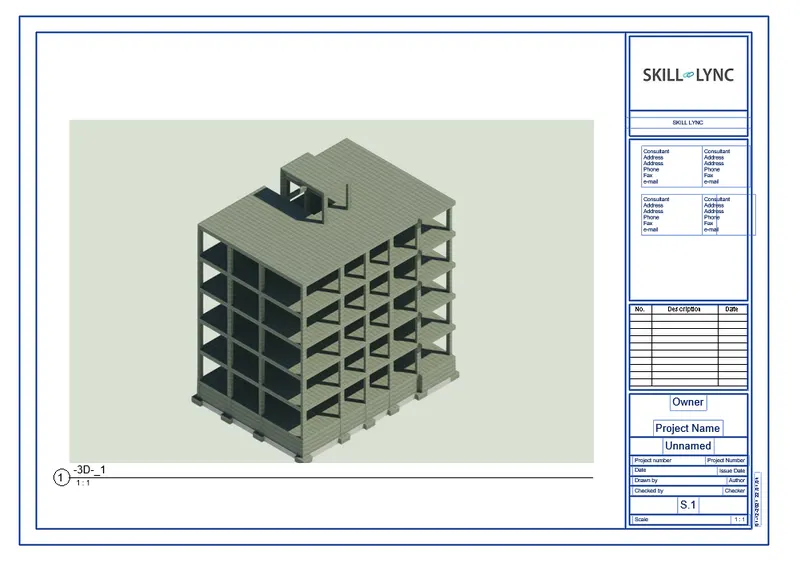

TO CREATED THE MULTI STORY RESIDENTIAL UNIT ON STRUCTURAL DATILES BY USING STRUCTURAL TEMPLATE
TO CREATED THE COMPONENTS AS
FOUNDATION BASED ON YOUR PROJECT
COLUMNS
BEAMS CONNECTED WITH COLUMNS
ROOF FRAMING
FLOORS
FLOORS OPENING
4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

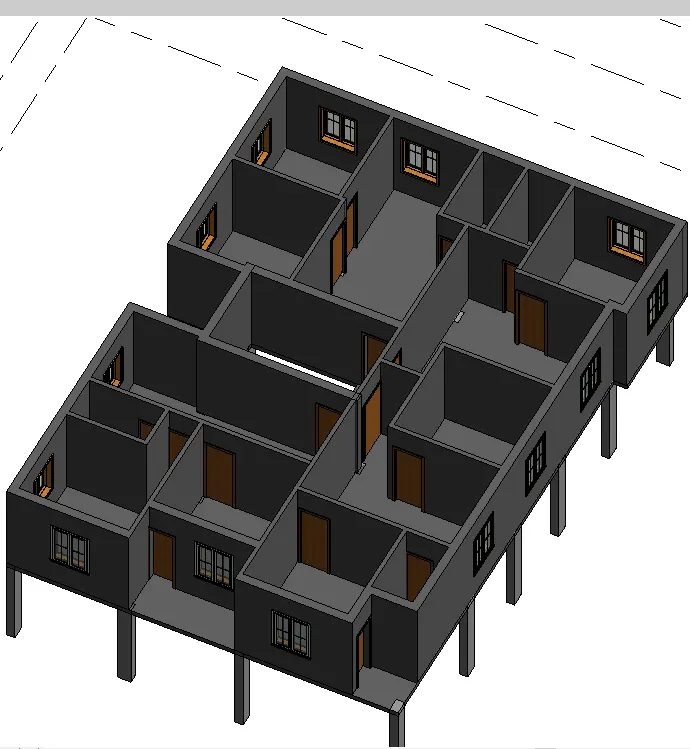

AIM : TO CREATE THE ARCHITECTURAL MODEL
PROCEDURE :
STEP 1 : OPENING ARCHITECTURAL MODE
GO TO REVIT 2020 ICON
DOBLE CLICK ON REVIT
ON THE HOME PAGE
CLICK ON ARCHITECTURAL MODEL

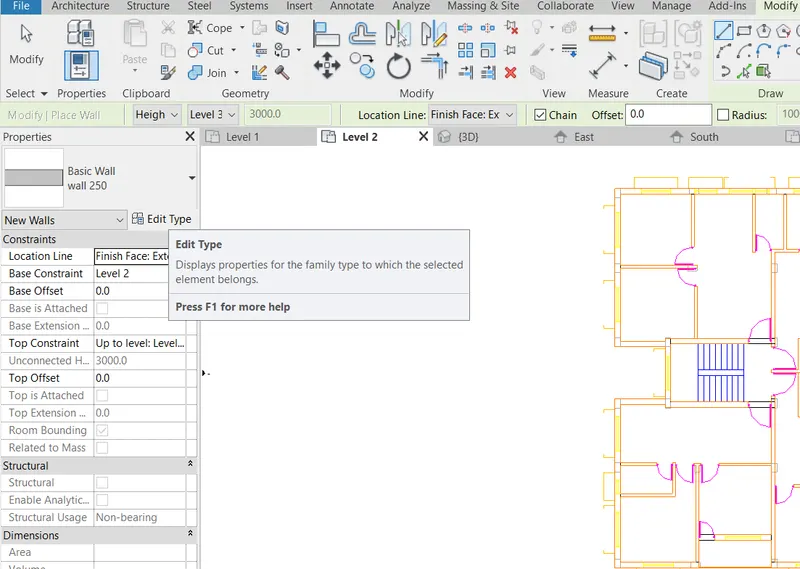

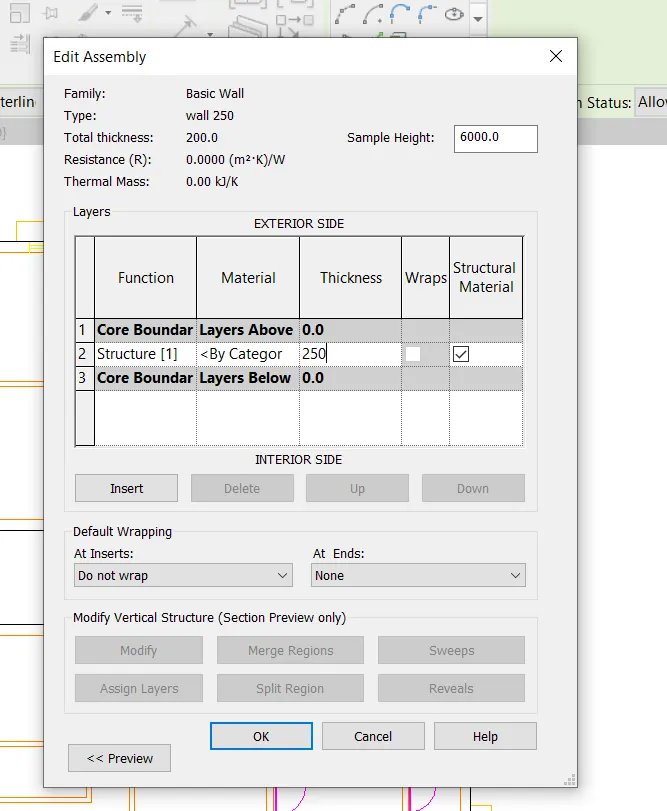

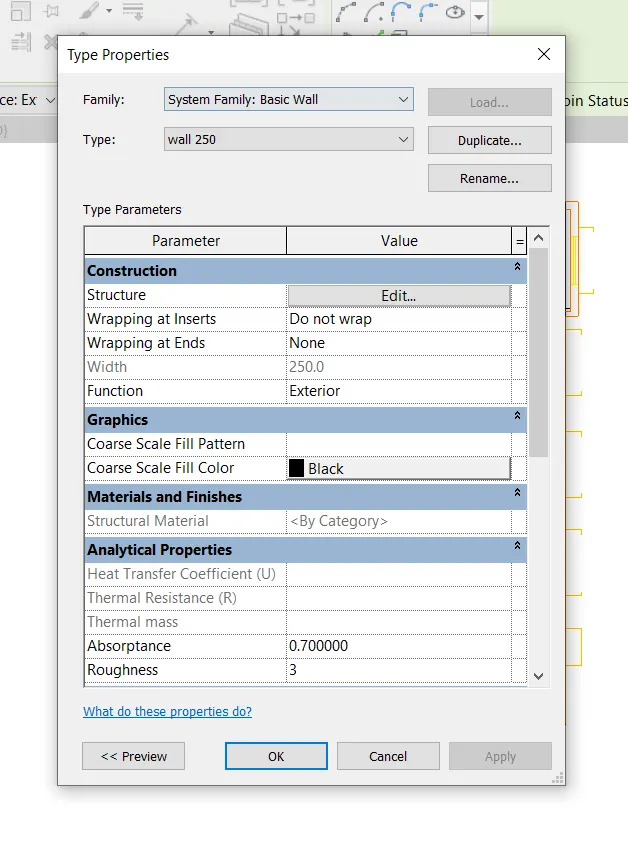

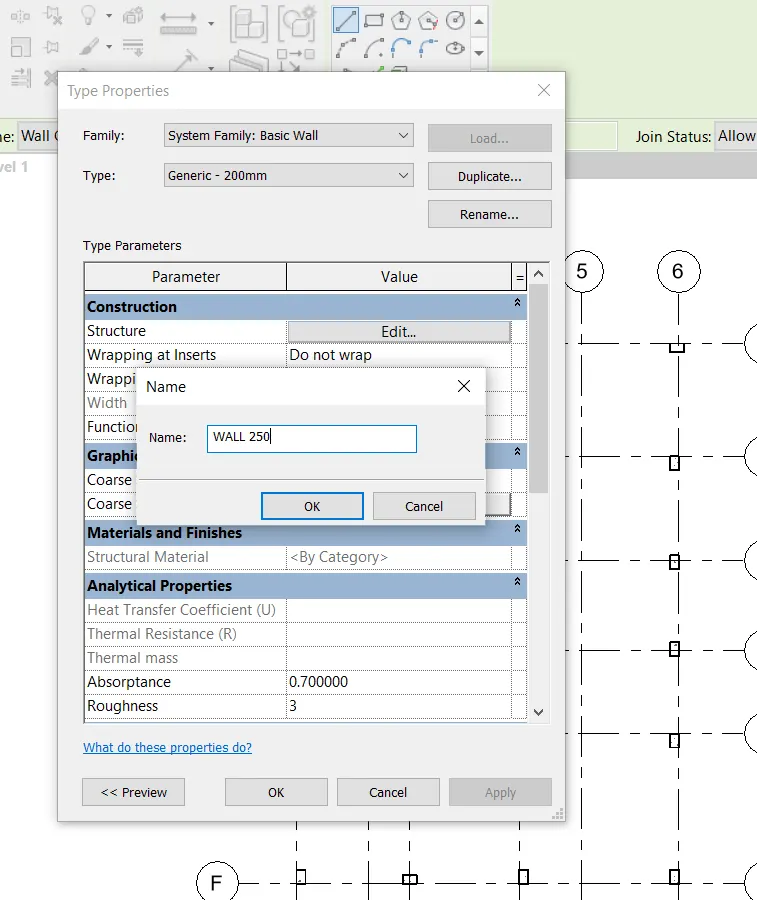

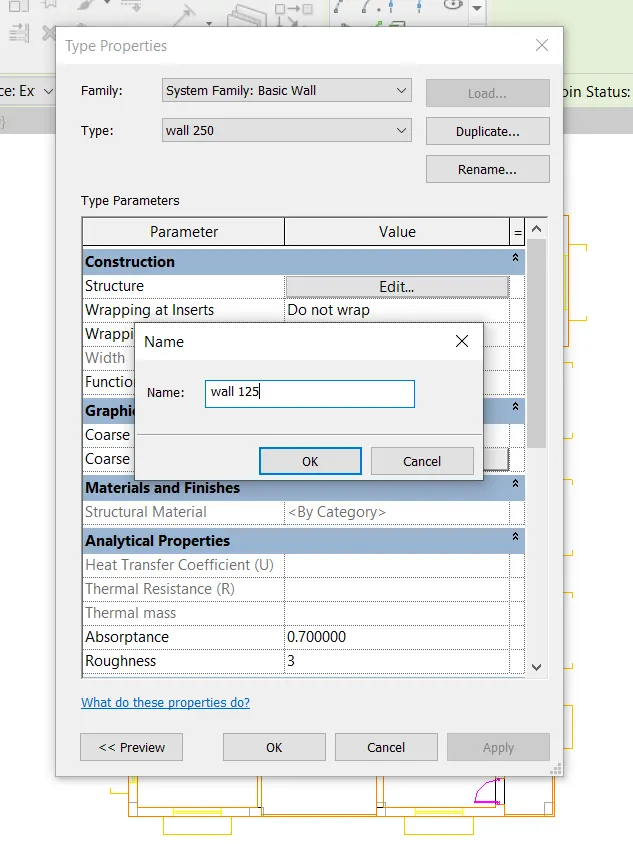

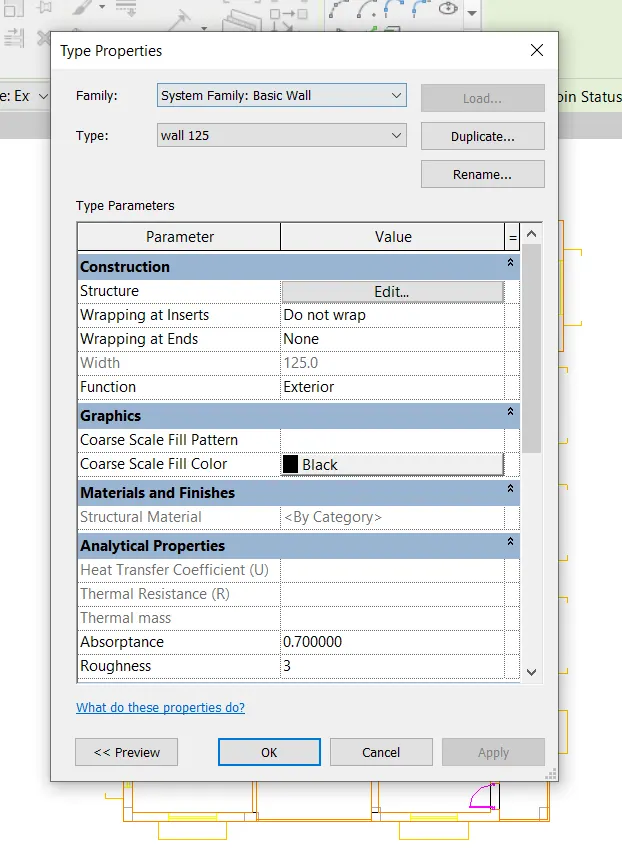

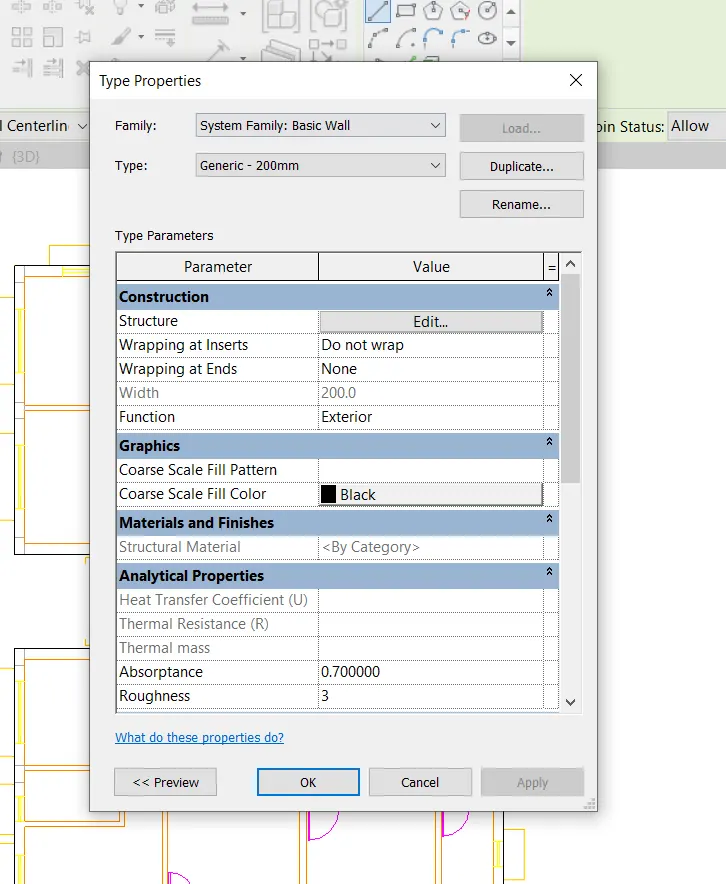

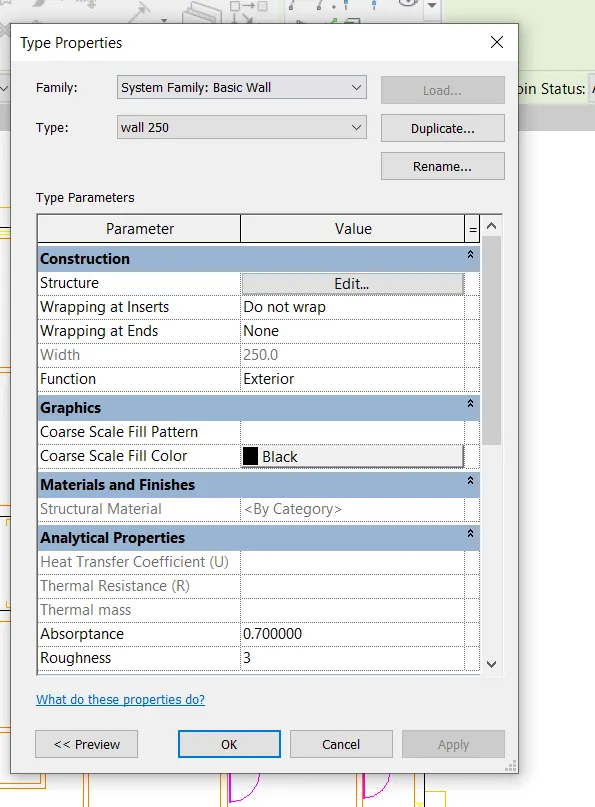

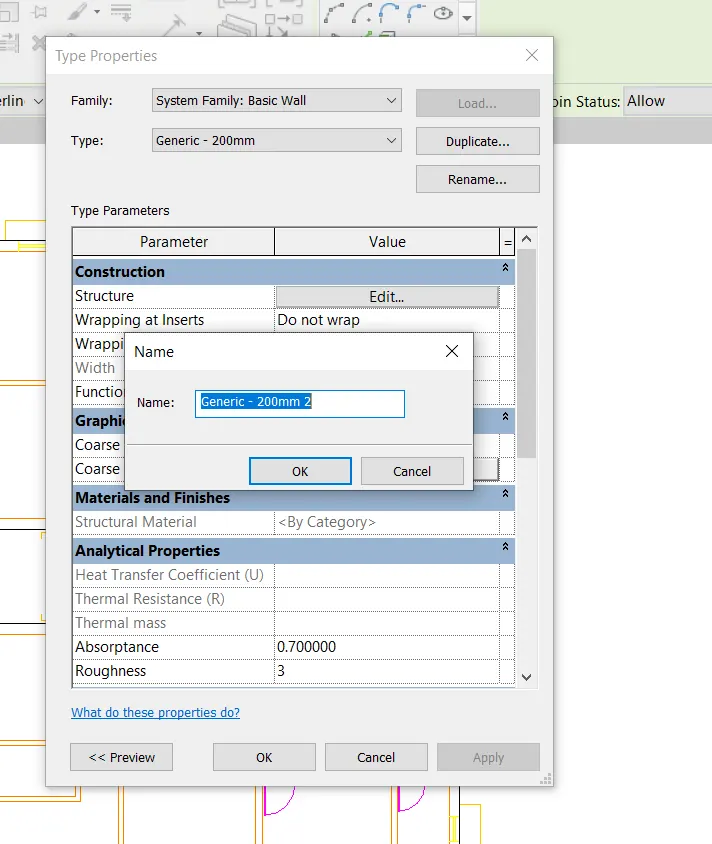

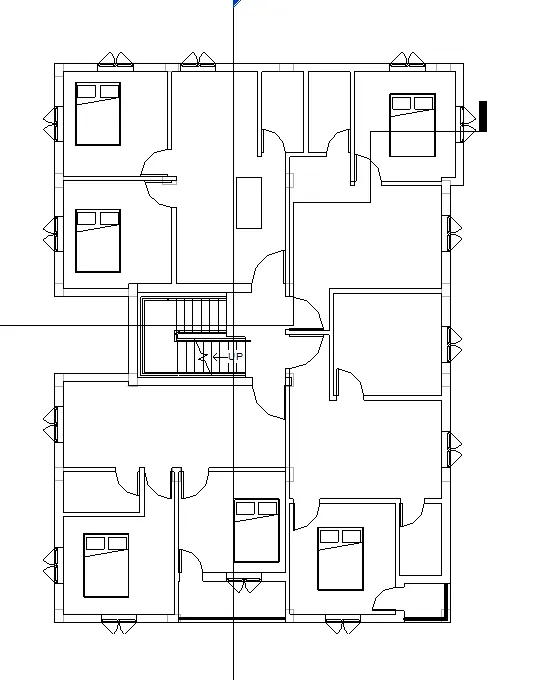

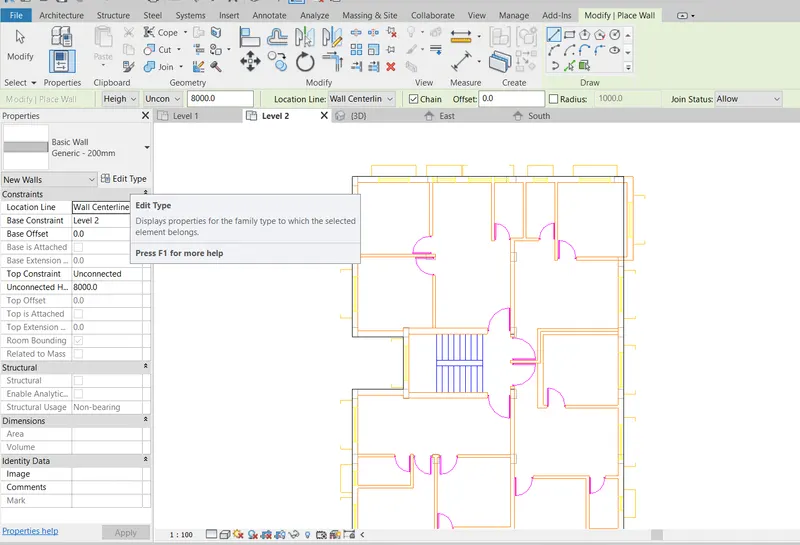

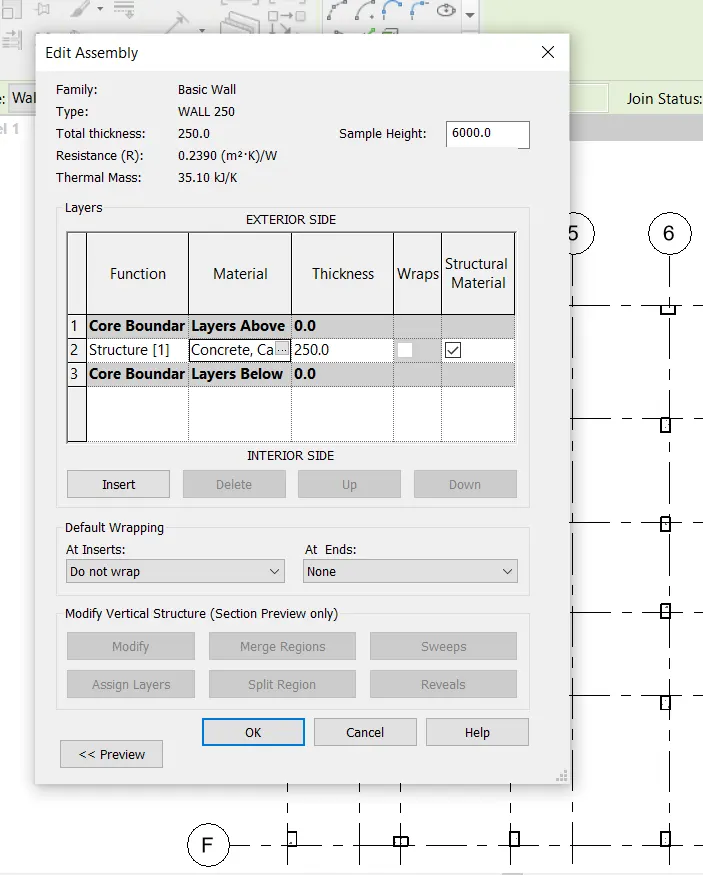

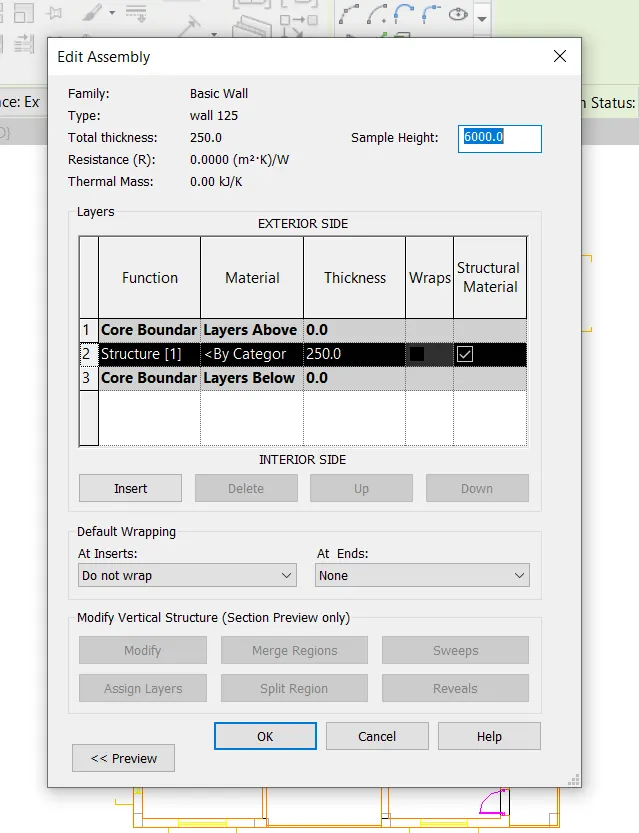

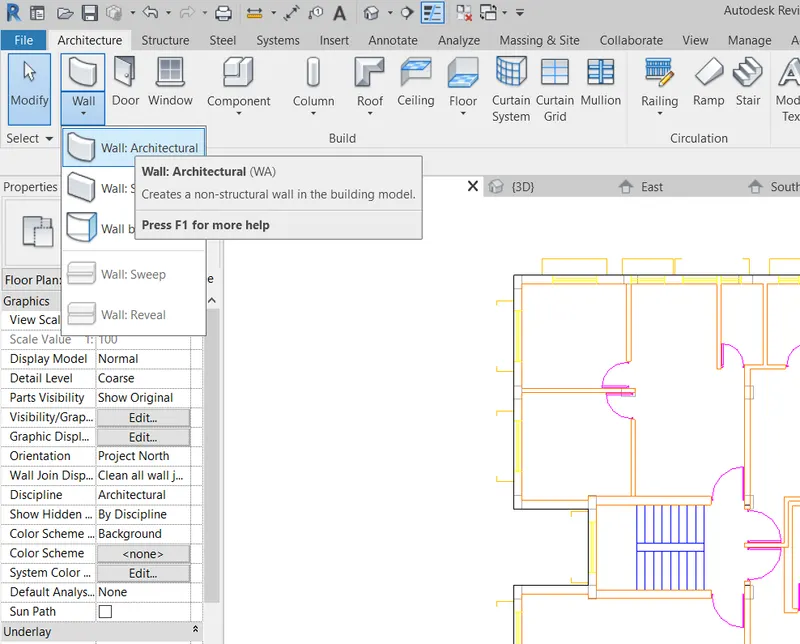

STEP 2 : TO ADDING WALL
EXTRIAR WALL THICKNESS IS 25O mm
INTERIOR WALL THICKNESS IS 125 mm
GO TO ARCHITECTURE TAB
GO TO WALL DROP DOWN ARROW
SELECT WALL ARCHITECTURAL
GO TO EDIT TYPE IN PROPERTIES PANEL
CHANGE THE REQUIRED NAME
GO TO EDIT OPTION
TO CHANGE THE REQUIRED DIMENSIONS
THEN CLICK ON OK
AND CLICK ON OK
TAKE THE REQUIRED DRAW COMMAND
THEN DRAW THE AS YOUR REQUIRED LAYOUT

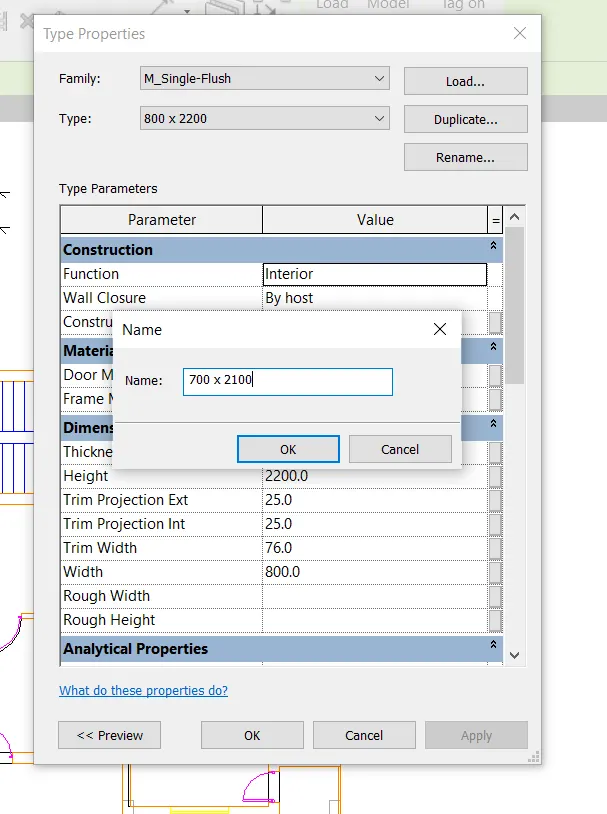

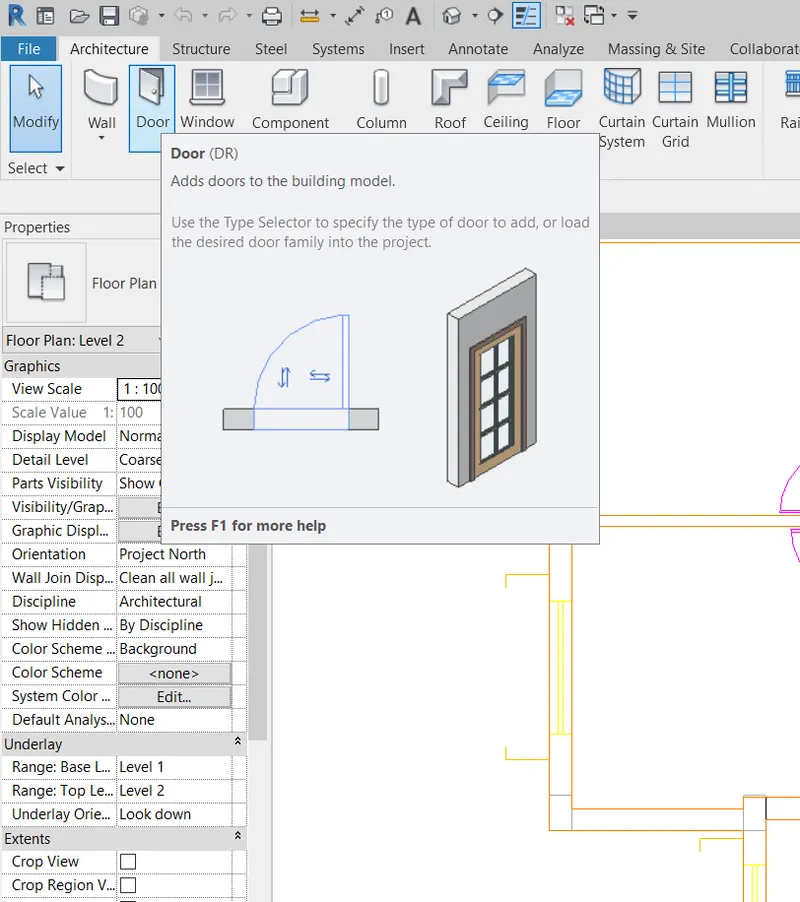

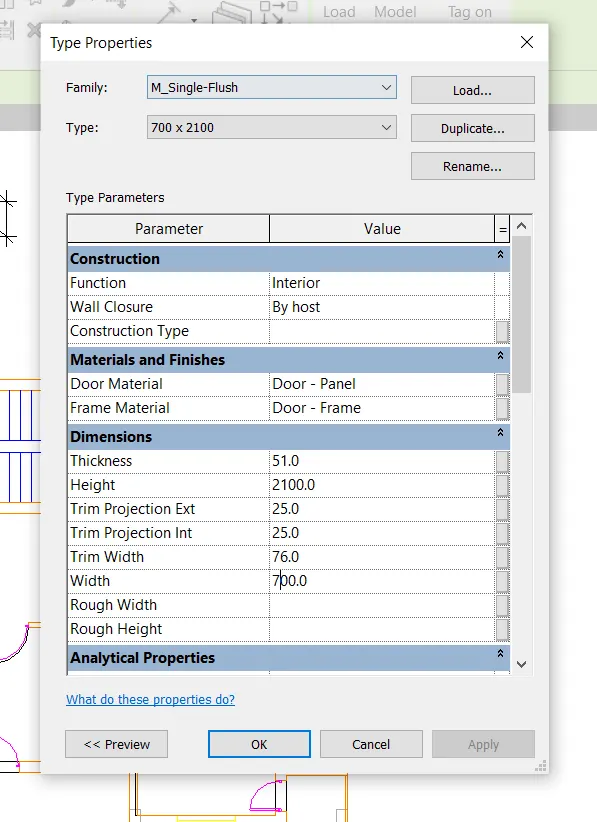

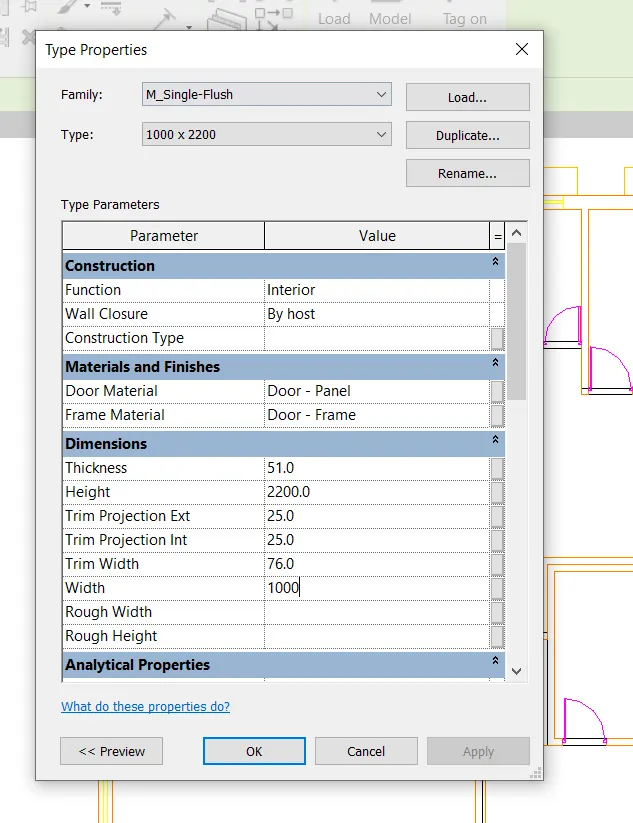

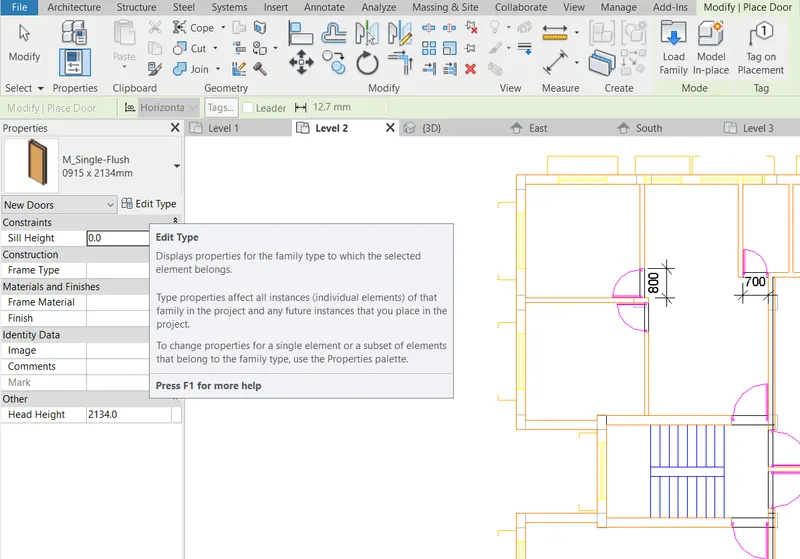

STEP 3 : TO ADDING THE DOORS
DOORS SIZE IS
D1 IS 1000 mm X 2200 mm

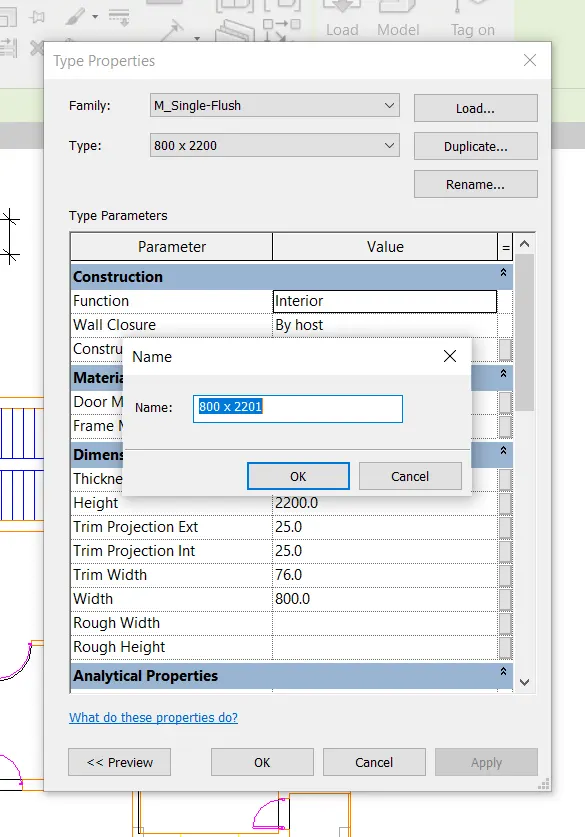

D2 IS 800 mm X 2200 mm
D3 IS 700 mm X 2100 mm
GO TO ARCHITECTURE TAB
TAKE DOOR OPTION

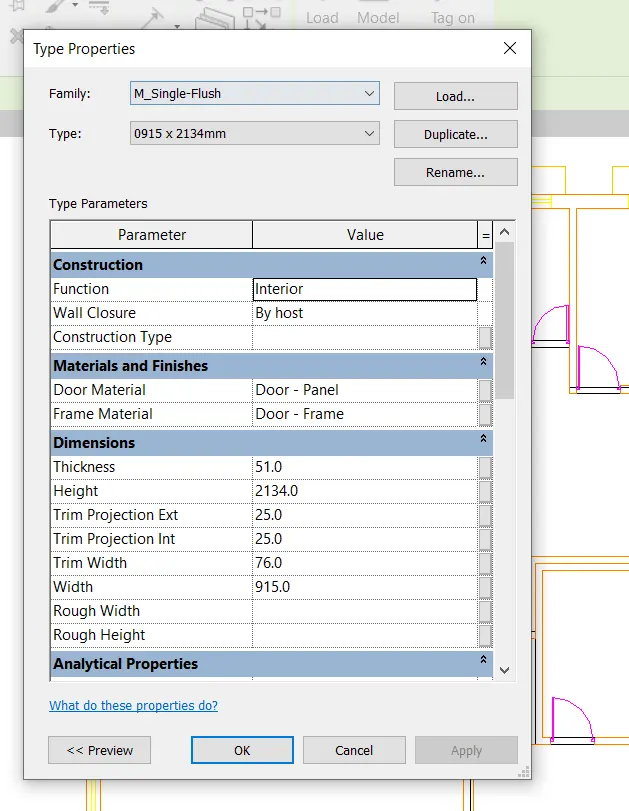

THEN BE TO EDIT TYPE IN PROPERTIES PANEL
TO CHANGE THE NAME AS YOUR REQUIRED
TO CHANGE THE REQUIRED DIMENSIONS
CLICK ON OK
THEN PLACE THE DOORS AS YOUR REQUIRED LAYOUT
STEP 4 : TO ADDING THE WINDOWS
GO TO ARCHITECTURE TAB
TAKE THE WINDOWS
THEN GO TO PROPERTIES PANEL
SLECT THE REQUIRED WINDOW
THEN PLACE THE WINDOWS AS YOUR REQUIRED LAYOUT

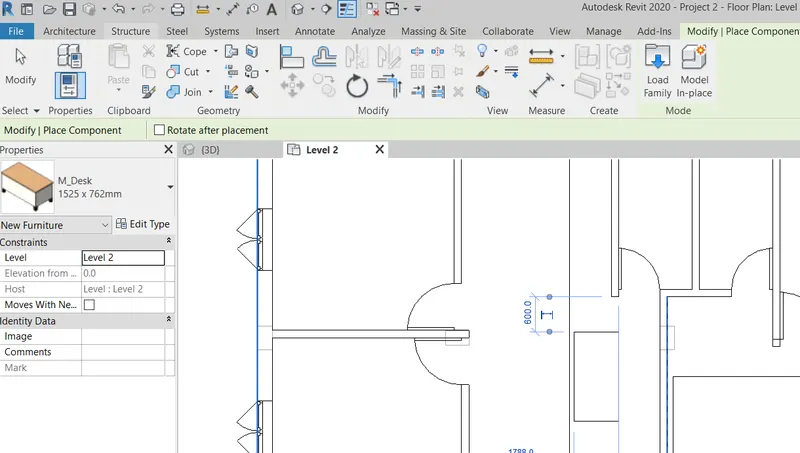

STEP 5 : TO ADDING THE REQUIRED FURNITURE
GO ARCHITECTURAL TAB
GO COMPONENTS DROP DOWN ARROW
THE SLECT THE PLACE A COMPONENTS
THE GO TO LOAD FAMILIES
LOAD THE REQUIRED FAMILY
THEN PLACE FAMILIES AS YOUR REQUIRED LAYOUT

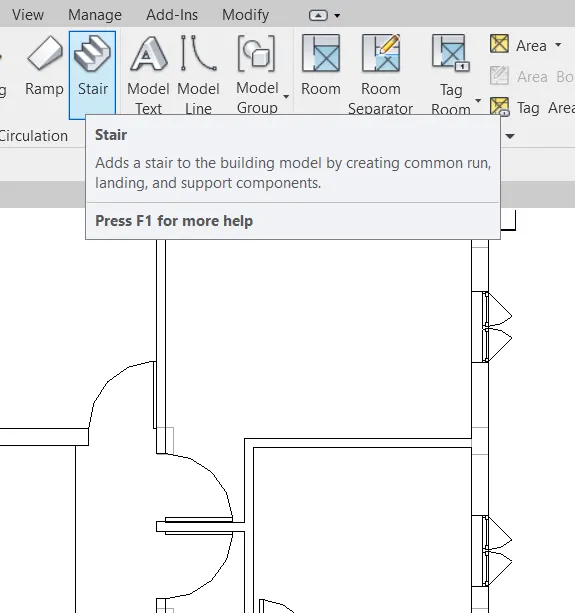

STEP 6 : TO ADDING THE STRAIR CASE
GO TO ARCHITECTURE TAB
THEN TAKE THE STRAIR OPTION
THEN CHANGE THE REQUIRED DIMENSIONS
THEN PLACE STRAIR AS YOUR REQUIRED LAYOUT

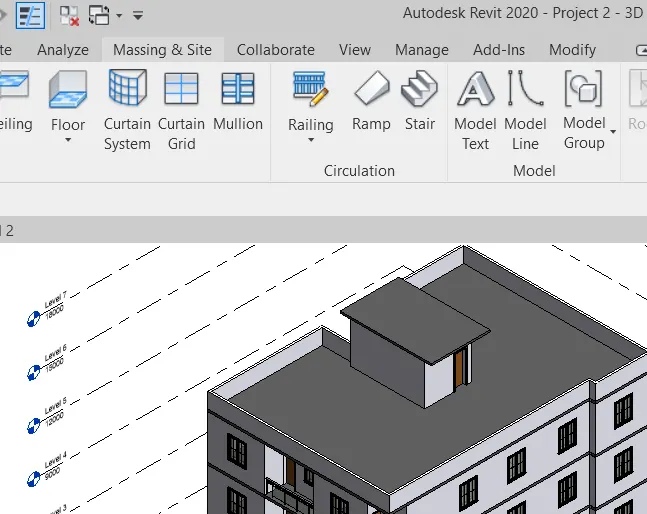

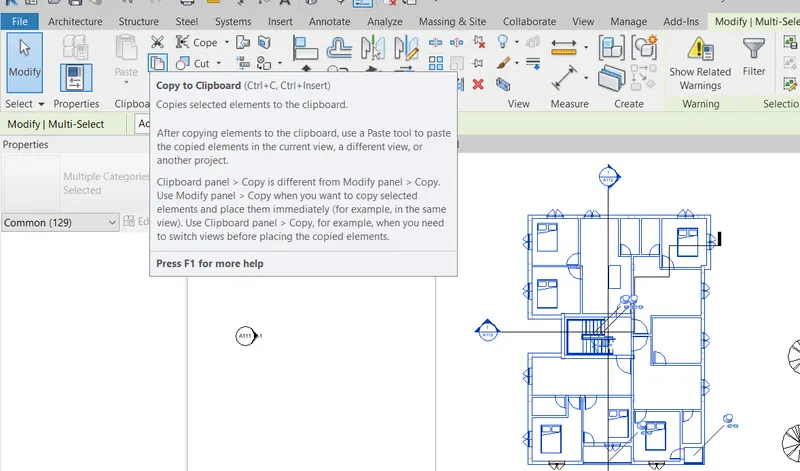

STEP 7 : TO CREATE THE NO FLOORS
SELECT THE REQUIRED FLOOR
THEN CLICK ON THE COPY TO CLIPBOARD IN MODIFY PANEL
THE GO TO PASTE DROP DOWN ARROW
THEN SELECT THE ALINE TO SELECTED LEVELS
THEN SELECT THE REQUIRED FLOORS LEVELS
THEN CLICK OK

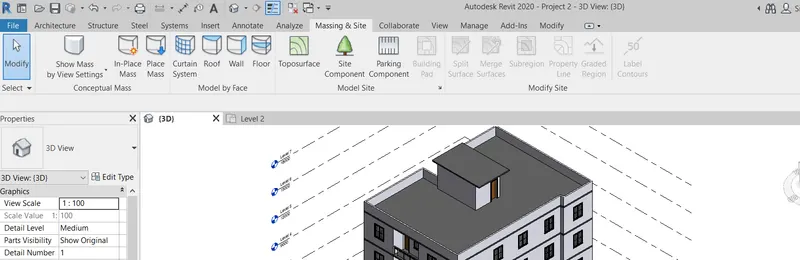

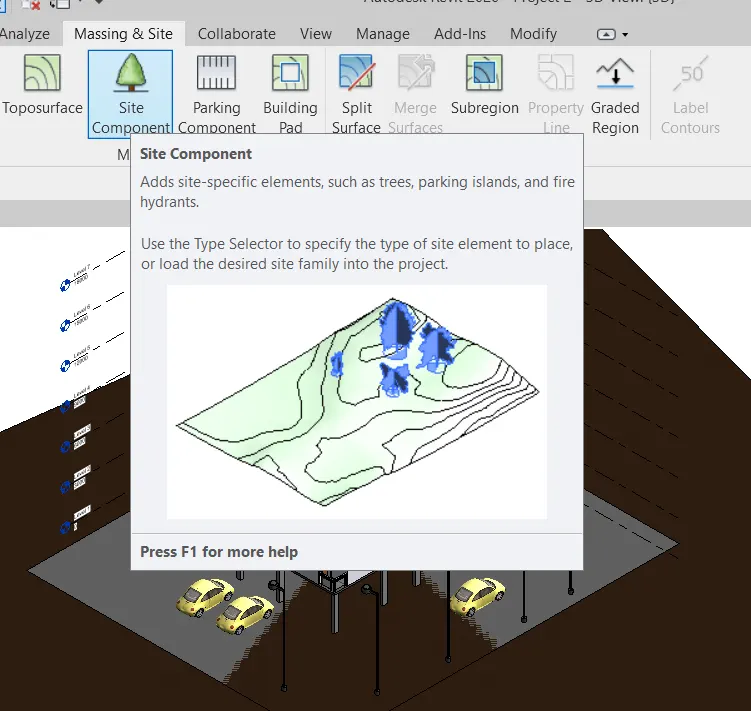

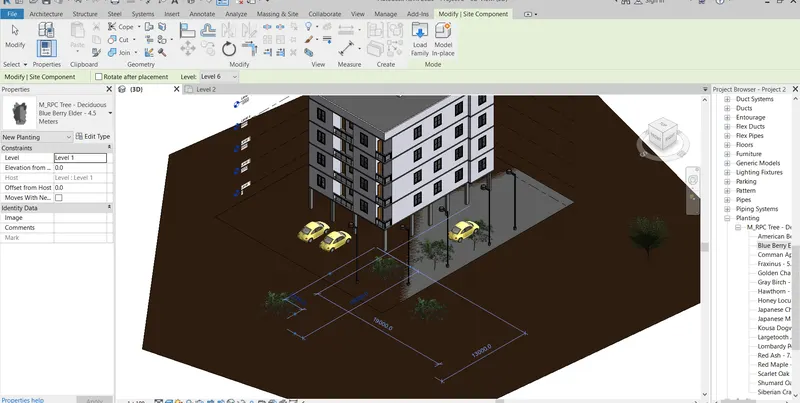

STEP 8 : TO CREATE THE MASSING AND SITE
GO TO MASSING AND SITE TAB
TAKE TOPOGRAPHY
TO DRAW THE REQUIRED TOPOGRAPHY AS YOUR REQUIRED LAYOUT
THEN TAKE THE SITE
THEN PLACE THE TREES AS YOUR REQUIRED LAYOUT
RESULT :
TO CREATED THE ARCHITECTURAL MODEL

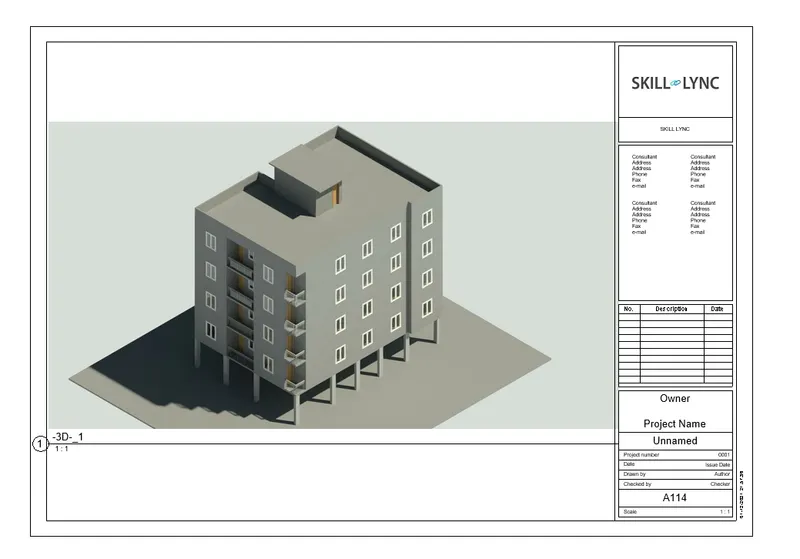

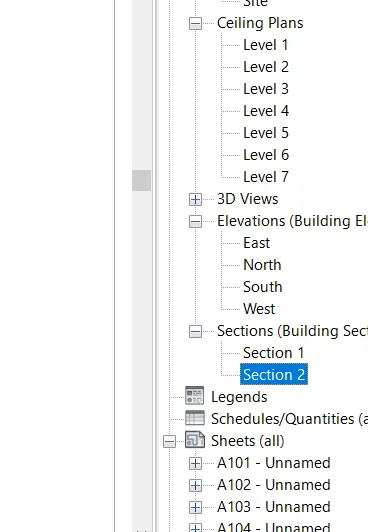

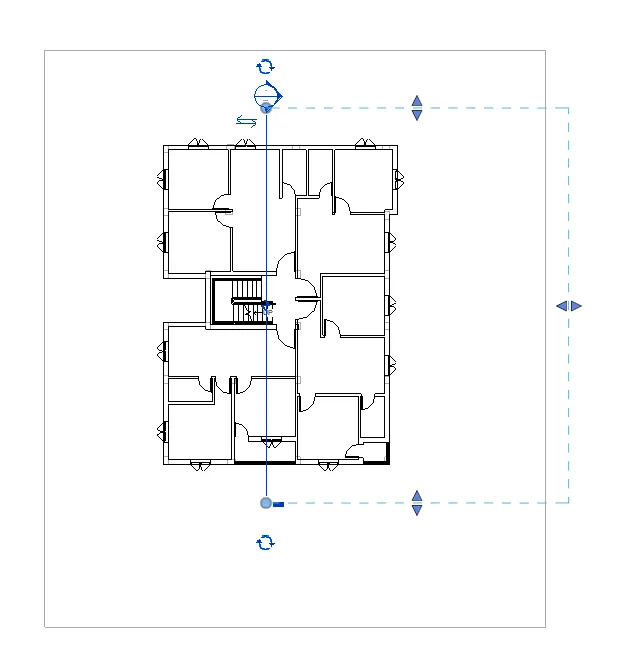

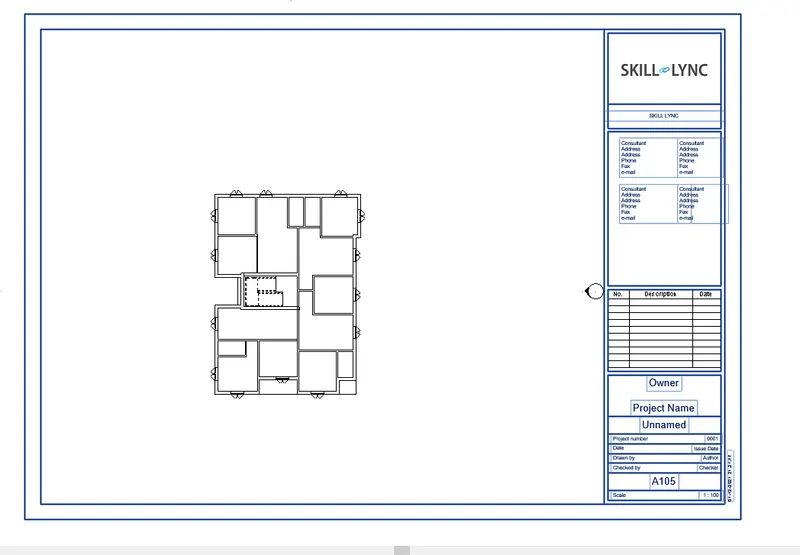

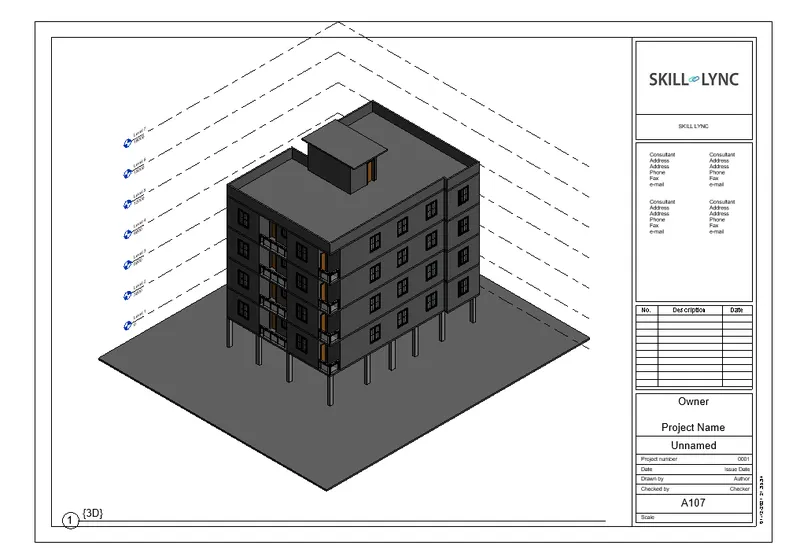

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

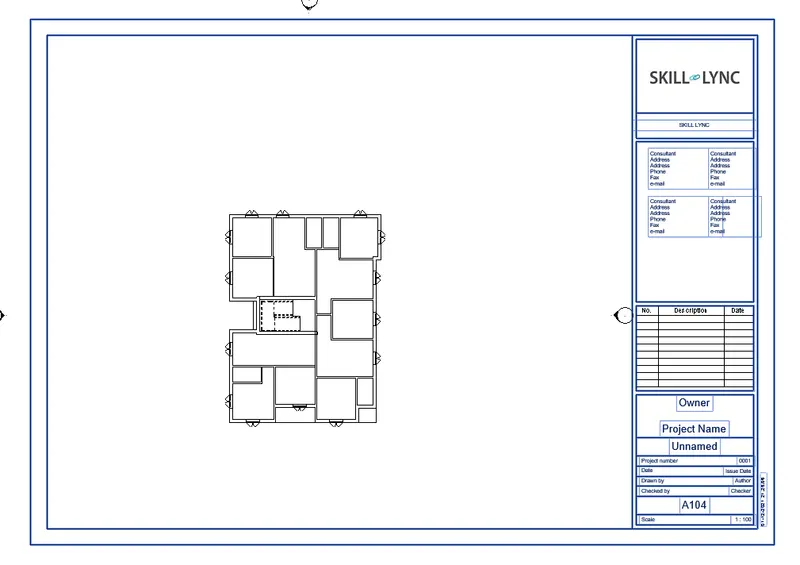

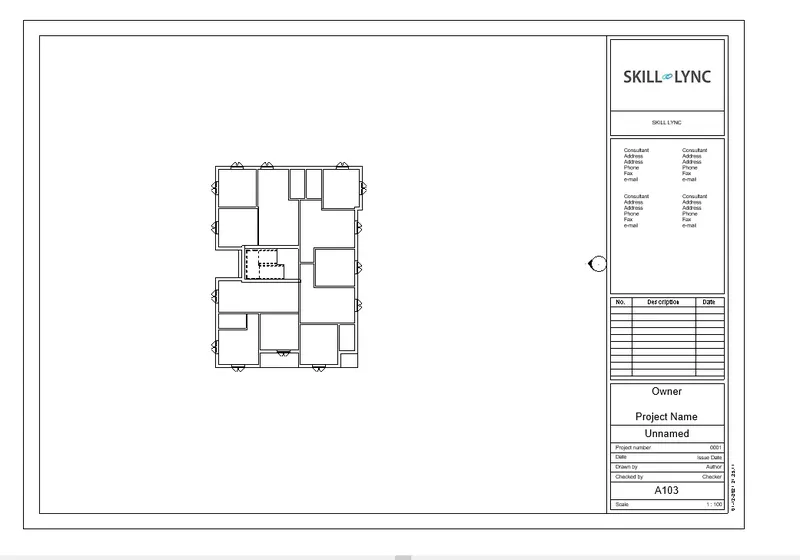

a. Floor Plans with Annotations

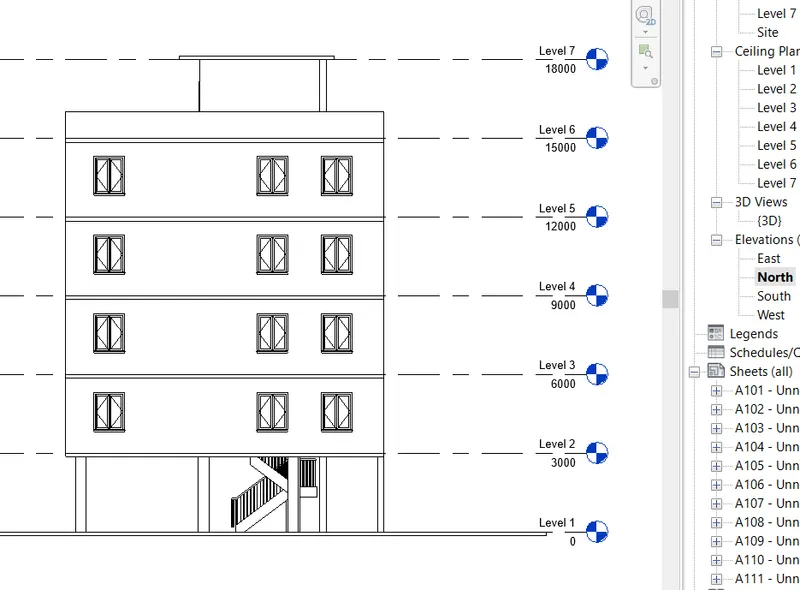

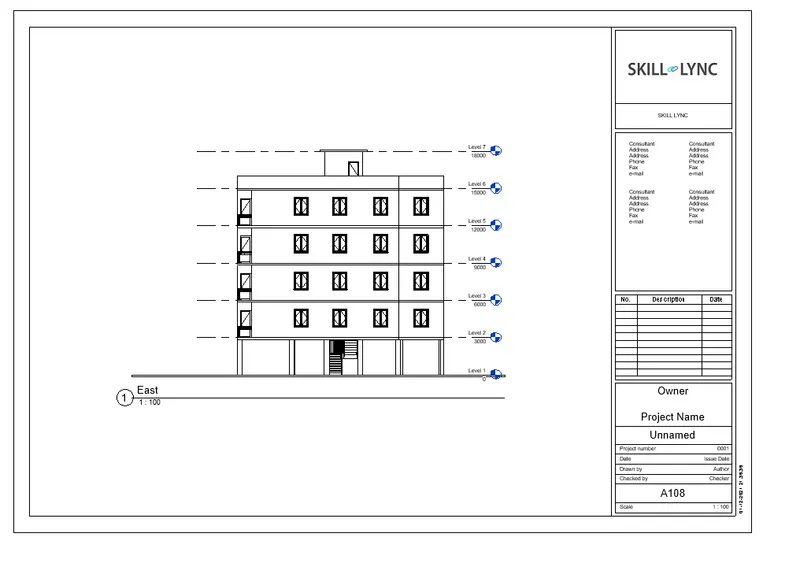

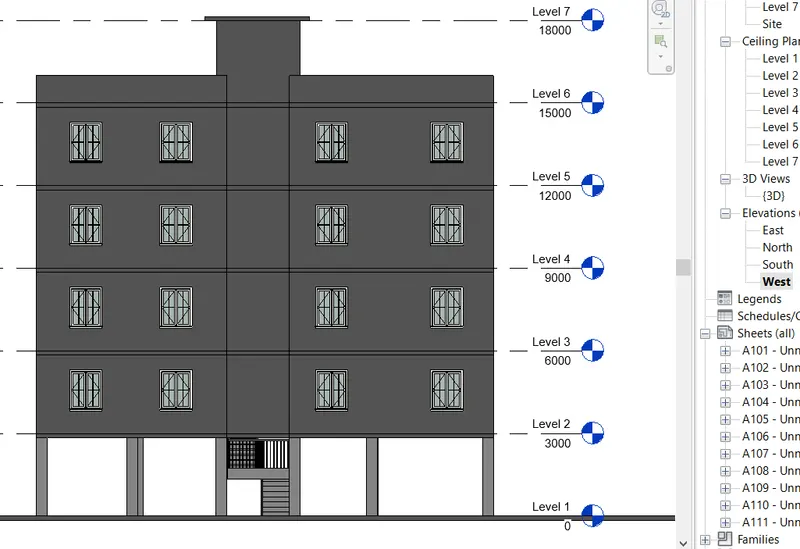

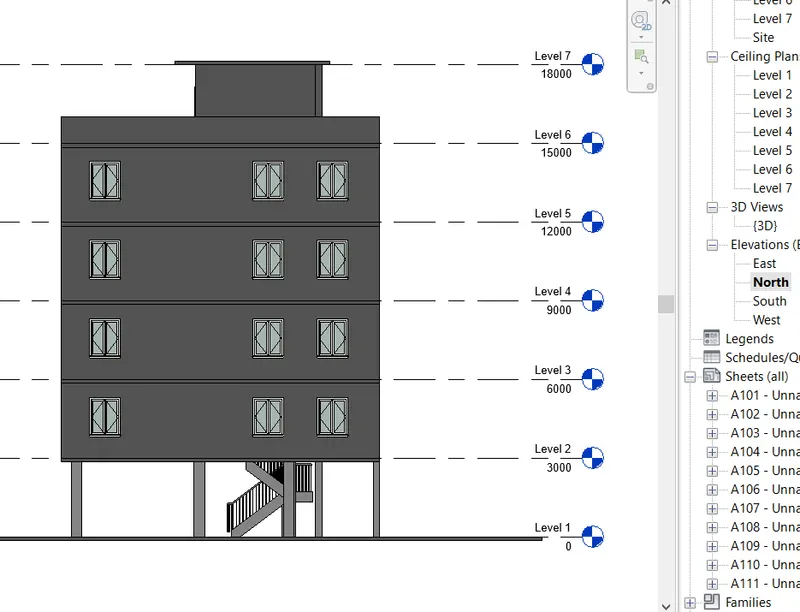

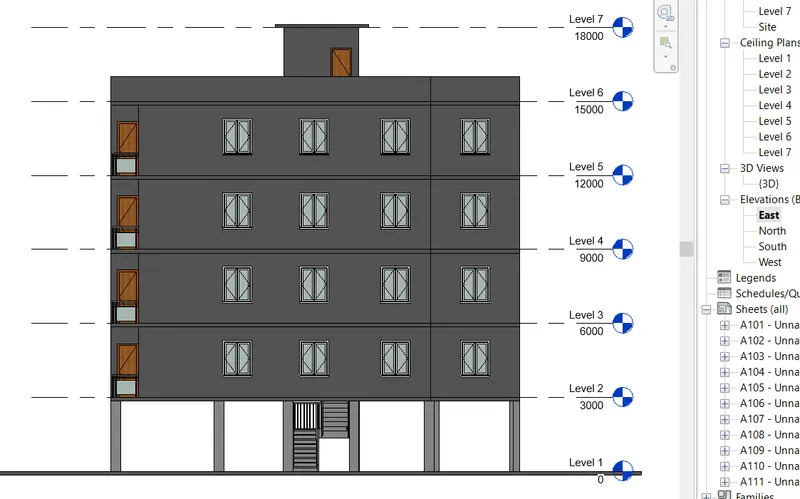

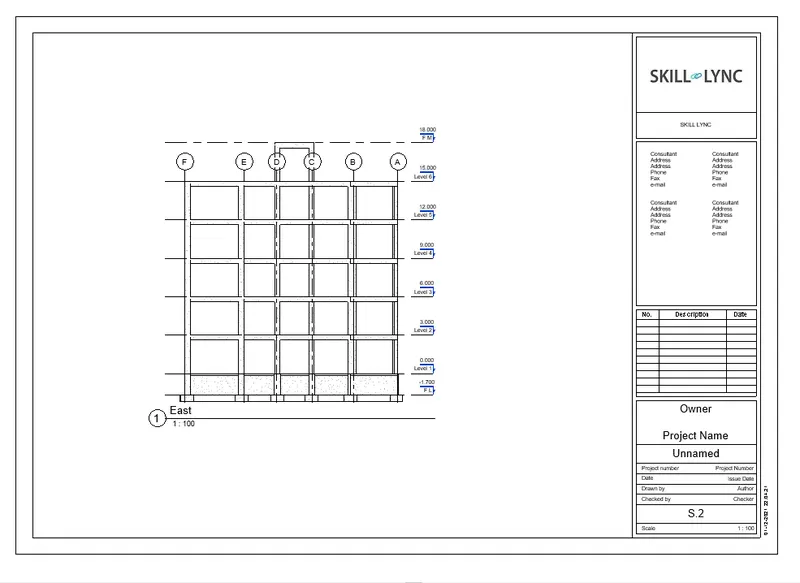

b. Elevations

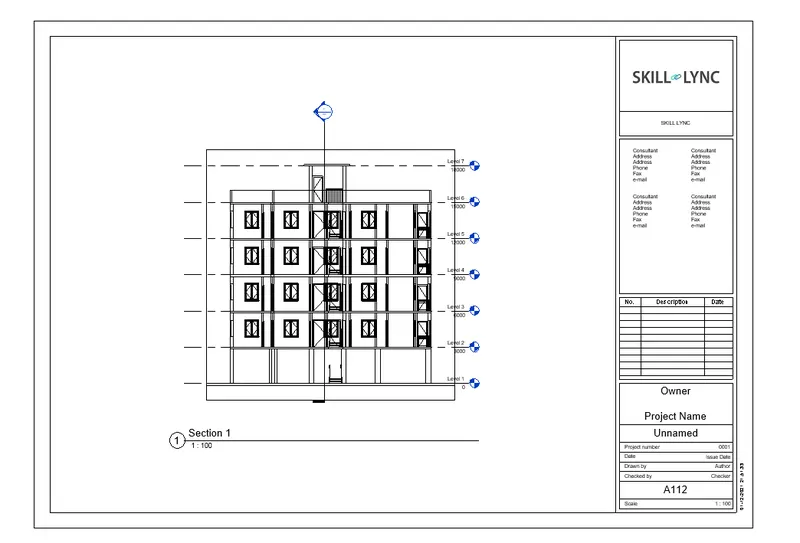

c. Sections
AIM : TO PROVIDE A SET OF DRAWINGS IN AN ARCHITECTURAL AND STRUCTURAL MODEL
DRAWINGS AS
FLOORS PLANS
ELEVATIONS
SECTION
PROCEDURE :

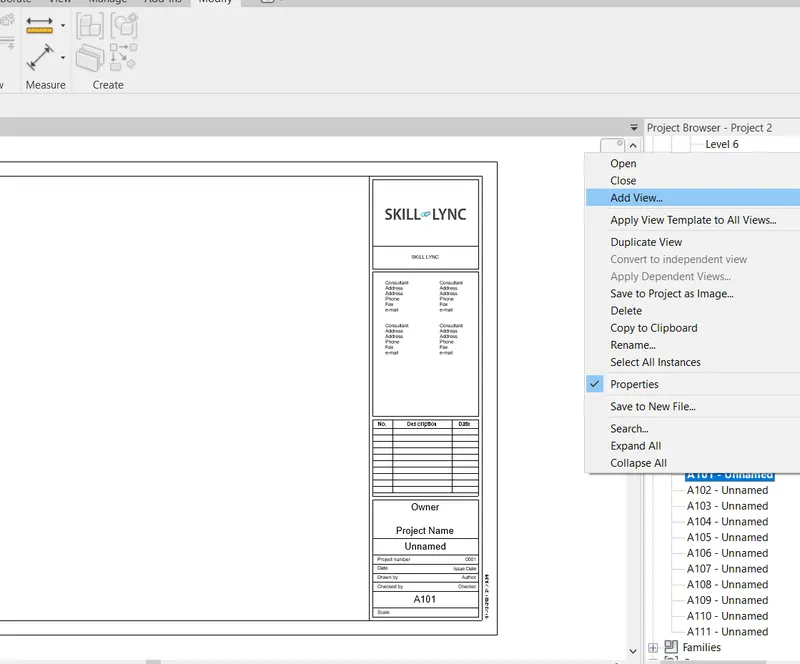

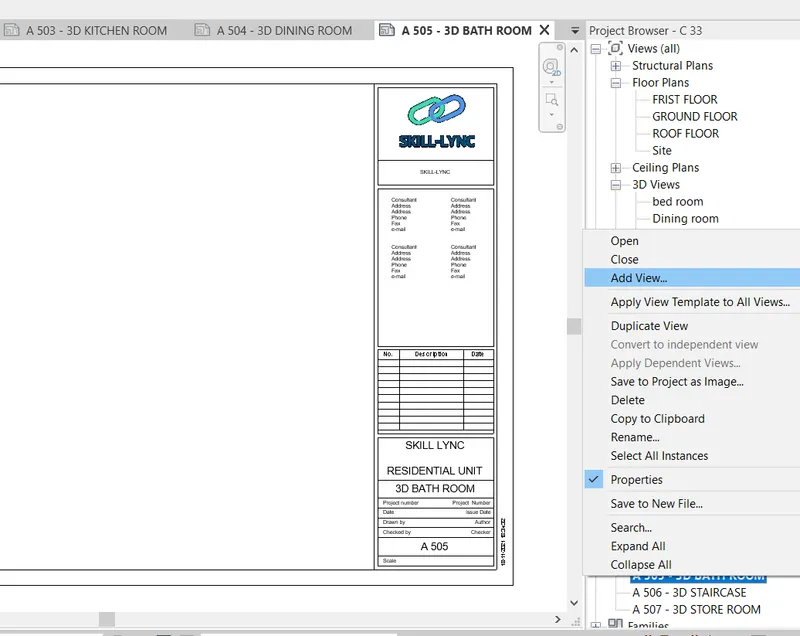

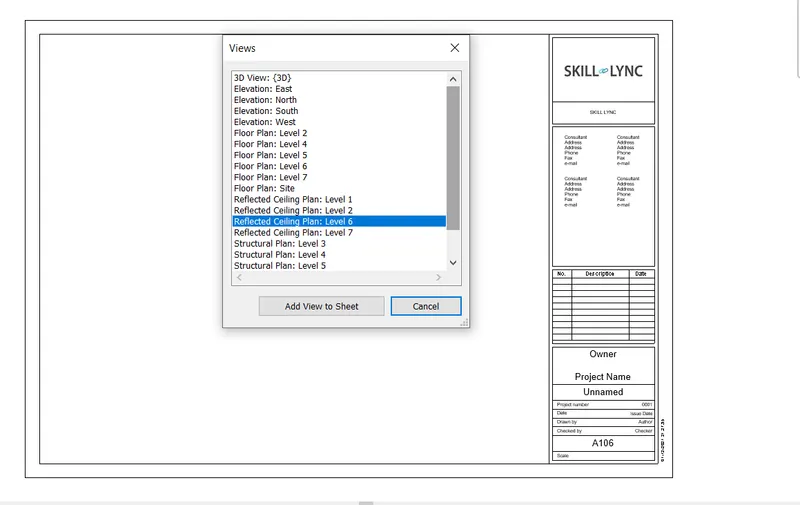

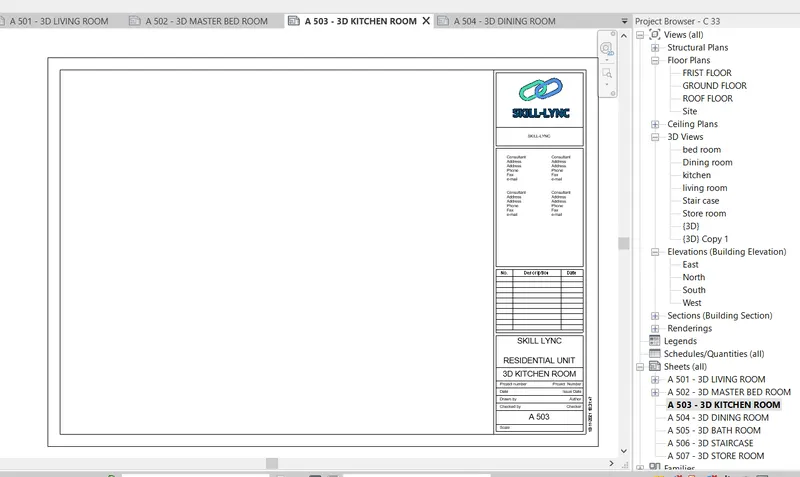

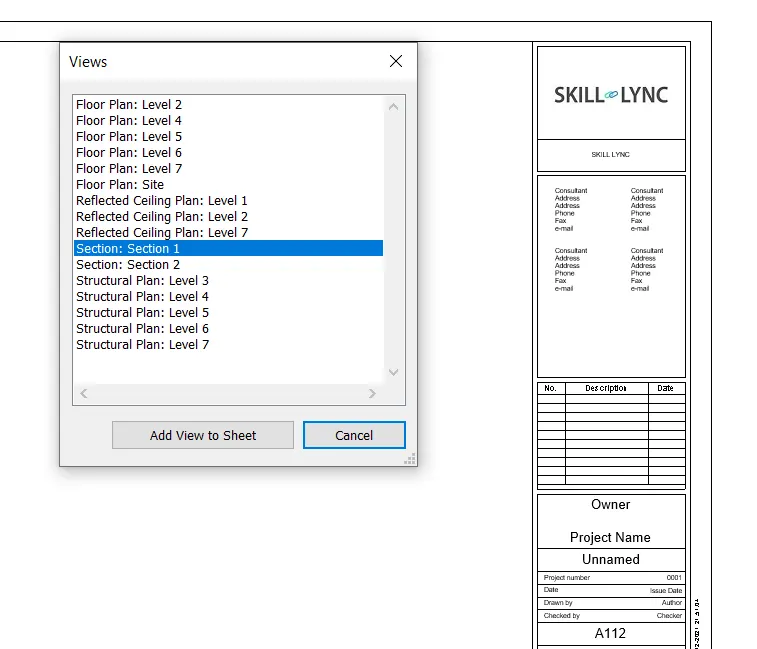

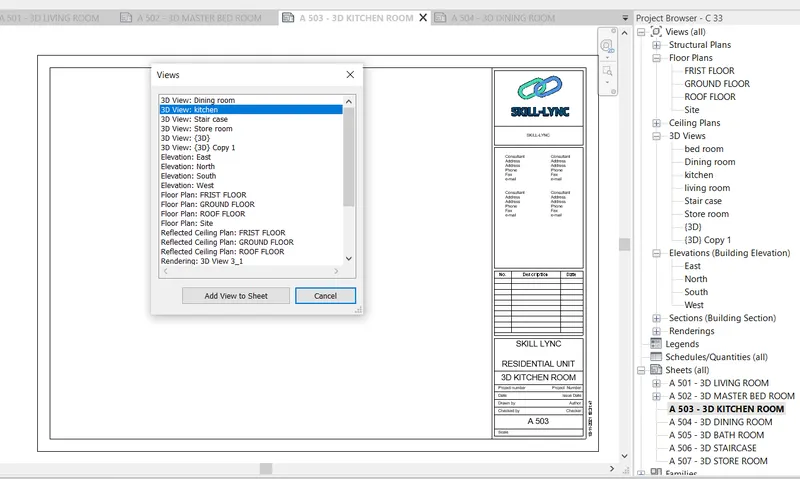

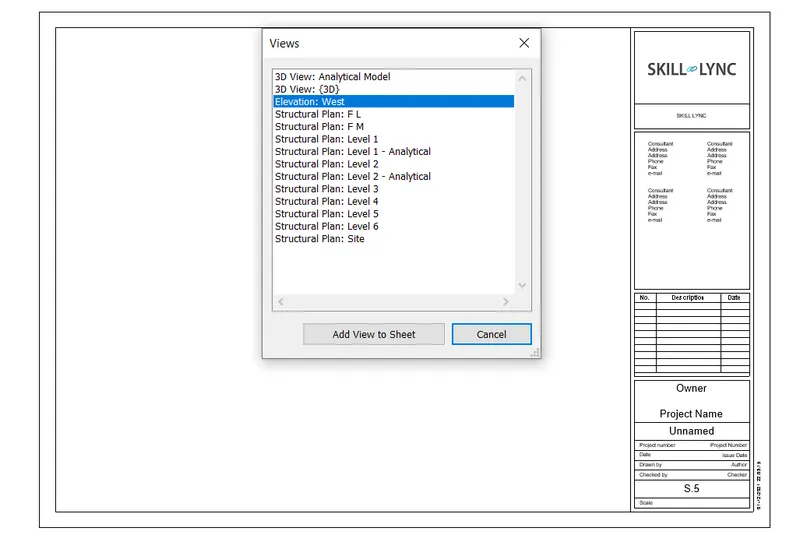

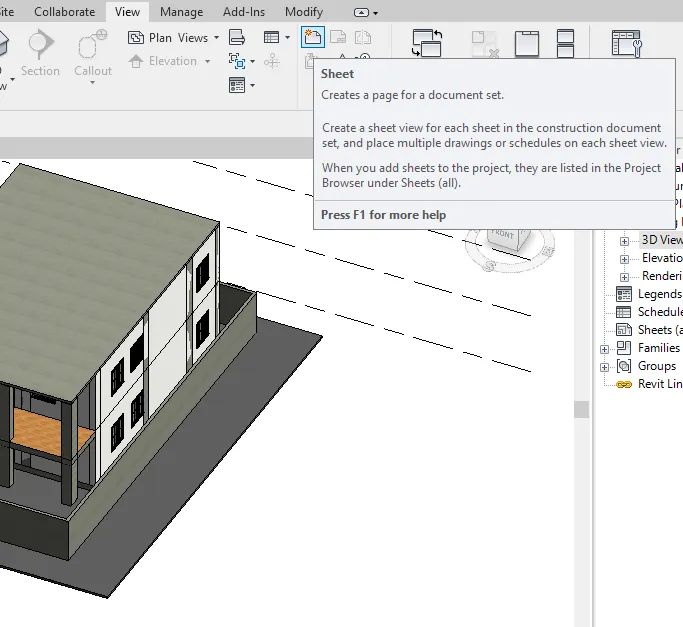

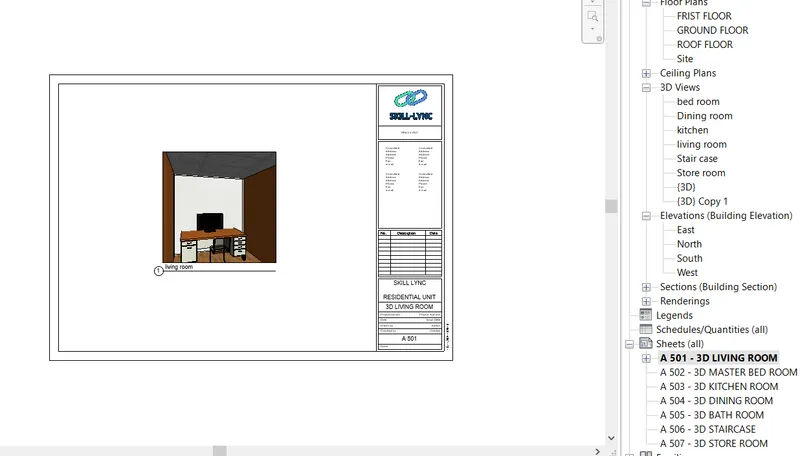

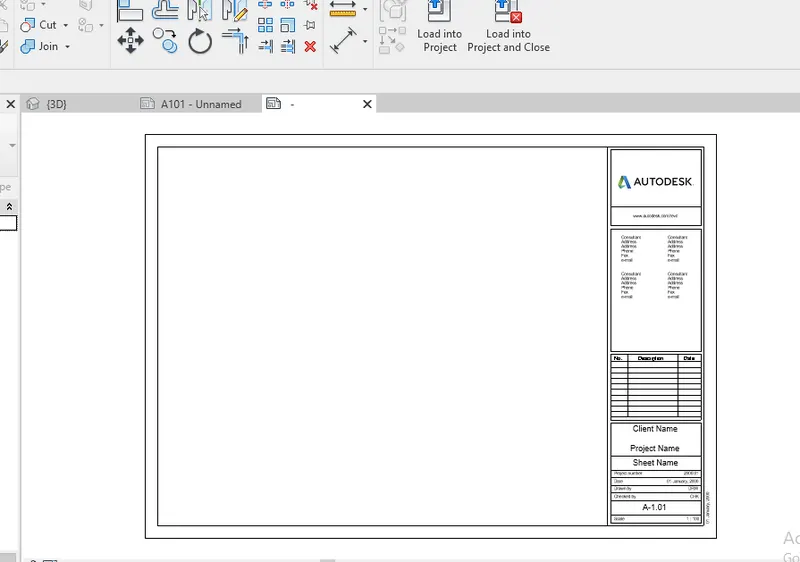

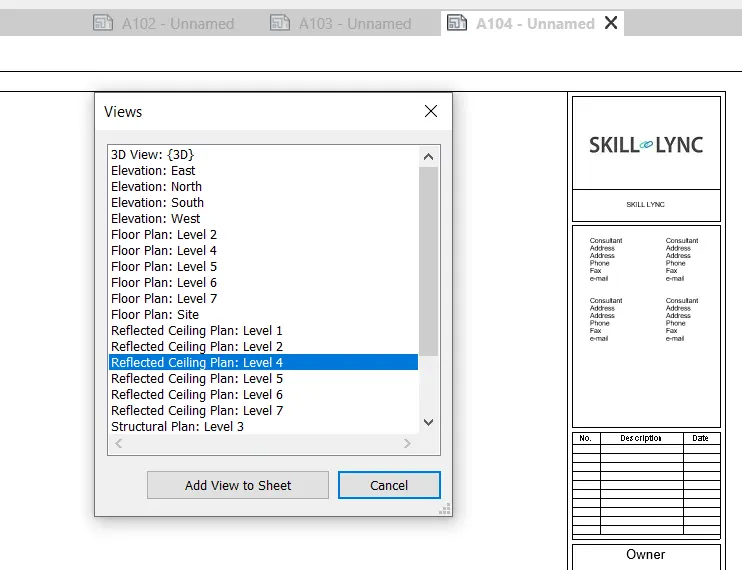

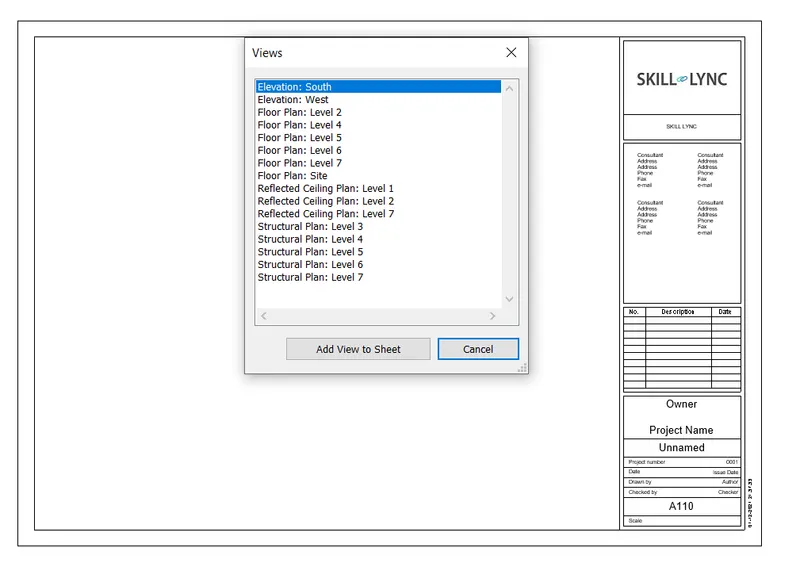

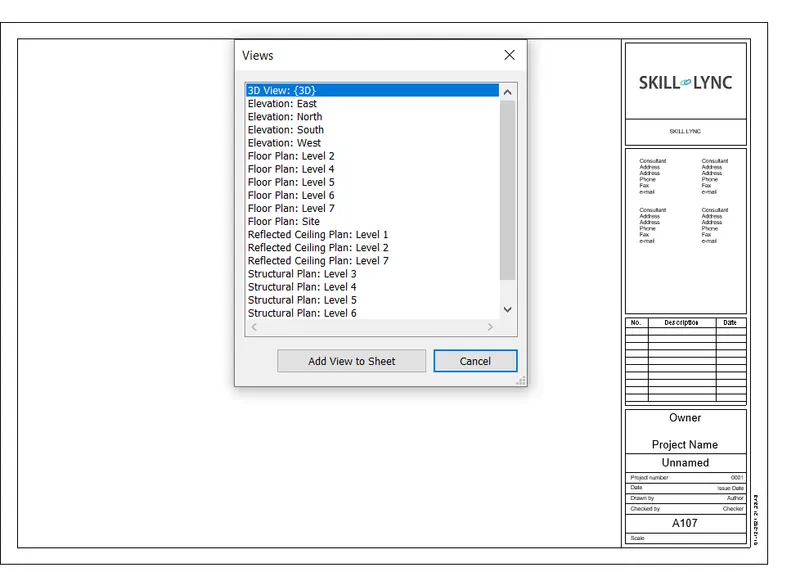

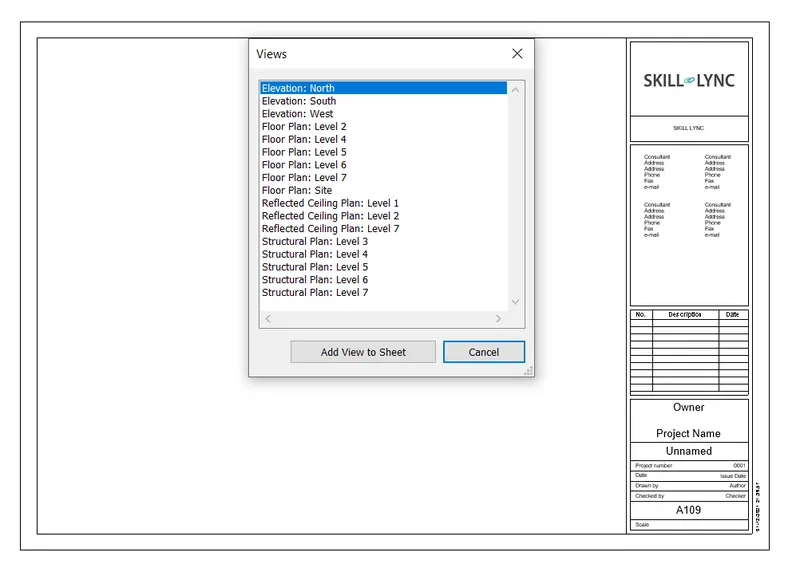

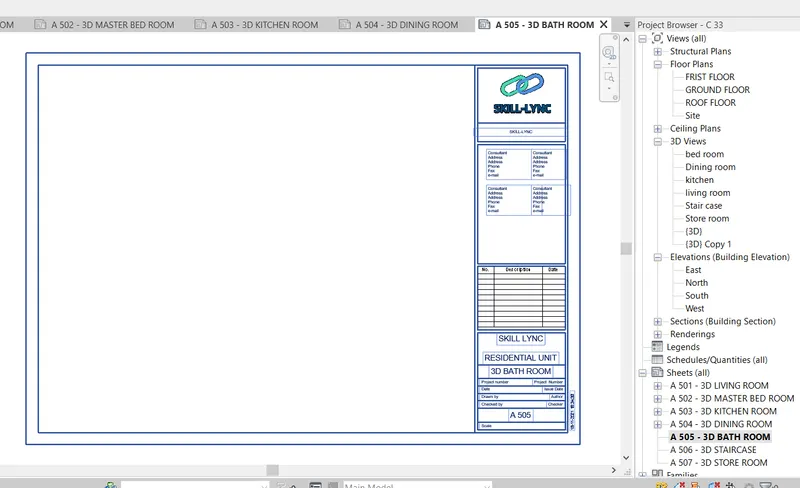

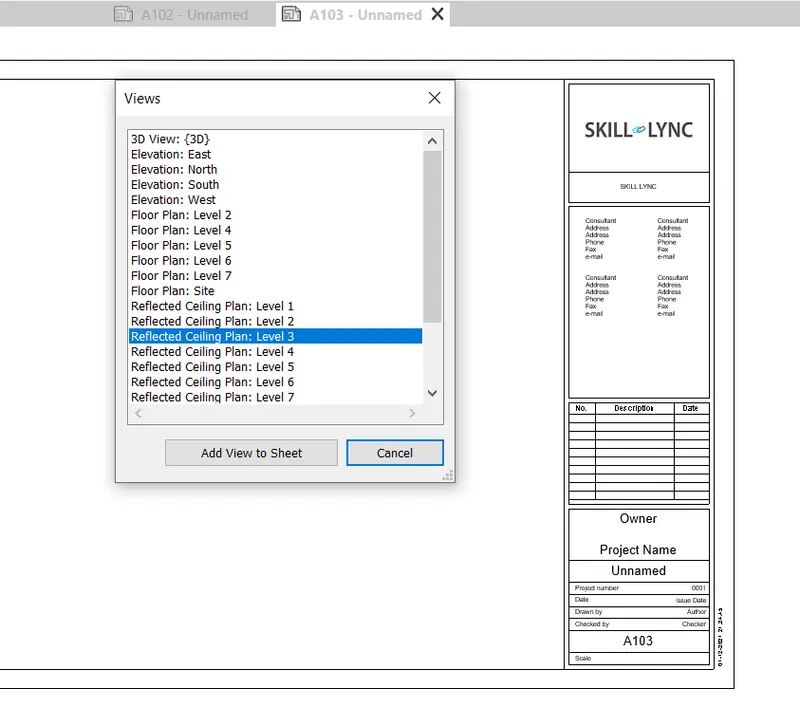

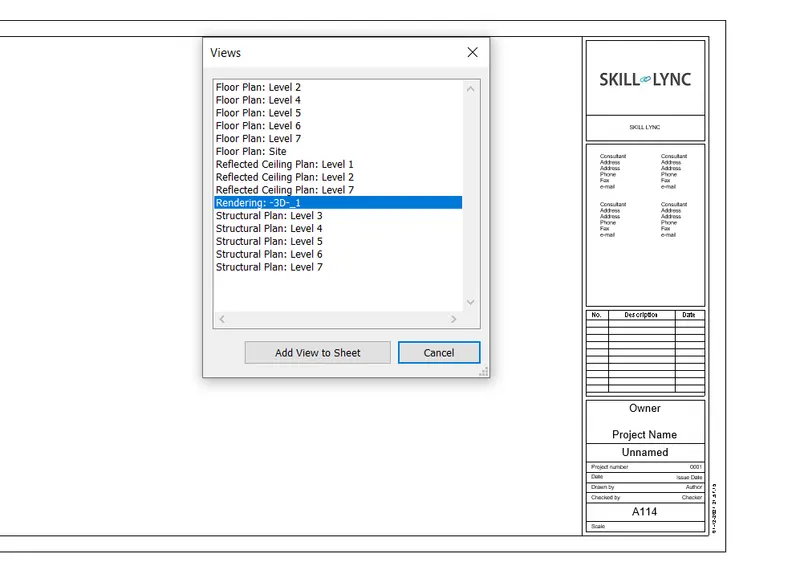

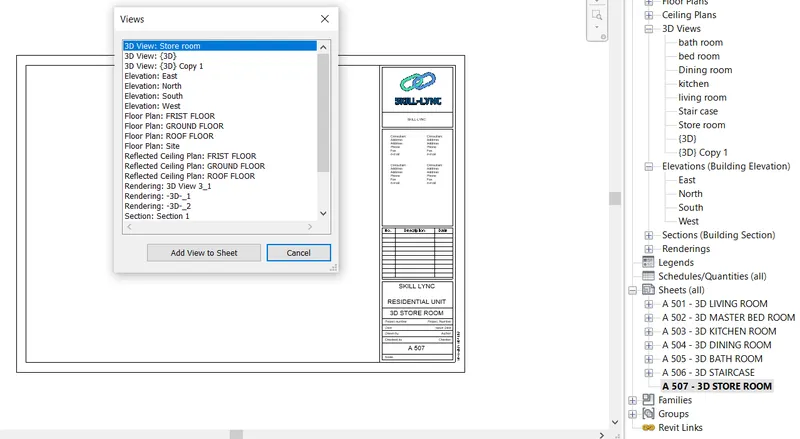

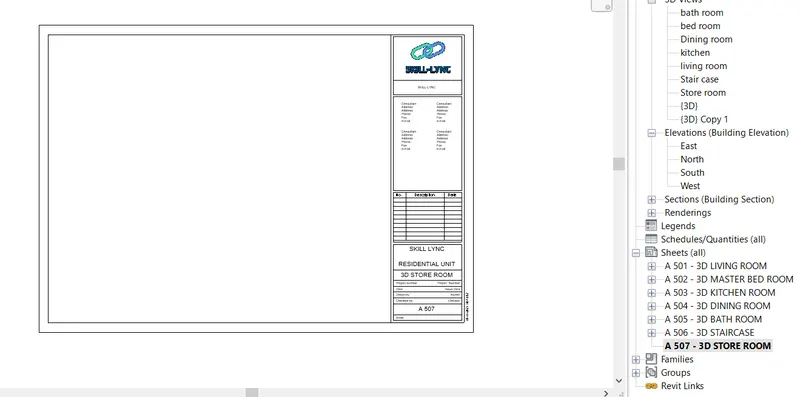

STEP 1 : TO CREATE THE SHEET TEMPLATE
GO TO VIEW TAB IN MANU BAR
GO TO SHEET COMPOSITION
NOW TAKE A SHEET
NOW OPEN NEW WINDOWS
HEAR DEFAULT SHEET IS A0 METRIC
BUT REQUIRED ANTHER SHEET

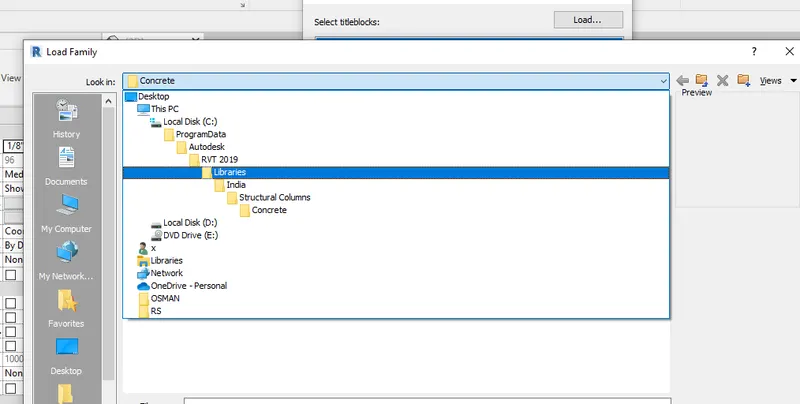

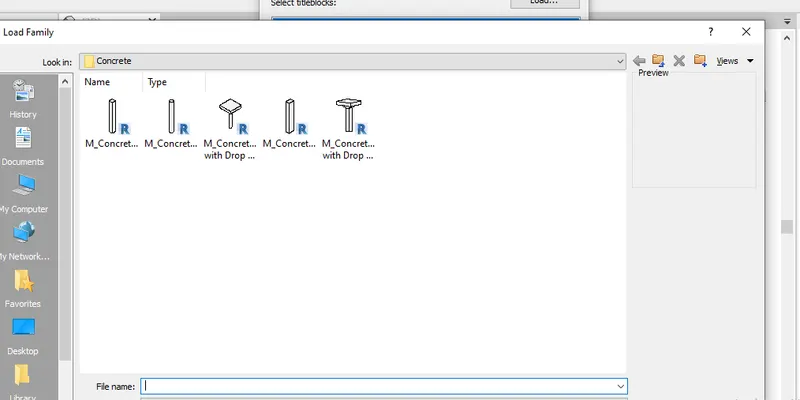

THEN GO TO LOAD OPTION
THEN OPEN LOAD FAMILIES
TAKE INDIA
THEN GO TO TITLE BLOCK
HEAR I AM SELECT A2 METRIC
CLICK ON OPEN
CLICK ON OK

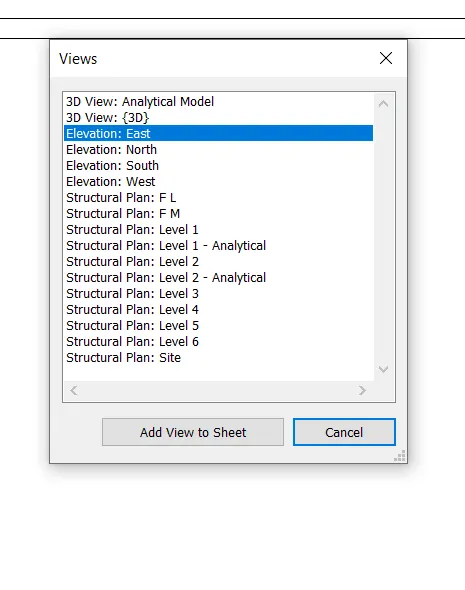

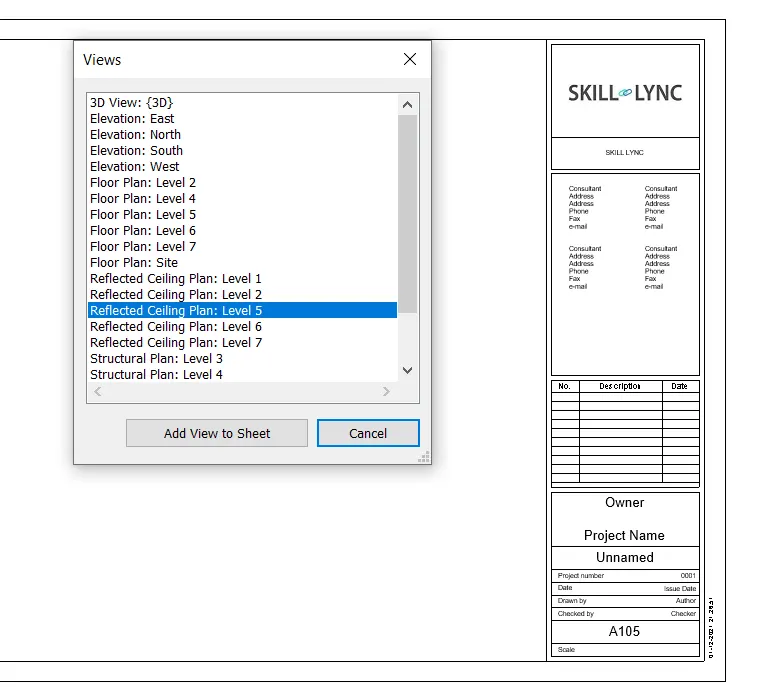

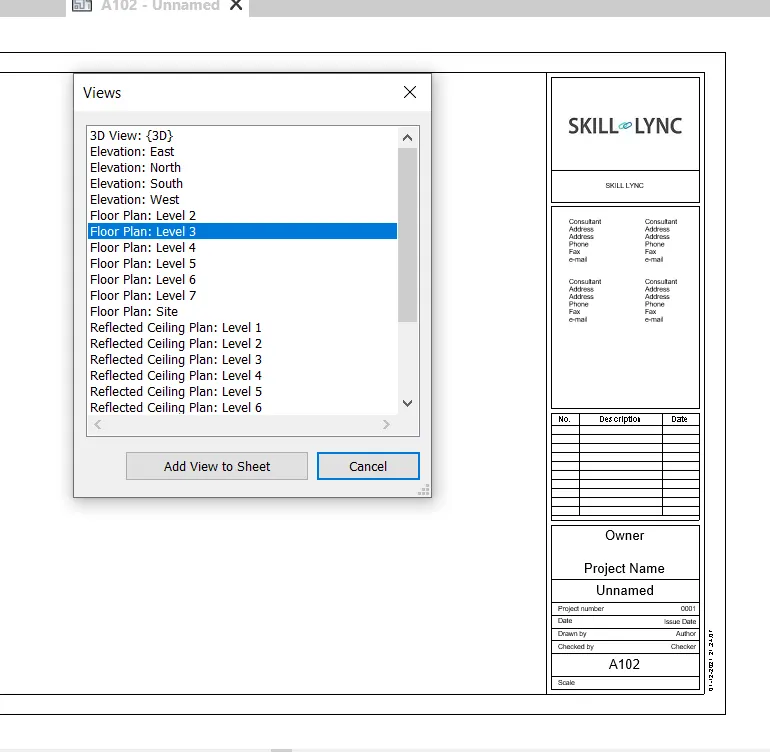

NOW OPEN OUR REQUIRED SHEETS
THEN DOUBLE CHECK
TO EDIT IS POSSIBLE THEN EDIT OUR REQUIRED
SELECT THE AUTODESK IMAGE DELETE
THEN GO TO INSET
THEN GO TO IMAGE
LOAD OURREQUIREDIMAGE
FINALY TO CHANGE THE OUR REQUIRED DATA
.
.
.
STEP 2 : ADD VIEWS
SELECT THE REQUIRED SHEET
THEN MOUSE RIGHT CLICK
TAKE ADD VIEW
SELECT THE REQUIRED VIEW
CLICK ON ADD TO VIEW TO SHEET
RESULT :
TO PROVIDE A SET OF DRAWINGS IN AN ARCHITECTURAL AND STRUCTURAL MODEL
DRAWINGS AS

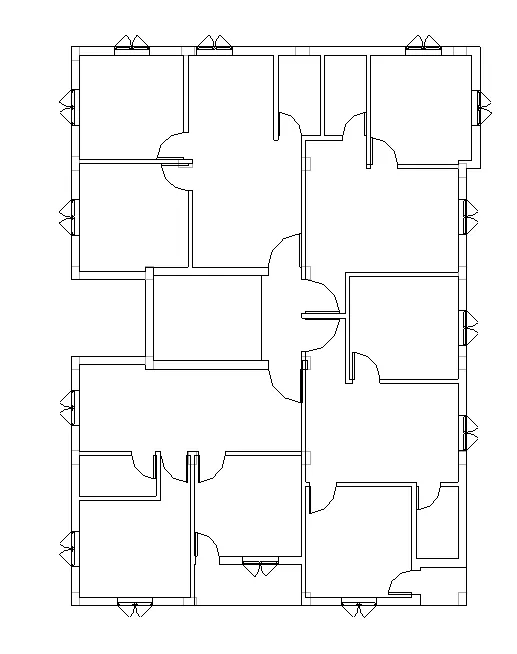

FLOORS PLANS
ELEVATIONS
SECTION
6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
AIM : Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
PROCEDURE :
STEP 1 : ADD SHEETS AND RENAME THE SHEETS
GO TO PROJECT BROWSER
THEN GO TO SHEETS (ALL)
MOUSE RIGHT CLICK
THEN TAKE NEW SHEET
THEN GO TO LOAD
GO TO LIBRARY THEN INDIA
GO TO TITLE BLOCK
THEN SELECT YOUR REQUIRED SHEETS
CLICK ON OPEN
THEN SELECT THE LOADED SHEET
CLICK ON OK
THEN SELECT THE SHEET
MOUSE RIGHT CLICK
TAKE THE RENAME OPTION
THEN GIVE THE REQUIRED NAME
CLICK ON OK
STEP 2 : ADD VIEWS
SELECT THE REQUIRED SHEET
THEN MOUSE RIGHT CLICK
TAKE ADD VIEW
SELECT THE REQUIRED VIEW
CLICK ON ADD TO VIEW TO SHEET
RESULT :

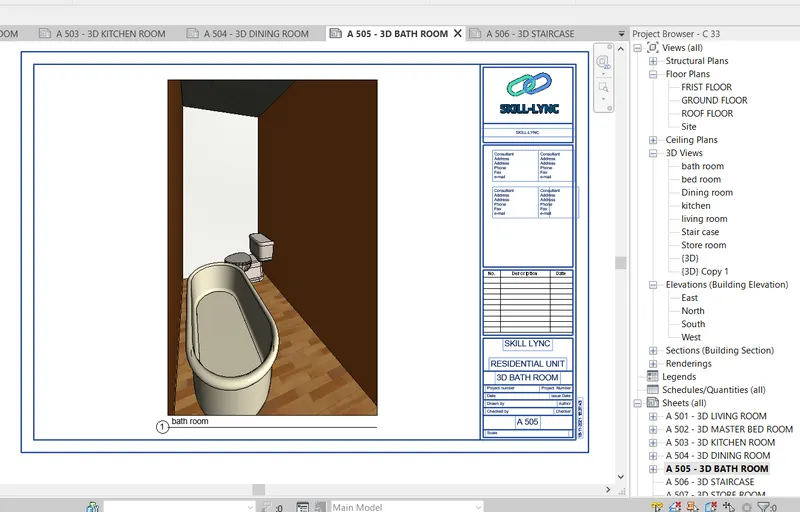

FOLLOWING DIFFERENT 3D CAMERA VIEWS ARE CREATED IN THE PROJECT
7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model
AIM : PRINT THE SET DRAWINGS SHEETS CREATE AND SUBMIT THE DRAWINGS
PROCEDURE :
CLICK ON CTRL + P ON THE KEYBOARD
OR
GO TO FILE MANU BAR
SELECT THE PRINT OPTION
CLICK ON SELECT SET
SELECT THE REQUIRED SHEETS FOR PRINT
CLICK ON OK
RESULT :
PRINTED THE SET OF DRAWINGS SHEETS CREATED AND SUBMITTED THE DRAWINGS
