Creating Architectural and Structural model with 3D rendering using REVIT
Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
Ans:- a.Multi-Unit Residential Apartment
MULTI-UNIT RESIDENTIAL APARTMENT
Procedure:-

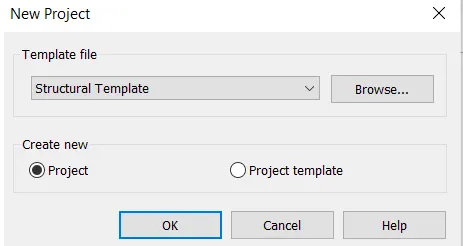

- Open new project with structural template.

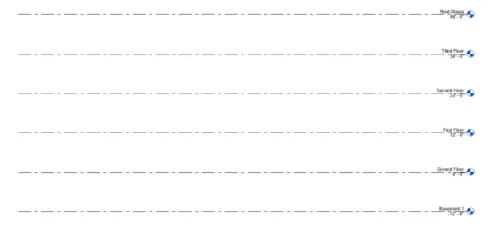

- Using levels give the level of building.

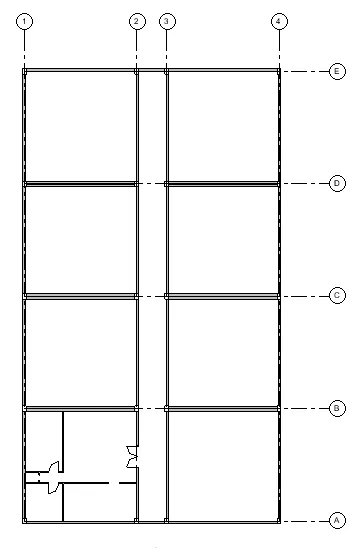

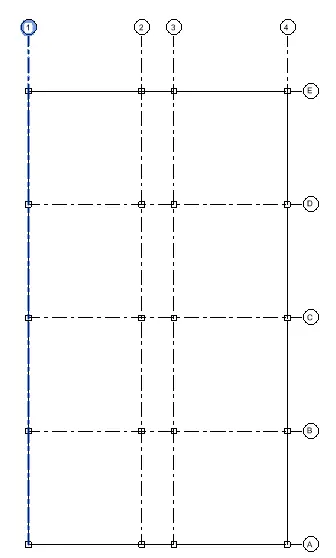

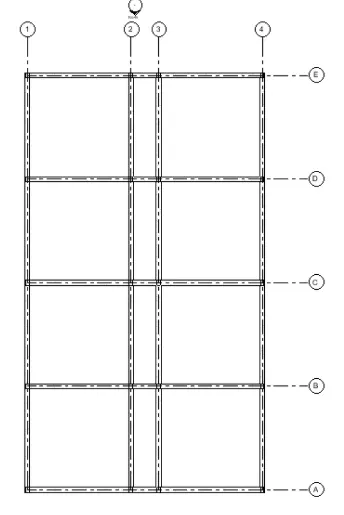

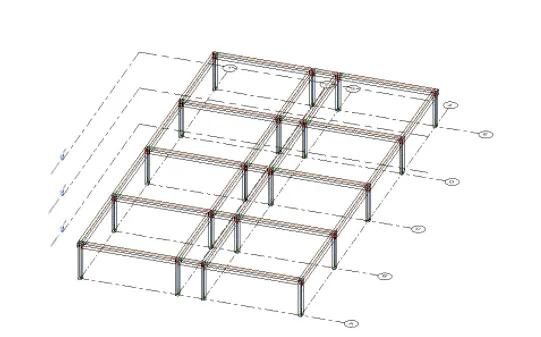

- Draw grid lines,foundation and beam.
- Draw the door and windows.

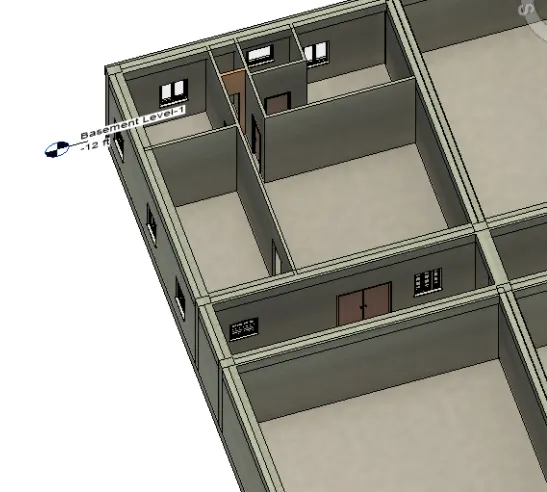

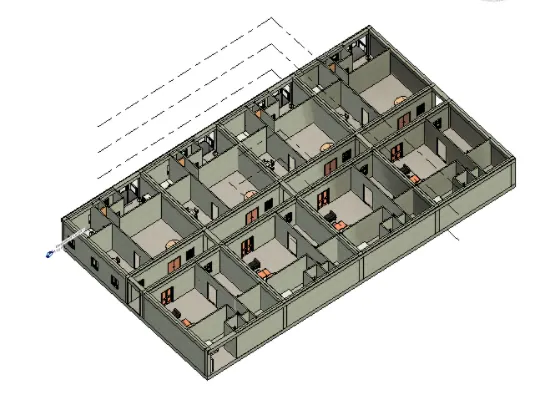

- Draw interior walls .

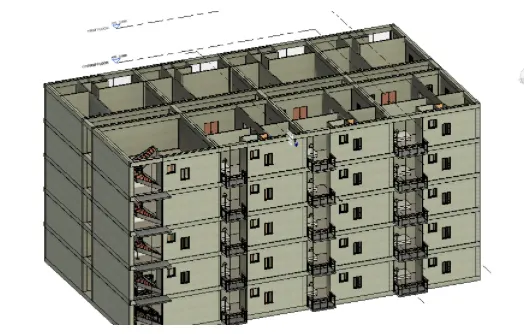

- Copy the plan and alined it upto 5th floor.

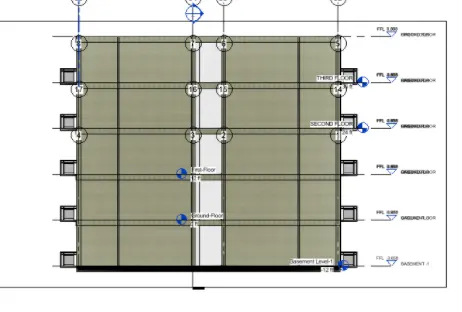

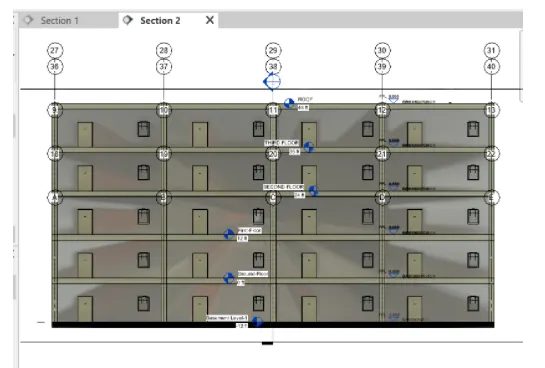

- Give the section line.

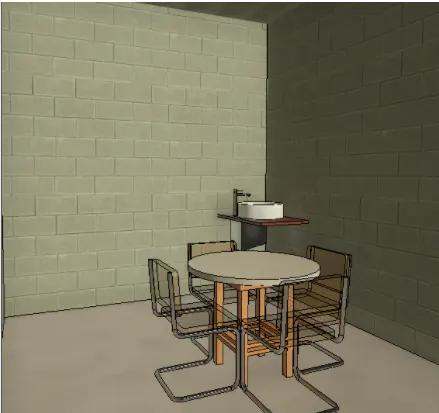

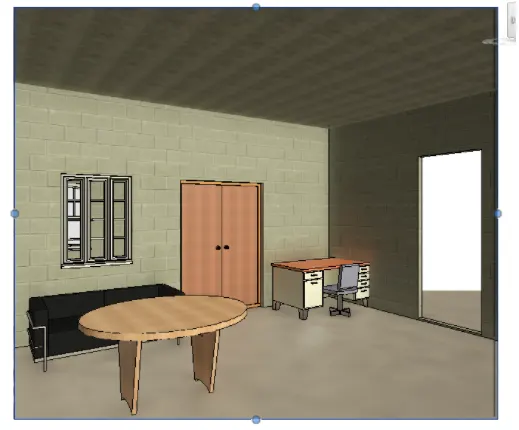

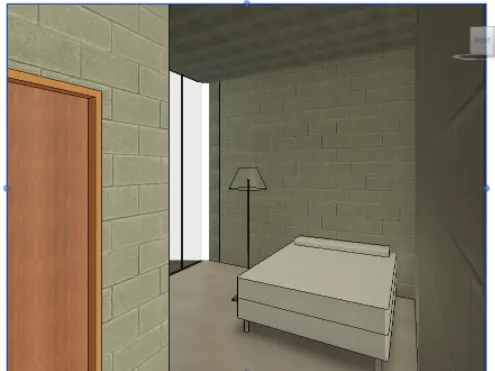

- Give the view of rooms through camera view.

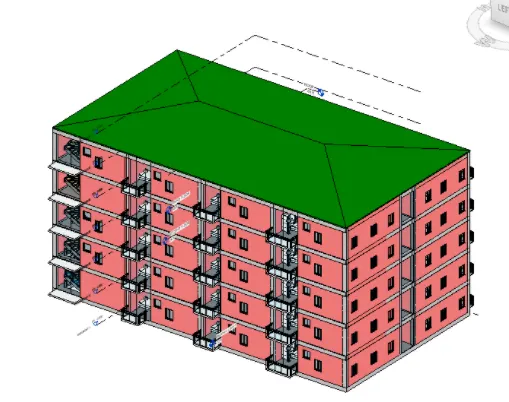

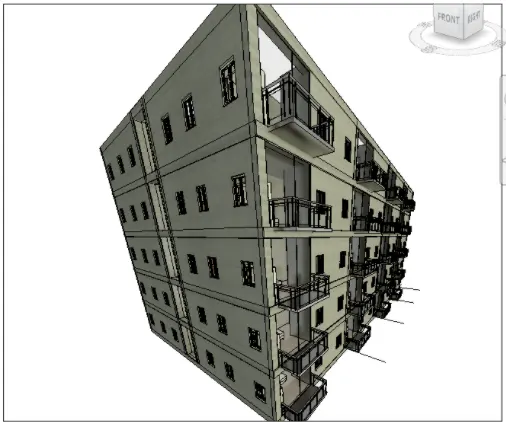

- Render the building using Render tool.
Result:-
