Creating Architectural and Structural model with 3D rendering using REVIT
Aim:- Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
Procedure:-
Here i am going to select office building
Result:- well understood to select the type of stucture
Aim:- Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
Procedure:-
1) the open space around the building shall not be less than 4.5m
2) the type of construction as type two construction the FAR value for the business building shall be take as 2.9
3) the plot size is take as 40m x 70m i.e 2800m2 and individual floor area is 2000 m2 Hence FAR value obtained is 2.14 which is within the prescribed limit as per NBC
4) the width of the road abutting the building is taken as 9m
Result:- well understood to Assume reasonable assumptions for geographic and location details for selected project modeling
Aim:- Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
Procedure:-
a. Foundation – Isolated / Wall/Matt Foundation
Step 1:- Create level
Step 2:- Create Grid plan on foundation level
Step 3:- click on structure then click on Isolated structural foundation then click on at grid and select all grid and click on tick option our model will be asign foundation
Result:- well understood to assign foundation.

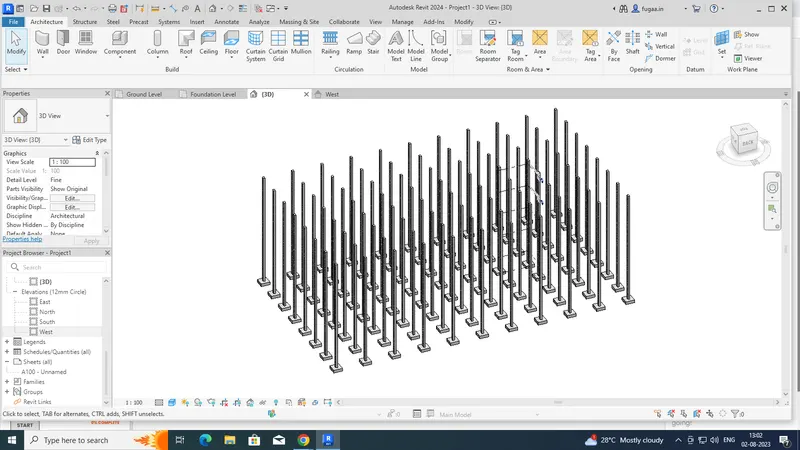

b. Columns
Step 1:- Select Ground floor plan
Step 2:- click on structure
Step 3:- click on column
Step 4:- click on at grid
Step 5:- select all grid and click on tick option our model will be asign column
Step 5:- extend column up to the roof level
Result:- well understood to assign column.

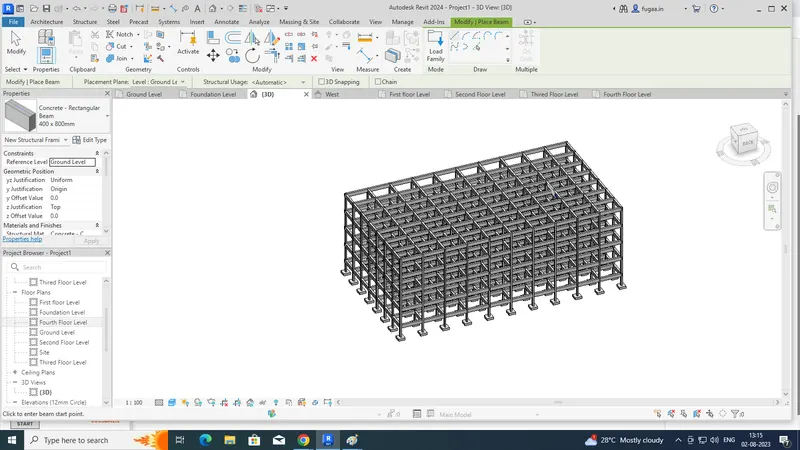

c. Beams Connected to Columns
Step 1:- Select Ground floor plan
Step 2:- click on structure
Step 3:- click on beam
Step 4:- click on at grid
Step 5:- select all grid and click on tick option our model will be asign Beam
Step 5:- Repet all above step up to roof level
Result:- well understood to assign Beam.

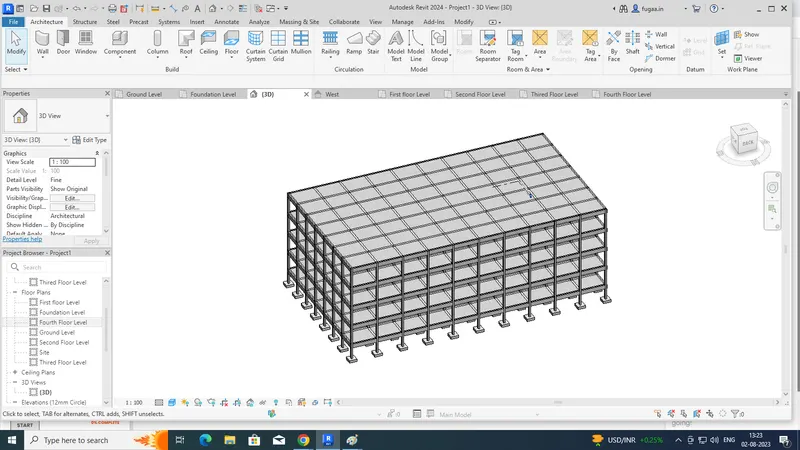

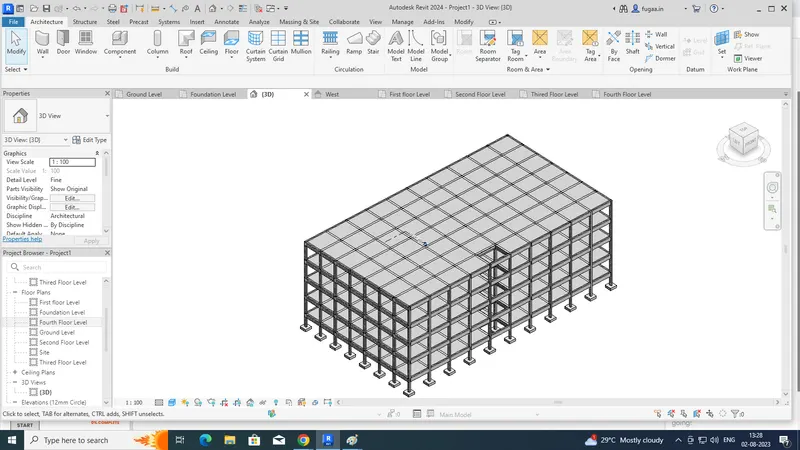

e. Floor / Decks
Step 1:- Select Ground floor plan
Step 2:- click on structure/architecture
Step 3:- click on floor architecture
Step 4:- create rectangle where we want to create floor.
Step 5:- click on tick option our model will be asign floor
Step 5:- Repet all above step up to roof level
Result:- well understood to assign floor.
f. Floor Openings for Elevators and Stairs
Step 1:- Select Ground floor plan
Step 2:- click on architecture
Step 3:- click on shaft
Step 4:- create rectangle where we want to create floor opening .
Step 5:- click on tick option our model will be asign floor opening
Step 5:- extened up to the roof level
Result:- well understood to assign floor opening.
4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures

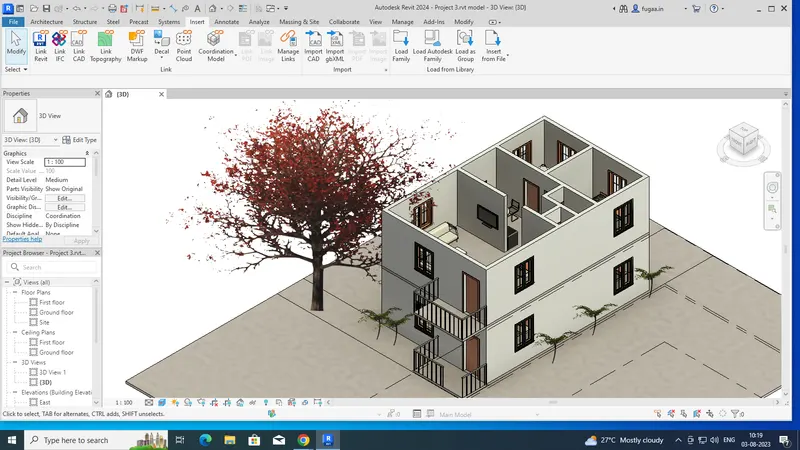

h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
Procedure:-
Step 1:- Created Wall Layout with appropriate material and finishing
Step 2:- created Exterior façade with fancy finish
Step 3:- crated Interior partition walls to size rooms
Step 4:-Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
Step 5:- Have at-least one side of the building with curtain walls and glass panels
Step 6:- Include interior and exterior lighting fixtures
Step 7:- Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
Result:- well understood to Created Wall Layout with appropriate material and finishing,Exterior façade with fancy finish Interior partition walls to size rooms, Components to add details to a room, Add components such as stairs Elevators, Have at-least one side of the building with curtain walls and glass panels, Include interior and exterior lighting fixtures, Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model.

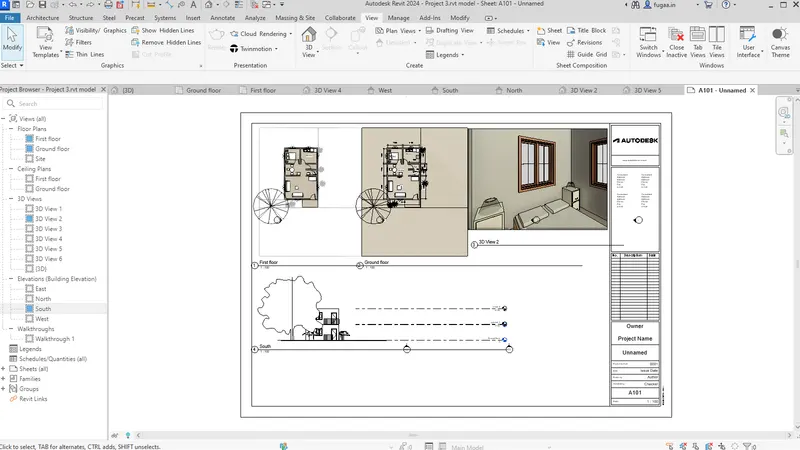

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections
Procedure:-
step 1:- under vew tab create sheet
Step 2:- add view as per requirement
Result:- well understood to Create sheet

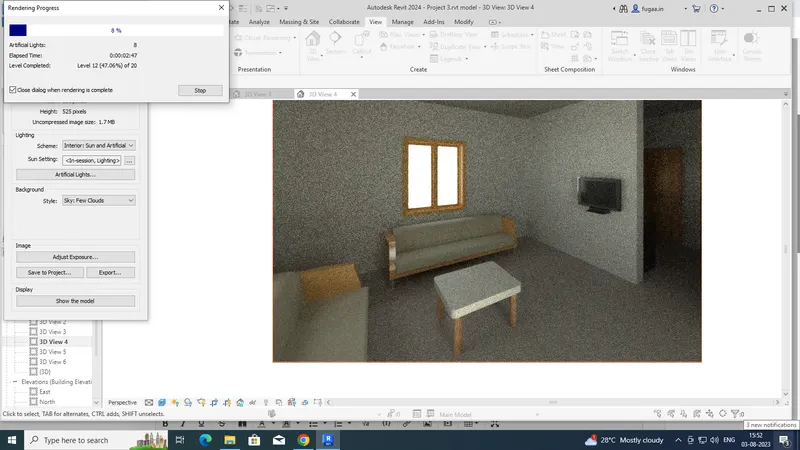

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

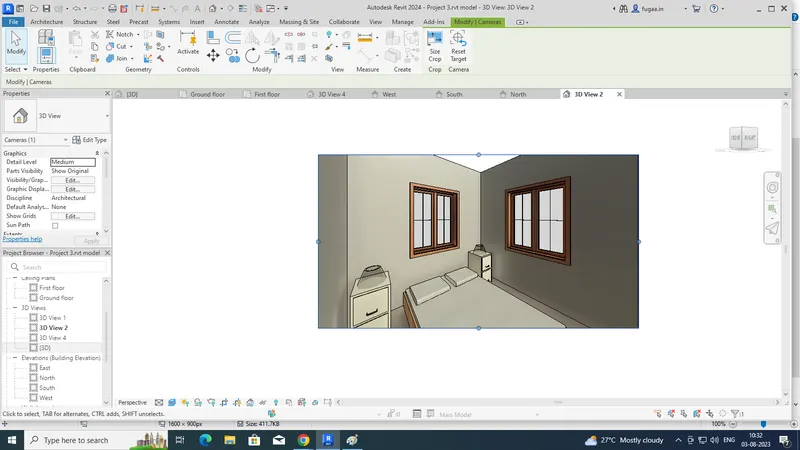

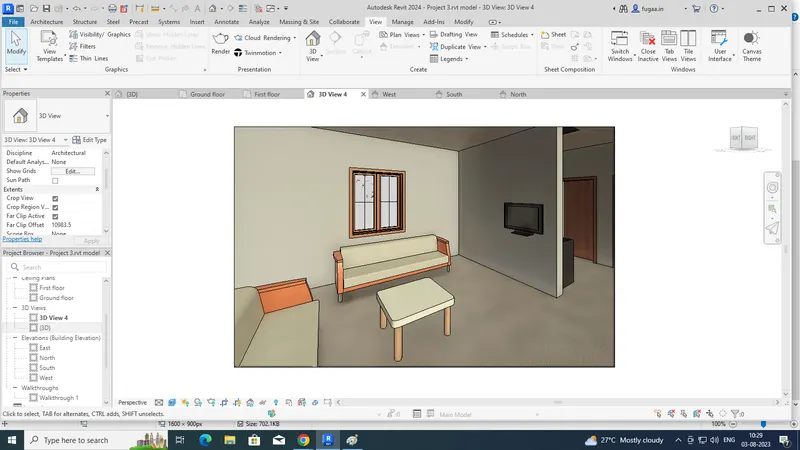

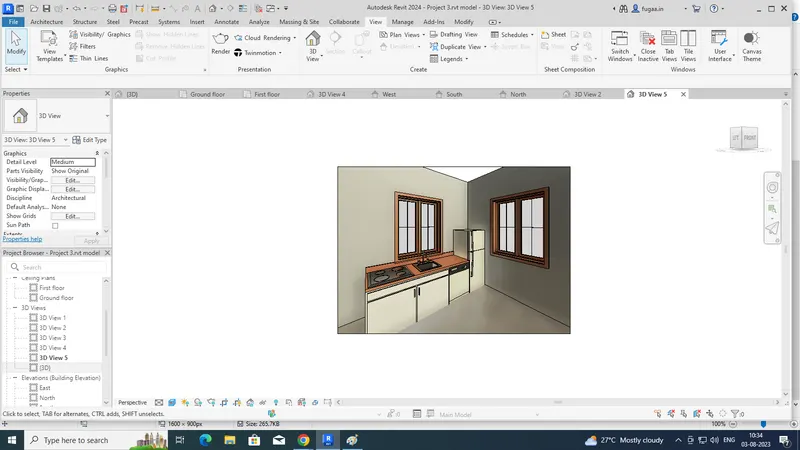

a. Rendering from interior rooms

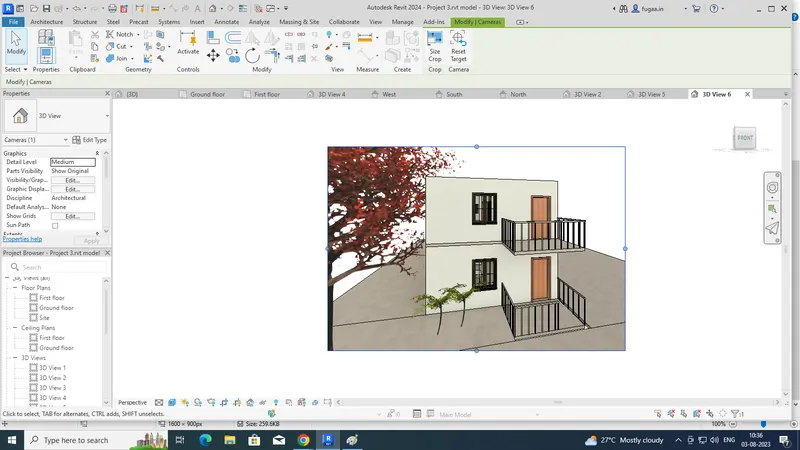

b. Rendering from out showing topographic features
c. Rendering through structural framing
Procedure:-
Step 1:- select 3 d view.
Step 2:- select render option under view.
Step 3:- make changes in seting as per requirement
Step 4:- render view
Result:- well understood to Rendering
