Creating Architectural and Structural model with 3D rendering using REVIT

AIM:

To Creating Architectural and Structural model with 3D rendering using REVIT.

PROCEDURE AND DETAIL:

1) Select the type of structure you want to build from one of the three below:
        a. Multi-Unit Residential Apartment
        b. Office Buildings
        c. School

Ans:

Multi-Unit Residential Apartment - College hostel building.

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC?

Ans:

Height of the building is 3.5m - satisfy the NBC code rule.

Area of the building is - 107'-2.5" * 142' = 15223 sq.ft

Wall height = 3m, for all the area's.

Thickness of wall is = 300mm

Hence, It is satisfy all the NBC code requirements.

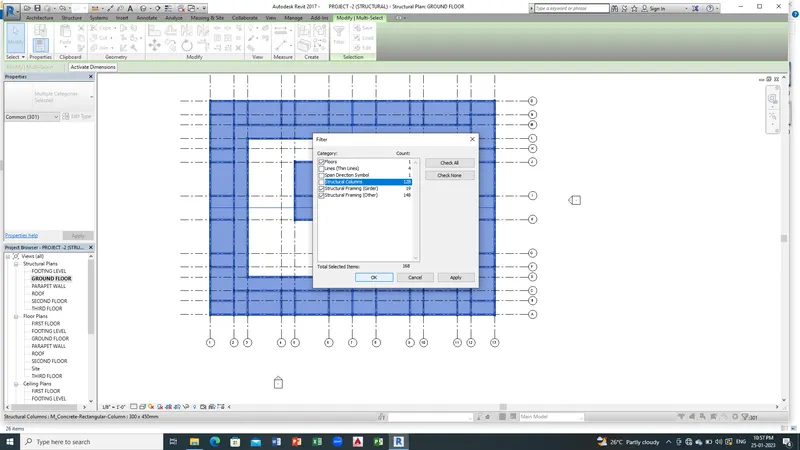

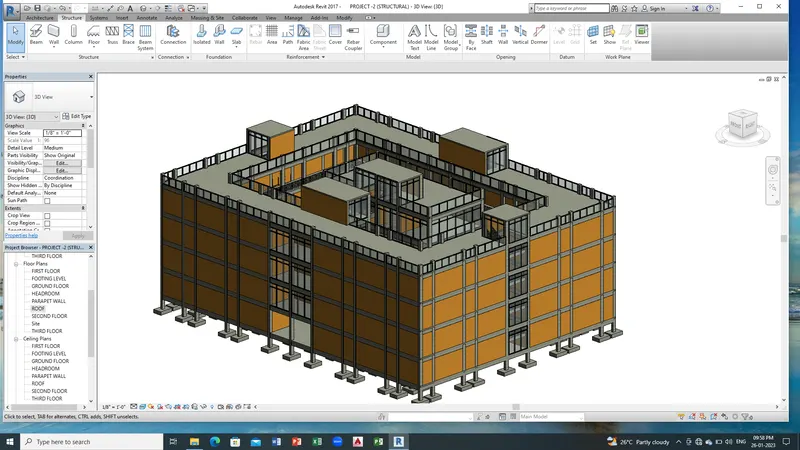

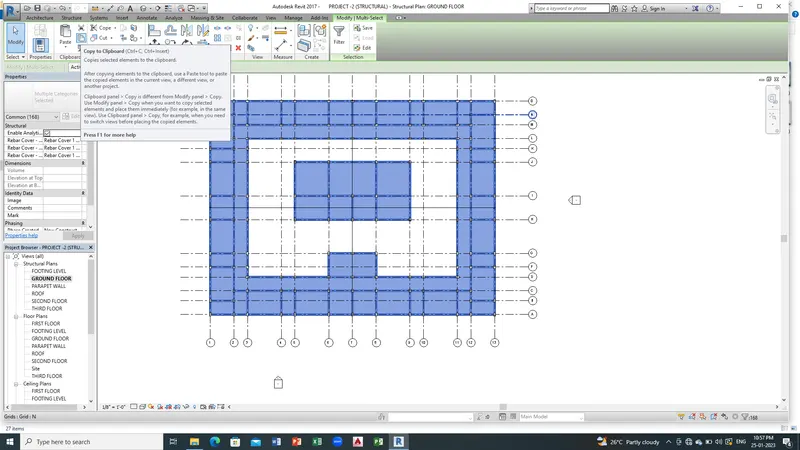

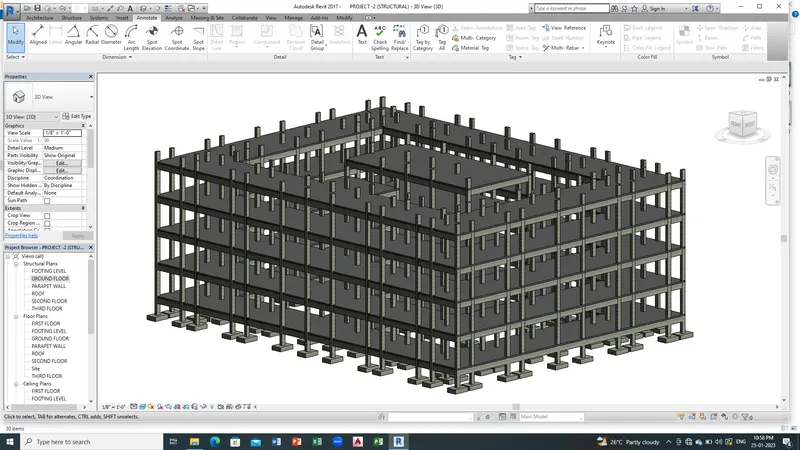

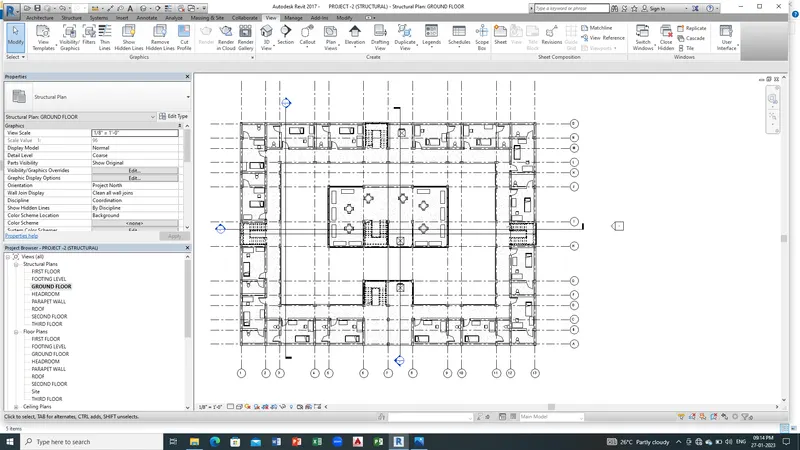

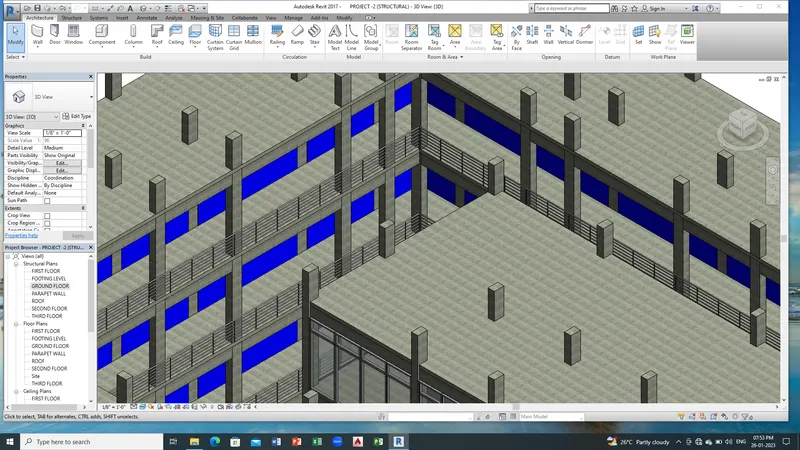

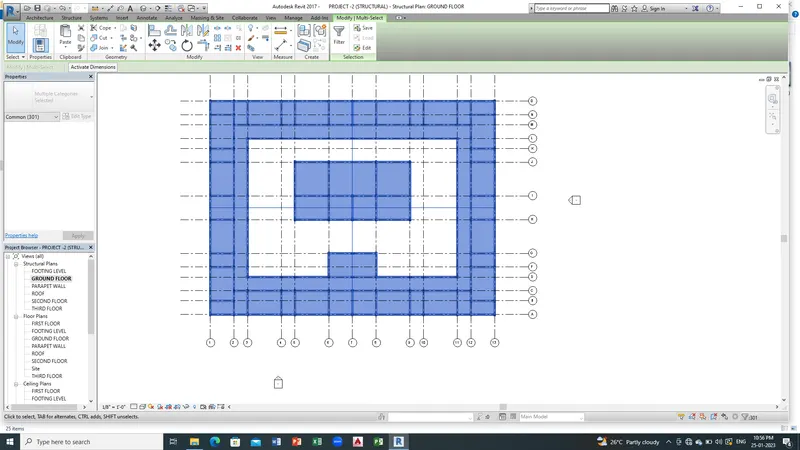

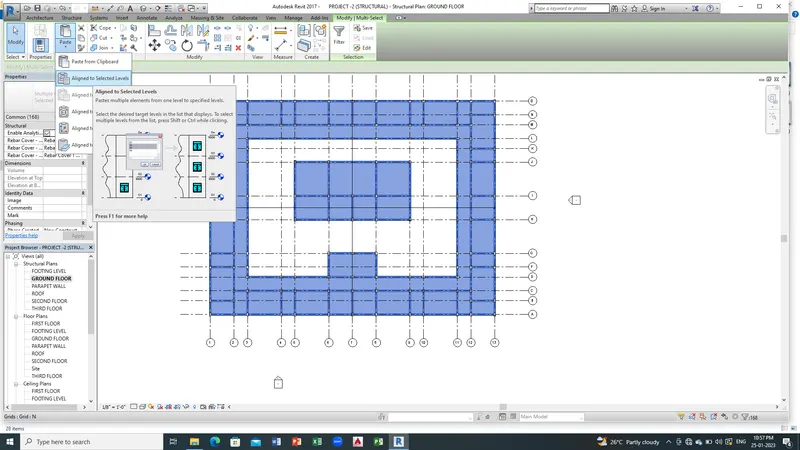

3) Using the structural model, include the following components based on the type of structure selected

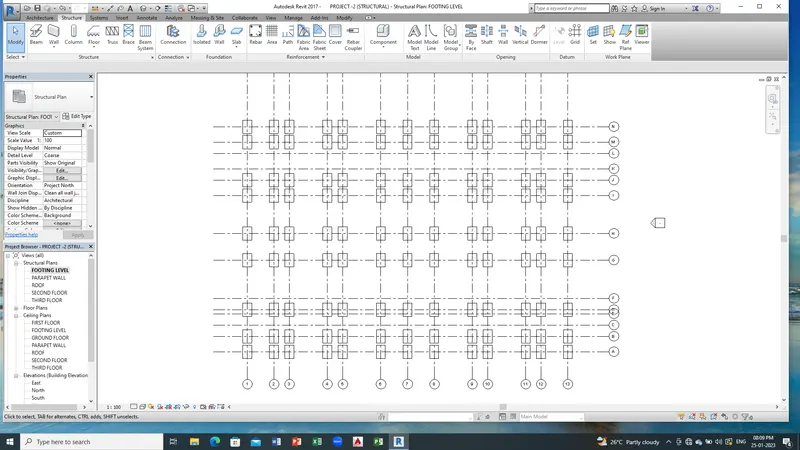

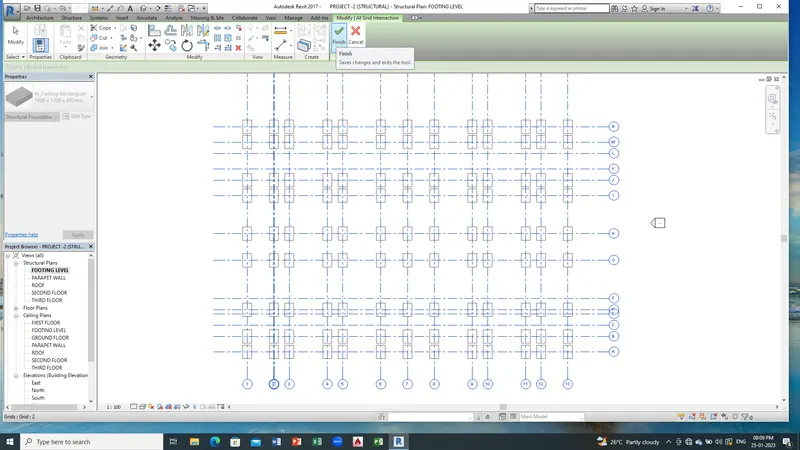

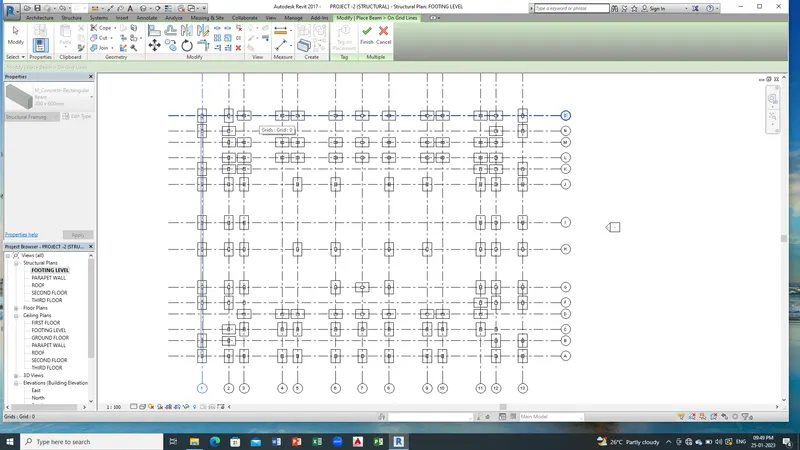

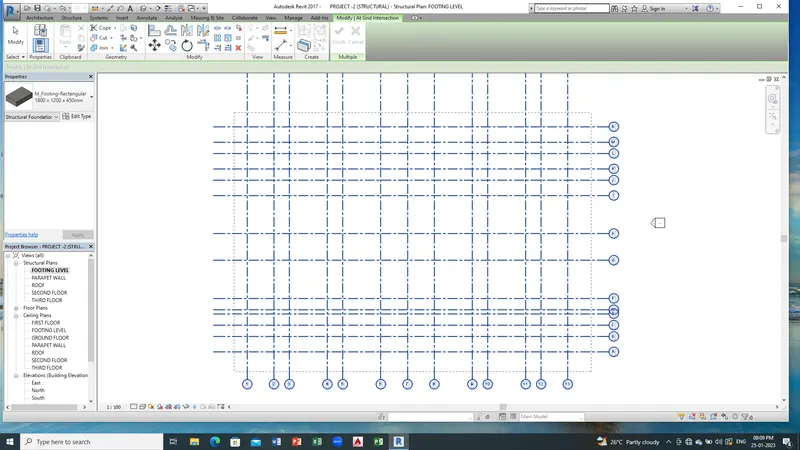

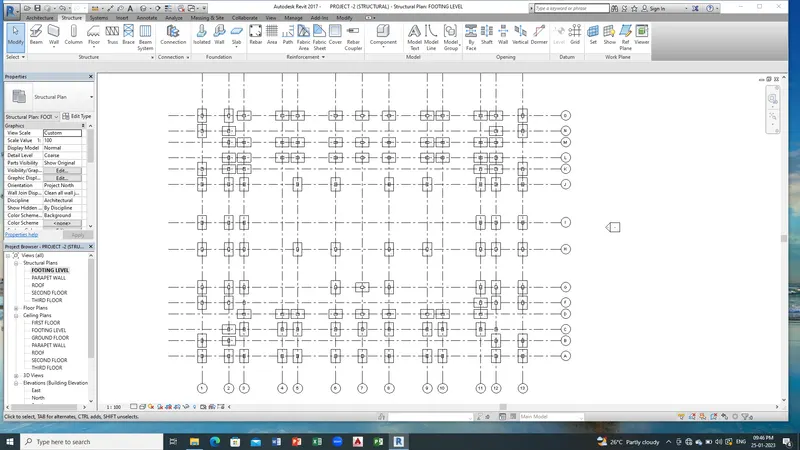

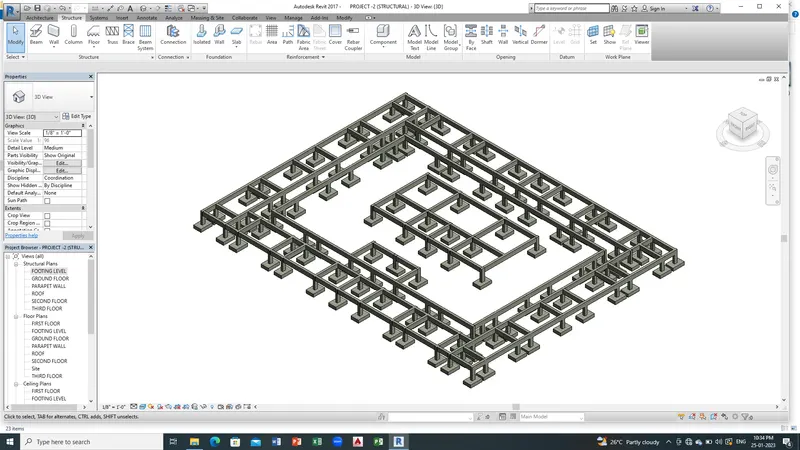

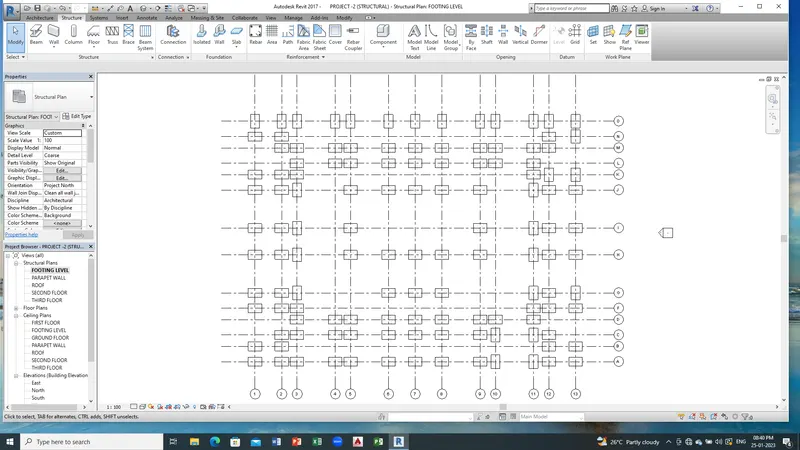

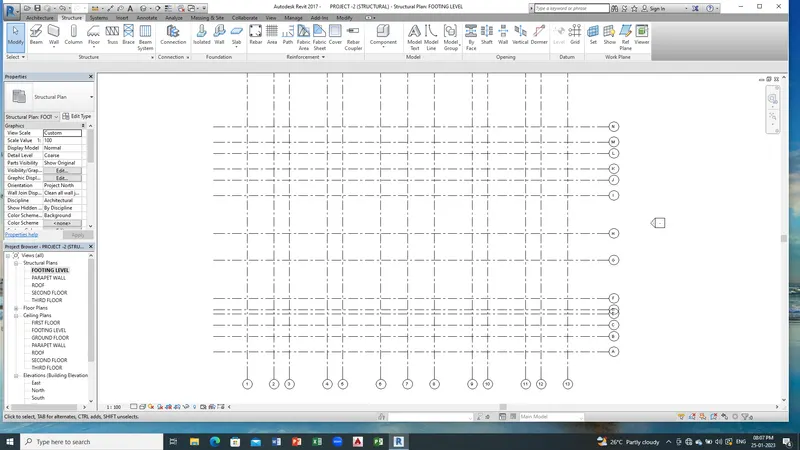

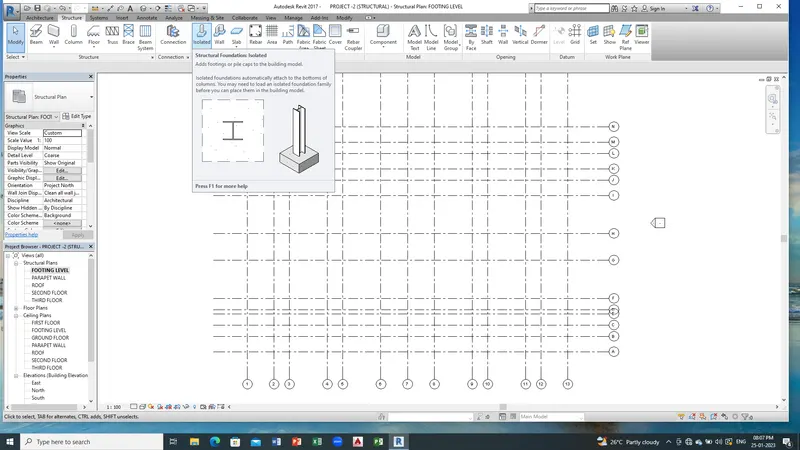

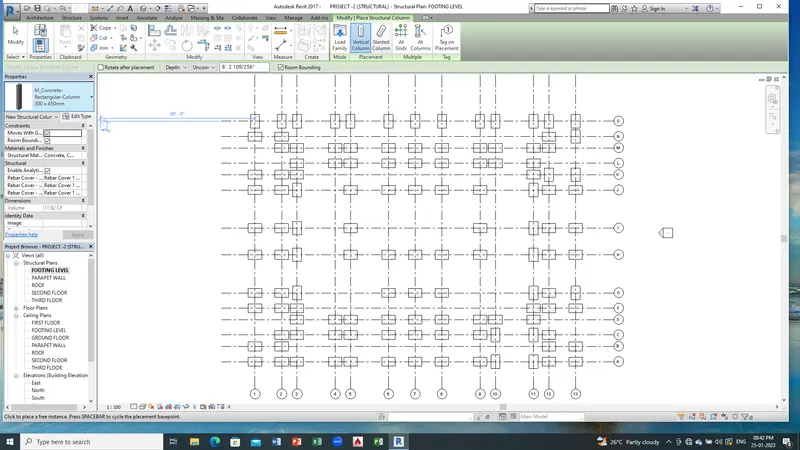

        a. Foundation – Isolated / Wall/Matt Foundation

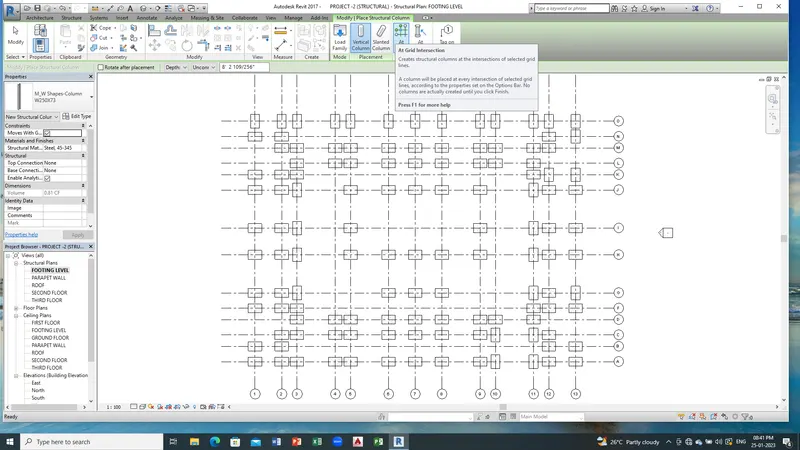

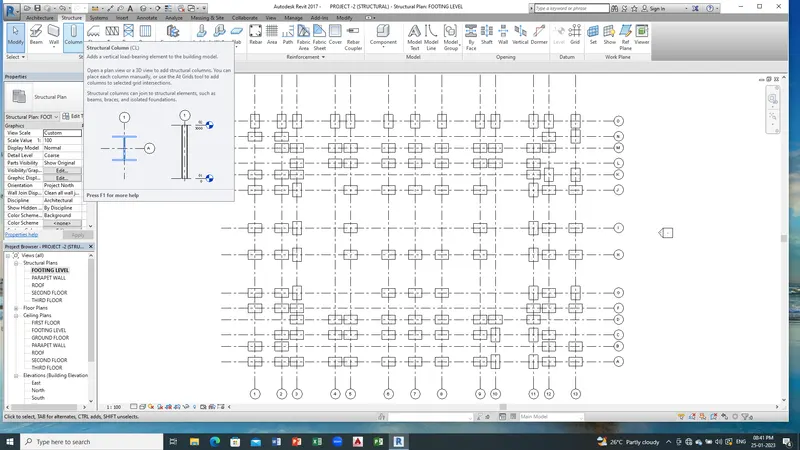

        b. Columns

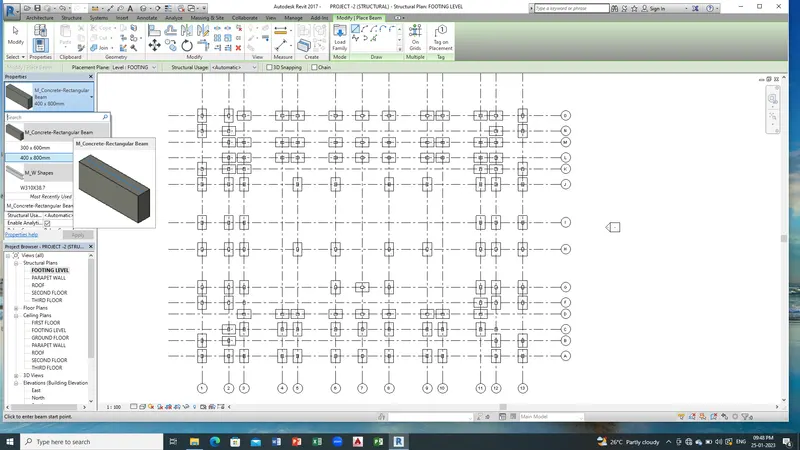

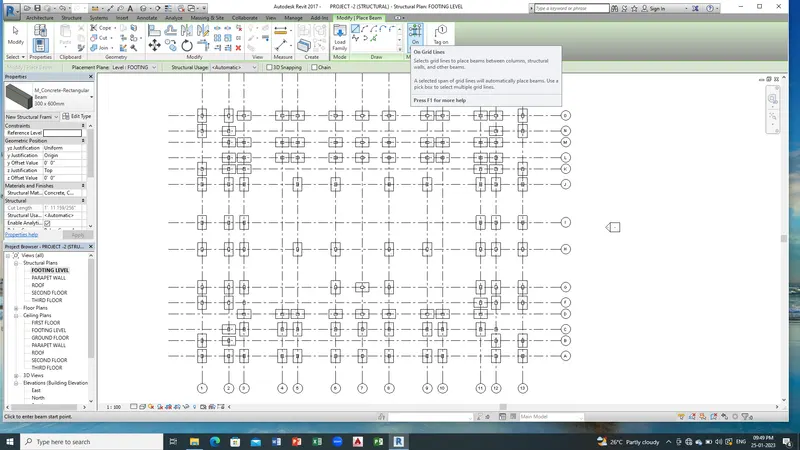

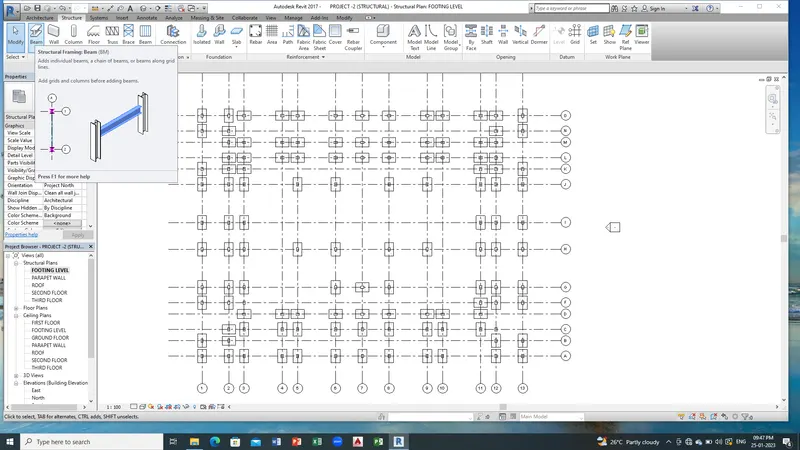

        c. Beams Connected to Columns
        d. Roof Framing/ Truss

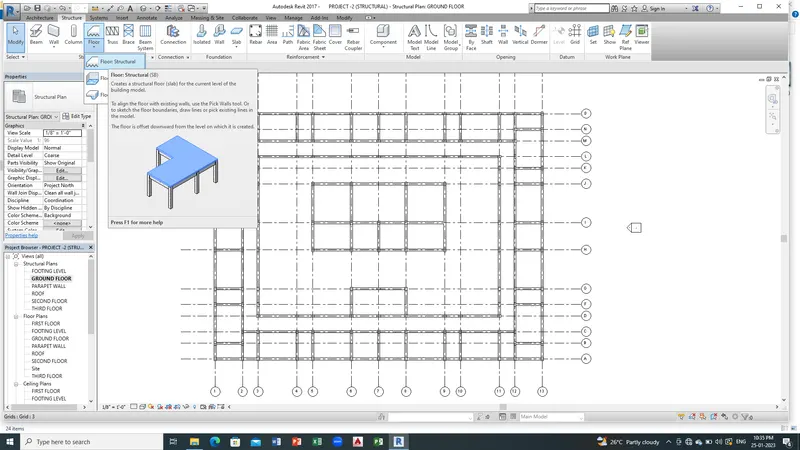

        e. Floor / Decks

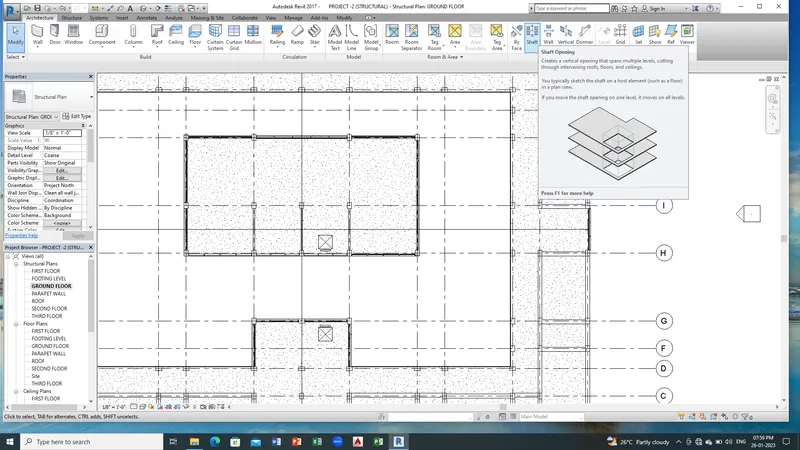

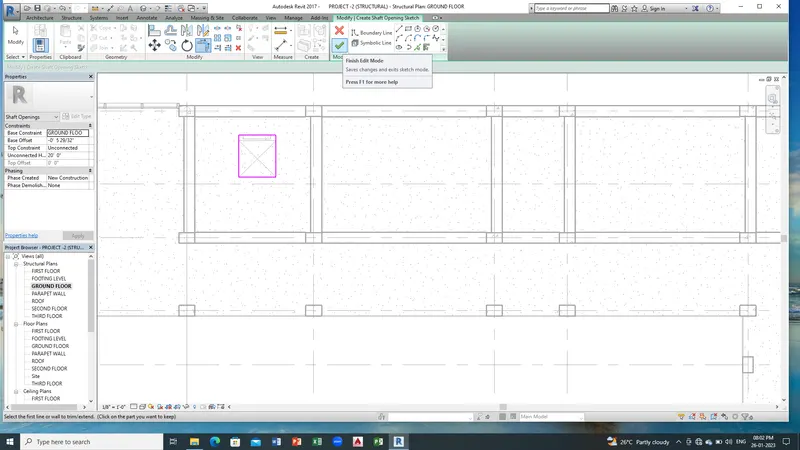

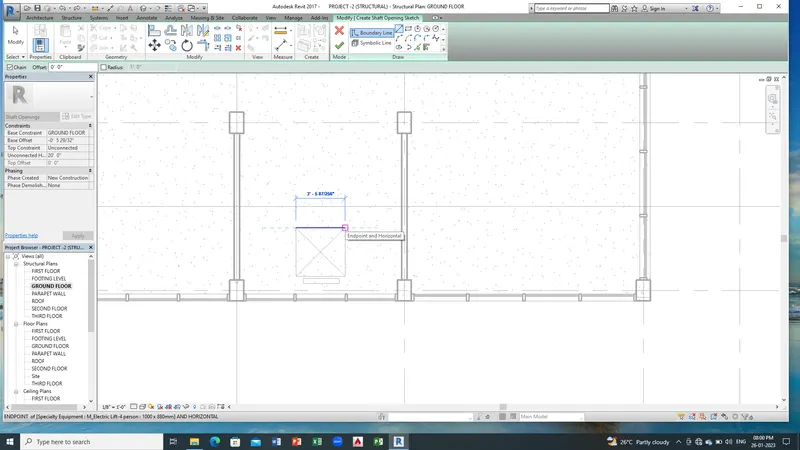

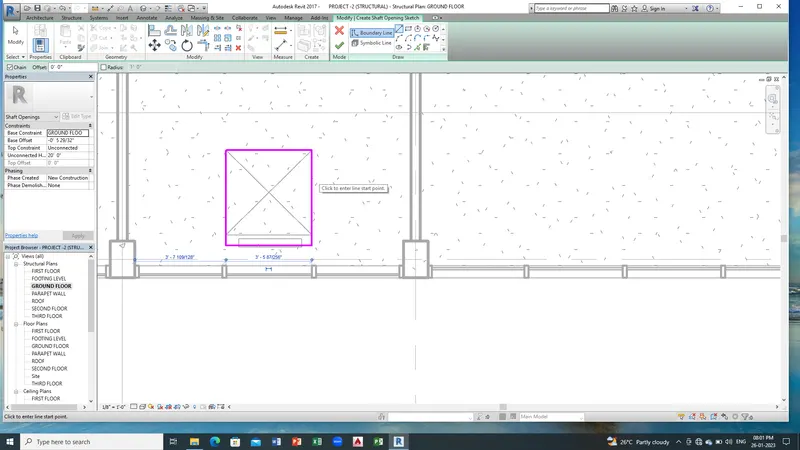

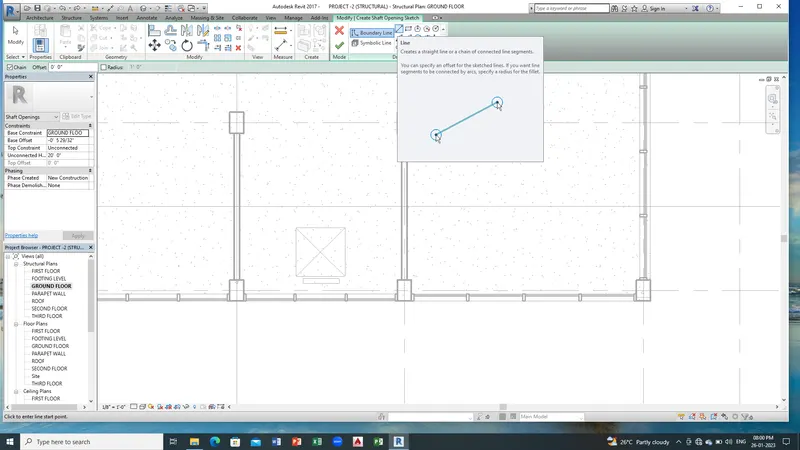

        f. Floor Openings for Elevators and Stairs

Ans:

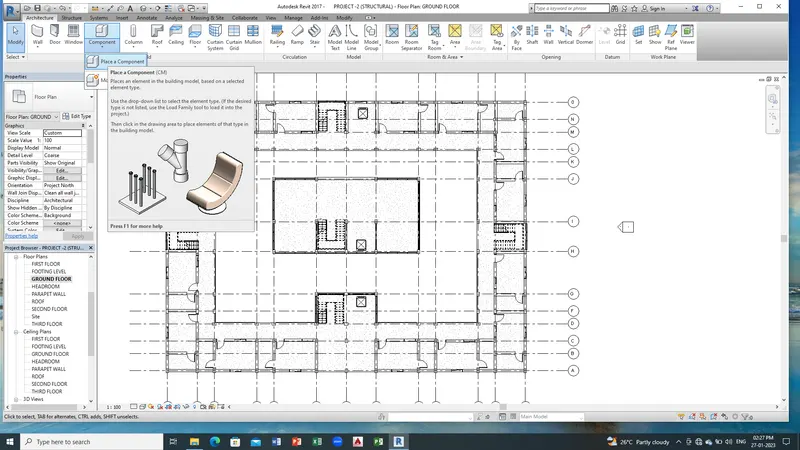

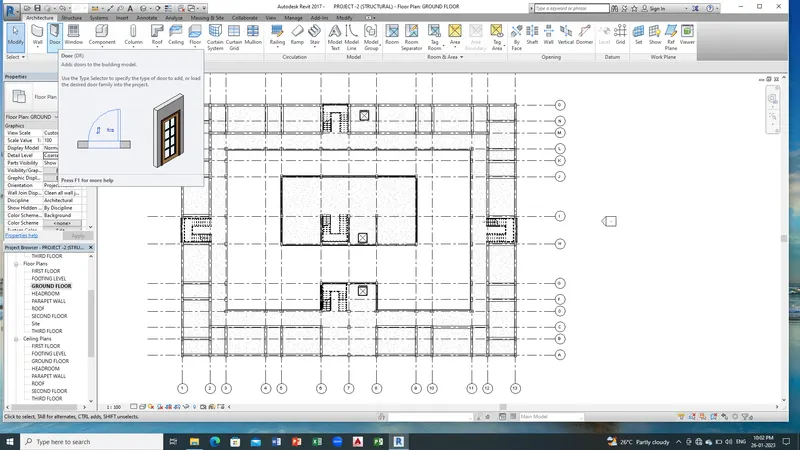

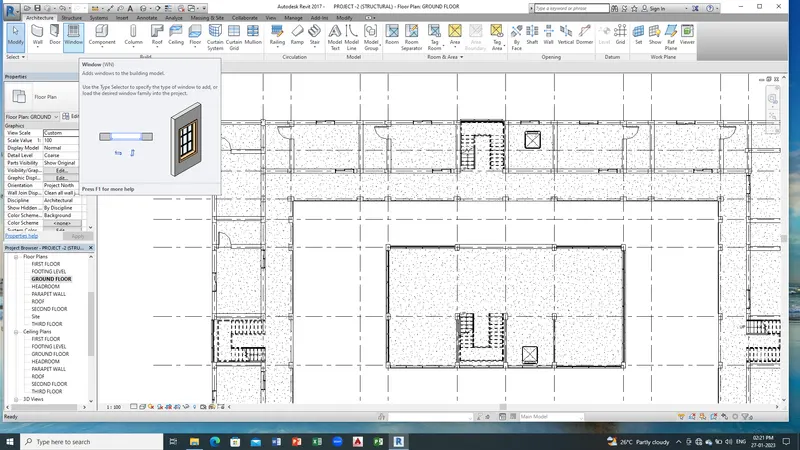

4) Using the architectural model, include the following components based on the type of structure selected

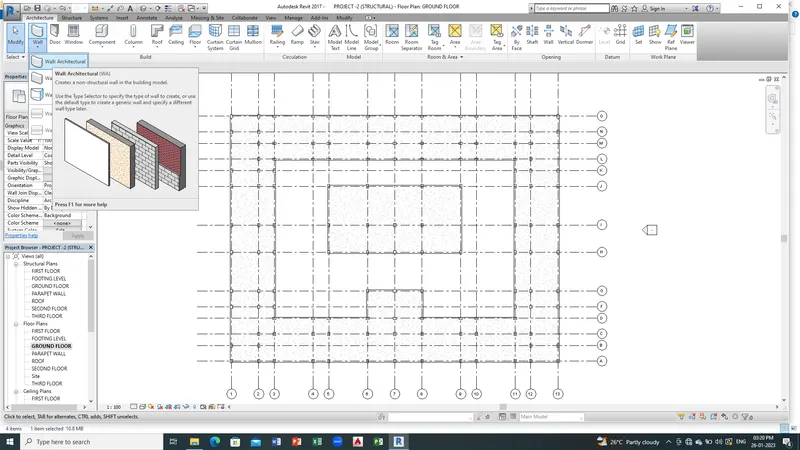

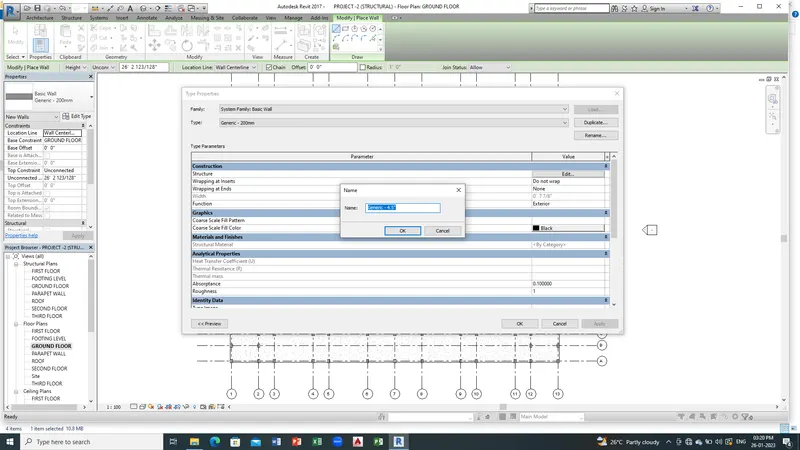

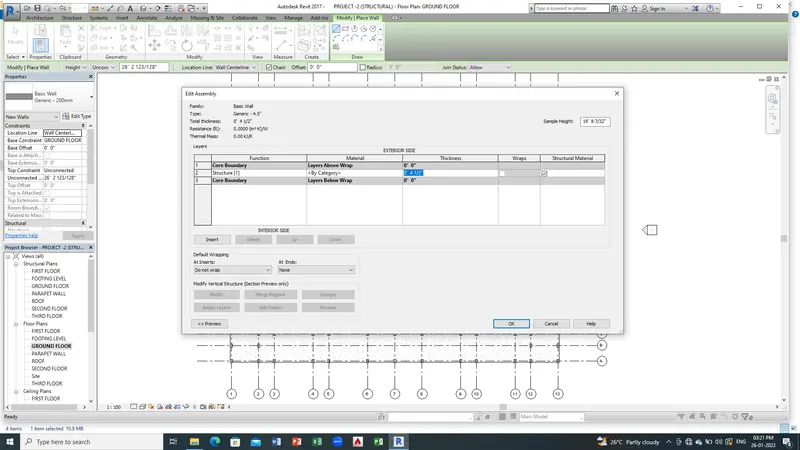

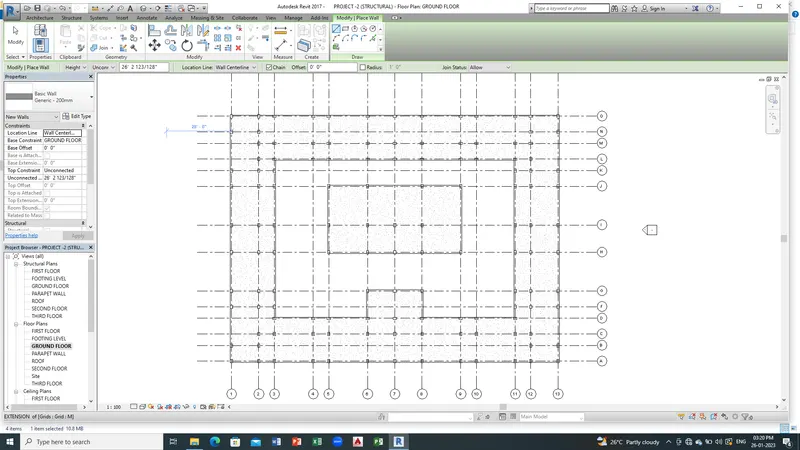

        a. Wall Layout with appropriate material and finishing
        b. Exterior façade with fancy finish
        c. Interior partition walls to size rooms

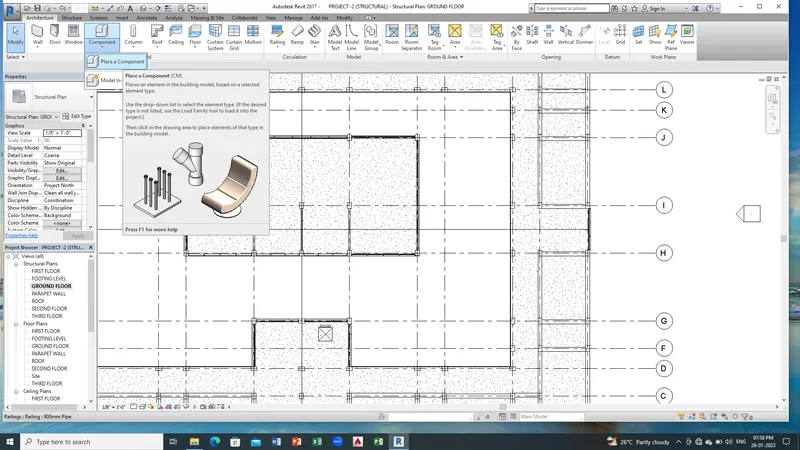

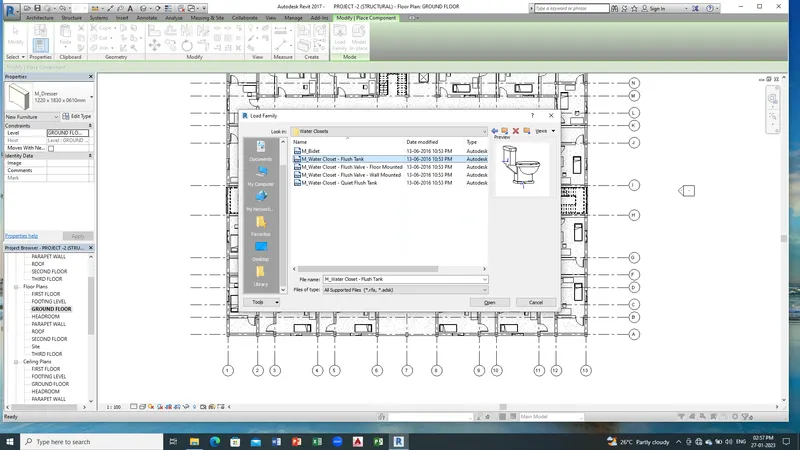

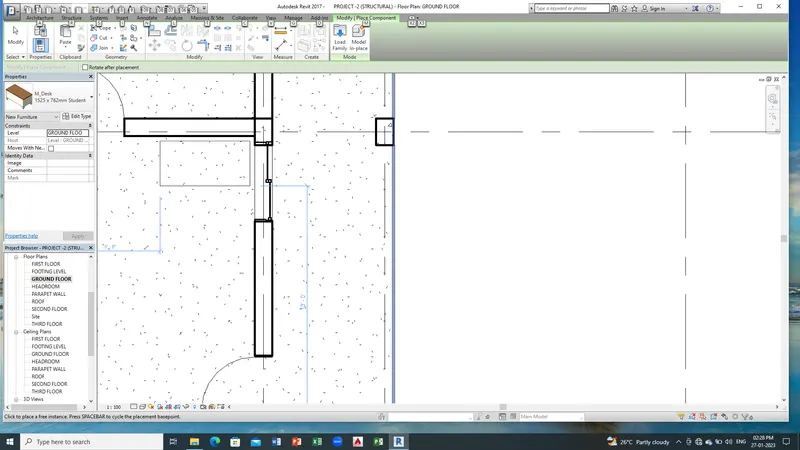

        d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)

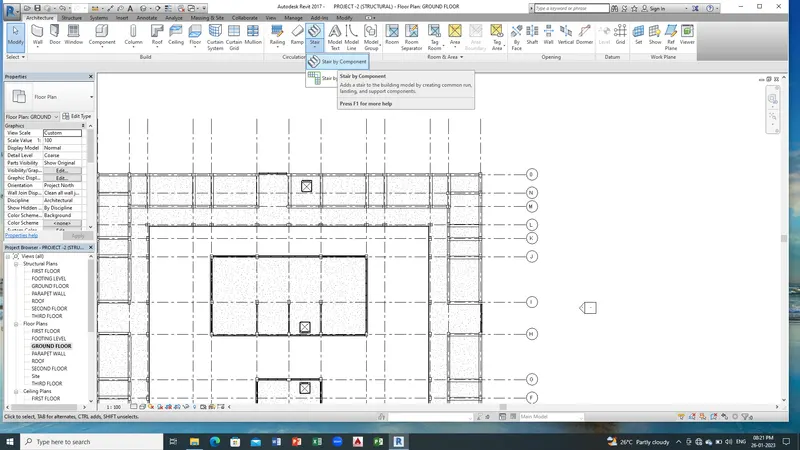

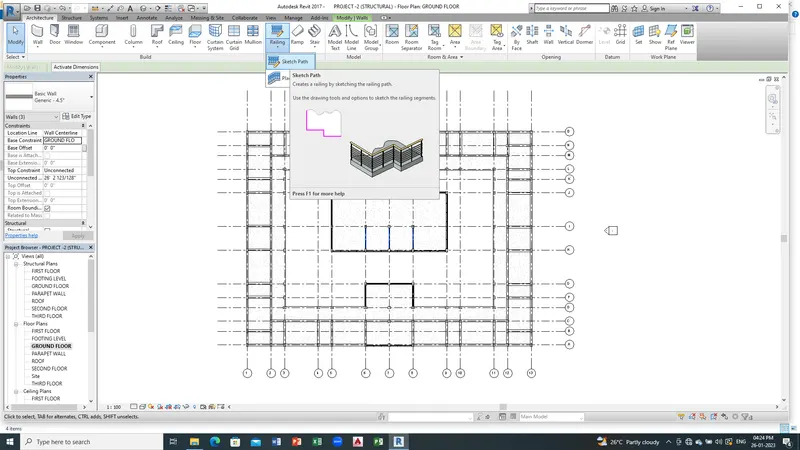

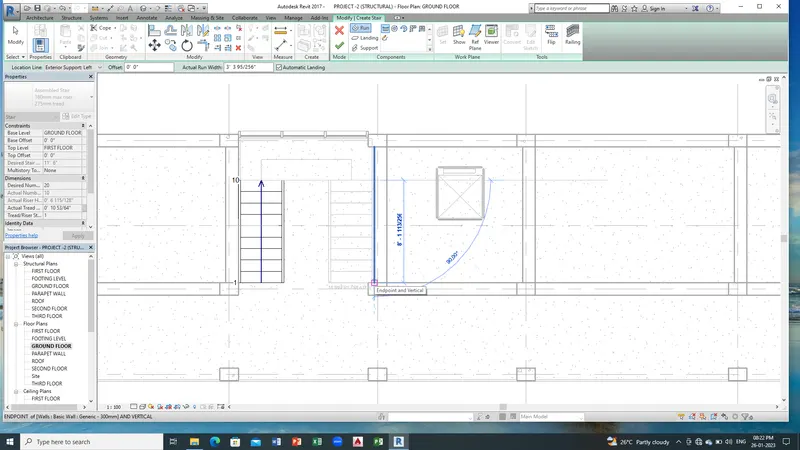

        e. Add components such as stairs Elevators

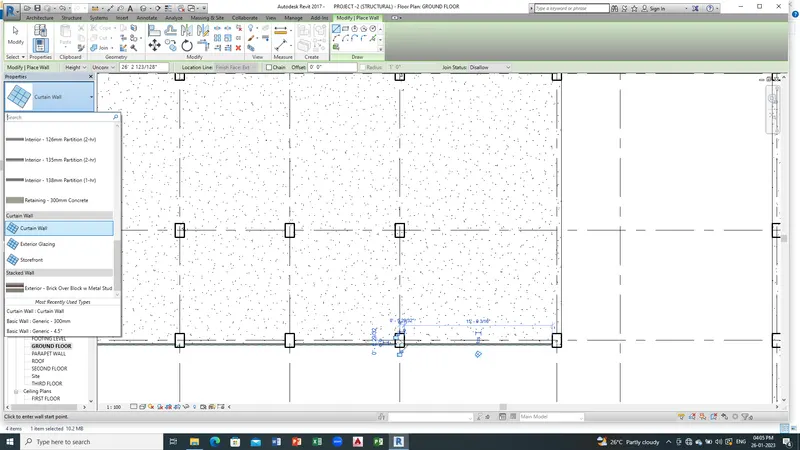

        f. Have at-least one side of the building with curtain walls and glass panels
        g. Include interior and exterior lighting fixtures

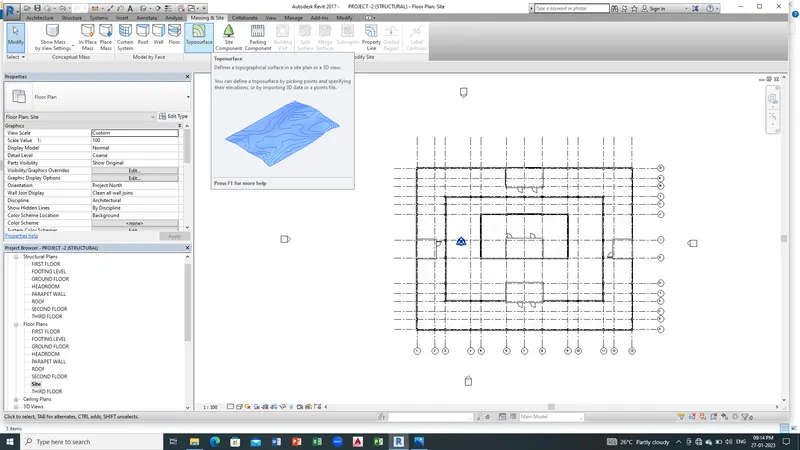

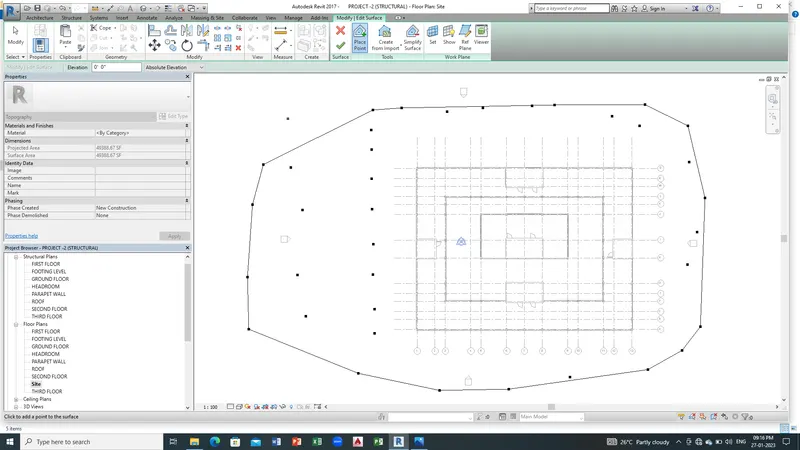

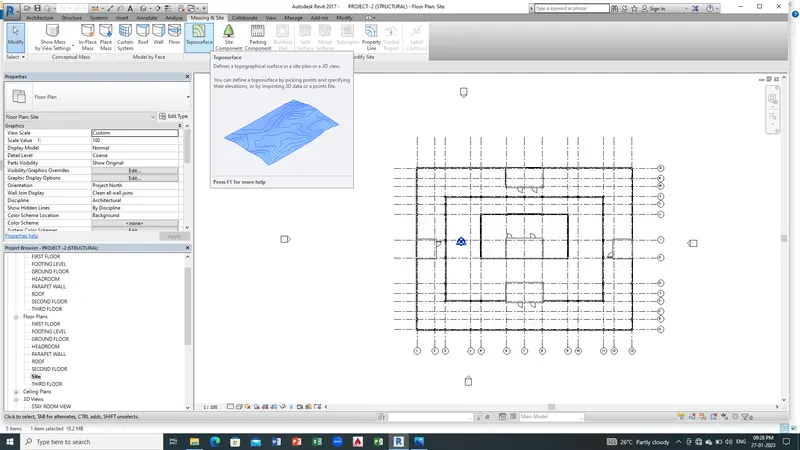

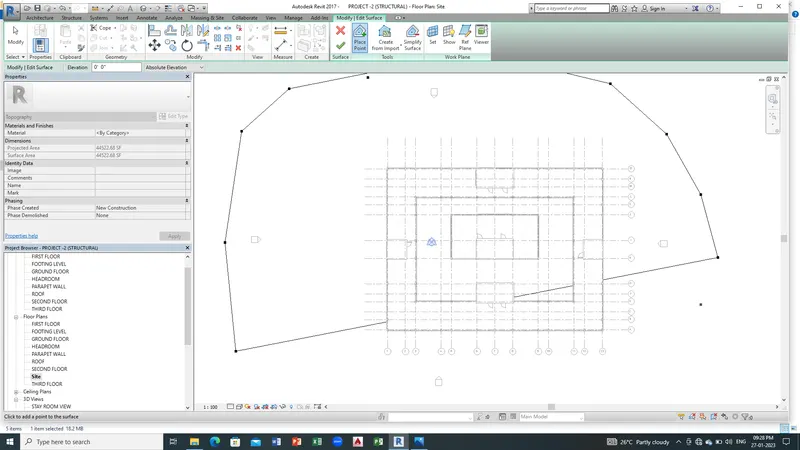

        h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

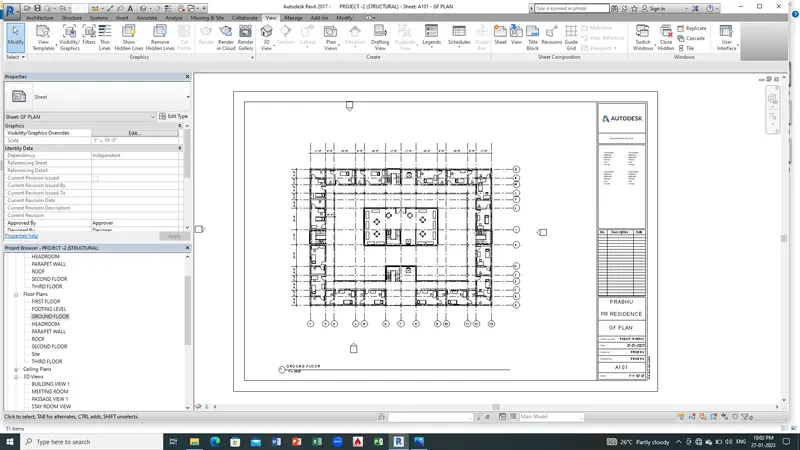

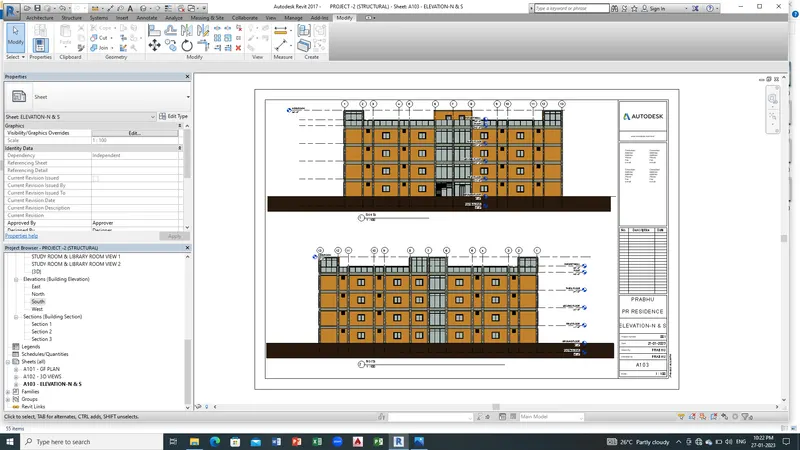

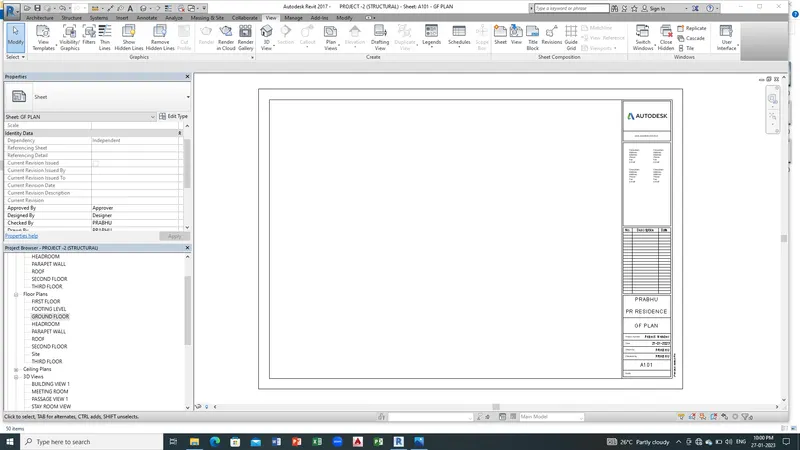

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

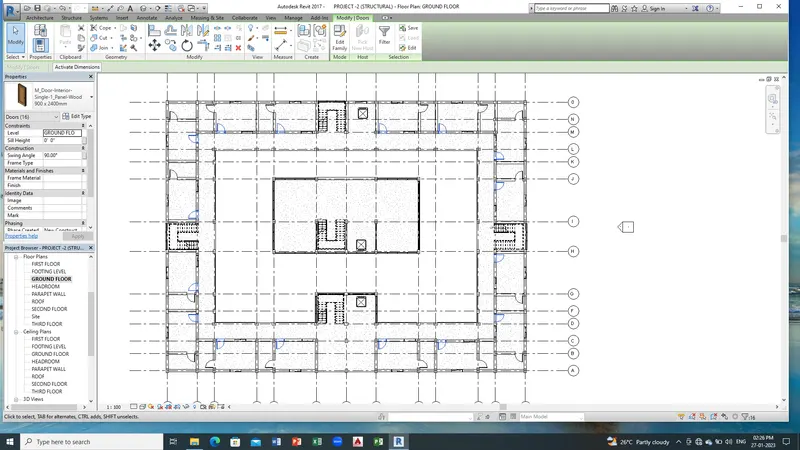

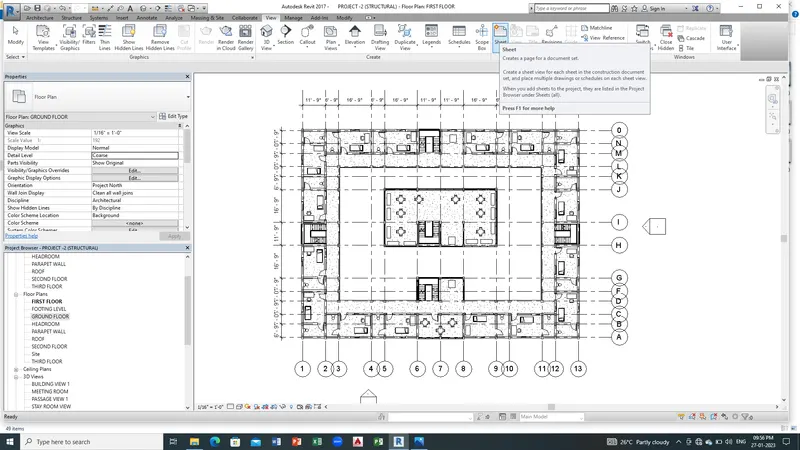

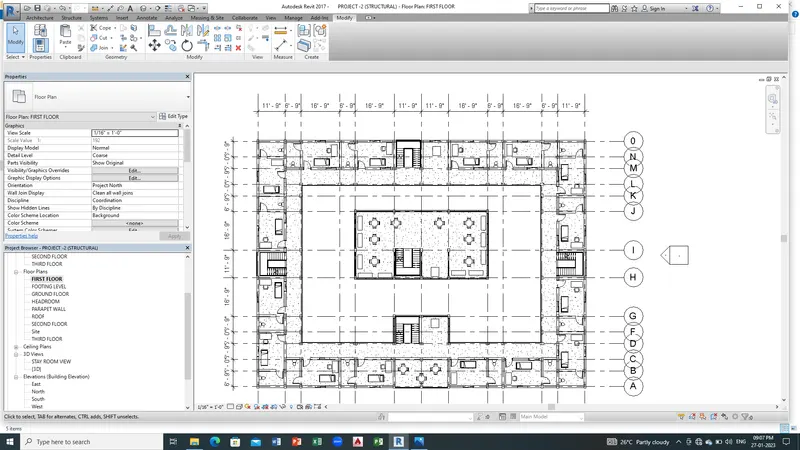

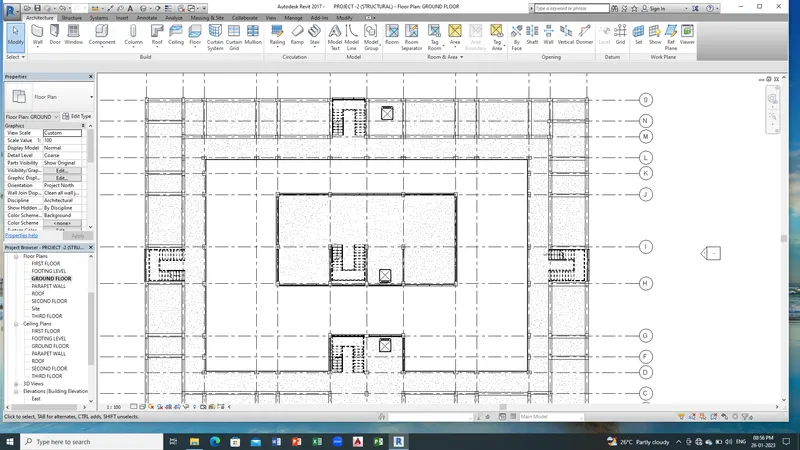

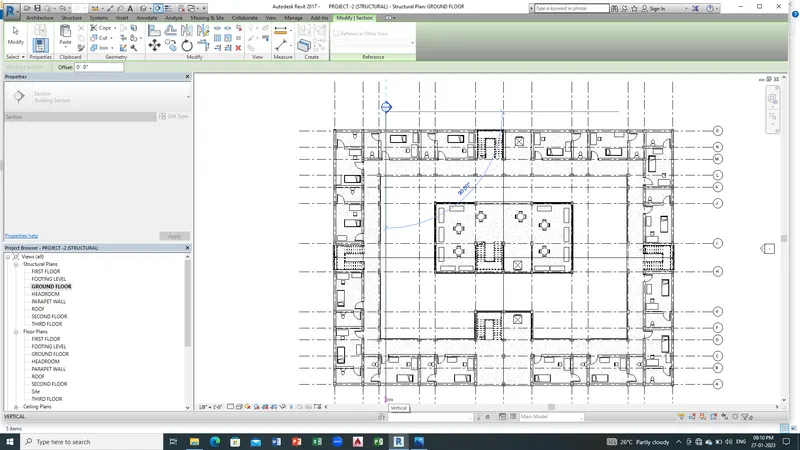

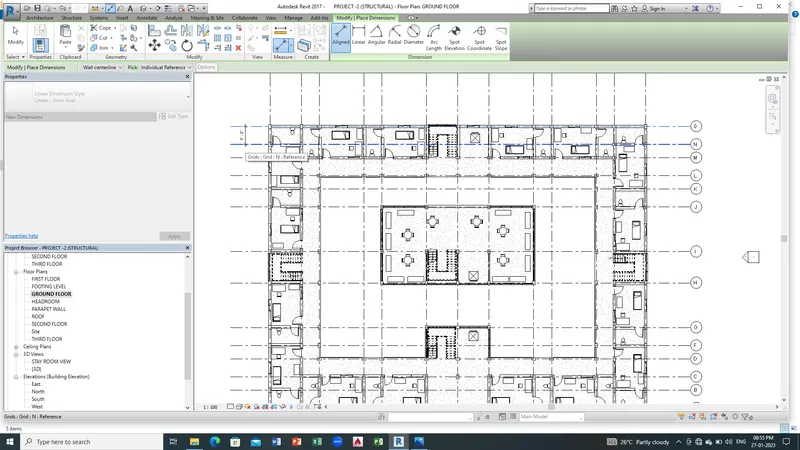

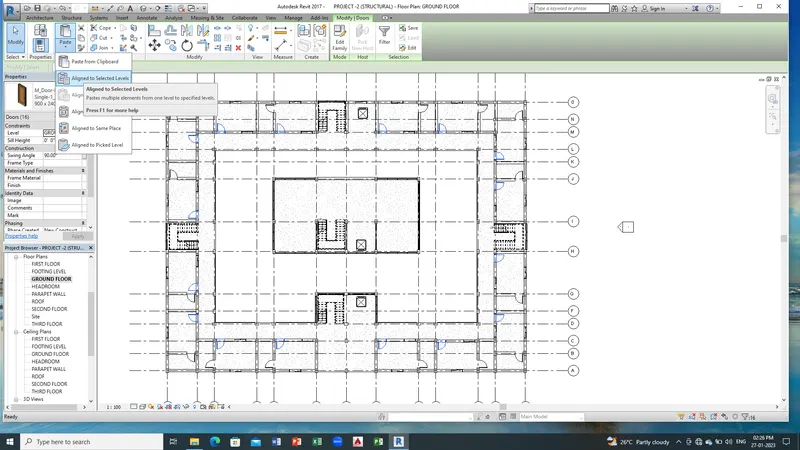

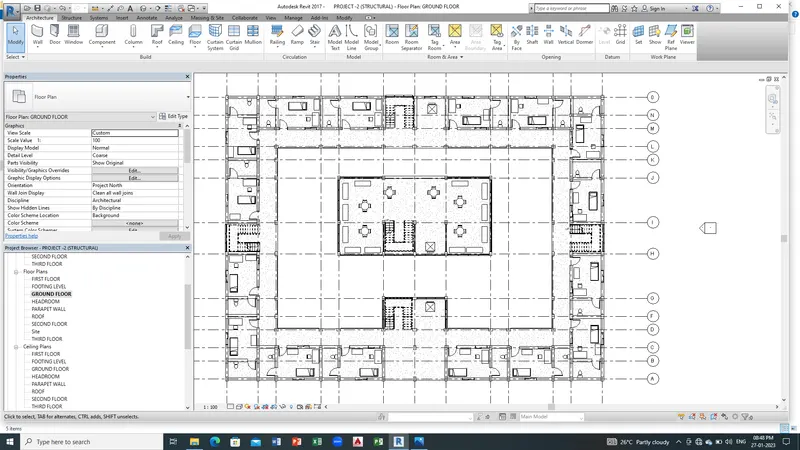

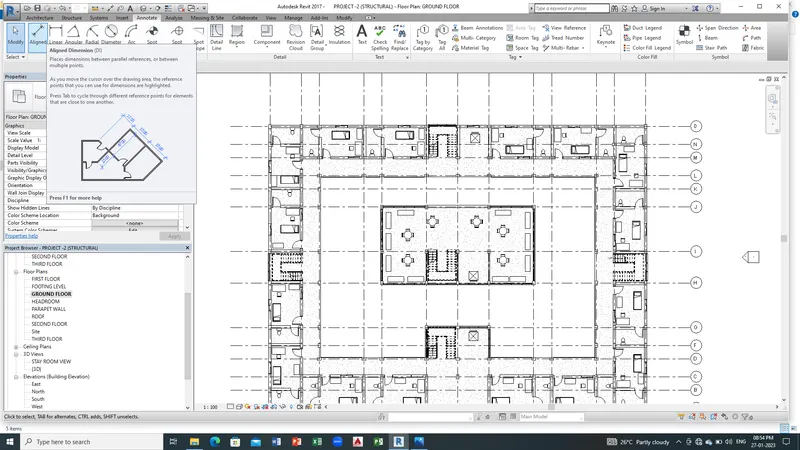

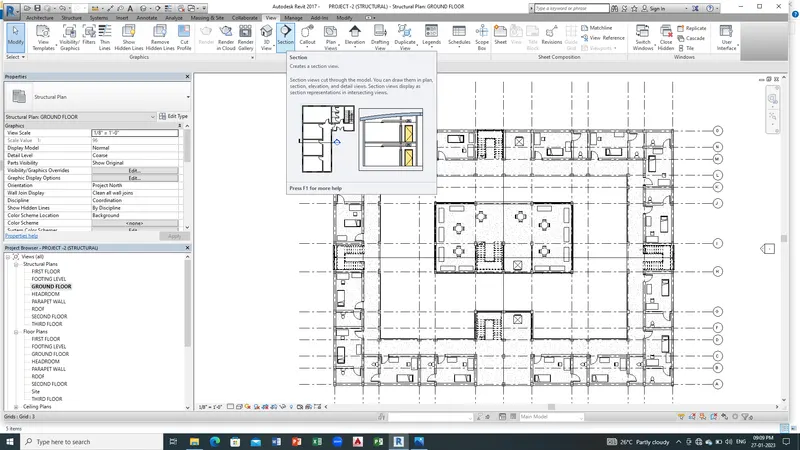

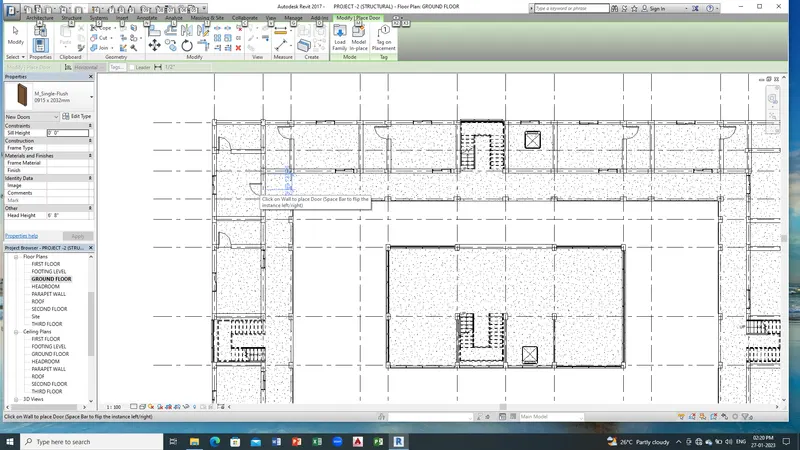

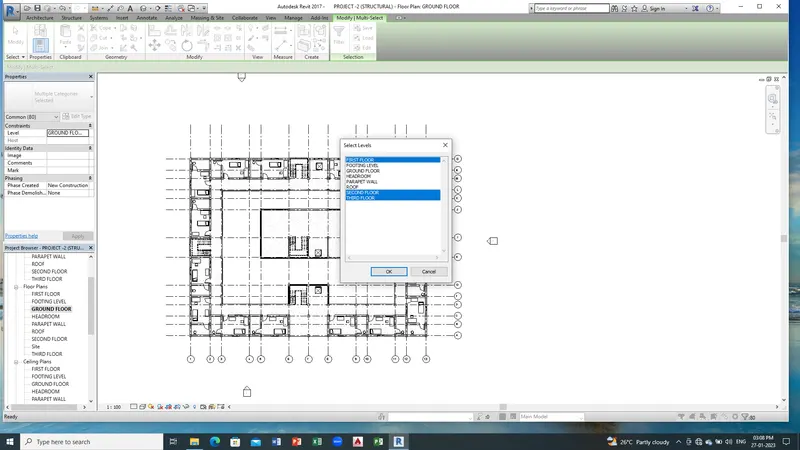

        a. Floor Plans with Annotations

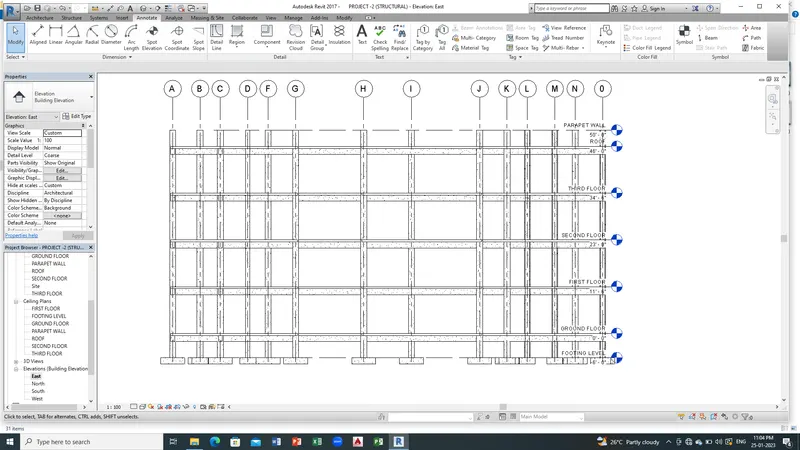

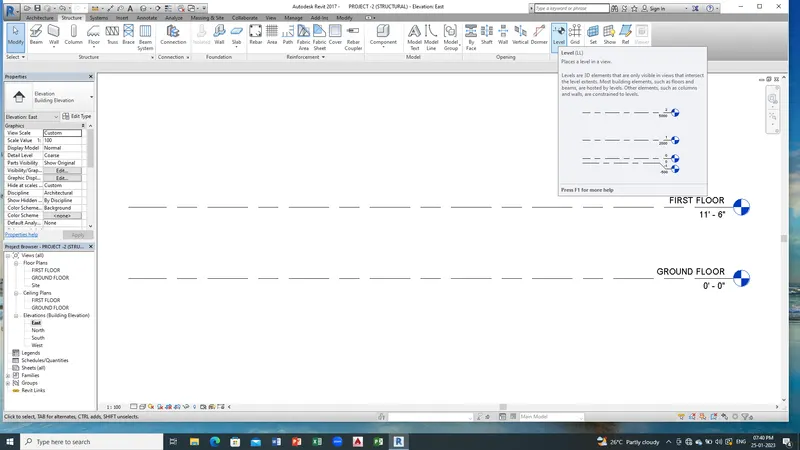

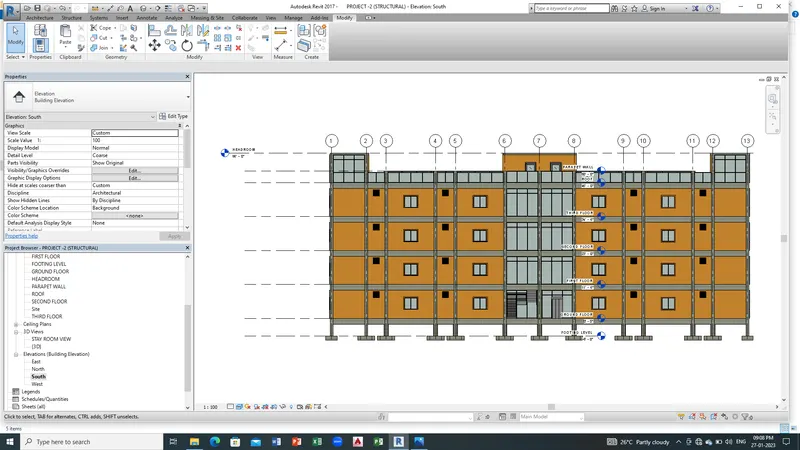

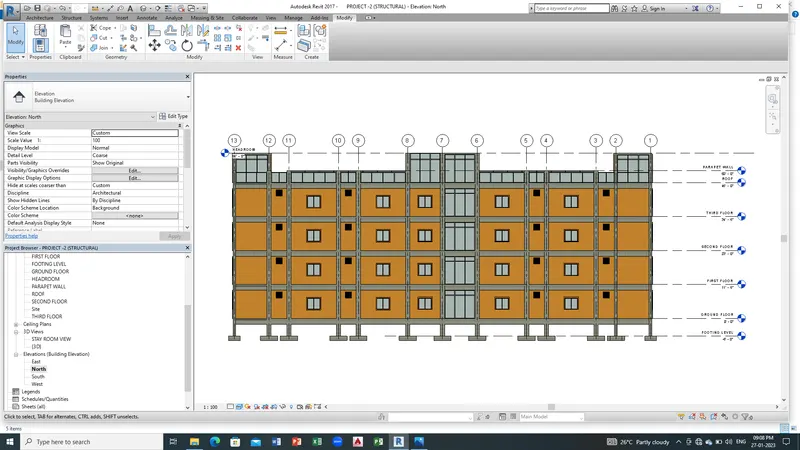

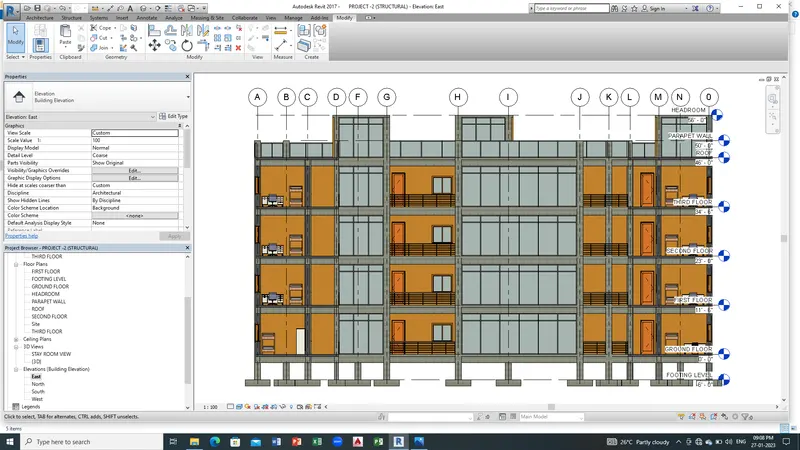

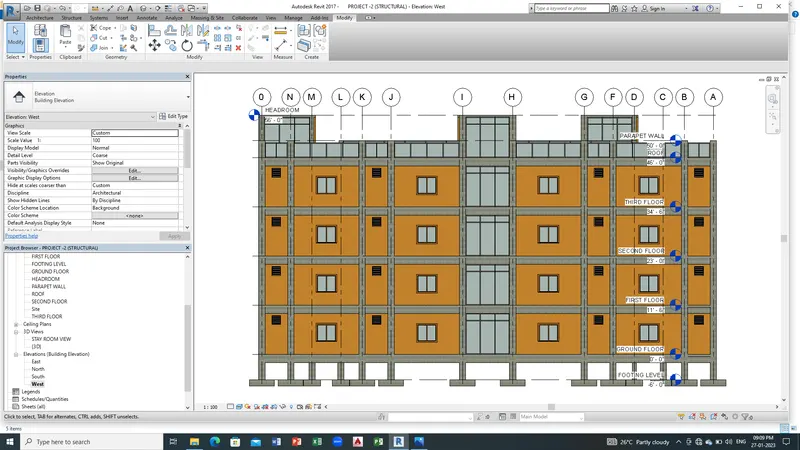

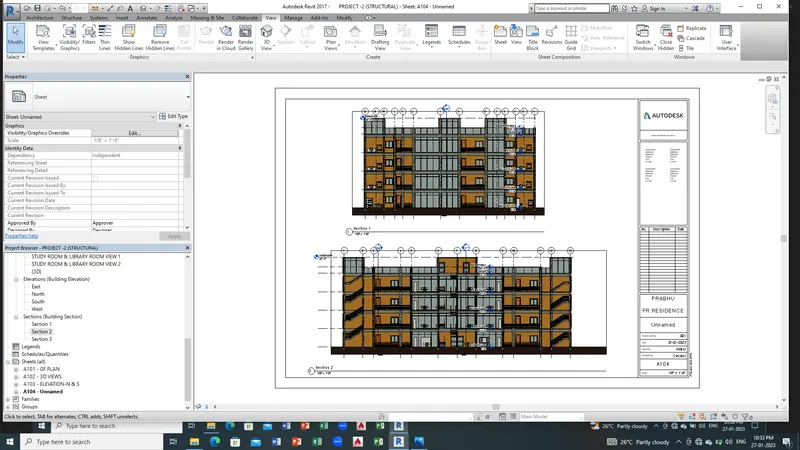

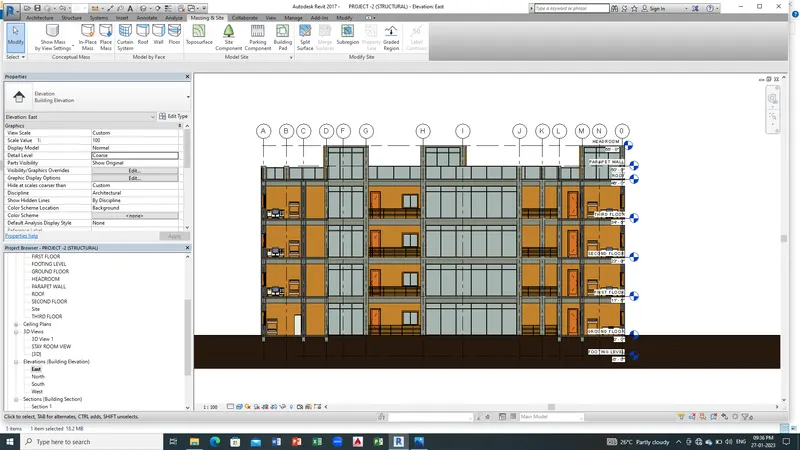

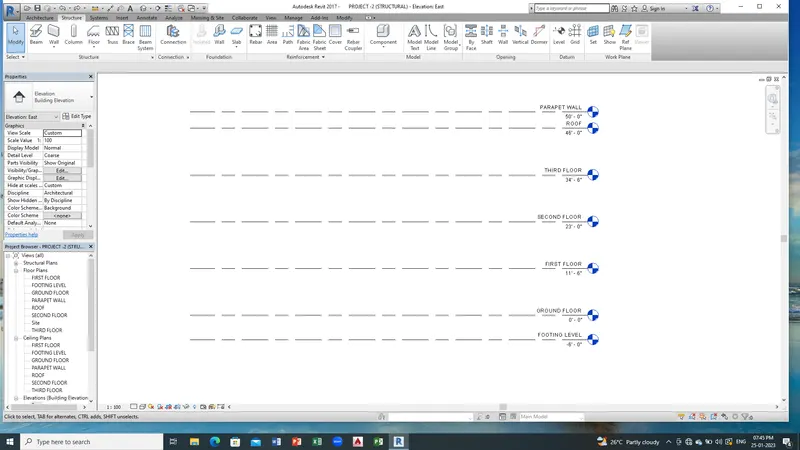

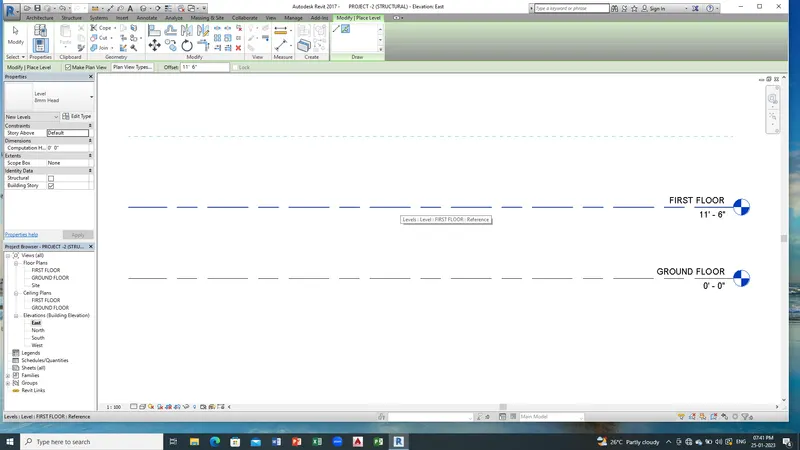

        b. Elevations

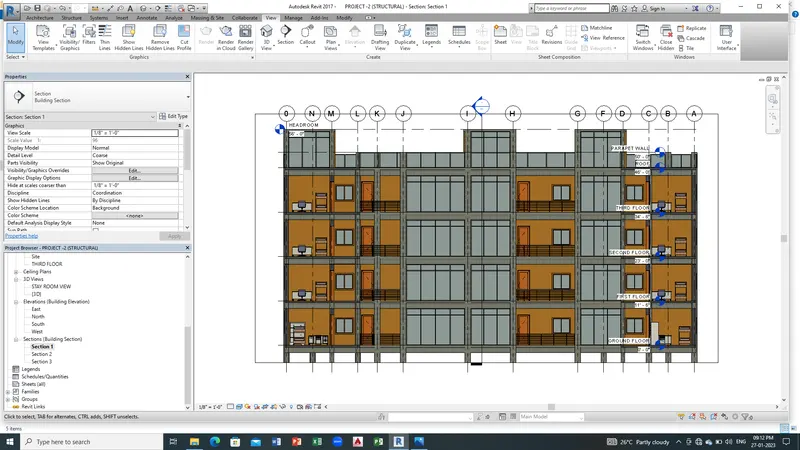

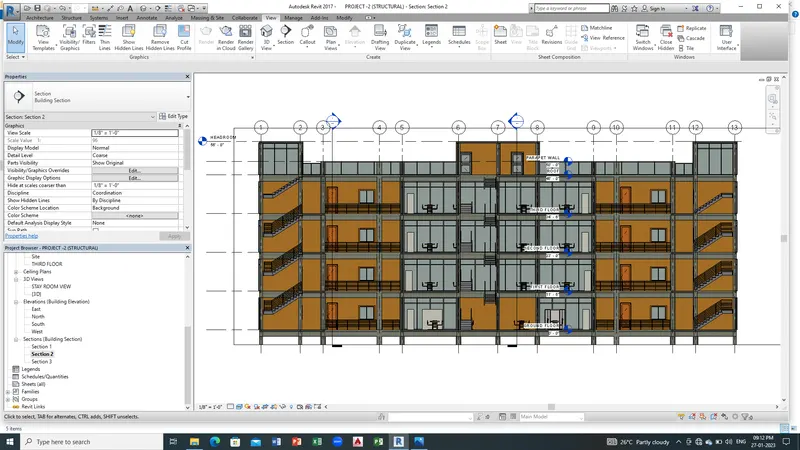

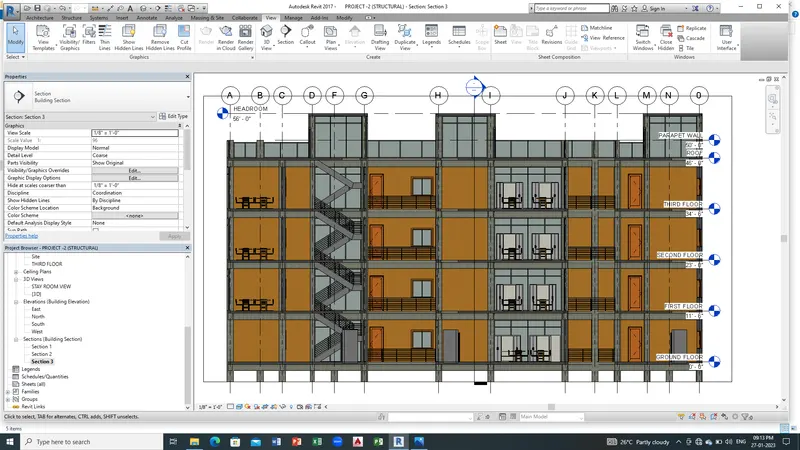

        c. Sections

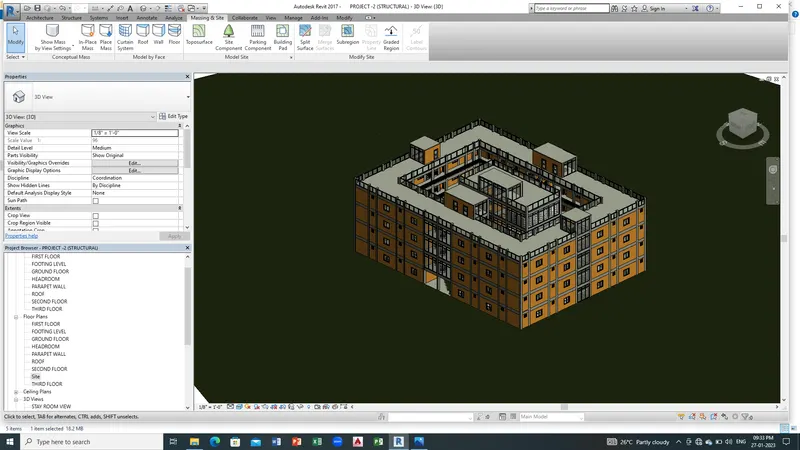

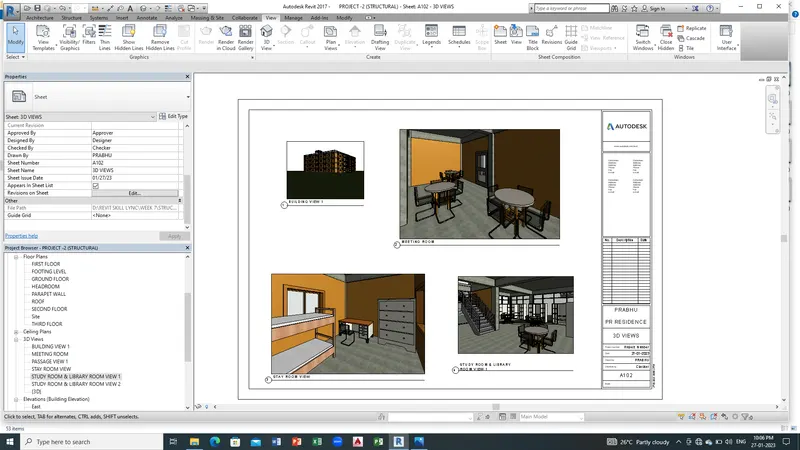

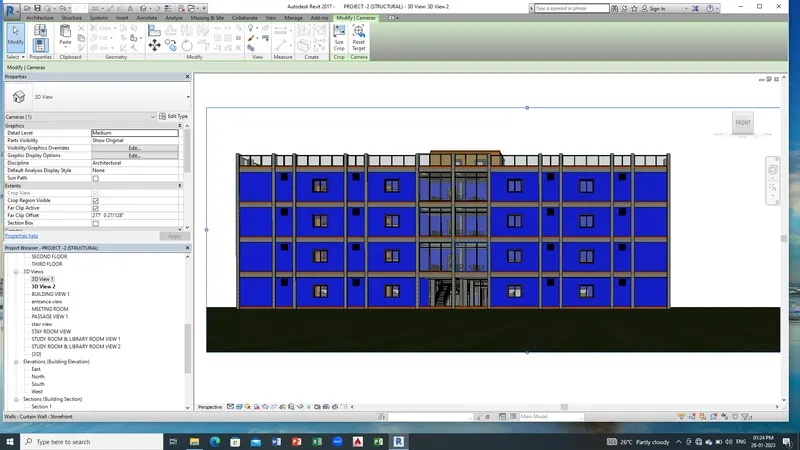

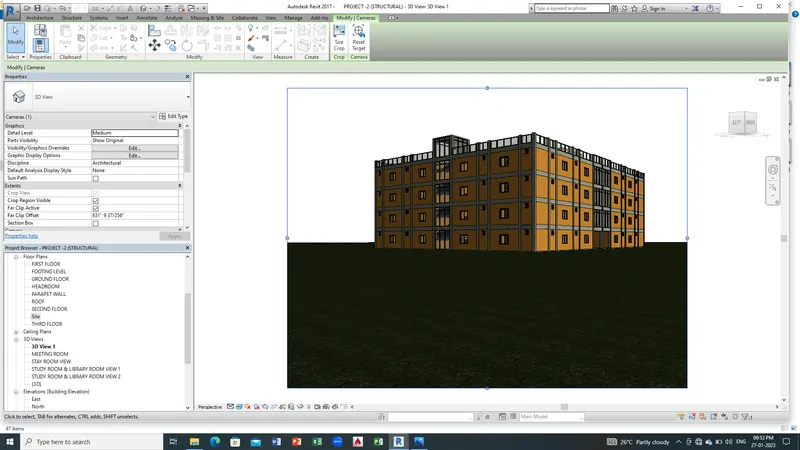

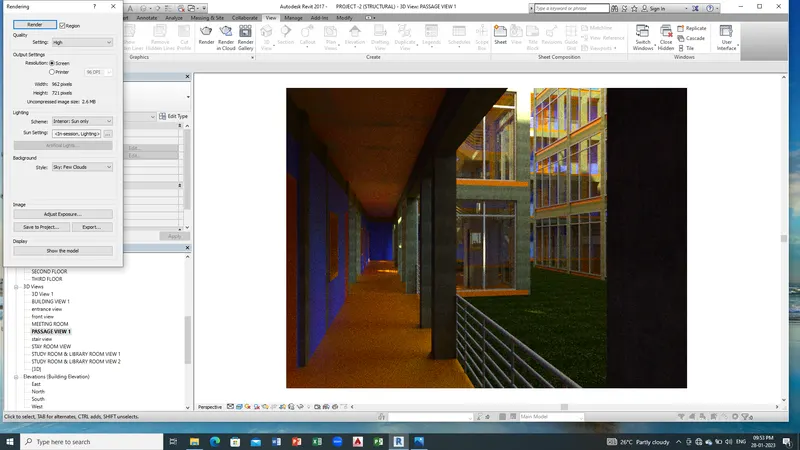

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

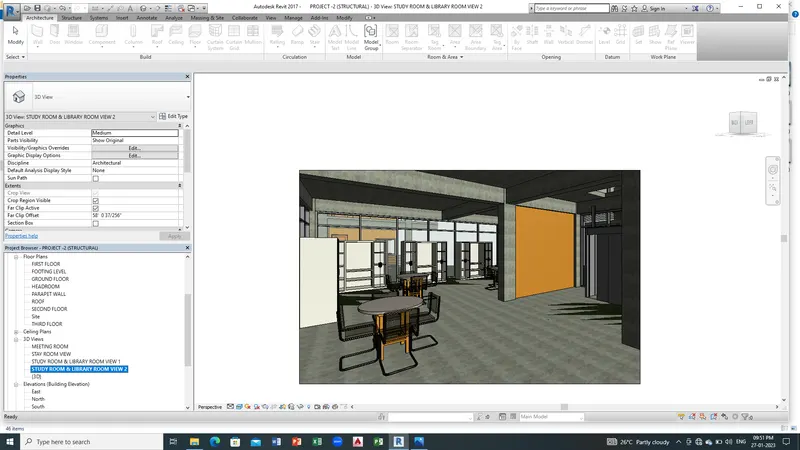

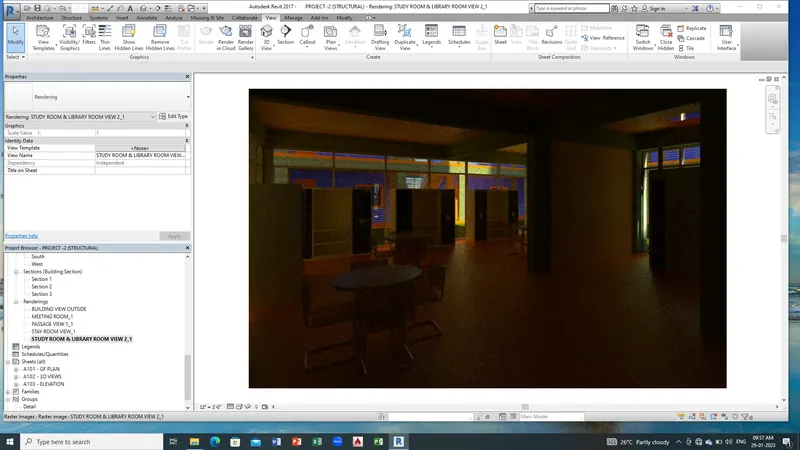

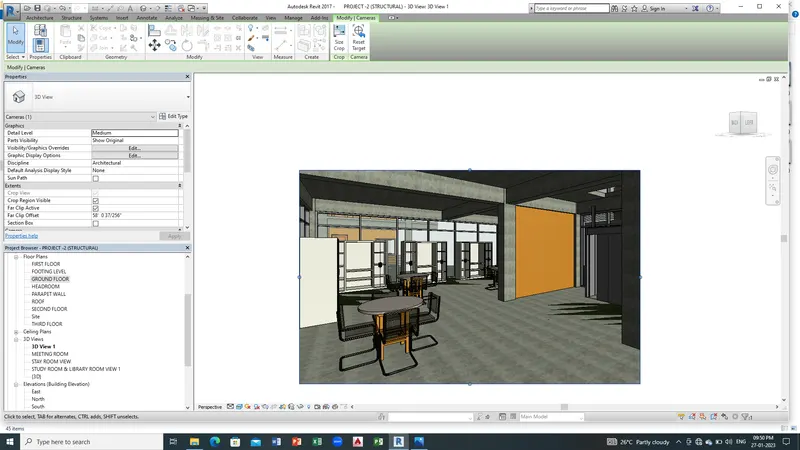

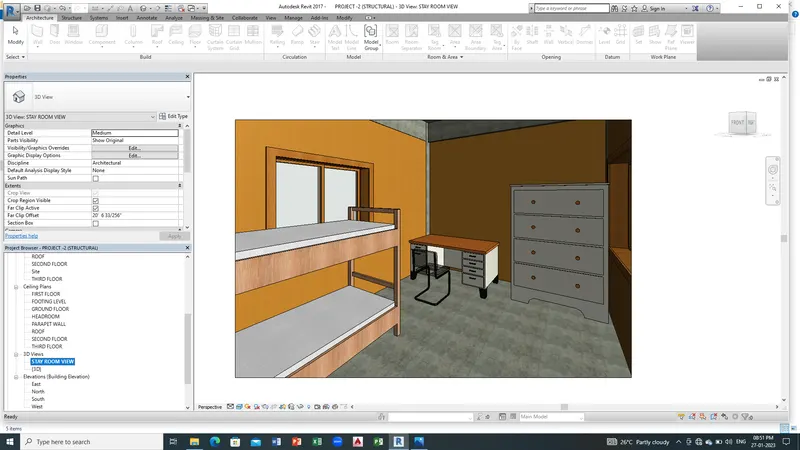

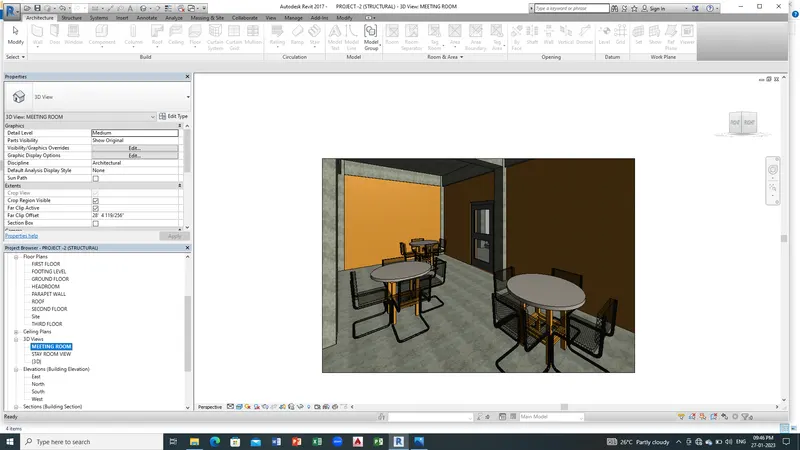

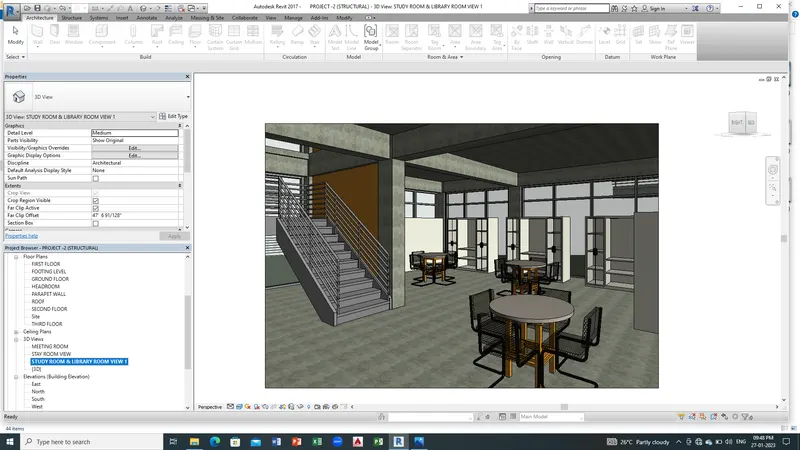

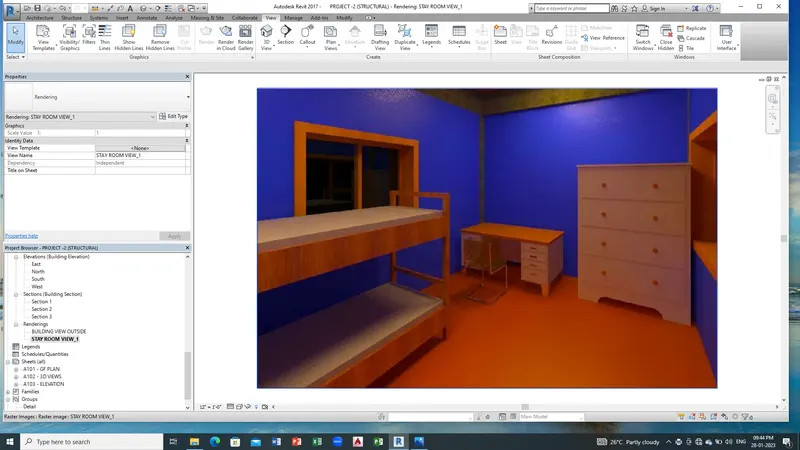

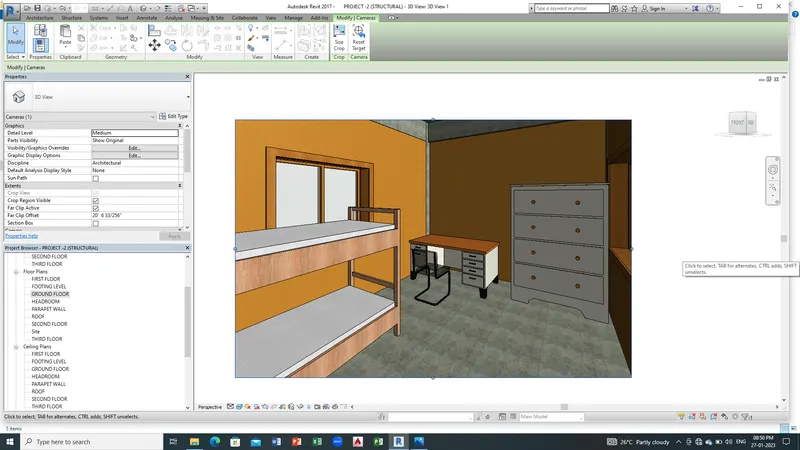

        a. Rendering from interior rooms

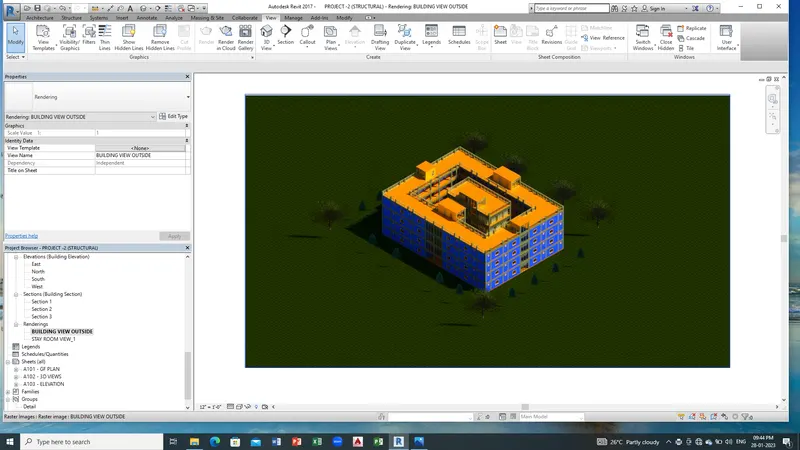

        b. Rendering from out showing topographic features

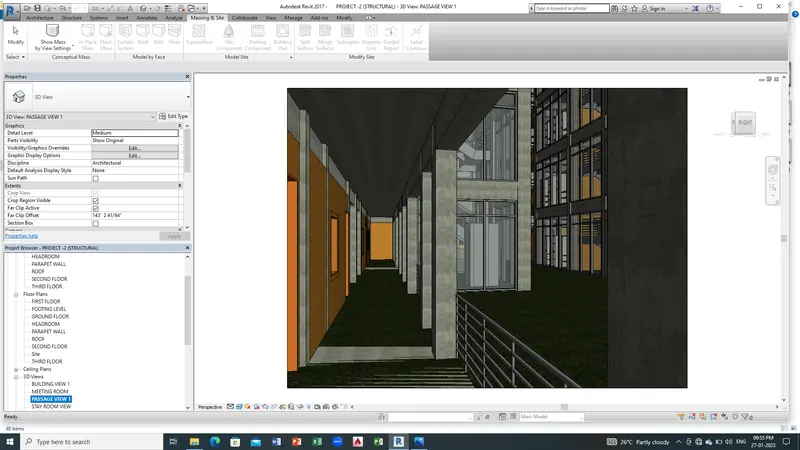

        c. Rendering through structural framing

7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model?

ANS:

The answer for this question is attached as pdf file.

RESULT:

• Created Architectural and Structural model with 3D rendering using REVIT.
