Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
ANSWER: Office Building
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and the type of structure selected identify the modeling requirements from NBC
ANSWER:
1. The open space around the building shall not be less than 4.5m
2. The type of construction is type 2 construction The FAR value for Business Shall be taken as 2.9
3. The Plot size is taken as 22.5x 14.16
4. my project is in a plain area. it is in a commercial area. road width in front of my structure is 70ft.
5. MODELLING REQUIREMENTS FROM NCB ARE: an exit must be provided in every building so as to permit the safe escape of employees in case of earthquake or fire hazards. the minimum height of the basement should be 2.5m and the maximum size should be 4.5m.

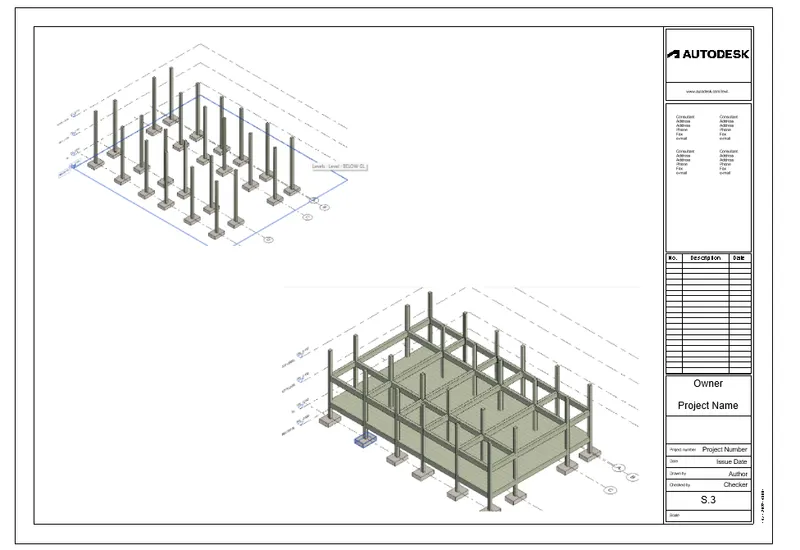

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
ANSWER:
AIM: Using a Structural model, including the following Components based on the type of structure
PROCEDURE:

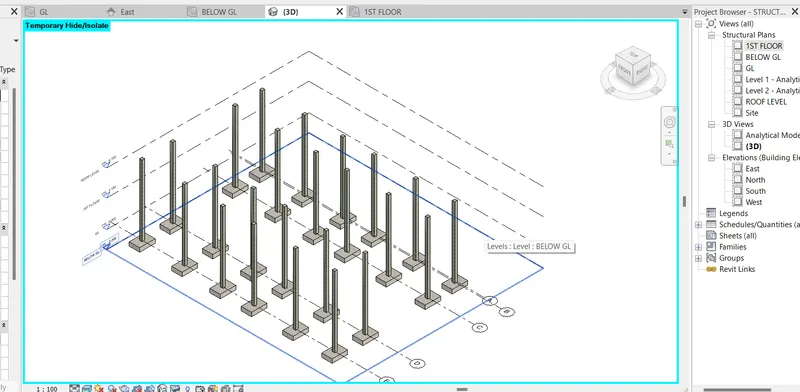

1. Open Revit software and opt Structural template
2. Set the unit to mm

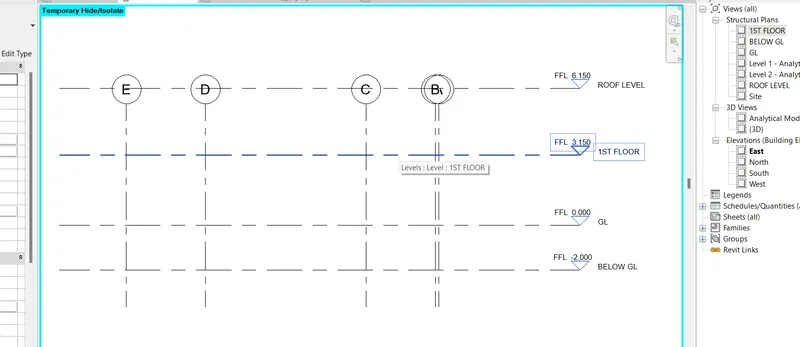

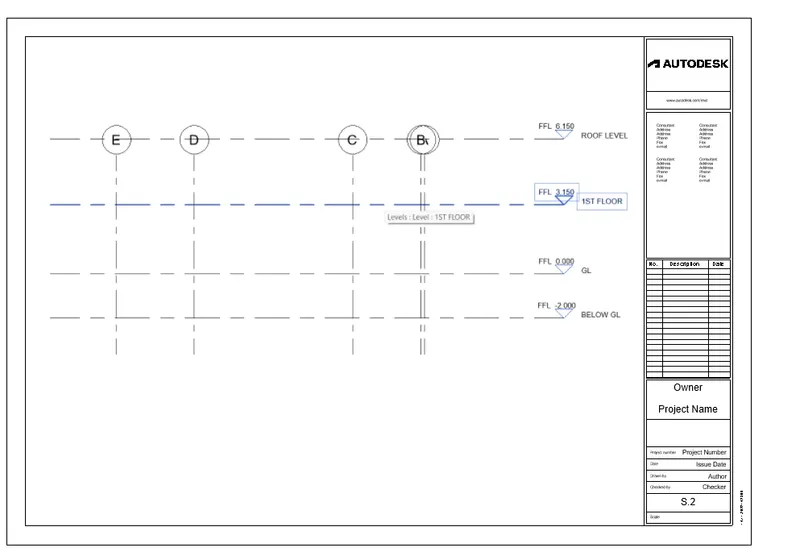

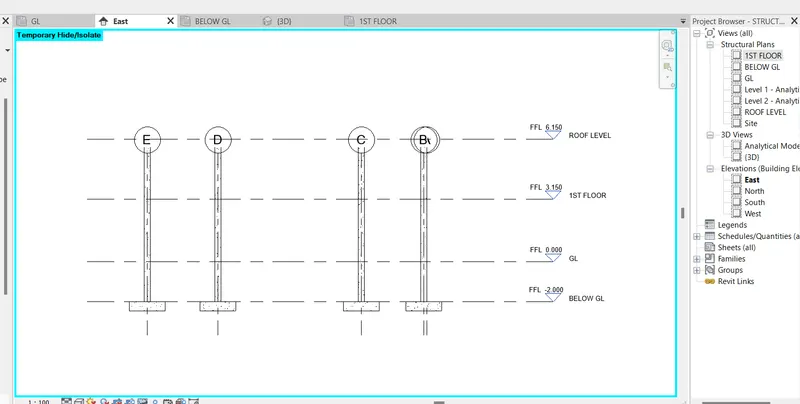

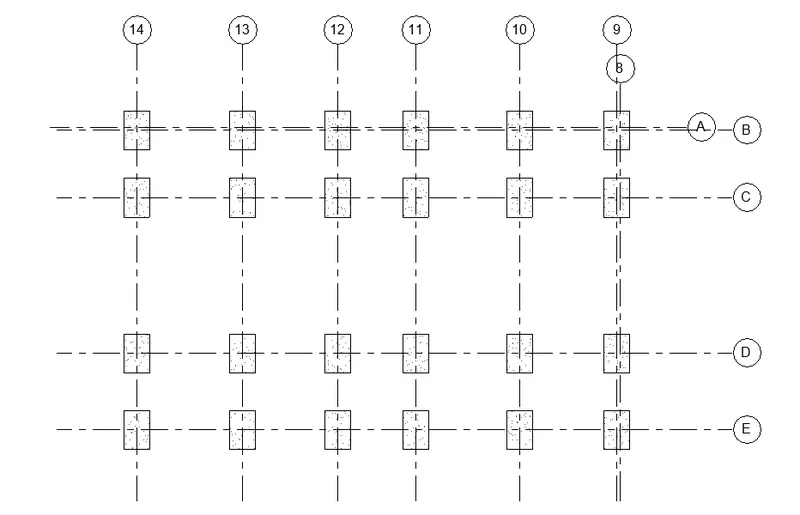

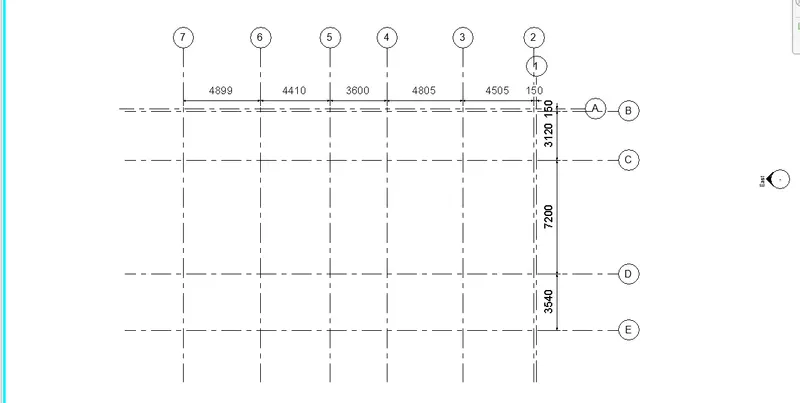

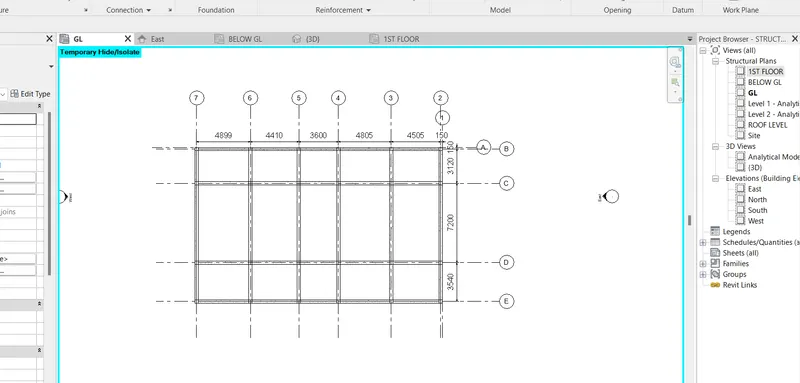

3. Now in the Ribbon go into the structure tab And draw a horizontal & vertical Grid with the help of the Grid option
4. Go to the elevation and increase the number of levels up to the roof and change their names

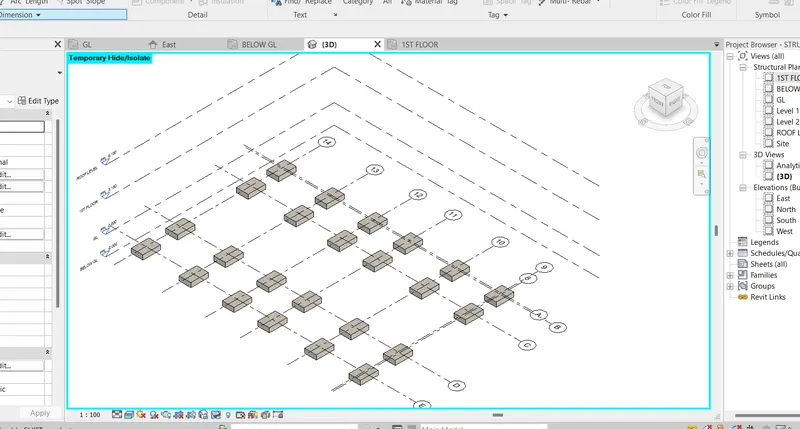

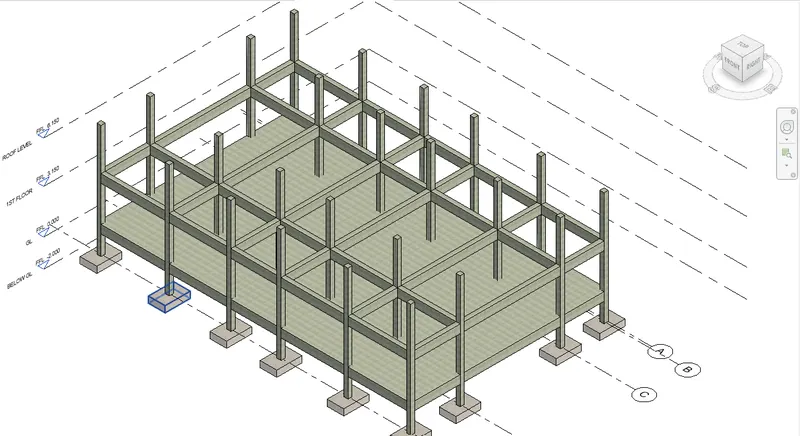

5. Now go to the Ribbon Select isolated footing and then place the footing as per the grid marking

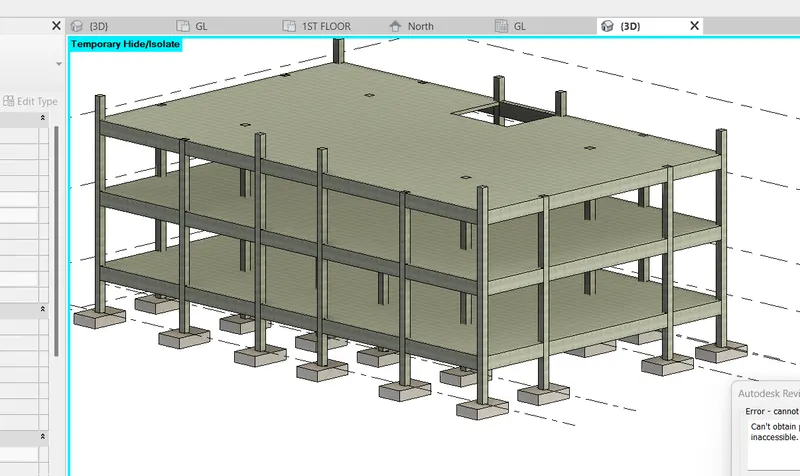

6. Change the interface into the 3d
7. Now same for the Column go into the ribbon Select the column option for size 300x300mm and place it over each footing
8. Now chose the Beam option from the ribbon and assign Groundbeam and ceiling level beam

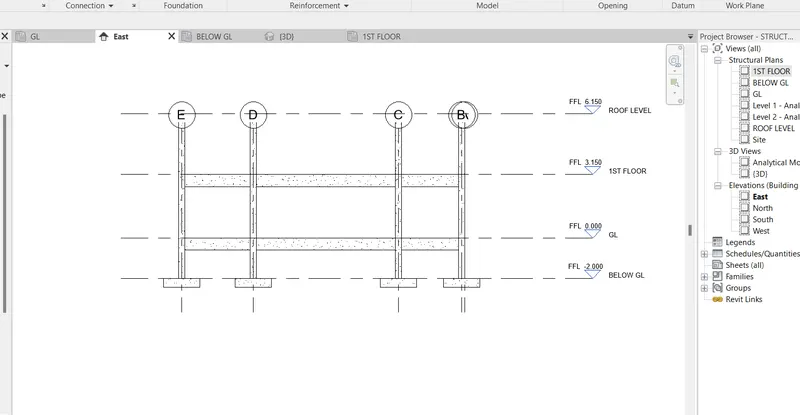

9. Change the interface to elevation

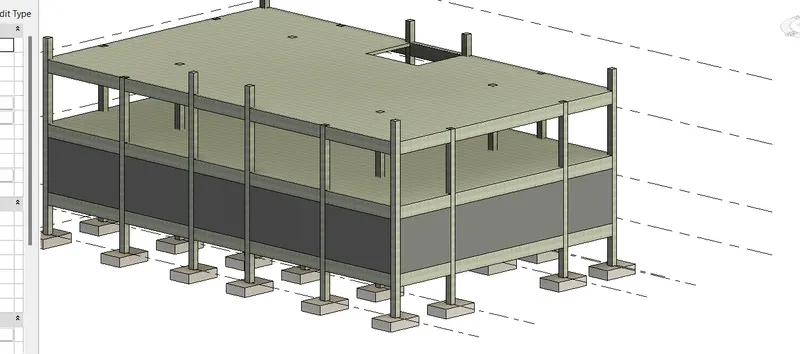

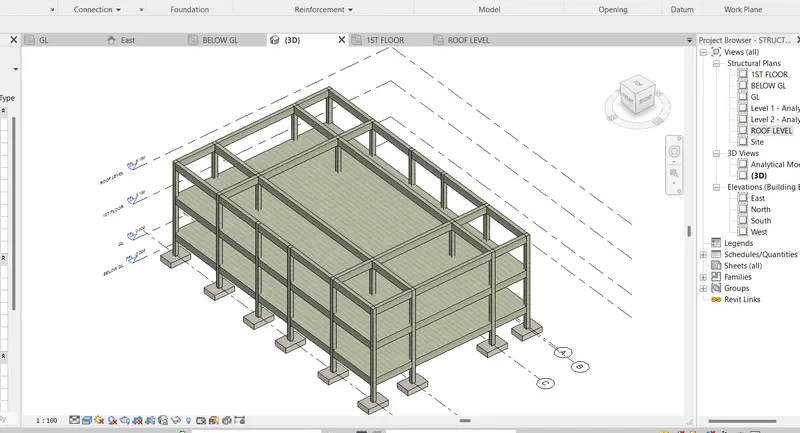

10. Now Determine the Slabs in the structure With the help of the Floor Option in the ribbon

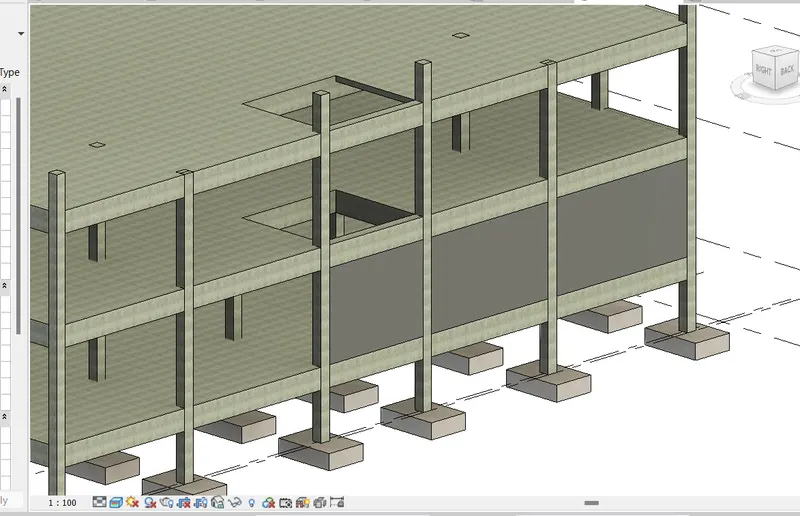

11. Also determine the structure wall and also providing a Shaft opening for stairs or elevated using the shaft option
RESULT:
4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
ANSWER:

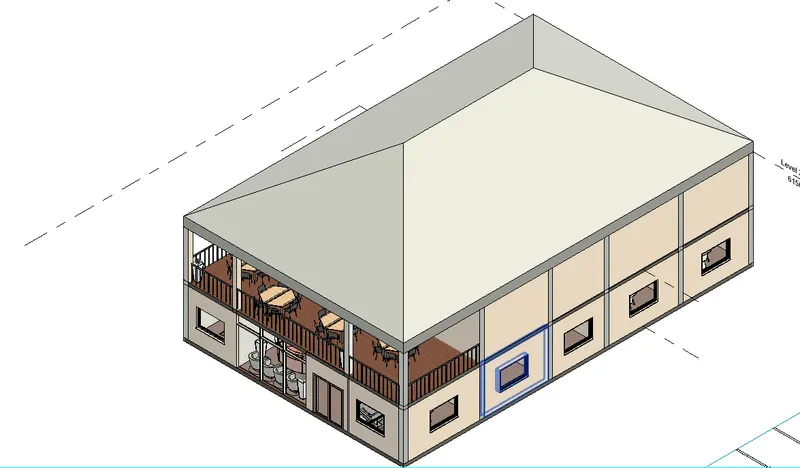

AIM: To use the Archituctir mode, including the following components based on the type of structure selected in the question
PROCEDURE:
1. Copy the grid for the structure plan in the Architecture plan

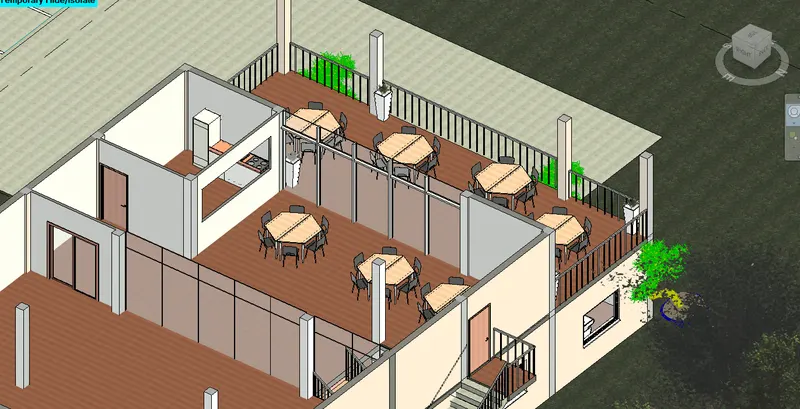

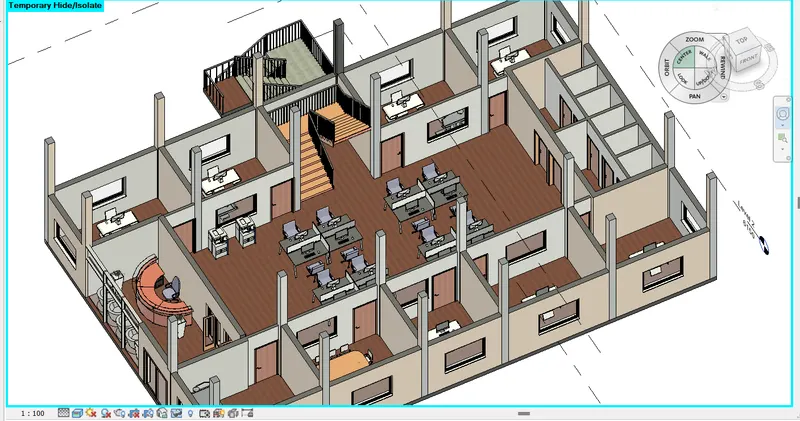

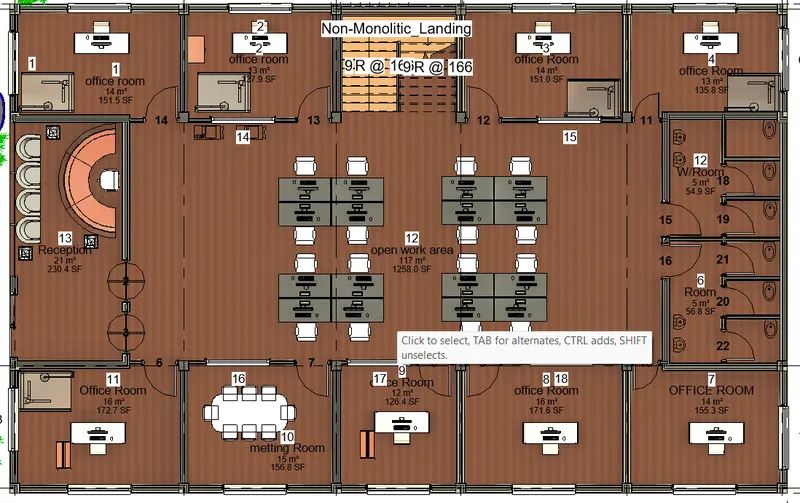

2. Draw a wall along the boundary. draw the interior partitions and place the required furniture and components in the plan and change the

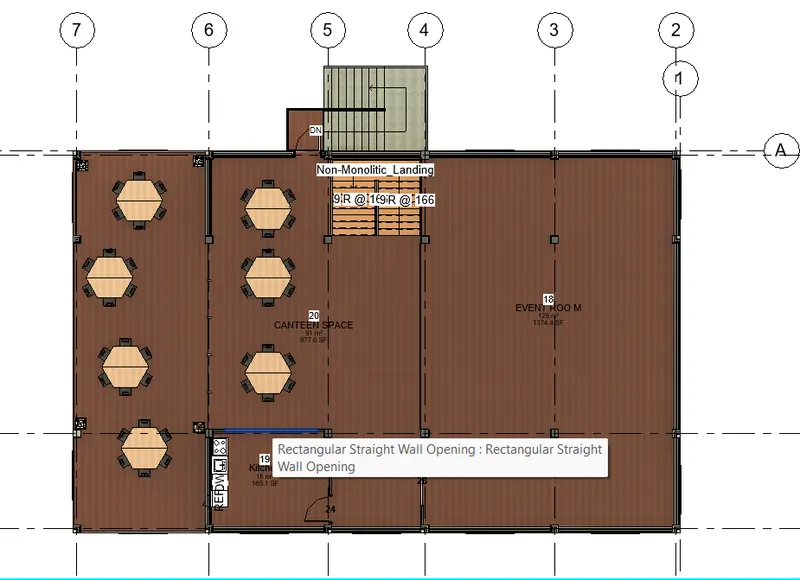

GROUND FLOOR:
FIRST FLOOR: With fire exit
3. draw the roof by making a rectangle along all the sides of the second floor.

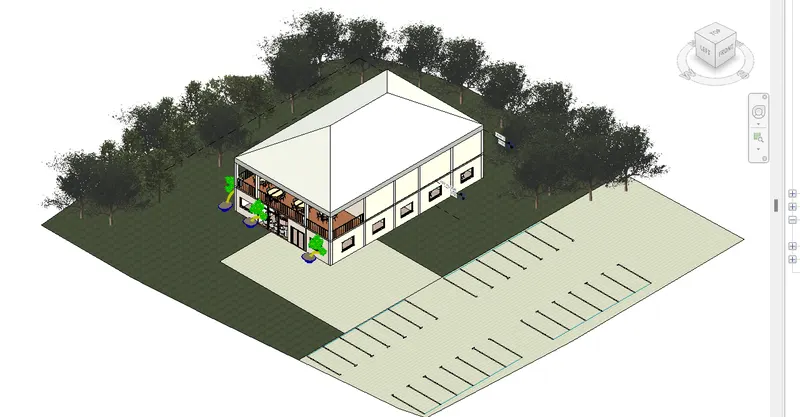

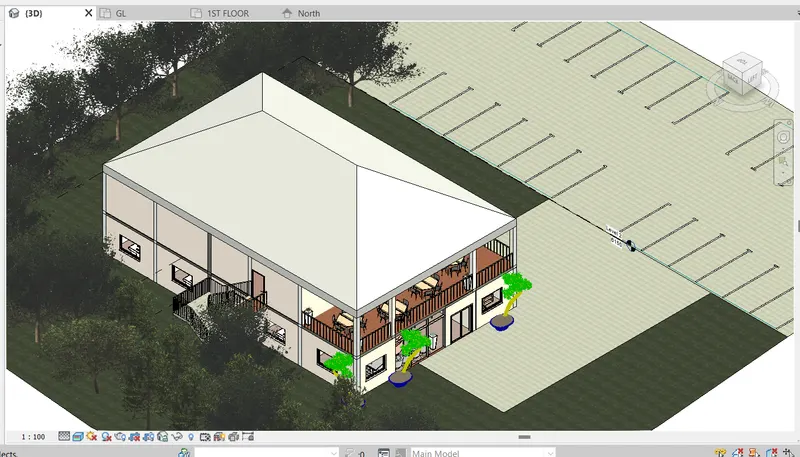

4. Place proper topographic components from outside ( Trees, Parking, Plants)
5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

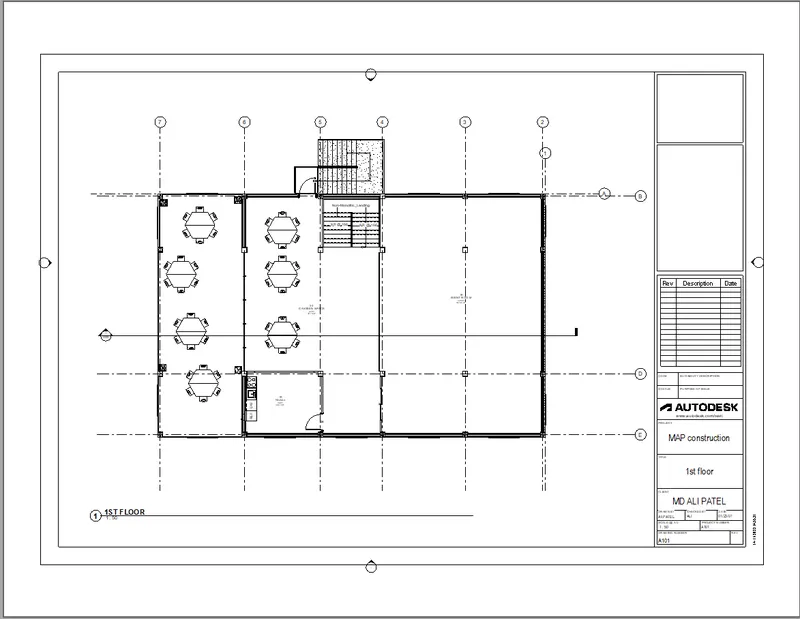

a. Floor Plans with Annotations
b. Elevations

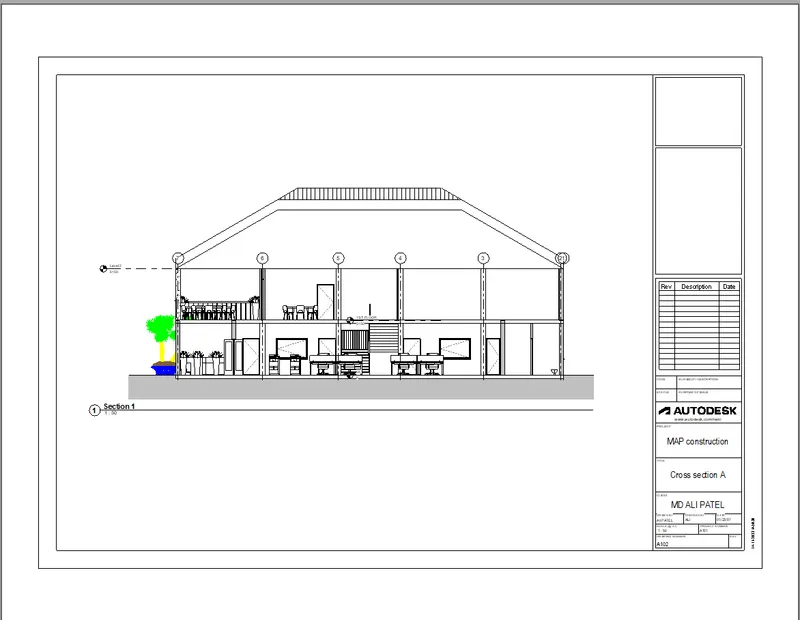

c. Sections
ANSWER:
AIM: Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates
PROCEDURE:

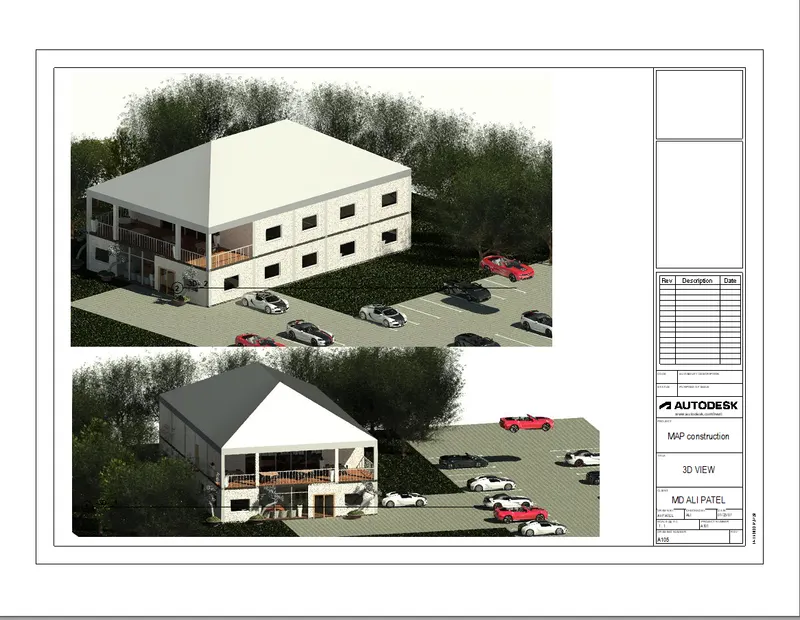

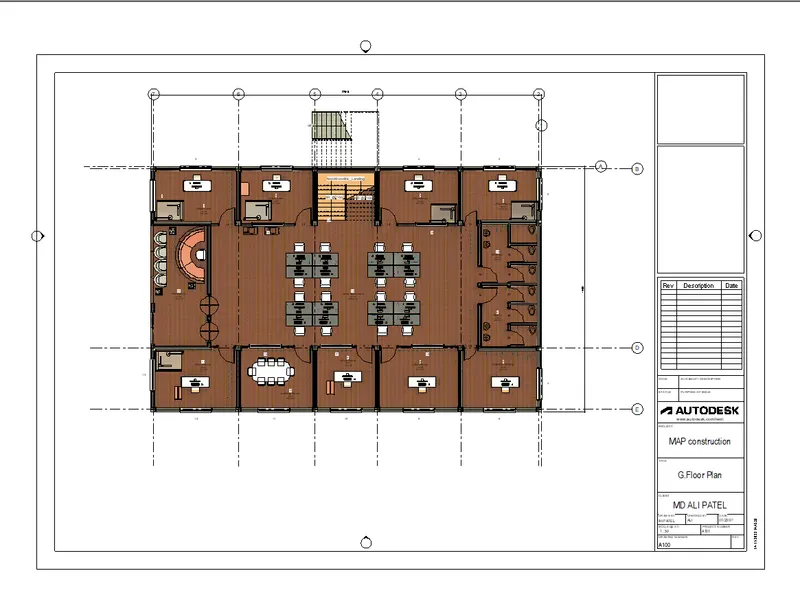

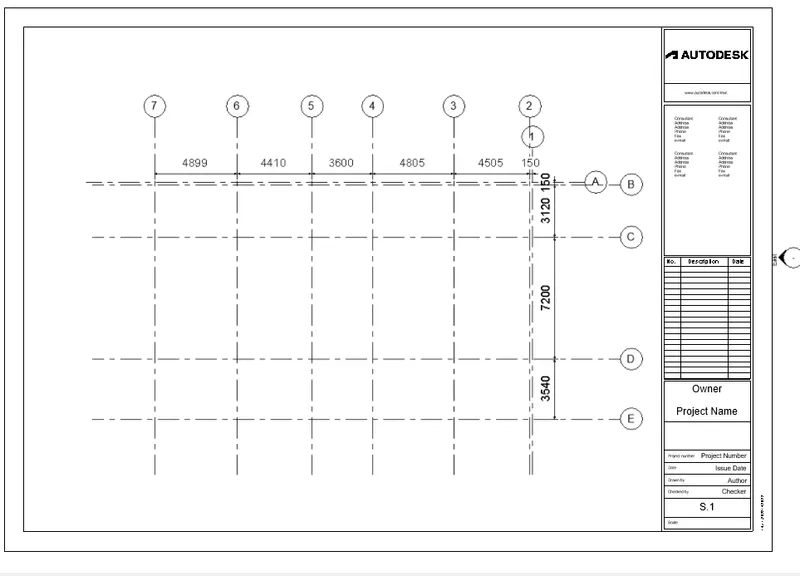

To the sheet option, as the sheet opens there is another option below it called views, and select the required view you want to place.
RESULT:

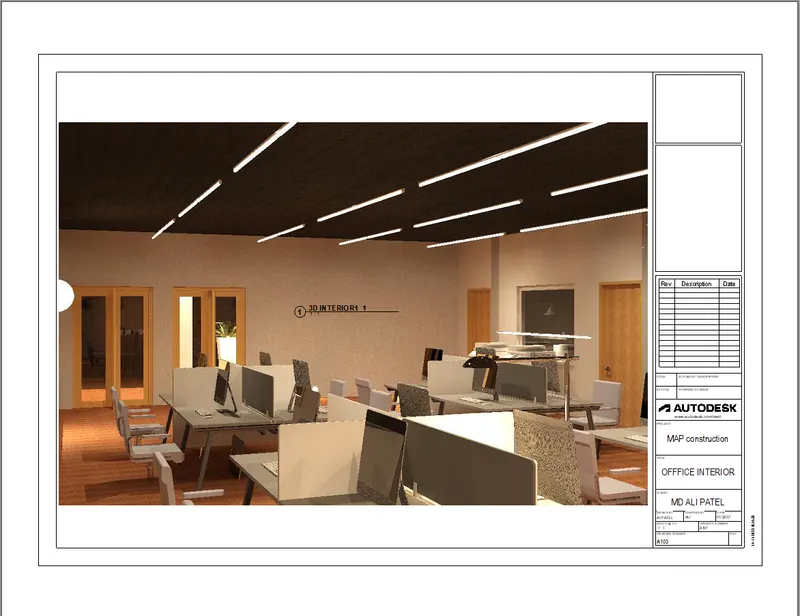

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
ANSWER:
AIM: Using the Rendering settings, Render images of the 3D model produced and include the rendered images in the drawing sheets
PROCEDURE:

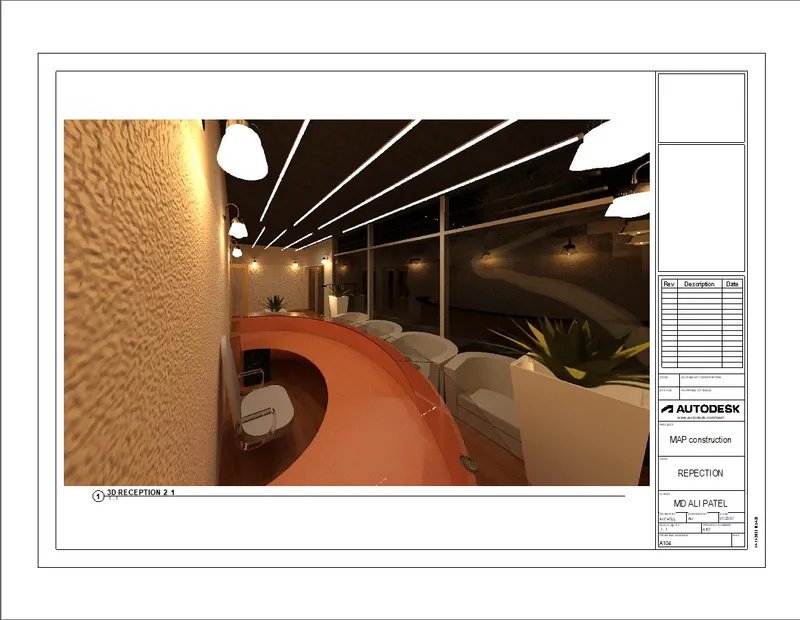

in order to render any figure go to the render option from the ribbon and change the settings you want and click renders figure will turn realistic as shown below.
RESULT:
