Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
A) The type of structure i wanted to sketch using REVIT software is multi-residential apartment.
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
A) 1. As per my choice my structure is a multi-unit apartment building comes under residential category and it can be situated in the center of the city.
2. The project is located near the ring road.
3. The road width in front of the project building is 60'.
4. The heigh area and safety measureswill follow the rulesand regulations of NBC.
5. The height of my project is 45' and the road width is 60'.
6. So, the project building height of each floor is taken as 12', the height of the building should not exceed 1.5 times the width of the road width.
7. In this case the building height is not exceeding so it is suitable for construction.
AIM: Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
INTRODUCTION: Revit is an advanced software used in creating plans, this software is used by multi-disciplinary streams like civl engineering, architectural, mechanical engineering, electrical engineering. Using revit 3d plans can be made perfectly with nice visuals.
PROCEDURE:
1. Revit software is opened by double click on the software.

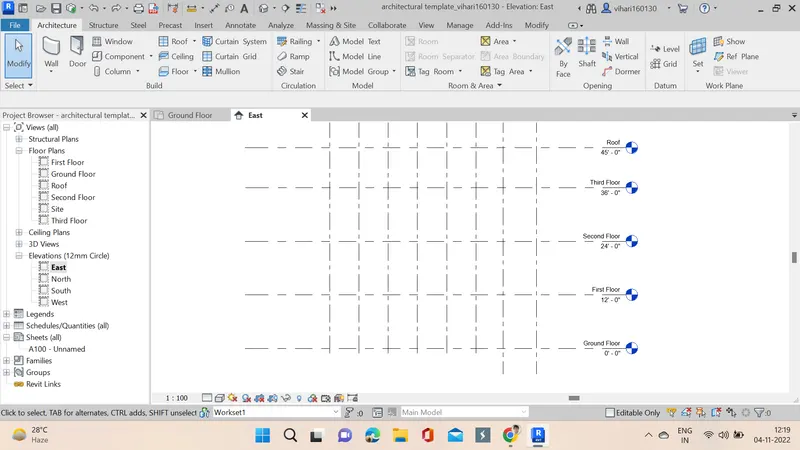

2. The file from week 6 is taken and in that east view is opened and level are drawn as per our plan.

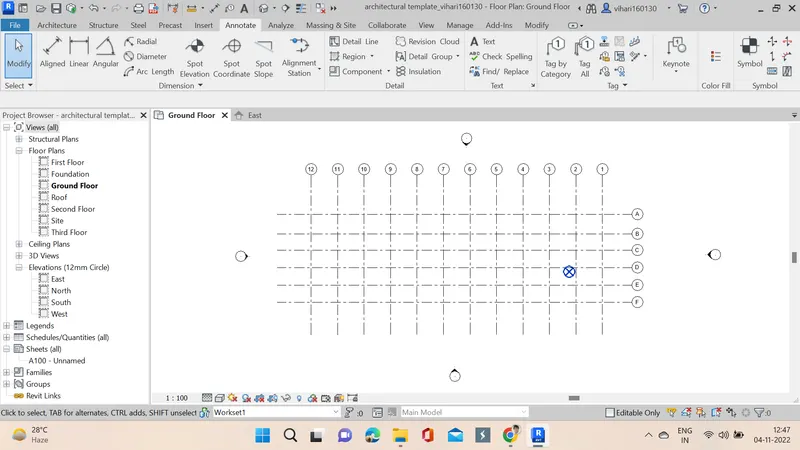

3. Now vertical grids are also placed using grid option from architectural tab.

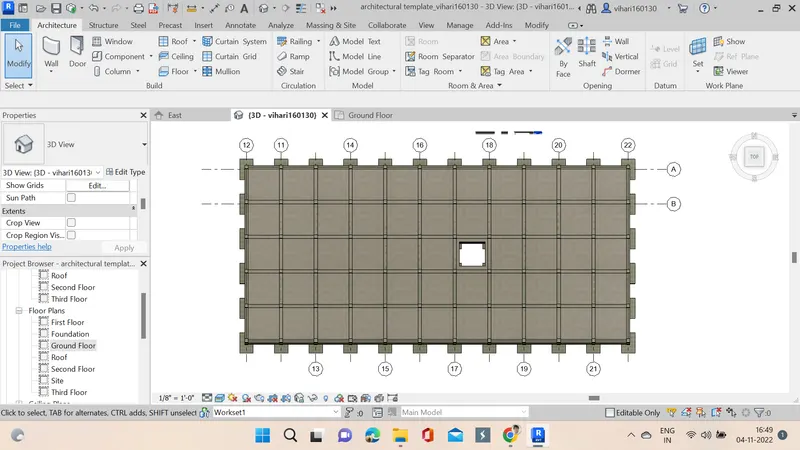

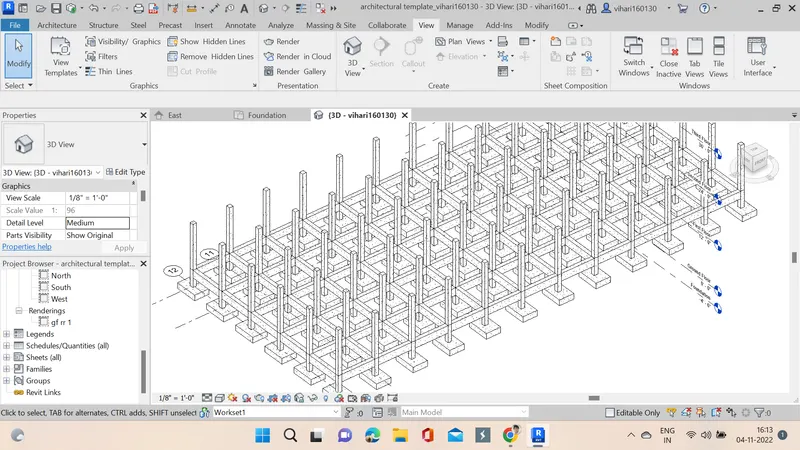

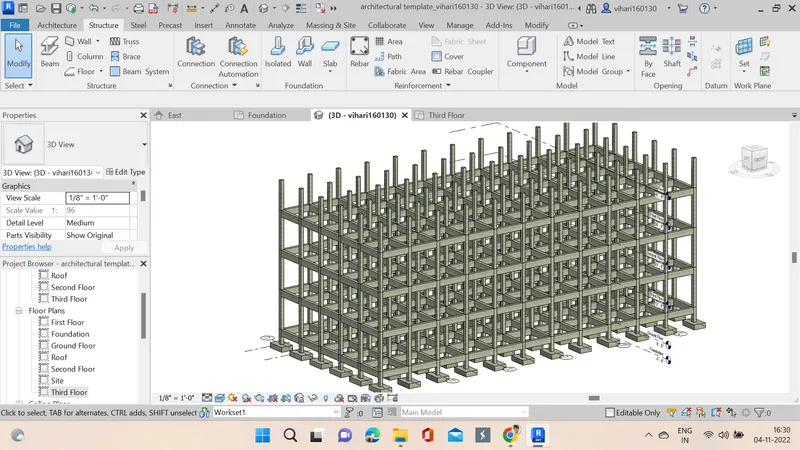

4. Now foundation is drawn using foundation, columns, beams are also drawn using the options selected from the structure tab for ground floor.

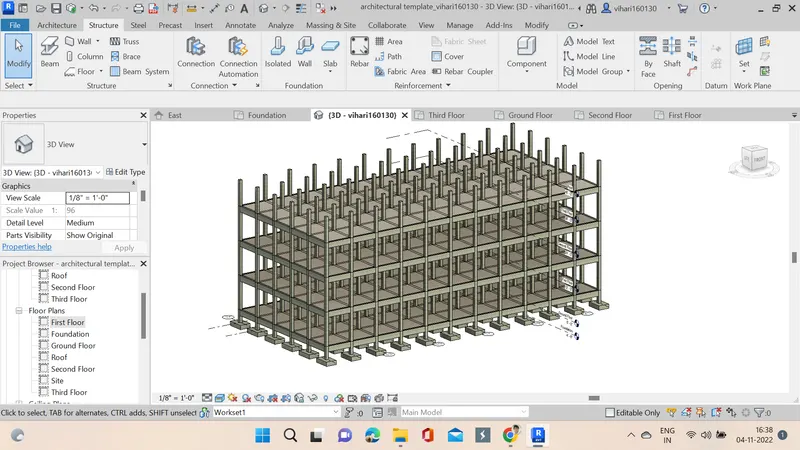

5. Process repeated for all the floors (first, second, third).
6. Floor is placed at each level by choosing floor from structure tab, selecting rectangle option to draw floors.
7. Shaft opening is used to create a space to provide lift.
RESULT: Using the structural model, all the below given are specified in the project.
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
AIM: Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
INTRODUCTION: Revit is an advanced software used in creating plans, this software is used by multi-disciplinary streams like civl engineering, architectural, mechanical engineering, electrical engineering. Using revit 3d plans can be made perfectly with nice visuals.
PROCEDURE:

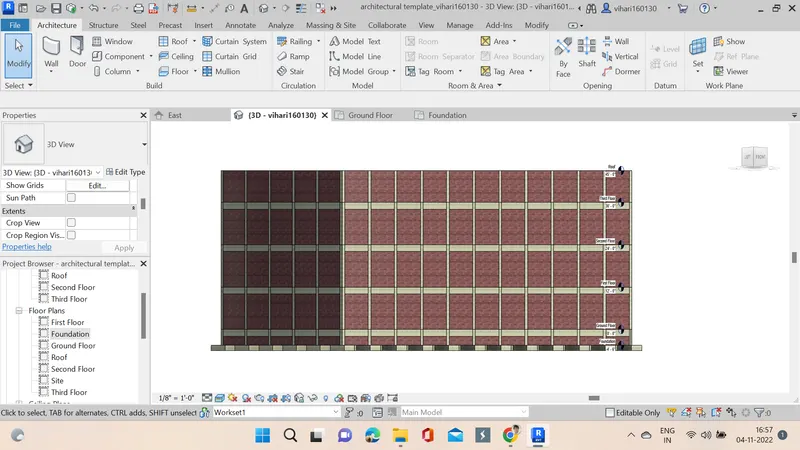

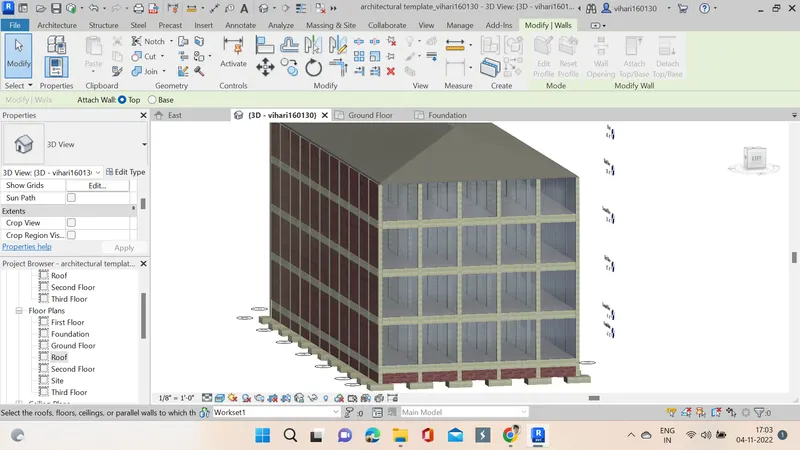

1. Walls are placed for the project to complete its outer looks.
2. One side of the wall is totally made glazing look to give a nice asthetic look.

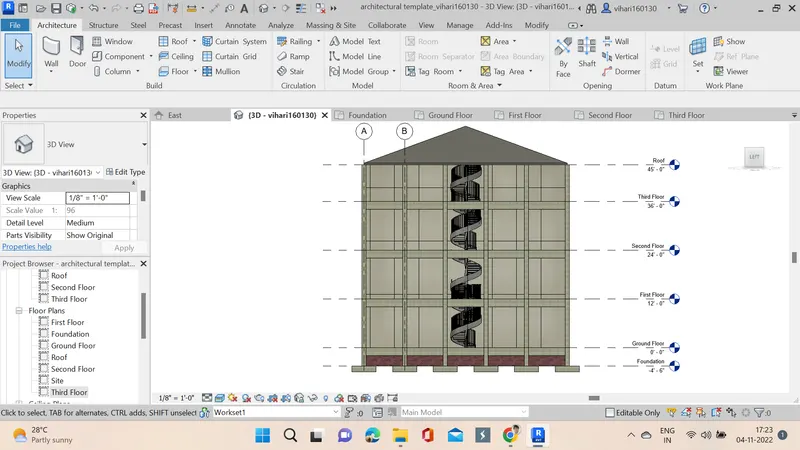

3. stair case is also created using the circular stairs option from stairs.

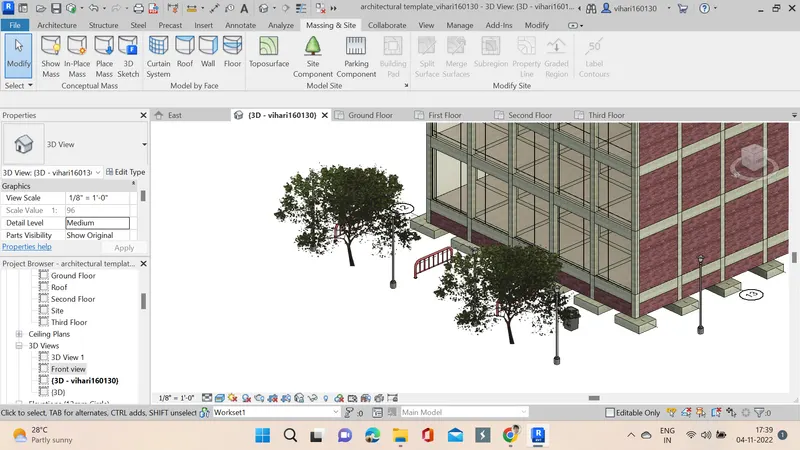

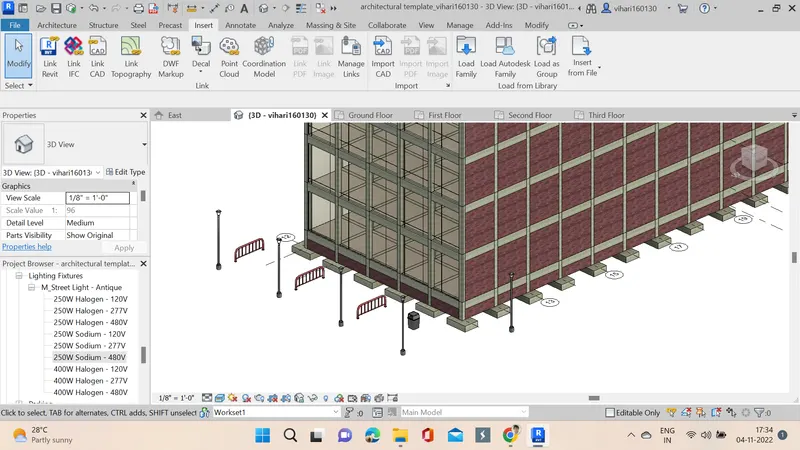

4. Light fixtures external and internal also parking stand trash can are placed to make it more realistic.
5. Some plants are placed to give nice view.
RESULT: Using the architectural model, the following components are placed
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
AIM: Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections
INTRODUCTION: Revit is an advanced software used in creating plans, this software is used by multi-disciplinary streams like civl engineering, architectural, mechanical engineering, electrical engineering. Using revit 3d plans can be made perfectly with nice visuals.
PROCEDURE:

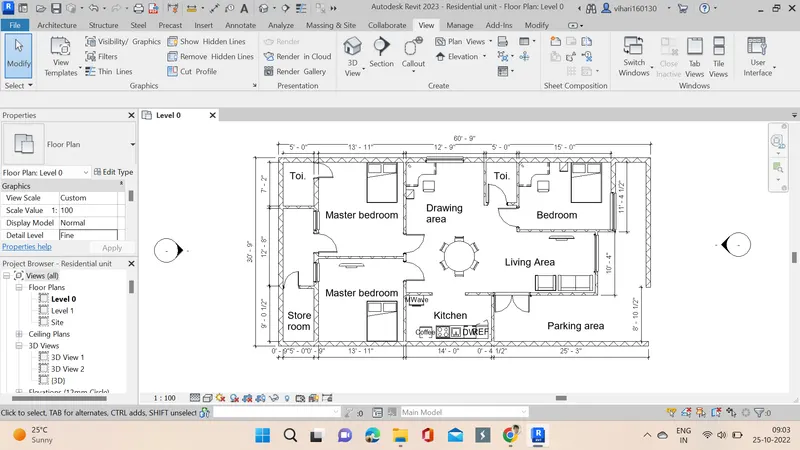

a. Floor Plans with Annotations

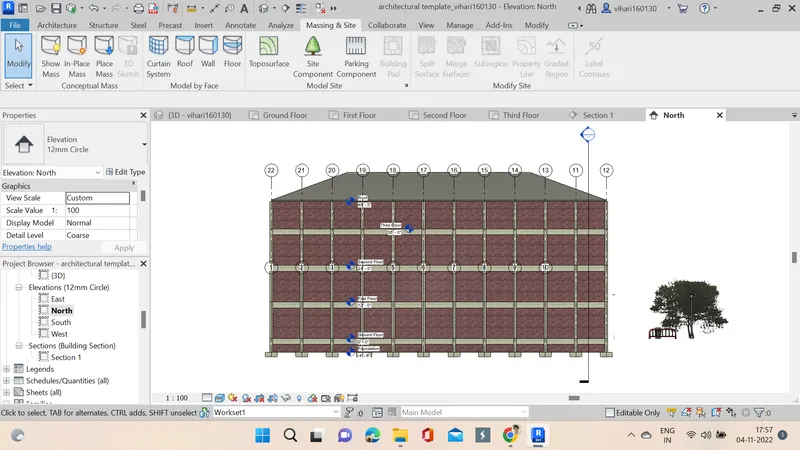

b) Elevation

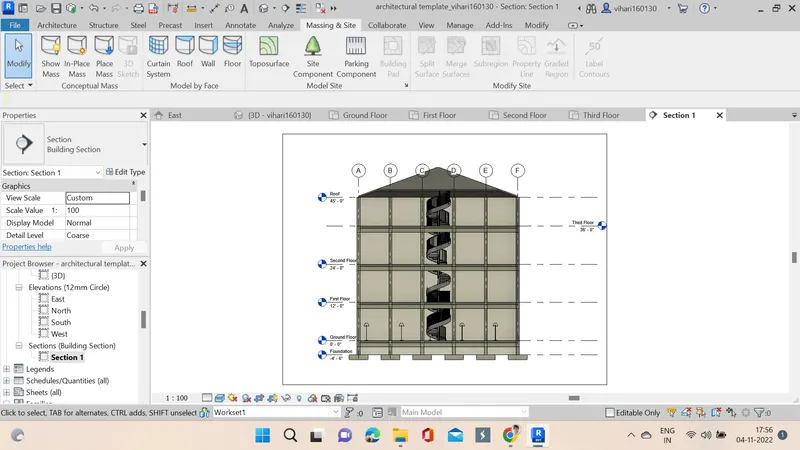

c) Sections
RESULT: A set of drawings in an architectural and structural model are listed using the REVIT software which include following
a. Floor Plans with Annotations
b. Elevations
c. Sections
AIM: Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
INTRODUCTION: Revit is an advanced software used in creating plans, this software is used by multi-disciplinary streams like civl engineering, architectural, mechanical engineering, electrical engineering. Using revit 3d plans can be made perfectly with nice visuals.
PROCEDURE:

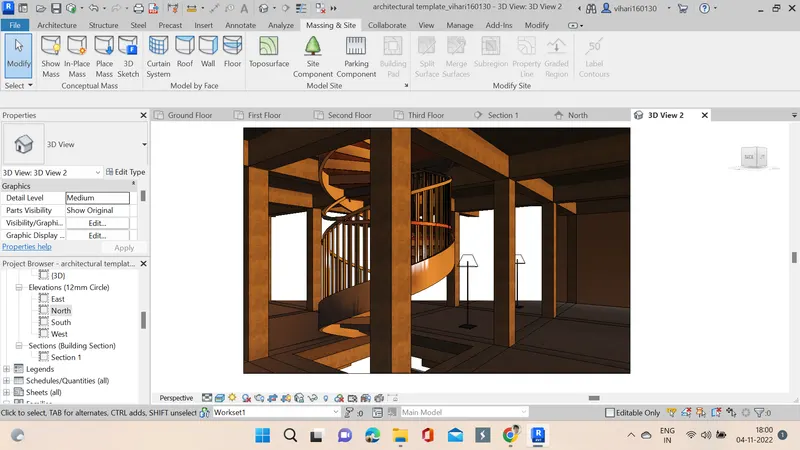

a. Rendering from interior rooms

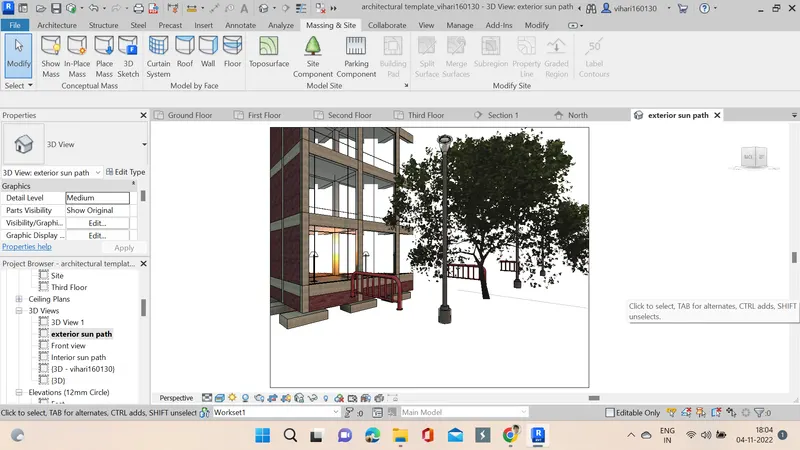

b. Rendering from out showing topographic features

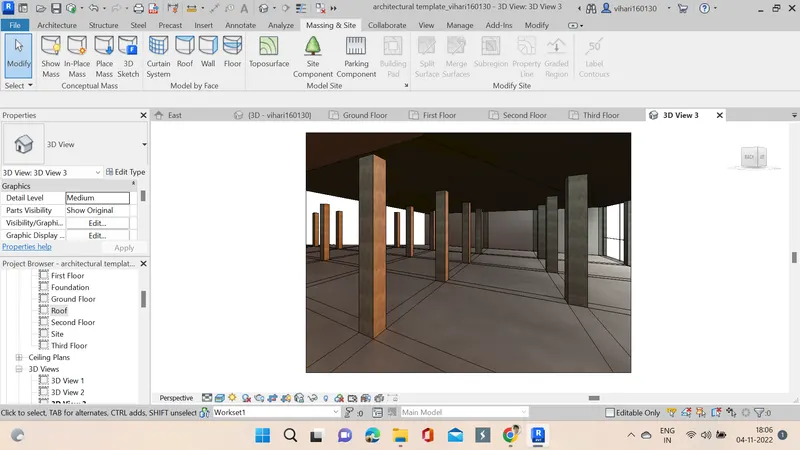

c. Rendering through structural framing
RESULT: Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms

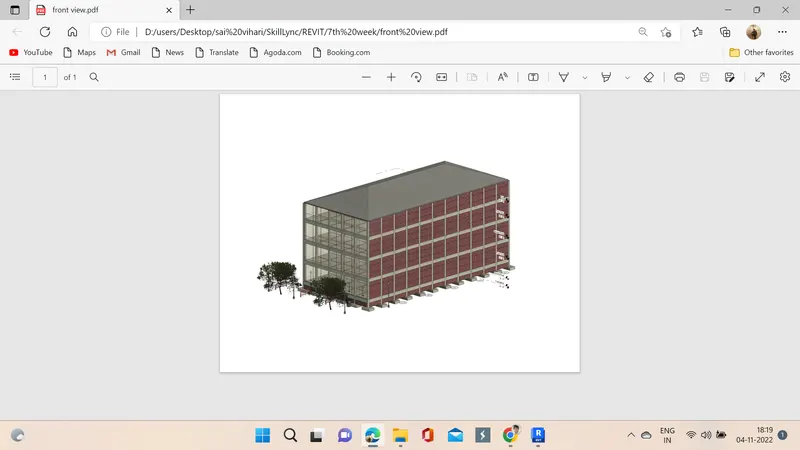

b. Rendering from out showing topographic features
c. Rendering through structural framing
7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model
