Creating Architectural and Structural model with 3D rendering using REVIT
1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School
Ans: my project is to build office buildings from the give three options.
2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
Ans:
For your project modeling, make assumptions about geographic and location data.
My building is located in Vizag's commercial district.
My structure is situated in a flat field (geographic)
A three-lane road with a width of 4.5 meters runs directly in front of my house.
The height limit will be defined in NBC part V-1, according to NBC.
(National Building Code)
3)The dimensions of the rooms are also mentioned in NBC part V-1. 3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
A) Aim :The dimensions of the rooms are also mentioned in NBC part V-1. 3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs
Procedure:
open an architectural template in Revit software and save it as a residential building

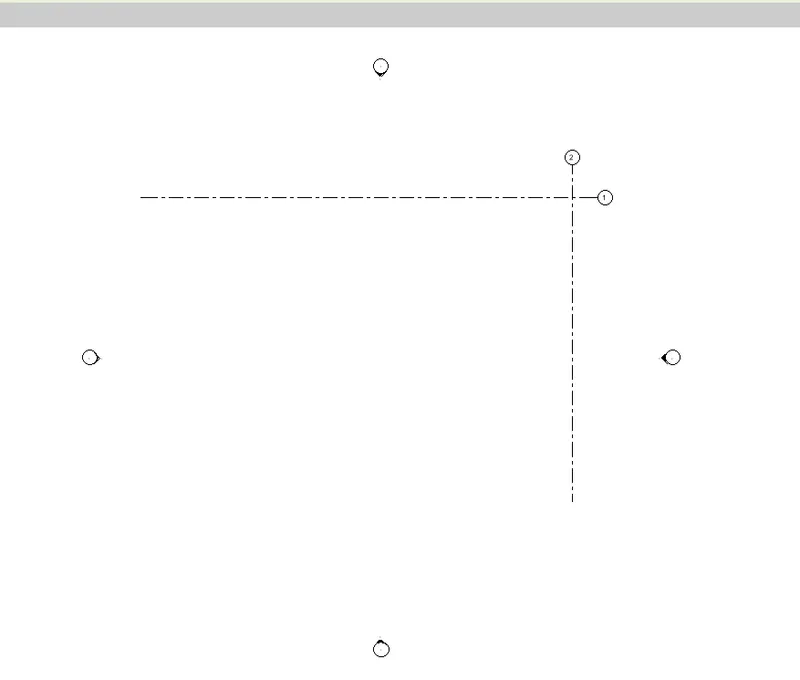

then draw the grid lines and specify coordinates as 0'0" for both horizontal and vertical grids lined

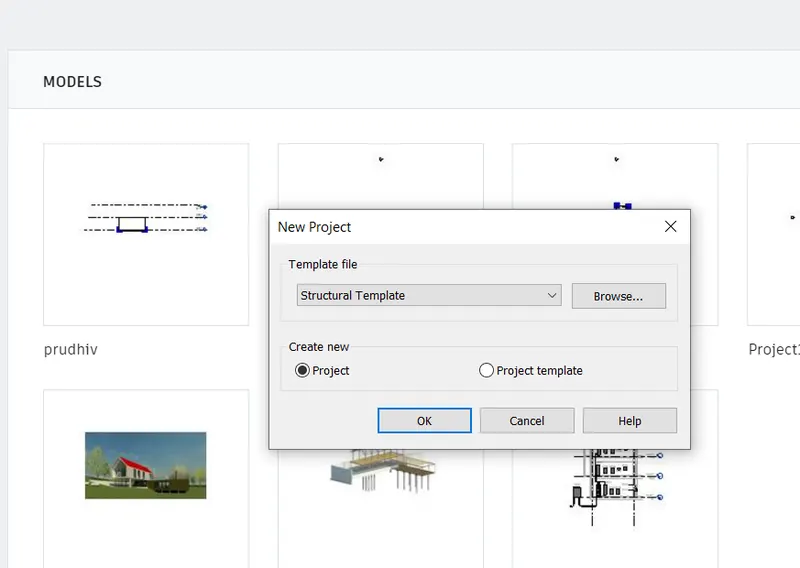

next, open a new structure template save it as a residential building structural 001
repeat steps 2 and 3 same processes and saves the file

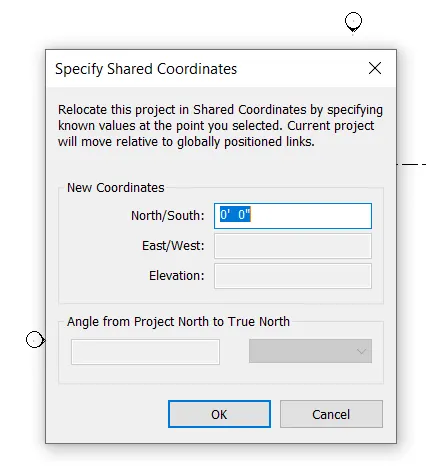

select the acquired coordinates and set the links to the current coordinates.

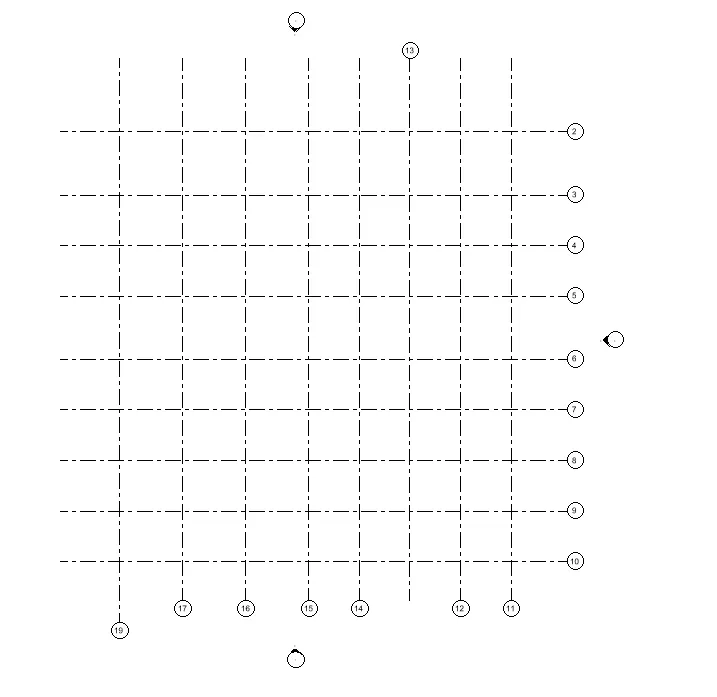

draw the vertical and horizontal grid and also set the levels foundations, ground floor, first-floor, second-floor third floor, and roof levels are CREATED
select column option from the structural tab and draw the columns at intersection points of the grids.
4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
Aim:4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
procedure:
now go to the architectural template which has created before in this file.
copy the grids which were created in the previous structure template and copy it.
with the help of paste from clipboard, option paste the grids in the architectural template
select the grids and pin it
click the elevation and create the levels required from architectural tab.
click virtual graphics setting and select custom in annotation off the grids.
now start to create the exterior wall and grid lines
floor tool add floor to all levels of projects.
by the way same doing in walls also
then load the load families in the components required for the project and add then in the drawing them in the load family
set the camera in all rooms to view the pictures in realistic of building

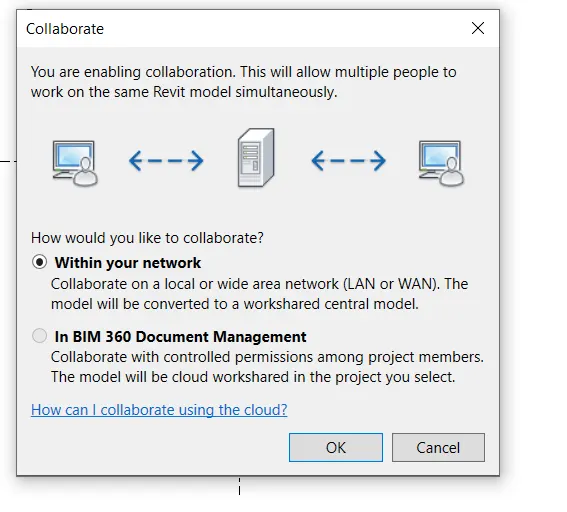

save the project and changes will be done in the architectural template will be saved to be centralized files
5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations

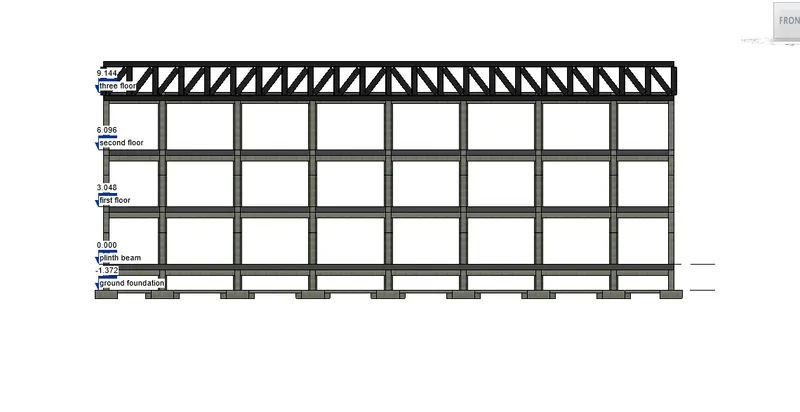

c. Sections
Aim:Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections
procedure:

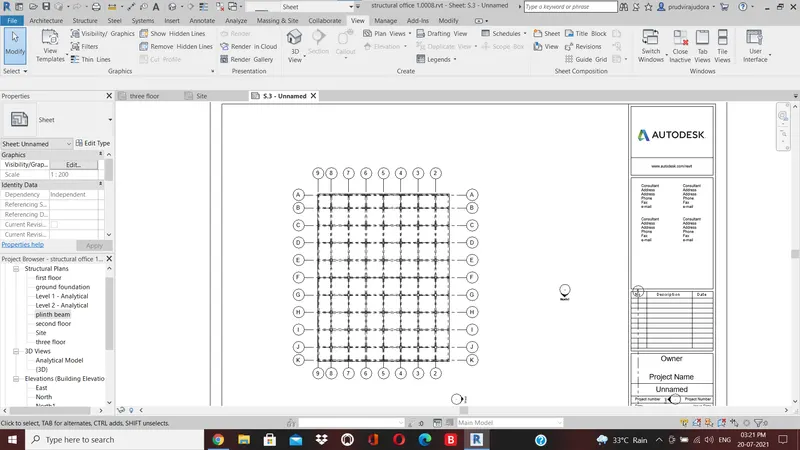

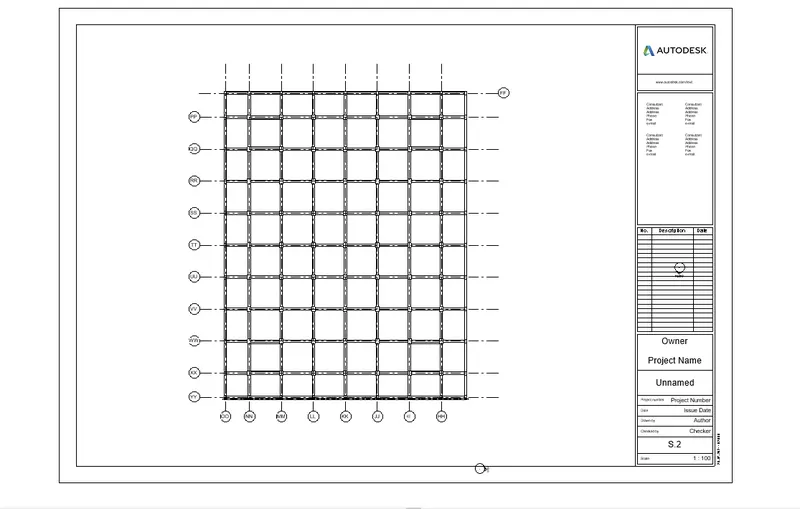

open view tab and select sheet tool
sheet dialog box will appear then , press A1 metric and click ok
rename the sheets by doubl clicking on the name and use appropriate names to the sheet
go to the insert tab and select on load image option
then add image into our sheets and then seve it

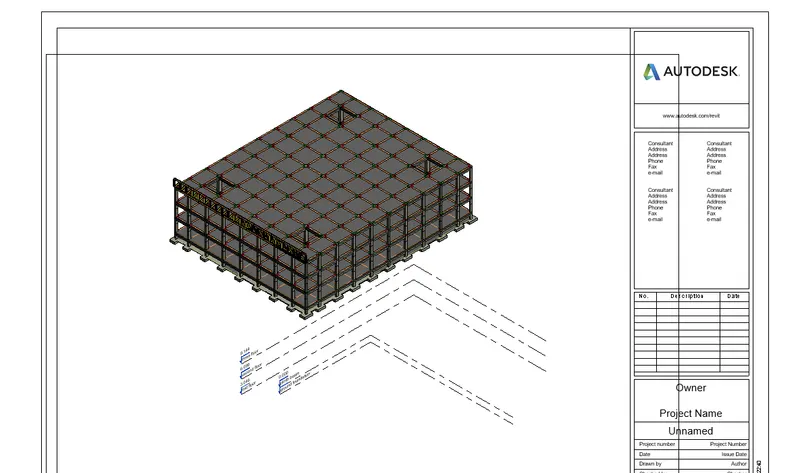

repeat the same process and add the structural and architectural models into the sheets
add the floor plans elevation plans and sections also with the same steps into the sheets
6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
AIM:Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing
procedure:

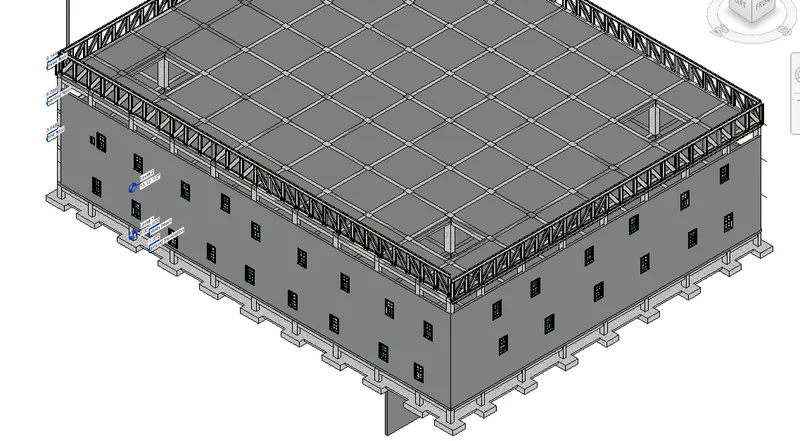

open 3D view and set the view to take the picture where we want to render the area
then click view menu and click render option
render dialog box are appears
select region option and crop the image in region
then we can change the style of render images schemes lighting options and finally click render in it
then the render image will be appears into more realistics than other and it can used to better presentation of our clients also
7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model
AIM : Print the set of drawing sheets created and submit the drawings from the architecture and structure model
PROCRDURE:

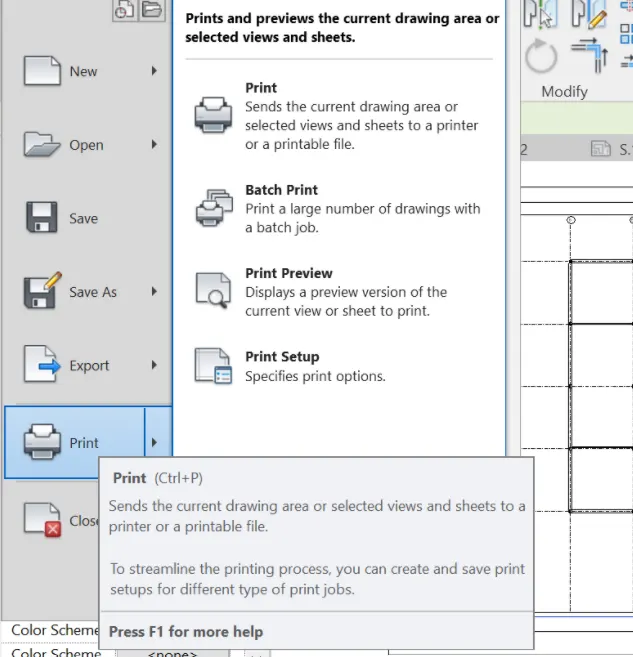

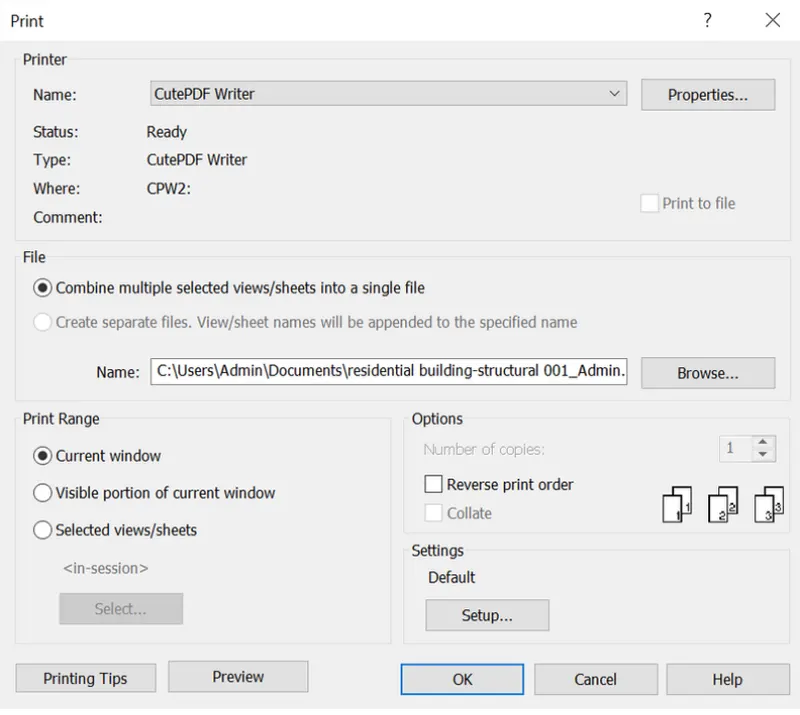

click the views and open file menu and click the print.
print dialog box is appear
then, change the settings of sheets size texts styles page setup everything
then click print and press ok
