Creating Architectural and Structural model with 3D rendering using REVIT

1. I have Selected Residential Apartment for my project.
2.

• The oprn space for Residential building is 6m each side
• The type of construction is 2 and as per FAR value for the residential shall be taken 2
• Height of the building is 11.5m as per FAR in my loction no problem

3. Aim: Using the structural model, include the following components based on the type of structure selected

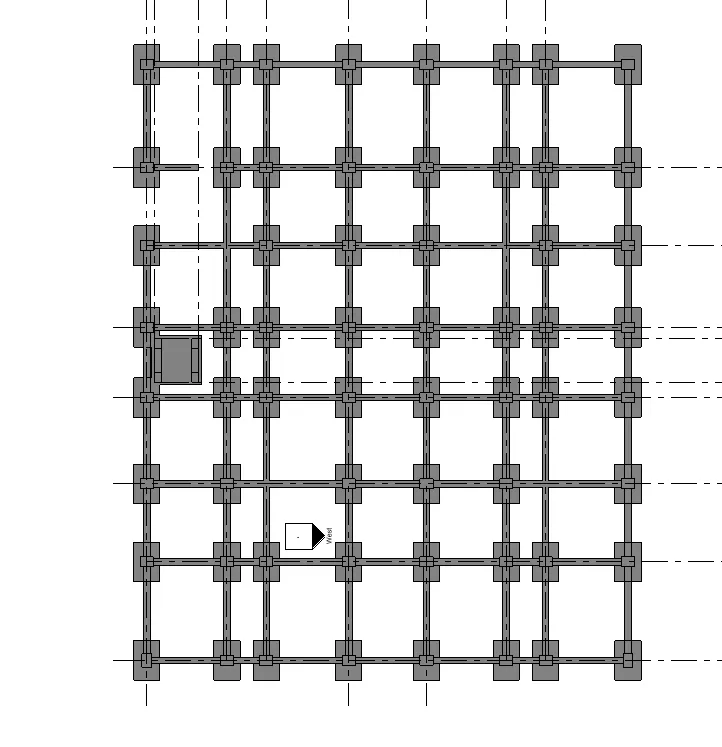

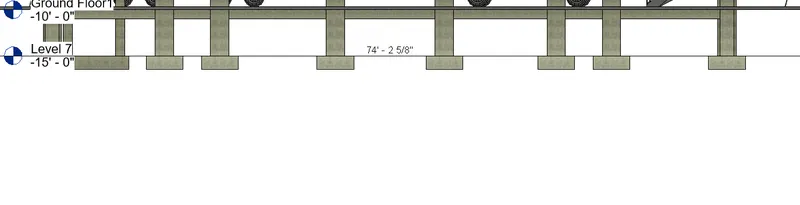

a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss

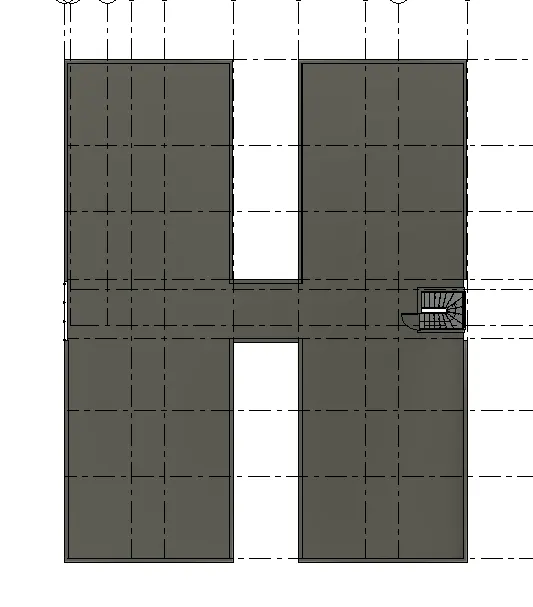

e. Floor / Decks

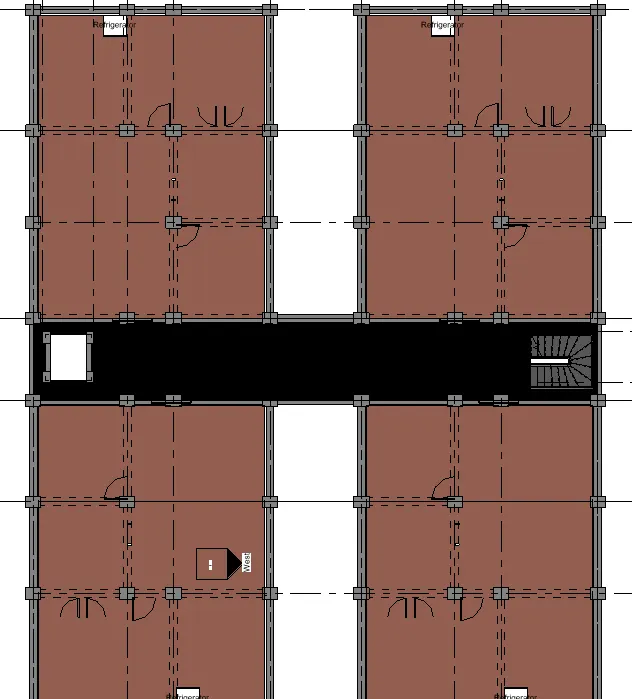

f. Floor Openings for Elevators and Stairs

Conclusion:

4. Aim: ) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures

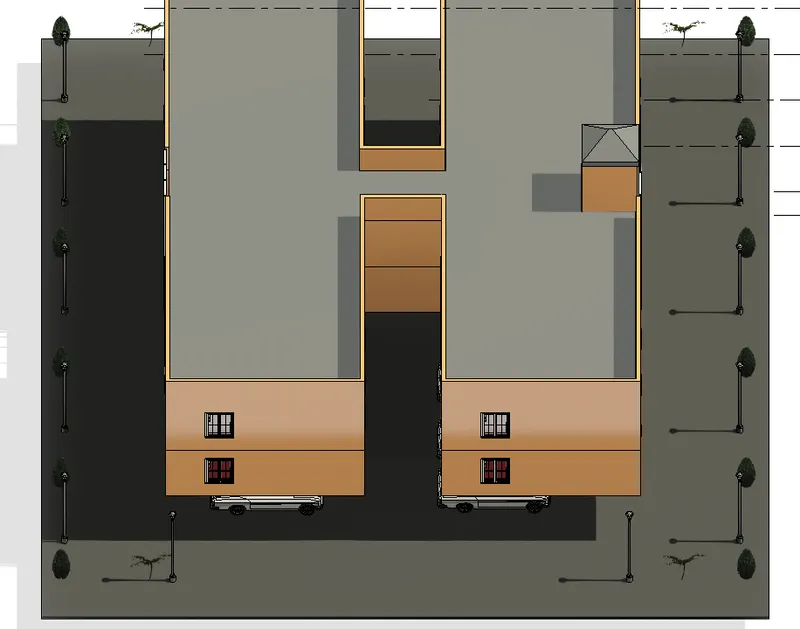

h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

Conclusion:

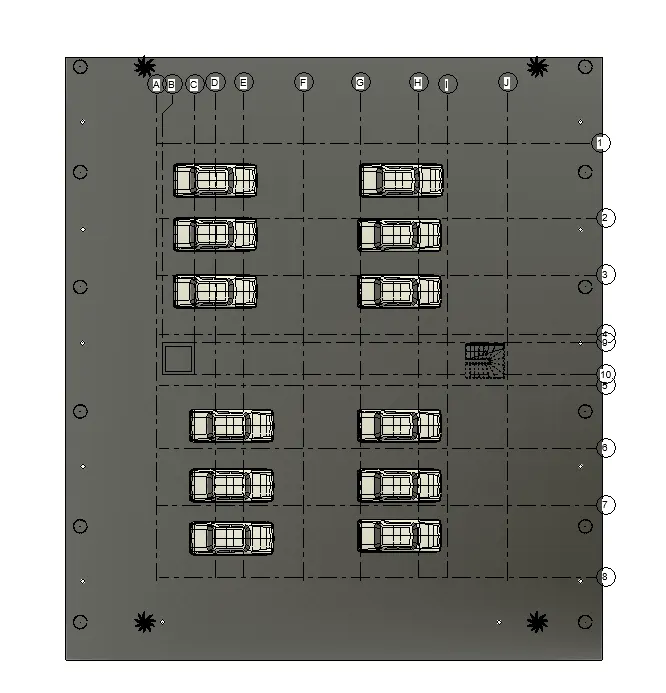

Parking in Ground Floor:

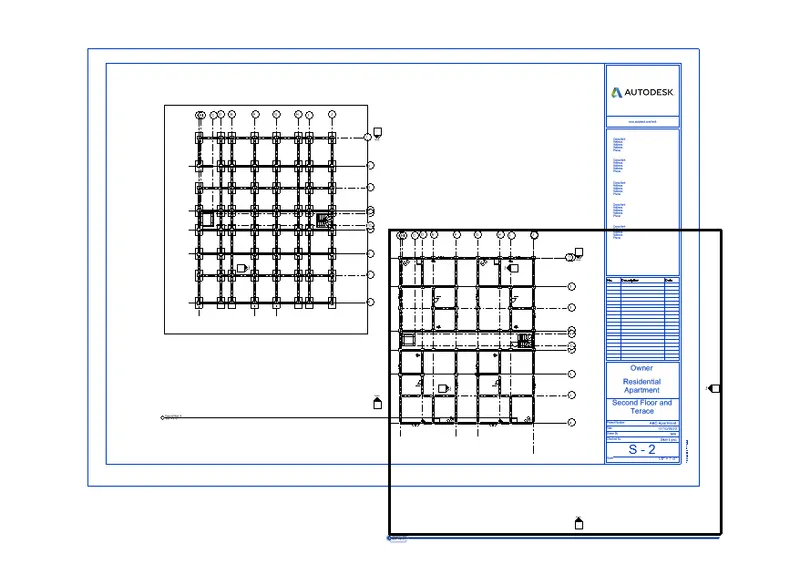

5. Aim: Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

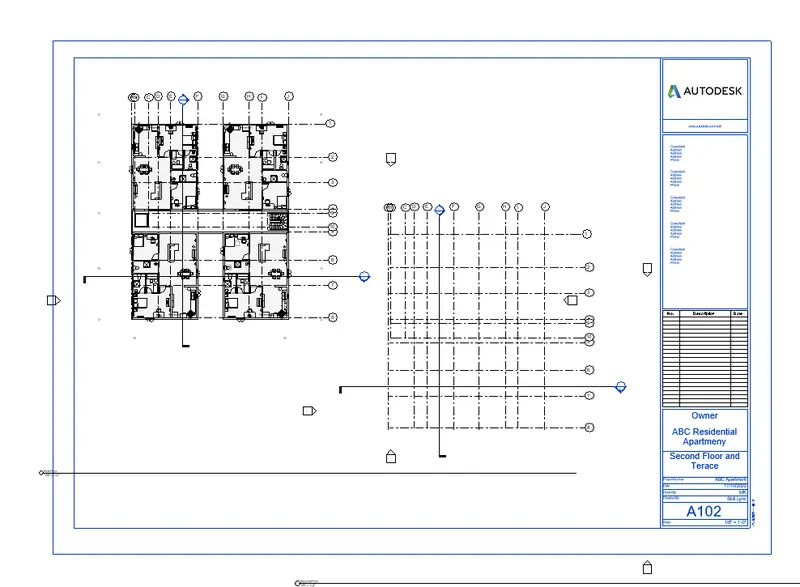

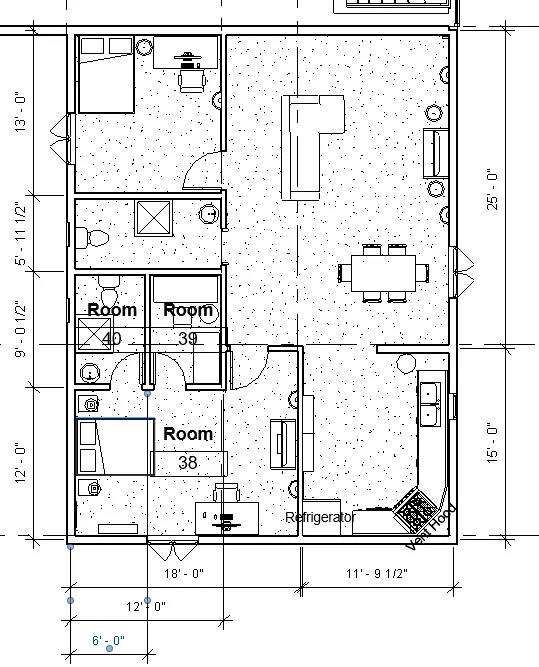

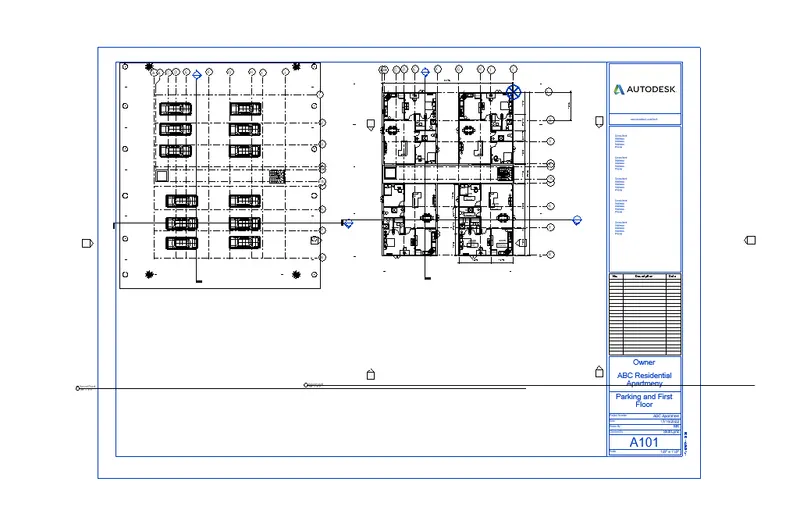

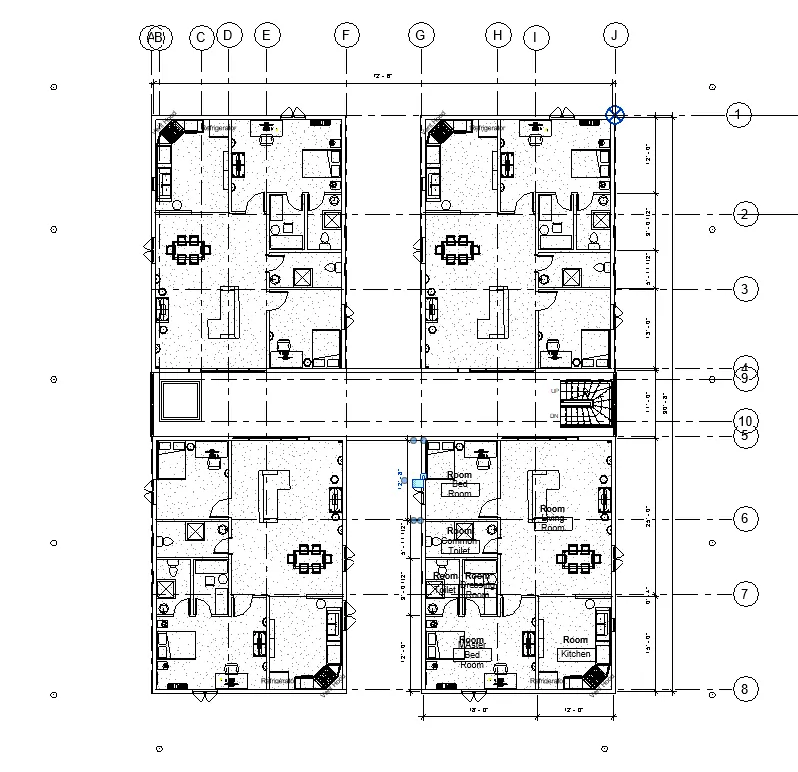

a. Floor Plans with Annotations

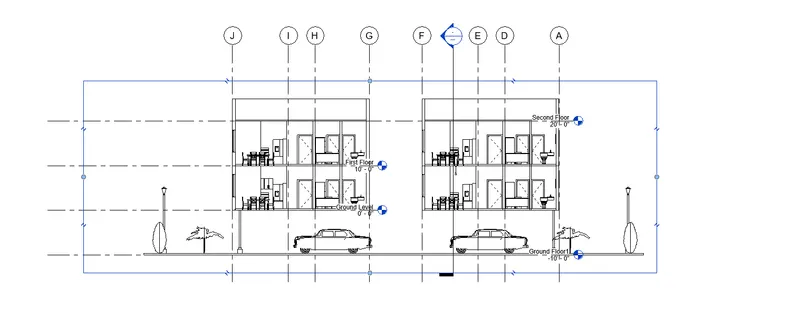

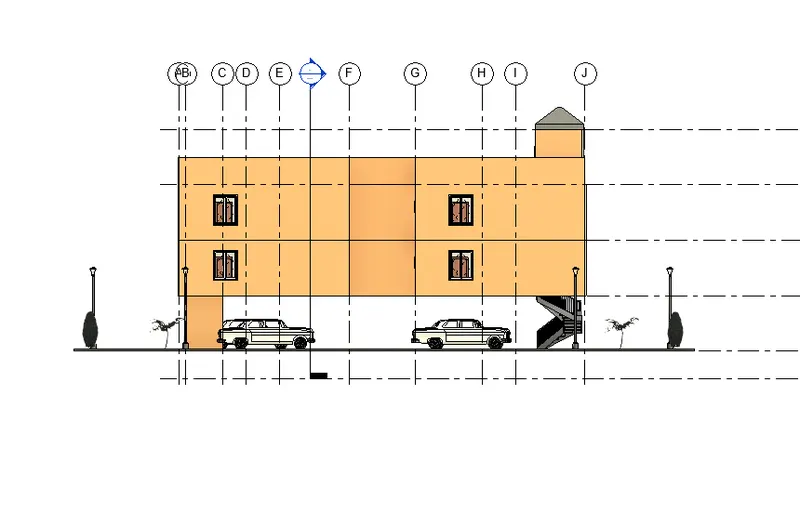

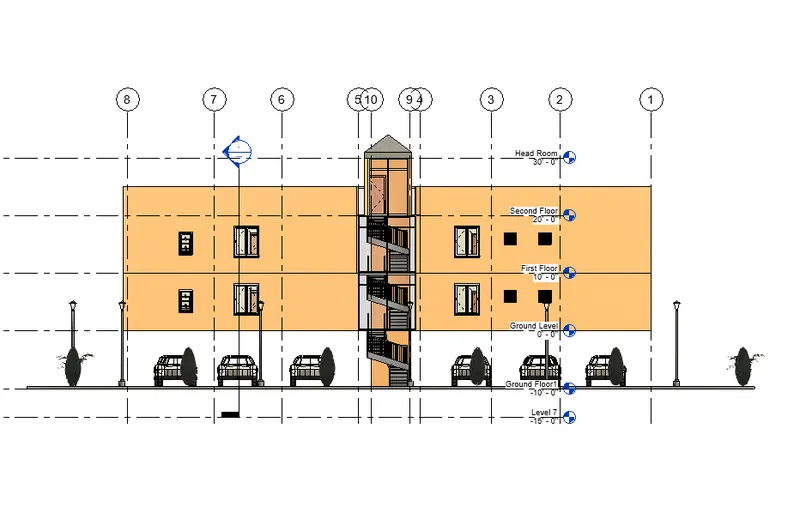

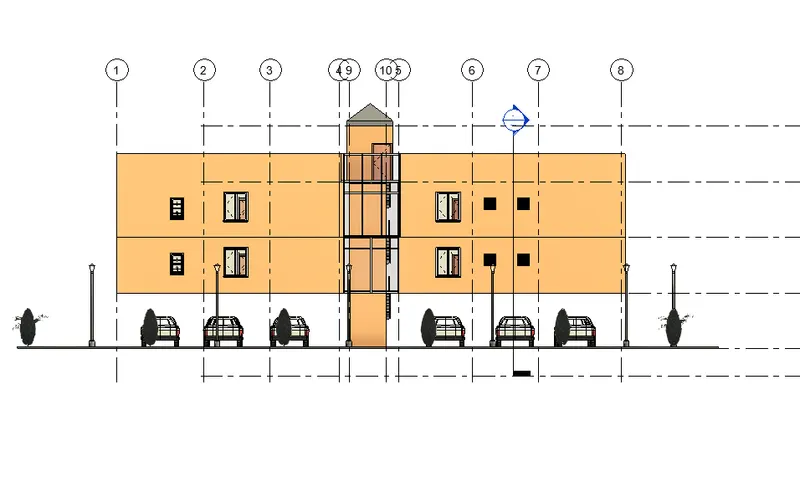

b. Elevations

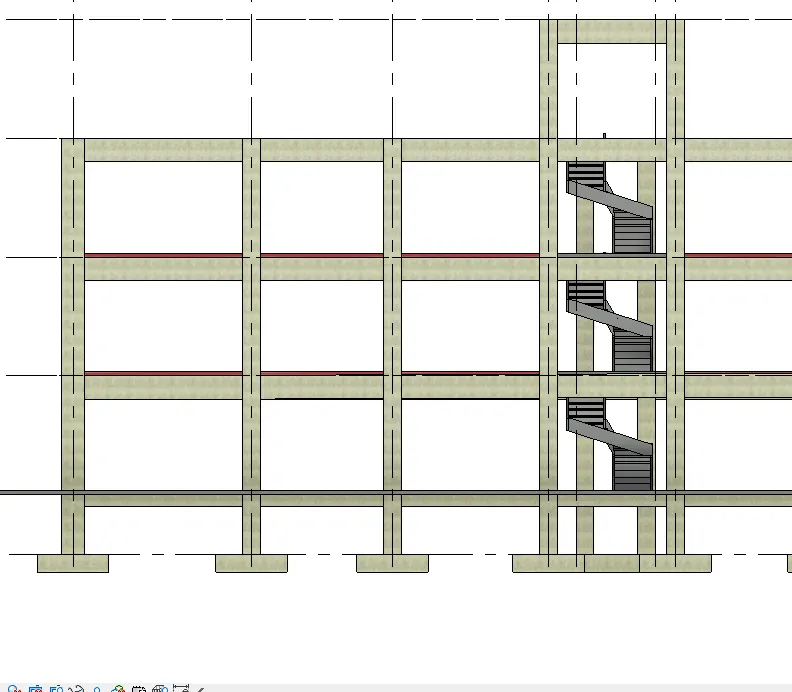

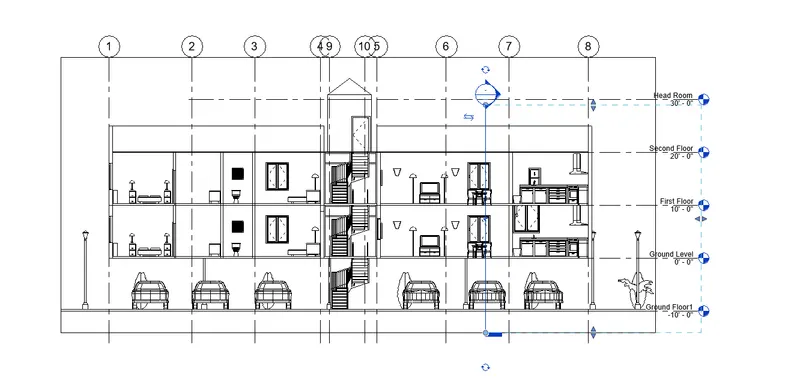

c. Sections

Conclusion:

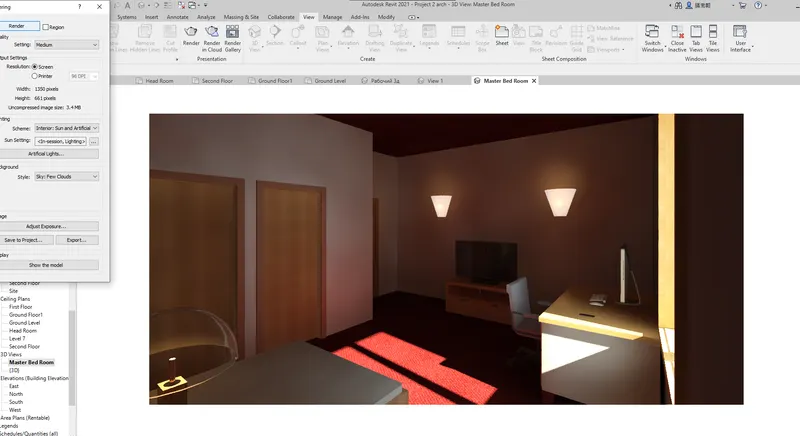

6. Aim: Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

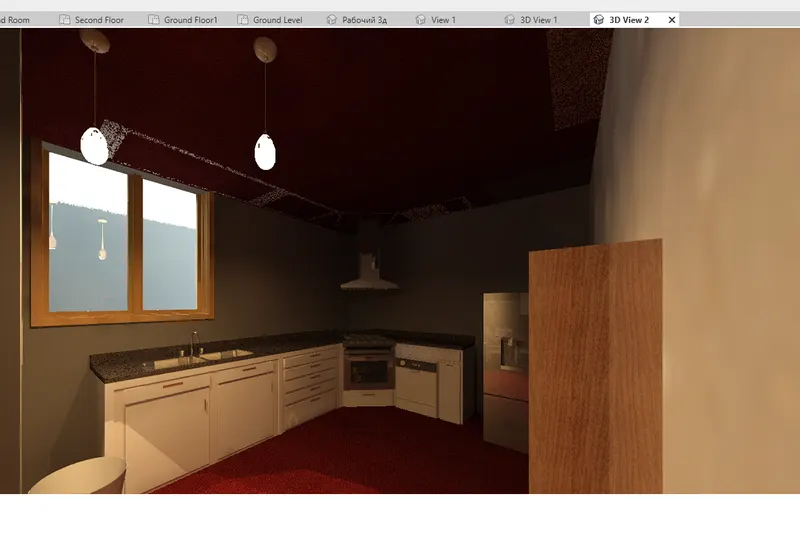

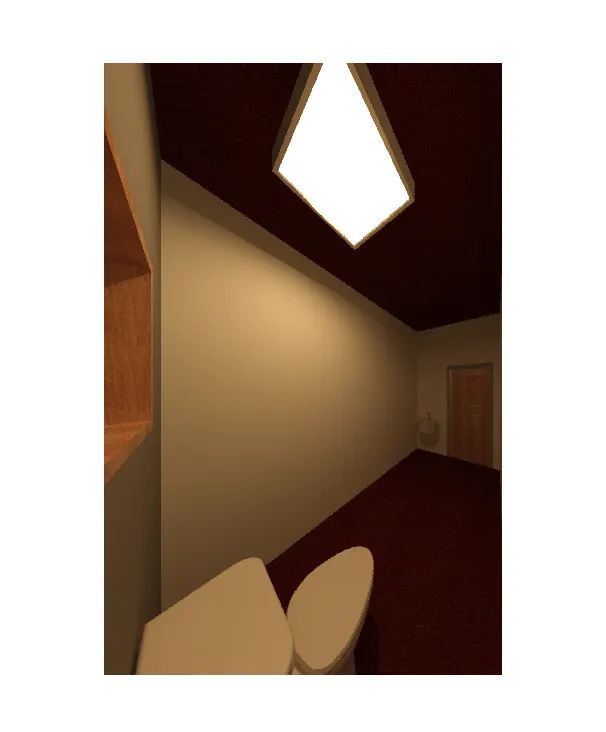

a. Rendering from interior rooms

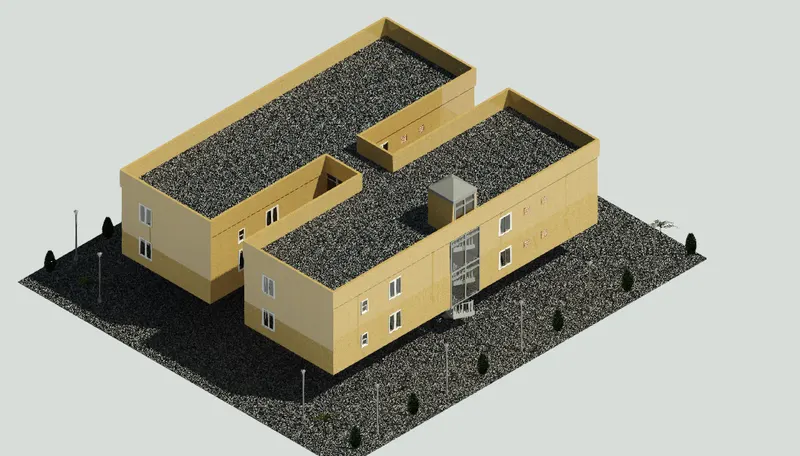

b. Rendering from out showing topographic features

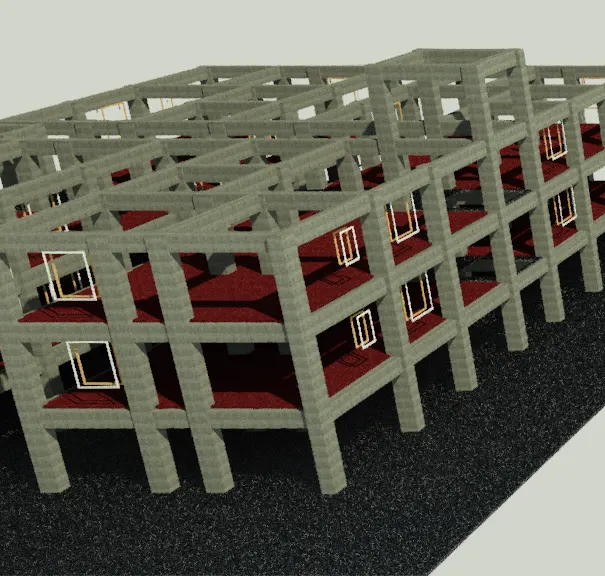

c. Rendering through structural framing

Conclusion:

7. Aim: Print the set of drawing sheets created and submit the drawings from the architecture and structure model

Conclusion:
