Creating Architectural and Structural model with 3D rendering using REVIT

1) I select multi-unit residential apartment.

2) Geographical location - Patna,Bihar

Construction Type - II (IIA) ,Semi Detached Building

• FAR value for the residential building shall be taken as 2.0
• Open space around residential building upto height 10m is not less than 3 m.
• The width of the road abutting the building is taken as 9m.
• ventilation size is 1.2 m2 up to height 10 m.
• Heigth of bedroom shall not be less than 3.25 m
• size of Room shall not less than 1.8 m2 with width 1.2 m
• parapet height not less than 1m and not more than 1.2 m.
• Minimum clear width for residential building is 1 m.
• Minimum tread 250mm and maximum riser will be 190 mm.

3) AIM : Model the structure frame

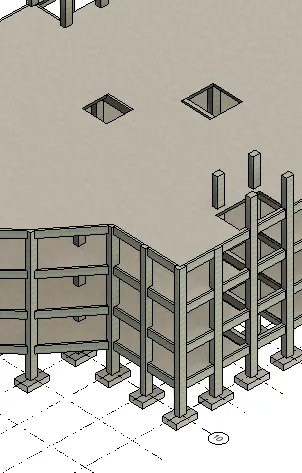

Introduction : Insert the structure component such as footing,colmn,beam, opening for stair and lift and roof.

Procedure :

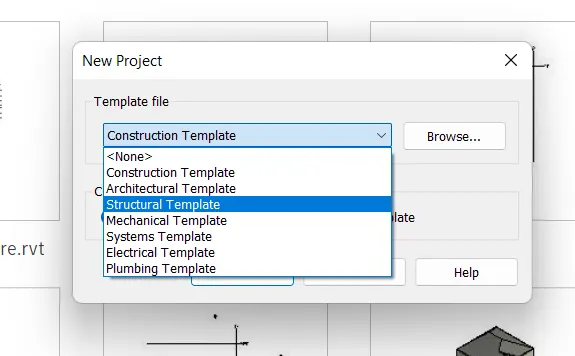

• First create new file with structural template.

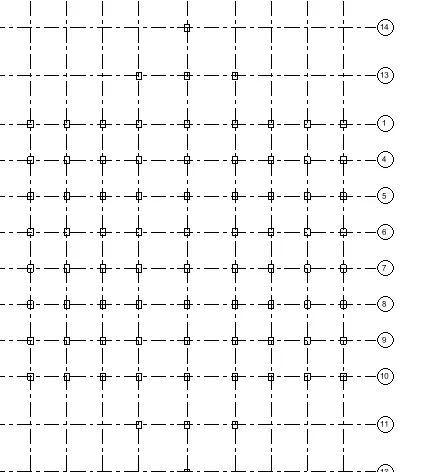

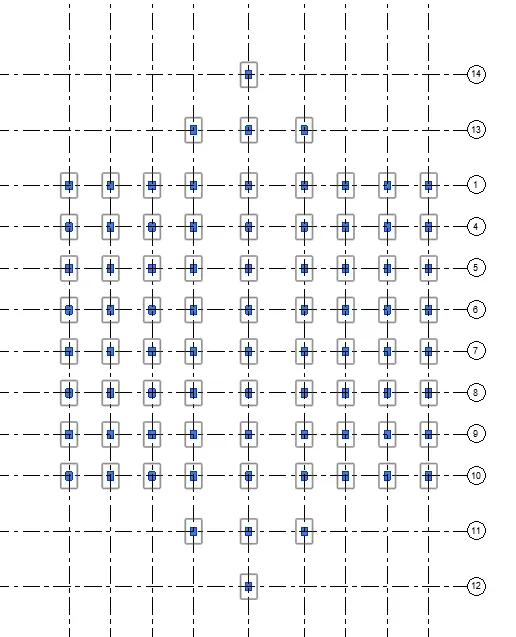

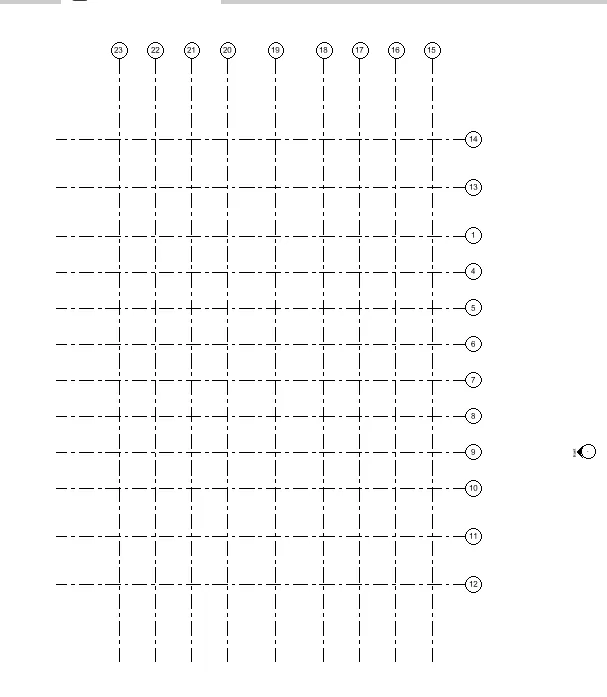

• now create grids to place column and footing

• now go to first floor with depth 2300 mmm for placing columns at grids

• Now go to footing and choose footing at columns.

• now go to first floor and select beam and connect every column and copy it to fourth level

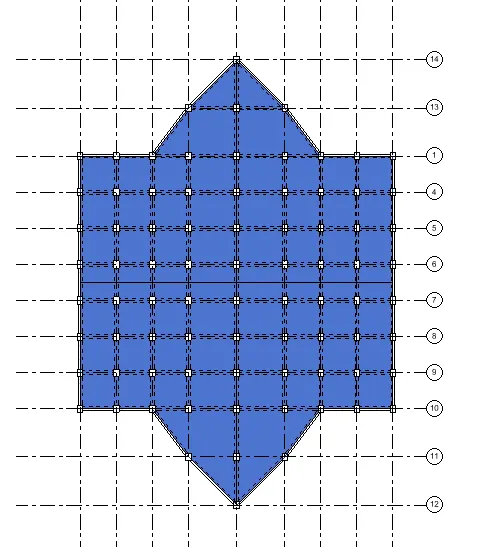

• now go to structural floor in 1st floor and chhose which part u want floor in it and the copy it and paste it at 4th level

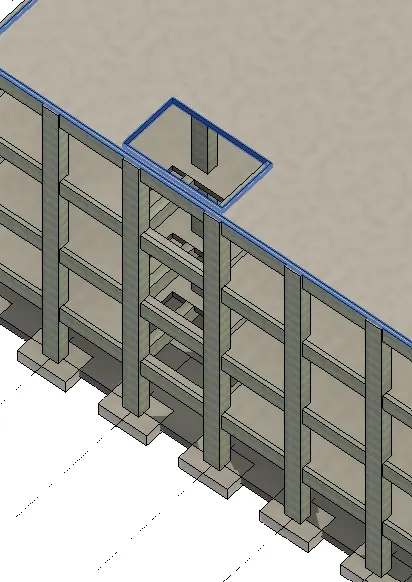

• Now go to shaft opening for stair and lift

Result :

4) AIM : Model the ARCHITECTURE frame

Introduction : Insert the architectuure component such as wall,bed,lightning,roof cuurtain wall

Procedure :

• First create architectural templete and make it central file and then import that struuctural model in it.
• now start creating wall and partation walll arouund the boundary whera it is required.

\

• now add door ,window furnitre bed and sofa in it.

• Add stair and elevator in it.

• Now add topography, building pad, tree and car.

• Exterior facad with glass wall on one corner of building

Result :

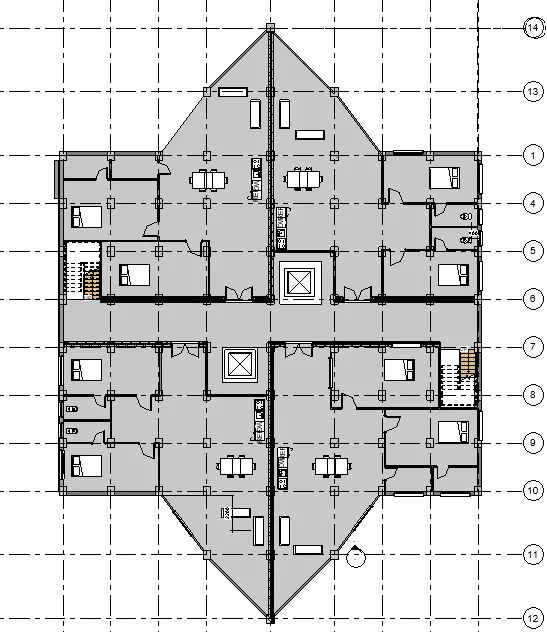

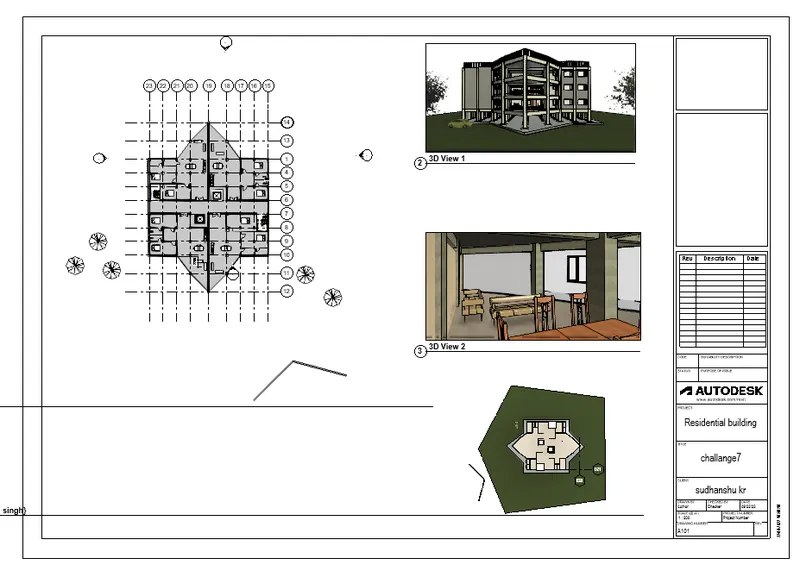

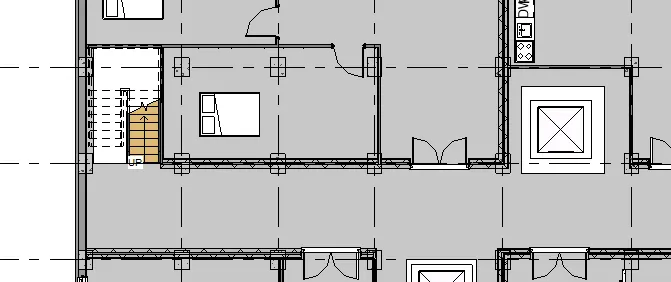

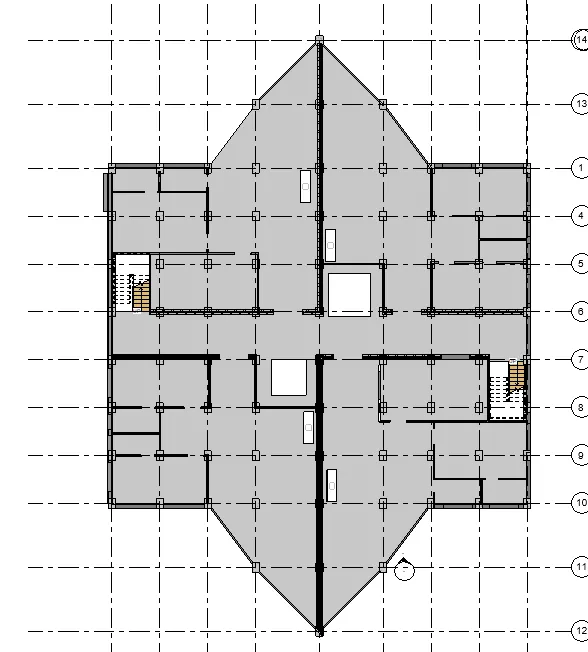

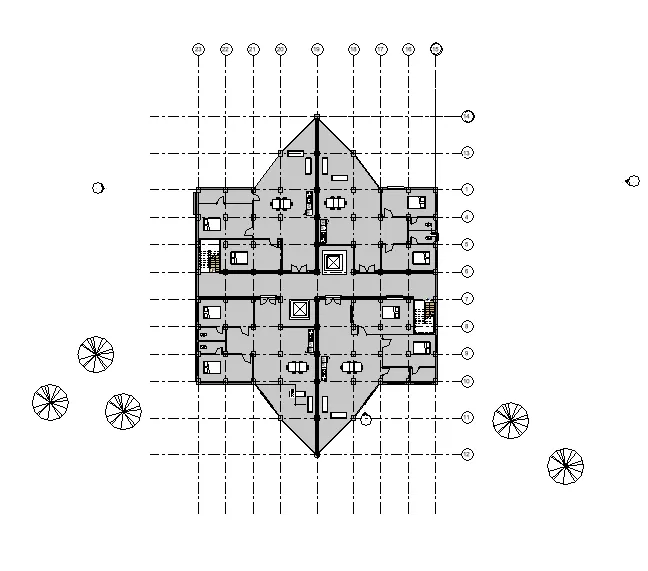

5) Floor plan,section and elevation of achitectural model in sheet

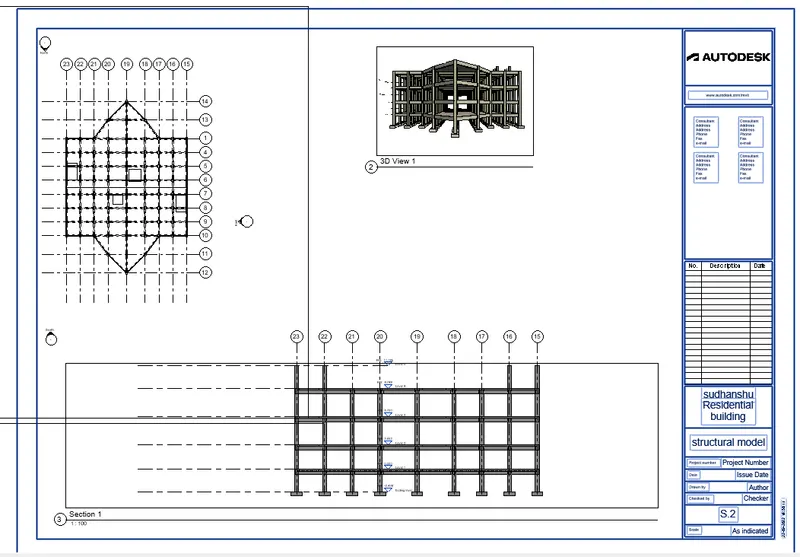

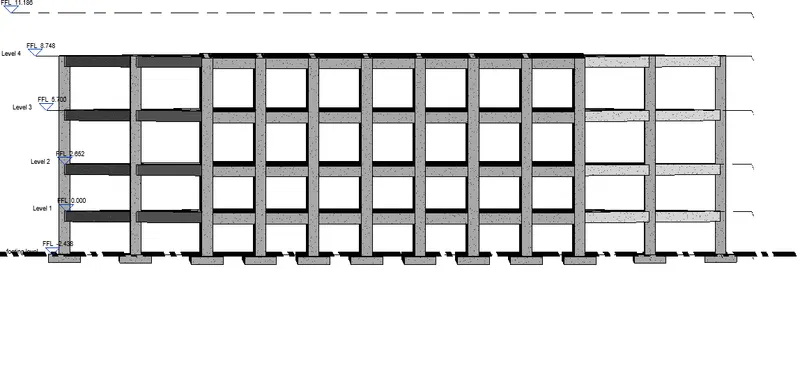

• Floor plan ,elevation and section of structural model in sheet

6) a) rendaring image of strctural frame

b) rendering of showing topography features

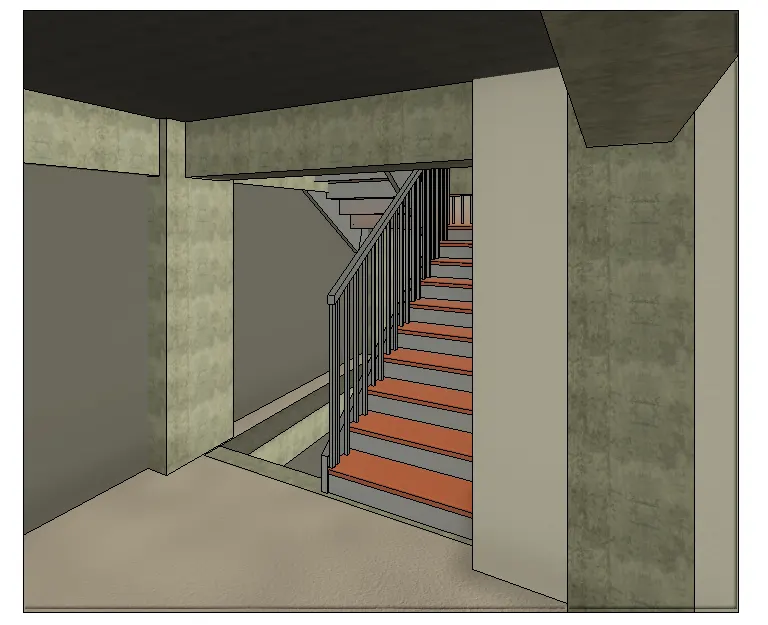

c) rendering image of interior room

7)

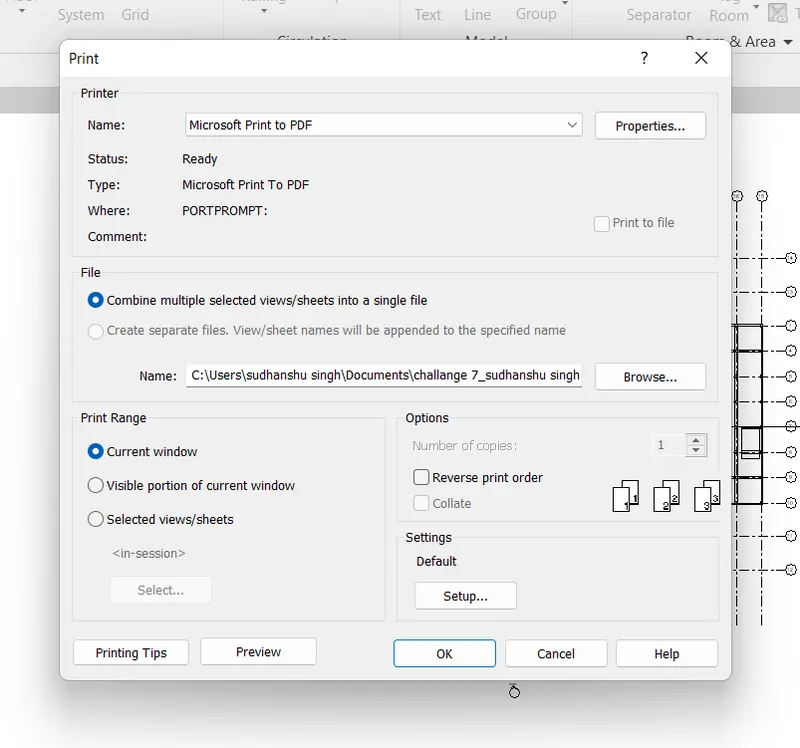

• print the architectural model AND strctral model

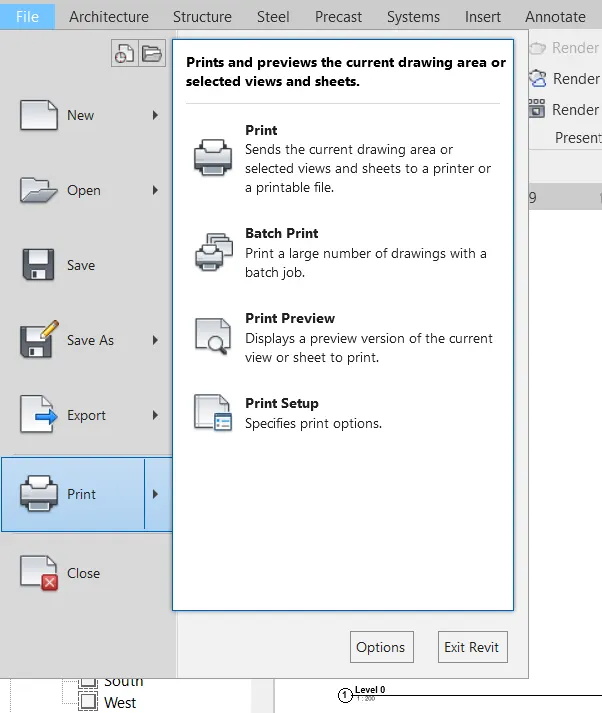

• go to print option.

• and save as microprint to pdf and okkk

THANK YOU.
