Creating Architectural and Structural model with 3D rendering using REVIT
CHALLENGE 7
Q1)
ANS: As per the given question I am opting for a multi-unit residential apartment.
Q2)
Aim: To assume reasonable geographic and location details assumptions for the project
1)Road width in front of my apartment is 60feet
2)My project is in the plain area (geographical)
As per NBC
Height limit as per FAR calculations and as per NBC table 5 V-1
Min length and width of rooms as per NBC V-1
Fire and safety from NBC part IV
Q3)
Aim: Make a project using the structural model and include the following components
Procedure:

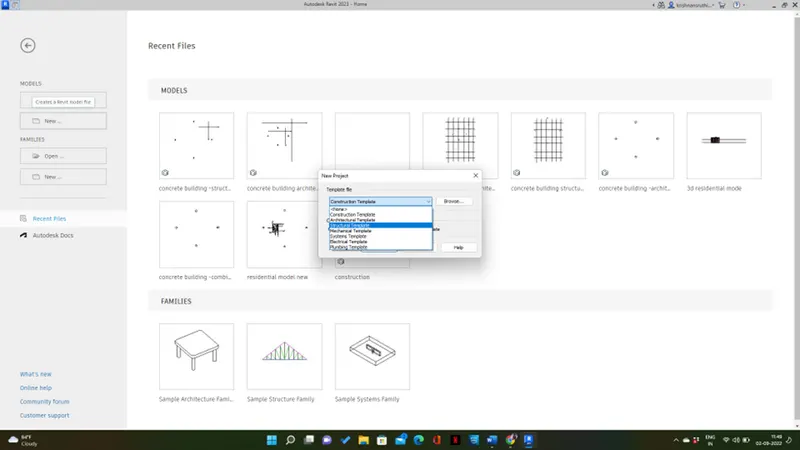

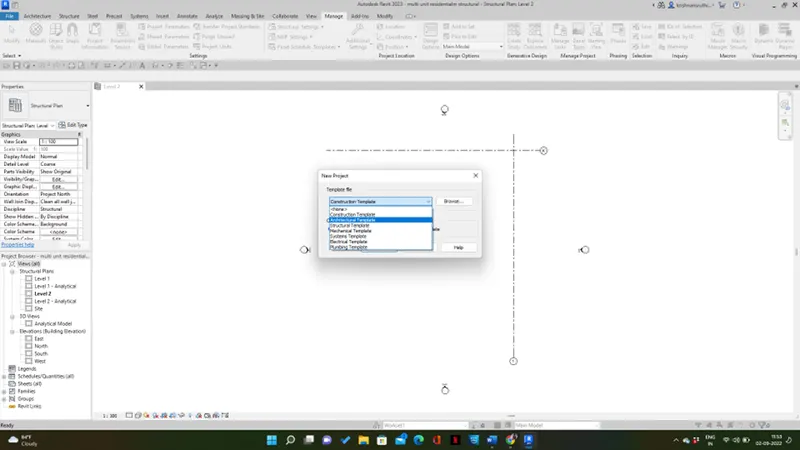

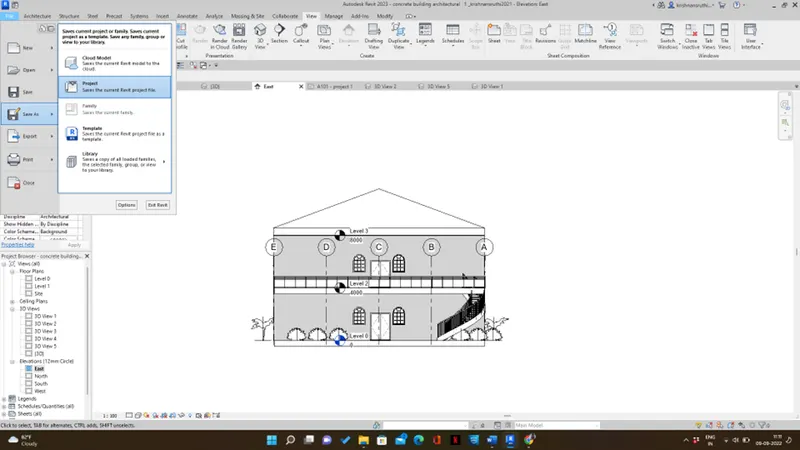

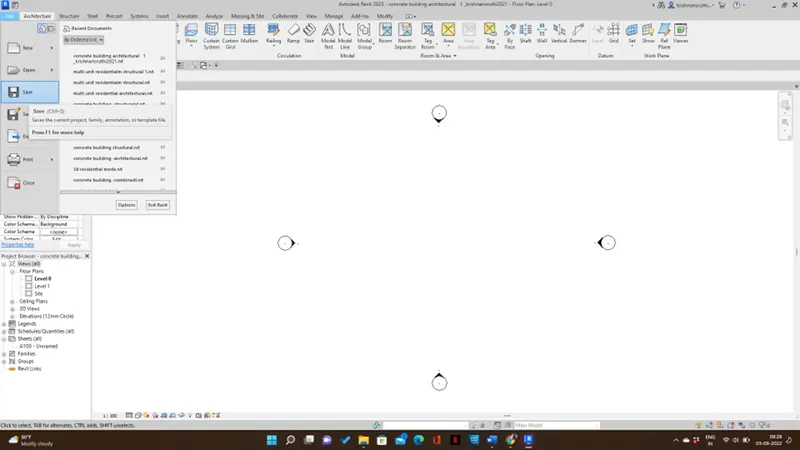

Step1: Open a new structural template file and save it with an appropriate name

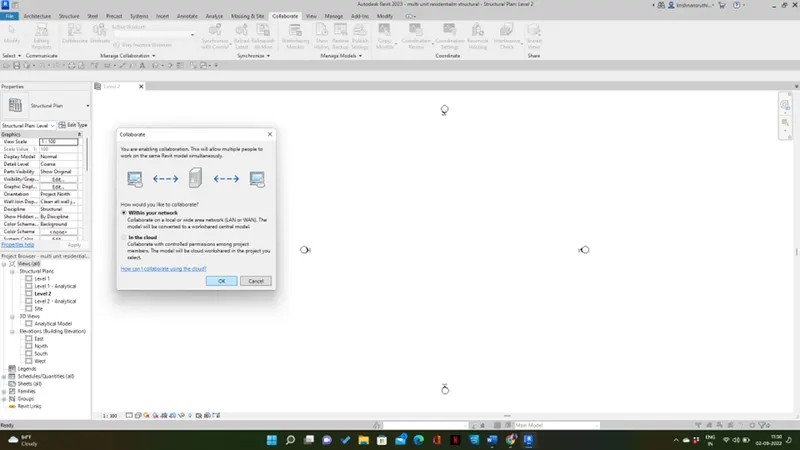

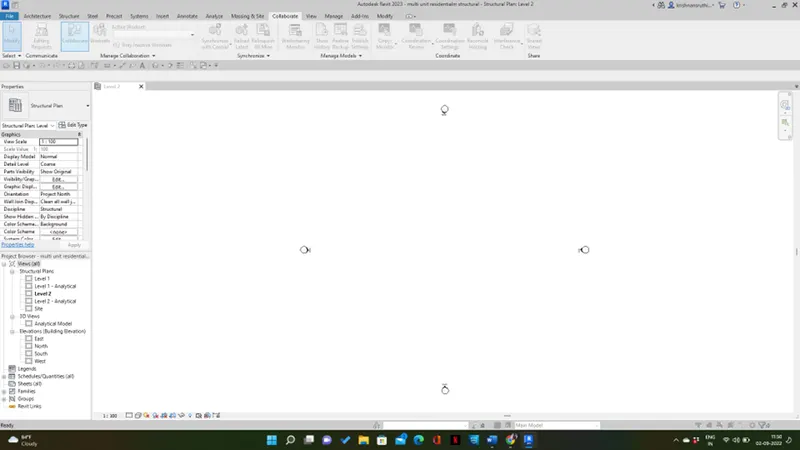

Step 2:Select collaborate and click collaborate and make it a central file

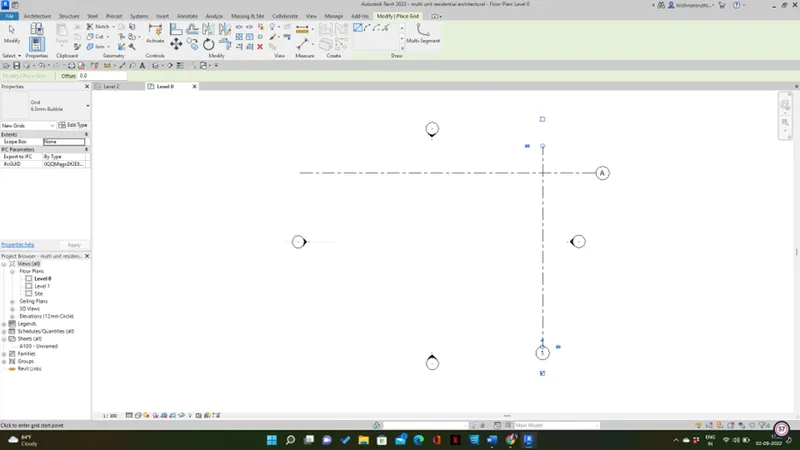

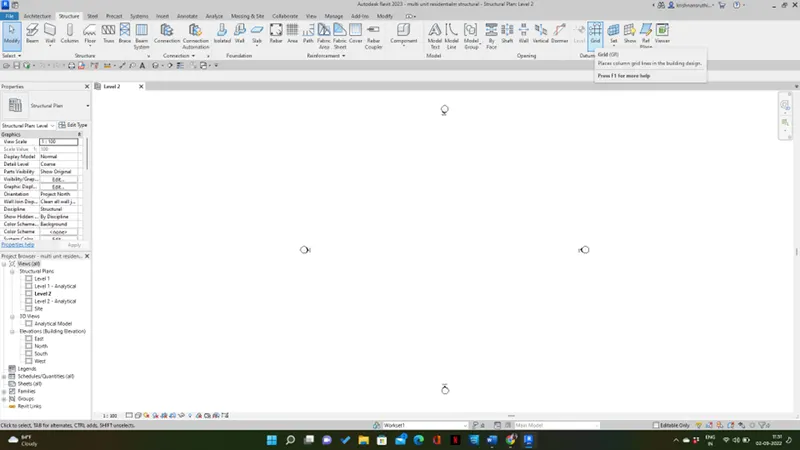

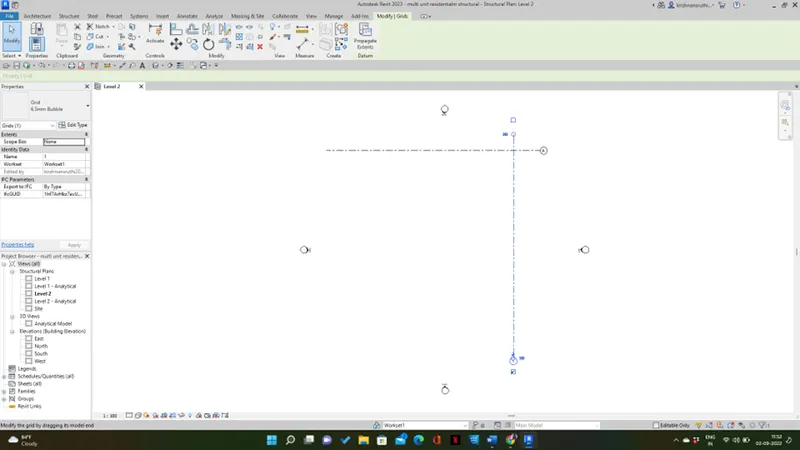

Step 3: Go to the structural tab and select grids and draw horizontal and vertical grids

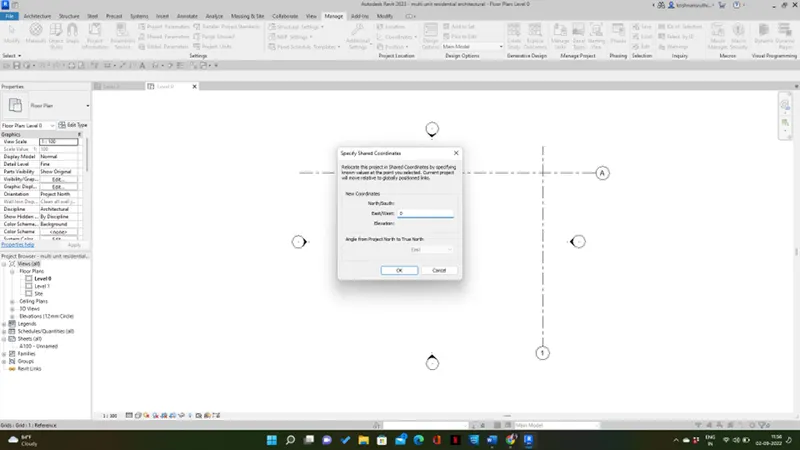

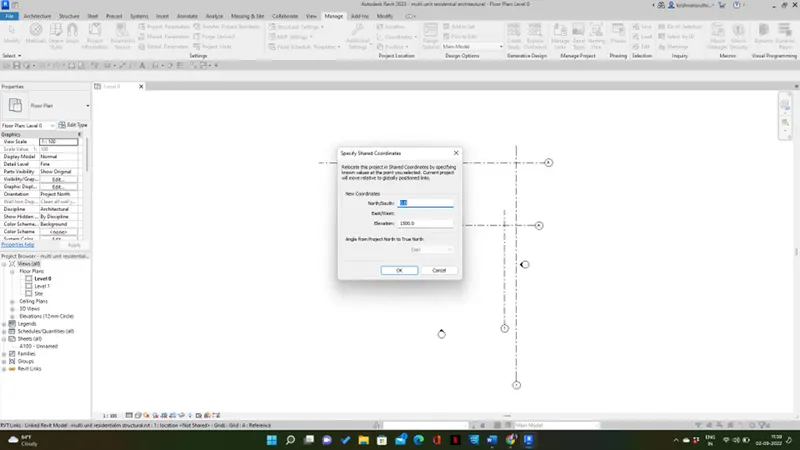

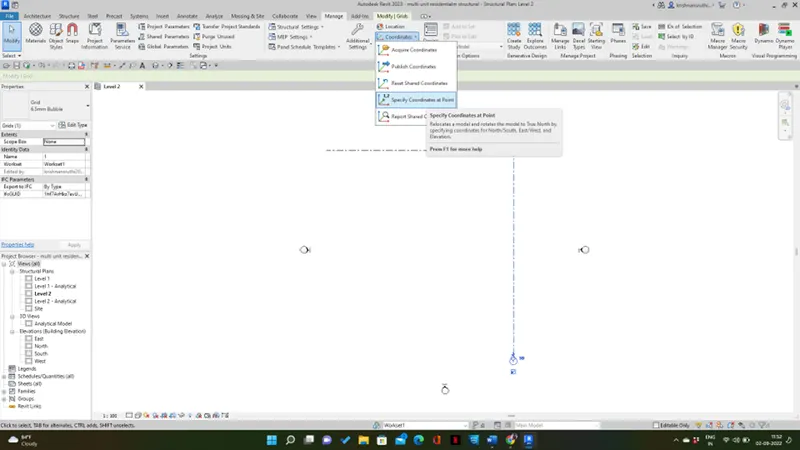

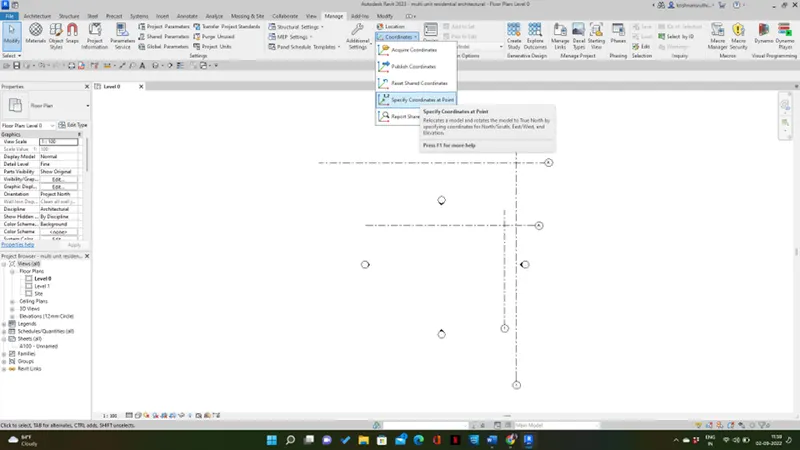

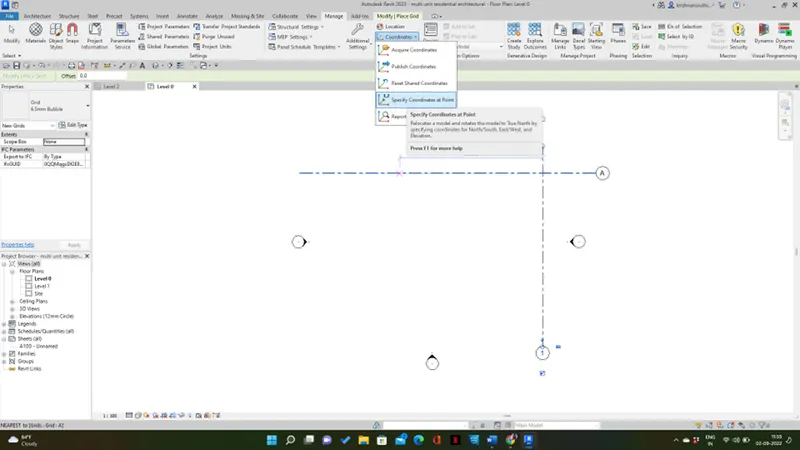

Step 4: Go to the manage tab and select project coordinates and click specify coordinates at points

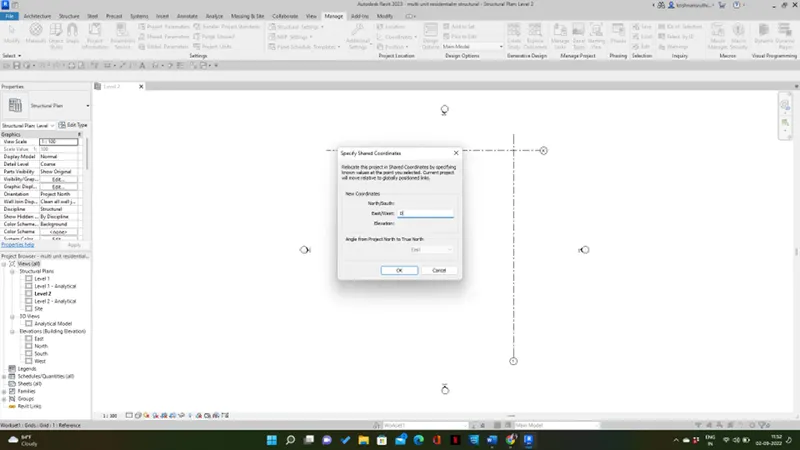

Step 5: Specify the coordinates as 0 and save it

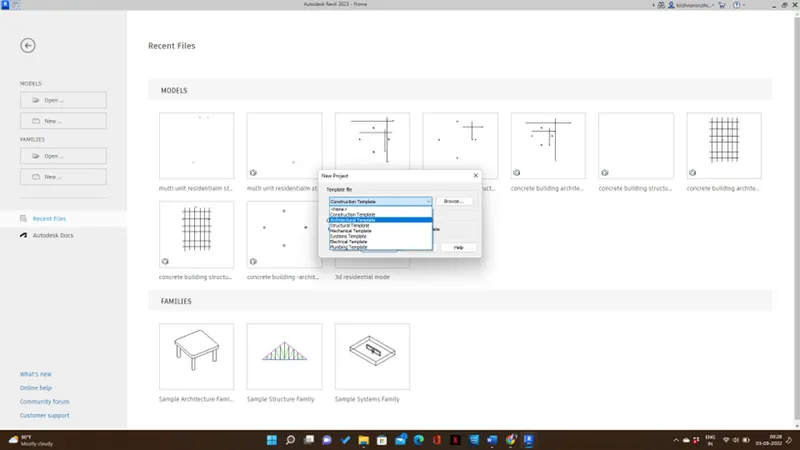

Step6: Open a new architectural template file and save it with an appropriate name
Step 7:Select collaborate and click collaborate and make it a central file

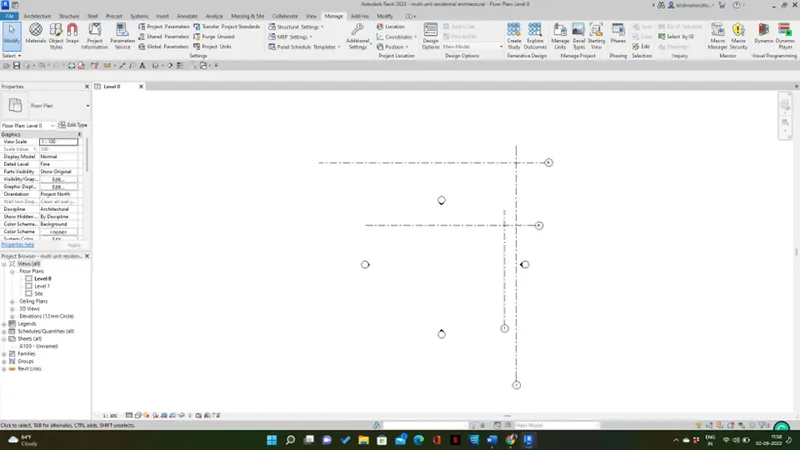

Step 8:Go to the architecture tab and select grids and draw horizontal and vertical grids
Step 9: Go to the manage tab and select project coordinates and click specify coordinates at points
Step 10: Specify the coordinates as 0 and save it

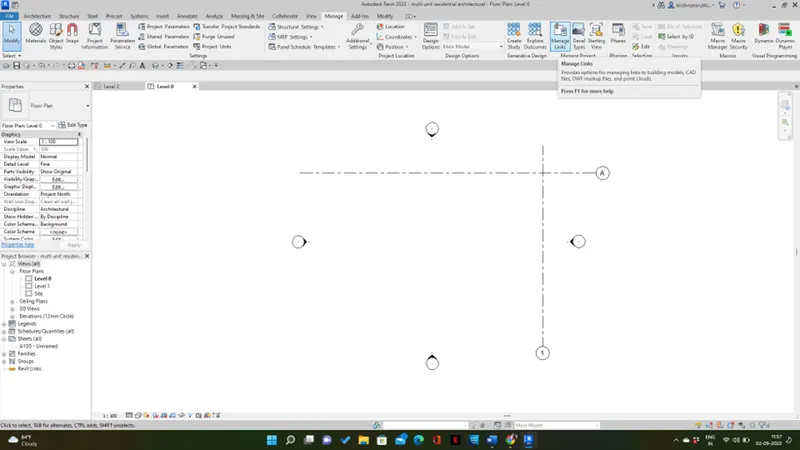

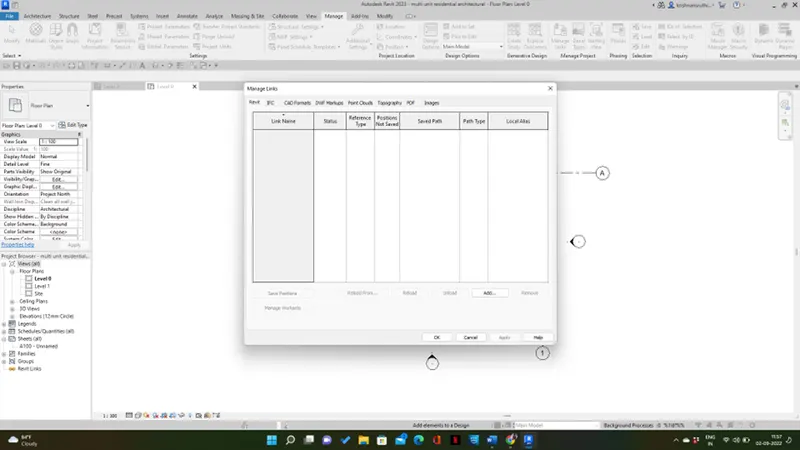

Step 11: Go to the manage tab and Select the manage link
Step 12: A dialog box will appear then click on add then it takes to projects made by oneself then open the required project and ok
Step 13: Both the template in one template
Step 14: Go to the manage tab and select project coordinates and click specify coordinates at points
Step 15: Specify the coordinates as 0 to all grids and save it

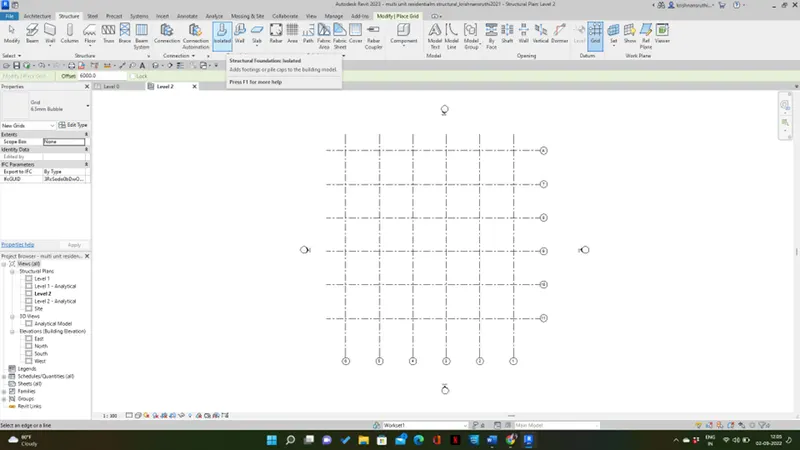

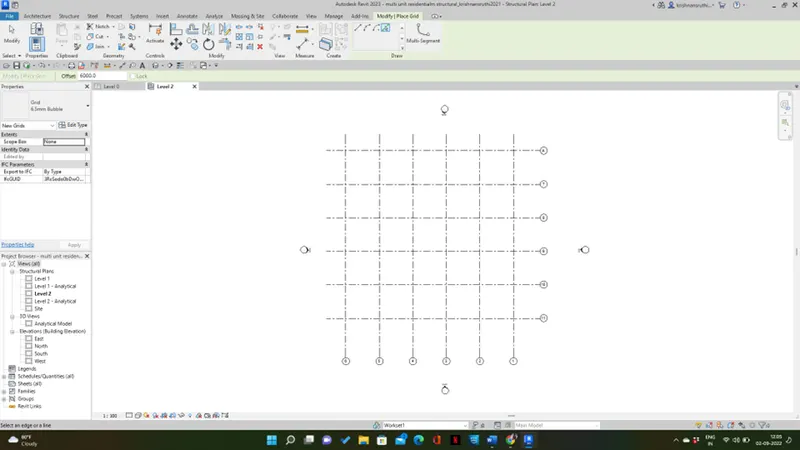

Step 16: Open the structural template and draw both vertical and horizontal grids in equal intervals

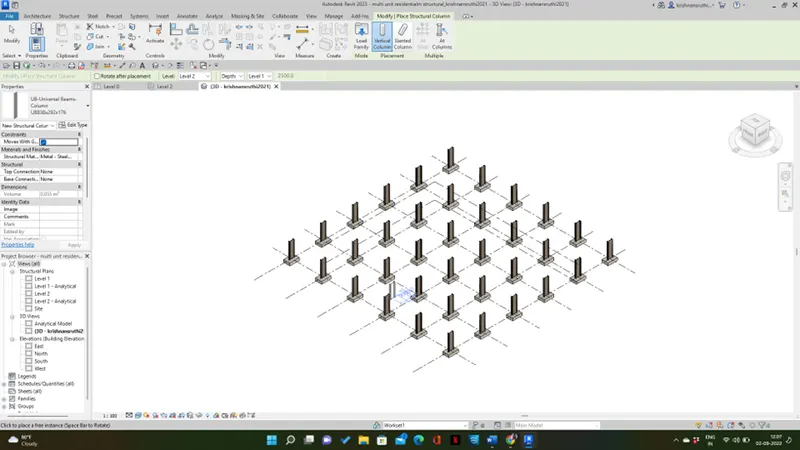

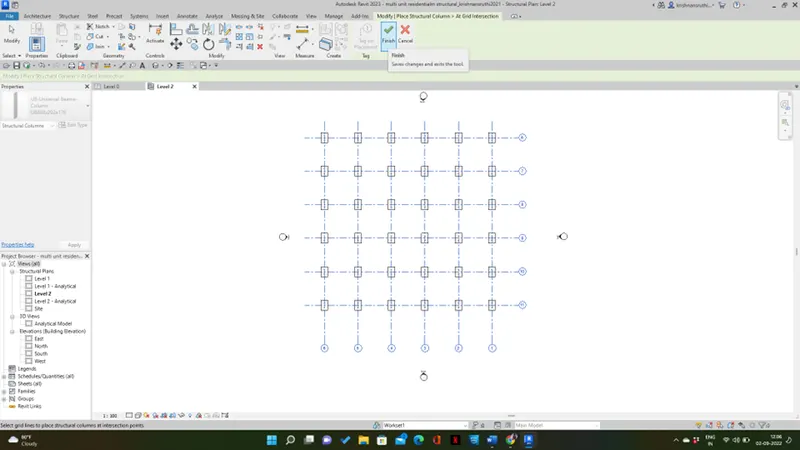

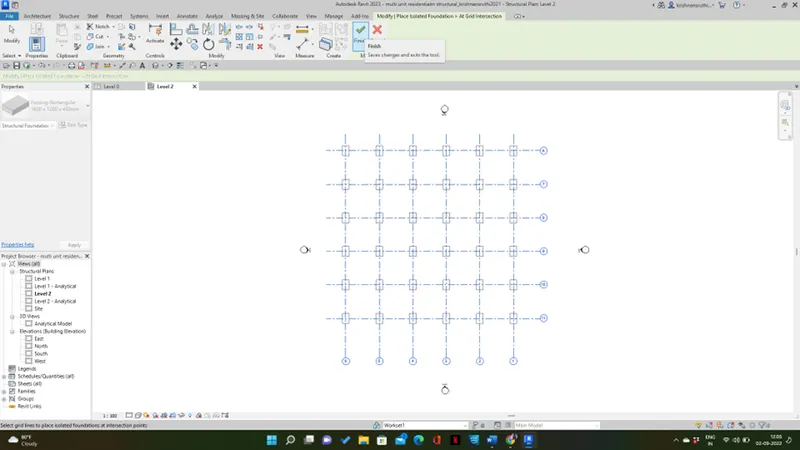

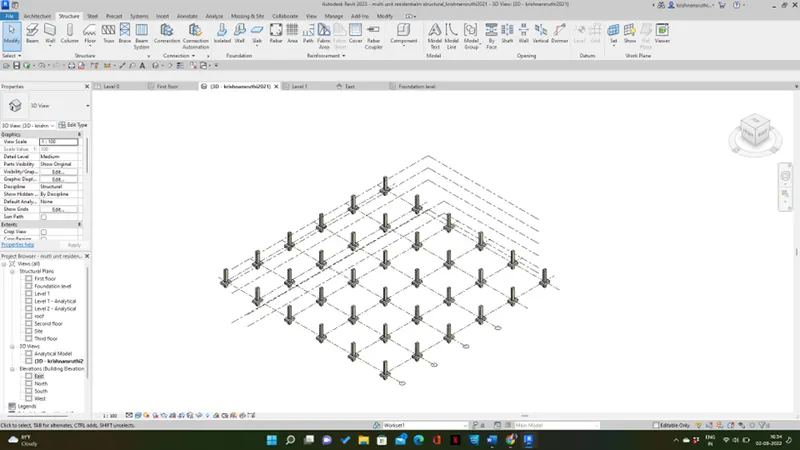

Step 17:Go to the structural tab and choose columns and footings and place them in the appropriate location

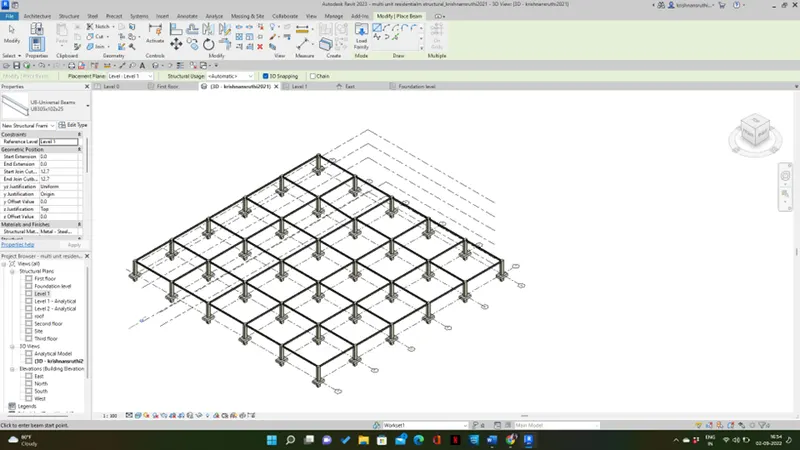

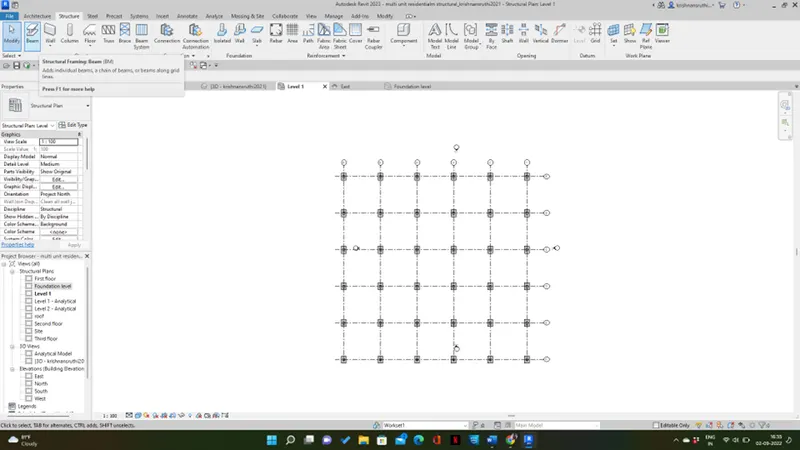

Step 18: Go to the structural tab and choose beams and place them in the appropriate location

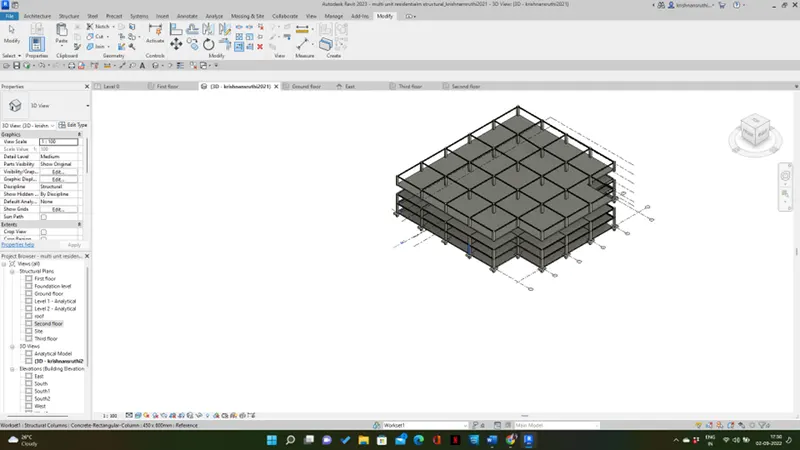

Step 19: Select the entire layout and attach it to the different levels by selecting copy icon
Step 20: Select slab and first select the layout then click right then the slab is obtained to first floor then now attached to different levels
Result: All the structural components like beams, footings, and slabs are placed successfully.
Q4)
Aim: To include a few components in the architectural model
Procedure :
Step1: Open a new architectural template file and save it with an appropriate name

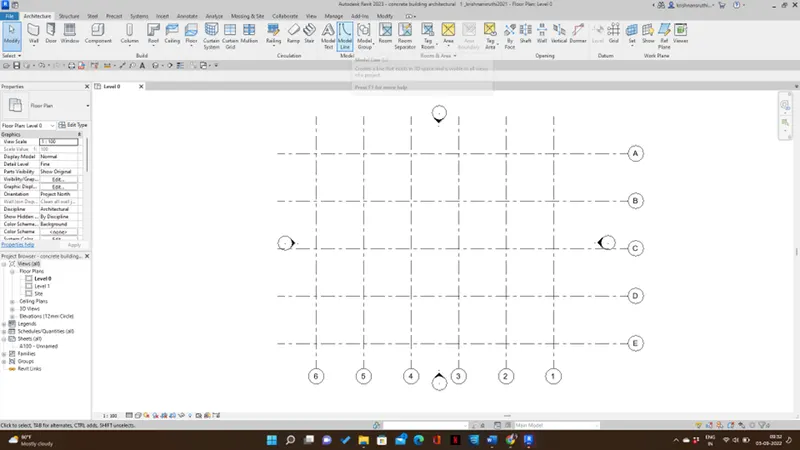

Step 2: Go to the architectural tab and select grids and draw horizontal and vertical grids

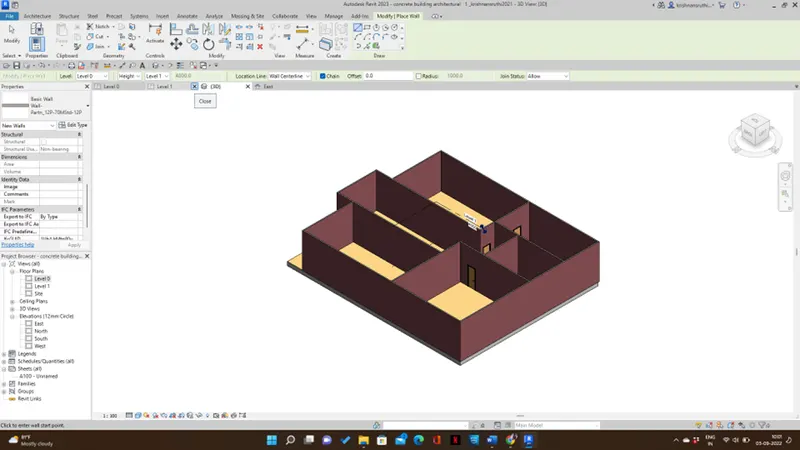

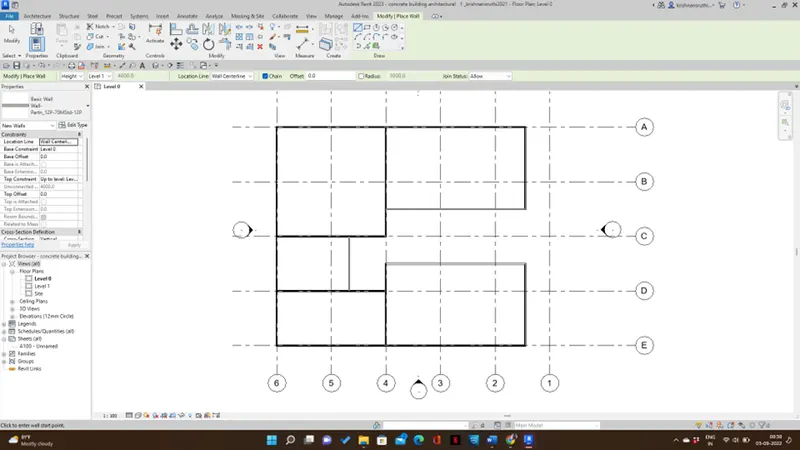

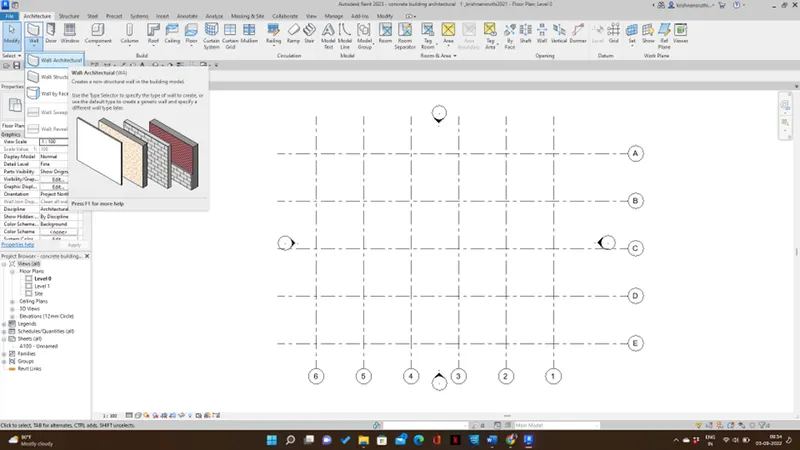

Step 3: Go to the architectural tab and select the wall

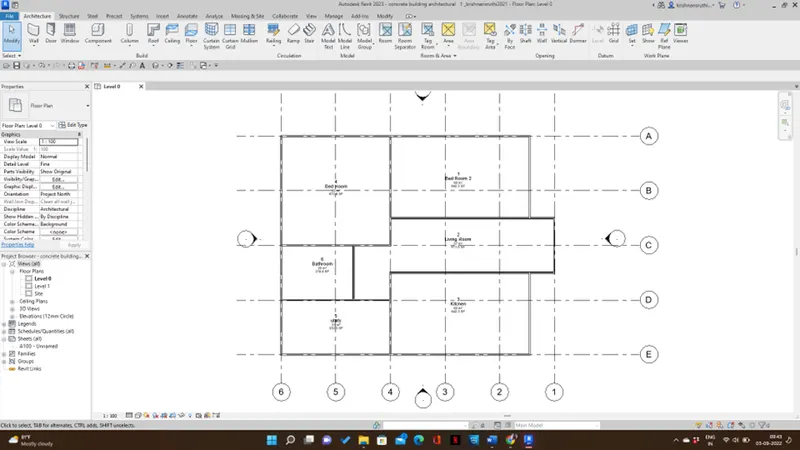

Step 4: Draw the rooms with convenient sizes by choosing the interior partition wall

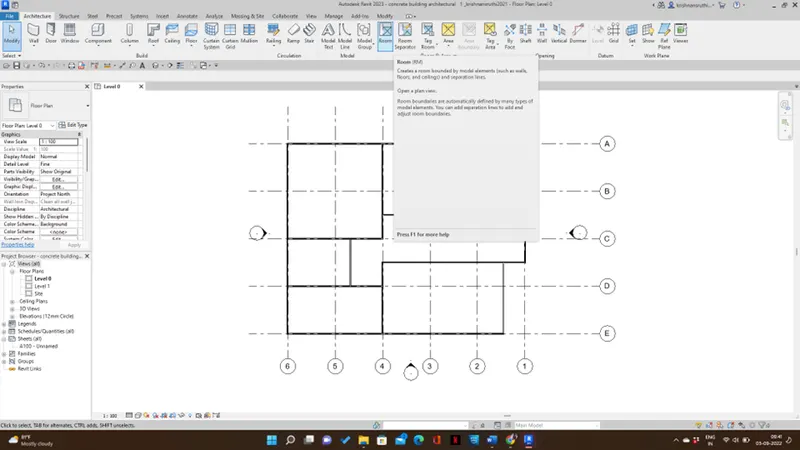

Step 5: Go to the architectural tab and select room tag and name it

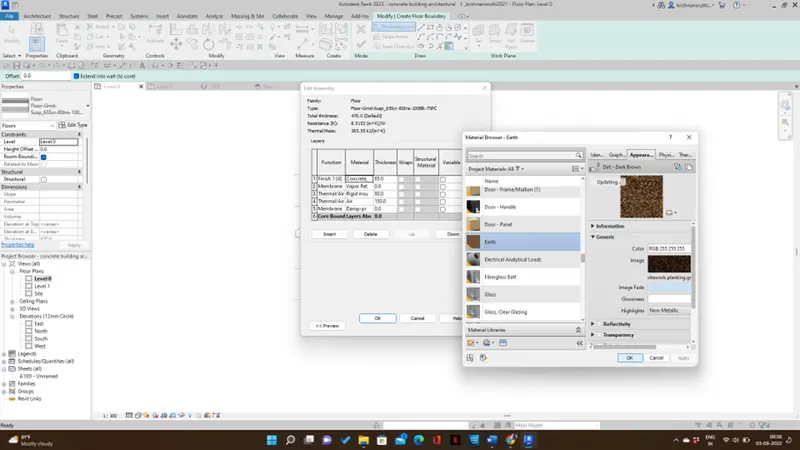

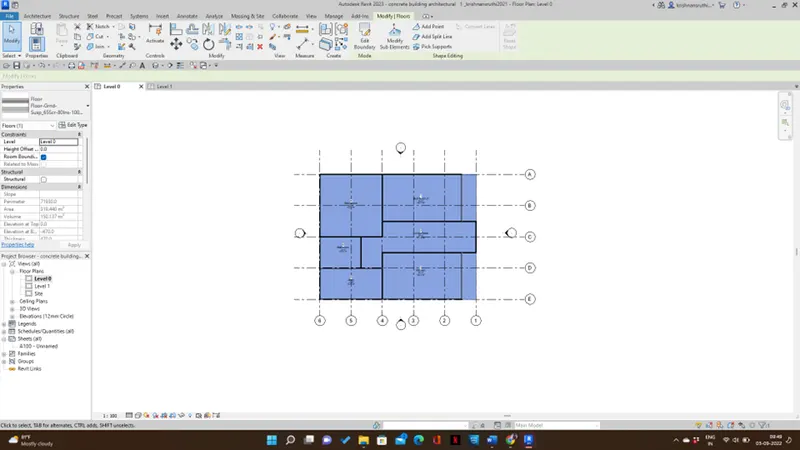

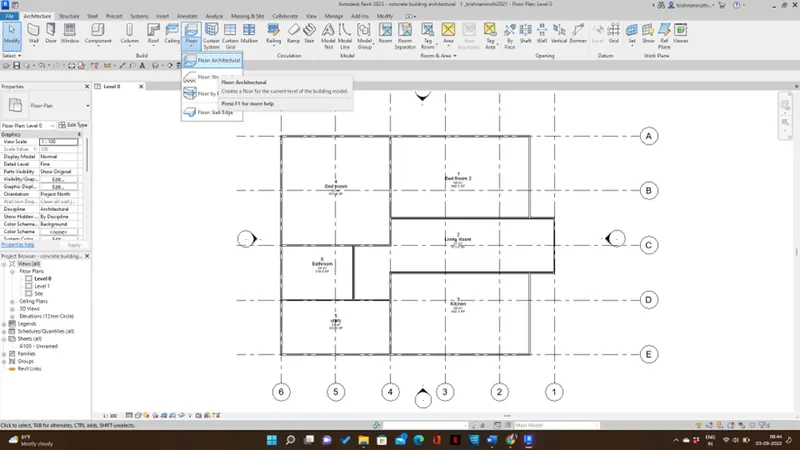

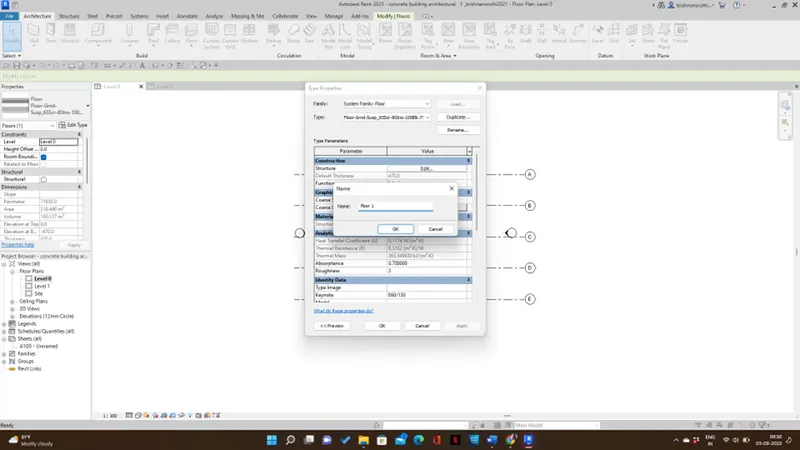

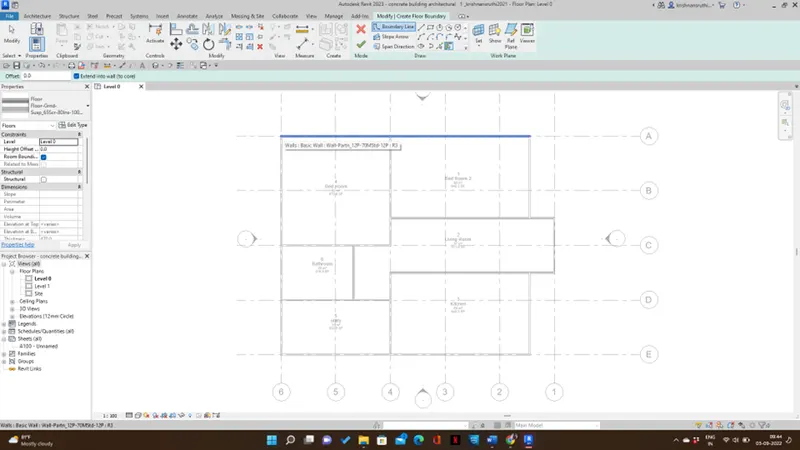

Step 6: Go to the architectural tab, select floor, draw the entire layout, and choose the floor materials, edit the thickness if required from the property browser.

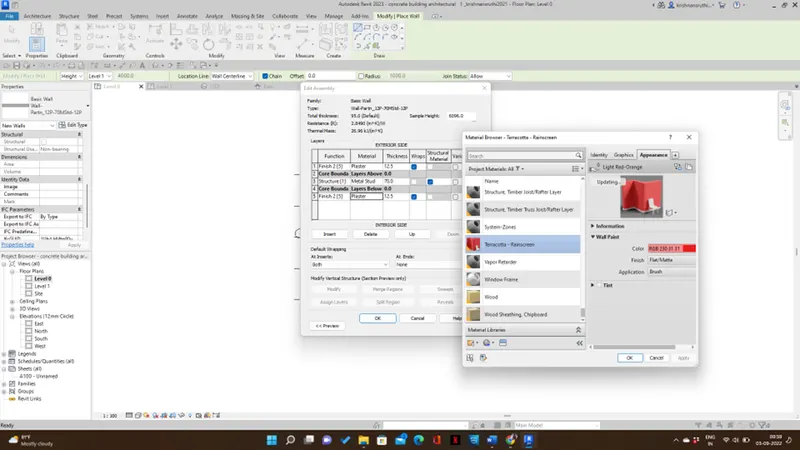

Step 7: Select walls, then change the material from the properties browser

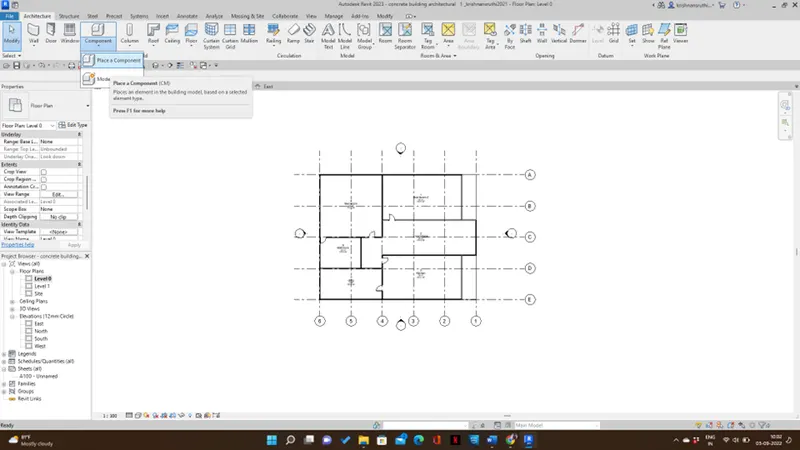

Step 8: Go to the architectural tab and select place a component and click load family and select and place required components
Step 9: Select the layout and copy the elements and paste them to aligned levels

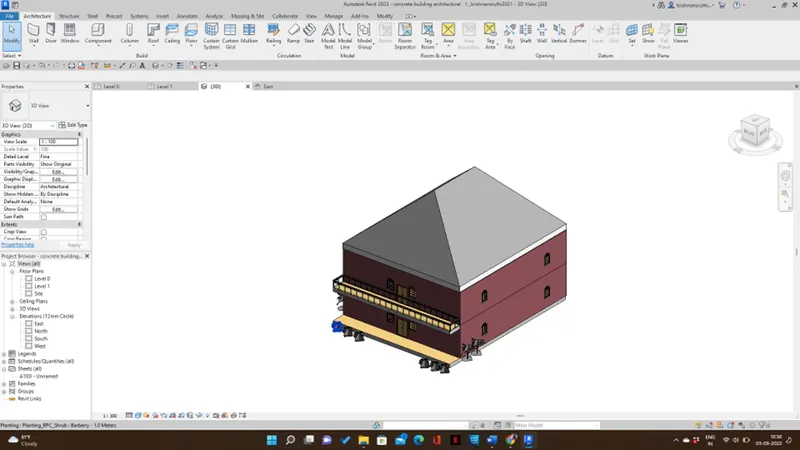

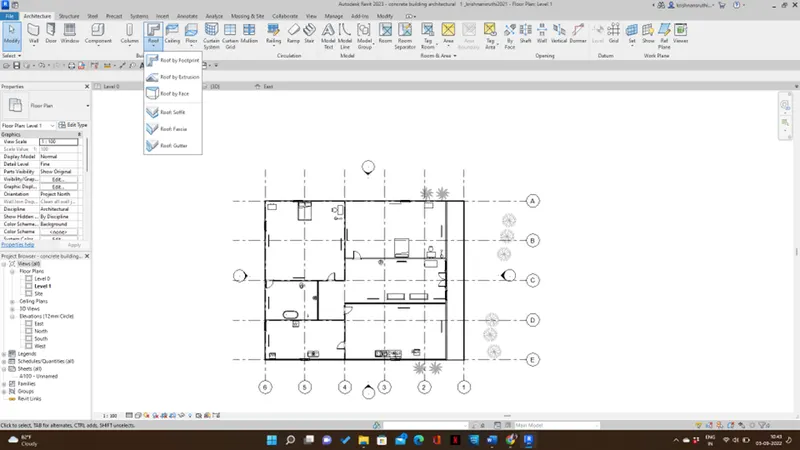

Step 10:Go to the architecture tab ad select roof and place the roof

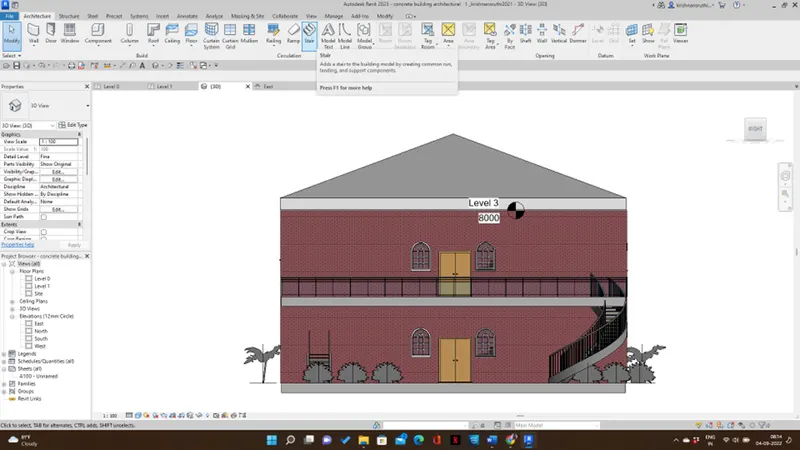

Step 11:Go to the architecture tab ad select stairs and place the stairs
Step 12: Copy stairs to different levels

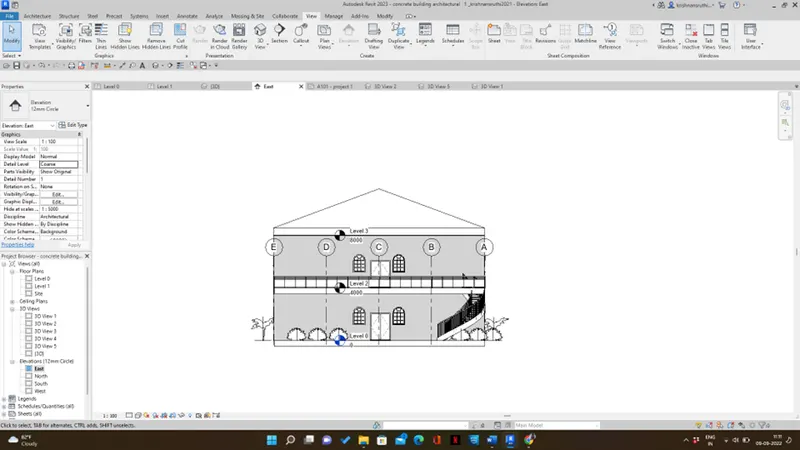

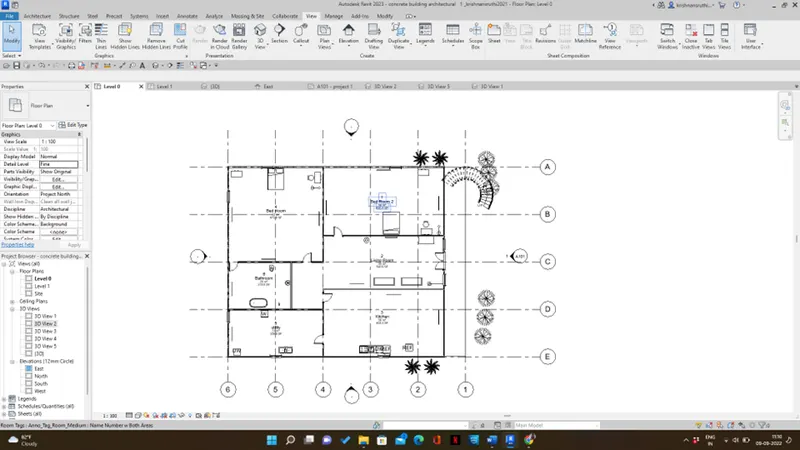

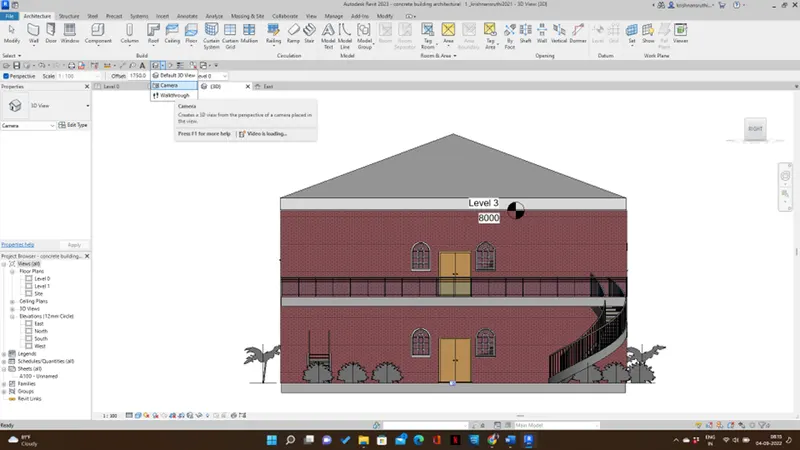

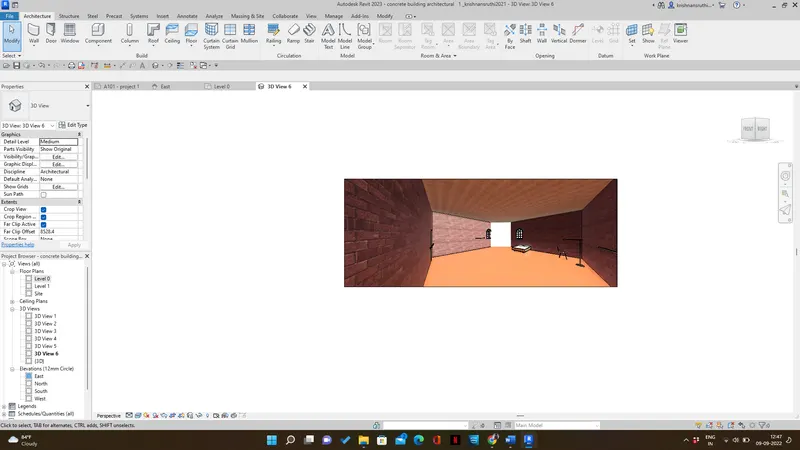

Step 13: View all the components by using cameras from the view tab
Result: All the components like sofas, lighting, plumbing, floors, etc to the model are successfully added.
Q5 )
AIM: To provide a set of drawings in architectural and structural model to list a few details with categories and appropriate sheet
Procedure :

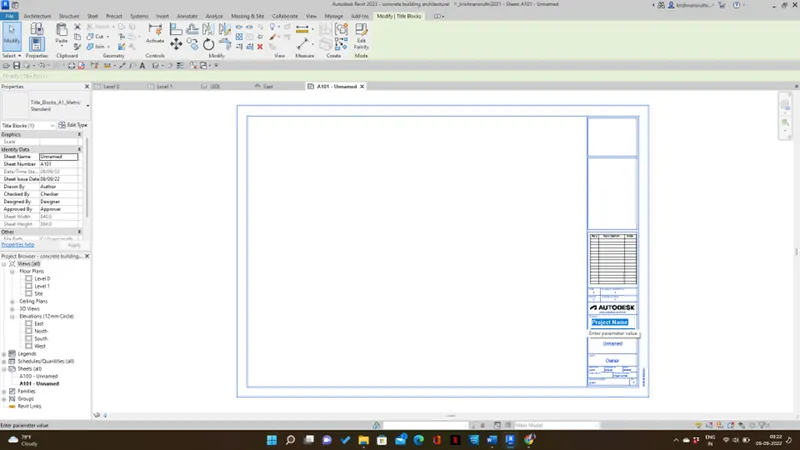

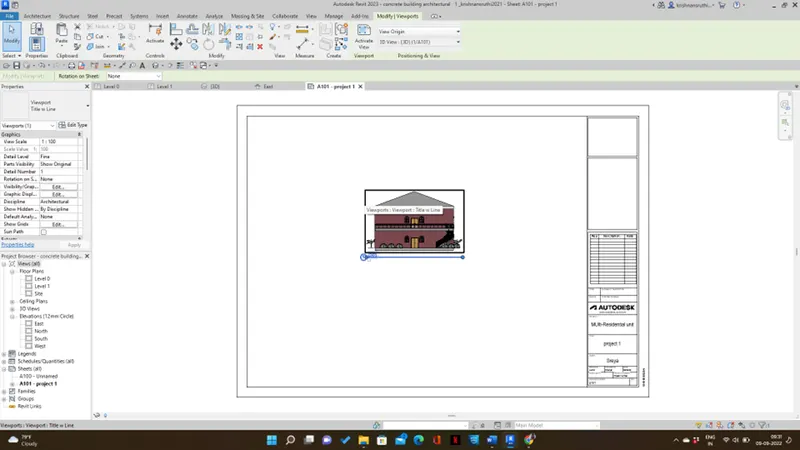

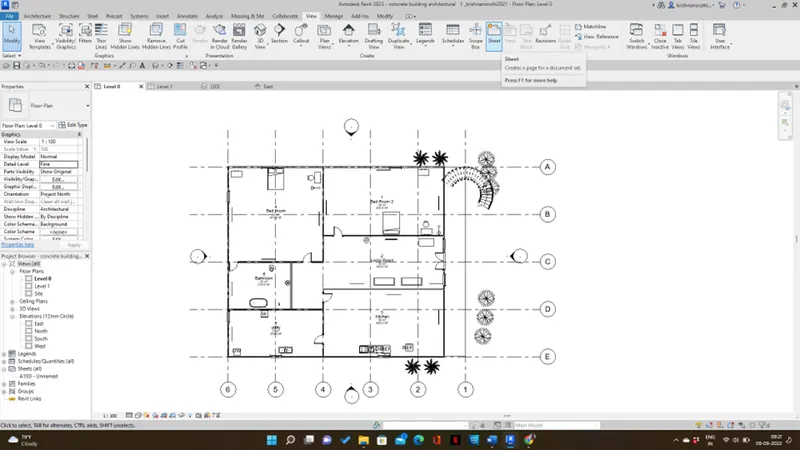

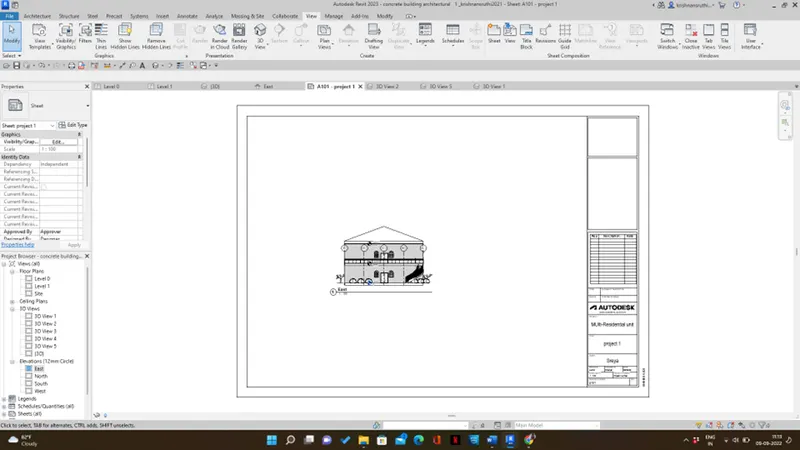

Step 1: Go to the Revit file and select sheet tool from the view tab
Step 2: Select the required sheet and click ok

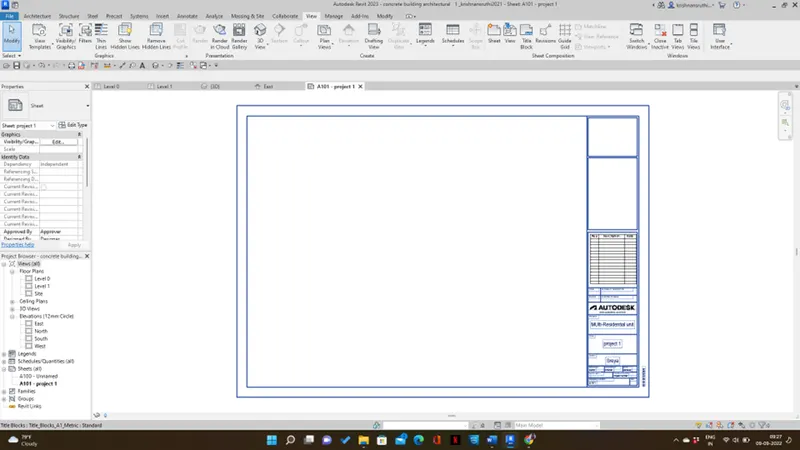

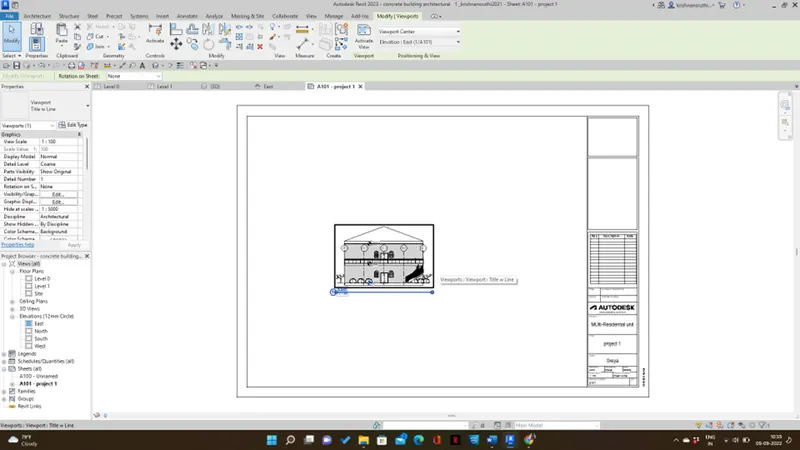

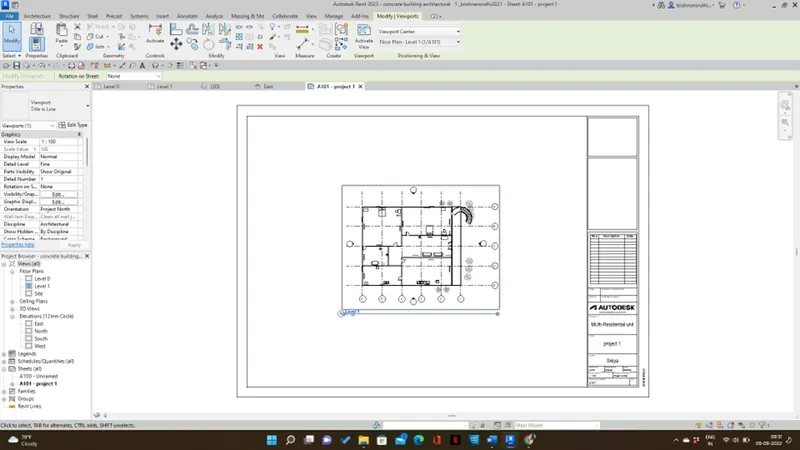

Step 3: The sheet appears by double-clicking on the screen and making the required changes on the sheet
Step 4:Go to the view tab and select view tab

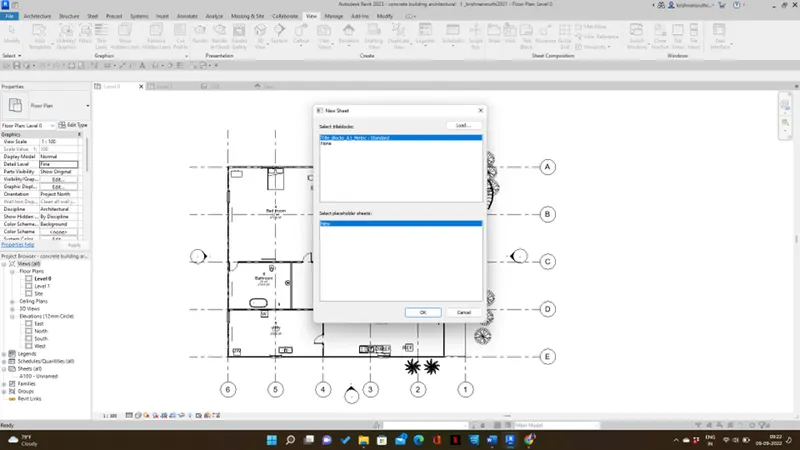

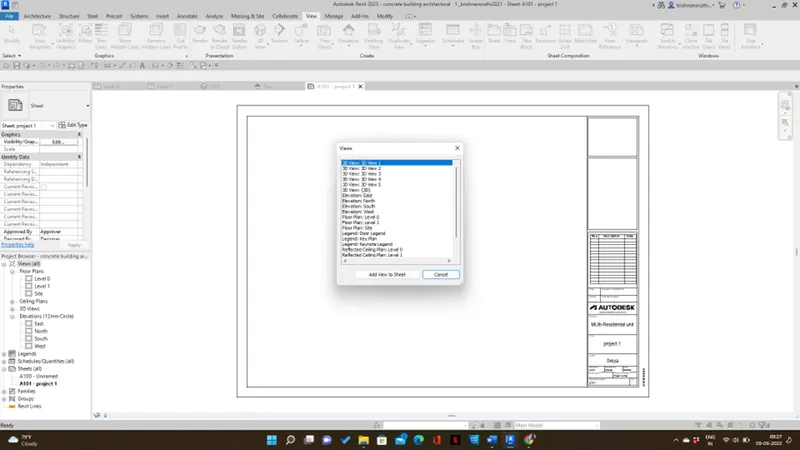

Step 5: A dialog box will appear then choose a required view to be placed in the sheet
Step 6: Click on add view to sheet and select stand click to add to the sheet
Step 7: Do the same for all the views
Result: All views section view of structural and architectural model placed in sheet properly using view tab
Q6 )

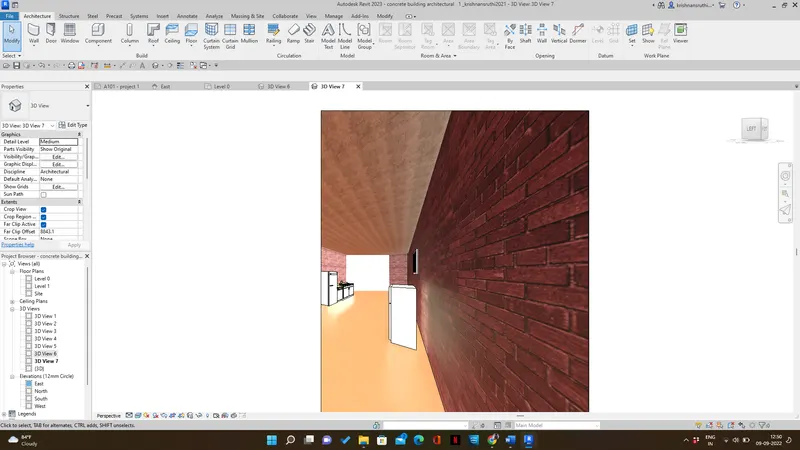

AIM: To render the images of 3D models produced and included images to the drawing sheets
Step 1: Go to the Revit file and view the file in 3D

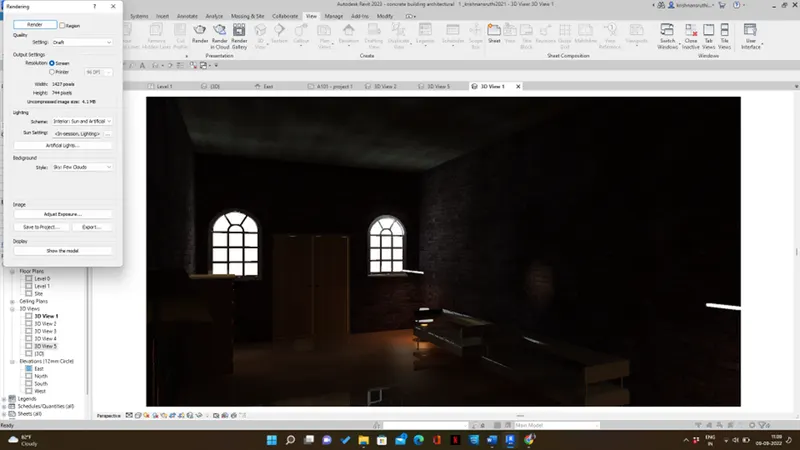

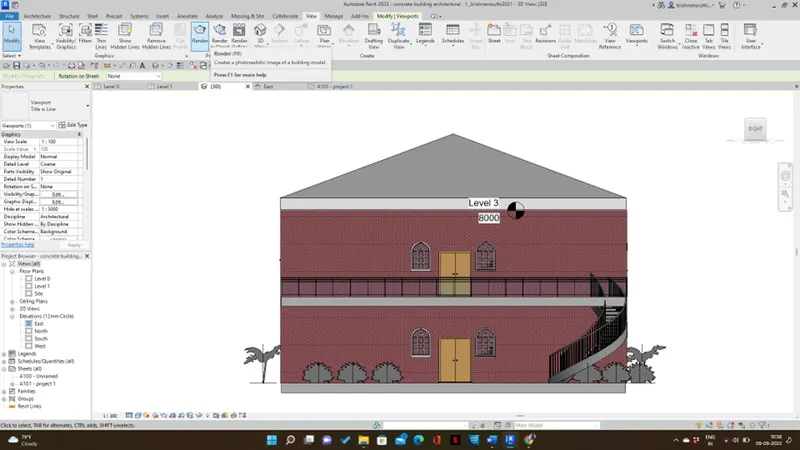

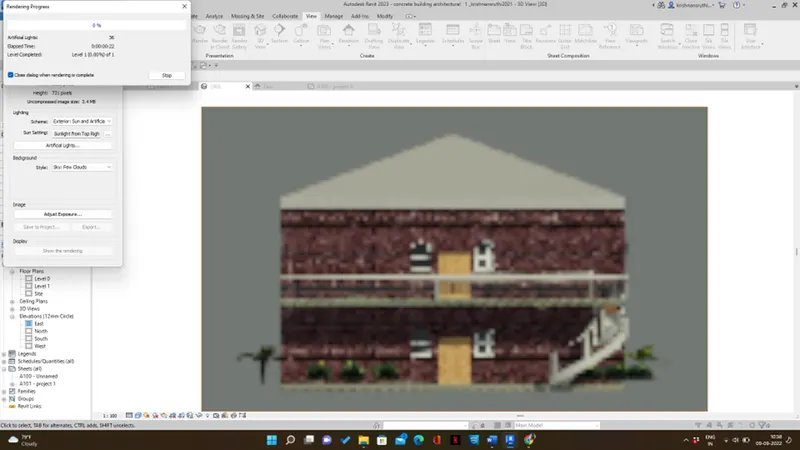

Step 2: Go to the view tab and click on the render option
Step 3: A dialog box will appear and select any camera 3D view
Step 4: Select the render option and make necessary changes to that render dialog box
Result: Rendering images successfully
Q7 )
AIM: To print the set of drawing sheets created and submit the drawings from the architectural and structural model
Step 1: Go to the Revit file and select view to be printed

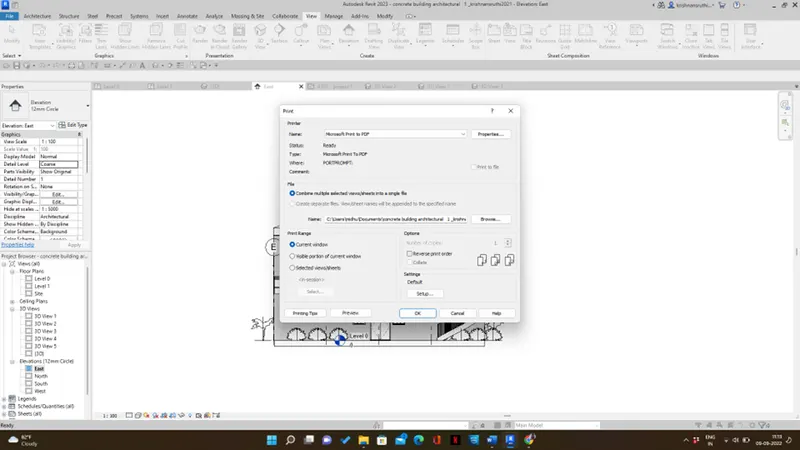

Step 2: Go to the file menu and click on print
Step 3: A dialog box will appear and change the settings on how we want the sheet to be printed
and click to print option
Result: All views are placed in the sheet and ready to print
