Creating Architectural and Structural model with 3D rendering using REVIT

Ans1:- As per the given options in the question I am opting for Multi Unit Residential Apartment

Ans2:- For Geographic and location details assumptions which I have made are:-

1. My project is in residential area (medium populated)

2. Road width in front of my apartment is 60 feet

3. My project is in plain area (geographical)

As per the NBC

• Height Limit as per FAR Calculation and as per NBC Table 5 V-1
• Min length and width of rooms as per NBC V-1
• Fire and safety from NBC part IV

3. AIM:- Make a project using structural model and include the following components as mention in question3

Commands used:-

1. Grids
2. Levels
3. Columns
4. Isolated foundation
5. Beams
6. Floor structural
7. Shaft for lift and staircase

Procedure:-

Open a new file in structural template and save it with a appropiate name

• Select collaborate and do the collaboration and make it as a central file
• Select Structural and select grids and daw grid in horizontal and vertical
• Select the manage tab and select coordinate and select specify coordinate
• Specify the coordinate as 0'0" in both the grids and pin it
• save it

Open a new template as architectural template and save it with a appropiate name

• Select collaborate and do the collaboration and make it as a central file
• Select Architectural and select grids and daw grid in horizontal and vertical
• Select the manage tab and select coordinate and select specify coordinate
• Specify the coordinate as 0'0" in both the grids and pin it
• save it

Select the manage link and link the structural template in the architectural

• Both the grids will appear
• Select the manage tab and accquire the coordinate of the linked grid
• select the relocate project and select the gridand overlap them now its good to go
• save it

Open the structural template

.draw the gids at equal interval in both x axis and y axis

.select the elevation plan and draw the levels as 12' from one floor to another

.select the floor plan and draw the floor plan as per the drawing or your building structure and copy it till roof

.Select the columns at grids and draw columns In properties tab select the column propeerty and size

.Select the footing and draw footings at the columns

.Select the beam and draw beams connected to the columns and select the contraint to First floor from ground floor as beams are at top of the floors

.After making beams and columns red line will show that is analytical which can be off by pressing vg and select custom and select annotation and off the anlytical

.select the shaft for lift opening and staircase opening

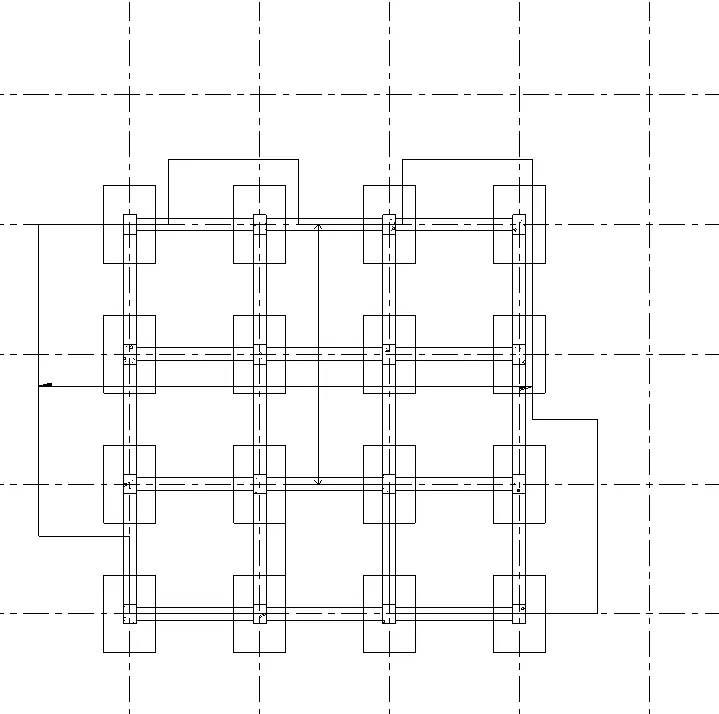

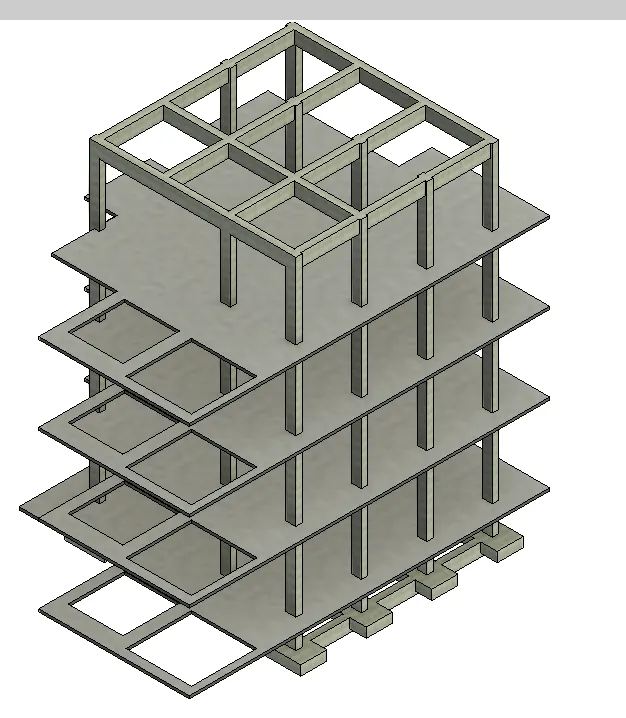

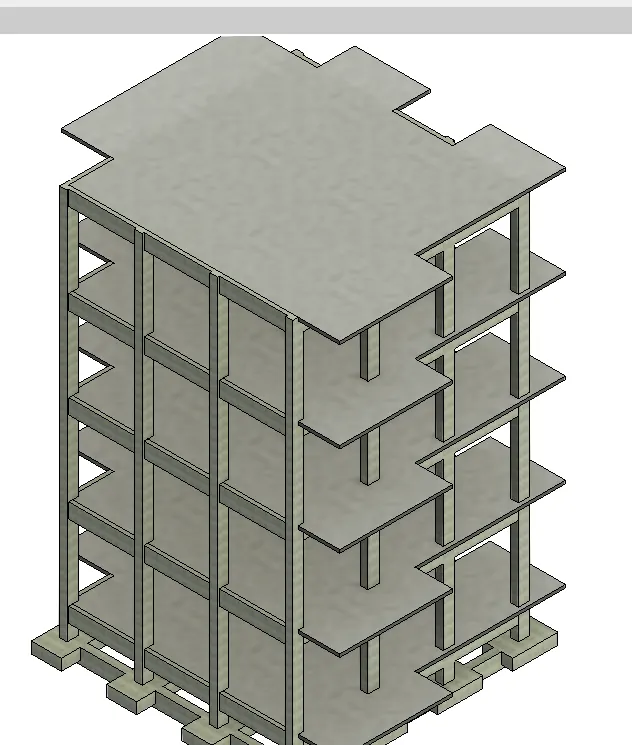

My structure framing plan is ready

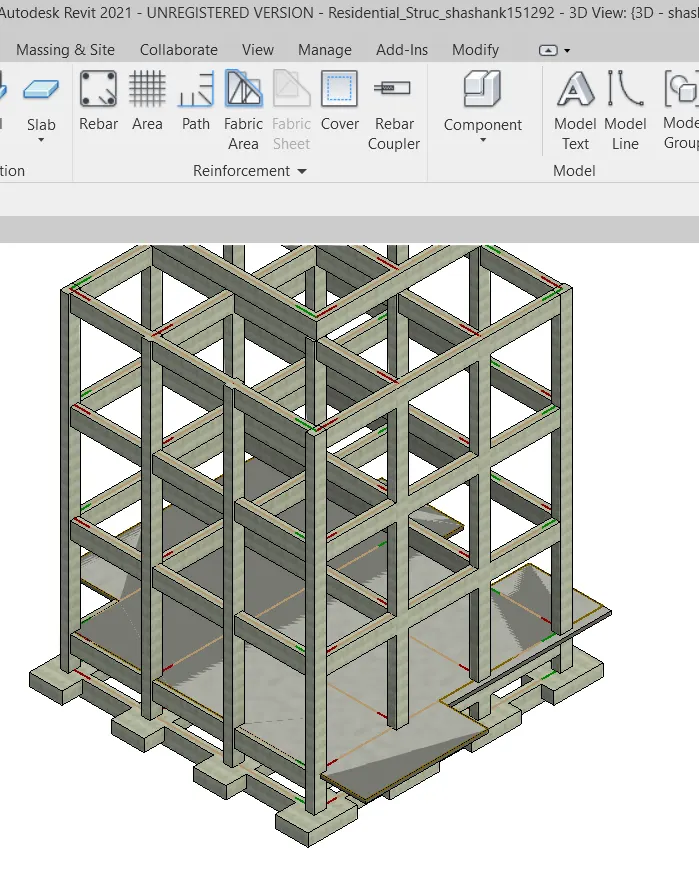

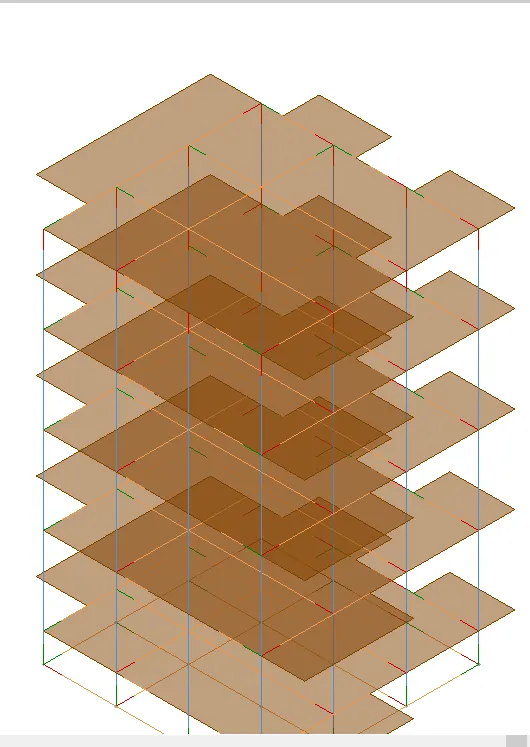

.In result I have shown analytical part of the building too as its in structural template revit creates it automatically

Results:-

4. AIM:- Using architectural template create the walls , facade and other components of the building and give a complete building look with all the components

Tool Used:-

1. walls
2. material
3. Partition wall
4. Components as desk, chair lights etc
5. Stair
6. ceiling
7. roof
8. windows
9. doors
10. Railing

Procedure:-

Open the architectural template and we will see all the grids in the template which we made it in structural template

.Select the copy monitor tool and select copy and select the grids

.go to the vg setting and select custom in annotation off the grids

.Now we will see the grids of architectural only

.Select the elevation and do the same as of grids to levels

.Select and pin it

.Select the exterior wall and draw the walls in the ground floor

.Go to the 3d view and select top constraint to roof

.Select the wall near the staircase area(lobby) and in property tab select glazed wall

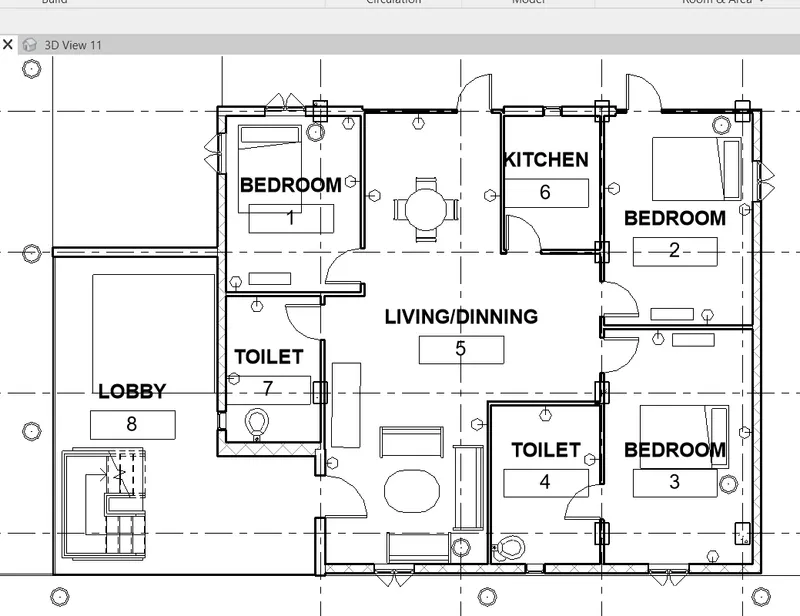

.Select the GF plan and select partition wall and draw the roomss, kithen, toilets, etc

.select the door and draw the doors whereever required

.selct the window and draw the windows where ever required in property tab we can select type of windows

.Select all the doors and windows and select copy and paste it to selected level till roof

.All the doors and windows are made

.select the ceiling and draw ceiling in the ground floor by selecting walls click the tick button

.copy all the ceiling and paste it to selected level

.select the wall properties and select type of wall to be used

.Select the FF plan and select railing and draw railing in the balconies

.Select the insert command and select the family and select the components as beds, tables, lights, plumbing fixtures etc

.Select the add the component and select the component and add it to its appropiate place

.Select the roof and select roof by walls and draw the roof

.Select the component of trees and place it at the exterior portion of the building

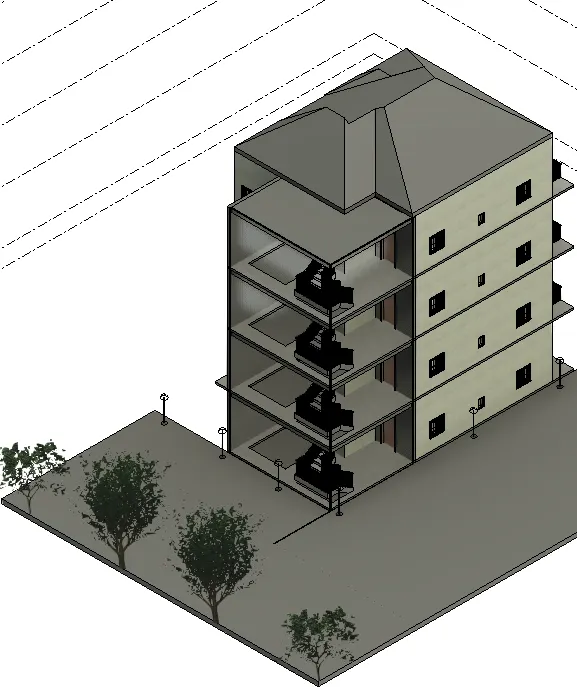

Result:-

5. AIM:- USe proper sheet templates for the set of drawings

Commands used:-

1. Sheets
2. Edit sheets

Procedure:-

.Select the view tab and select sheet and load it from the family

.Double click and edit the sheet and load it in the project

.Drag the plans , elevations, section in the sheet and rename the sheet and drawing number and name as per the requirment and save it

Results:-

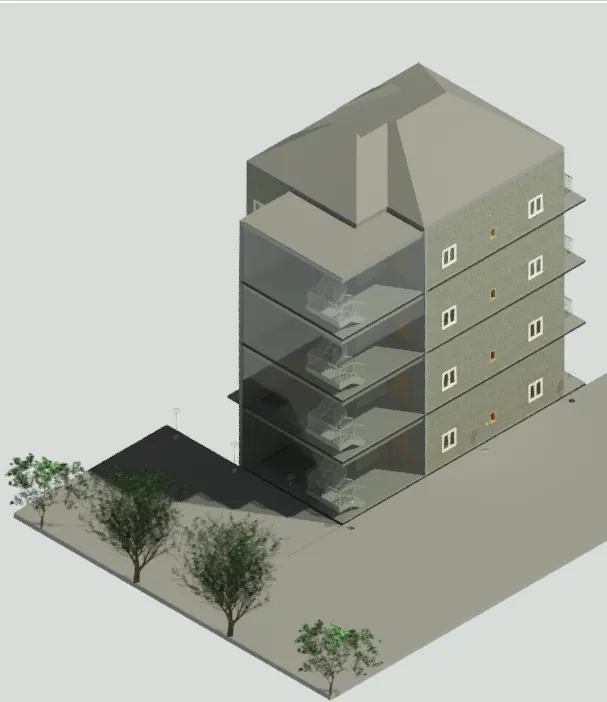

4. Aim:- Render the 3D images

Commands used:-

1. Render

Procedure

Select the 3D images og the interior rooms, exterior and structural framing and select the render and do the rendering

Select the properties like exterior sun and artificial setting, or artificial setting, clouds etc

Results:-

7. Aim:- Print the sets of drawing sheets and submit for execution at site

Commands Used:-

1. Print
2. Setup page
3. Select the plotter
4. Print

Procedure:-

Select the views and click print option

Adjust the setting of the page and print the drawing sheets

Results:-

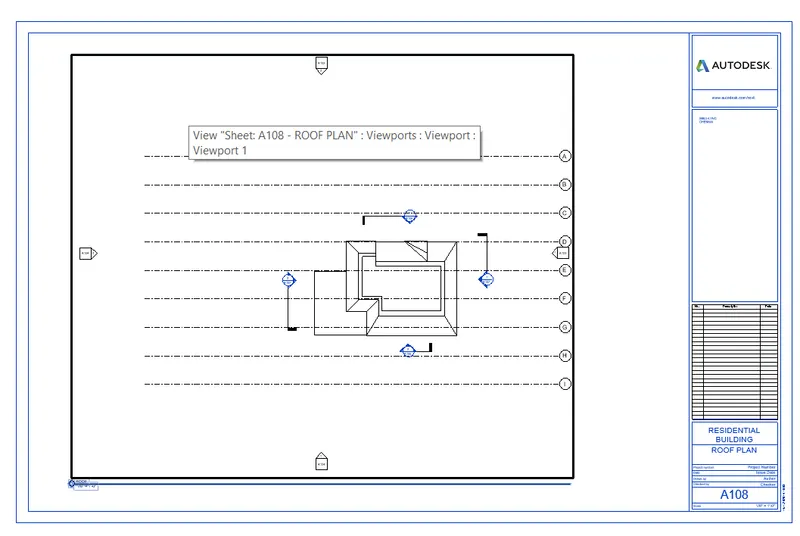

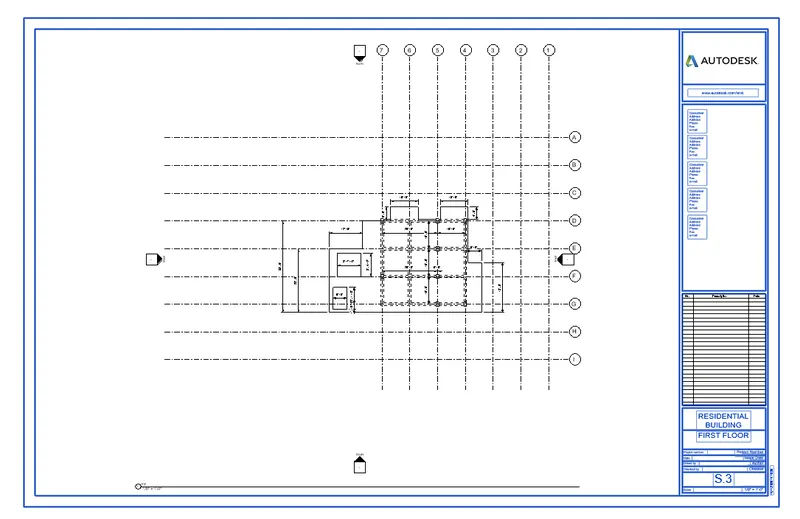

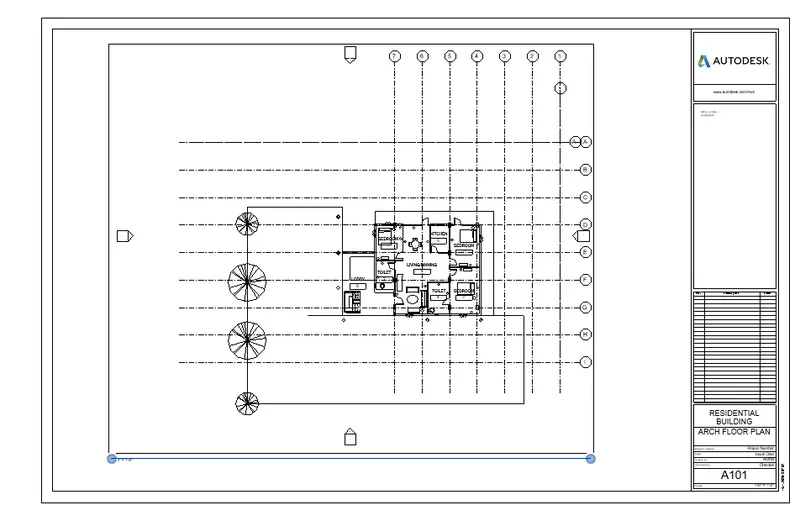

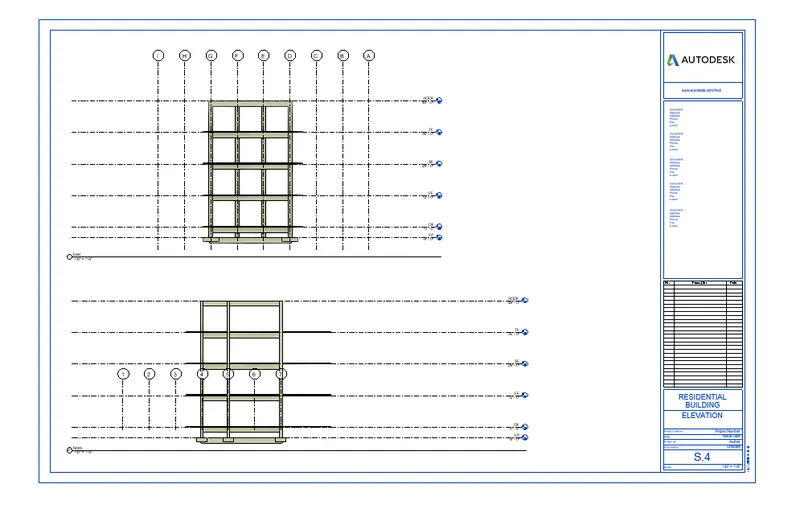

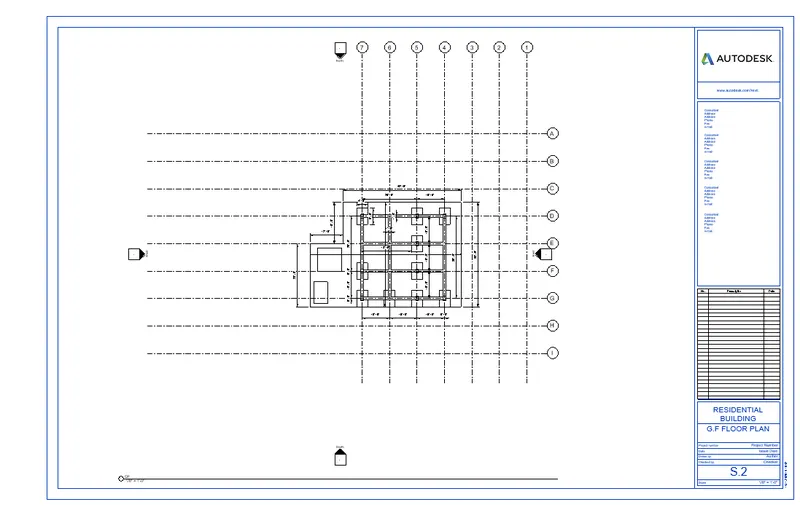

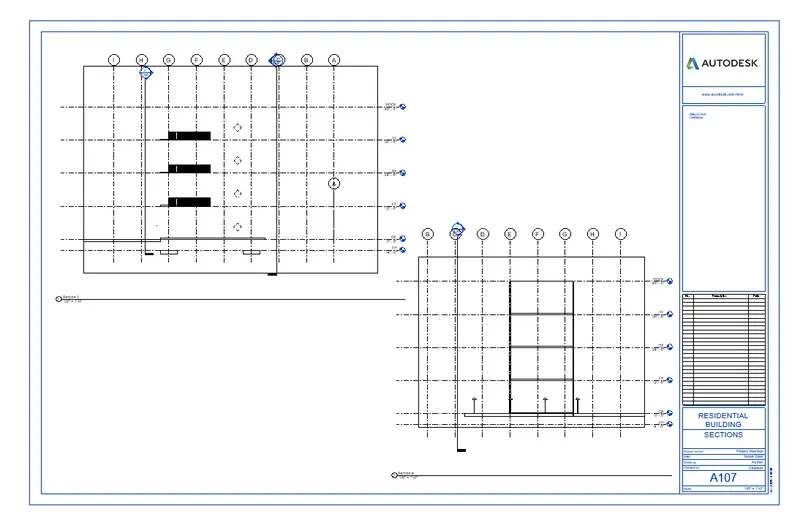

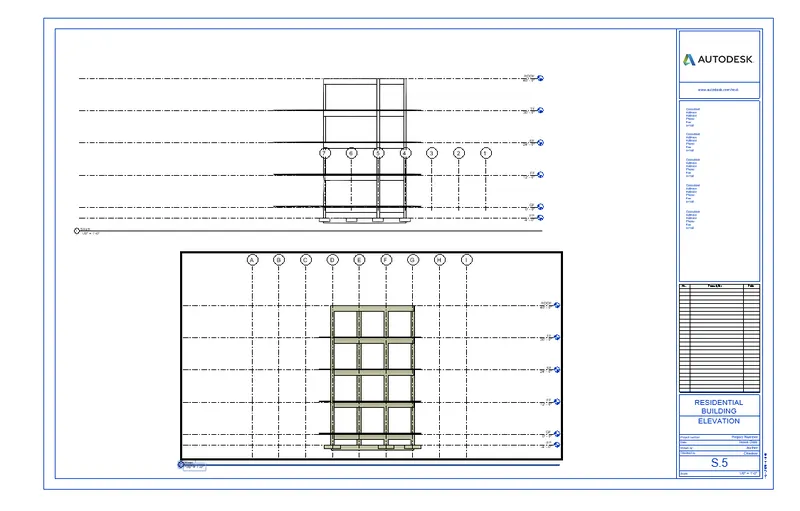

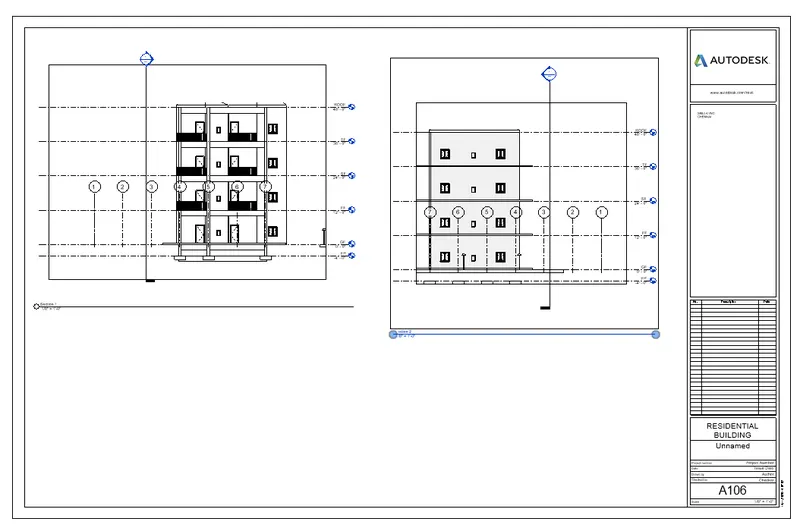

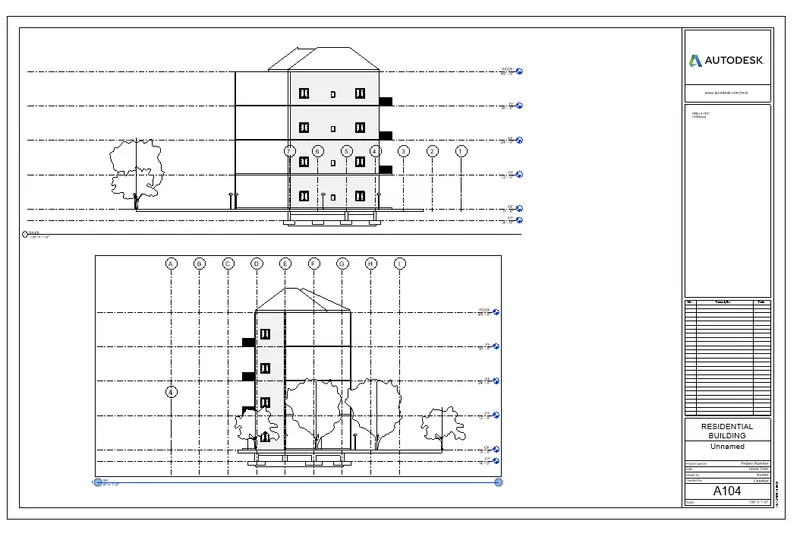

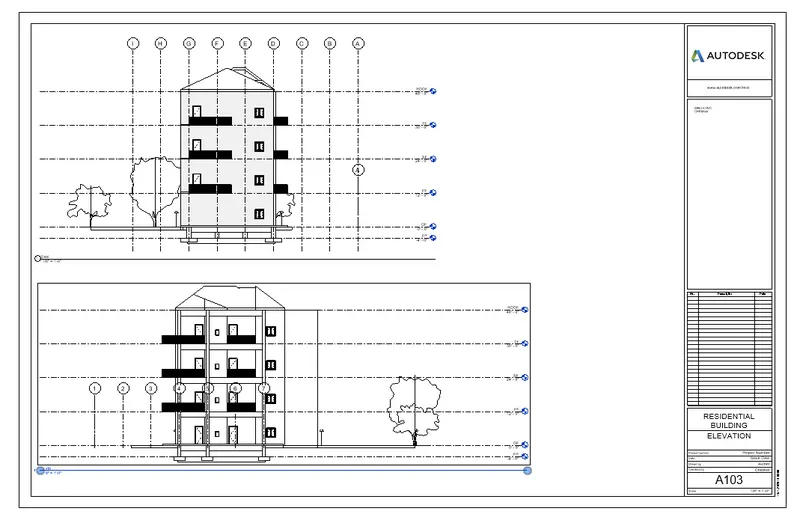

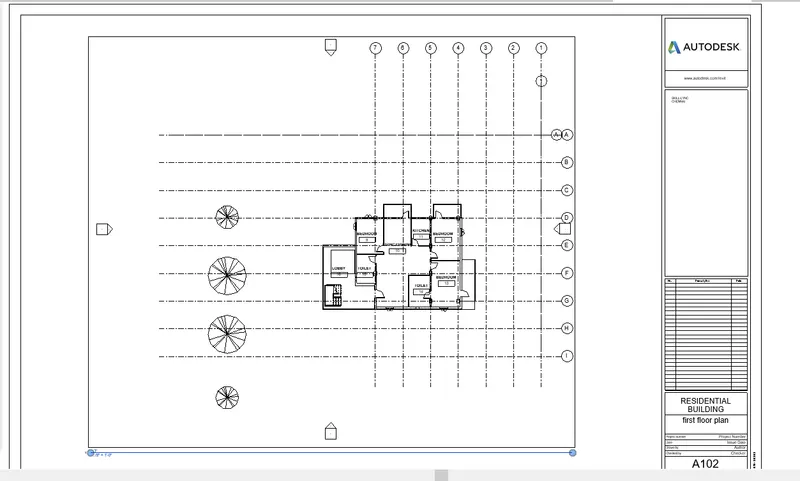

P.S I have not printed the sheets as i dont have printer/plotter installed so I am attaching the image of the sheets

As I have not attached all te sheets I have just attached 3 to 4 sheets from both architectural and structural just to show how the prints will look like.
