Creating Architectural and Structural model with 3D rendering using REVIT
1:- Select the type of structure you want to build from one of the three below
ANS:- I Have choosen Office Building.
2:-Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC
ANS:-
MY PROJECT LOCATION IS AMRVATI, MAHARASTRA.
BUILDING IS CONSTRUCTED TYPE 2 OFFICE BUILDING.

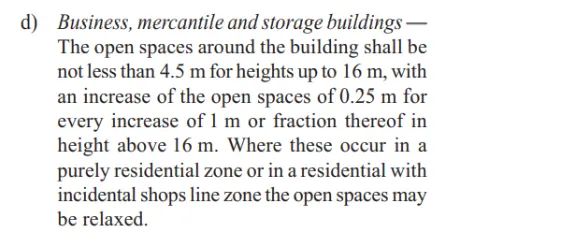

- THE OPEN SPACE AROUND THE BUILDING SHALL BE NOT LESS THAN 4.5 M
- THE ACCESS IS TAKEN TO BE 12 M.
- THE FLOOR AREA RATIO(FAR) IS 2 TYPE CONSTRUCATION IS 2.9 M
- IN MY PROJECT SITE M 60 M X 50 M=3000 M^2 AND AREA OF EACH FLOOR 1920 M^2
- THER FOR FAR = 1.92

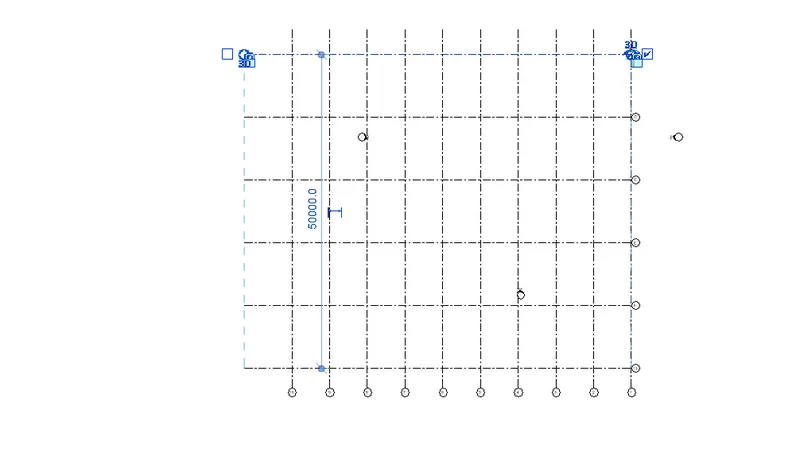

3:- Using the structural model, include the following components based on the type of structure selected

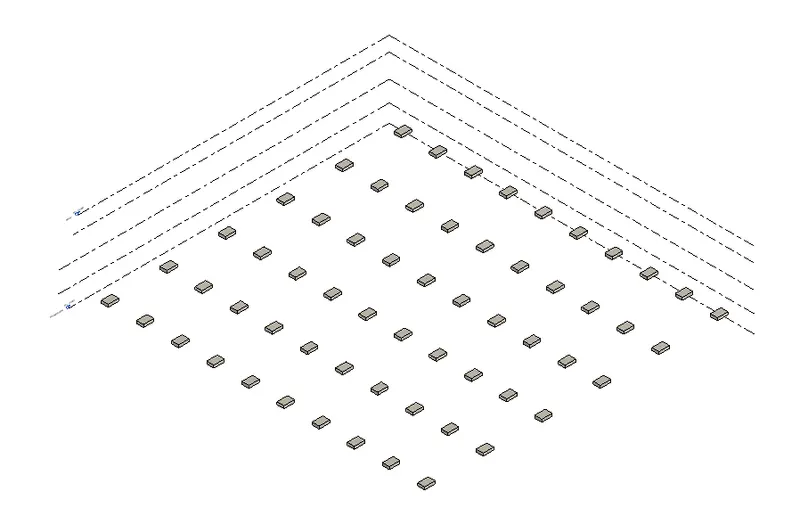

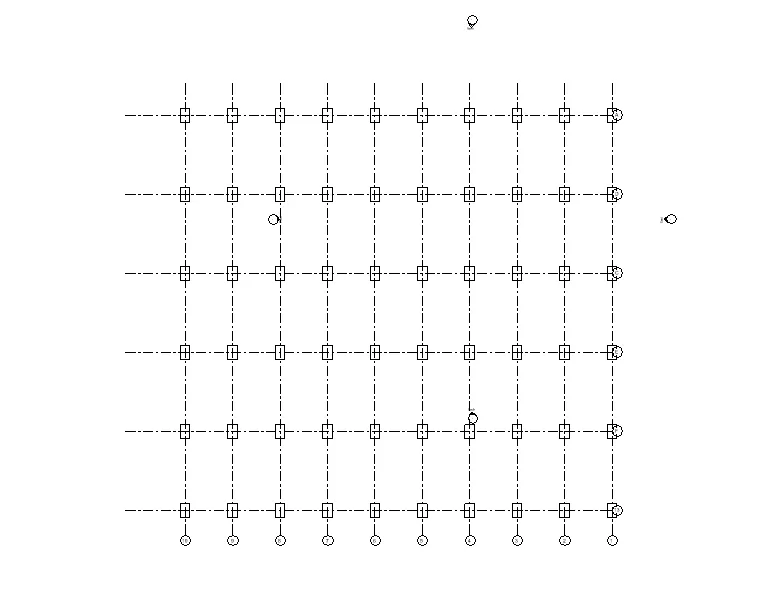

a. Foundation – Isolated / Wall/Matt Foundation

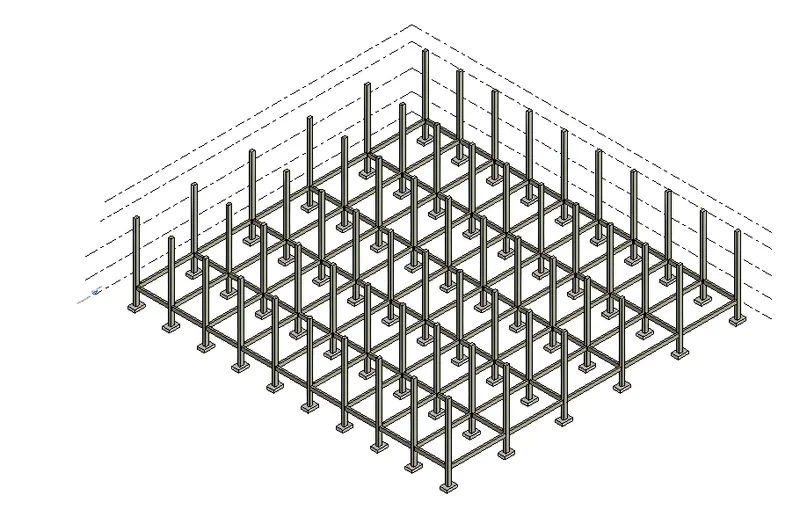

b. Columns

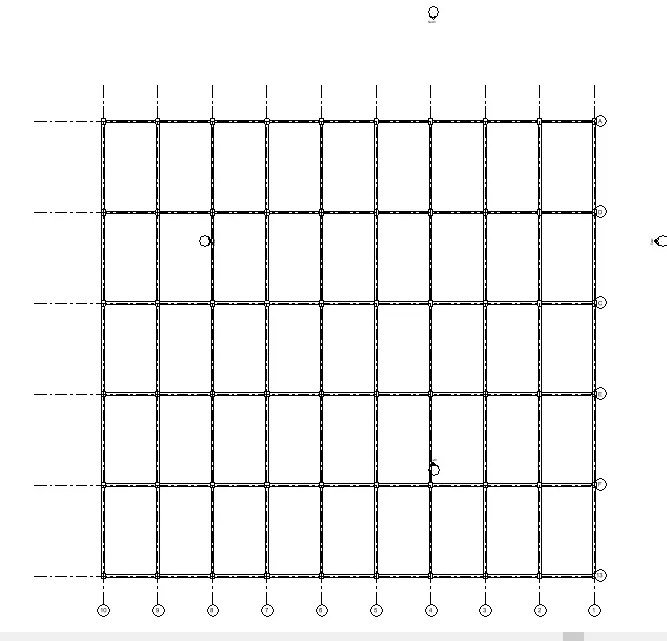

c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

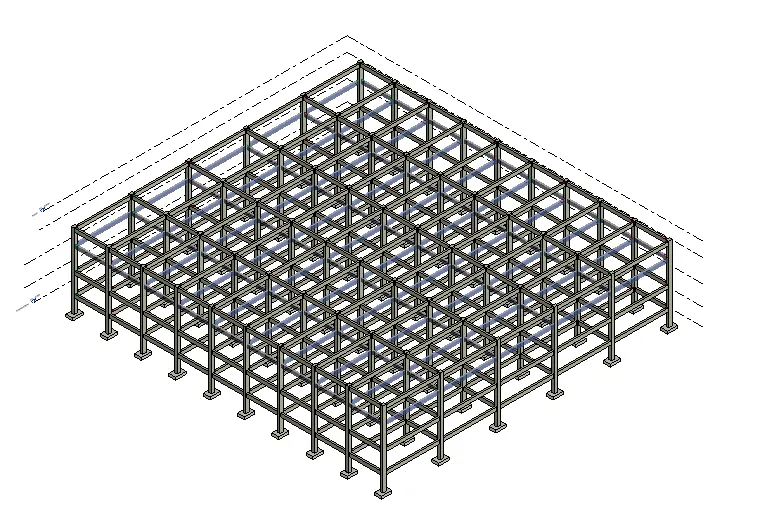

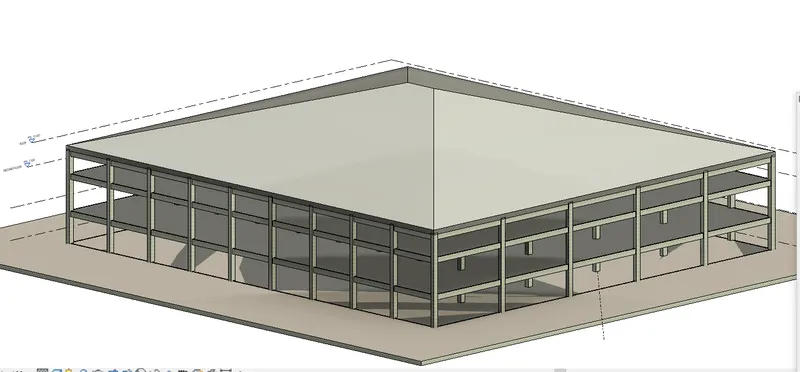

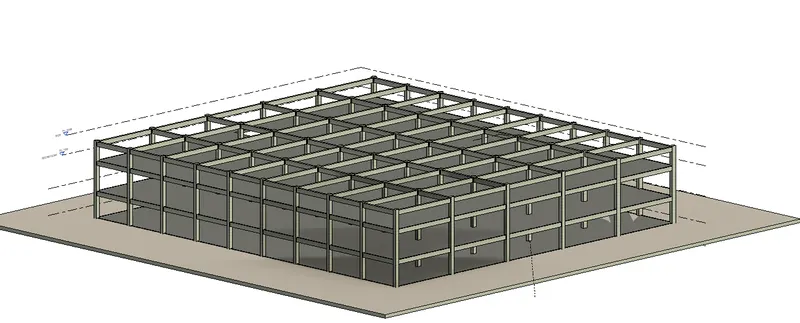

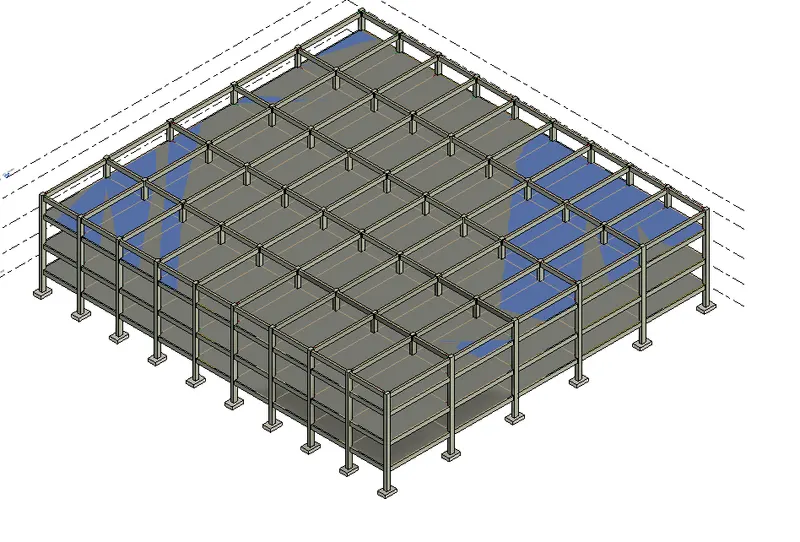

AIM:-To CREATE STRUCTURAL MODEAL OF THE OFFICE BUILDING
4:-aim:-Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)

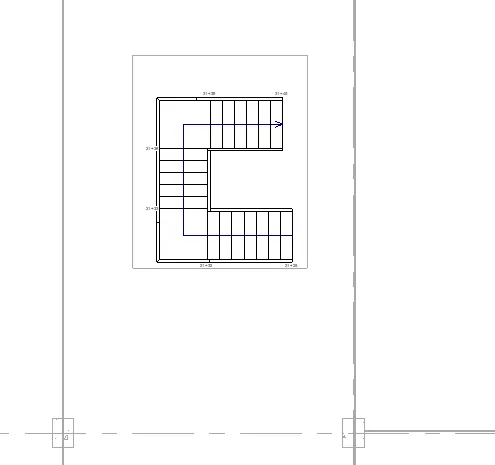

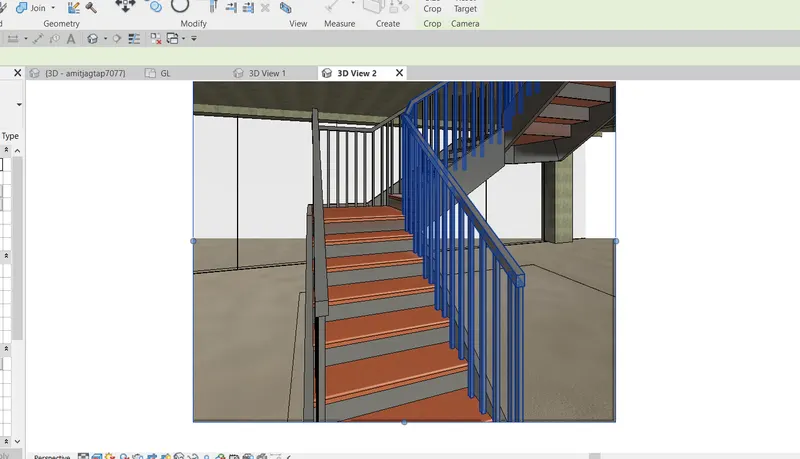

e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model
procedure:-
5:-aim:- Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included

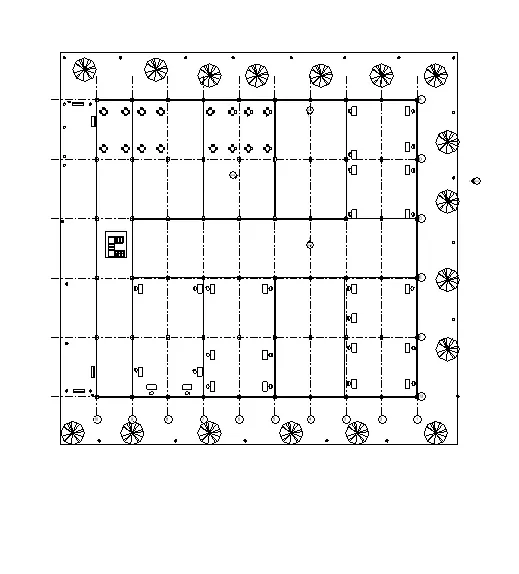

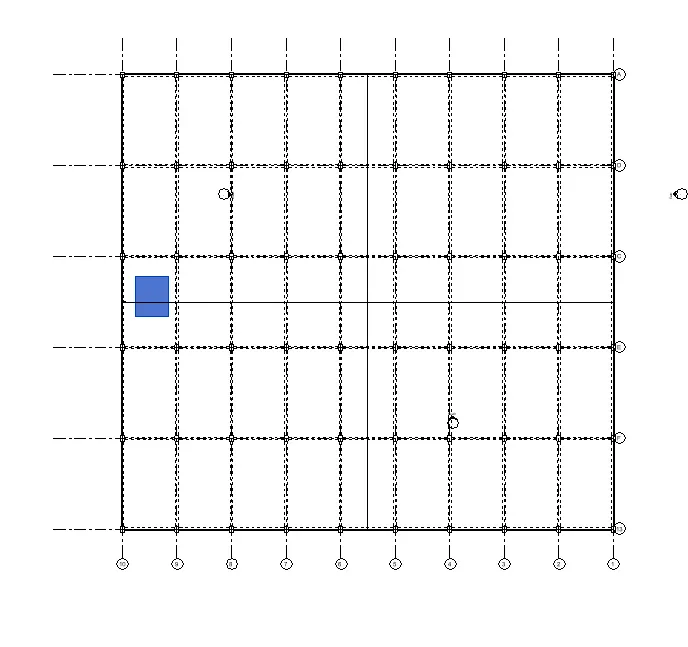

a. Floor Plans with Annotations

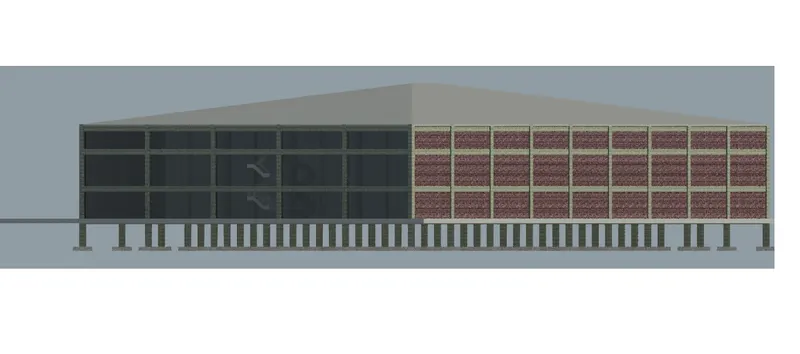

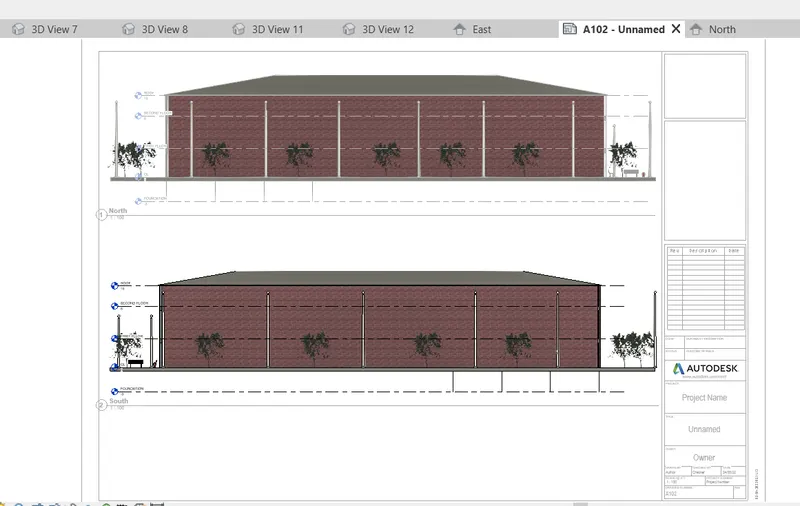

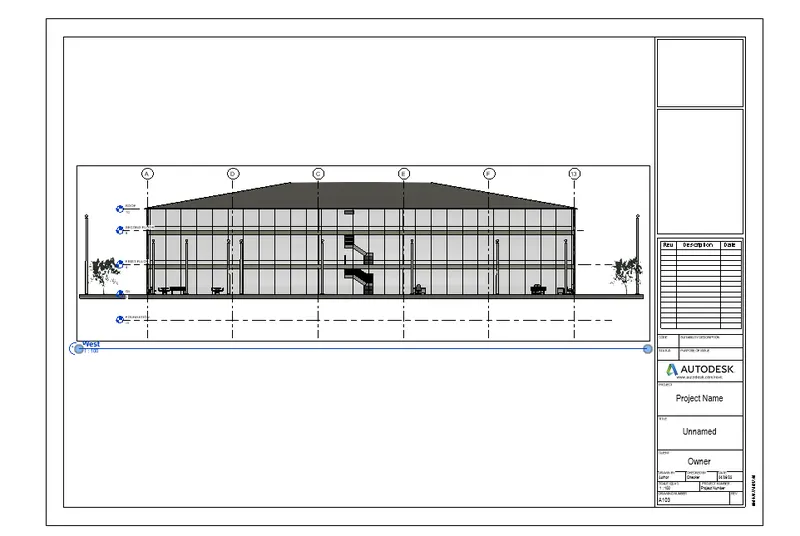

b. Elevations

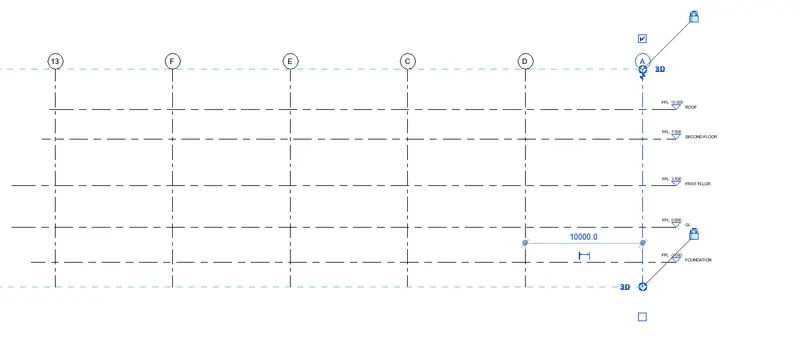

c. Sections
procedure:-

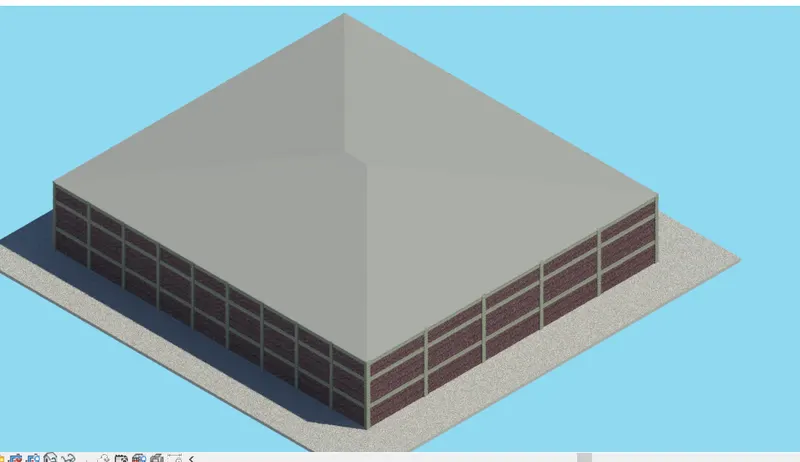

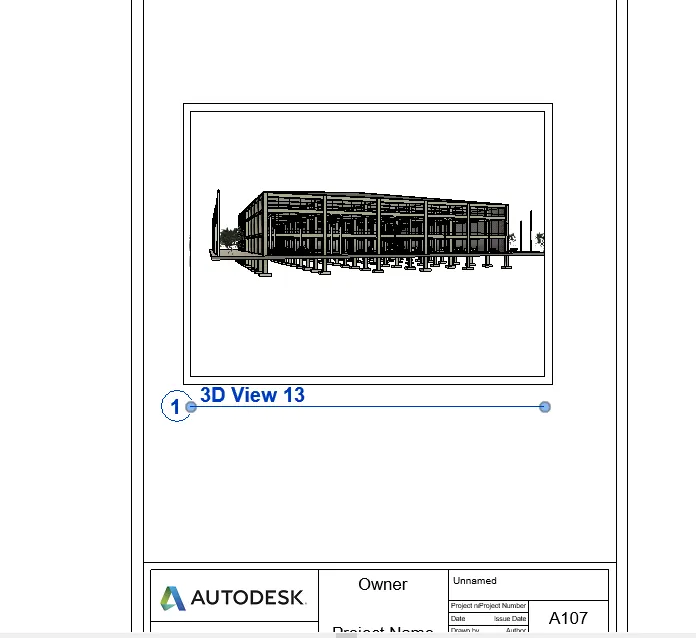

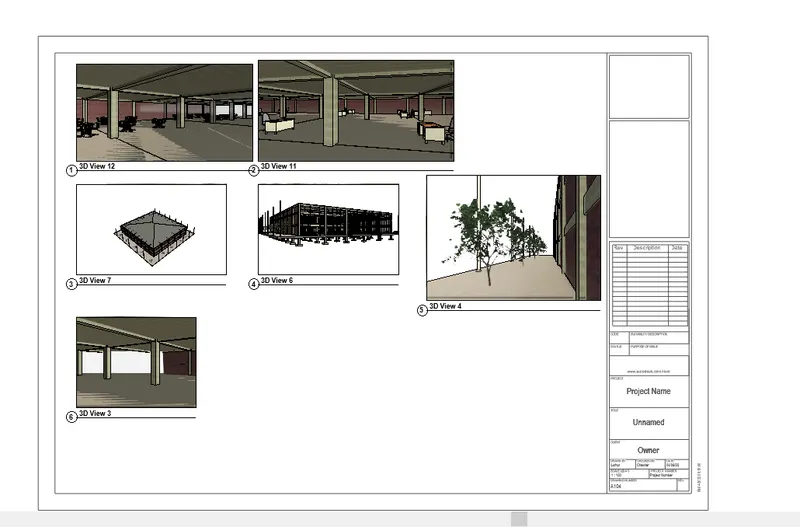

6:-AIM:-Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

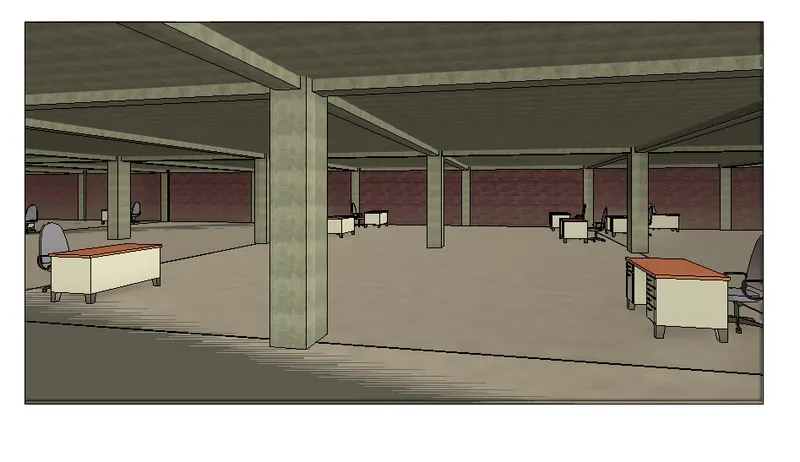

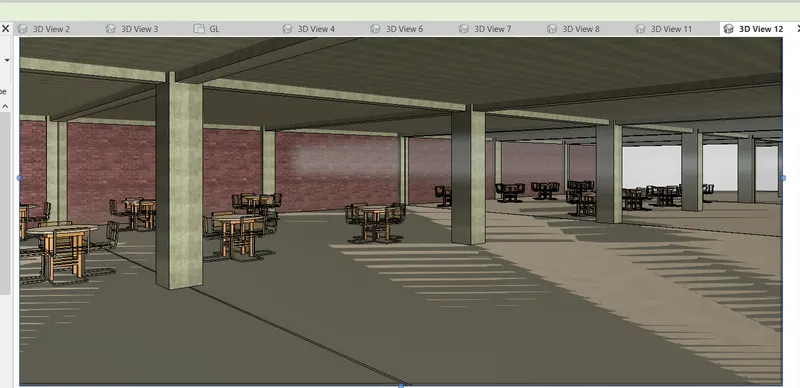

a. Rendering from interior rooms

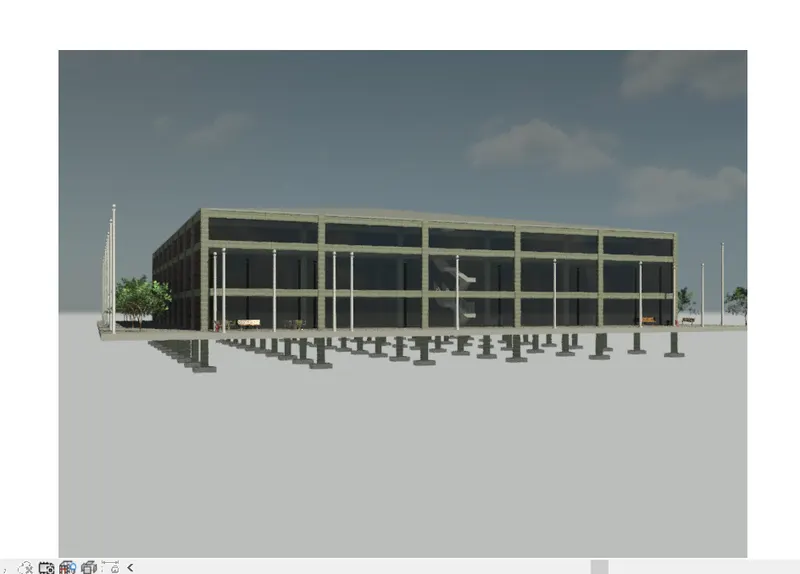

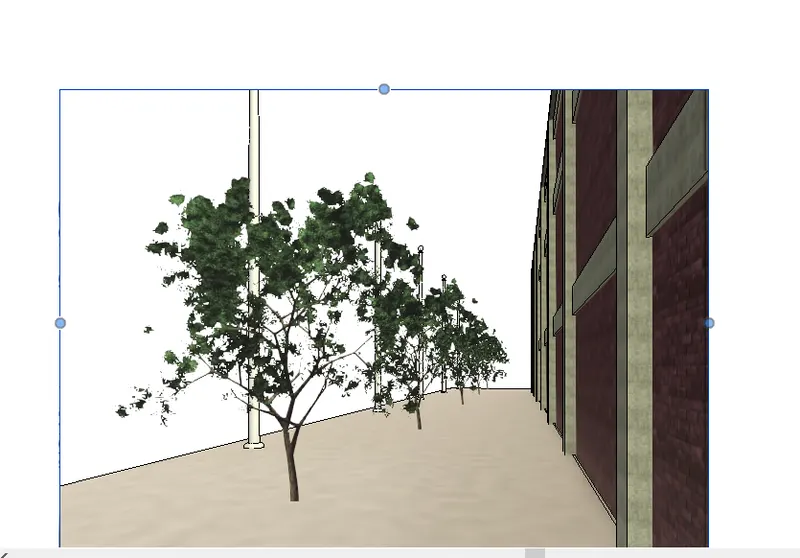

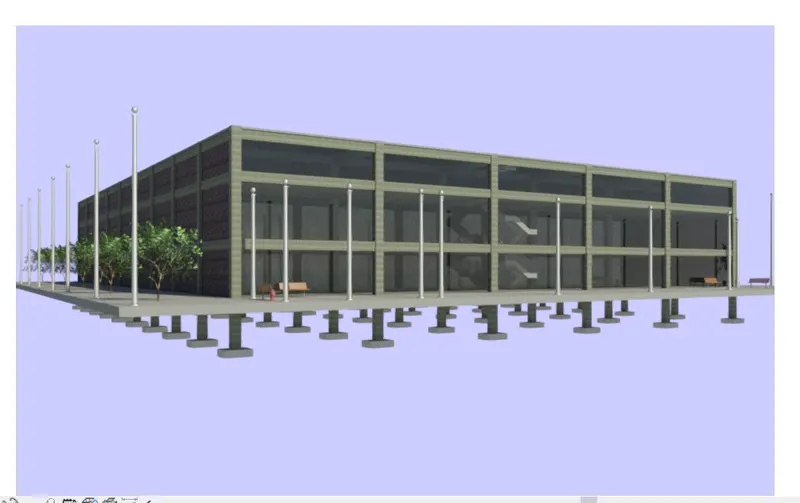

b. Rendering from out showing topographic features
c. Rendering through structural framing
PROCEDURE:-
7:-AIM:-Print the set of drawing sheets created and submit the drawings from the architecture and structure model
