Creating Architectural and Structural model with 3D rendering using REVIT

1.

Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

Ans.1. Office Buildings

2.

Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

Ans.2.

Aim :- Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC.

Introduction :- Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC.

Procedure :-

• My project is in plain area
• It is commercial area
• Road width on front side is 30 feet i.e is 9.144 meter

The modeling requirements from NBC are as follows

• An exit must be provided in every building, so as to permit safe escape for the people.
• In case of Earthquake or Fire hazardeous situation
• The min height of basement should be 2.5m and max height of 4.5m

Result :-

Thus the above answer is given.

3.

Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

Ans.3.

Aim :- Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

Introduction :- Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

Procedure :-

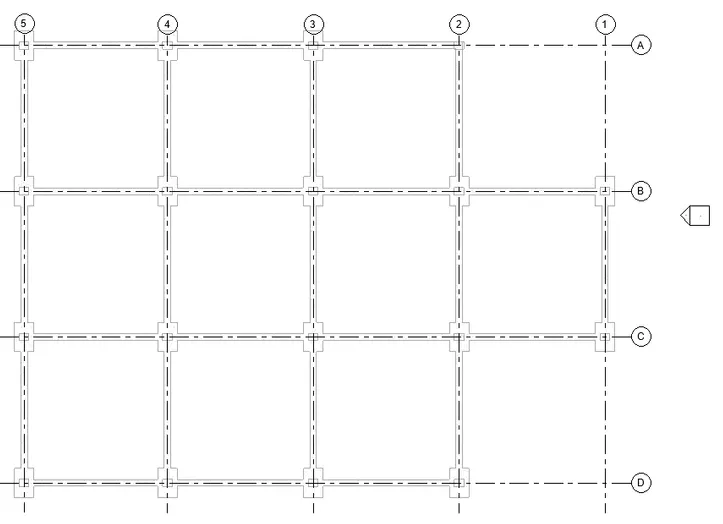

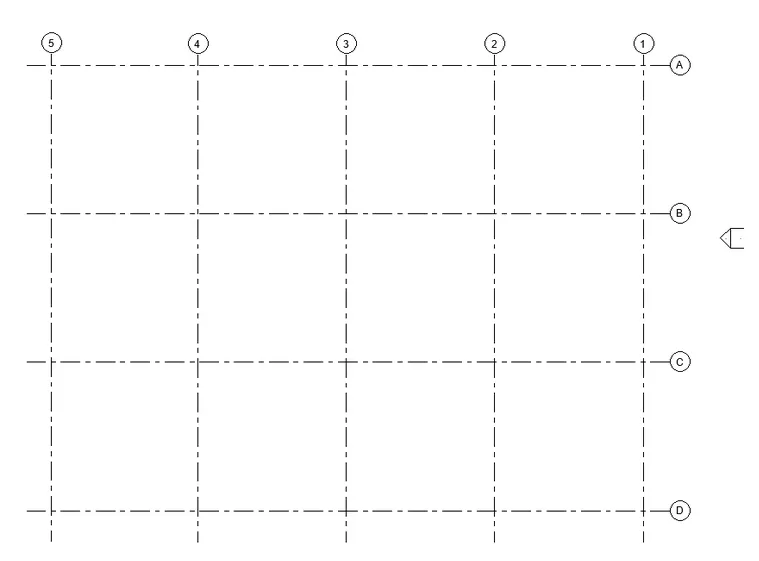

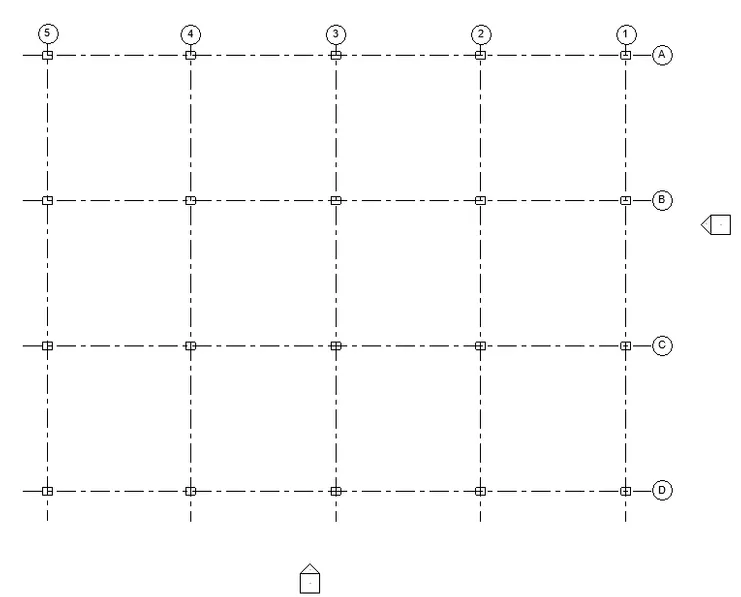

• Open REVIT and make horizontal and vertical grids at spacing of 30' as per ncb.

• Go to elevation section and increase number of levels upto roof level and change their names

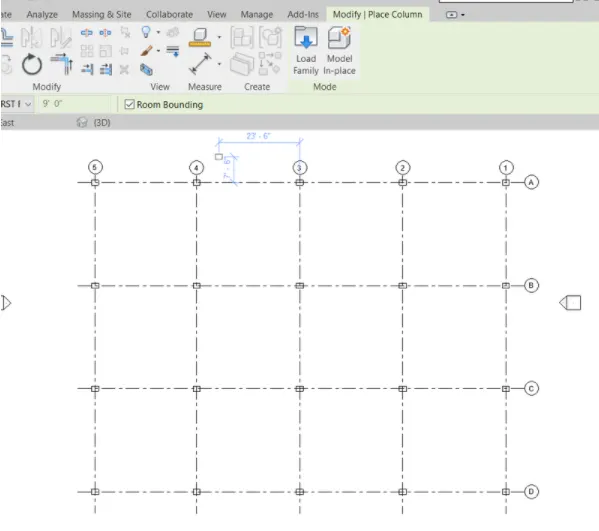

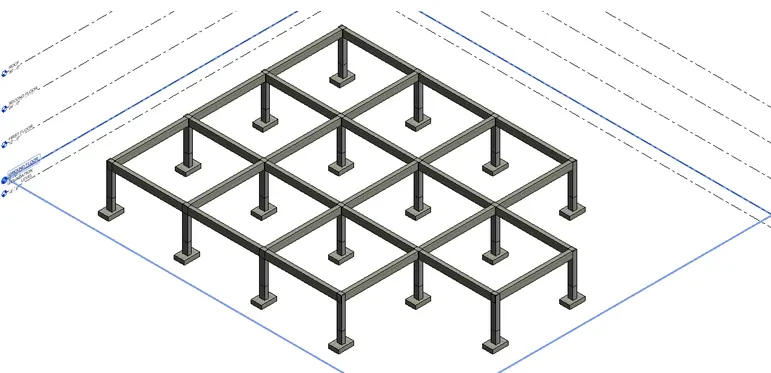

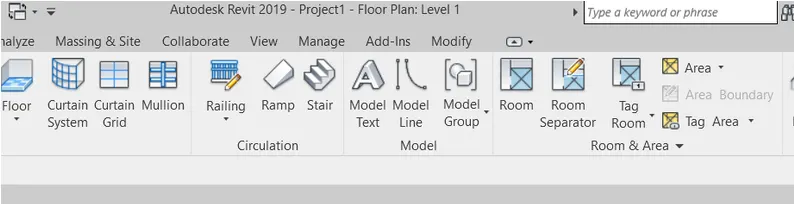

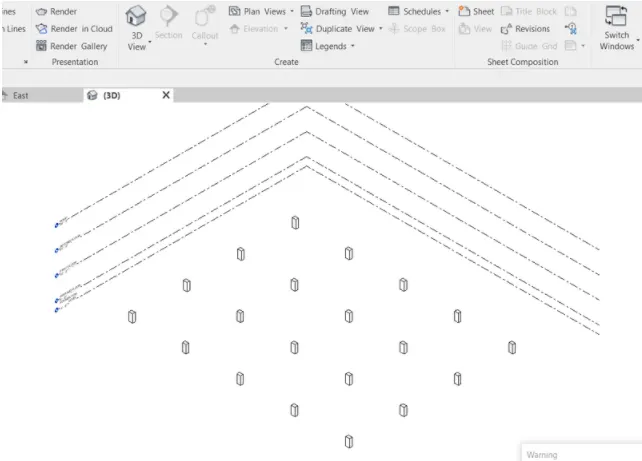

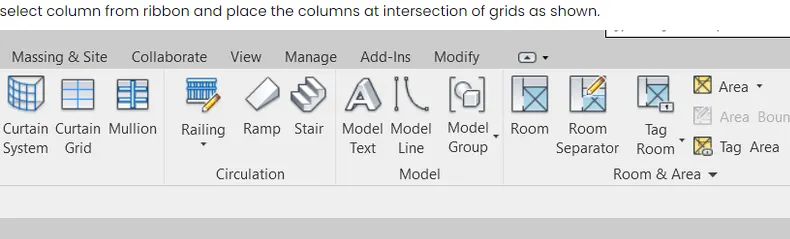

• Select column from ribbons and place column at intersection of grids as shown

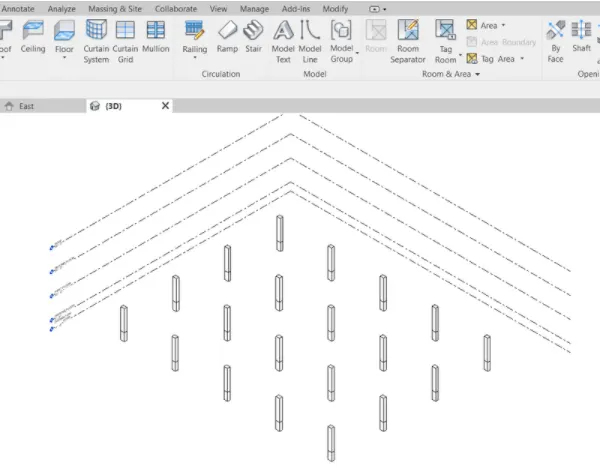

• Change the view to 3D, you will gwt interface as shown

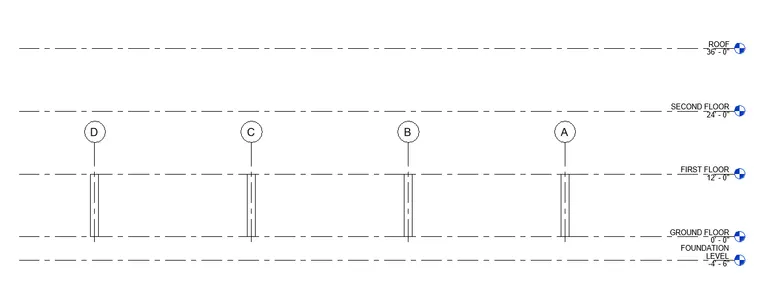

• Place another column on grid intersection from ground floor and first floor

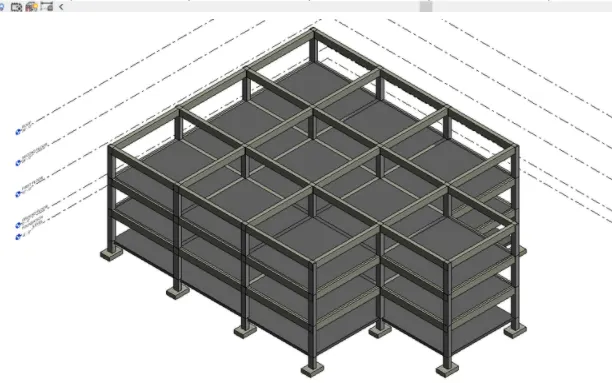

• Now select beam from ribbion and connect it different column as shown

• Open view to 3D

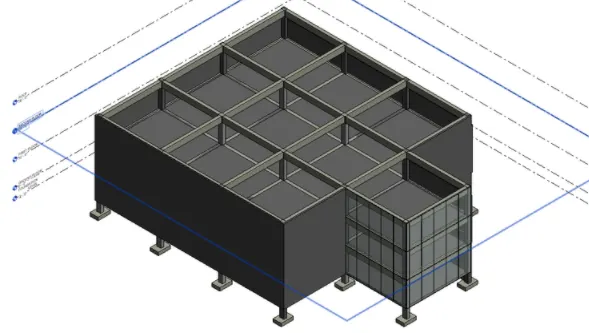

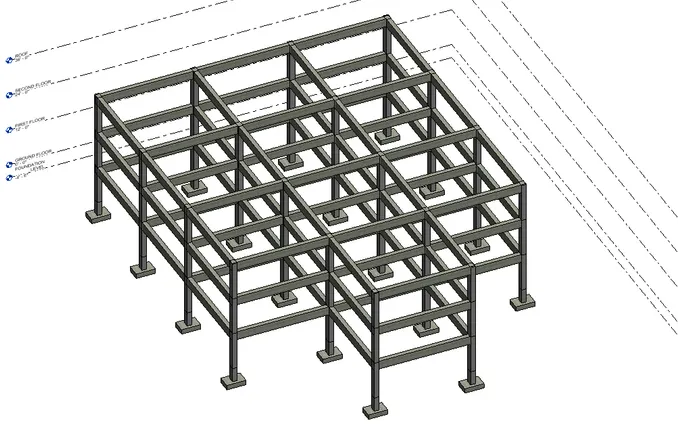

• Select entire figure and go to copy option and assign them to first and second floor

• Now go to roof option and change view to ground floor and select points and amke loop and assign them to first and second floor and change the view to 3D

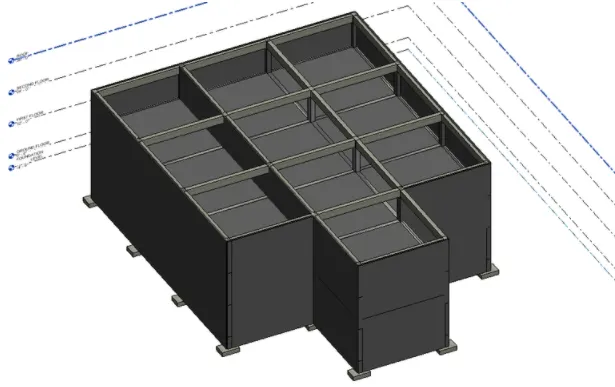

• Now go to wall option and select floor we want to assign the wall, copy it and assign it to different levels.

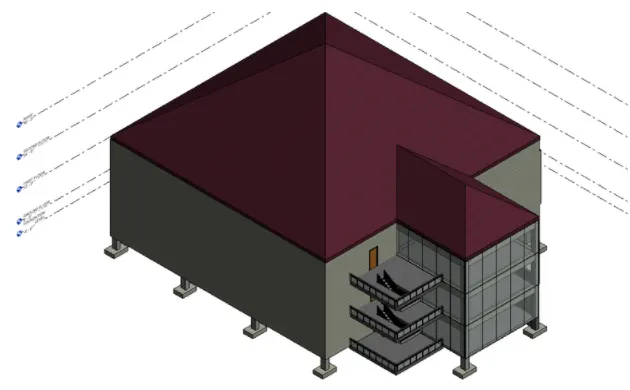

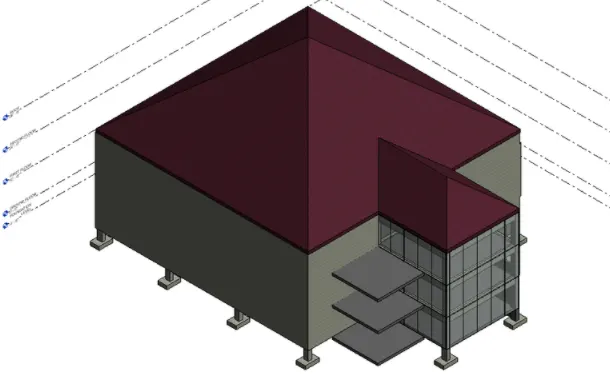

• Change front wall to curtain wall as shown below

• Change the option from properties, change the color and material of roofs and wall

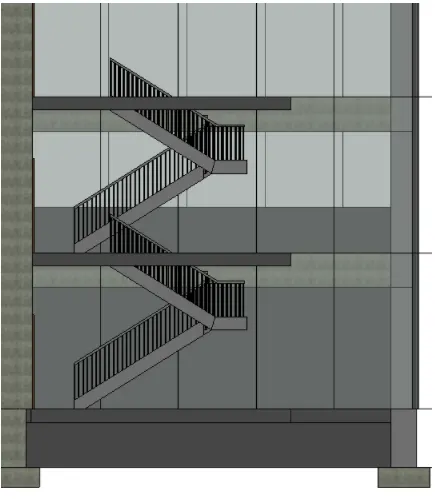

• Place a stairs by drawing rectangle, change the view to 3D and copy it to different levels

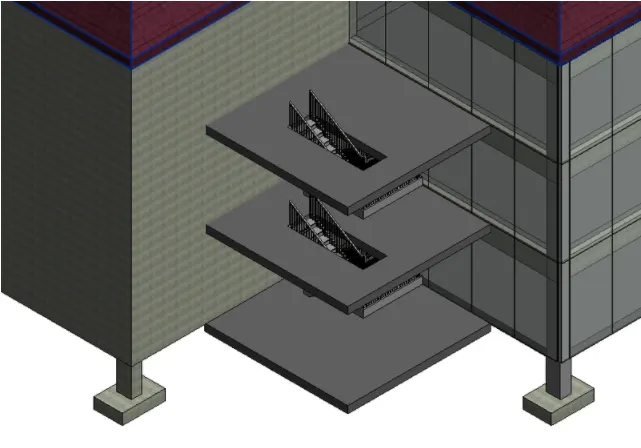

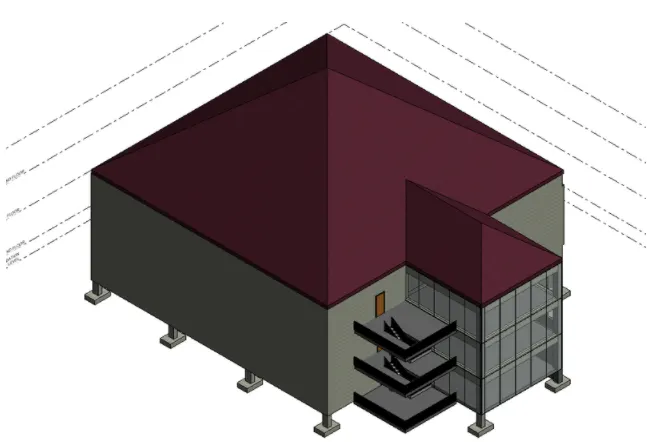

• Draw a shaft and make stairs as shown below and copy and place to different floor levels and make doors at enterance of stairs

Result :-

Above are all the Results.

4.

Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

Ans.4.

Aim :- Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

Introduction :- Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

Procedure :-

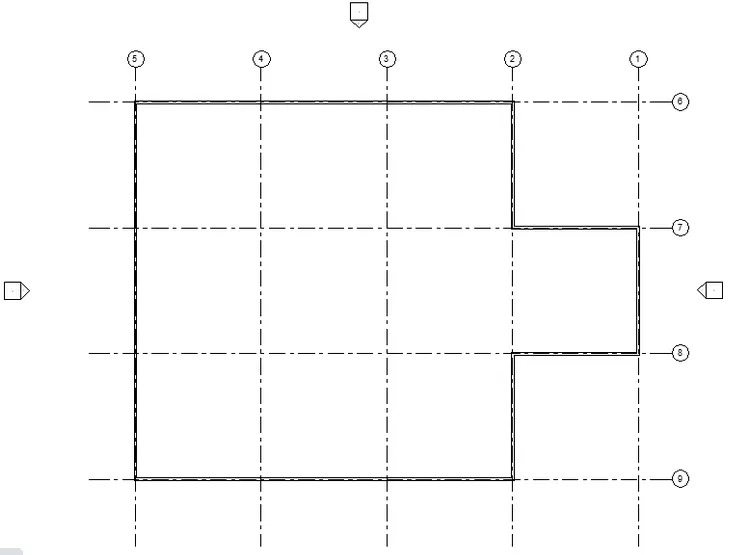

• With same grids used in above question, draw wall along the boundary

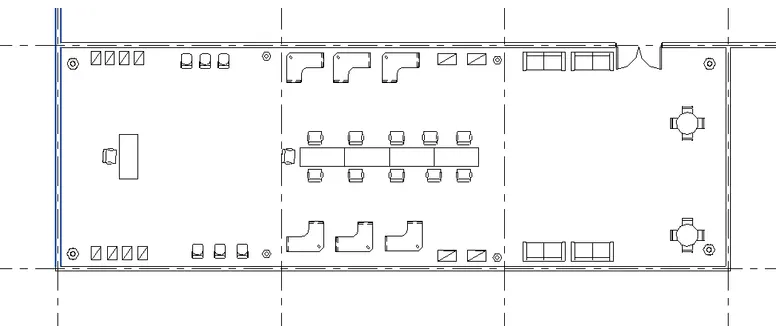

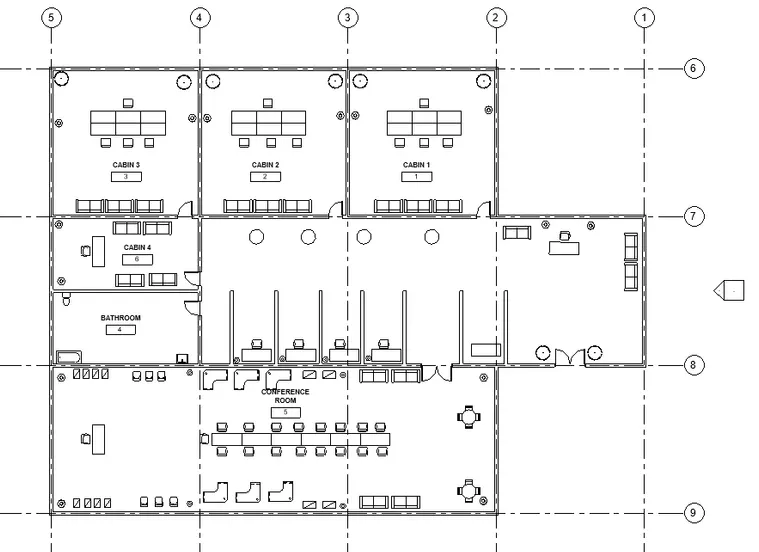

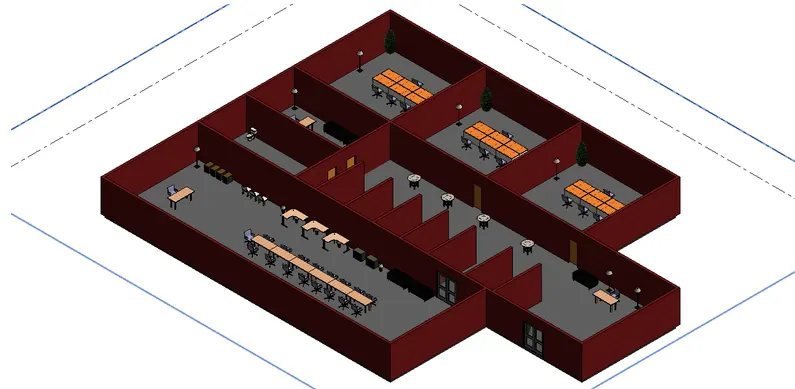

• Draw interior portion and place the required furniture and components in the plan and chnge its view to 3D

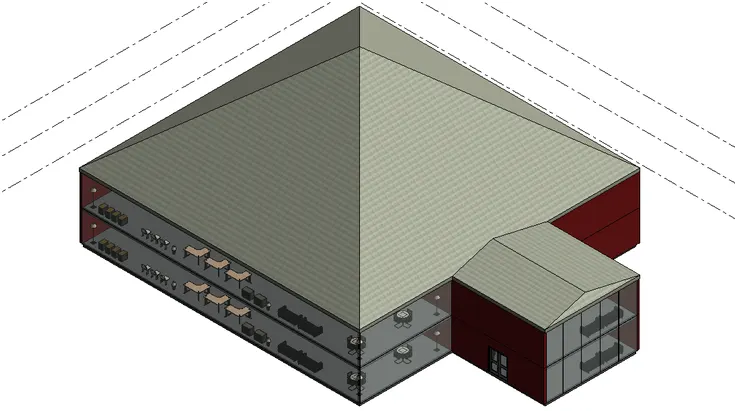

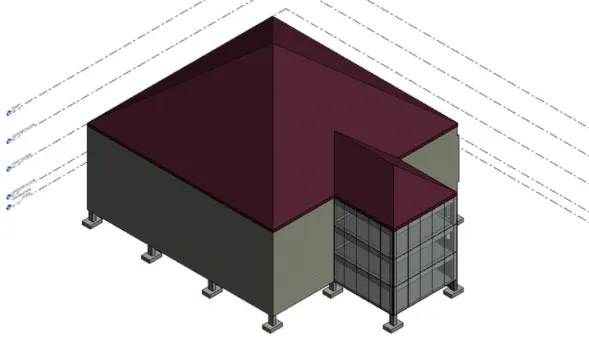

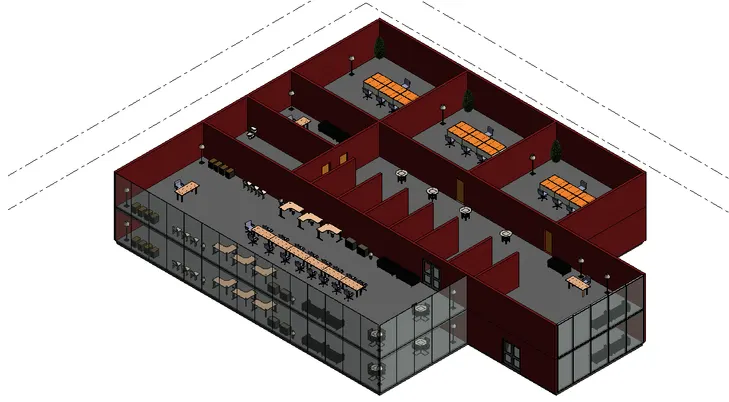

• Change the front wall of building with curtain wall or glazed panel as shown in the below attached picture, copy entire figure and place it to First floor.

• Draw roof by making rectangle along all side of second floor

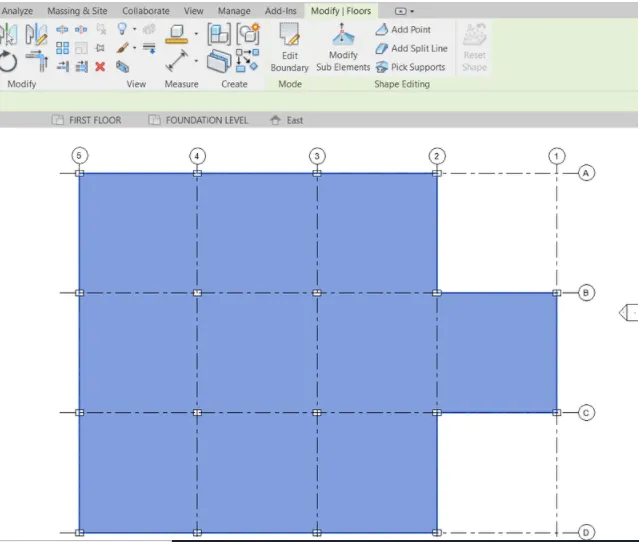

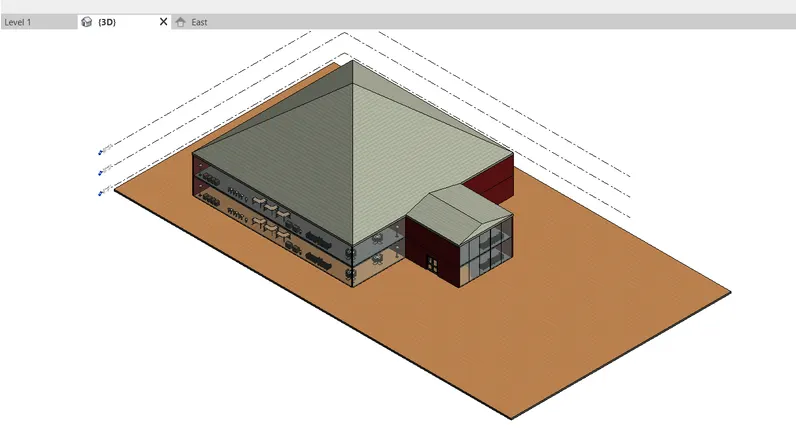

• Now go to plan view and draw a rectangle floor and view it to 3D as shown below

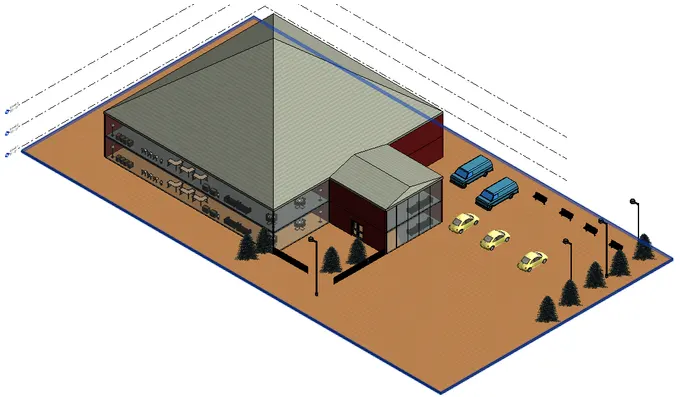

• Go to place component and add the required components from the library and place it in the figure.

Result :-

Above are all the Results.

5.

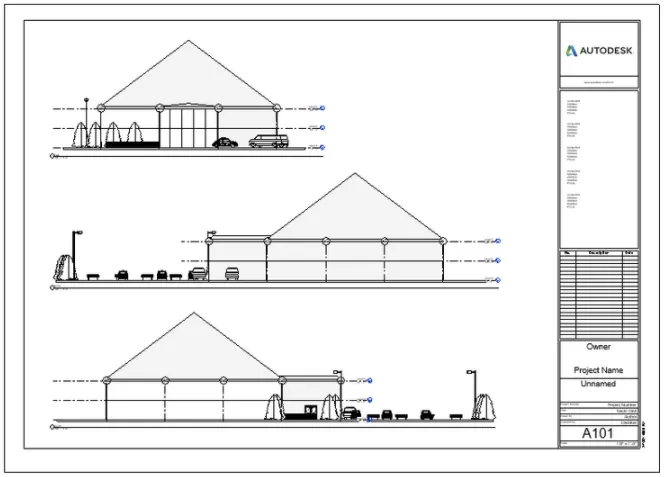

Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections

Ans.5.

Aim :- Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections

Introduction :- Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevations
c. Sections

Procedure :-

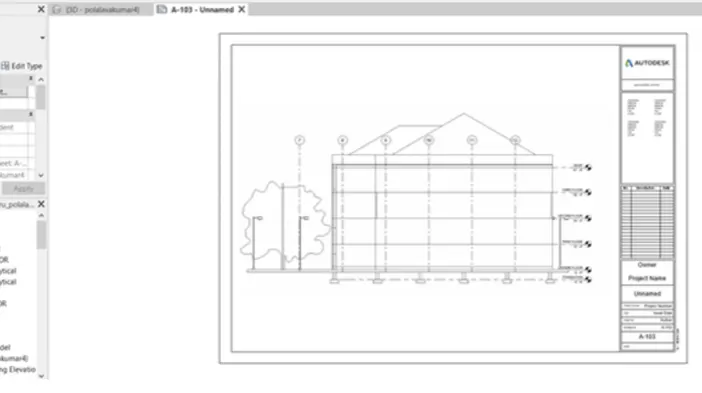

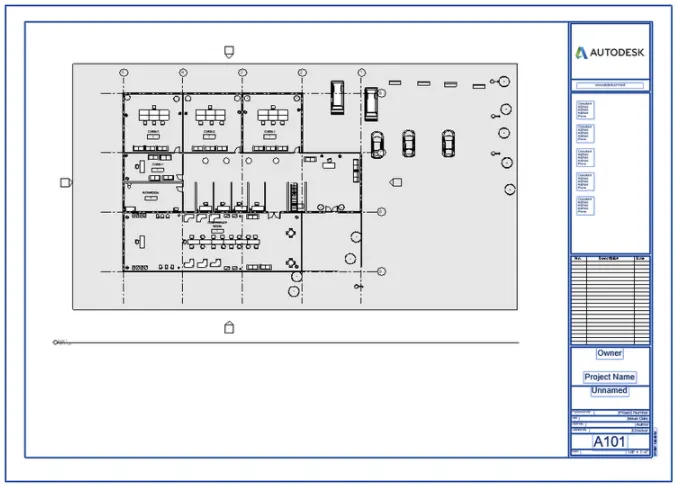

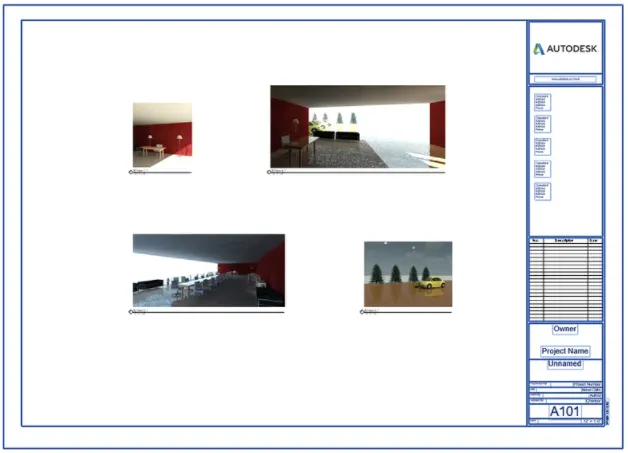

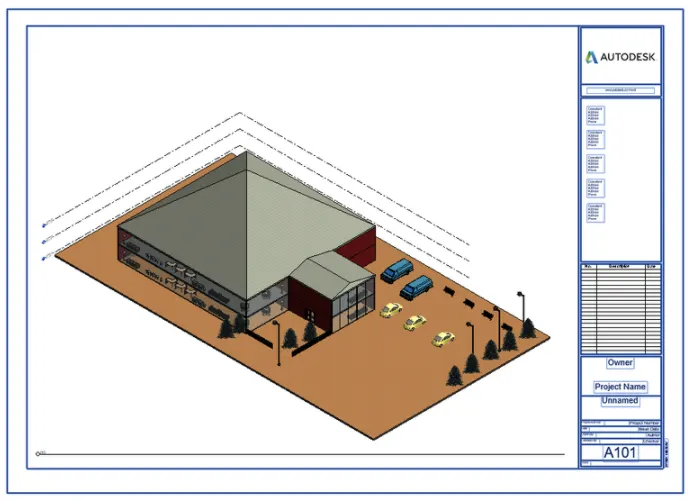

• Go to sheet options, as sheet opens there is other option below it called view and select the view you wanted to place

Result :-

Above are all the Results.

6.

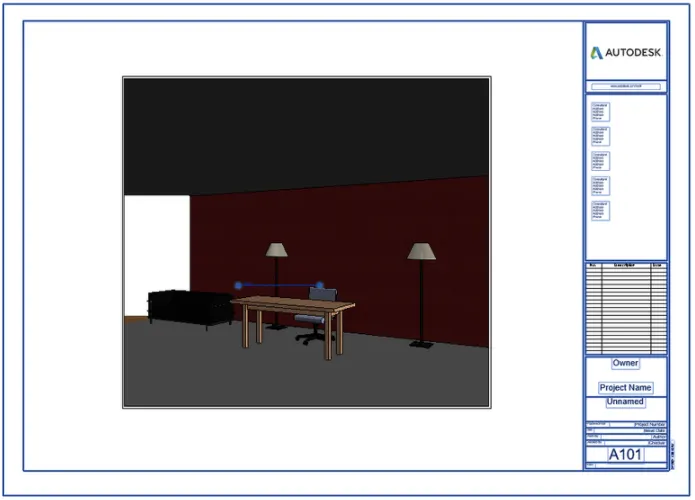

Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms

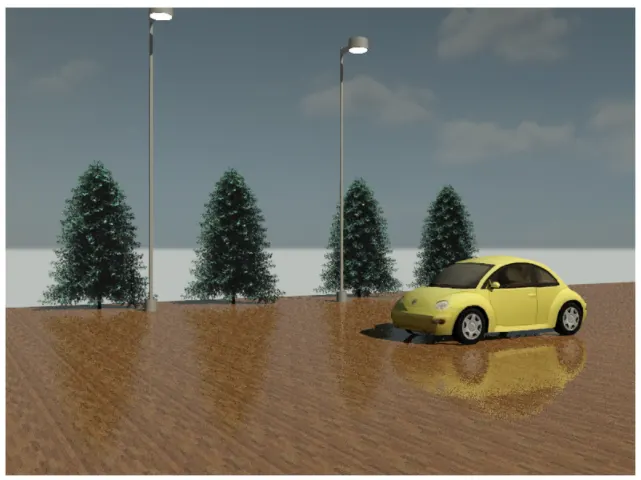

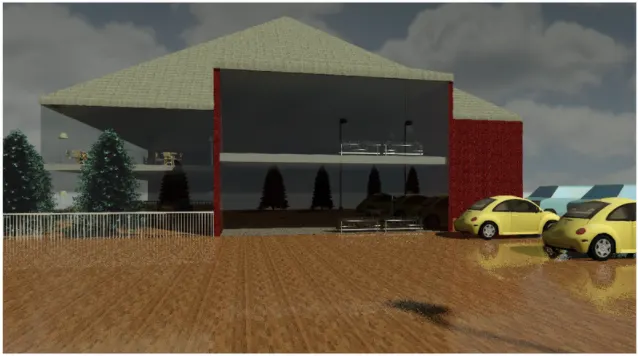

b. Rendering from out showing topographic features
c. Rendering through structural framing

Ans.6.

Aim :- Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing

Introduction :- Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing

Procedure :-

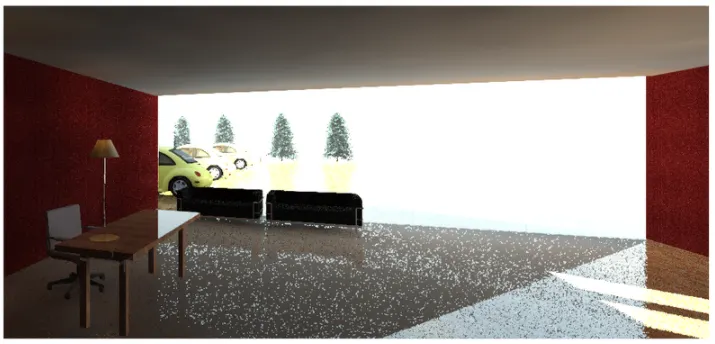

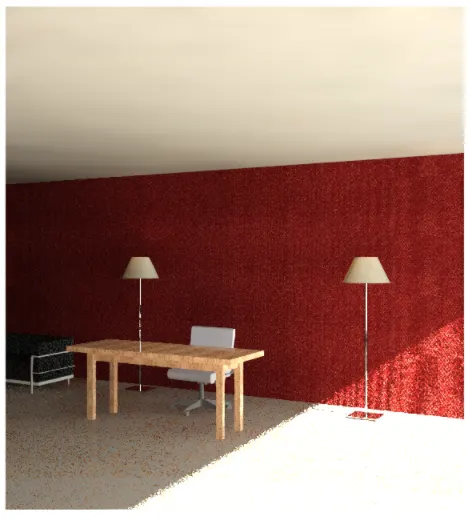

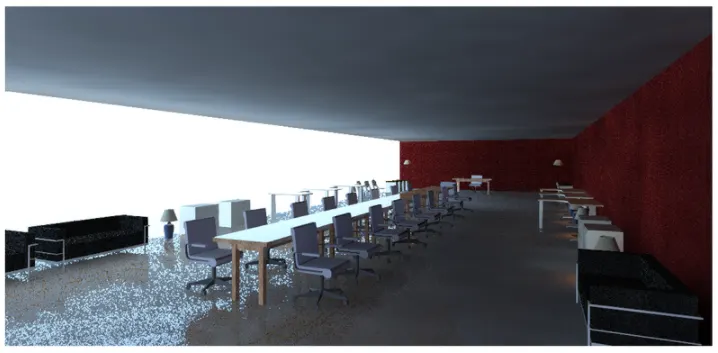

• In order to Render any figure, then go to ribbion option in ribbion and change the setting you want andclick render figure will turn to Realistic as shown below

Result :-

Above are all the Results.

7.

Print the set of drawing sheets created and submit the drawings from the architecture and structure model

Ans.7.

Aim :- Print the set of drawing sheets created and submit the drawings from the architecture and structure model

Introduction :- Print the set of drawing sheets created and submit the drawings from the architecture and structure model

Command used are

• File
• Print
• Setup page
• Select the plotter
• Print

Procedure :-

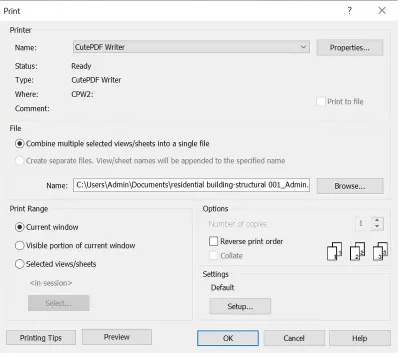

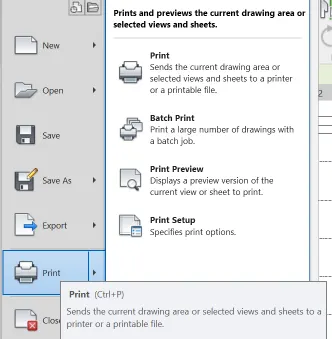

• Click the view and open file menu and click the print
• Print dialog box is appear
• Then, change the setting of sheet size and text, style page setup etc
• Then click print and press ok

Result :-

Set the drawing created and submit thr drawings from architectural and Structural Model.
