Creating Architectural and Structural model with 3D rendering using REVIT

1) Select the type of structure you want to build from one of the three below:
a. Multi-Unit Residential Apartment
b. Office Buildings
c. School

ANS : From the above option I will select OFFICE BUILDING

2) Assume reasonable assumptions for geographic and location details for your project modeling. Based on assumptions and type of structure selected identify the modeling requirements from NBC

ANS :

AIM : Assume the reasonable assumptions for geographical location details for your project modelling. Based on the assumptions and the type of structure selected identify the modelling requirements from NBC.

PROCEDURE :

I will assume that the project is in plain area and it is a commercial area. Road width in front of the building structure is 80feet.

MODELLING REQUIREMENTS AS PER NBC ARE :

The minimum height of the basement should be 2.5m and maximum height should be 4.5m.

As per NBC exit should be provided in each floor for easy escape of employees from the building if in case of earthquakes or fire hazards.

3) Using the structural model, include the following components based on the type of structure selected
a. Foundation – Isolated / Wall/Matt Foundation
b. Columns
c. Beams Connected to Columns
d. Roof Framing/ Truss
e. Floor / Decks
f. Floor Openings for Elevators and Stairs

ANS :

AIM : Using the structural model, include the following components based on the type of structure selected

1. Foundation – Isolated/Wall/Matt foundation
2. Columns
3. Beams connected to columns
4. Roof framing/Truss
5. Floor/Decks
6. Floor openings for Elevators and stairs

PROCEDURE :

STEP 1 : Open Revit software in that go to new and open Structural template.

Save the file by giving appropriate name to the file.

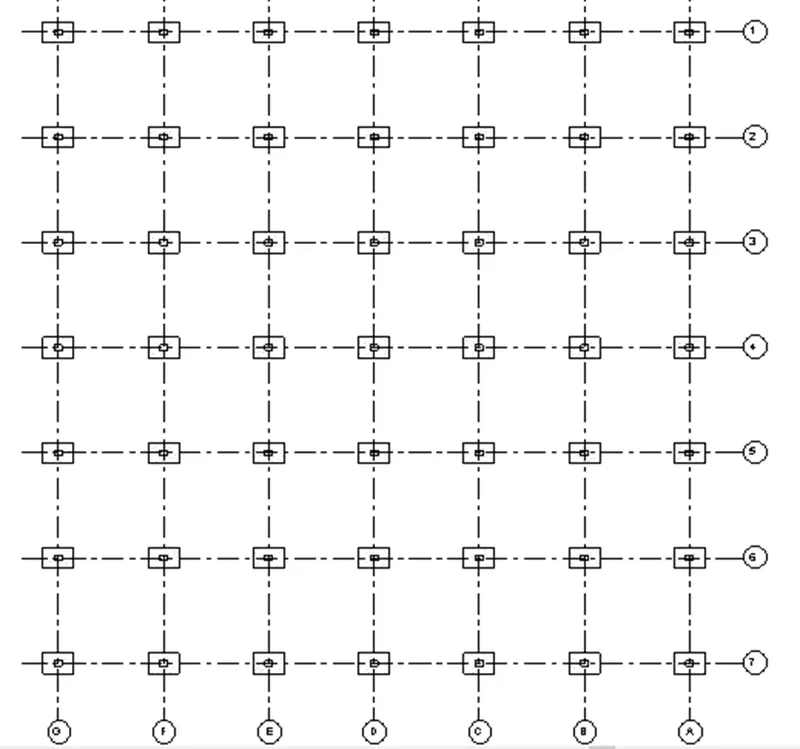

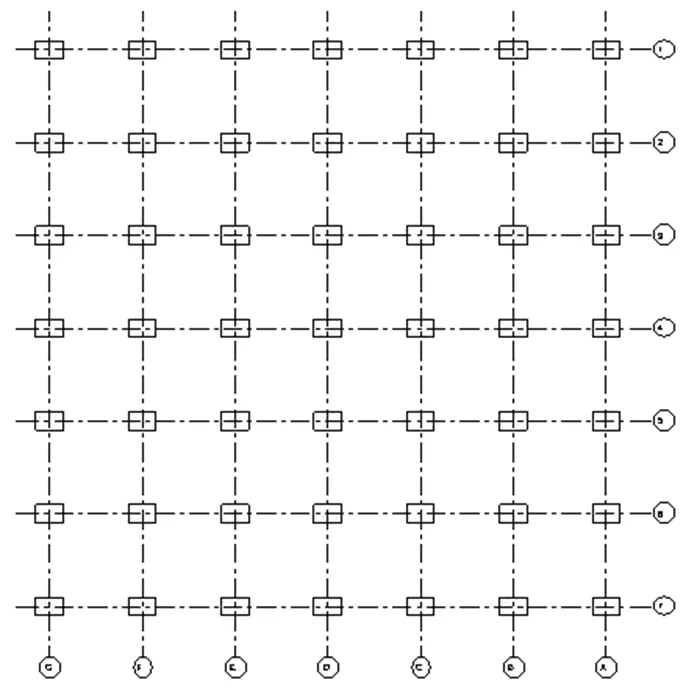

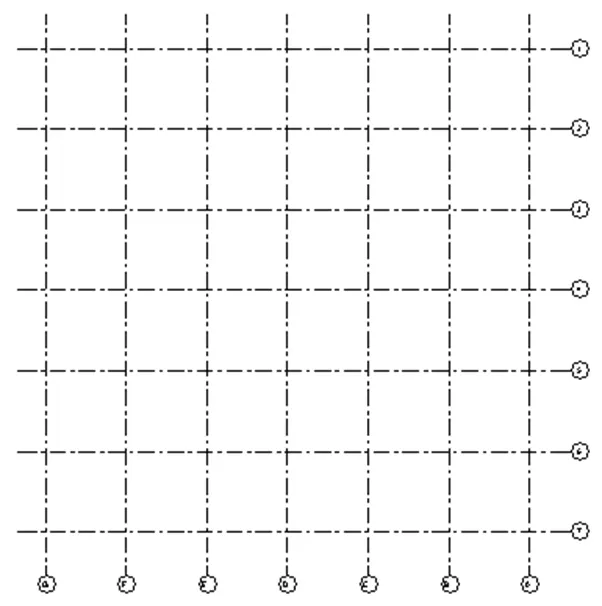

Go to structure tab select grid line and draw transverse and longitudinal grid lines at 20’ distance.

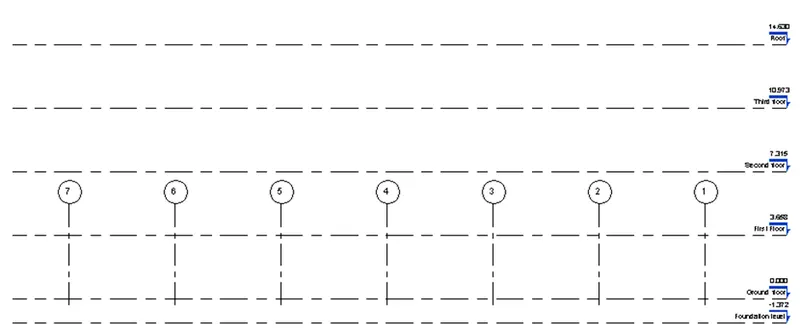

STEP 2 : Go to elevation view and create the levels till roof and change the name accordingly

STEP 3 : Go to structure tab select isolated footing and add footing at every grid joints

STEP 4 : Go to structure tab select column and add column at every grid joints

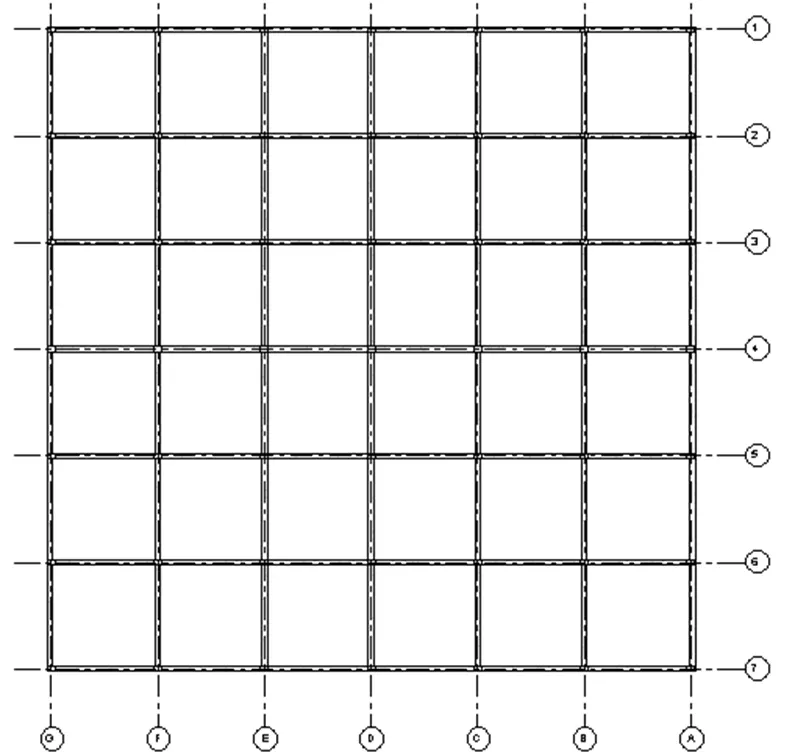

STEP 5 : Go to structure tab select beam and add beam at between each columns

STEP 6 : Go to structure tab select floor and add floor to the project

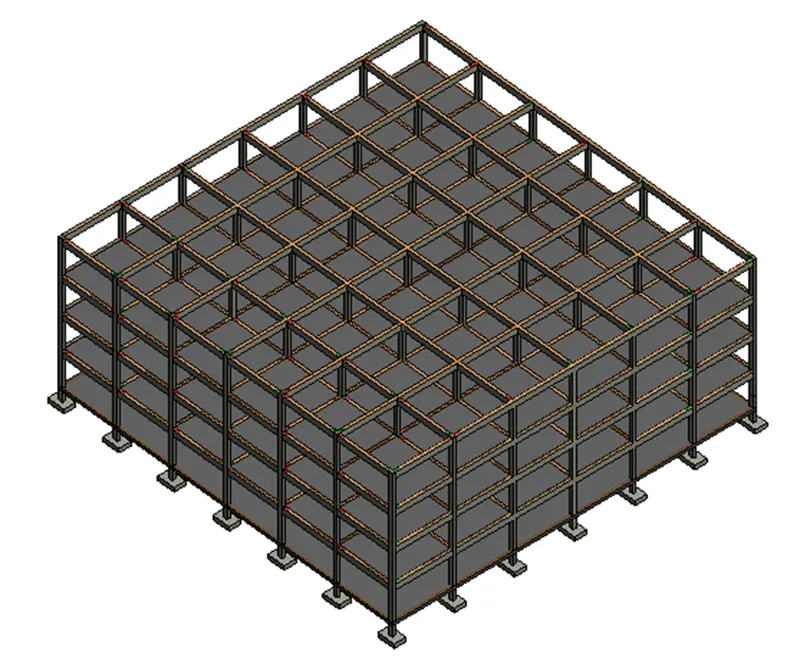

STEP 7 : Copy the beams and floor and paste it to the aligned to selected level and select the levels and press ok

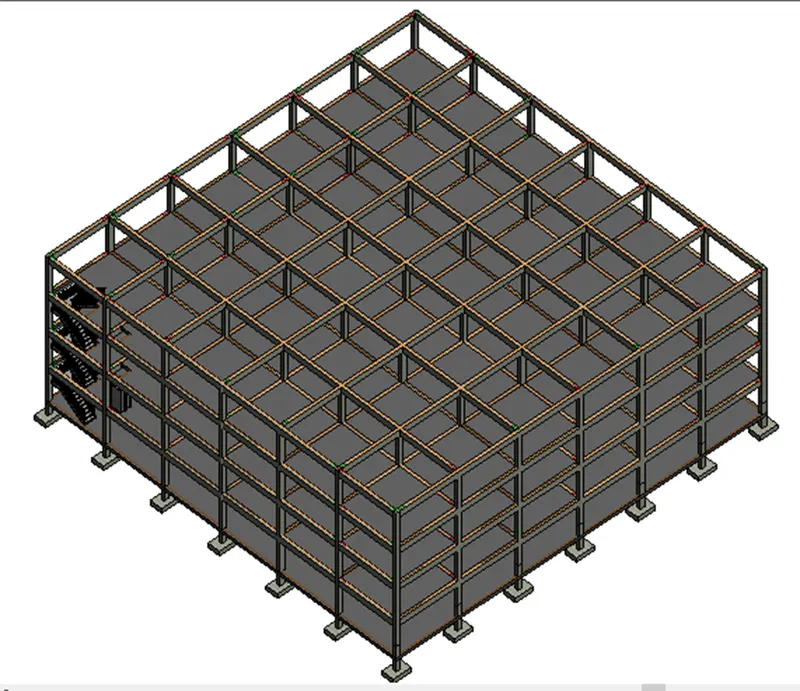

STEP 8 : By using insert tab select load family insert elevator to the project and draw staircase using stair tool to the project. By using the shaft tool create the opening where staircase and elevator are placed

RESULT : The given challenge is completed by using necessary tools in REVIT software

4) Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

ANS :

AIM :Using the architectural model, include the following components based on the type of structure selected
a. Wall Layout with appropriate material and finishing
b. Exterior façade with fancy finish
c. Interior partition walls to size rooms
d. Components to add details to a room ( Desk, Chair, Lighting, Plumbing fixtures)
e. Add components such as stairs Elevators
f. Have at-least one side of the building with curtain walls and glass panels
g. Include interior and exterior lighting fixtures
h. Place proper topographic components from outside ( Trees, Parking, Plants) to add details to the model

PROCEDURE :

STEP 1 : Open the new Revit file with architectutral template and link the structural fiile to the architectural file

Draw the external walls and inerior walls according to the grid line drawn

STEP 2 : Add components like doors windows and furniture coponents to the accornding the requirement

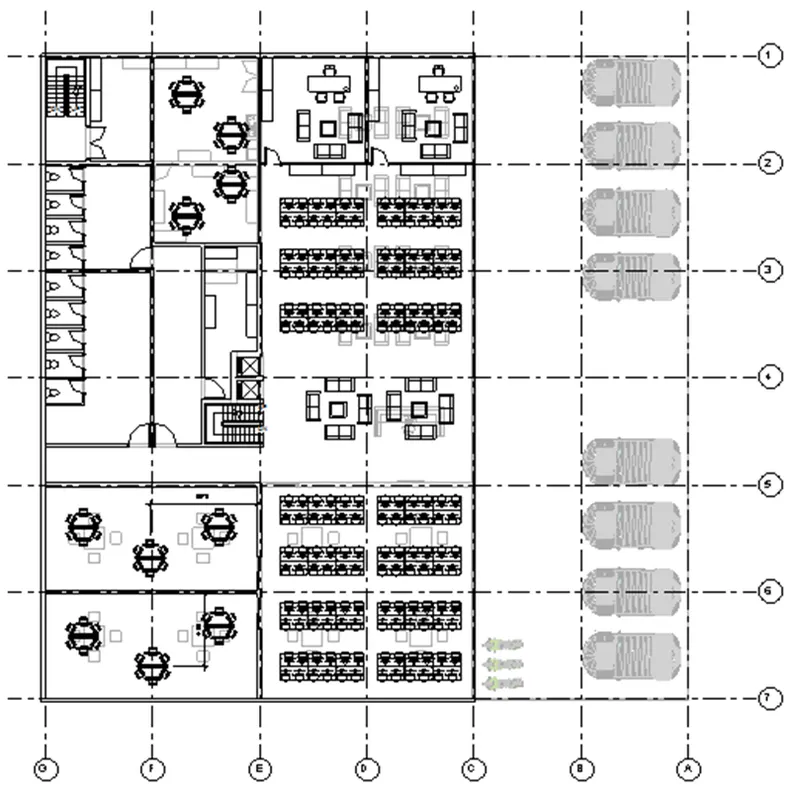

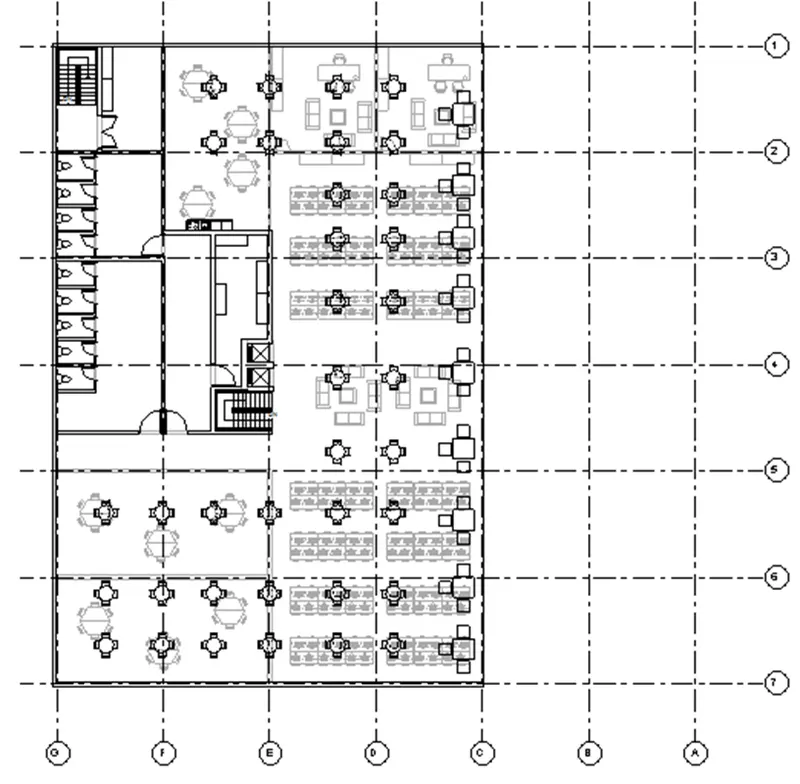

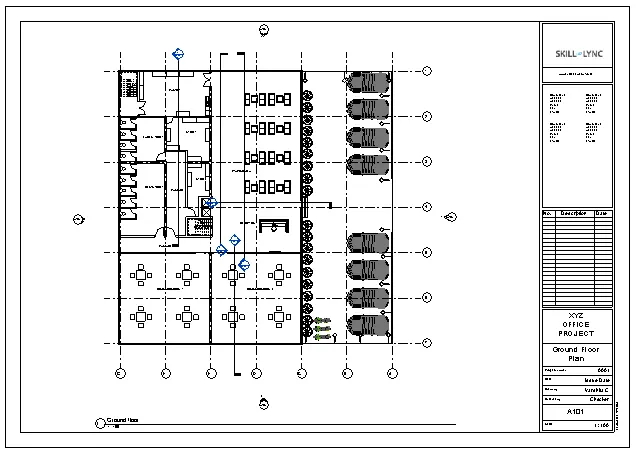

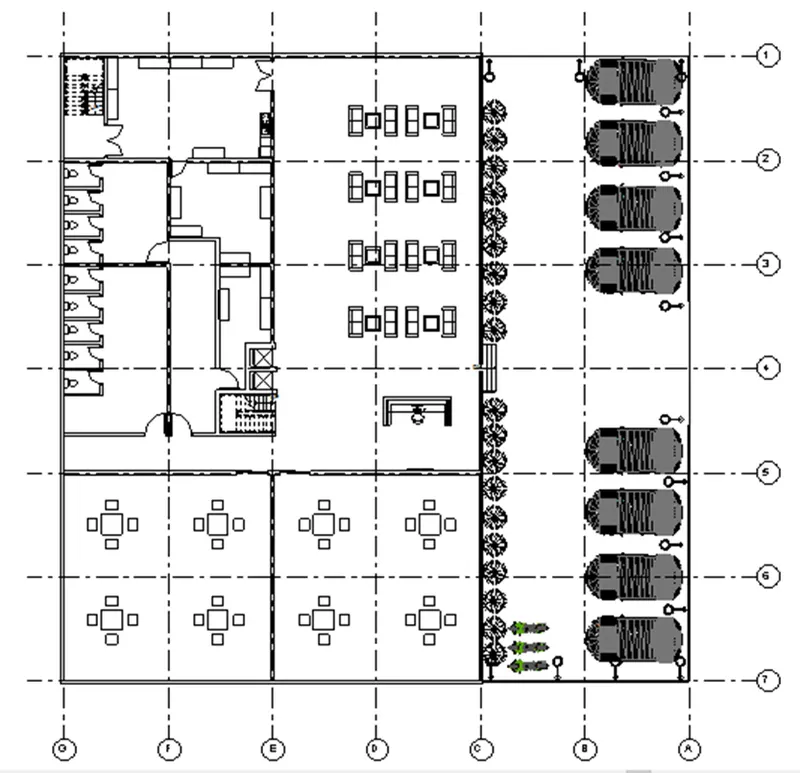

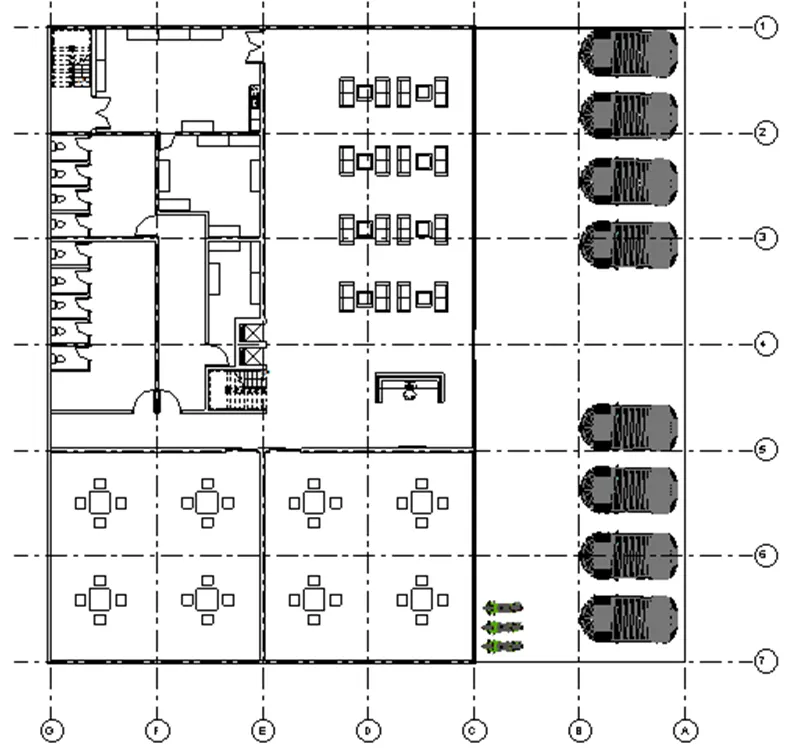

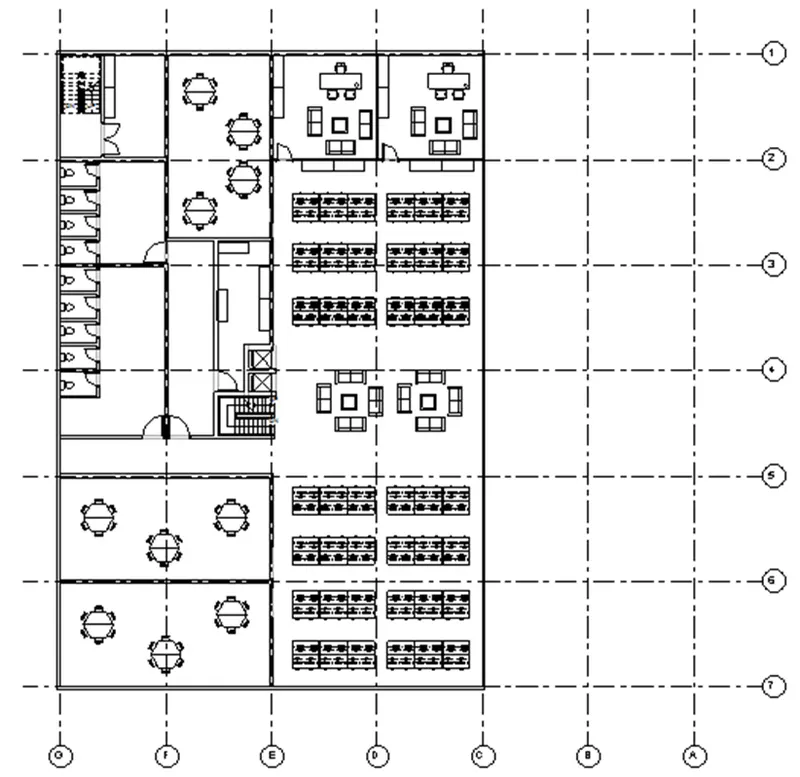

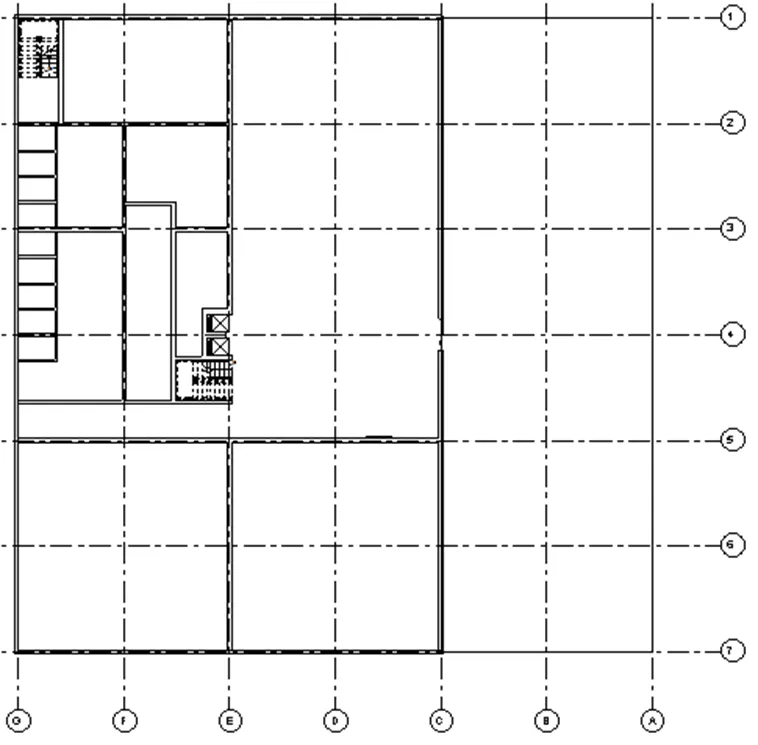

Ground floor plan

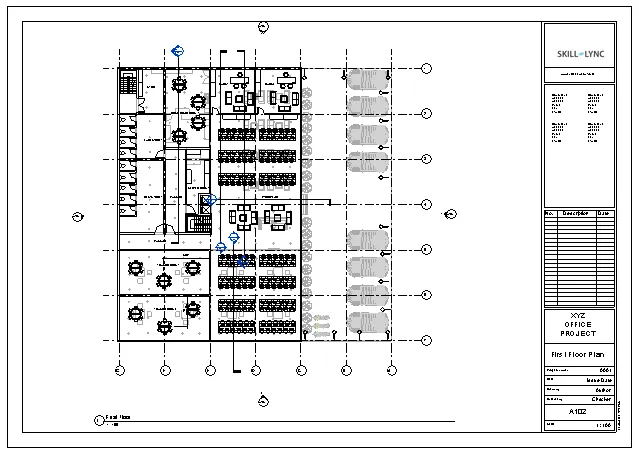

First floor plan

Second floor plan

Third floor plan

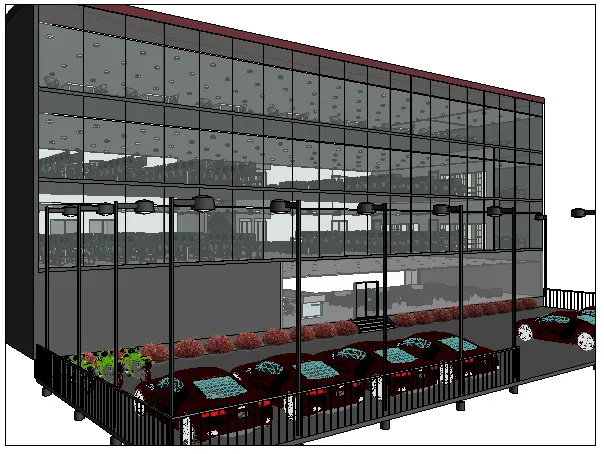

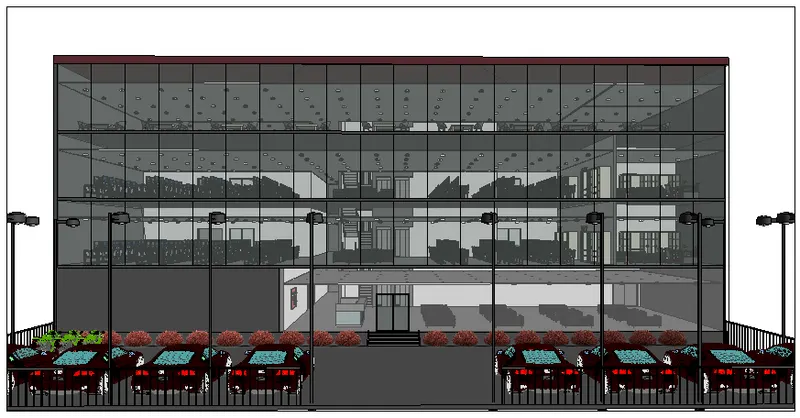

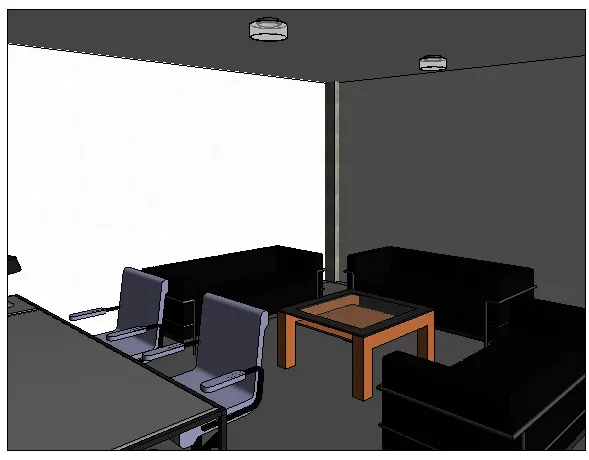

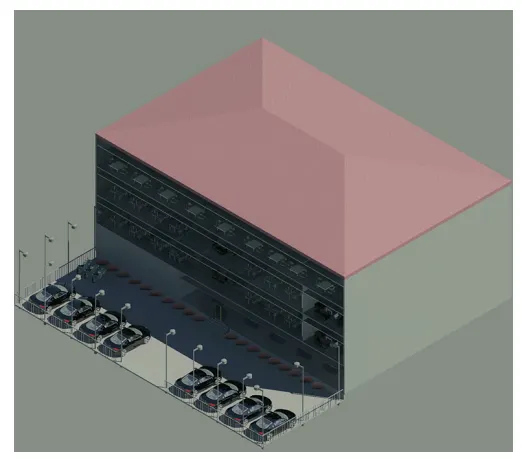

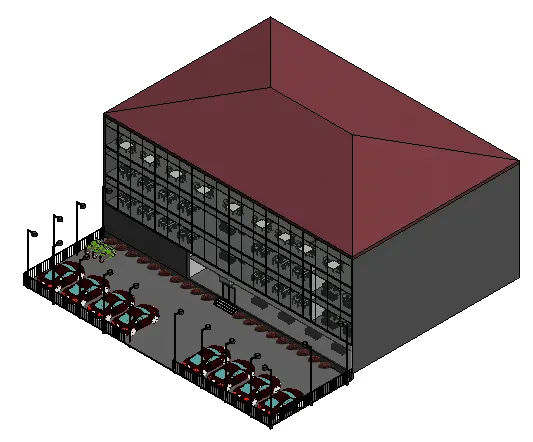

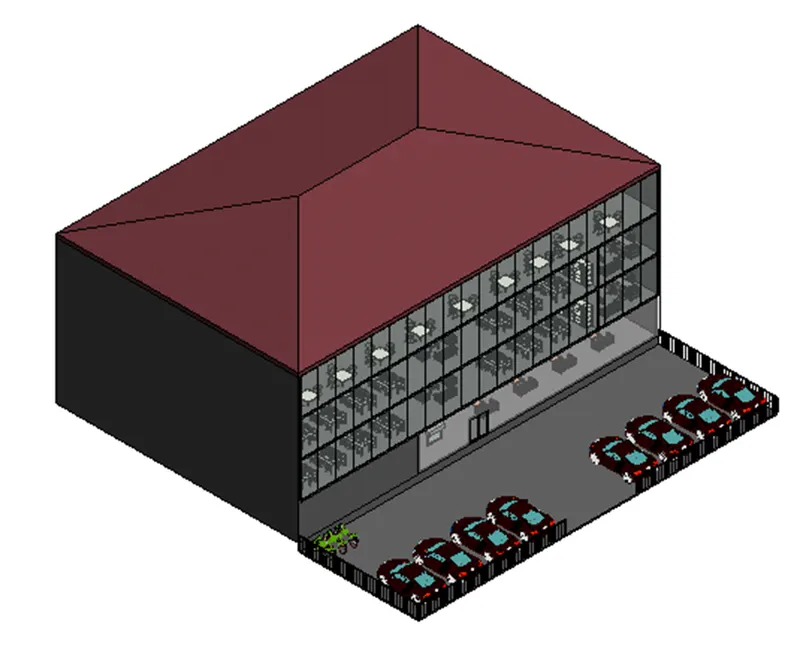

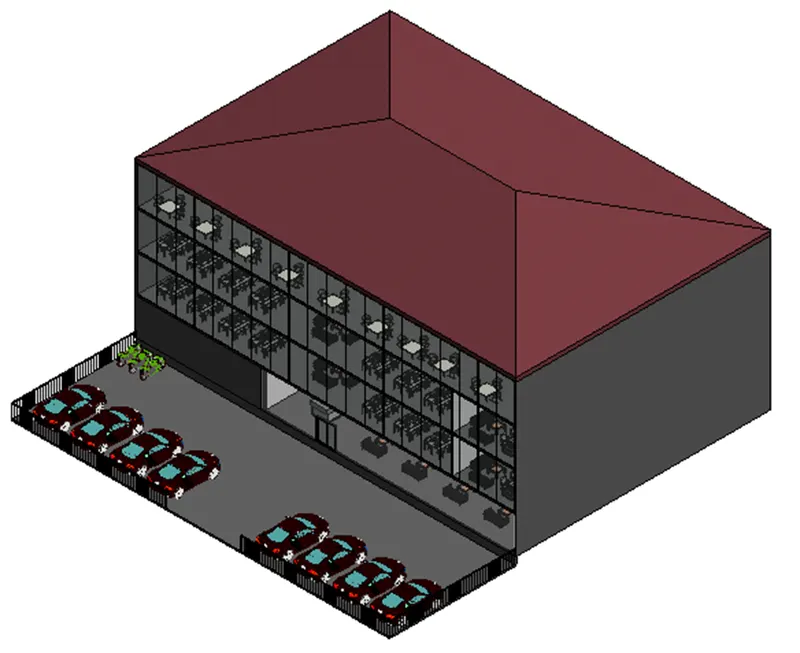

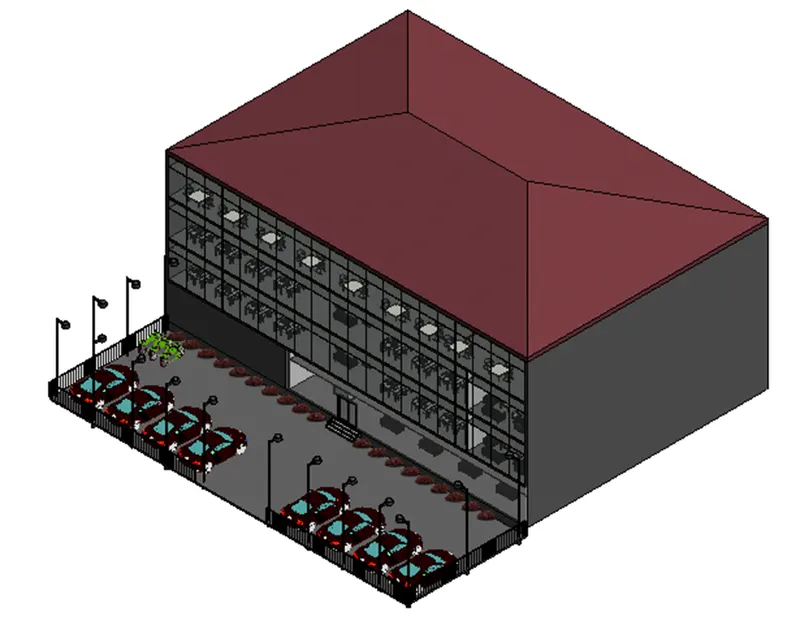

3D view

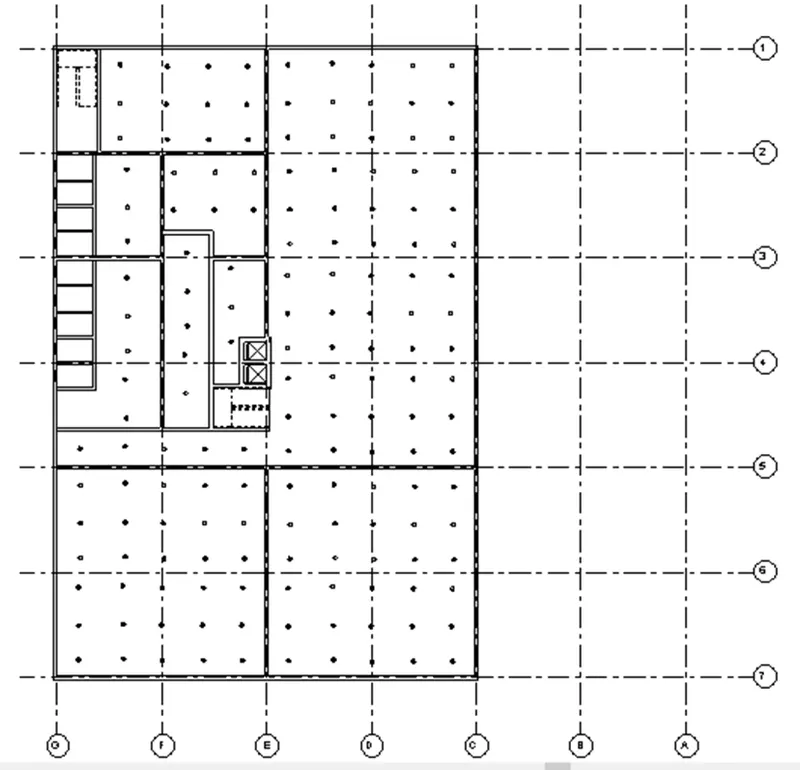

STEP 3 : Add ceiling lights and exterior light

STEP 4 : Add topographical components to the model wherever required

RESULT : The given challenge is completed by using necessary tools in REVIT software

5) Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevationsdrawing
c. Sections

ANS :

AIM : To Provide a set of drawings in an architectural and structural model to list the following details with categories and appropriate sheet templates included
a. Floor Plans with Annotations
b. Elevationsdrawing
c. Sections

PROCEDURE :

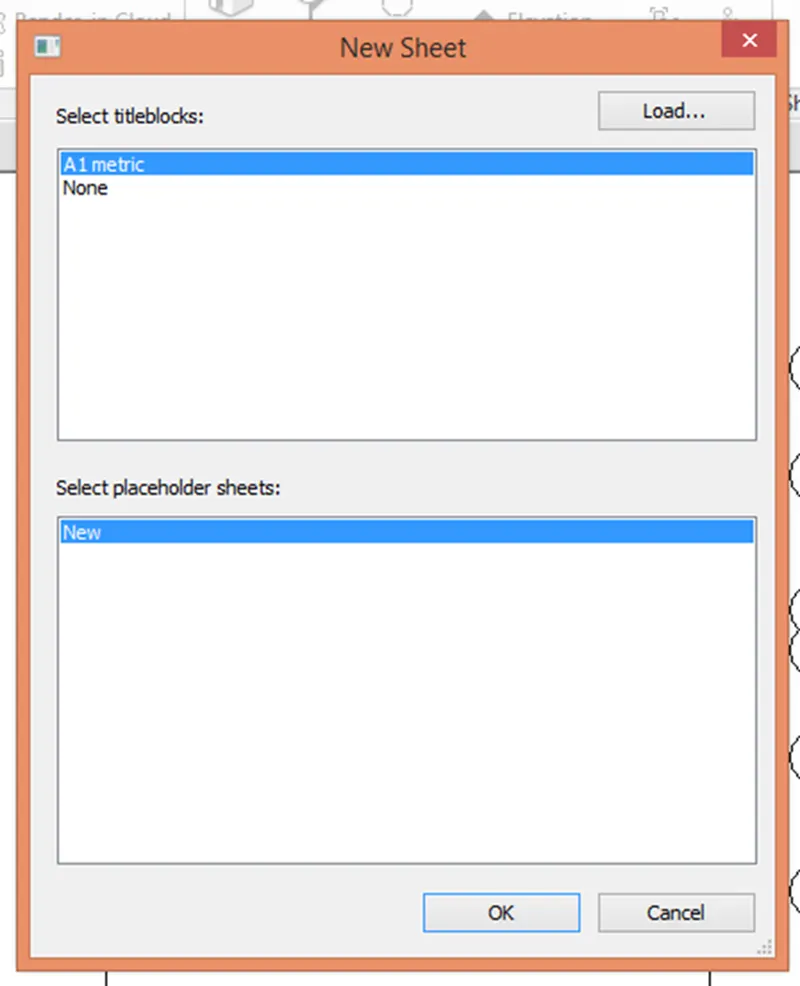

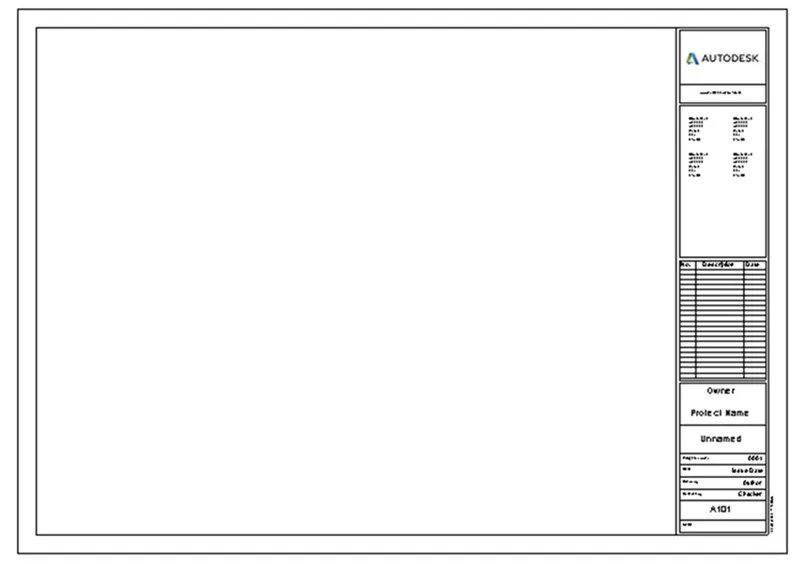

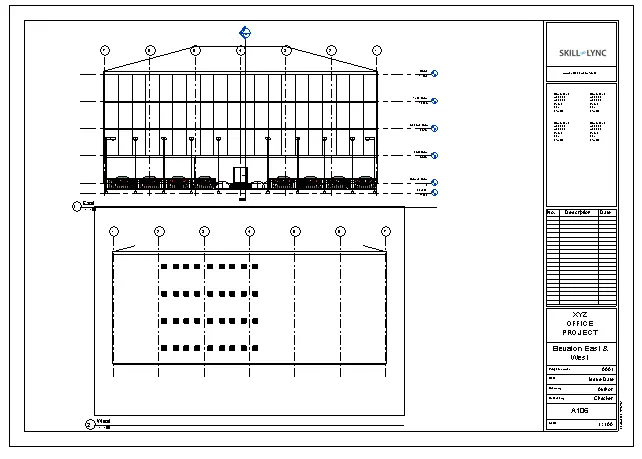

STEP 1 : Go to view tab and select sheet in that select A1 metric and press ok the template sheet is displayed

STEP 2 : Edit the sheet according to the requirement and add the views as per the question

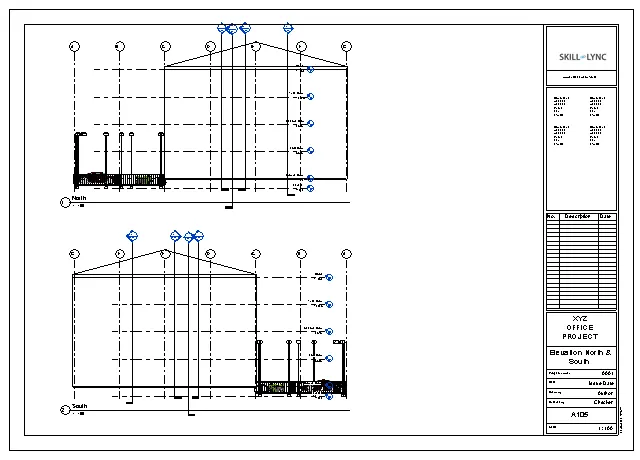

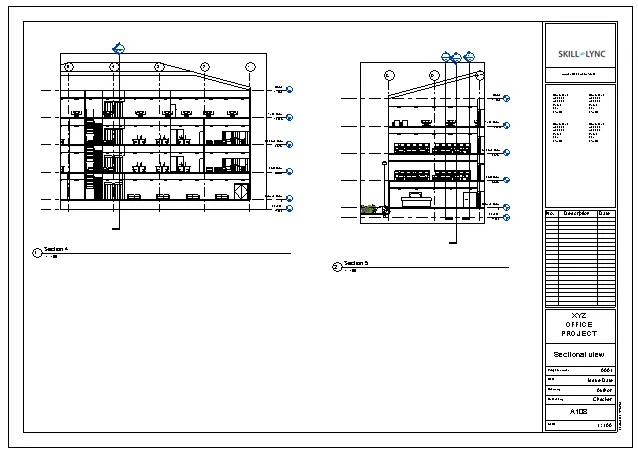

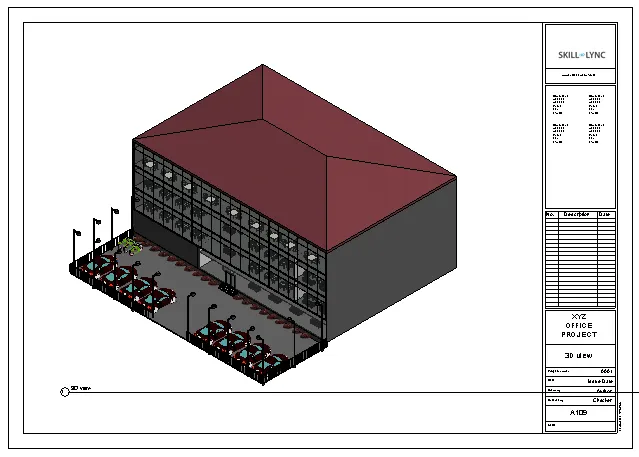

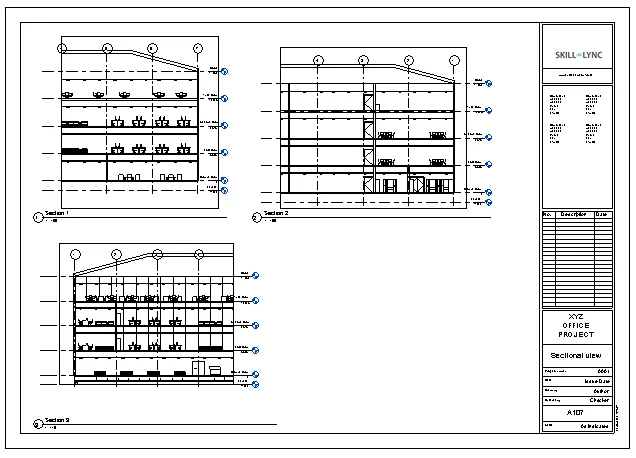

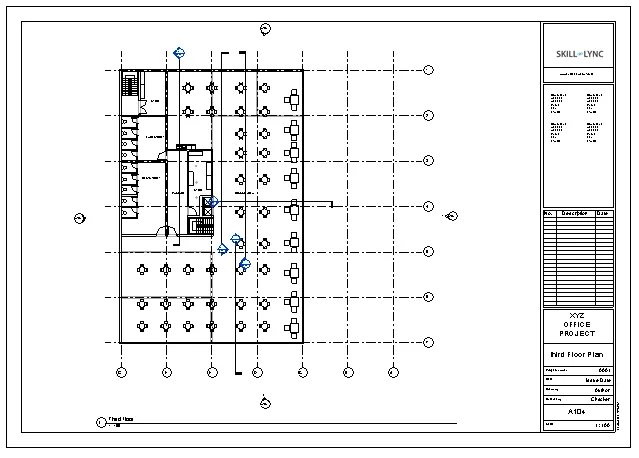

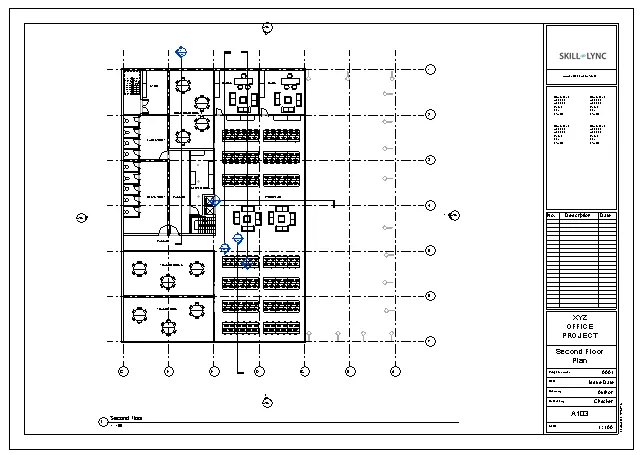

Add Floor Plans with Annotations, Elevations drawing and Sections in different sheets

RESULT : Sheet templates are created and the drawings are added to the sheet

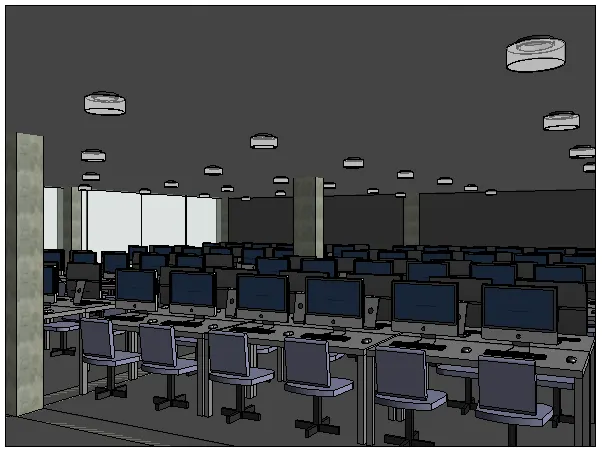

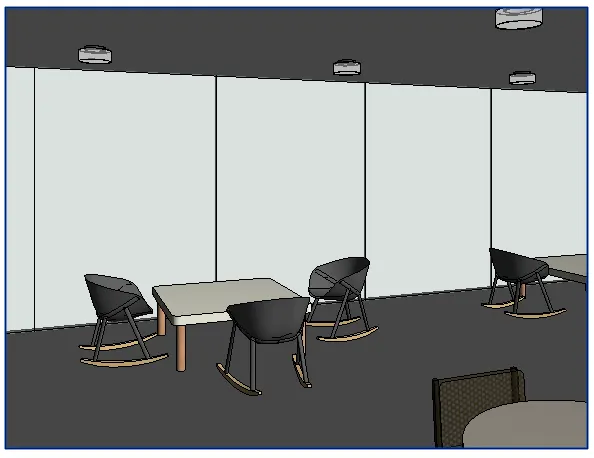

6) Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets
a. Rendering from interior rooms
b. Rendering from out showing topographic features
c. Rendering through structural framing

ANS :

AIM :Using the Rendering settings, Render images of the 3D model produced and include the rendered images to the drawing sheets

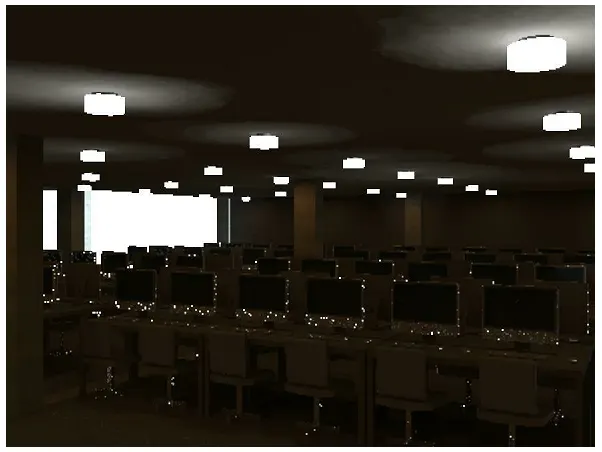

a. Rendering from interior rooms

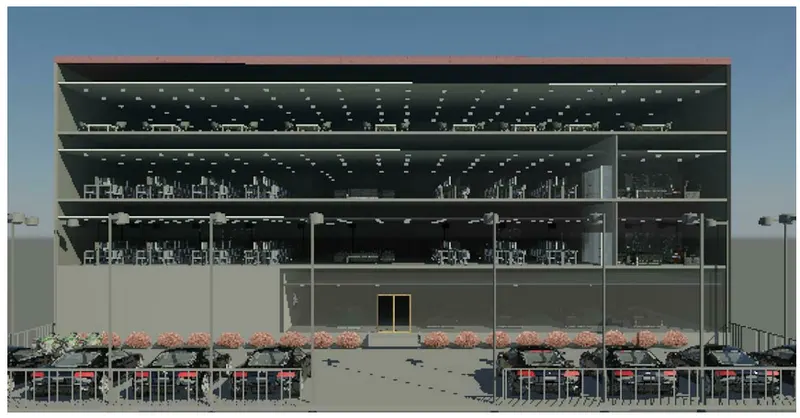

b. Rendering from out showing topographic features
c. Rendering through structural framing

PROCEDURE :

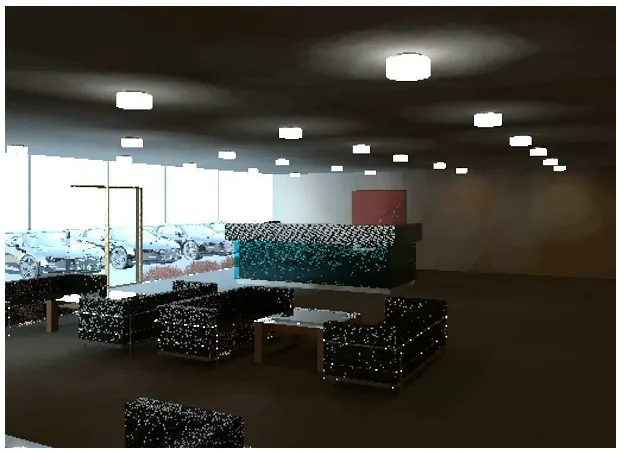

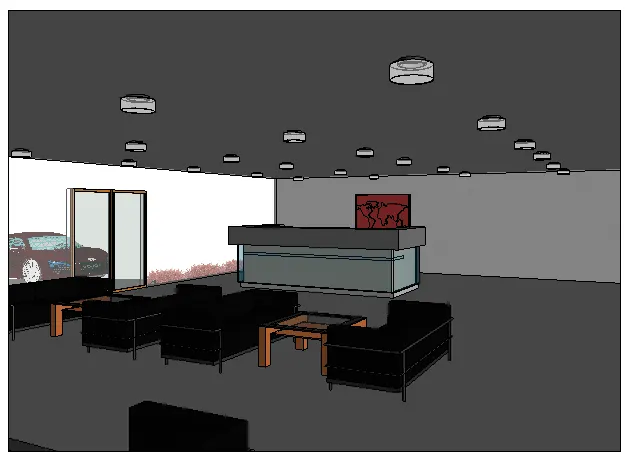

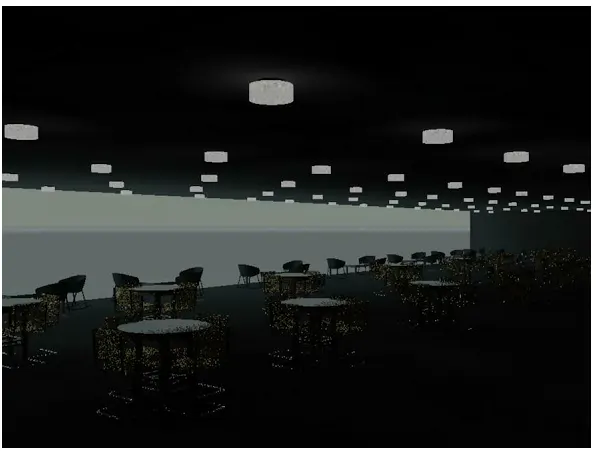

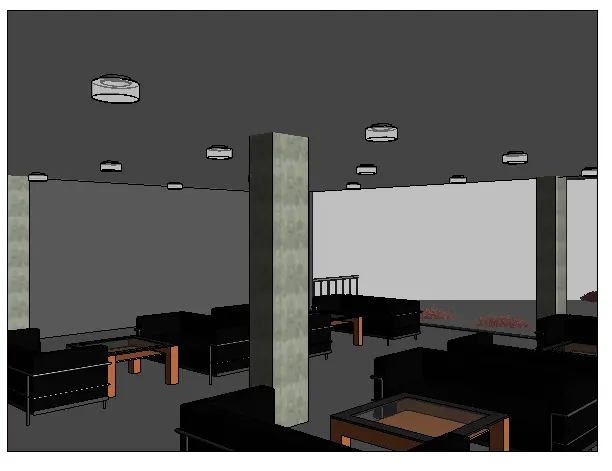

STEP 1 : Go to view tab select camera and set camera views

RESULT : The views are rendered

7) Print the set of drawing sheets created and submit the drawings from the architecture and structure model

ANS :

AIM : To print the set of drawing sheets created and submit the drawings from the architecture and structure model

PROCEDURE :

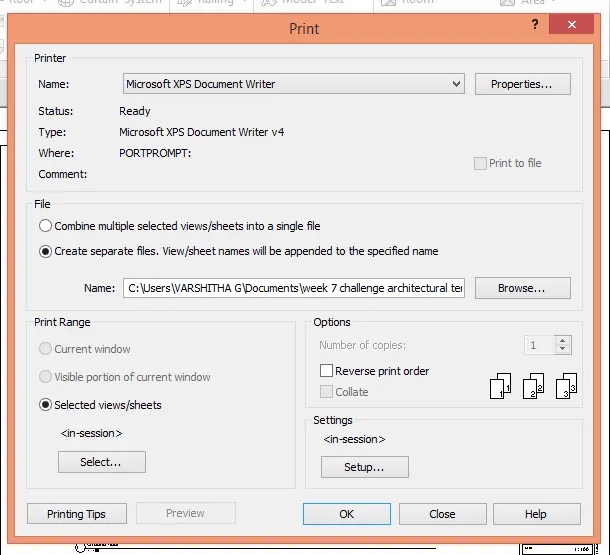

STEP 1 : Press Ctrl + P or go to application menu and select print

Select the appropriate settings, select the sheet or view and press ok

RESULT : The sheets are printed
