Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

A)

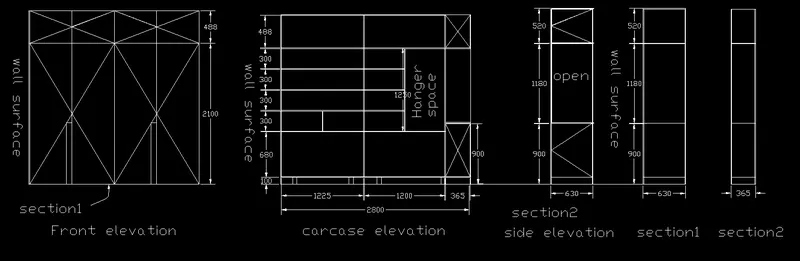

AIM- TO Draw the elevation and details of a wardrobe as shown in the Figure

PROCEDURE-

1. SELECT the line command
2. draw the elevation as per the dimension given
3. select the DIMENSION tool
4. give the dimension
5. select the TEXT tool
6. alot the specified position to the text in the figure

RESULT

B)

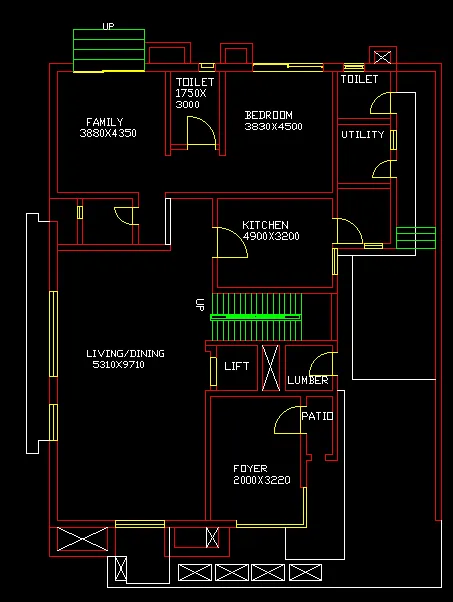

AIM -Draw the floor plan as shown in the Figure

GIVEN-

1. Walls (Exterior and Interior)

Wall Thickness: Exterior Wall- 230mm, Interior Wall: 150 mm (Wherever Required)

2. Doors and Windows: Assume the size of the doors and window.

2.1 Stairs: Tread-300mm, Riser-150mm

3. Insert Text wherever required
4. Insert the dimensions using proper dimension techniques

PROCEDURE

1. SELECT the layer ->add new layer->name it as walls(aloted colour red)
2. SELECT the line tool
3. draw the plan as per the given dimension
4. provide stairs in different layer (aloted colour green)
5. provide doors/windows in different layer (aloted colour yellow)
6. select the dimension tool and specify the dimensions
7. select single line text and specify the position of the text as given
8. with the help of line tool comlete the remaining details

RESULT

C)

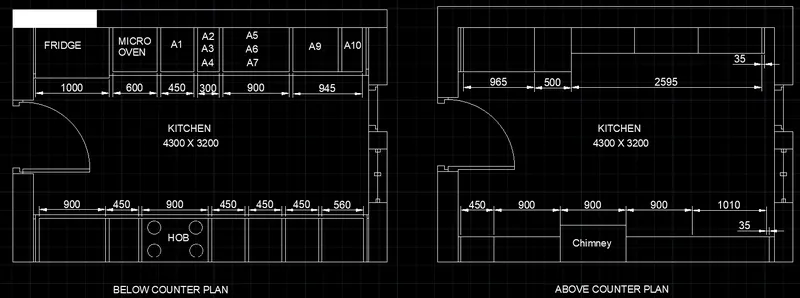

AIM- TO Create the Kitchen Layout as shown in the Figure

PROCEDURE-

1. SELECT the line command
2. draw the LAYOUT as per the dimension given
3. select the DIMENSION tool
4. give the dimension
5. select the TEXT tool
6. alot the specified position to the text in the figure

RESULT

D)

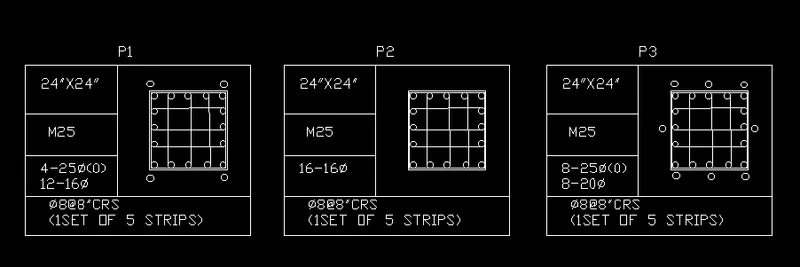

AIM- TO Sketch the column details as shown in Figure and also Insert dimensions and text in the figure

PROCEDURE-

1. SELECT the line command
2. draw the column as per the dimension given
3. select the DIMENSION tool
4. give the dimension
5. select the TEXT tool
6. alot the specified position to the text in the figure

RESULT

E)

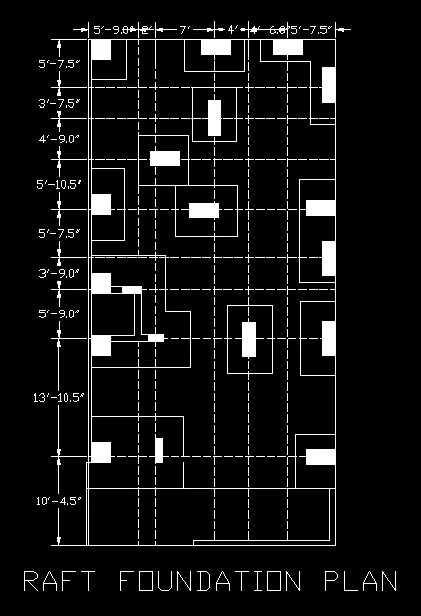

AIM- TO Draw the Raft Layout as shown in the Figure

PROCEDURE-

1. SELECT the line command
2. draw the LAYOUT as per the dimension given
3. select the DIMENSION tool
4. give the dimension
5. select the TEXT tool
6. alot the specified position to the text in the figure

RESULT
