Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

Aim 1 :

Draw the elevation and details of a wardrobe.

Procedure :

• Use Commands:
  1. Line
  2. Fillet
  3. Offset
  4. Trim
  5. Mirror
  6. Dim
  7. Mtext
• Steps:

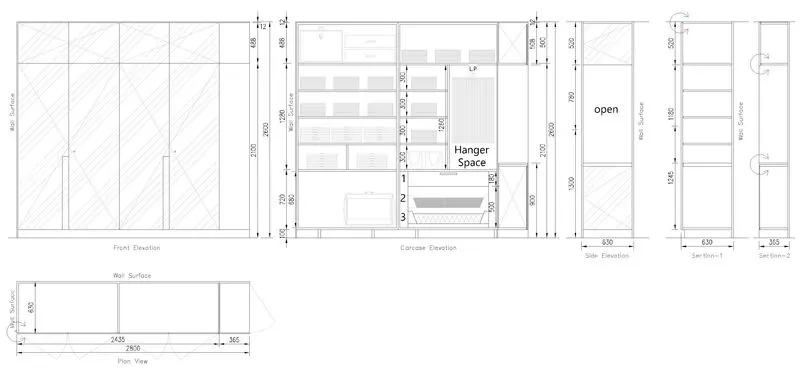

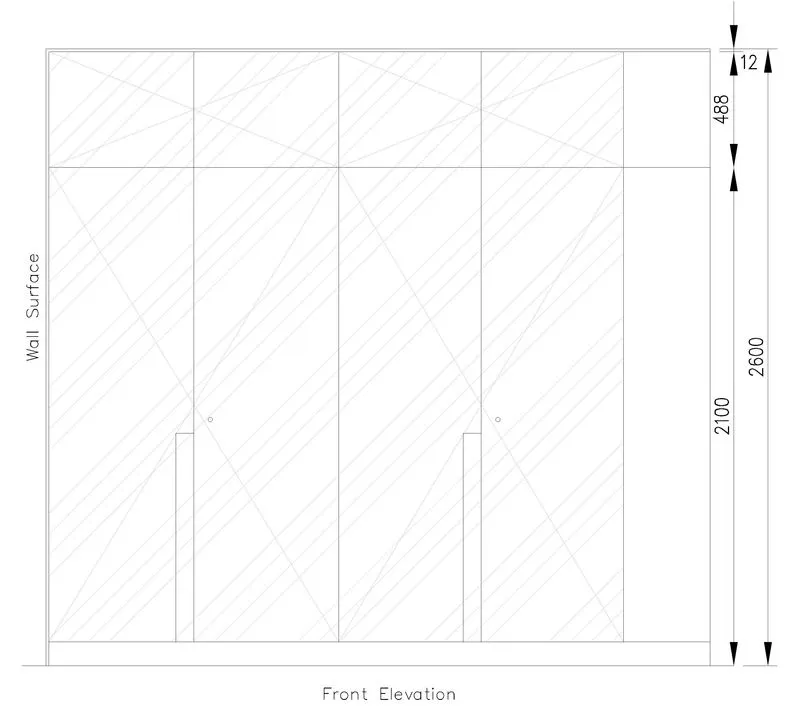

  1. Using all command first Draw the Front Elevation as given.
     •

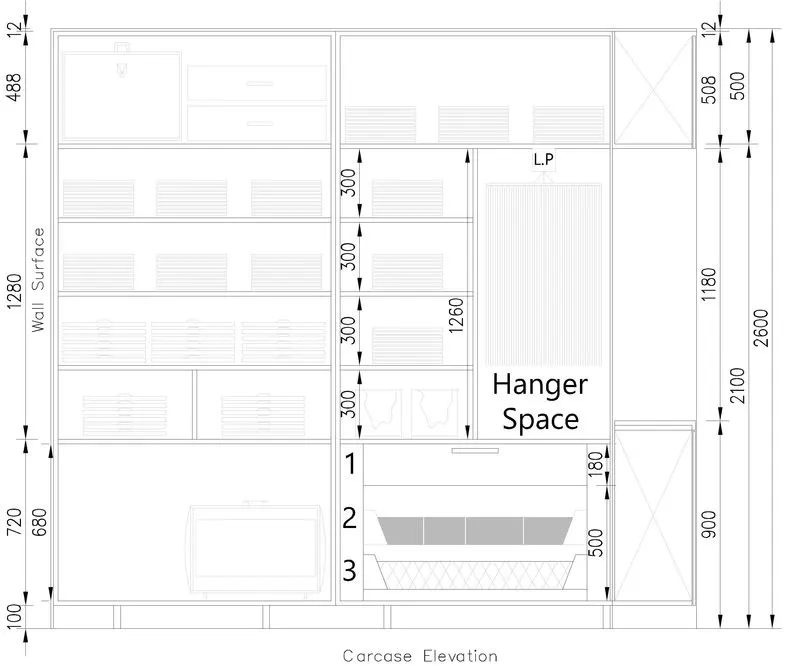

  2. Now Draw the Carcase Elevation as given.
     •

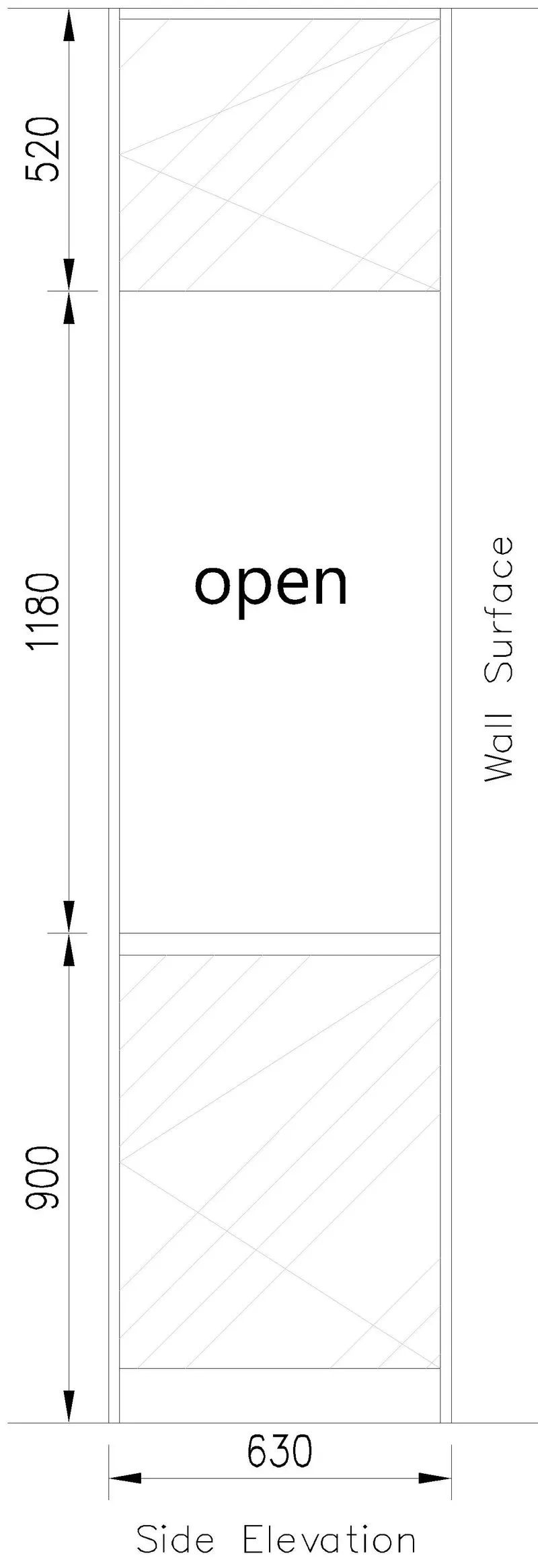

  3. Draw the Side Elevation as given.
     •

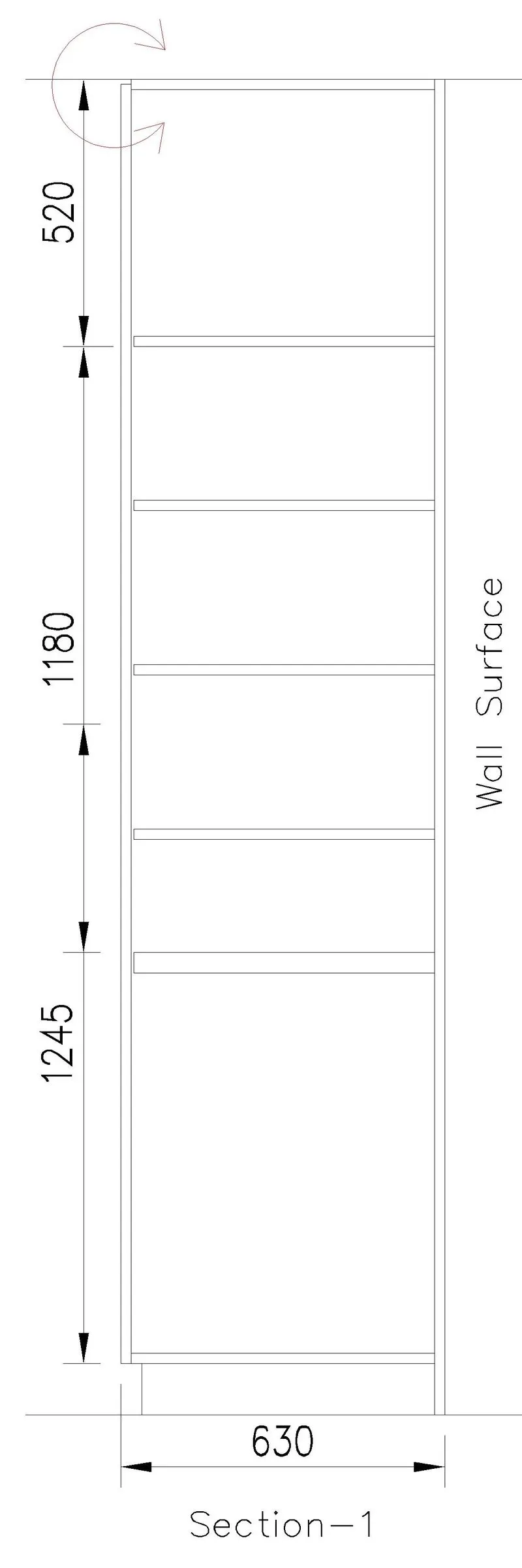

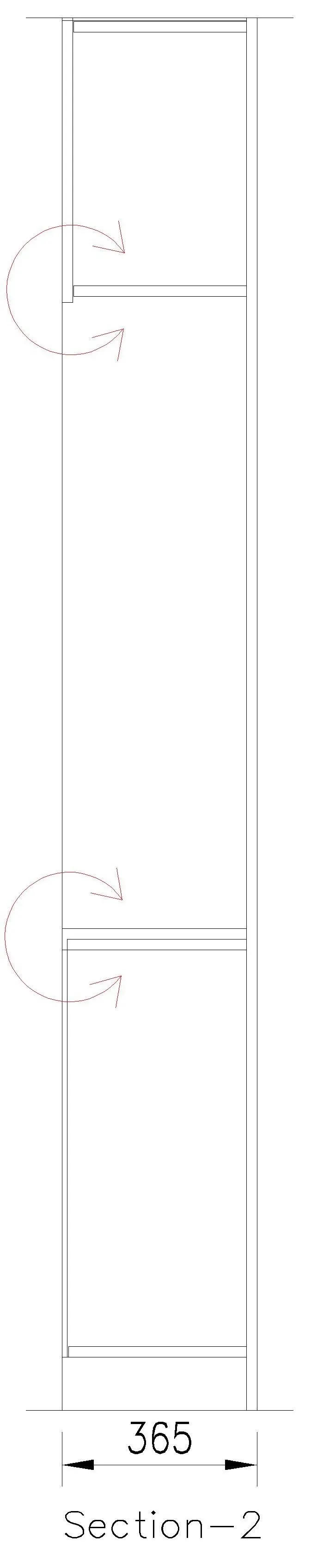

  4. Draw Section-1 as given in the figure.
     •
  5. Draw Section-2 as given in the figure.
     •

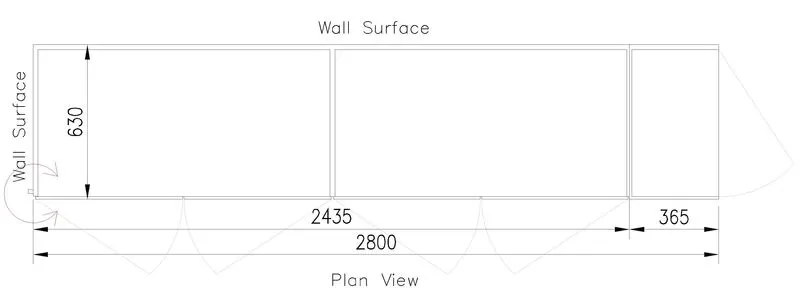

  6. Draw Plan View as given in the figure.
     •

Result:

Aim 2 :

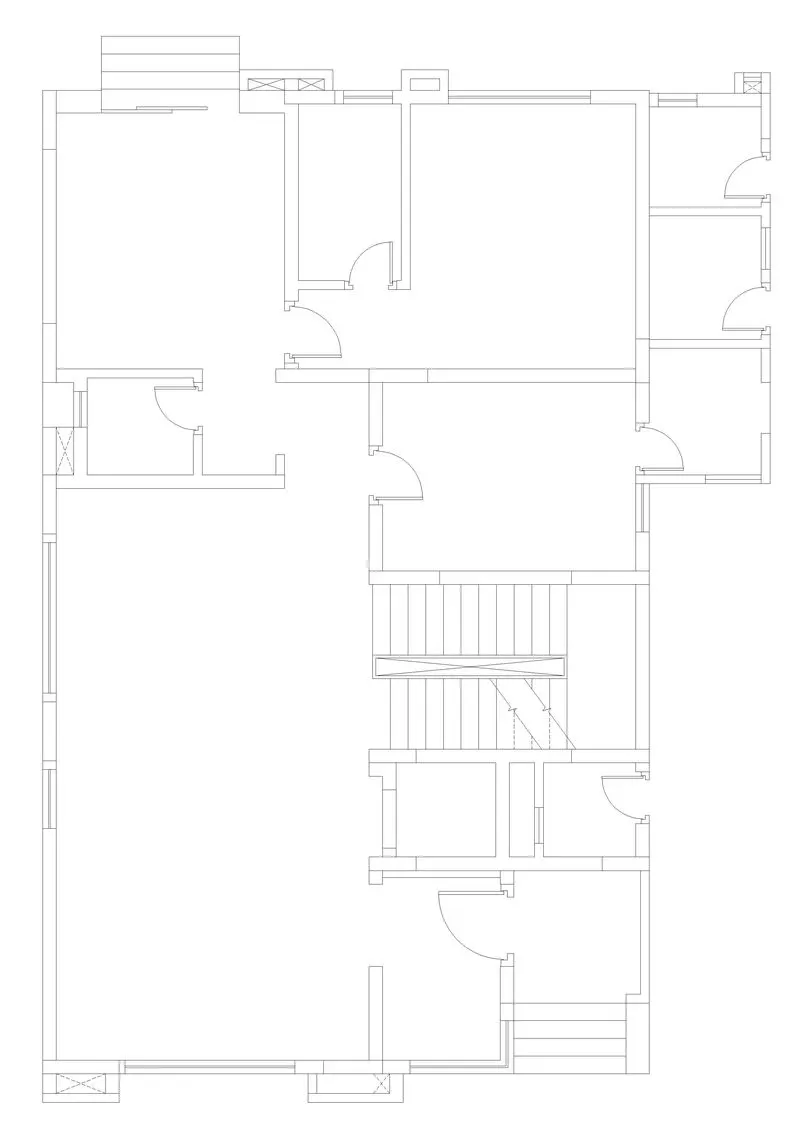

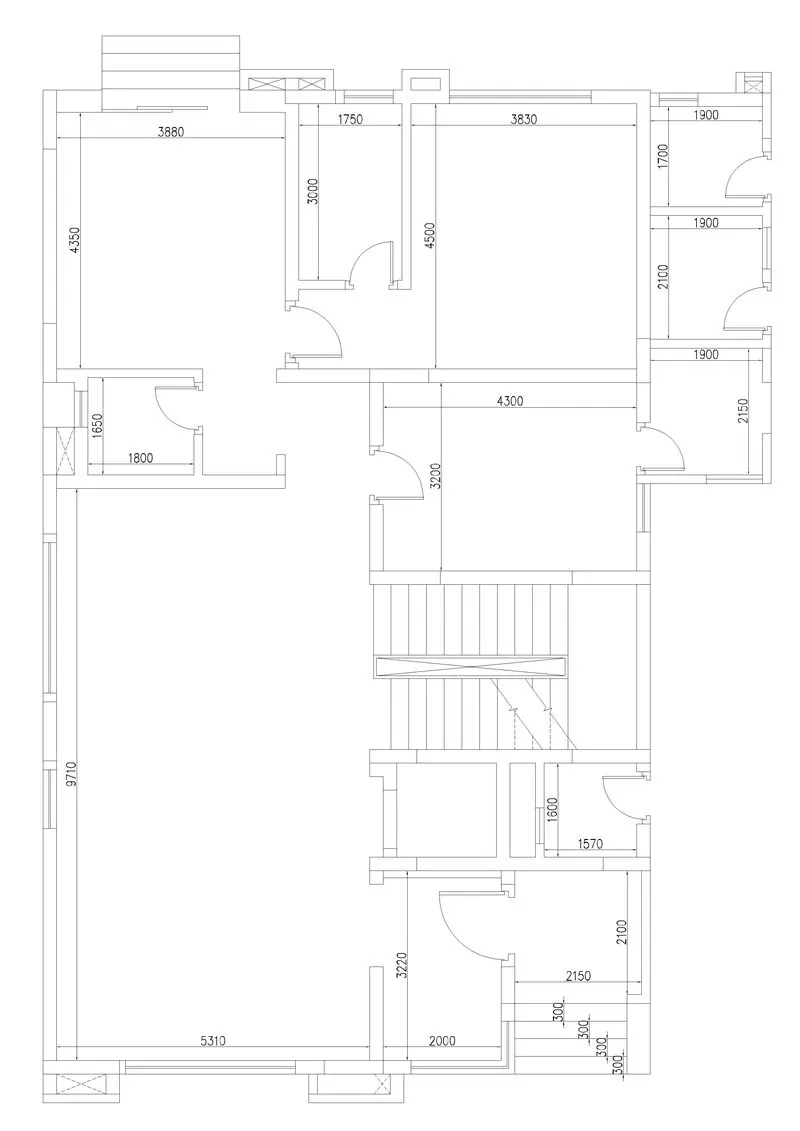

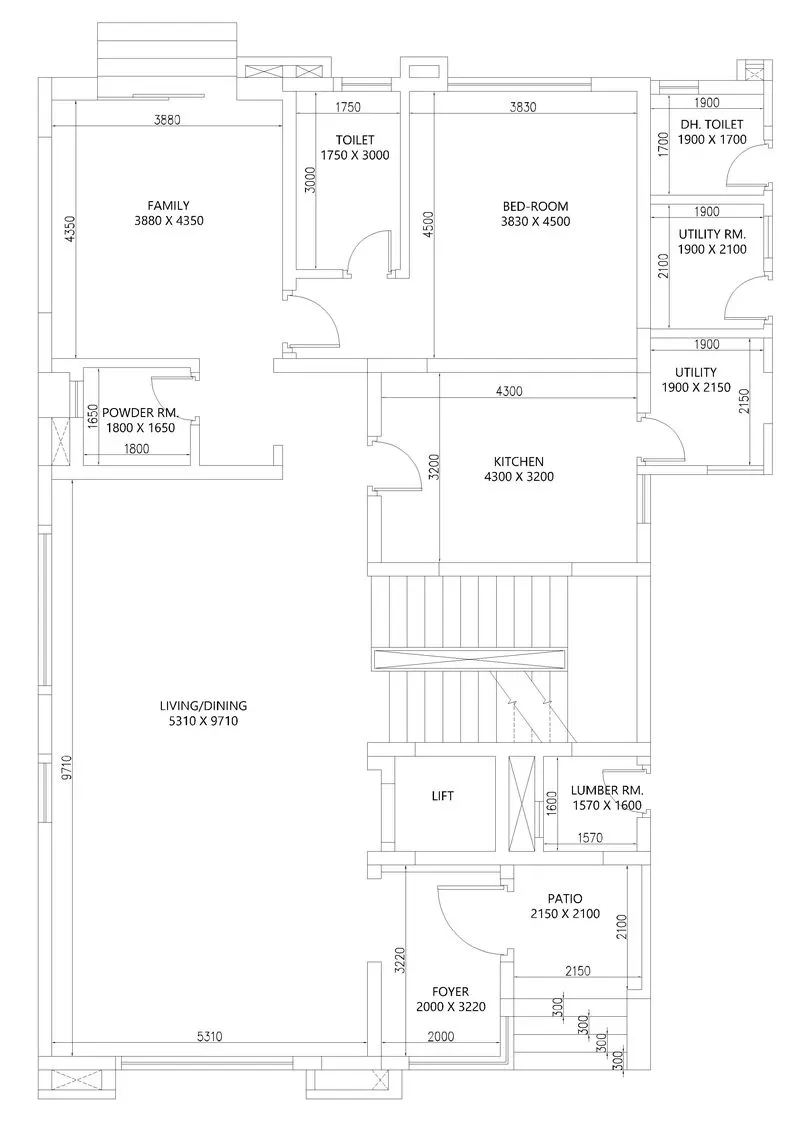

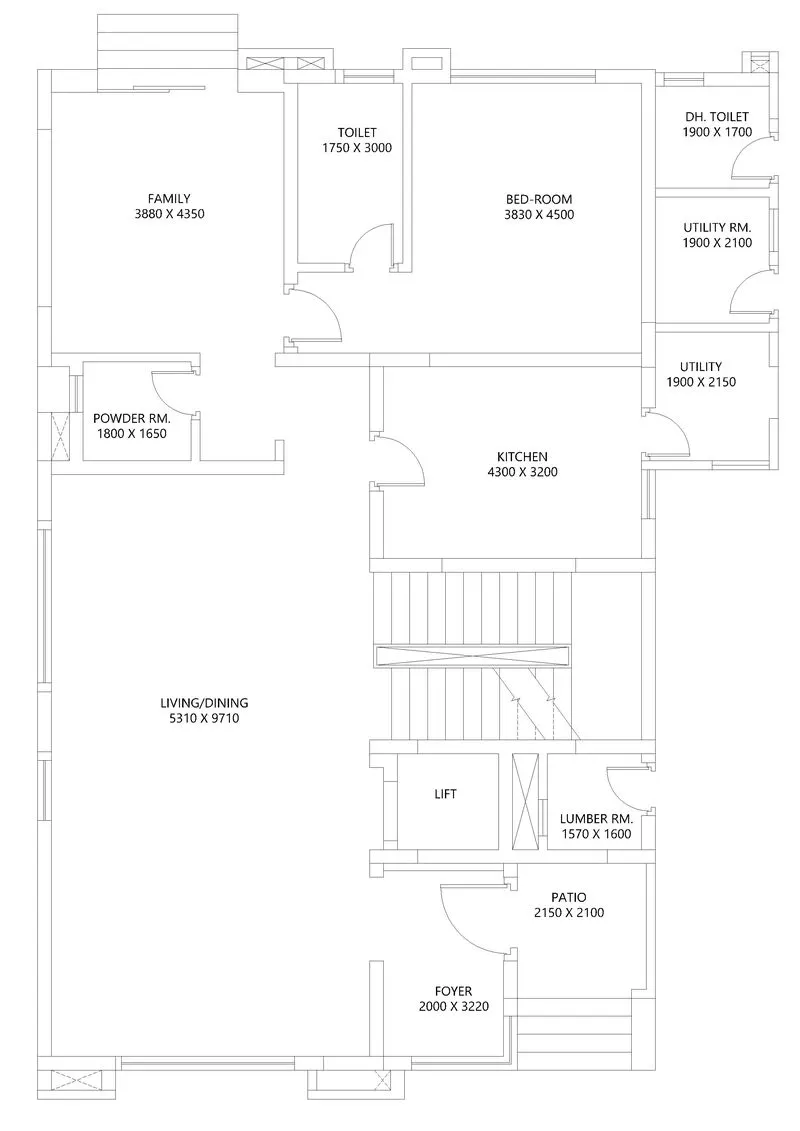

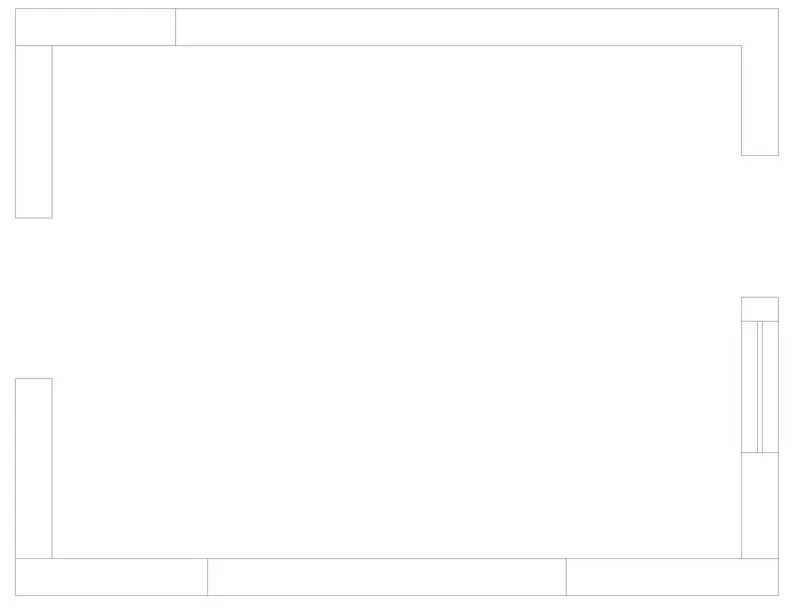

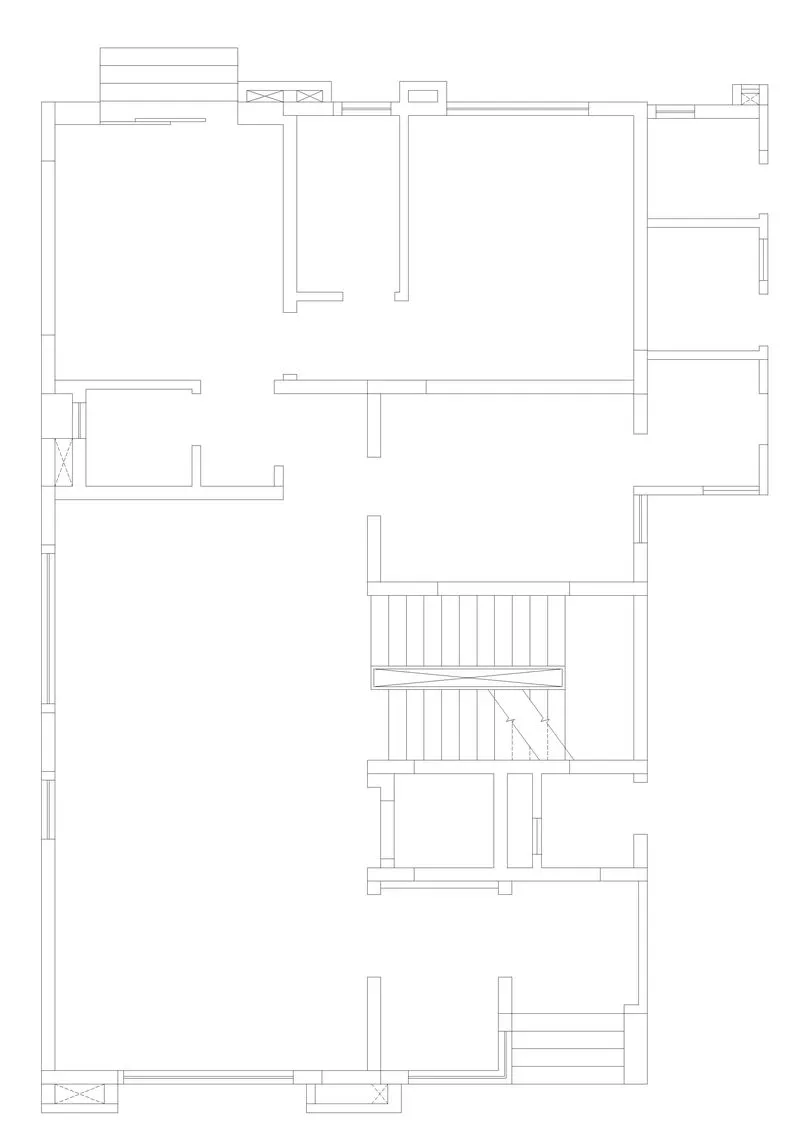

Draw the floor plan as shown in the Figure.

Procedure :

• Use Commands:
  1. Line
  2. Xline
  3. Fillet
  4. Offset
  5. Trim
  6. Dim
  7. Mtext
• Steps:
  1. Using all command first Draw the given plan.
     •
  2. Now draw the door as per the given plan.
     •
  3. Now Dimensioning all the areas of the plan.
     •
  4. Annotating all the areas using Mtext.
     •

Result:

Aim 3 :

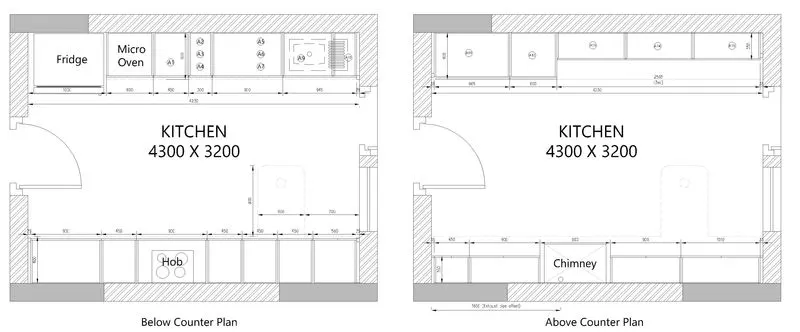

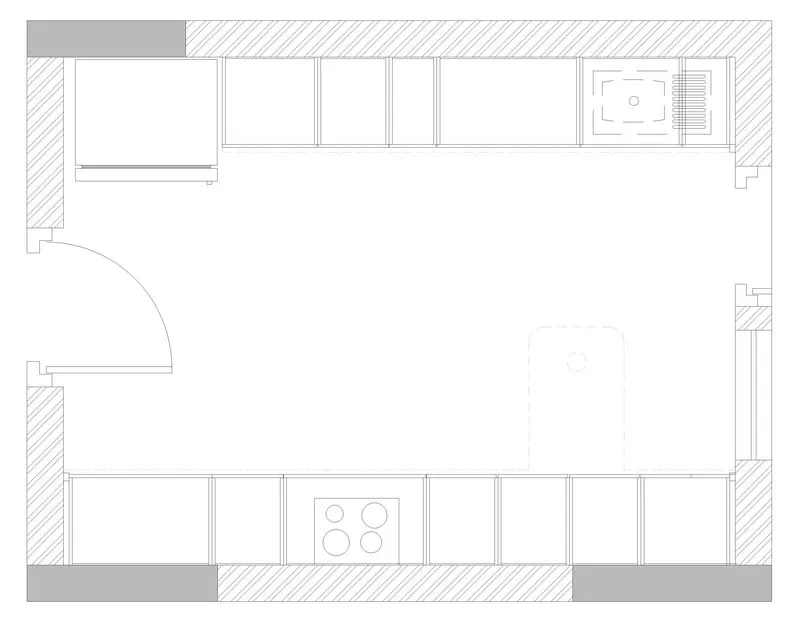

Create the Kitchen Layout as shown in the Figure.

Procedure :

• Use Commands:
  1. Line
  2. Fillet
  3. Offset
  4. Trim
  5. Dim
  6. Mtext
• Steps:

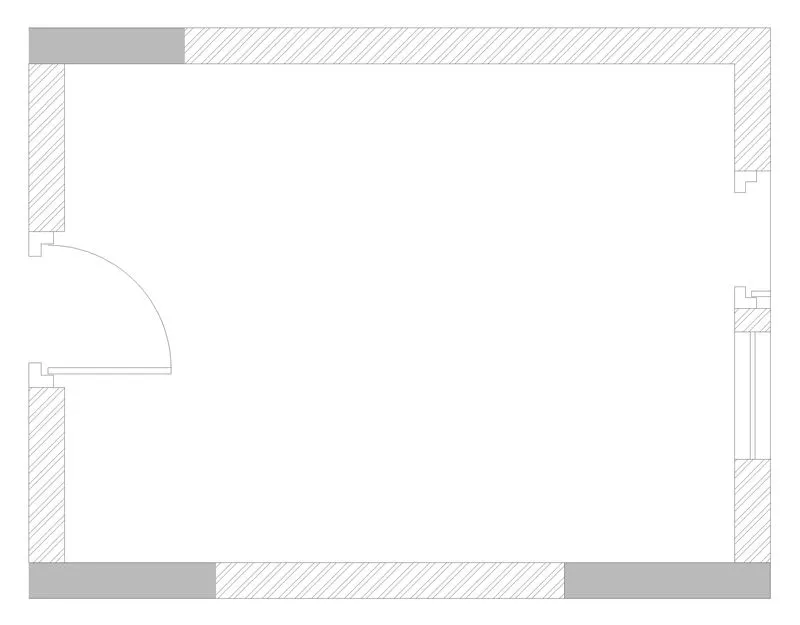

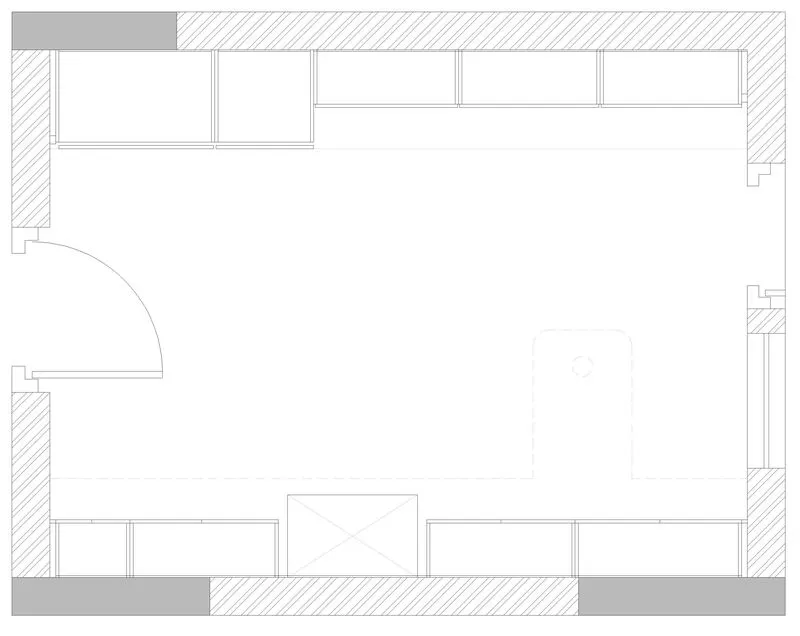

  1. Using all command first Draw the Kitchen plan.
     •
  2. Hatch the wall & draw the door as given.
     •

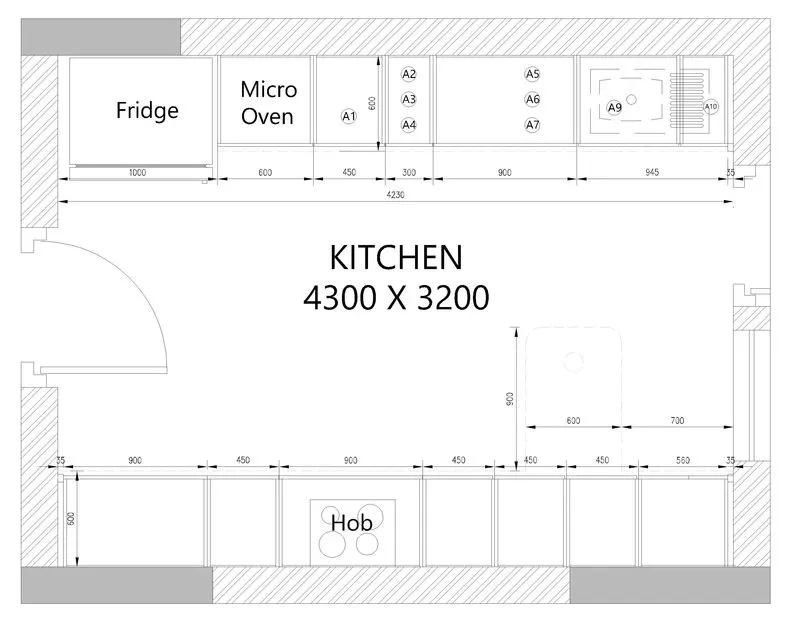

  3. Now draw Below counter plan furniture layout of the kitchen.
     •
  4. Dimensioning the kitchen as given and annotating the text required.
     •
  5. Using all command first Draw the Kitchen plan.
     •
  6. Hatch the wall & draw the door as given.
     •

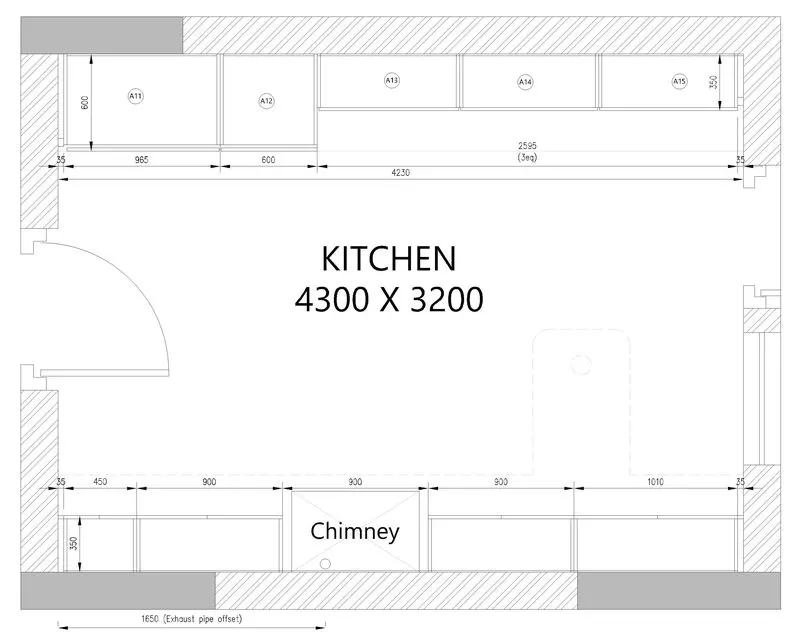

  7. Now draw Above counter plan furniture layout of the kitchen.
     •
  8. Dimensioning the kitchen as given and annotating the text required.
     •

Result:

Aim 4 :

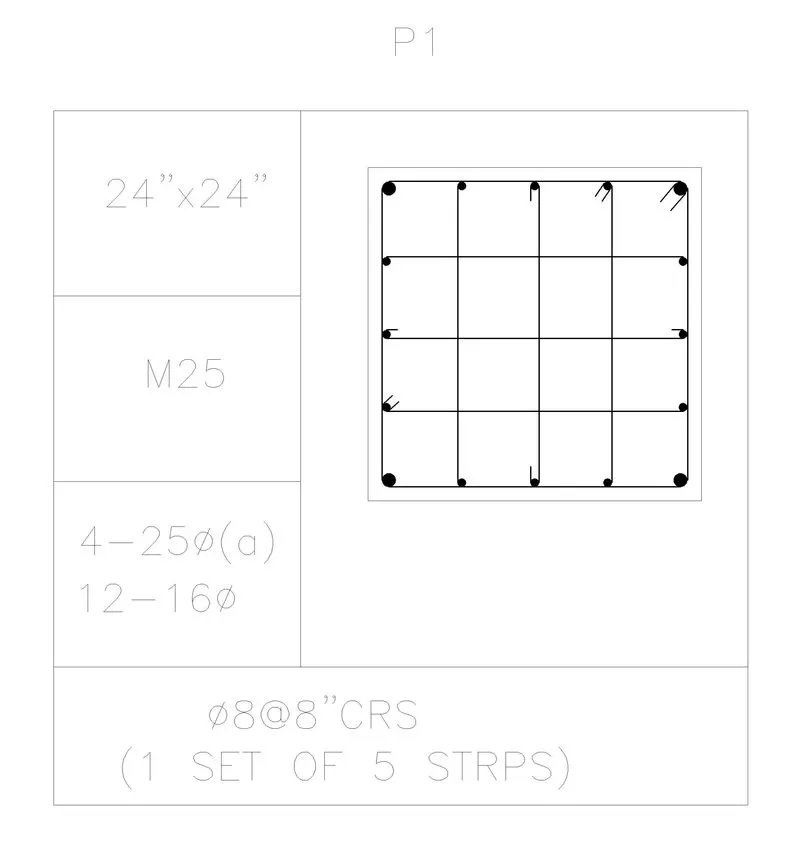

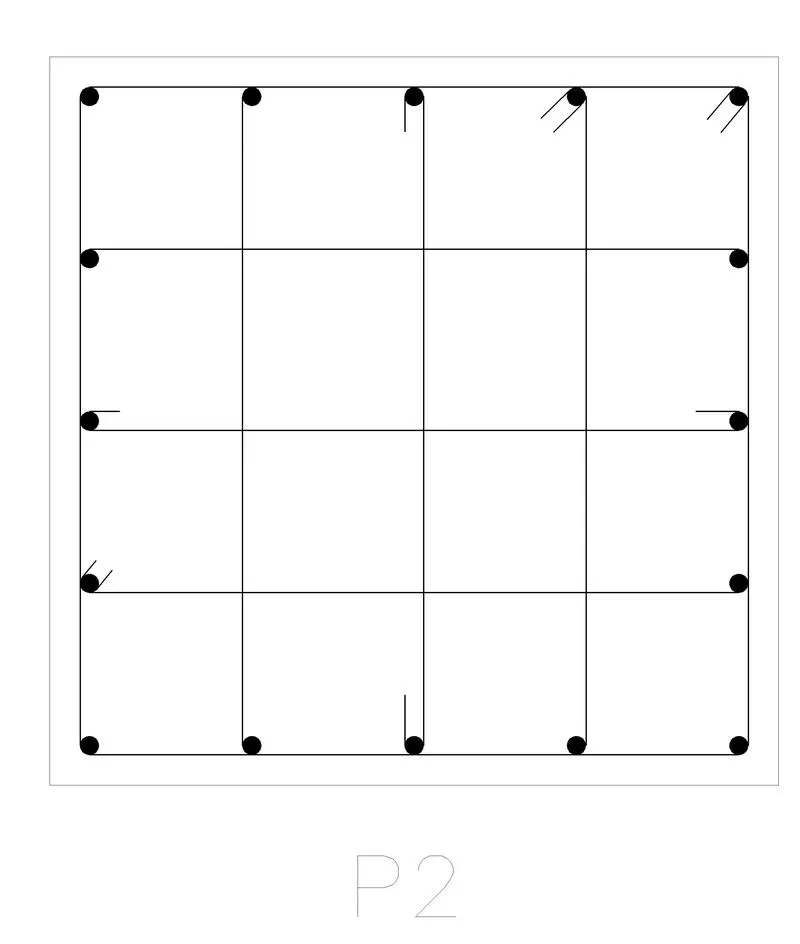

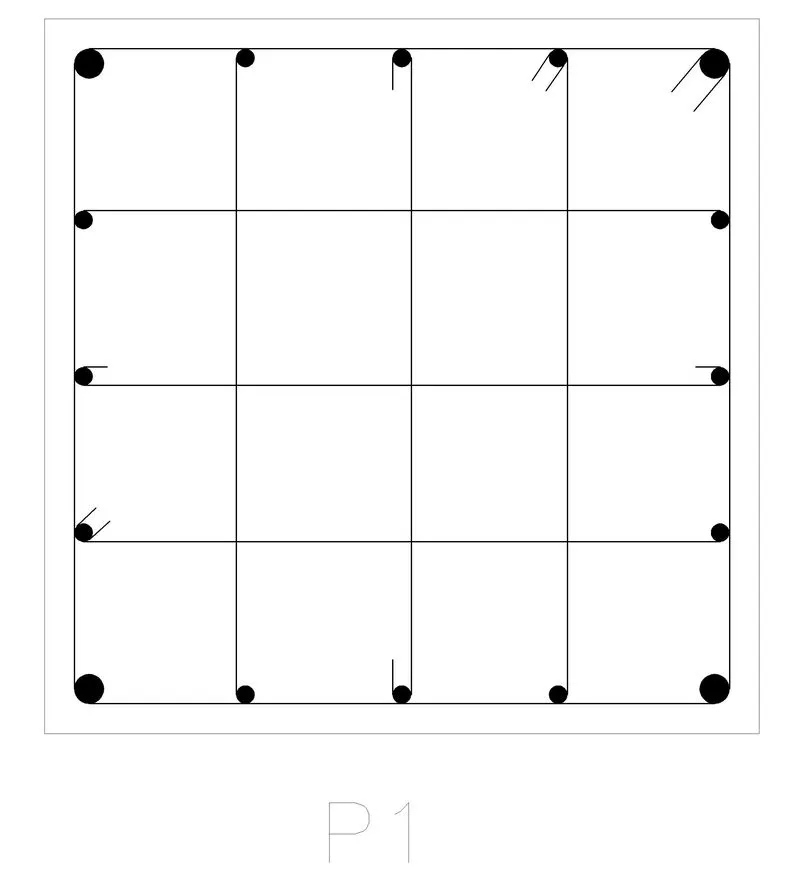

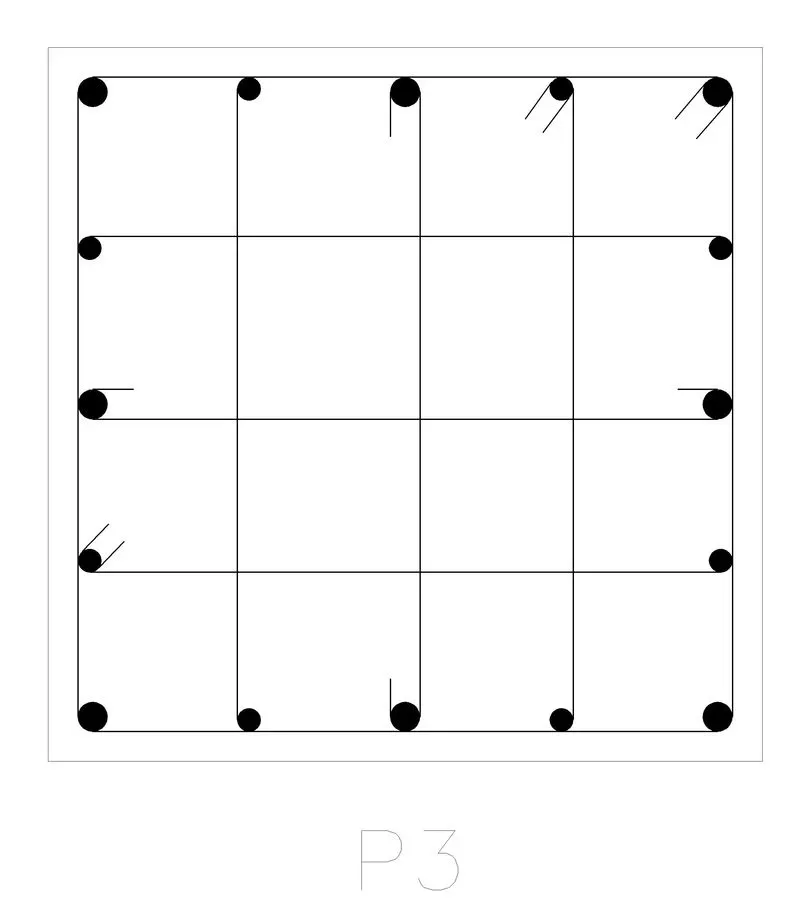

Sketch the column details as shown in Figure.

Procedure :

• Use Commands:
  1. Line
  2. Fillet
  3. Offset
  4. Trim
  5. Dim
  6. Mtext
• Steps:
  1. Draw the column design given.
     •
     •
     •

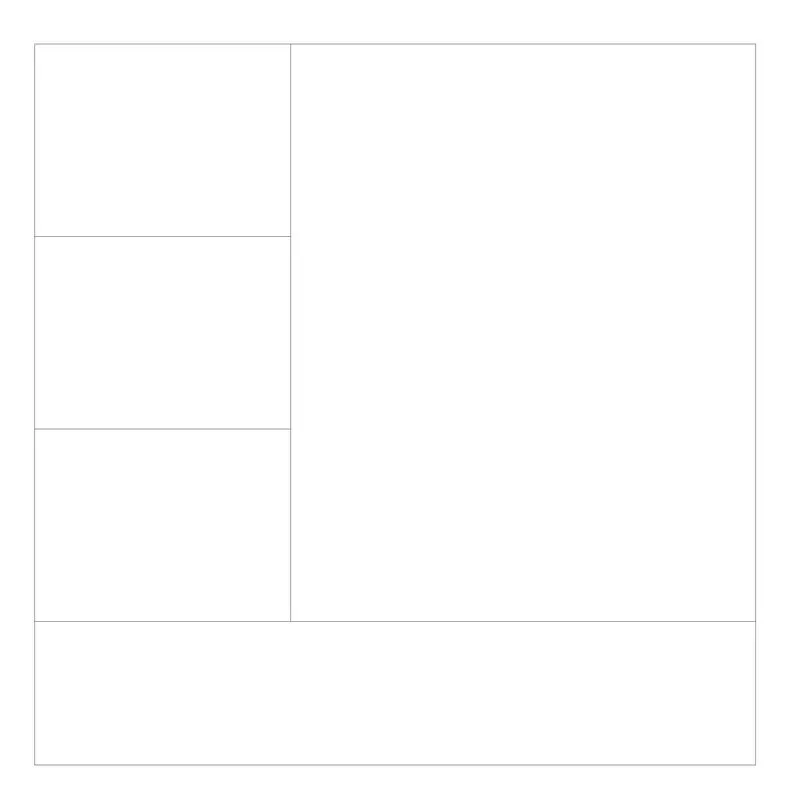

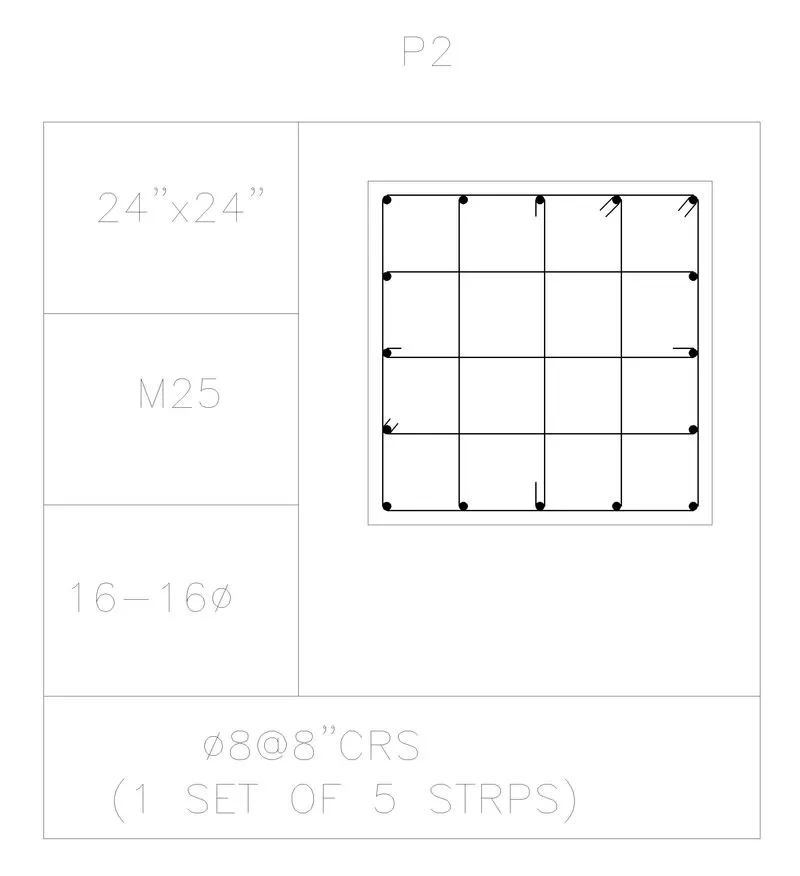

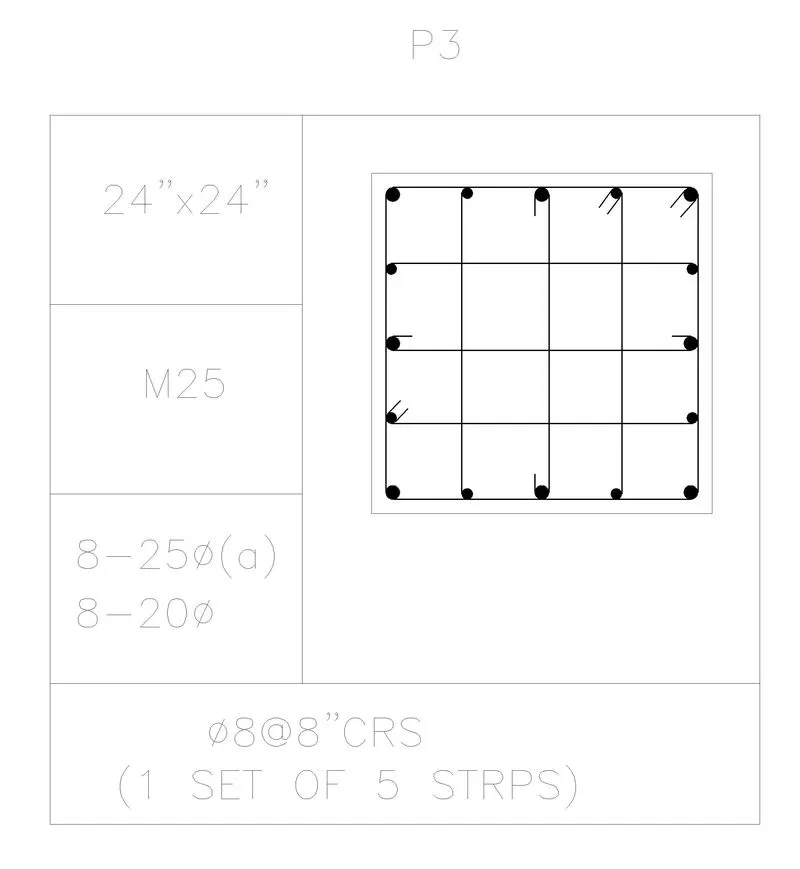

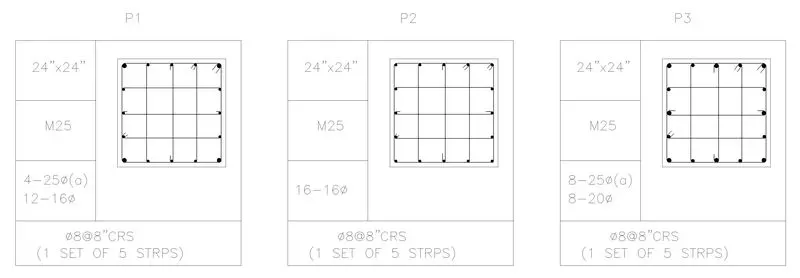

  2. Draw the table format given in the figure.
     •
  3. Now enter the details and column drawing in the format given.
     •
     •
     •

Result:

Aim 4 :

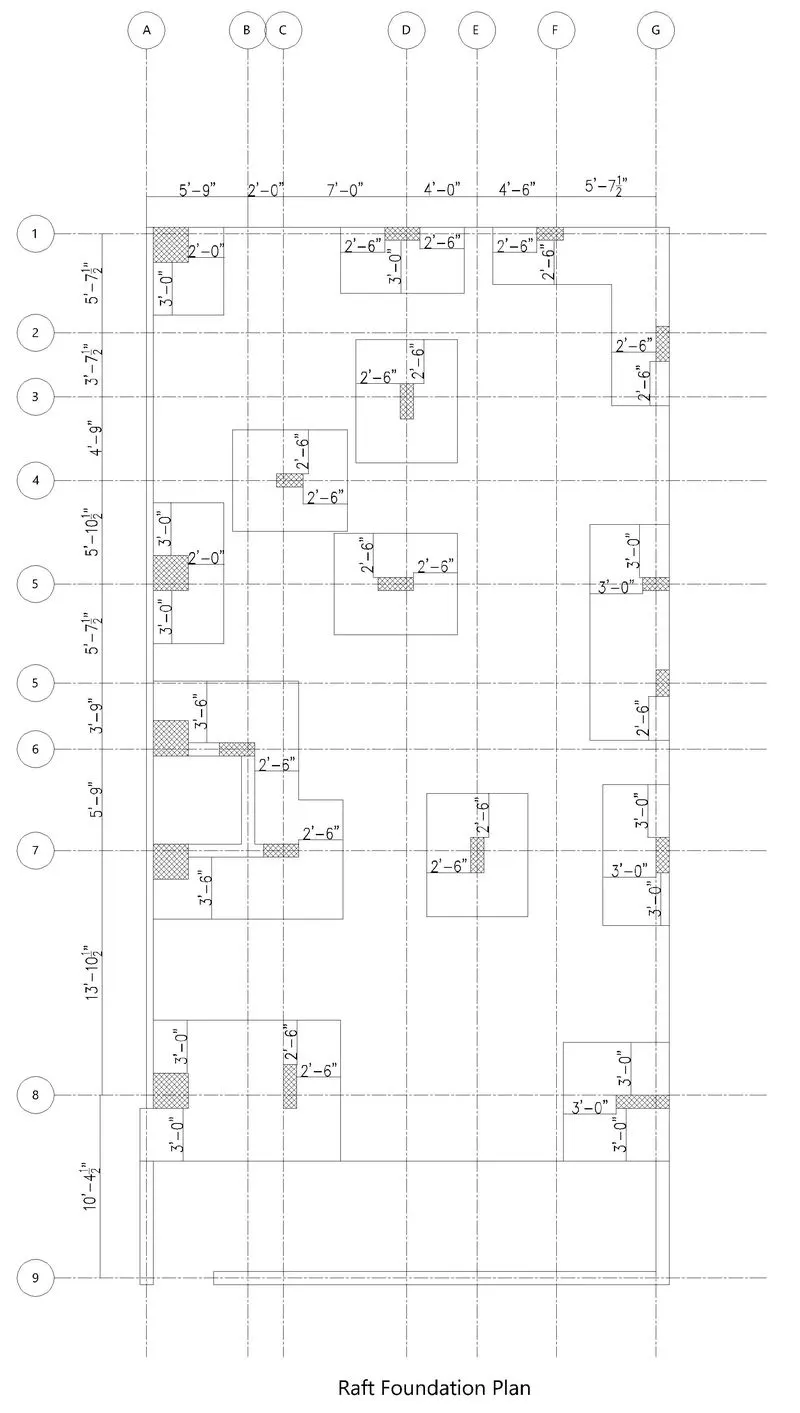

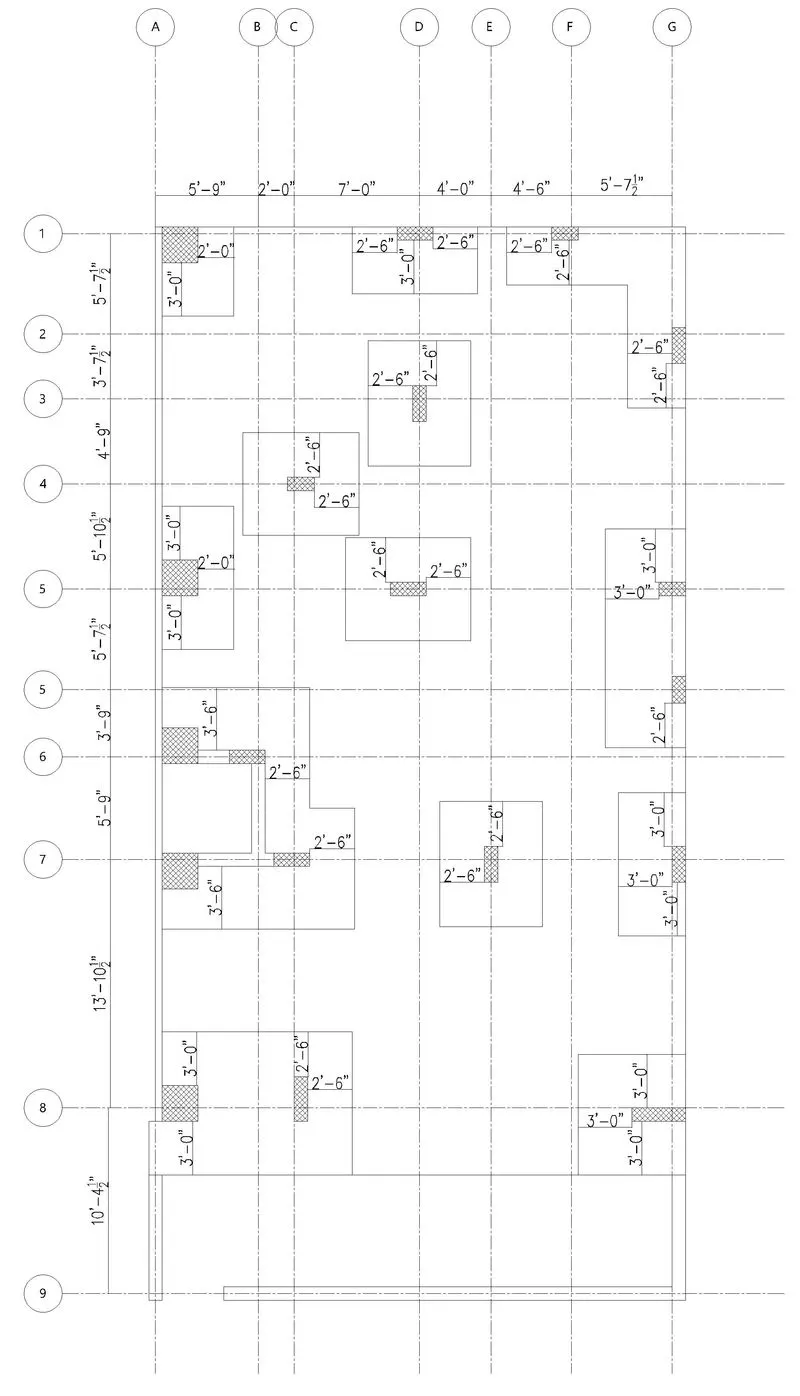

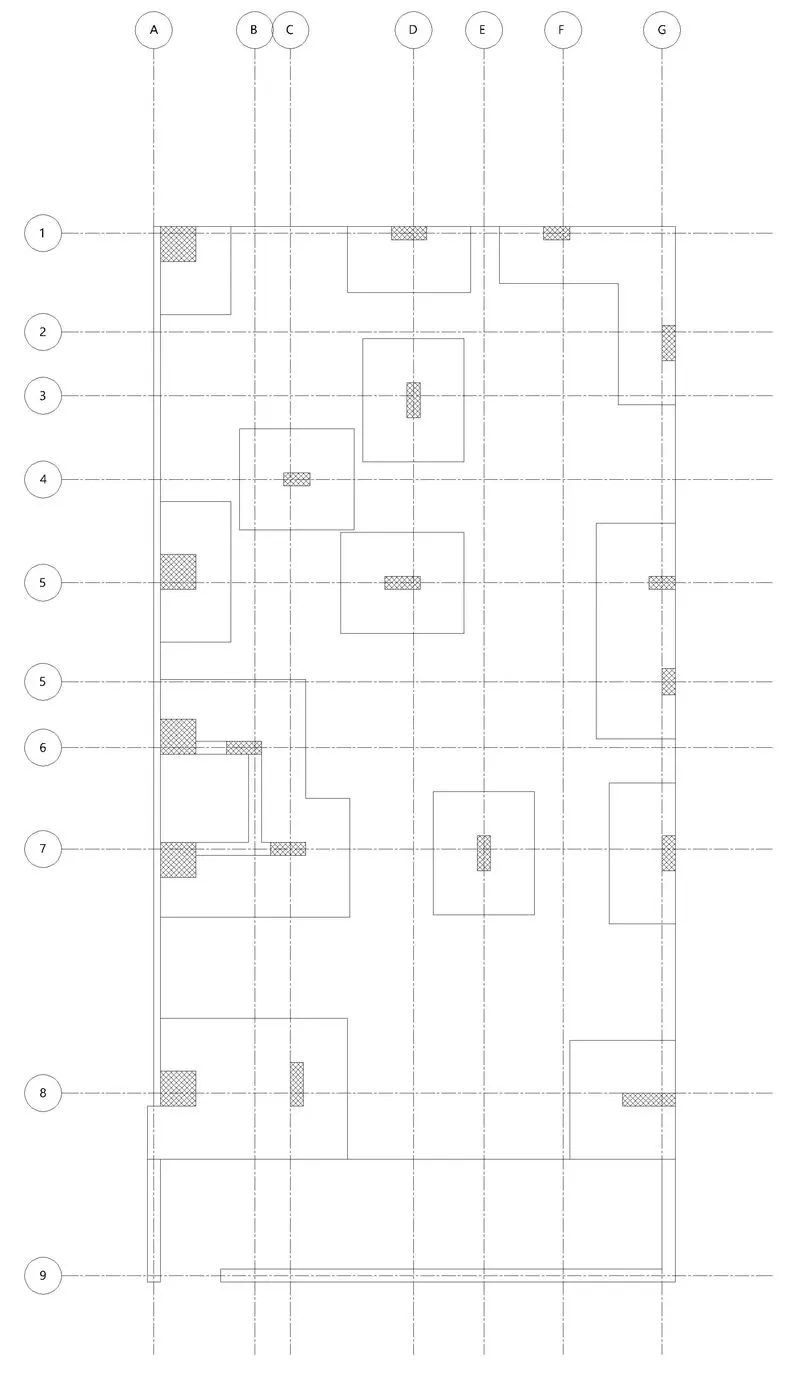

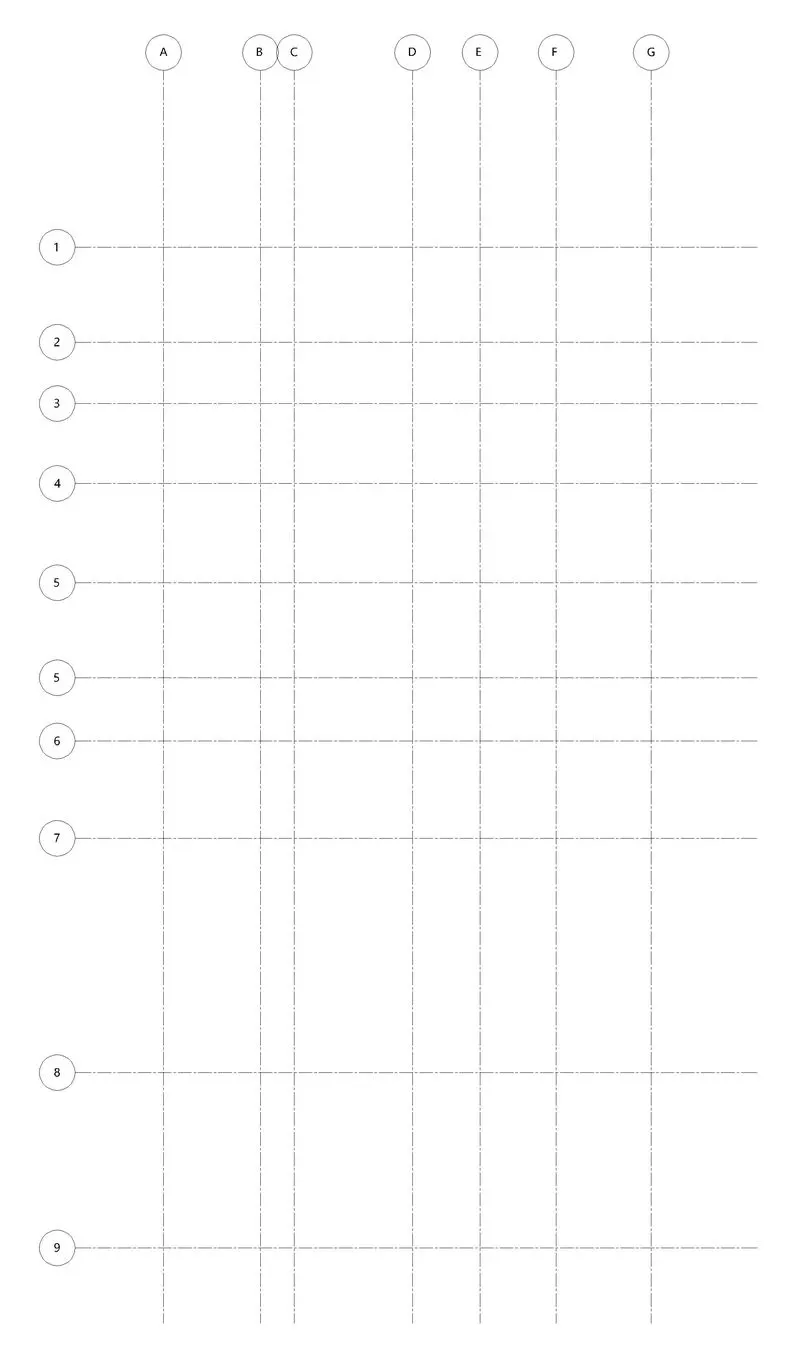

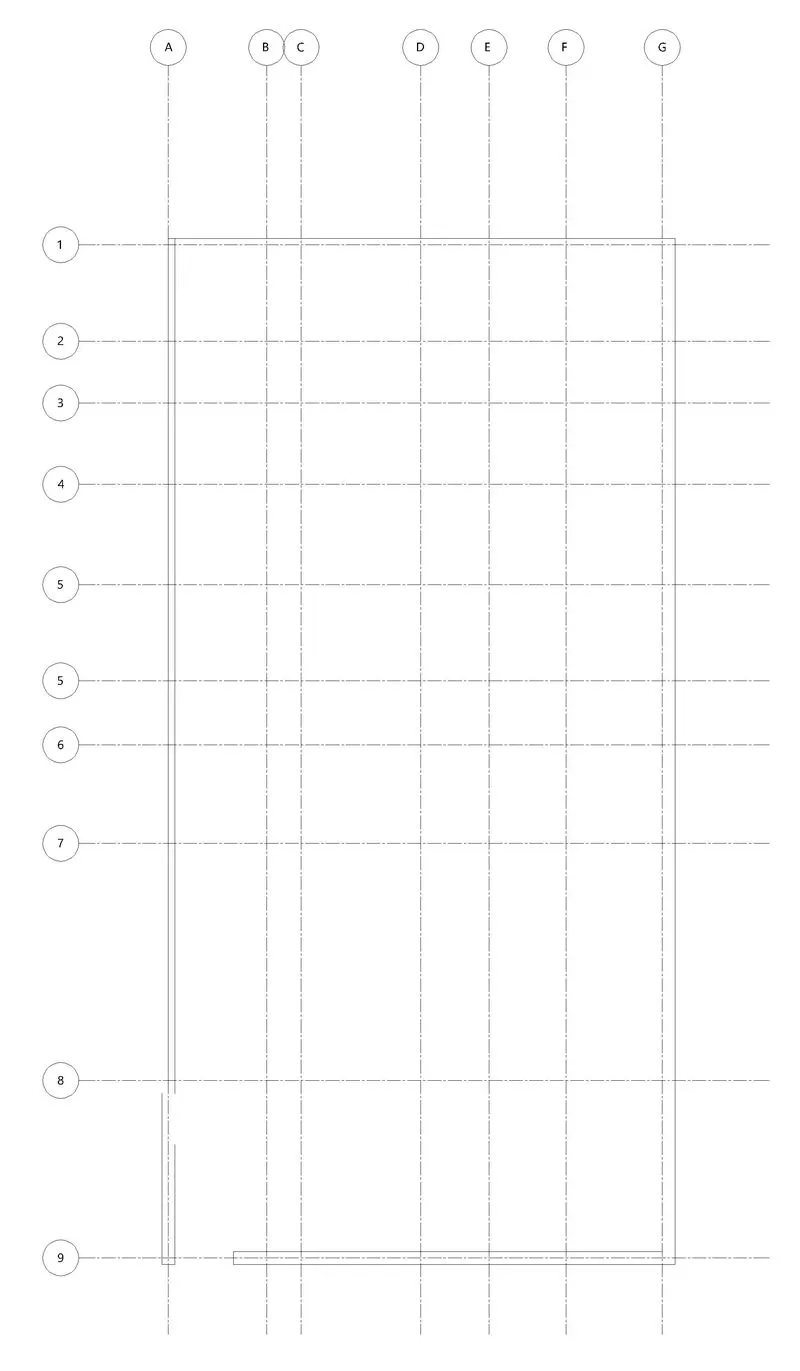

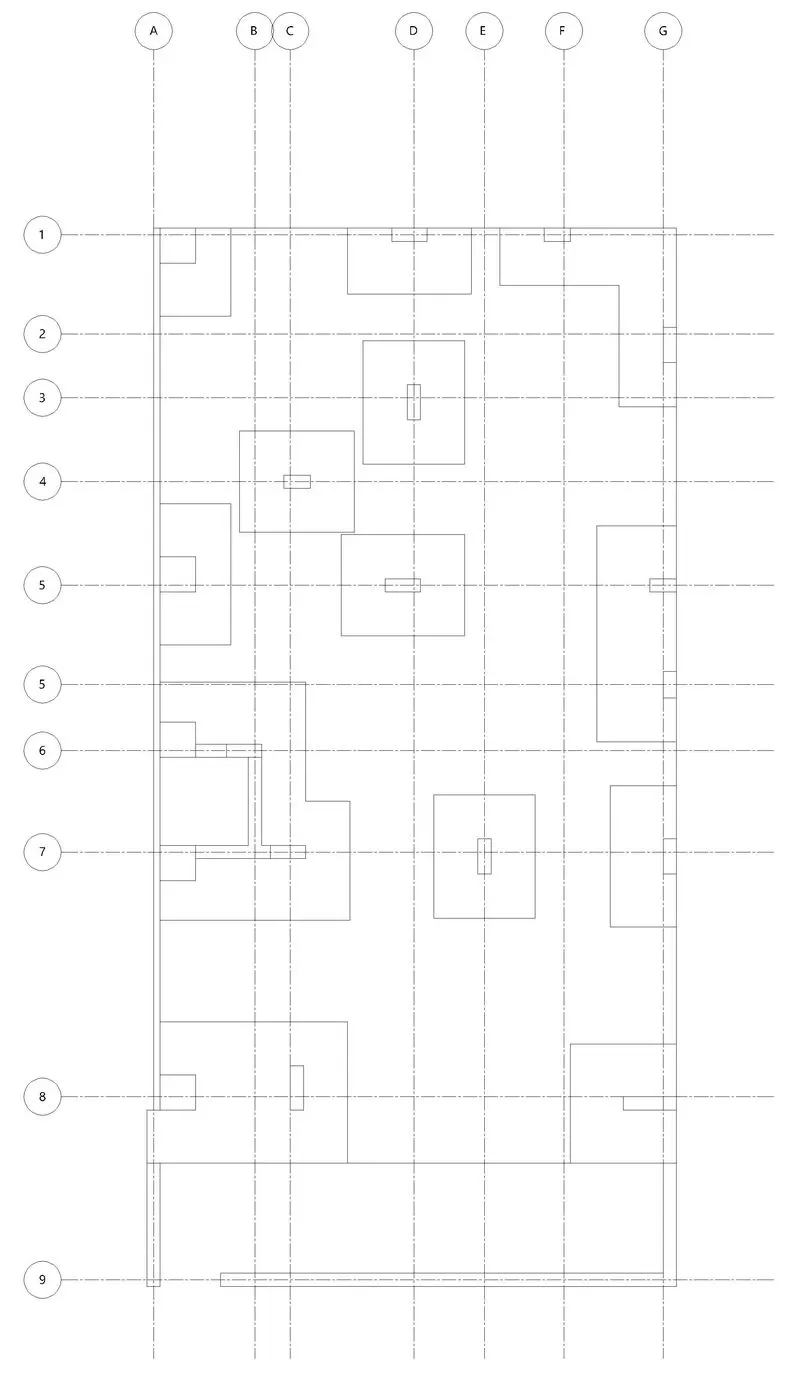

Draw the Raft Layout as shown in the Figure.

Procedure :

• Use Commands:
  1. Line
  2. Fillet
  3. Offset
  4. Trim
  5. Dim
  6. Mtext
• Steps:

  1. Draw the center line for x-axis and y-axis as per the given distances.
     •
  2. Draw the Wall boundry as given.
     •
  3. Draw the Column and footing outlines as given.
     •
  4. Now hatch the columns as given.
     •
  5. Draw the dimension as provided.
     •

Result:

**All the given plans drawn successfully**
