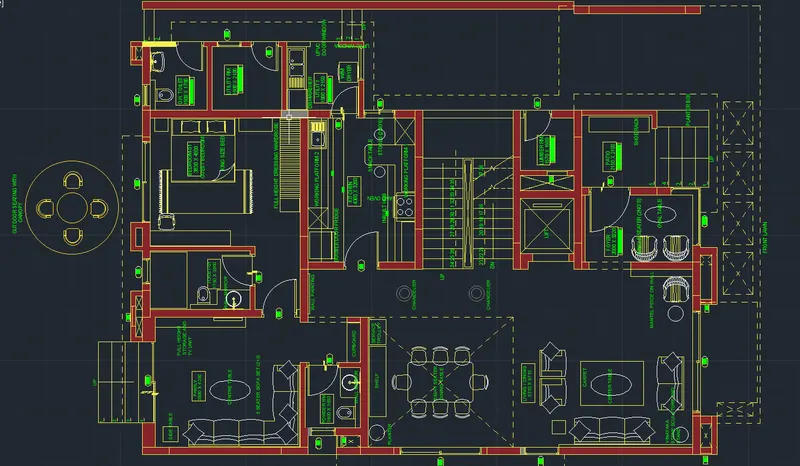

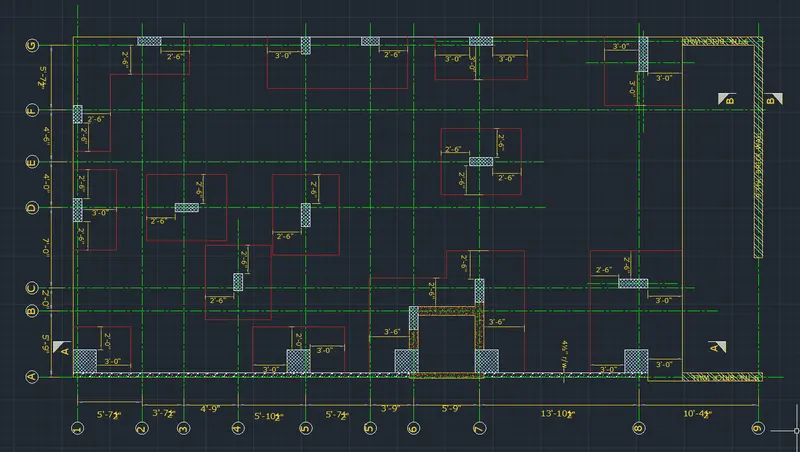

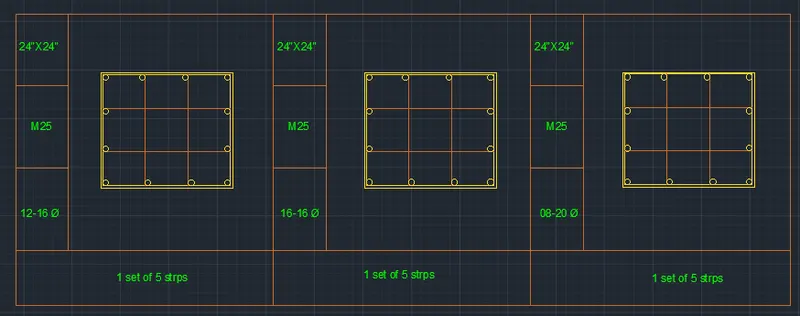

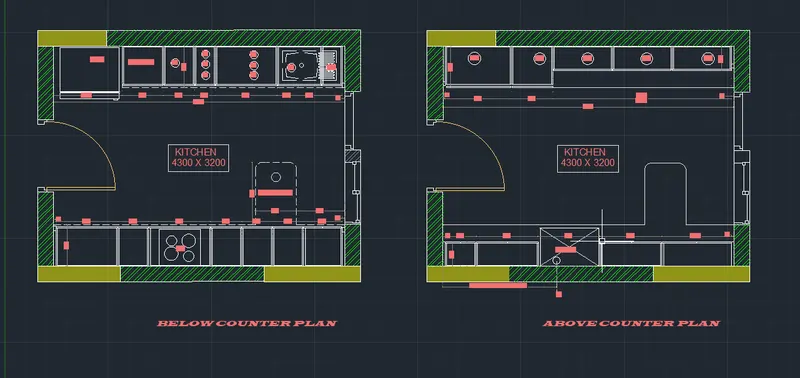

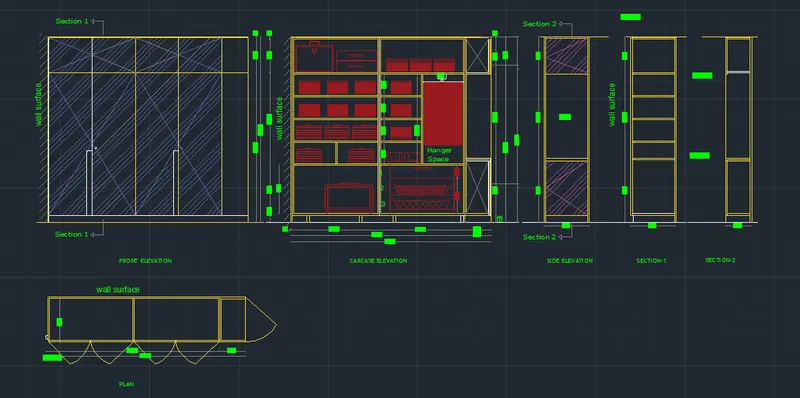

Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

  1)  Used both both relative and absolute coordinate system to draw the geometry. Used (@,<) for length and angle. Points - ID  Linear Dimensions Aligned Dimensions   2) Used both both relative and absolute coordinate system to draw the geometry. Used (@,<) for length and angle. Points - ID …

3D Modelling: Renderings:

1) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 2) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 3) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX Hatch Pattern- HATCH 4) Tools used: Line-L Rectangle-REC…

1) Isometric View-ISOMETRIC Line-LINE Poly Line-PLINE Extrusion- EXTRUDE Multiline Text-MTEXT Dimensions     2) Isometric View-ISOMETRIC Line-LINE Rectangle-REC Poly Line-PLINE Extrusion- EXTRUDE Multiline Text-MTEXT Dimensions   3) Isometric View-ISOMETRIC Line-LINE Poly Line-PLINE Extrusion- EXTRUDE Multiline…

1)Plan Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX   2) West Elevation Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX   3) East Elevation Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 4) Section…

1) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 2) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 3) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX

1) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 2) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 3) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX

1) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 2) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEX 3) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND 4) Tools used: Line-L Rectangle-REC Circle-C Polygon-POLYGON Offset-OFF Trim-TR…

1) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEXT 2) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEXT 3) Tools used: Line-L Rectangle-REC Offset-OFF Trim-TR Extend-EXTEND Multiline Text-MTEXT

1) Tools used Line-L Arc-ARC Rectangle-REC Trim-TR Array-AR 2) Tools used Circle-C Arc-ARC Line-L Trim-TR Array-AR (Polar)   3) Tools used Line-L Rectangle-REC Trim-TR Multiline Text-MTEXT

1) Tools Used: Line-L Rectangle-REC Arc-ARC Offset-OFF Multline Text-MTEXT 2) Tools Used: Line-L Rectangle-REC Arc-ARC Offset-OFF Multline Text-MTEXT 3) Tools Used: Line-L Rectangle-REC Arc-ARC Offset-OFF Multline Text-MTEXT 4) Tools Used: Line-L Rectangle-REC Offset-OFF Multline Text-MTEXT 5) Tools Used: Line-L Rectangle-REC…

1) Tools Used: Line-L Rectangle-REC Offset-OFF Multline Text-MTEXT 2) Tools Used: Line-L Rectangle-REC Offset-OFF Multline Text-MTEXT 3) Tools Used: Line-L Rectangle-REC Multline Text-MTEXT 4) Tools Used: Line-L Rectangle-REC Offset-OFF Multline Text-MTEXT 5) Tools Used: Line-L Rectangle-REC Offset-OFF Multline Text-MTEXT…

1)   Tools used: Line- L Circle- C Center mark-CENTERMARK Aligned dimensions-DIMALIGNED Angular dimensions-DIMANGULAR Linear dimensions-DIMLINEAR 2) Tools used: Line- L (using @ for distance and < for angle) Aligned dimensions-DIMALIGNED Angular dimensions-DIMANGULAR  3) Tools used: Line- L Linear dimensions-DIMLINEAR…

C1) Commands used: Line-L  Poly line-PL Trim-TR Extend-Extend Dimensions (Aligned and linear) C2) Commands used: Line-L  Poly line-PL Trim-TR Extend-Extend Offset-Off Dimensions (Aligned and linear) C3) Commands used: Line-L  Trim-TR Offset-Off Dimensions (Aligned and linear) C4) Commands used: Line-L …

1) Use the shortcut keys in Revit discussed in class to complete the following tasks and list them below           a. Using 3D model create a section box XB to create a section BOX in 3D view            b. To create similar doors and windows in a floor plan layout…

1) Use the Architecture/ Structure Project file developed by you in Week 6 to 8. Export the Revit architecture and structure model to Navisworks Cache file following the export settings discussed in class. Open the revit file that need to be converted to .NWC file type. File>Export>Nwc Result: .Rvt > >Nwc 2)…

1) Using Dynamo create a set of sinusoidal points and create a curve and create a surface out of the curve. Nodes used: Integer slider or number slider Code block Product Math sin Add Range Point by coordinates nurbes curve surface by loft Result: 2) Create a conceptual layout of floor plan in dynamo . Using the tools…

1)1) What are HVAC systems? Why are they essential in the modeling of buildings HVAC: Heating, Ventilation and Air conditioning. To satisify the heating and cooling effects in the building To minimize the energy used To control the humidity To encourage the natural ventilation system adherence to codes and standards Increase…

1) Select the type of structure you want to build from one of the three below:        a. Multi-Unit Residential Apartment        b. Office Buildings        c. School Office, Tax consultant office with occupancy of 40 to 50 people. 2) Assume reasonable assumptions…

1)Why are building codes or standards essential for the modeling/ efficiency of drawings in Revit ? Building codes are the criteria set for design, construction and execution for civil structures with respect to the technical point of view. Globally each country follows their own building codes which is decided by the…

1) Open an architectural template. Using the Manage tab set project base point and project shared coordinates for the project. Open an architectural project. Create grids for reference-Architecture tab>datum panel>Grids By using model tools create grids. Go to manage tab>Project location (panel) Activate the project…

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level.   Activate first floor in ceiling view in the project browser. Go to architecture tab>ceiling(build panel). ceiling can be created by either by automatic…

1) Use the project file created from Week 2. Use it for this assignment. Based on your layout from week 2, using floor tool under architecture tab and select the floor with appropriate material and thickness using the property browser create a layout in the Ground floor Level. Align the floor plan with grids created from…

1) Aim: To know aabout BIM and its benefits. BIM (Building Information modelling) BIM is a concept or a process which can be performed by using softwares like Revit, Archi CAD, and other advance modelling tools. predominantly which should have the capability to process 2D to 7D. In other words BIM gives  BIM process…

1) Aim: To create a new project in revit Procedure: Step 1: double click on revit icon in the desktop      Step 2:click the respective template such as architecture, structure and system on the list    Step 3: towards the left top there will be file menu by clicking on that in the dropdown save will be availabe by clicking…
