Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

1.

Aim :-

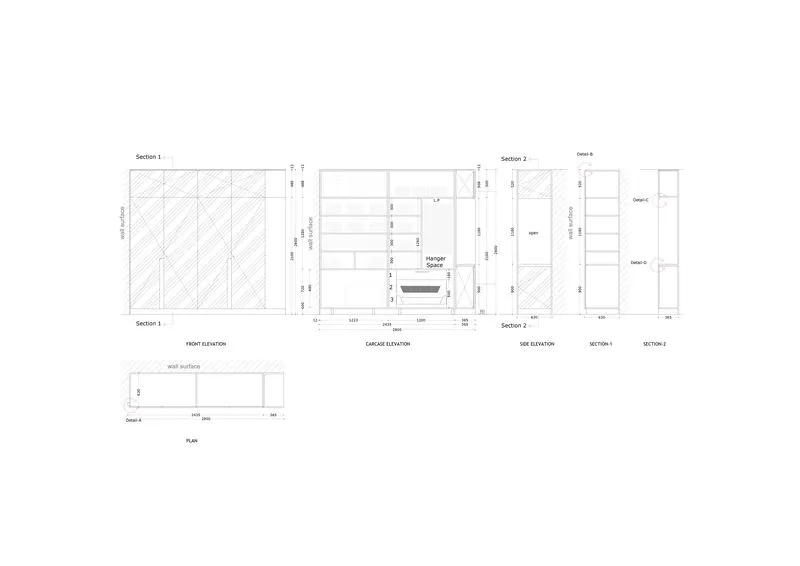

• To draw the elevations and deatails of wardrobe as shown in figure.

Procedure :-

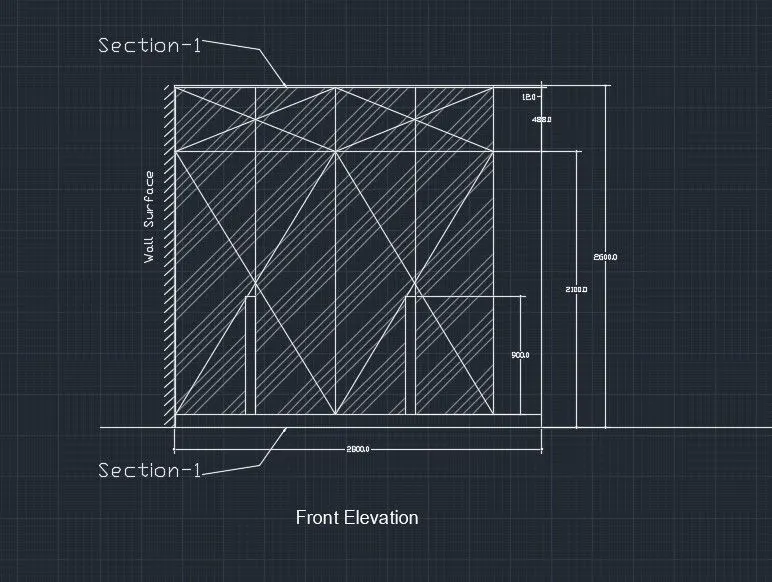

• Draw the rectangle of size 2800 X 2600, then offset it with 12 and 488 mm from upper side.

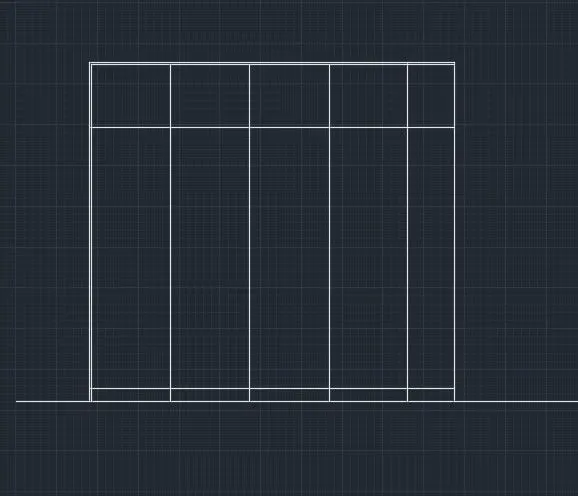

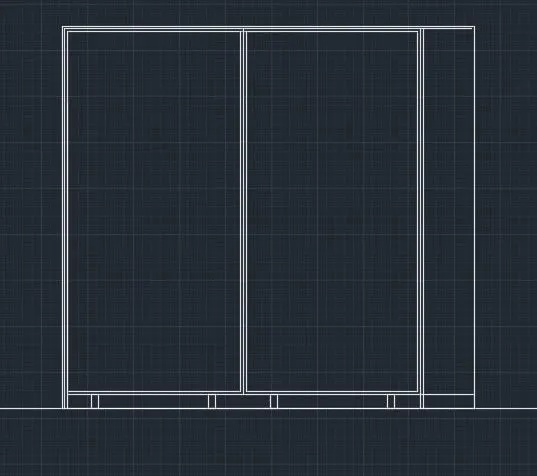

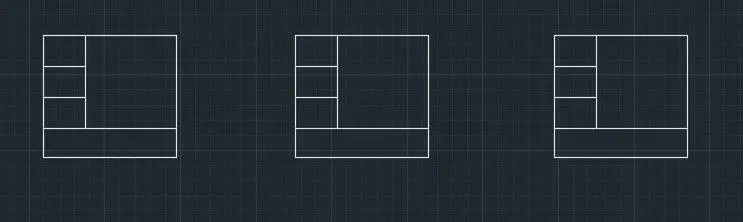

• For Front elevation use line command and offset command as per the dimension.
• After making the wardrobe box, use hatch command and do dimension a per drawing.

• In the command line thpe Qleader to annotate the section-1.

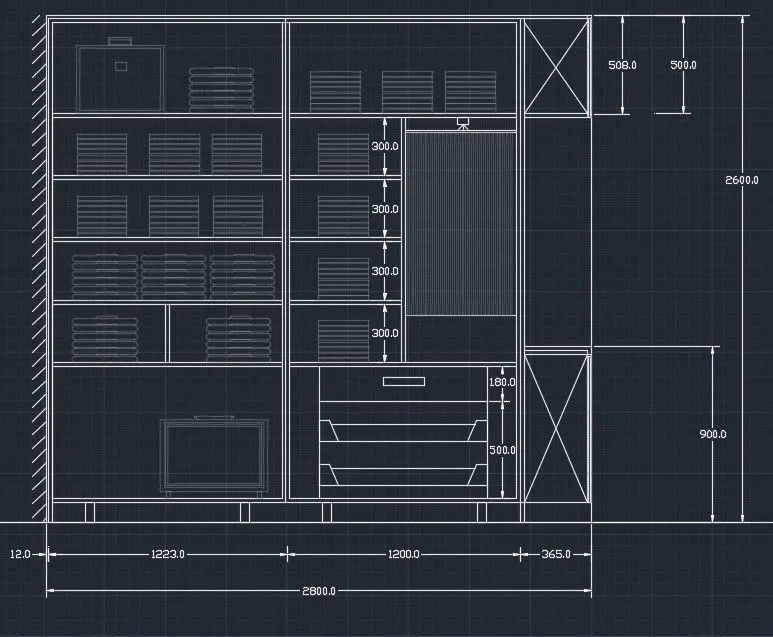

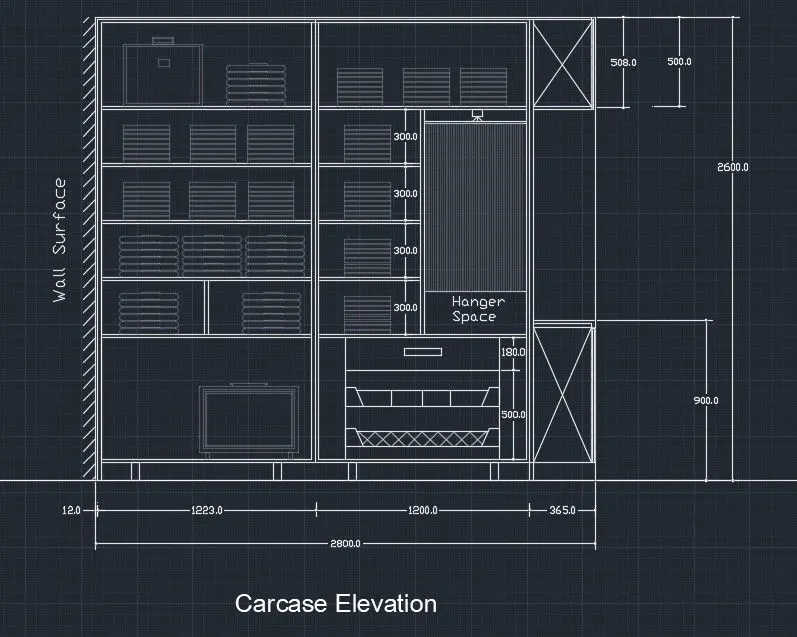

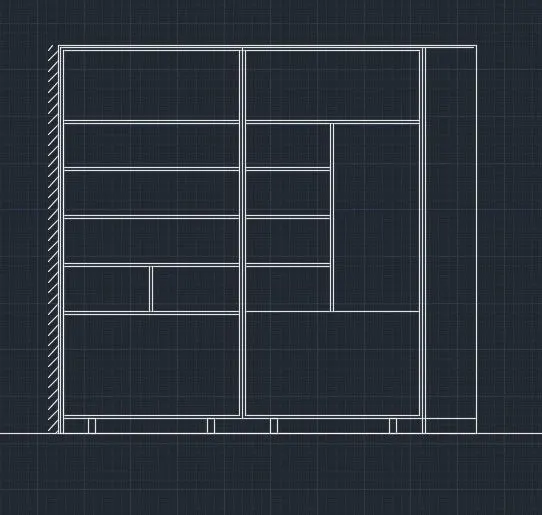

• For Carcase Elevation, Make rectangle of size 2800 X 2600.
• And offset it as per the front elevation size.

•

• After this, draw the different cabinets in the wardrobe using line and offset command as per drawing.

• Draw different components like television and books, briefcase and More.
• Do dimmesioning as per the drawing.

• Place the text as per the drawing.

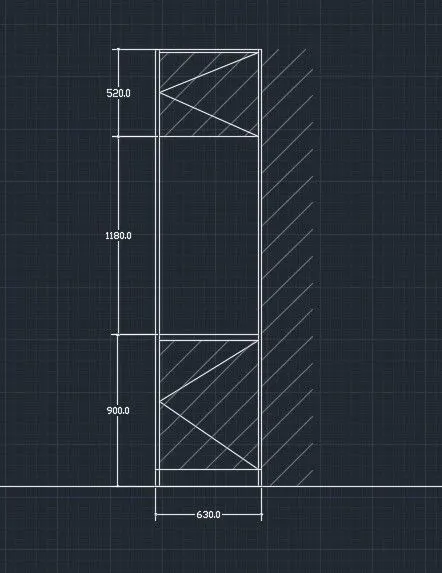

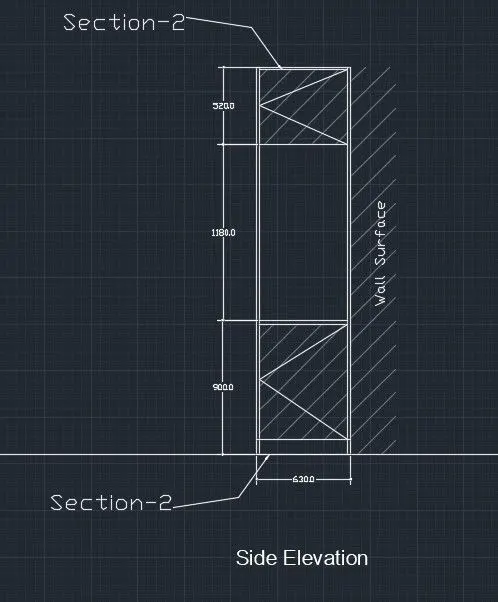

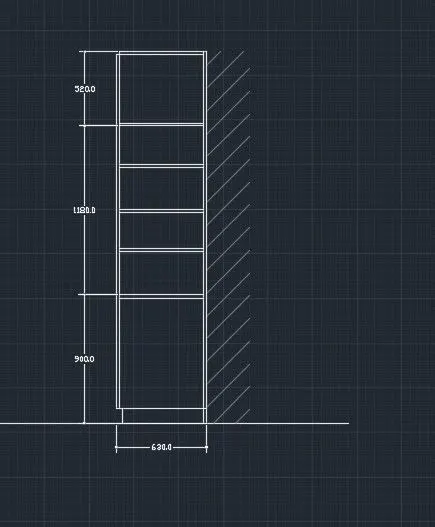

• For Side Elevation, Use the line and offset it with size of 520, 1180 and 900 mm from above with command as per drawing and specify the dimensions.

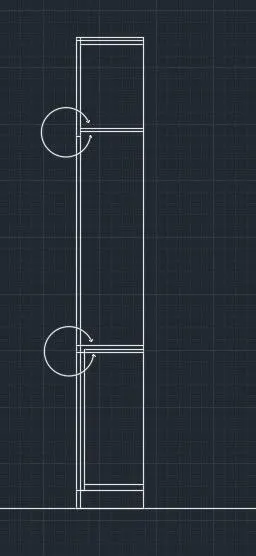

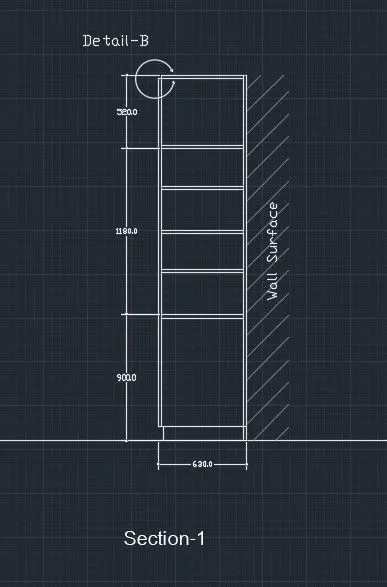

• For Section-1, copy the side elevation and do editing in the different middle components in the drawing.
• Use QLEADERS command to show the section.

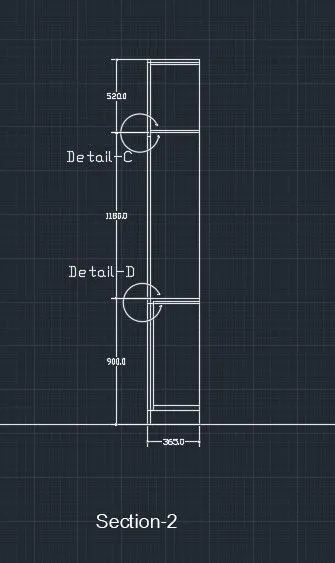

• Section-2 :-

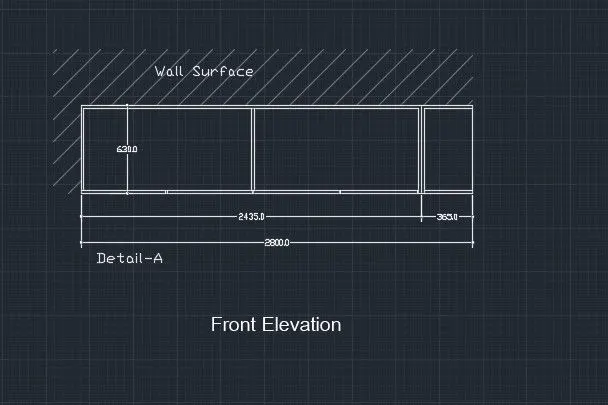

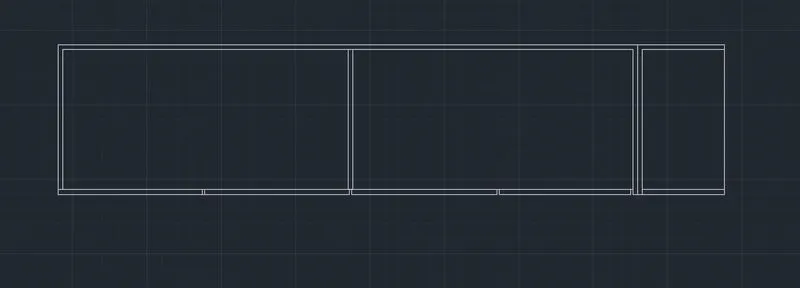

• For plan view, Take rectangle sizes 630 X 2800.
• do the dimensioning as per the drawing
• In the command line type Qleader to annotate the section-1.

This Is the Plan View Of wardrobe. (Above Image)

2.

Aim :-

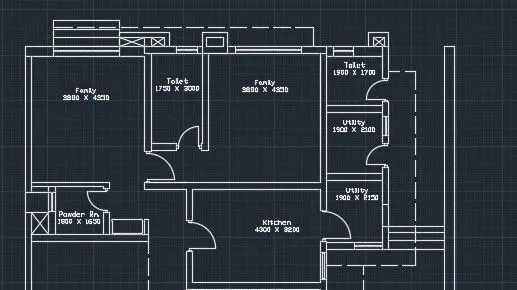

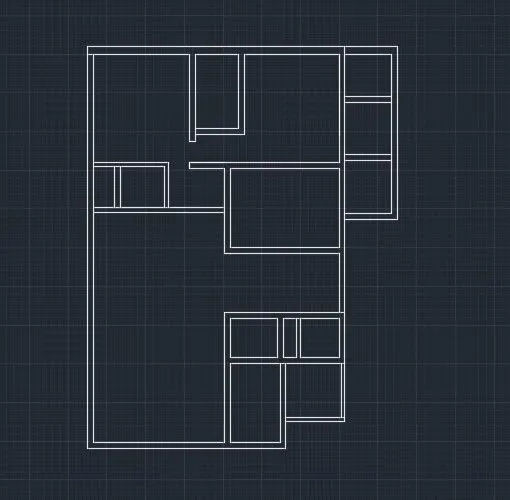

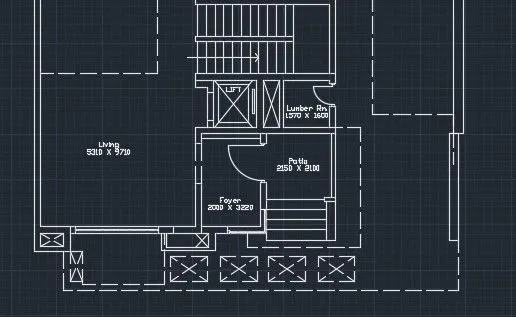

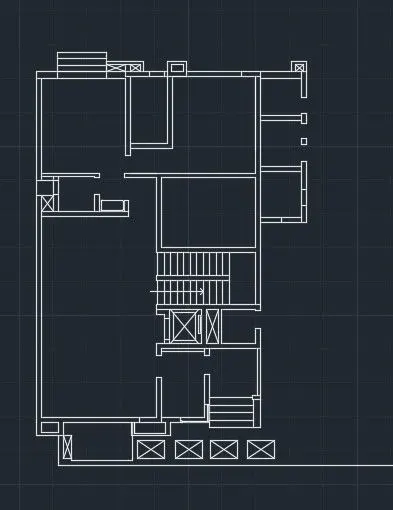

• Sketching the floor plan as shown in the Figure. Using the proper drafting tools to sketch the plan.

Procedure :-

• Units are set in mm.
• Type Xline in command line and offset it with particular distances like 9" of wall, living, toilet etc.
• Draw the doors with line and arc command.
• Draw the window with line and offset command.
• Use dotted line to show lawn area.

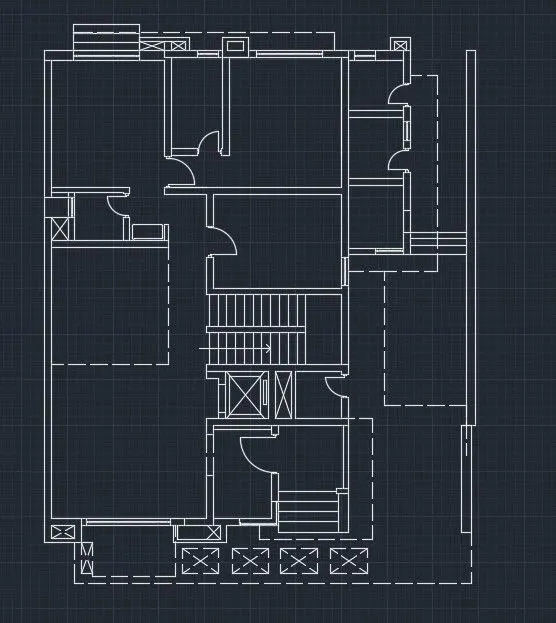

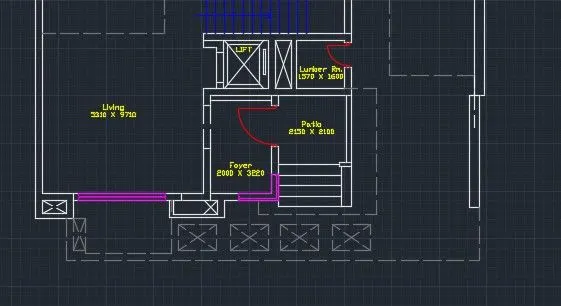

• The Procedure of drawing is shown below.

• Now, use text command to show text in the drawing.
• Use layer command to provide different layers in the drawing.

• Give the dimensions in text and Annotate the drawing with text.

Result :-

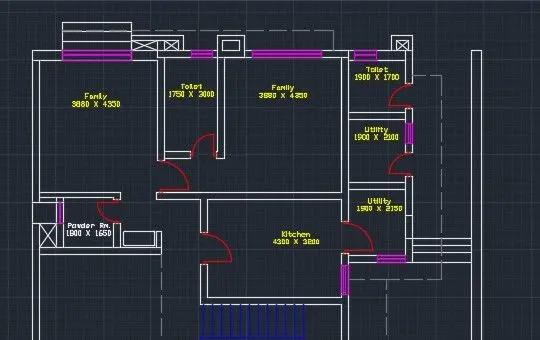

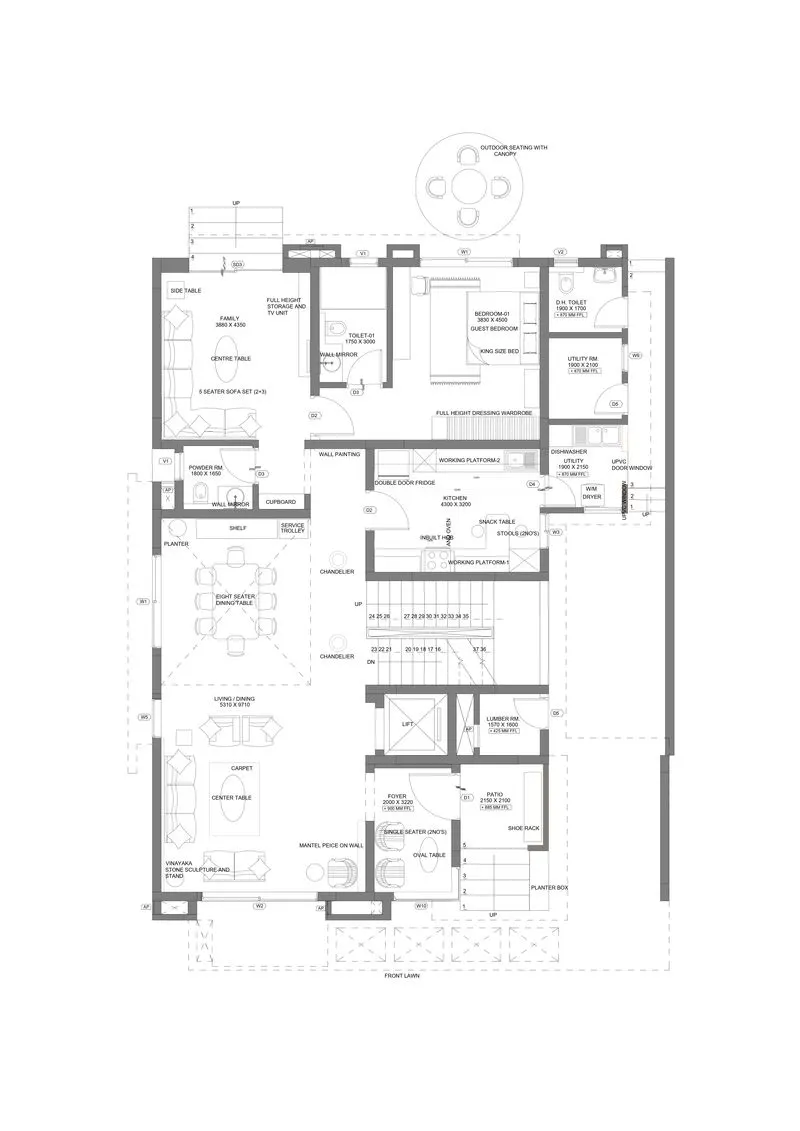

This is the final drawing of the Floor Plan.

3.

Aim :-

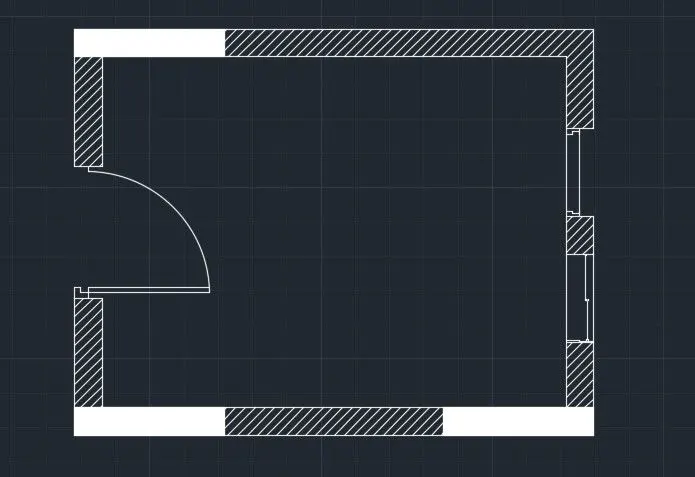

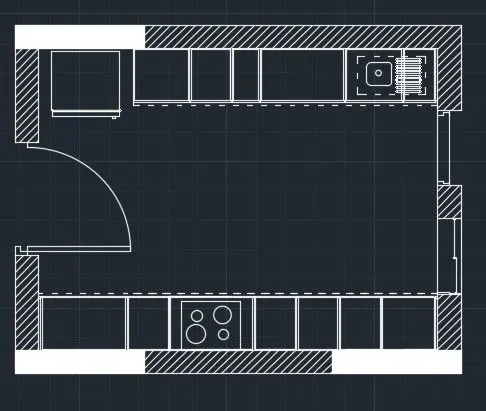

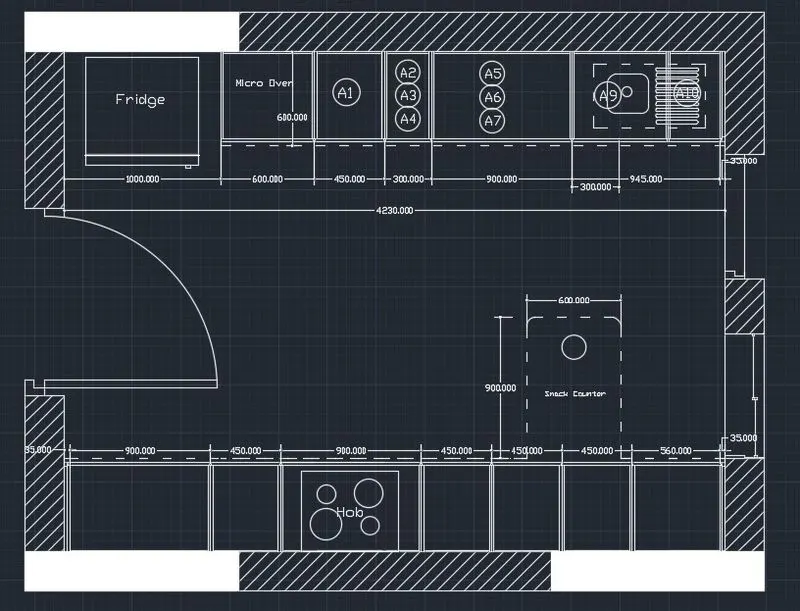

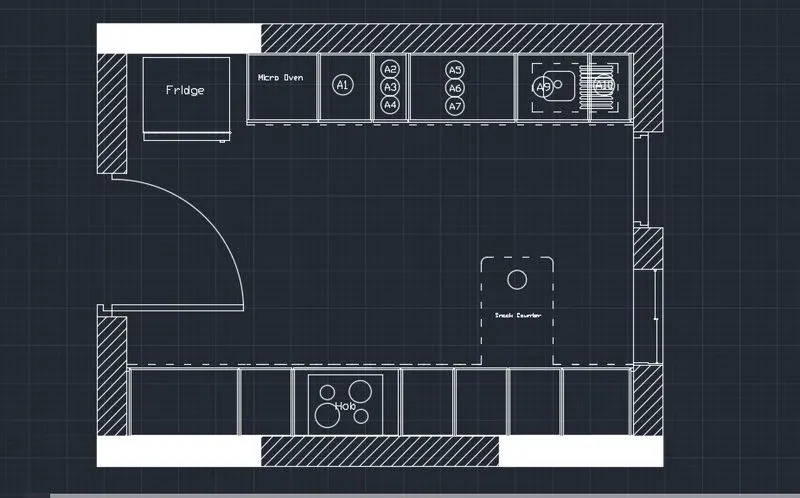

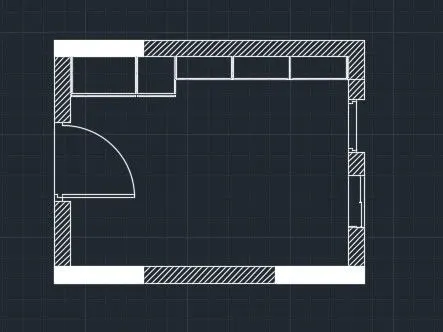

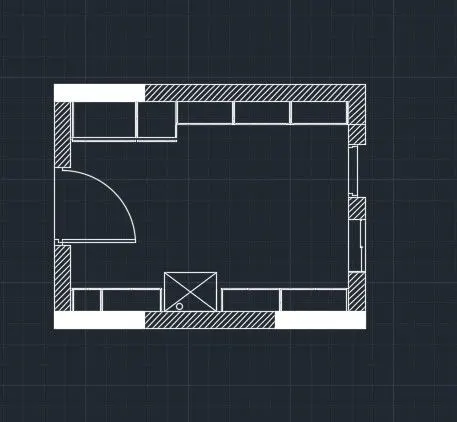

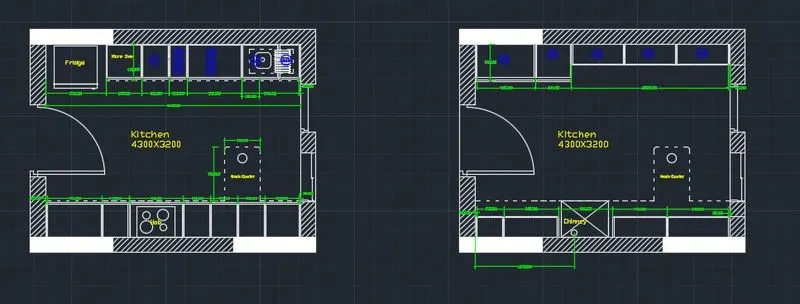

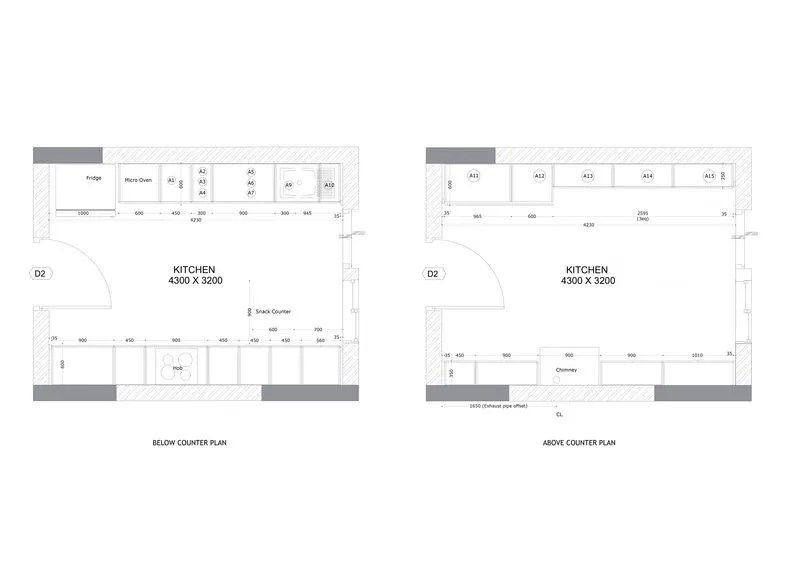

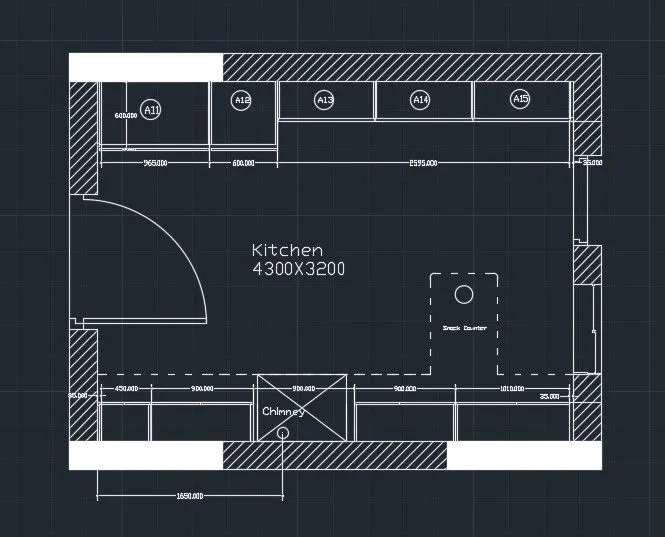

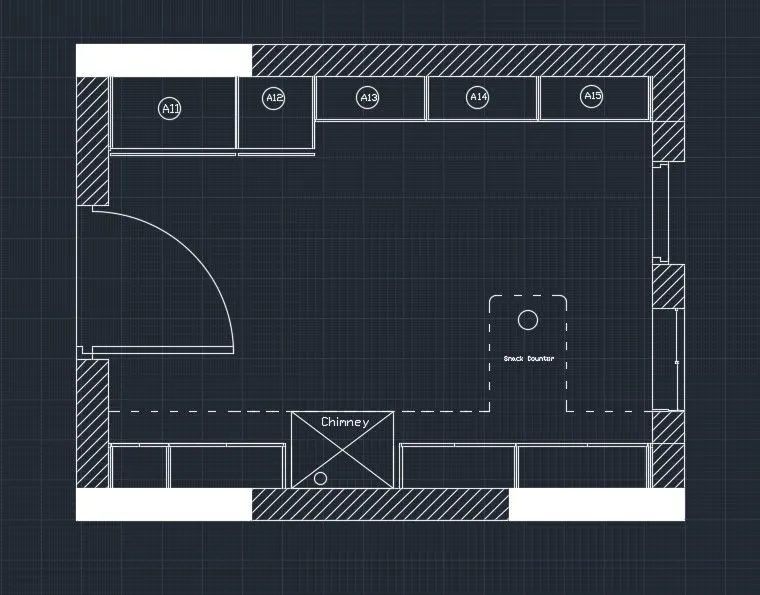

• Creating the Kitchen Layout as shown in the Figure below. Also, using proper dimension techniques to dimension the kitchen layout.

Procedure :-

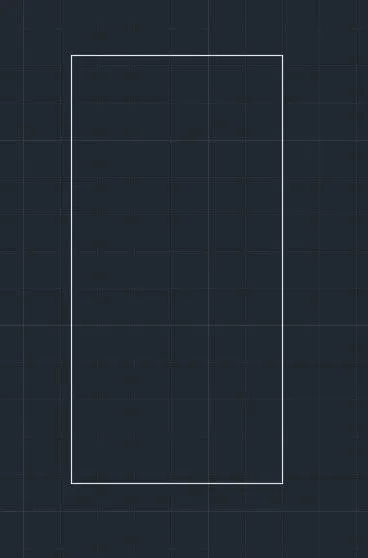

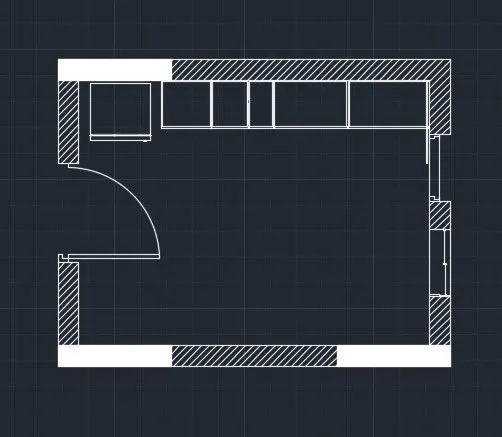

• Type Line command and draw rectangle of size 4700 X 3700.
• Type offset command of size 250 mm inside the rectangle.
• Draw the door using line and arc command.
• Draw the window as per the drawing.

• Then Offset the lines with size of 1000, 600, 450,300, 900, 945, 35.
• And make the Platform and Fridge.

• Draw the same platform at the other side.
• Type offset command of size 35, 900, 450, 900, 450, 450, 450, 560, 35 .

• using dotetd line draw snack counter of size 600 X 700.

• Do the Proper dimensionig as per the drawing.

• For above counter plan, use same rectangle box as used before.
• Use line and offset command to make proper platform.

• Draw the same at other side.
• But the sizes are different with compared to below counter plan.

• Annotate proper text and dimensions as per drawing.

• use layer command to show different layers that are used in the drawing.

Result :-

4.

Aim :-

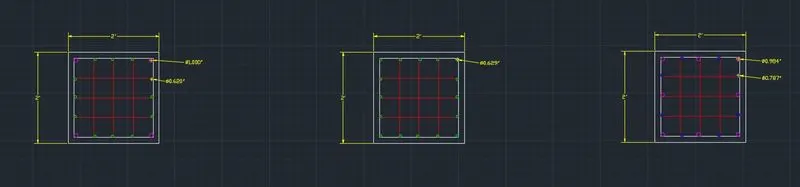

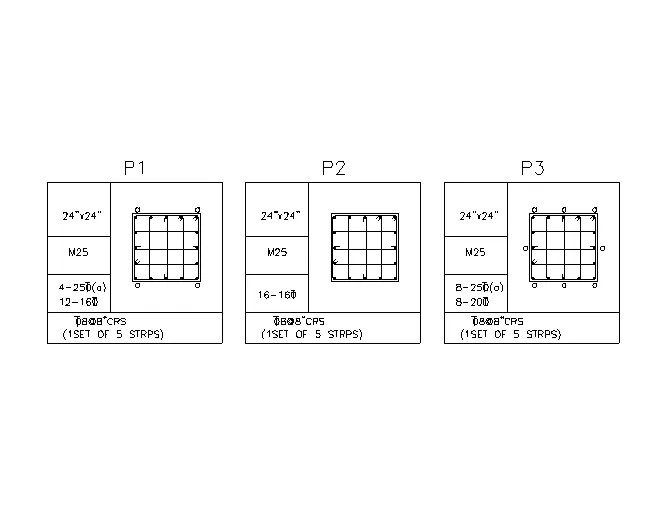

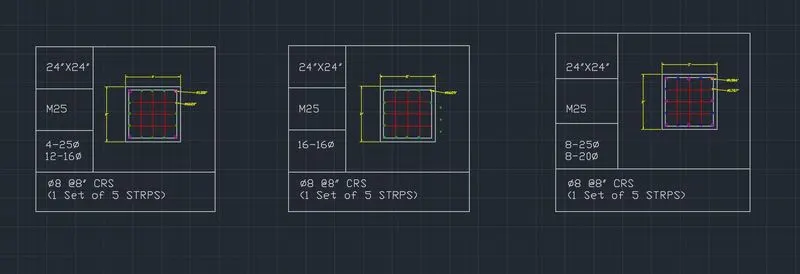

• Sketching the column details as shown in Figure.

Procedure :-

• Using rectangle and Line commannd, draw table as per drawing.

• Draw the columns as per the sizes given in the drawing.
• Use the line, rectangle and circle command.

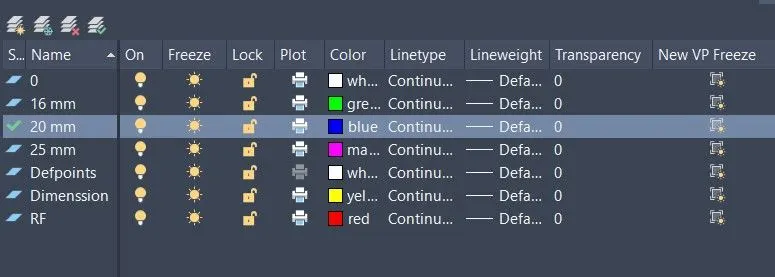

• Use different layers that are used in the drawing.

• Shown the layers which are used in the drawing.

Result :-

5.

Aim :-

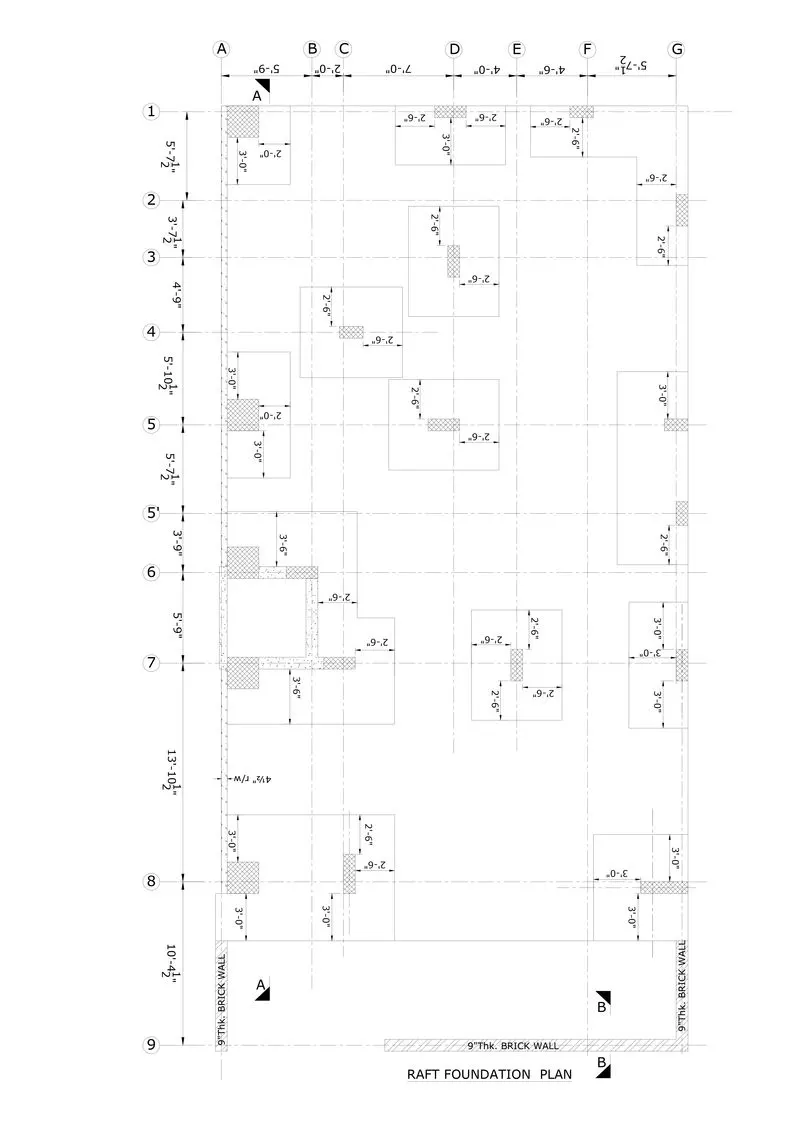

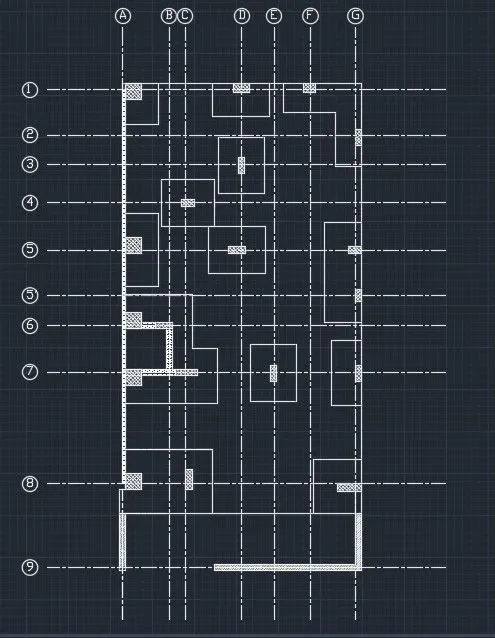

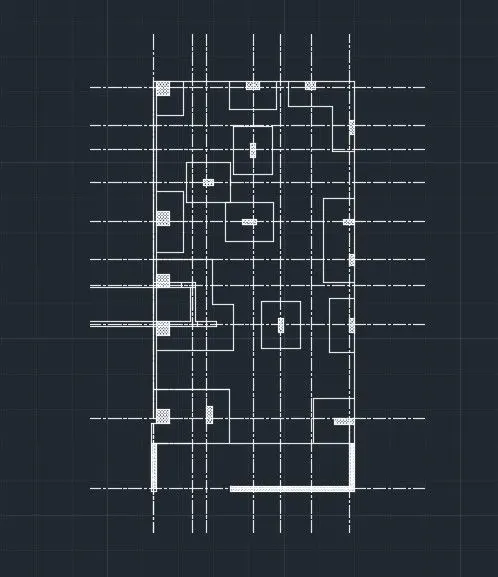

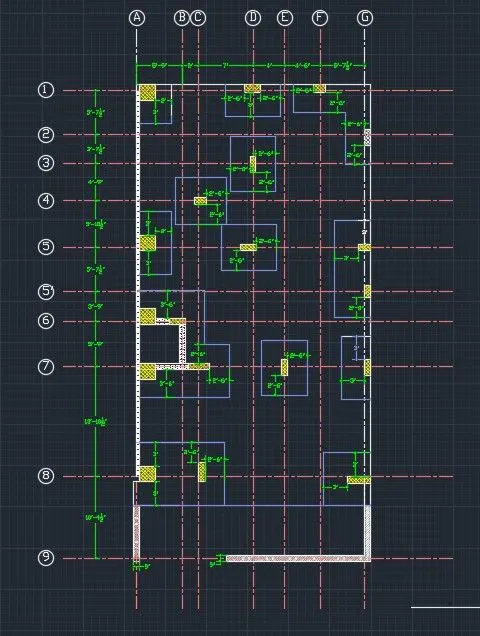

• To draw the raft layput.

Procedure :-

• Draw the rectangle of size 29' X 60'.

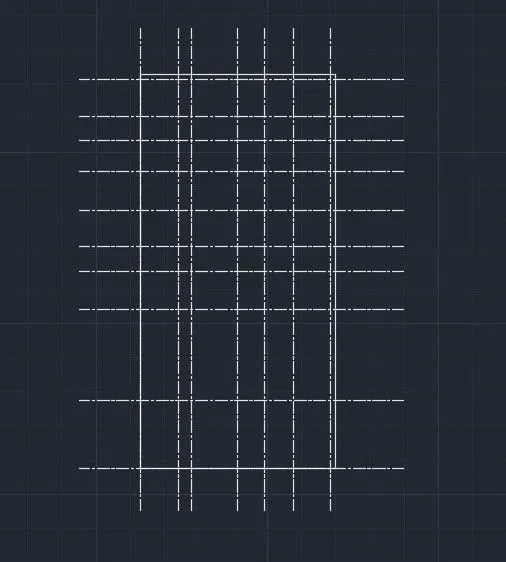

• Use ISO Long dash- Short dash line to show the grids.
• Offset the lines as per drawing.

• Draw the column placements given in the drawing and draft the column.
• Use Hatch command as shown in drawing.

• Mark the name of grids.

• Use layers command to sshow the different layers in the drawing.
• Annotate wit hproper dimensioning in the drawing.

Result :-

These are the Drawings in the Chellenge-5.
