Creating a Wardrobe detailed drawing, Floor Plan, Kitchen Layout and Column Detail using AutoCad

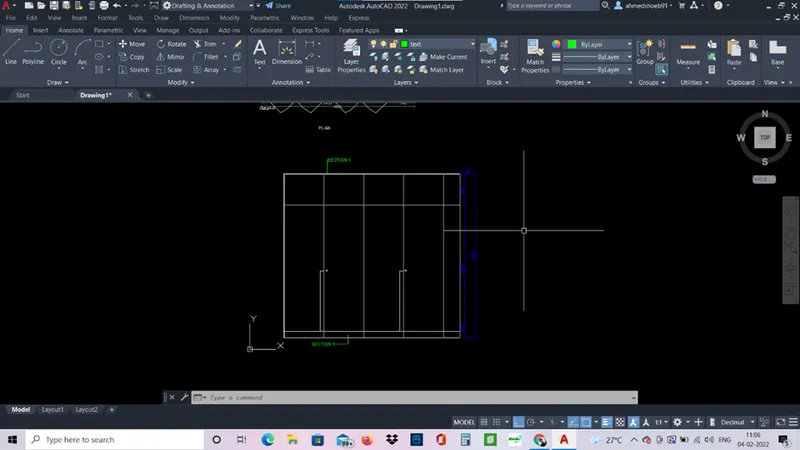

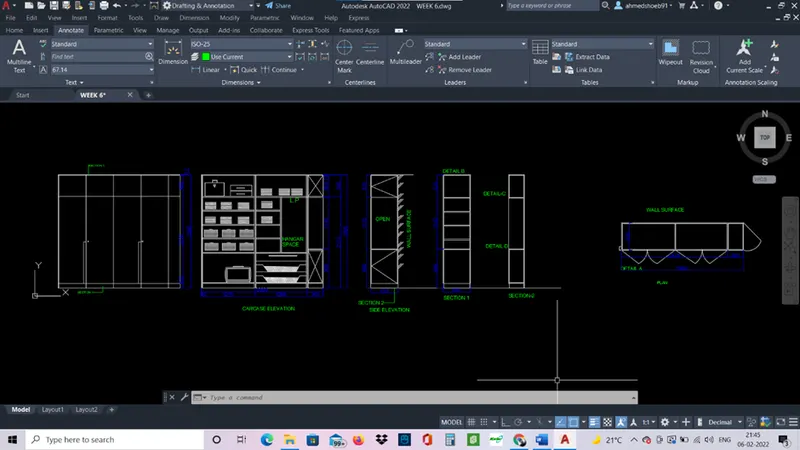

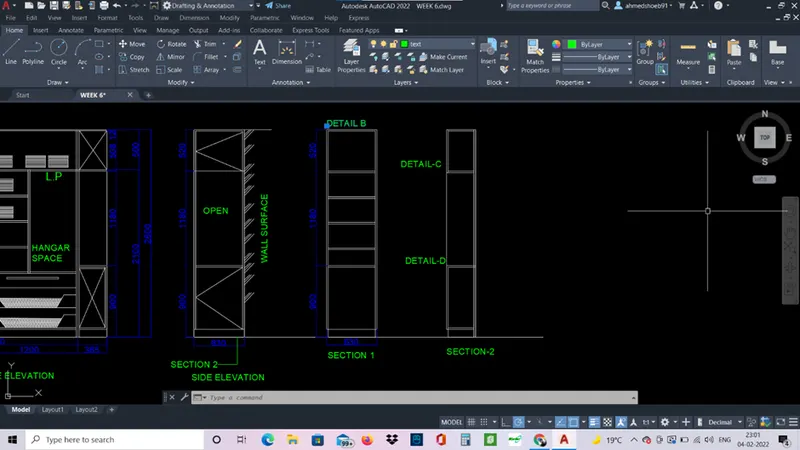

Aim: - To draw the elevation and details of the wardrobe.

Procedure: -

• Units – decimal.
• Use line command and draw a horizontal line of 2800 and vertical line of 2600.
• Use offset command and draw offset of 1223, 1200 and 365 of vertical line.
• Draw offset of 100, 2000, 488 and 12 of horizontal line.
• Use rectangle and circle command to draw rectangle and circle in given position.
• Use qleader and write the ‘section 1’ and ‘wall surface’.
•

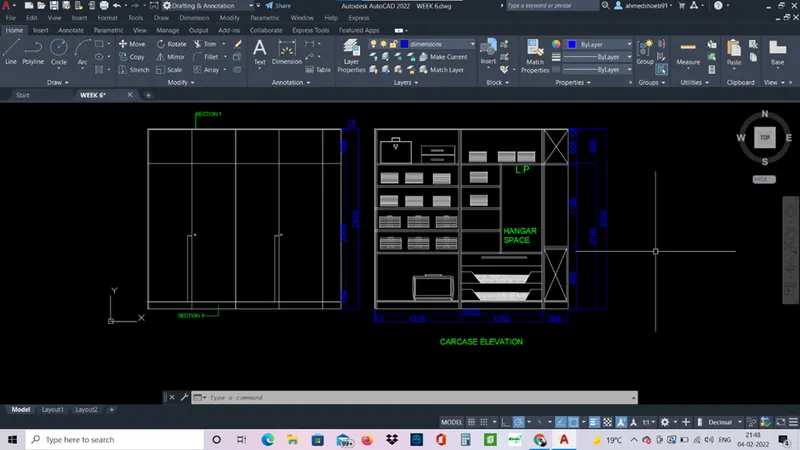

• Follow the same dimensions for second diagram.
• Give offsets as required.
• For clothes draw 1 and then copy it as required.
•
• For side elevation.
• Draw horizontal line 630 and vertical line of 2600.
• Draw horizontal line of 365 and vertical line of 2600.
• Give offsets of 15 to lines.
• Use dtext command to write the text.
• And qleader command for section 1.
•

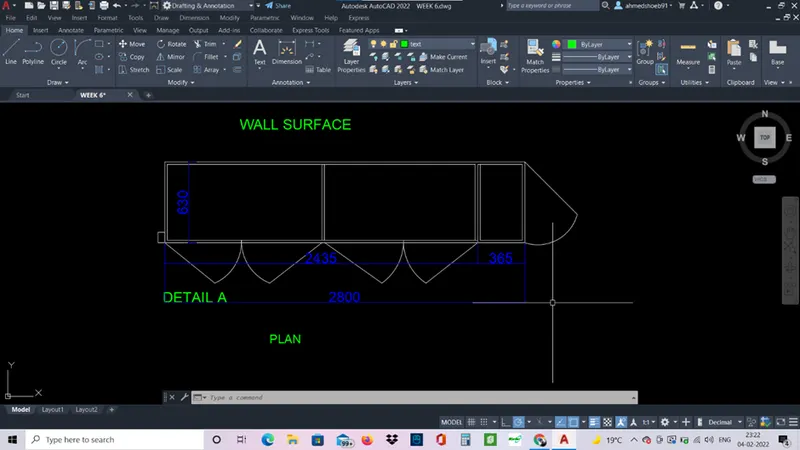

• For top elevation.
• Draw a line 2800 horizontal and 630 vertical.
• Give offset 2435 of vertical line and 365.
• Give border offset of 15.
• Draw lines to show open doors.
• Use arc command to show pathway of open door.
•

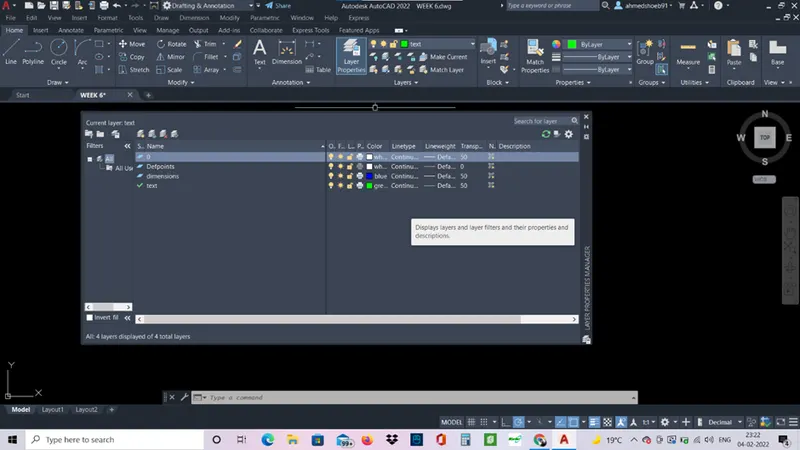

• Use layer properties and give different layers.
•

Result: -

•

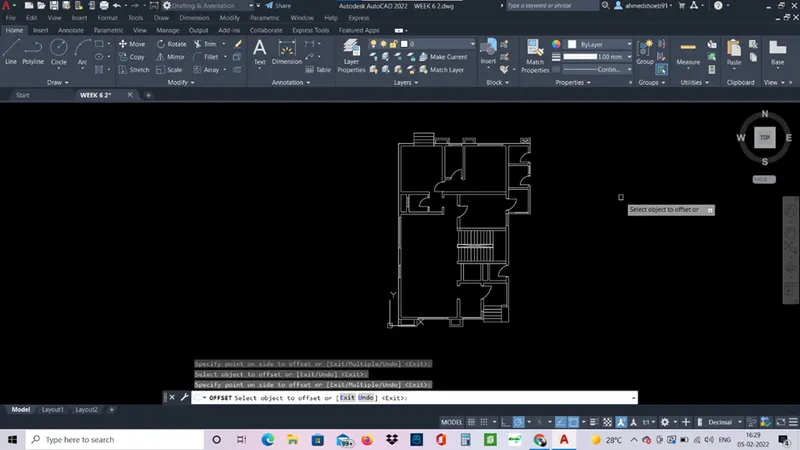

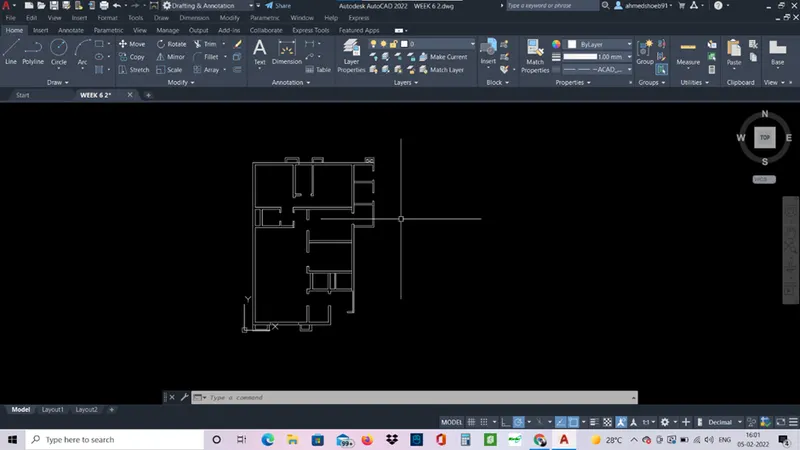

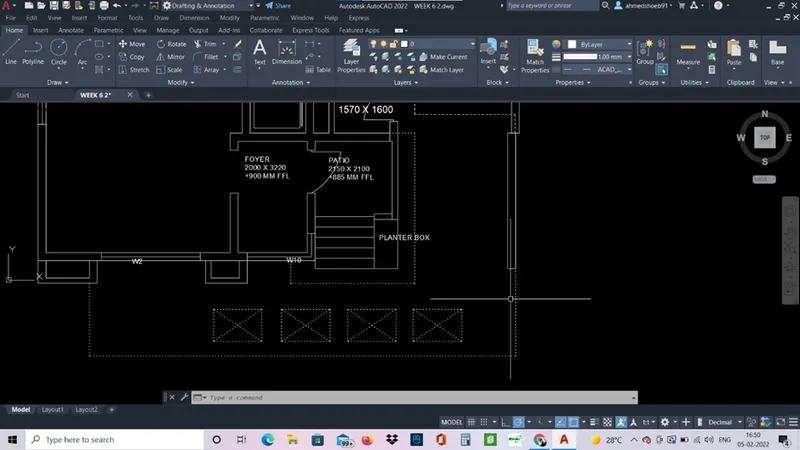

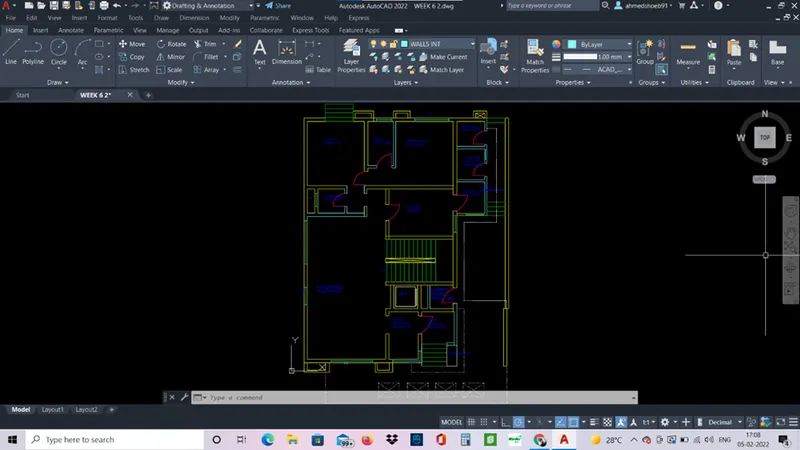

Aim: - To draw the floor plan in AutoCAD.

Procedure: -

• Units- decimal.
• Use xl line to draw outer lines.
• Give offsets of 230mm for outer walls.
• Give offsets for walls and room dimensions. And trim the excess lines.
•
• Use line commands to draw stairs, doors and windows.
•
• Use dtext command to write the given texts.
•
• Use dimension command to give dimension.
• Use dimcontinue to continue giving dimensions in 1 directions.

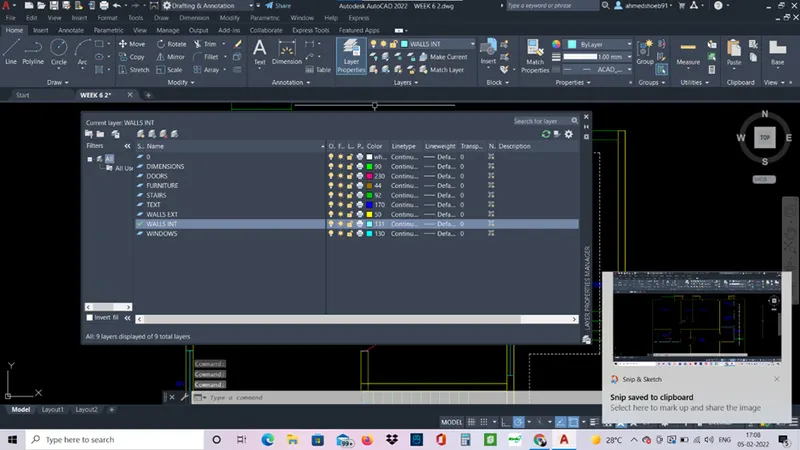

• Use layer properties, give different layers such as walls, windows, doors, etc.
•

Result: -

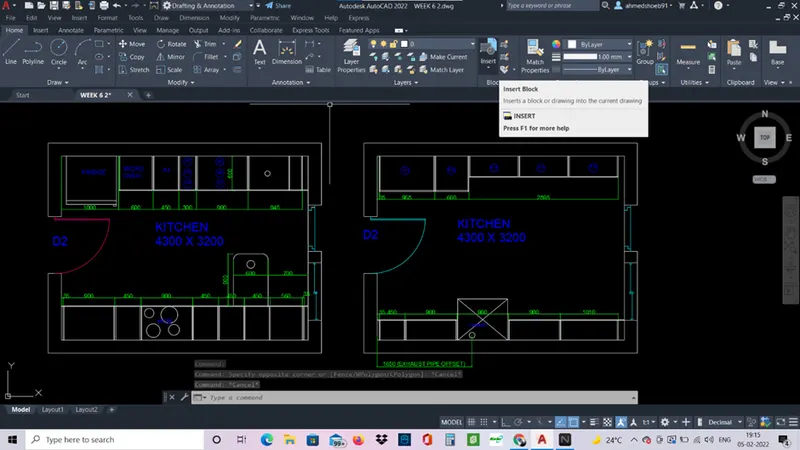

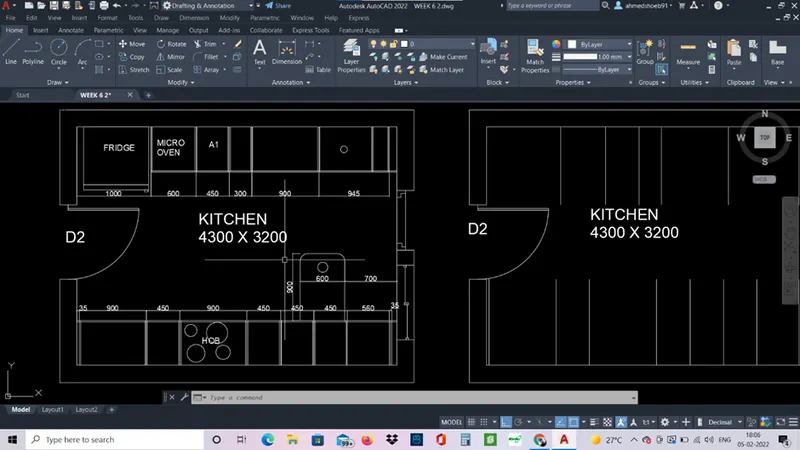

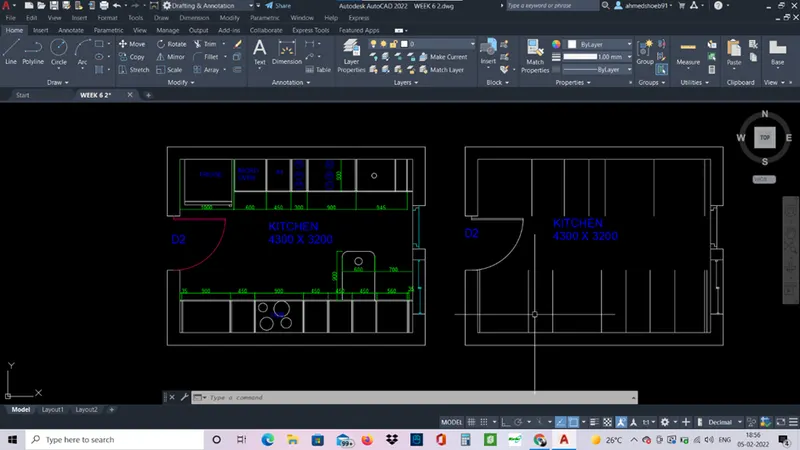

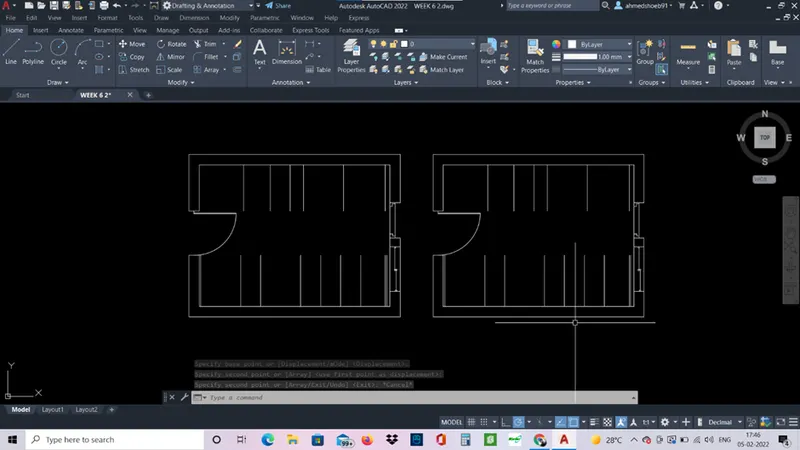

Aim: - To create a Kitchen layout in AutoCAD.

Procedure: -

• Units- decimals.
• Use line command and draw a line of 4300 and 3200.
• Give offsets of 230 mm for outer walls.
•
• Use line and trim command to draw windows, doors etc.
•
• Give offsets as given for furniture, and trim the excess lines.
• Use Dtext command to write texts.
• Give dimensions using dimlinear command and dimcontinue.
•
• Use same layers and match layer properties.
•
• Draw similarly for the second diagram.

Result: -

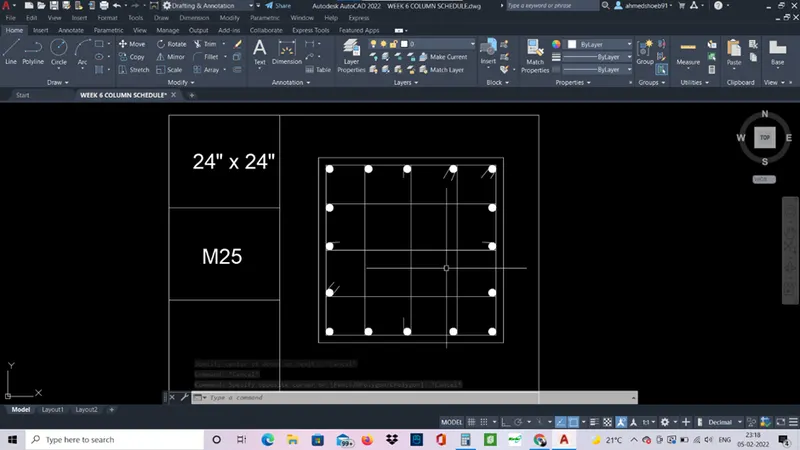

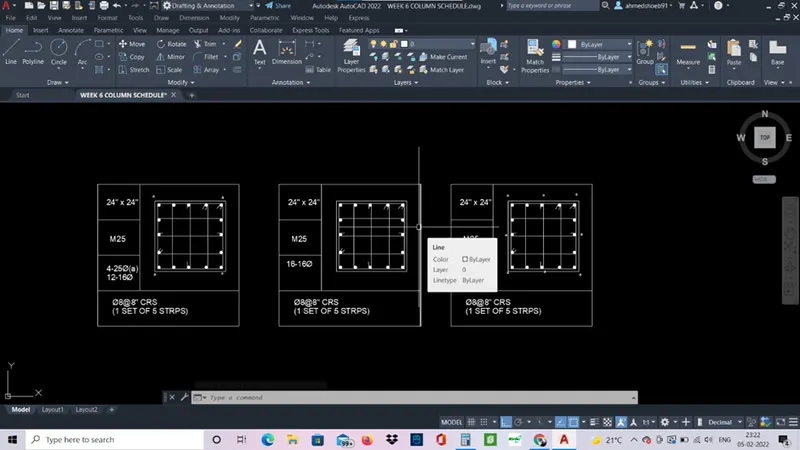

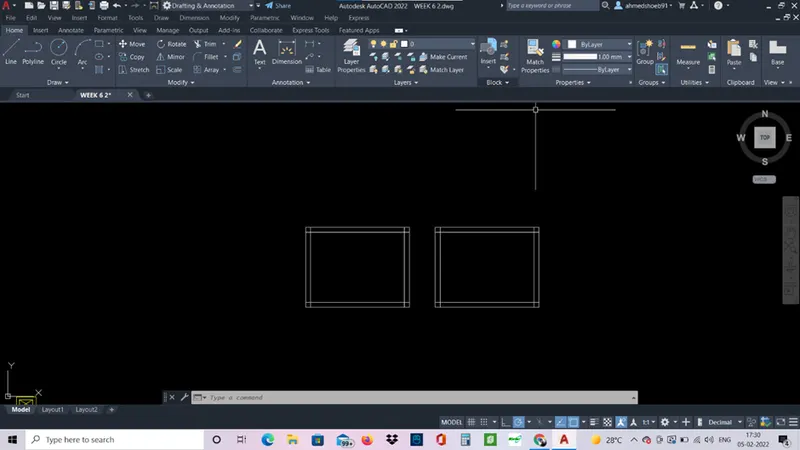

Aim: - to sketch the column schedule in AutoCAD.

Procedure: -

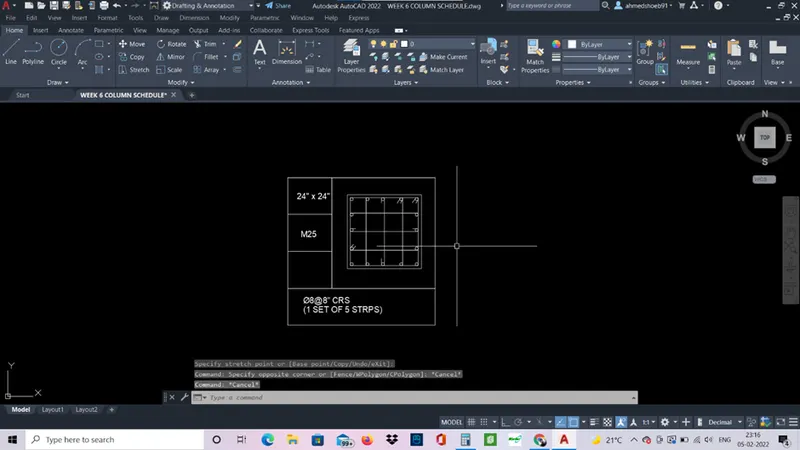

• First draw P1.
• Use line command and draw 1000 x 1000.
• Use offset and trim to create borders.
• For reinforcement draw rectangle of 500 x 500.
• Give offsets of 20 to rectangle.
• Use circle command for vertical bars.
• Use dtext and write the given texts .
•
• Use donut command and fill the circle.
•

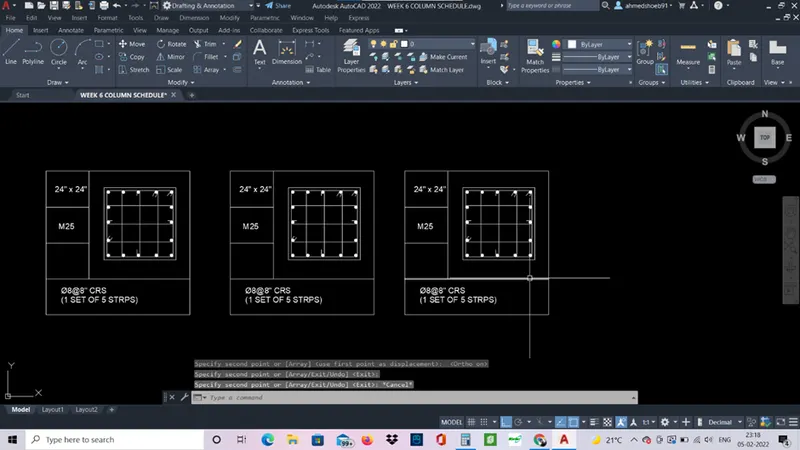

• Use copy command and copy the diagrams two times.
•
• Use dtext command and write the requires text in the empty space.

Result: -

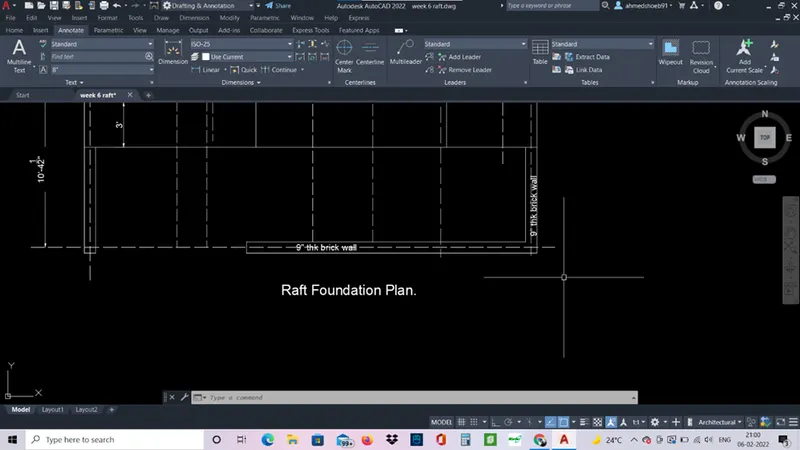

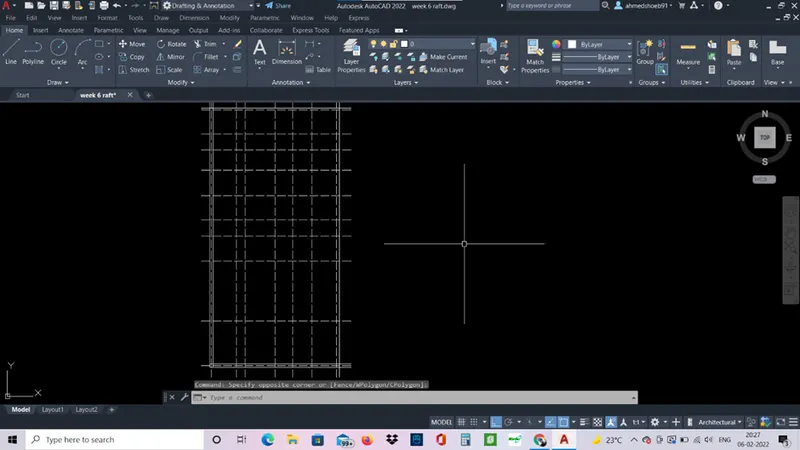

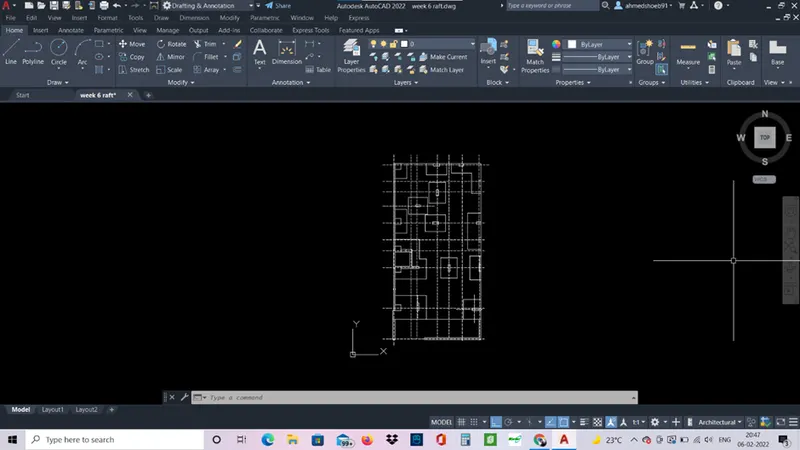

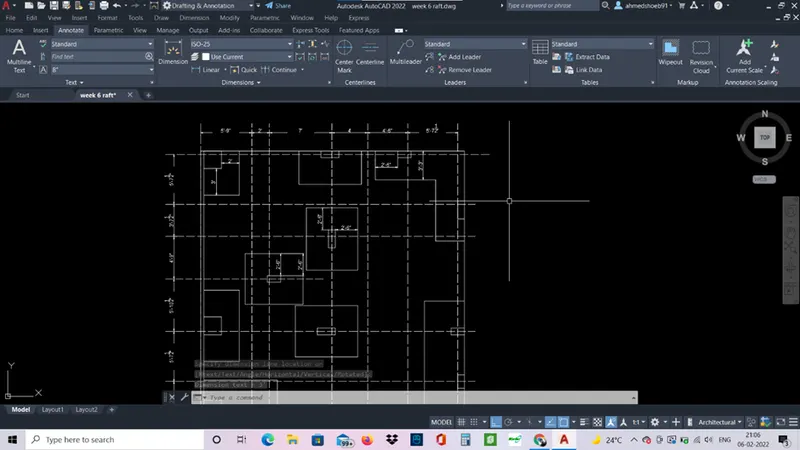

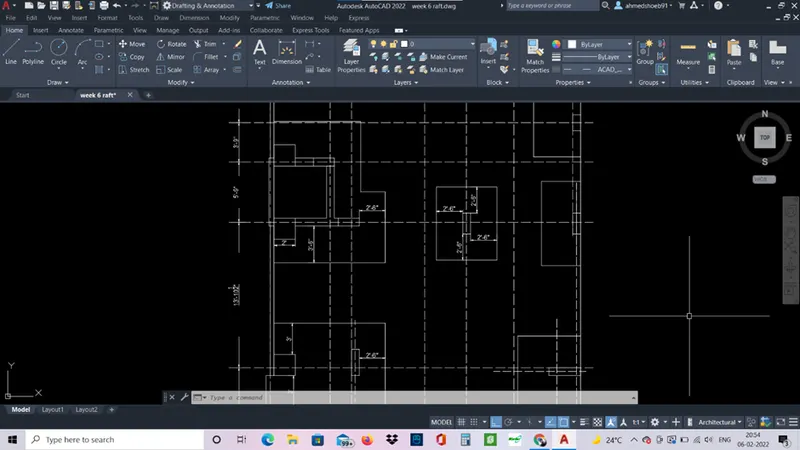

AIM: - To draw the Raft layout in the AutoCAD.

Procedure: -

• Use xl line and draw horizontal and vertical line. Give offsets of 9”. For outer walls.
• Use linetype of dash dash in line properties and give offsets for gridlines.
•
• Use trim command and trim the excess lines.
• Use line commands and draw the columns and raft base in the diagramns.
•
• Use dimlinear and dimcontinue to give dimensions to the layout.
•
• Use dt command to write texts in the diagrams.
•

Results: -
