Creating a Layout, Section and Elevation with dimensions using AutoCad

Aim-To create a plan and section by using autocad

Introduction-All dimensions are in mm. As per standard doors and windows sizes are used.

D=1000mm D1=750mm D2=900mm

Procedure-

-Set unit, limit and dimesion style also

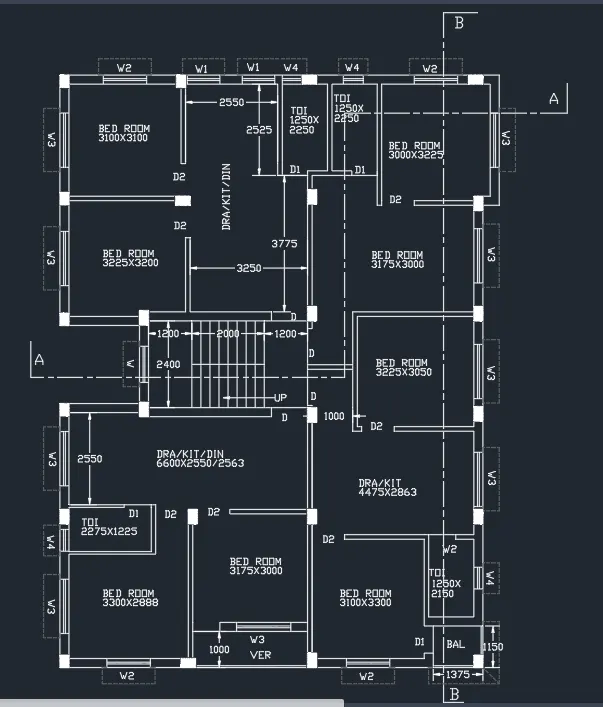

-XL enter create a corner line and 1st draw a plan

-By taking offset from down to upward side and left to right room by room

-Draw stair case by line command

-After creating rooms take a offset for doors and windows

-DT enter for text and leader also proveded whenever required

-Provide section line by other layer

-Trim and fillet whnever required

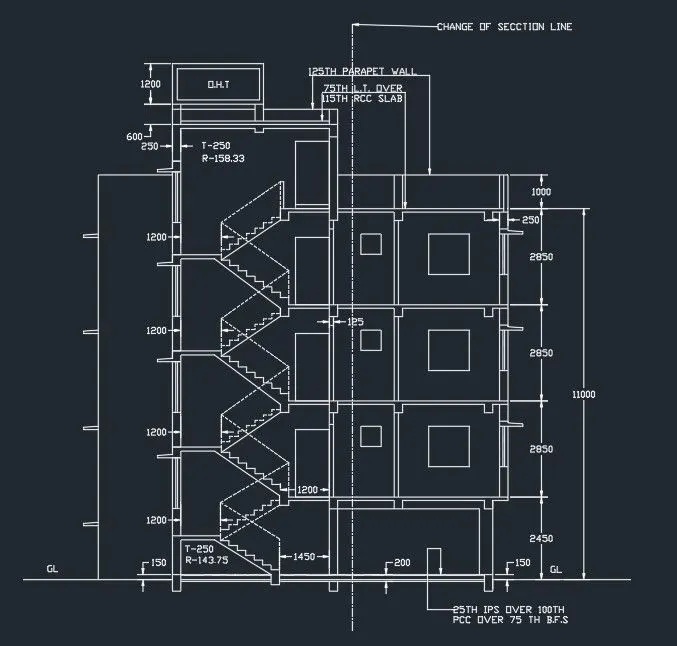

-After plan take a projection for section AA

-In section AA staircase arrangement given

-After taking projection trim lines as per given dimension

-Give dimesion by linear and continuous

-In this change of secton line represent section BB

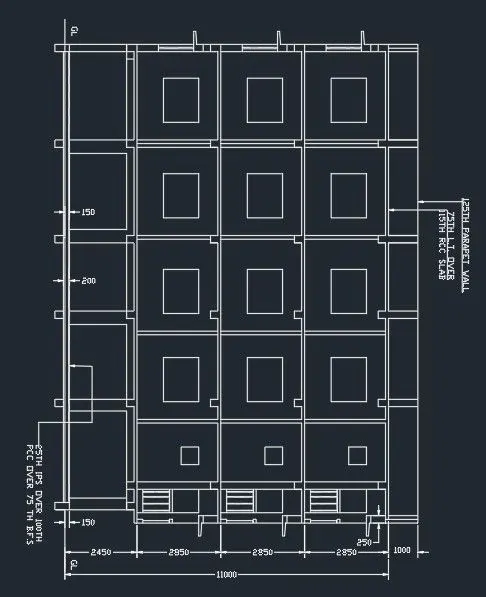

-After this draw section BB

-With proper dimension draw it and give dimension to it

-Give naming to each drawing with respectively

-Trim extended lines

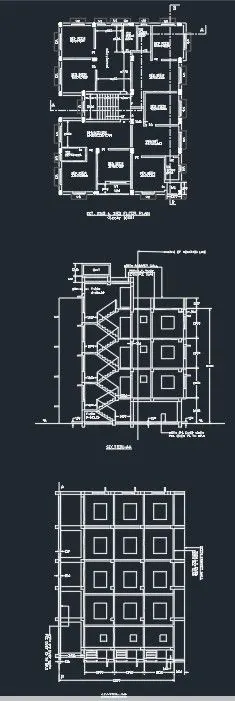

Result-This is final plan of 1st, 2nd & 3rd floor plan with section by using autocad
