Challenge

Creating a Layout, Section and Elevation with dimensions using AutoCad

AIM

To Create the Plan and Sections

Procedure

1.Open autocad and set the limits

2.Input line,trim,fillet,circle,rectangle and provide dimensions for the layout as shown in the figure.

3.finally take snapshot of the drawings.

Results

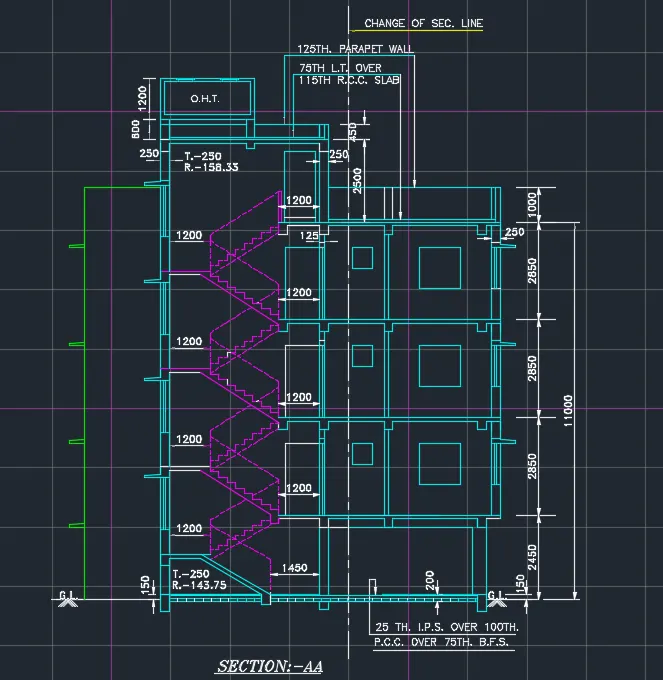

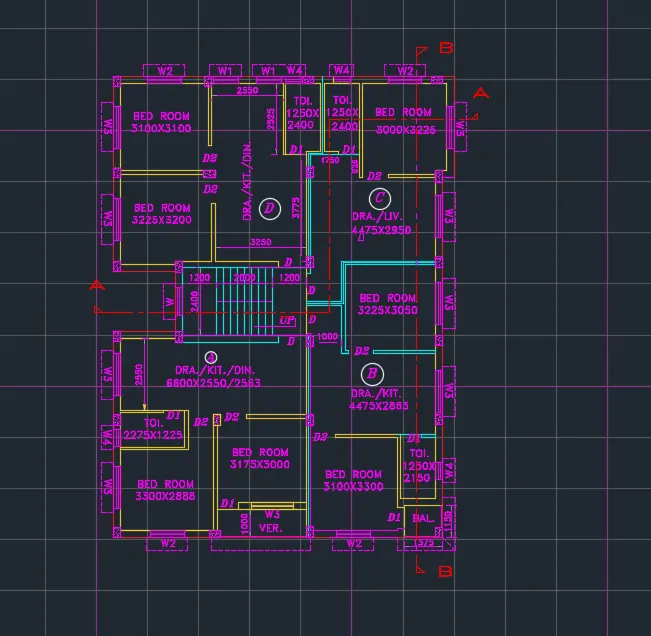

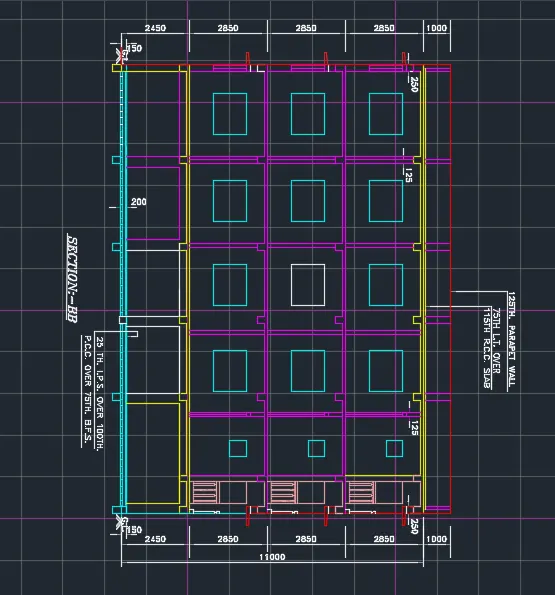

The drawing created was taken snapshot and produced in the results below.
