Creating a Layout, Section and Elevation with dimensions using AutoCad

ANS 1)

Aim: Create the Plan and Sections by using proper dimension techniques and dimension styles to document the project in AutoCAD.

Procedure:

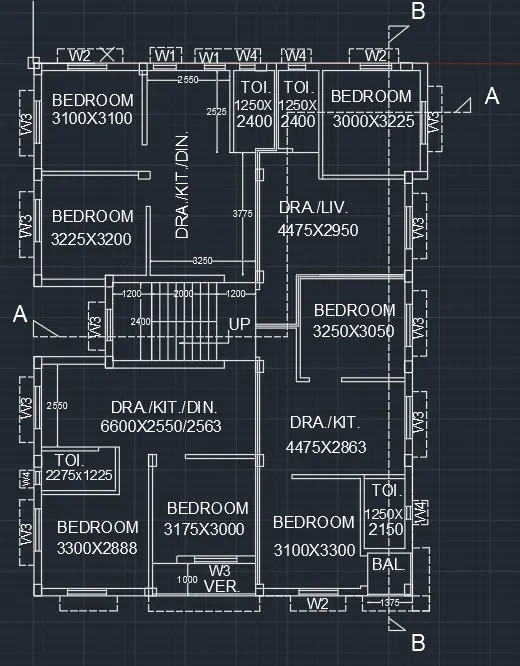

Select "Line" tool from the draw panel or type line in command prompt and press enter.

Specify the first point in the command prompt and press enter.

By using line tool draw the outer walls first and then draw interior walls.

Now by using offset command for the thickness of walls.

And use trim command for the openings of doors.

Again by using single line text or type DT in command prompt and press enter.

By DT command write all the texts and press enter.

Now type all the text and click somewhere on the screen and press esc to finish.

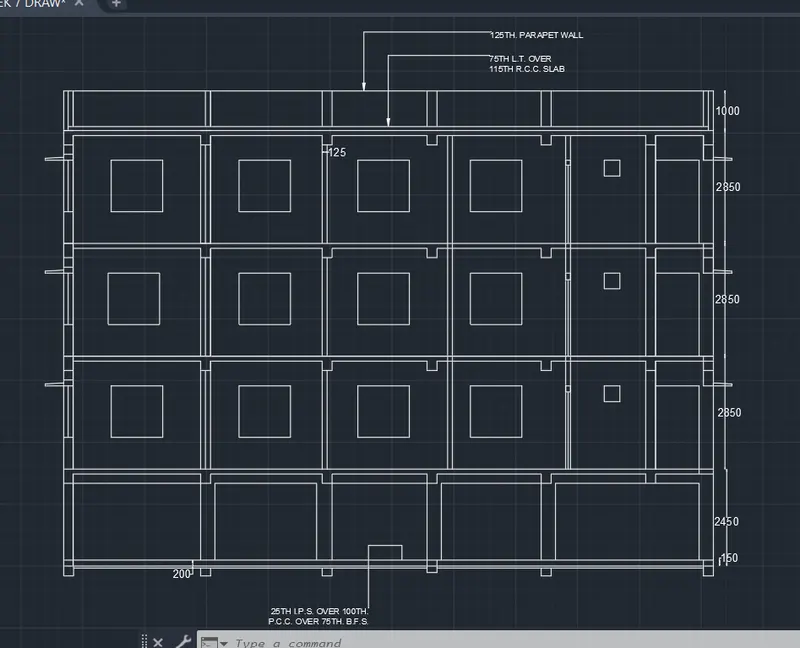

Now to draw the sections AA

Draw the projection lines vertically for the section AA by using XL command.

And the horizontal lines from the Ground level to divide the floors.

By using trim and fillet command or other necessary commands draw the whole drawing.

By using Leader(MLD) command draw arrows and write text and press enter.

now by using dimension tool give all the dimensions and press enter.

Press esc to finish.

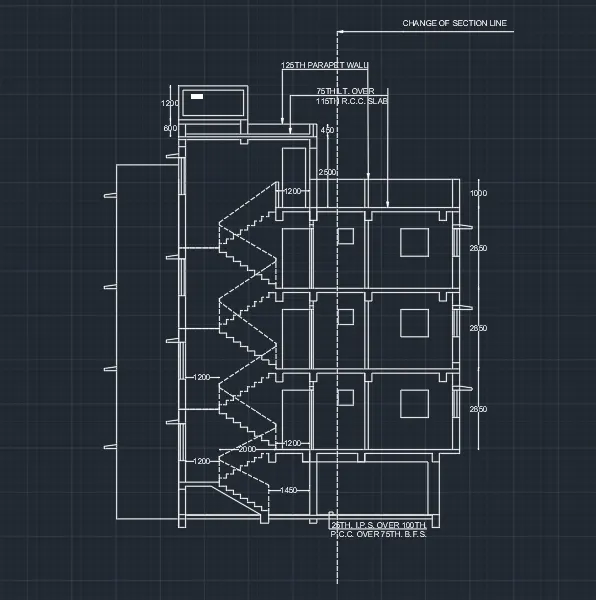

Now to draw the sections BB.

Draw the projection lines vertically for the section BB by using XL command.

And the horizontal lines from the Ground level to divide the floors.

By using trim and fillet command or other necessary commands draw the whole drawing.

By using Leader(MLD) command draw arrows and write text and press enter.

now by using dimension tool give all the dimensions and press enter.

Press esc to finish.
