Challenge 9 : Project : Technical Surfacing Kia Sportage

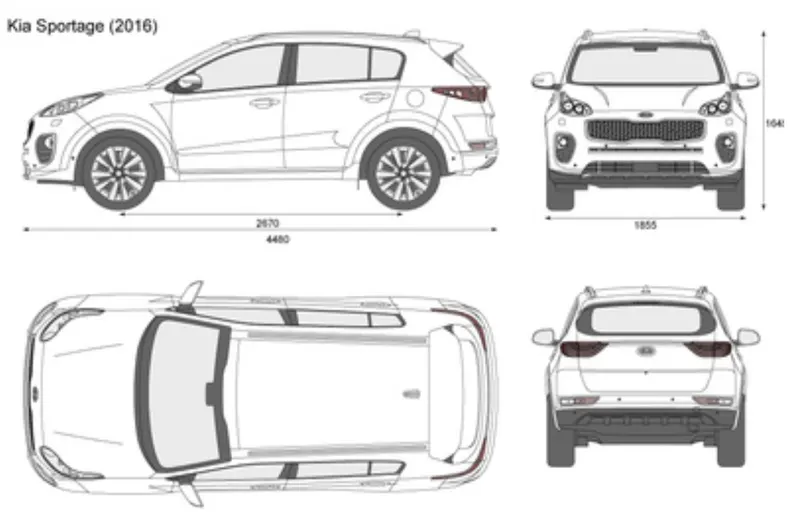

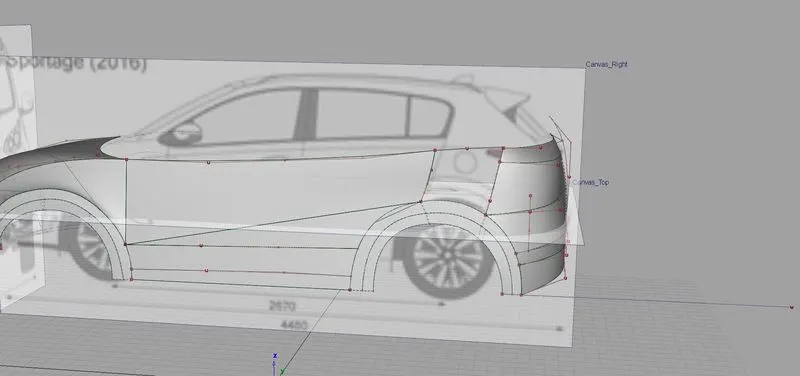

- CHALLENGE . 09 – TECHNICAL SURFACING KIA SPORTAGE 2) OBJECTIVE:- IN THIS EXERCISE I LEARN HOW TO APPLY A SURFACES ON THE CURVES NETWORK OF AN KIA SPORTAGE OBJECT/MODEL BY USING DIFFERENT SURFACING TOOLS AND ACHIEVE A 3D SHAPE OF THE GIVEN OBJECT.AS WELL I LEARN HOW TO MAKE IT IN CLASS-A BY APPLYING VARIOUS PROPERTIES OF SURFACING TOOLS. 3)INTRODUCTION:-IN THIS EXERCISE I KNEW THE SURFACING TOOLS IN A DEEP WAY AND HOW TO APPLY IT ON THE CURVES OF AN OBJECT FOR ACHIEVE THE 3D SHAPE OF THE KIA SPORTAGE MODEL. 4) DESIGN METHODOLOGY :- 1)IMPORT CANVAS IMAGE OF THE KIA SPORTAGE OBJECT IN THE PLANE AND EDIT THE OBJECT BY USING PLANE EDITOR FOR THE TRANSPERANCY AND SET IT IN A PROPER WAY FOR THE BETTER VISUALISATION 2) THEN TAKE A PLANE BOX AND ALIGN IT TILL THE MIDDLE SIDE BORDER OF AN KIA MODEL.3)THEN MAKE A CURVES OF THE OBJECT PUT IT AT TOP AND GIVING RAIL SURFACING.4)USING DETACH TOOL FOR THE MAKING IT HALF. 5)THEN I USE TRIM CONVERT TO THE CORNER SIDE SHAPE AND MAKE A NEW LAYER ASSIGN THE SURFACES AND CURVES.6)THEN TAKE A CURVE TO THE SIDE OF KIA OBJECT AND MAKE IT TRIM CONVERT. 7)THEN USE DETACH TOOL AND MAKE A 1 SPAN OBJECT BY TAKING THE CURVES HORIZONTALLY. 8) MAKE PLANE AND MOVE IT TO UPSIDE AND FRONT SIDE BY MAKING IT AND ADJUSTING THE CORNER CURVES.9)THEN WE TAKE CURVES NETWORK ON THE HEADREST SIDE.10)BY USING ALIGN TOOL I ALIGNING THE CURVES WITH THE HYPERTHERTICAL CURVES .11)THEN WE SET A CURVES OF KIA SPORTAGE IN A NEW LAYER AND MAKE IT SYMEETRY FOR THE BETTER VISUALISATION OF THE OBJECT.12THEN WE PROJECT THE CURVES ON THE BACK SIDE OF KIA SPORTAGE AND TRIM IT BY GIVING SYMMETRY AGAIN. 13) THEN THE FRONT AND REAR SIDE PATCH OF KIA SPORTAGE IS ACHIEVED COMPLETELY BY INTERSECTING THE CURVES ON IT WITH THE SURFACING IT.14)AFTER THE SURFACING OF FRONT AND REAR SIDE I STARTED MIDDLE SIDE SURFACING OF KIA SPORTAGE.15)BY TAKING A CURVES AND SURFACING IT I CAN ACHIEVED THE MIDDLE SIDE SURFACING OF THE MODEL. 16)THEN WE GO TO MAKING THE SURFACE AT OVER WHEEL ARC SIDE OF KIA SPORTAGE WHICH IS FLAT SHAPED IN INSIDE. 17)MAKE A CURVE AND AT THE CENTRE OF THE OBJECT AND SURFACE IT BY MRAIL O ACHIEVED THE BOTTOM SURFACING OF THE SIDE. 18)THEN I GIVE A FREE FORM BLEND TO OTHER SIDE AND ACHIEVED THE SHAPE WITH G2 CURVATURE.19)NOW I START THE TOP LEFT SIDE SURFACING OF KIA SPORTAGE BY BUILDING A CURVE AND ASSIGN IT TO THE SURFACE .20)AFTER THAT I GIVING CURVES TO THE PLANE FOR THE NEXT SURFACING.21)THEN I STARTED THE CURVE NETWORK AT KIA SPORTAGE SIDE FOR THE SURFACING. BY USING BLEND CURVE AND ALIGN THE CURVES TO EACH OTHER.22)AFTER THAT I MAKE A STRAIGHT LINE CURVE ON THE TOP SIDE OF KIA SPORTAGE TO MATCH THE KIA SPORTAGE SURFACES TO THE KIA SPORTAGE ALL THE SIDES.23) AND THEN WE TAKE A CURVE FROM WINDSHIELD SIDE AND MANIPULATE IT FOR THE SURFACING.24)THEN PROJECT ALL THE CURVES NETWORK ON THE PLANE SURFACE AND TRIM IT AND I ACHIEVED THE KIA SPORTAGE SIDE SURFACE.25)THEN I STARTED THE SURFACING BETWEEN THE TOP AND FRONT SIDEOF THE OBJECT BY ALIGNING THE CURVES TO IMAGE 26)ACHIEVED THE SURFASCING BY USING PROJECT,TRIM,INTERSECT ,TRIM CONVERT AS WELL AS ALIGN AND EXTEND TOOL.27)AFTER THAT I STARTED THE KIA SPORTAGE TOP SIDE BY ADJUSTING THE CURVES IN A WAY AND GIVING IT M RAIL TOOL FOR THE KIA SPORTAGE SIDE SURFACING. 5) DESCRIPTION:- THE TOOLS WHICH I USED FOR TO COMPLETE THE SURFACING THAT ARE AS FOLLOW :-FOR THE BASIC CURVE NETWORK I USE :- 1)CURVE TOOL 2)CIRCLE TOOL 3)KEYPTBOX TOOL FOR THE EDITING OF THE CURVES I USE:- 4)BLEND TOOL 5) ATTCH TOOL 6)EXTEND TOOL 7) ALIGN TOOL FOR THE SURFACING I USE :-8) SKIN RAIL 9)M-RAIL SURFACE TOOL 10)SQUARE TOOL FOR THE SURFACE EDITING I USE :- 12) SURFACE FILLET CONTROL 13) FREE FORM BLEND 14)MULTISURFACE DRAFT CONTROL 15) PROJECTAND TRIM TOOL 1)FIRSTLY IMPORT CANVAS IMAGE OF THE KIA SPORTAGE WHEEL OBJECT IN LEFT PLANE AND EDIT THE OBJECT BY USING PLANE EDITOR FOR THE TRANSPERANCY.AND SET IT IN A PROPER WAY FOR THE BETTER VISUALISATION 2) THEN TAKE A SMALL CURVE AND ALIGN IT TILL THE MIDDLE SIDE BORDER OF AN KIA SPORTAGE.3)THEN MAKE A CIRCLE AND PUT IT AT TOP AND GIVING RAIL SURFACING.4)USING DETACH TOOL FOR THE MAKING IT HA.
5)THEN I USE TRIM CONVERT TO THE CORNER SIDE SHAPE AND MAKE A NEW LAYER ASSIGN THE SURFACES AND CURVES.6)THEN TAKE A CURVE TO THE SIDE OF KIA SPORTAGE AND MAKE IT TRIM CONVERT.7)THEN USE DETACH TOOL AND MAKE A 1 SPAN OBJECT BY TAKING THE CURVES HORIZONTALLY.8) MAKE PLANE AND MOVE IT TO UPSIDE AND FRONT SIDE BY MAKING IT AND ADJUSTING THE CORNER CURVES.9)THEN WE TAKE CURVES NETWORK ON THE KIA SPORTAGE FRONT SIDE.10)BY USING ALIGN TOOL I ALIGNING THE CURVES WITH THE HYPERTHERTICAL CURVES .11)THEN WE SET A CURVES OF KIA SPORTAGE IN A NEW LAYER AND MAKE IT SYMEETRY FOR THE BETTER VISUALISATION OF FRONT AND REAR SIDE.12THEN WE PROJECT THE CURVES ON THE KIA SPORTAGE PATCH AND TRIM IT BY GIVING SYMMETRY AGAIN.13) THEN THE REAR SIDE PATCH OF KIA SPORTAGE IS ACHIEVED COMPLETELY BY INTERSECTING THE CURVES ON IT WITH THE SURFACING IT.14)AFTER THE SURFACING OF KIA SPORTAGE I STARTED MIDDLE SIDE SURFACING OF KIA SPORTAGE. 15)BY TAKING A CIRCLE AND SURFACINGIT I CAN ACHIEVED THE MIDDLE SIDE SURFACING OF THE KIA SPORTAGE DOOR SIDE.

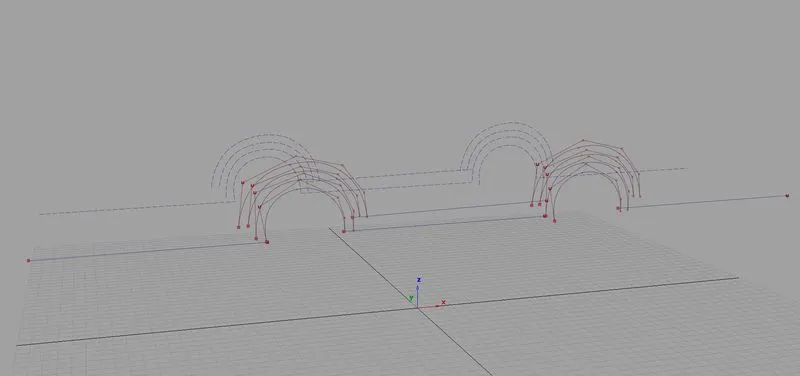

16)THEN WE GO TO MAKING THE SURFACE OF BOOTOM SIDE OF KIA SPORTAGE OVER THE WHEEL ARC WHICH IS ROUND AND FLAT SHAPED IN INSIDE. 17)MAKE A CURVE AND CIRCLE AT THE CENTRE OF THE OBJECT AND SURFACE IT BY MRAIL O ACHIEVED THE BOTTOM SURFACING OF KIA SPORTAGE. 18)THEN I GIVE A FREE FORM BLEND TO OTHER SIDE AND ACHIEVED THE SHAPE WITH G2 CURVATURE.19)NOW I START THE TOP LEFT SIDE SURFACING OF KIA SPORTAGE BY BUILDING A CURVE AND
.
21)THEN I STARTED THE CURVE NETWORK AT KIA SPORTAGE SIDE FOR THE SURFACING. BY USING BLEND CURVE AND ALIGN THE CURVES TO EACH OTHER.22)AFTER THAT I MAKE A STRAIGHT LINE CURVE ON THE TOP SIDE OF KIA SPORTAGE TO MATCH THE CURVES WITH SURFACES TO THE ALL SIDES OF MODELS .23) AND THEN WE TAKE A CURVE FROM BUTTON SIDE AND MANIPULATE IT FOR THE SURFACING.24)THEN PROJECT ALL THE CURVES NETWORK ON THE PLANE SURFACE AND TRIM IT AND I ACHIEVED THE SKIA SPORTAGE SIDE SURFACE.25)THEN I STARTED THE SURFACING BETWEEN THE KIA SPORTAGE AND KIA SPORTAGE BY ALIGNING THE CURVES TO IMAGE 26)ACHIEVED THE SURFASCING BY USING PROJECT,TRIM,INTERSECT ,TRIM CONVERT AS WELL AS ALIGN AND EXTEND TOOL.27)AFTER THAT I STARTED THE KIA SPORTAGE TOP SIDE BY ADJUSTING THE CURVES IN A WAY AND GIVING IT M RAIL ,FREEFORM.BKEND TOOL FOR THE KIA SIDE SURFACINGASSIGN IT TO THE SURFACE .20)AFTER THAT IG GIVING A CROWN TO THE PLANE FOR THE NEXT SURFACING.AFTER THE MATCHING AND SURFACING I GOT THE FULL DETAILED SURFACING OF AN KIA SPORTAGE OBJECT. 6) SCREENSHOTS OF THE OBJECT:-

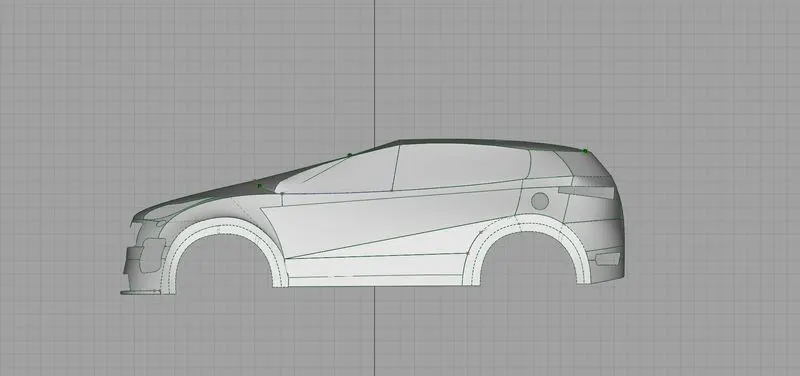

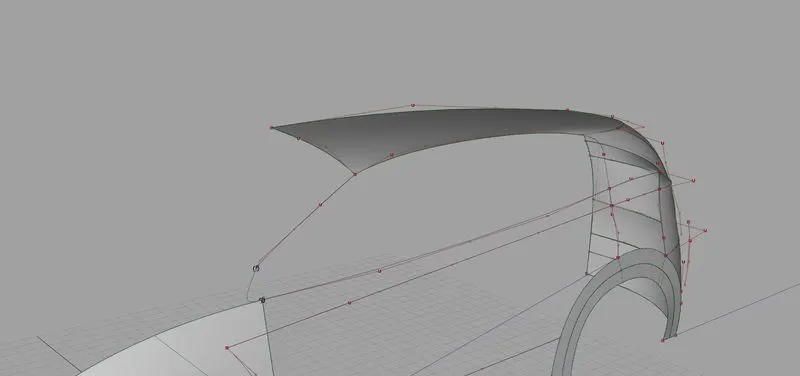

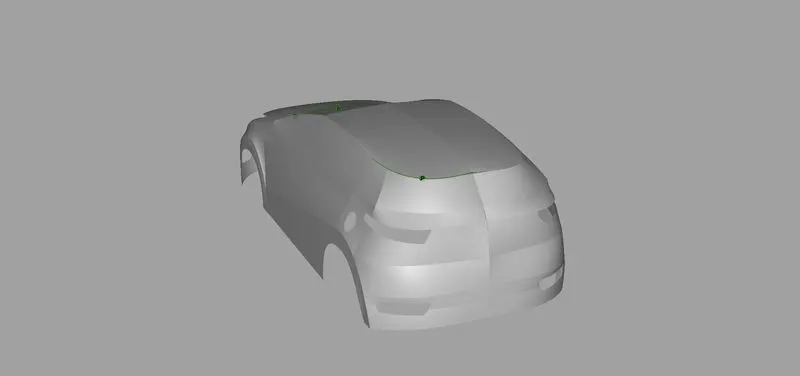

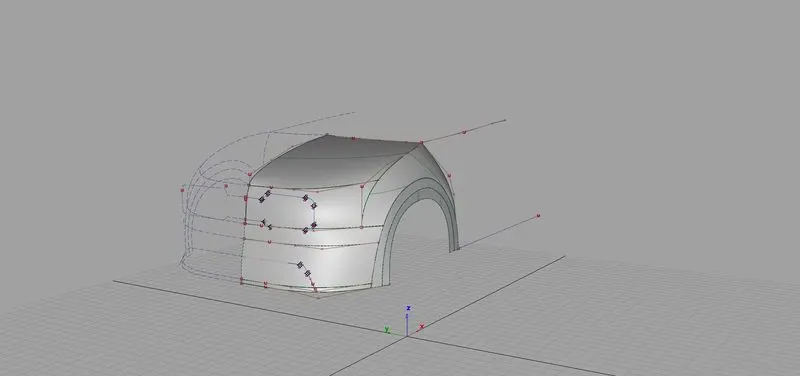

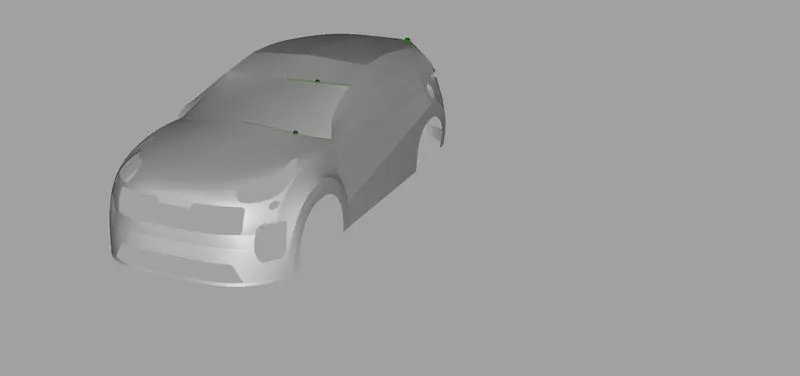

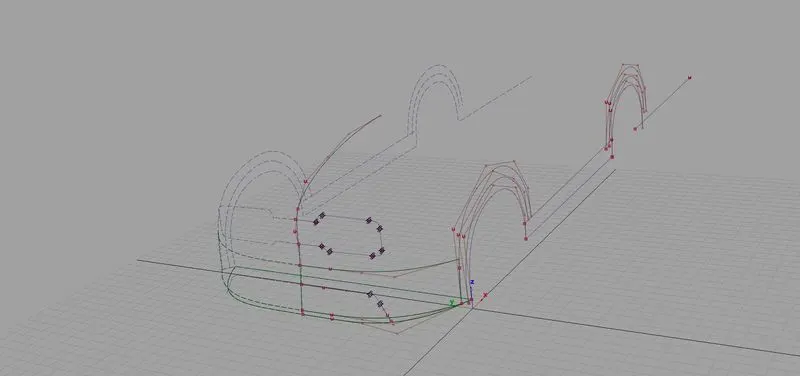

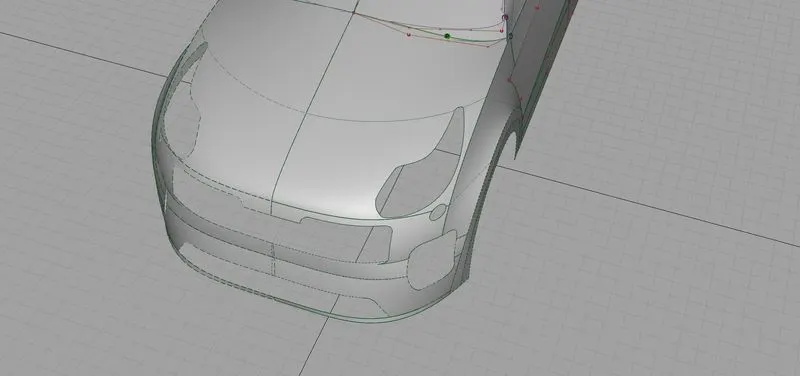

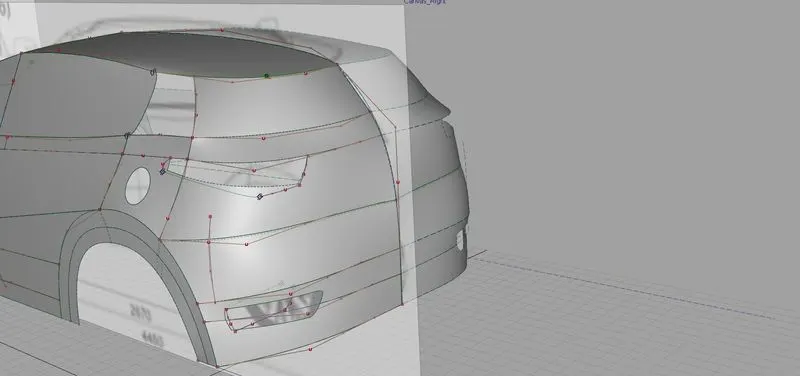

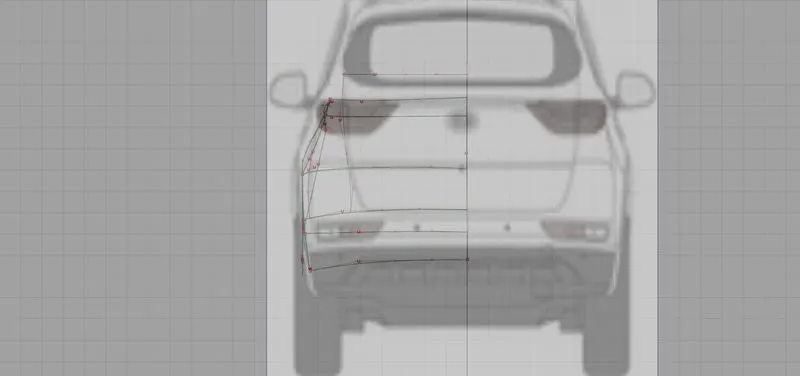

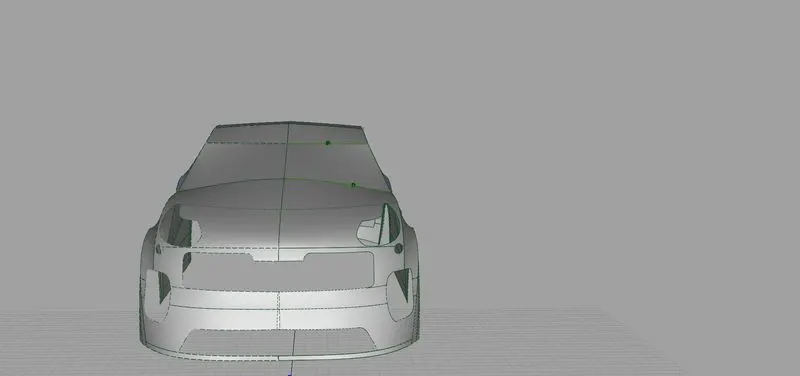

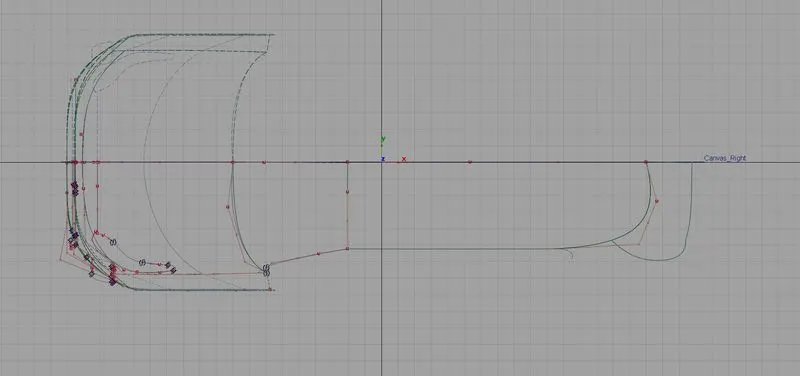

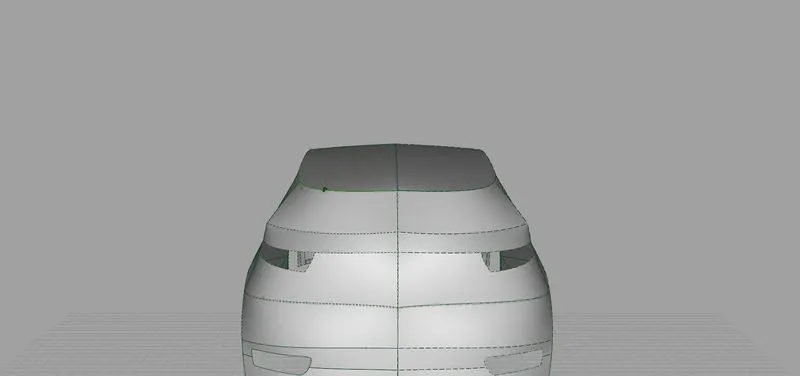

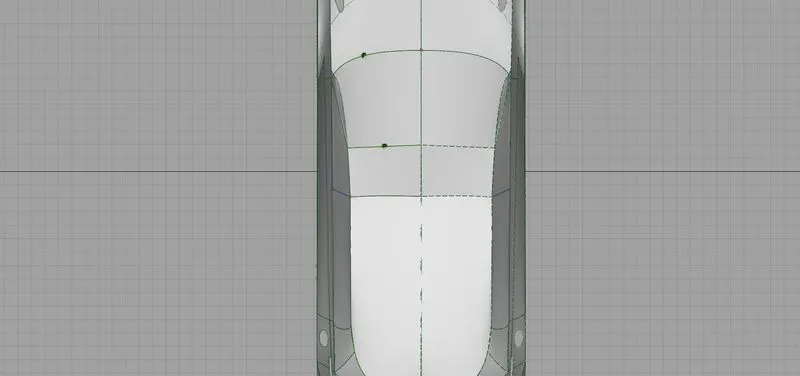

7)CONCLUSION:- THE CURVES WHERE THE SURFCING IS NOT PROPERLY WORKING I TRYING TO COMPLETE THE CURVE MANIPULATION FOR ACHIEVING THE SURFACE ON THE SPECIFIC OBJECT. BY USING THIS SURFACING TOOLS 1)BLEND TOOL 2) ATTCH TOOL 3)EXTEND TOOL 4) ALIGN TOOL I ACHIEVED A KIA SPORTAGE CAR MODEL IN 3D BY SURFACING SEQUENCELY. BY USING ALL THE TOOLS THAT I MENTIONED ABOVE I COMPLETE THE MODELLING OF AN KIA SPORTAGE AND KNEW HOW TO ACHIEVED A CLASS A SURFACING OF AN SPECIFIC OBJECT OR MODEL. I REPRESENT THE MODEL OF A KIA SPORTAGE
