Challenge 5 : Concept Modeling of Car Bumper

Concept Modeling of Car Bumper.

obj- to create carbfront bumper in detail using dimension box.

1st of all we will create a diemsion box according to our requirement size.

surfaces-cube-change the size of the box by using information window-transform info -translate xyz direction.

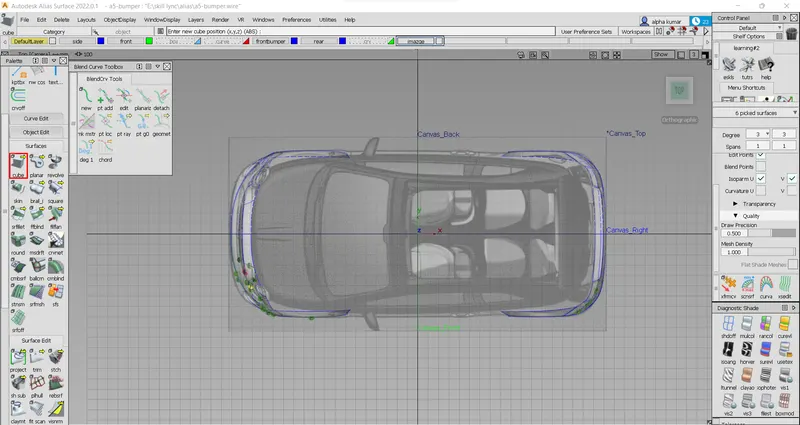

import the canvas images & manipulate to fit inside the dimension box visually by using scale the image.

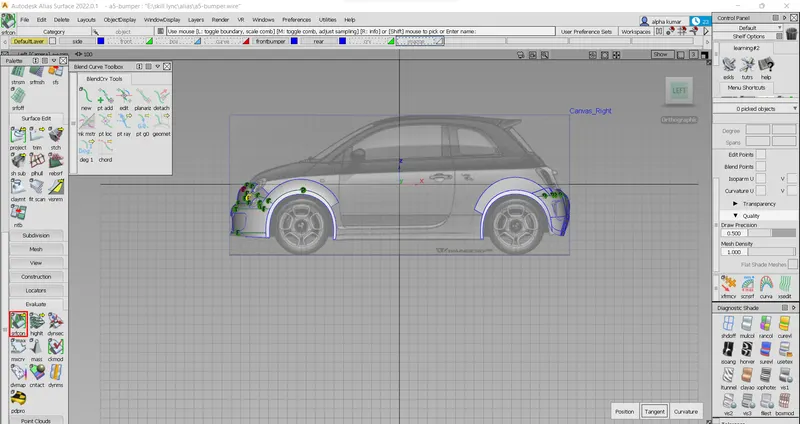

create the layers for each image view.e.g-side & front fro reference.

then we will start to create the curves and adjust the curves as per the design.

using align option we can achieve a better & proper flow of curve.

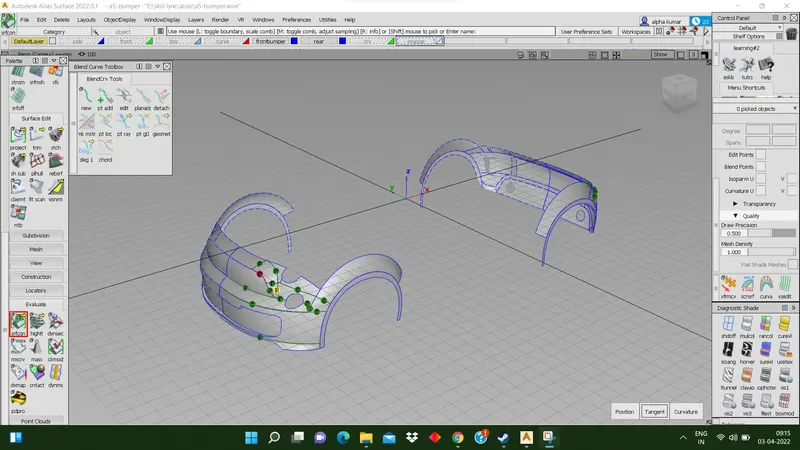

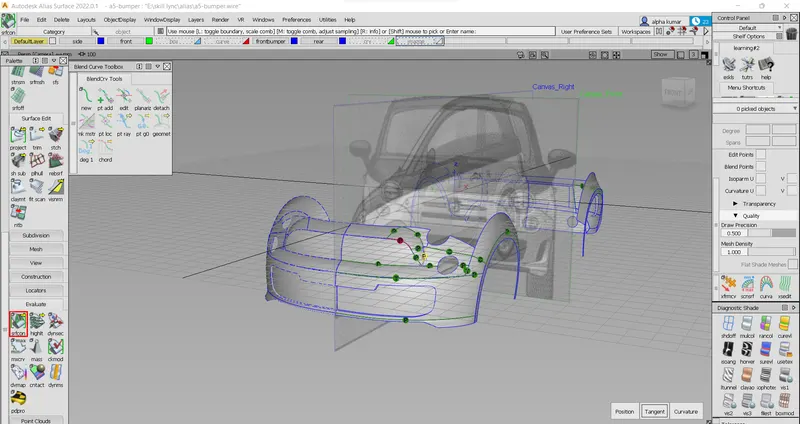

after the curve network done. we can procced to craet the surfaces using rails & square option with continuty.

while creating the surafces we keep on mind that the surafes should flow continious by using diffrent type align type.e.g-G0,G1,G2 as per our requirmnet.

after all surfaces created we can smooth the edges by using srfileet option.& add some detailing features like headlights,fog lamps,etc..
