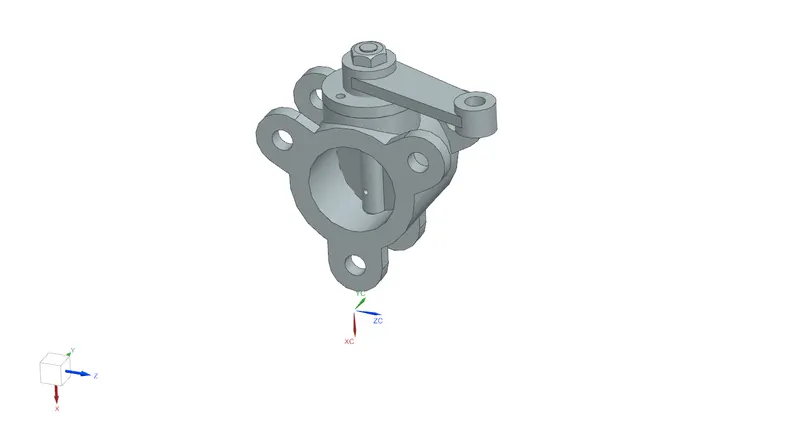

Butterfly valve Assembly

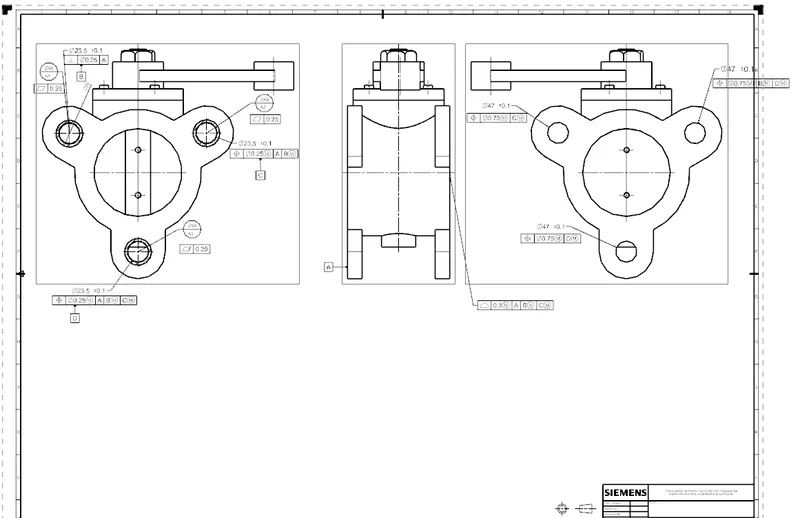

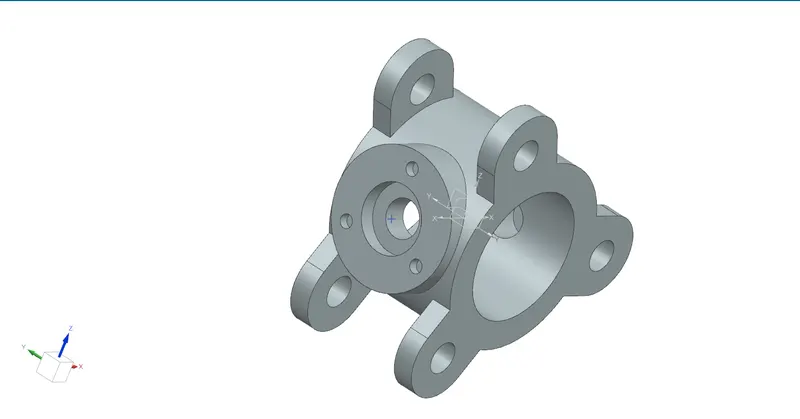

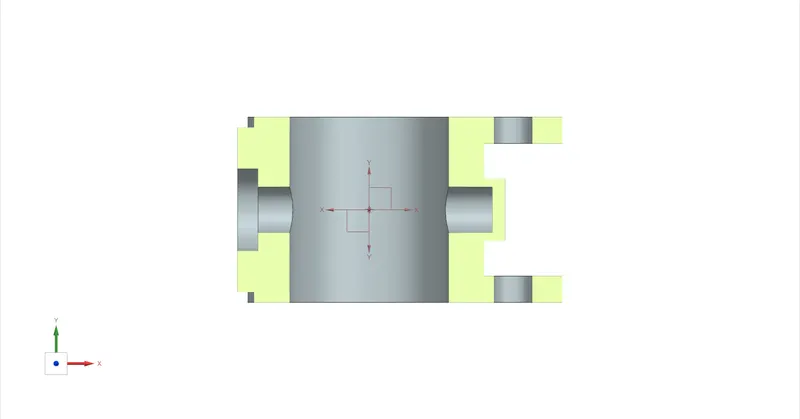

VALVE BODY

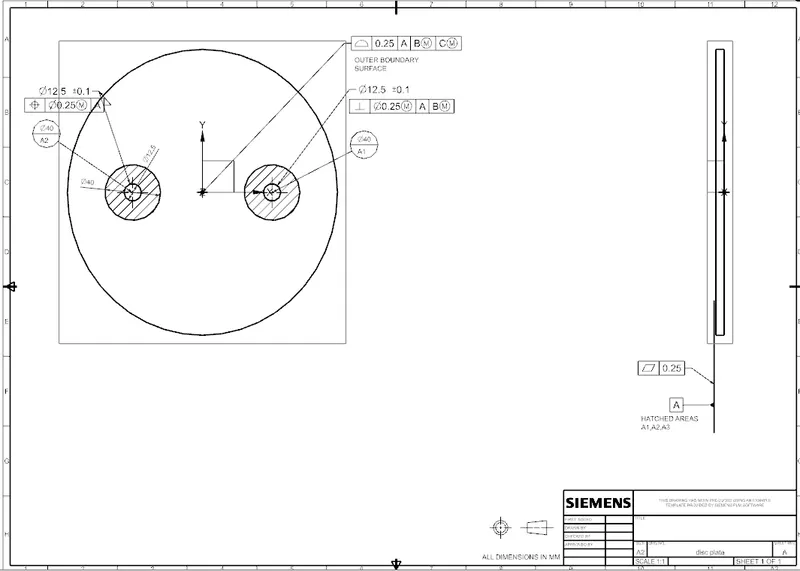

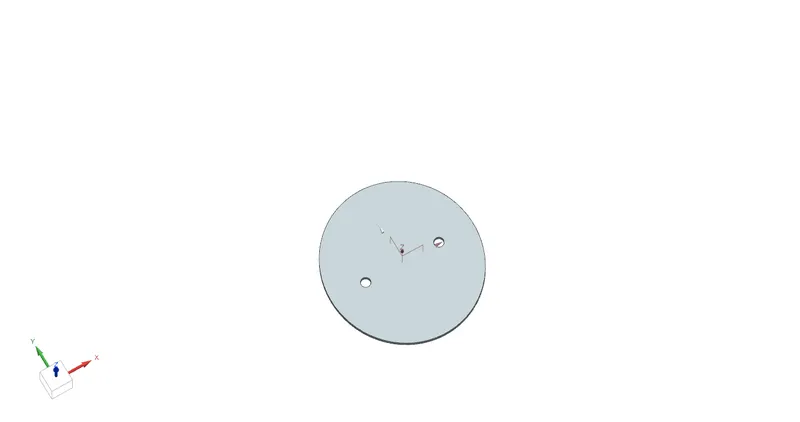

DISC

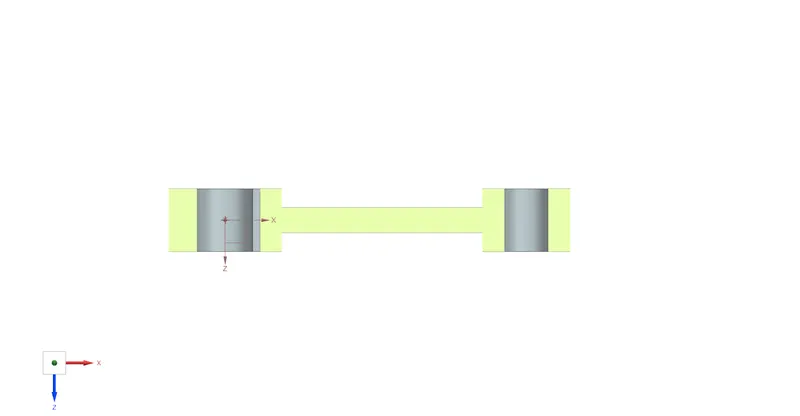

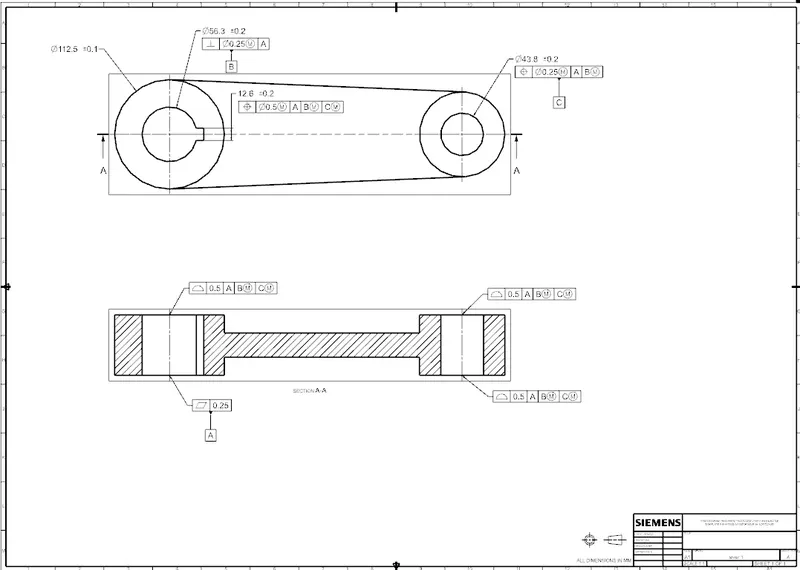

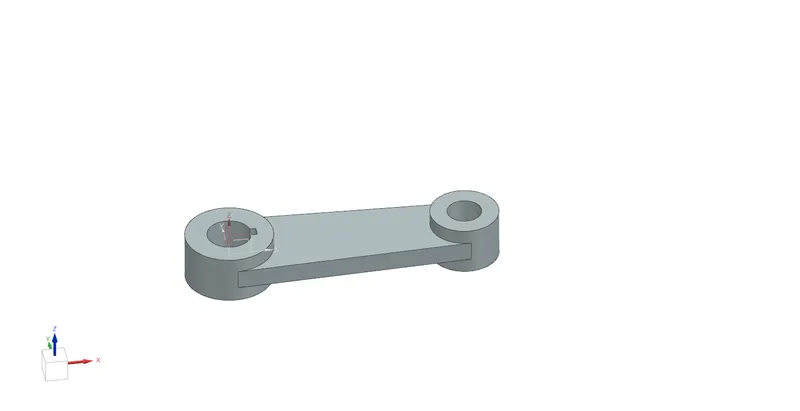

LEVER

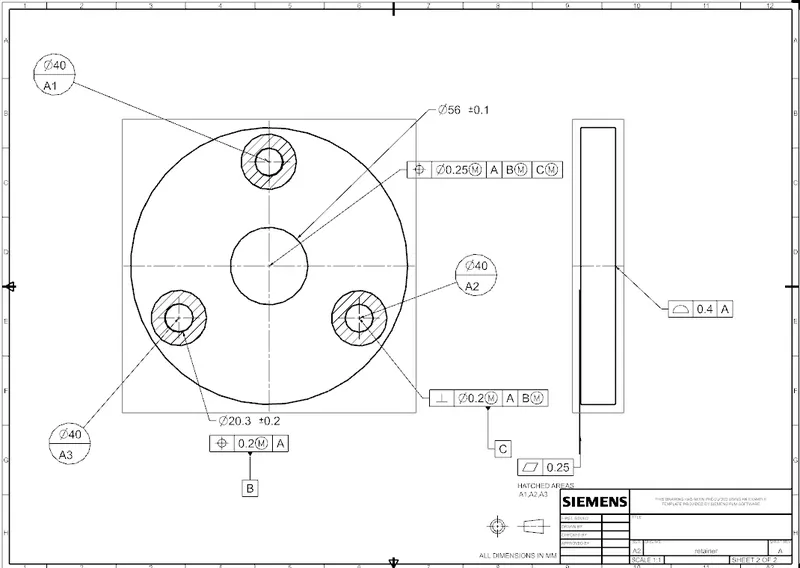

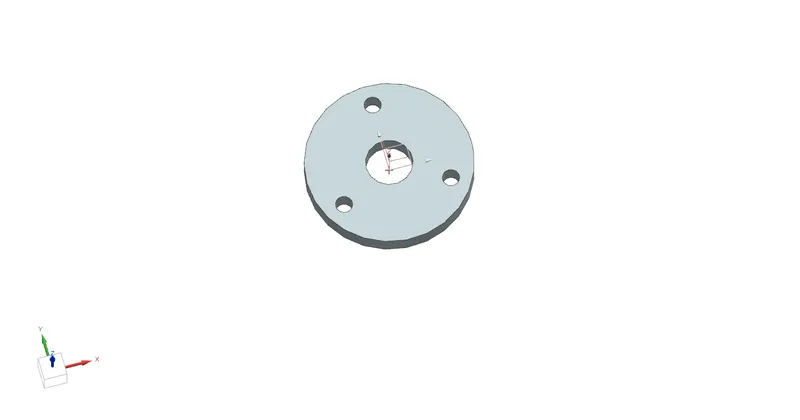

RETAINER PLATE

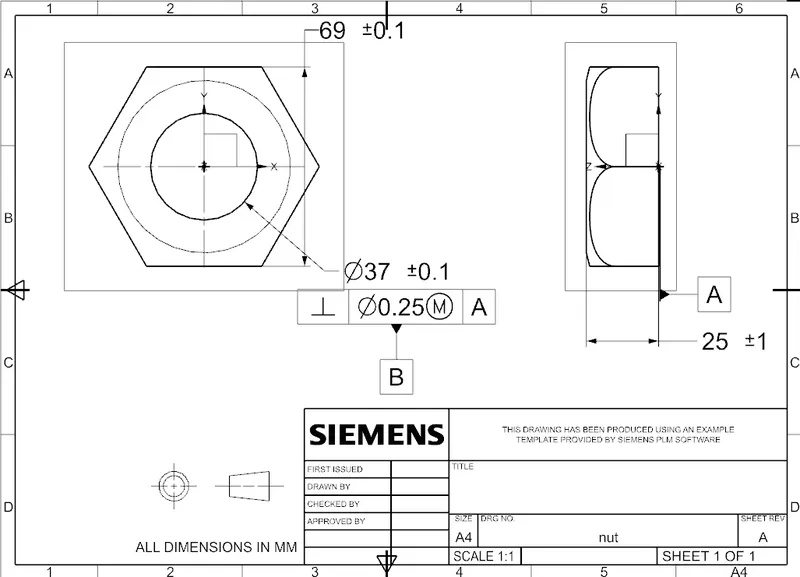

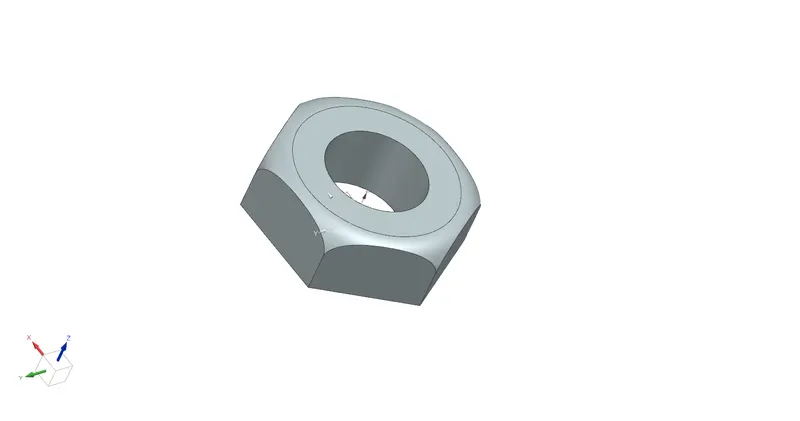

NUT

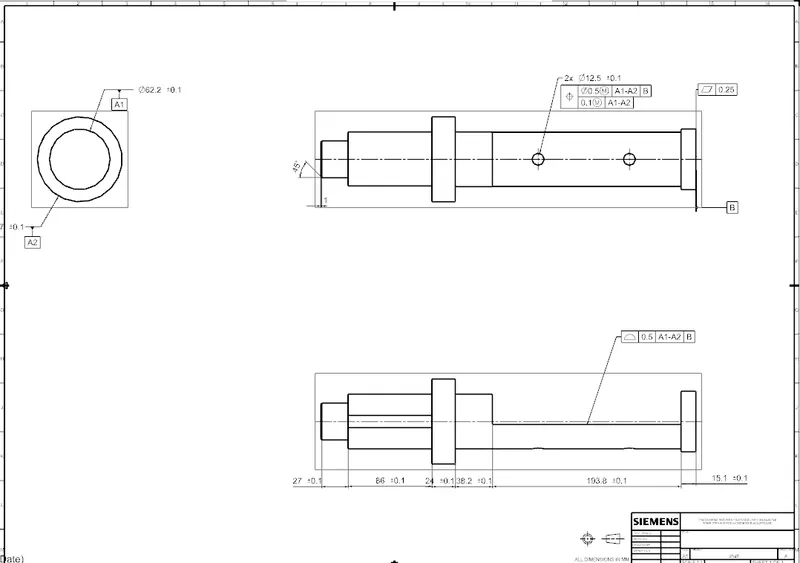

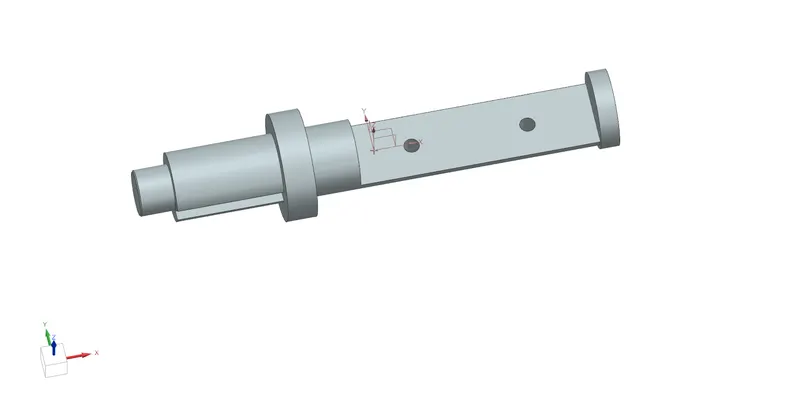

SHAFT
Procedure
- First design the models and save them in a single folder
- Now go to new file and select assembly
- Now add components. First add main body after that add shaft and disc
- Now go to assembly constrains and select touch align, now select surface of disc plate and shaft and apply. Now select align and select axis of holes on disc plate and holes on shaft
- Now again go to assembly constrains and align axis of shaft and butterfly valve and apply touch constrain to disc plate and inner surface of butterfly valve
- Now add retainer plate and give align constrain to holes of retainer and butterfly valve and touch to surfaces of retainer and butterfly valve
- now add lever and apply align to axis of lever and shaft axis and prefer touch the edges of keyways of lever and shaft
- Now add nut and align axis of shaft and nut and give touch constrain to nut and lever
- Now assembly is ready
