Bumper Design
Procedure
- Open the bumper step file and create a tooling axis
- After creating tooling axis do draft analysis by applying 2.9deg
- Afterwards make an offset for class A to create class B of length 2.5mm as given thickness is 2.5mm
- Now by applying boundary check the open areas and by applying multisection surfaces fill them
- After clsong all surfaces and check the boundary whether if any closed surfaces are present are not
- If there are no open areas hide class B and unhide class A and do sweep so that the class C is created
- While making class C make sure that it intersect with Class B
- Now join class A and classC
- Now trim the class Aand C join and class B
- Now make it solid By applying closed surface
- Now do draft analysis by applying 2.9deg

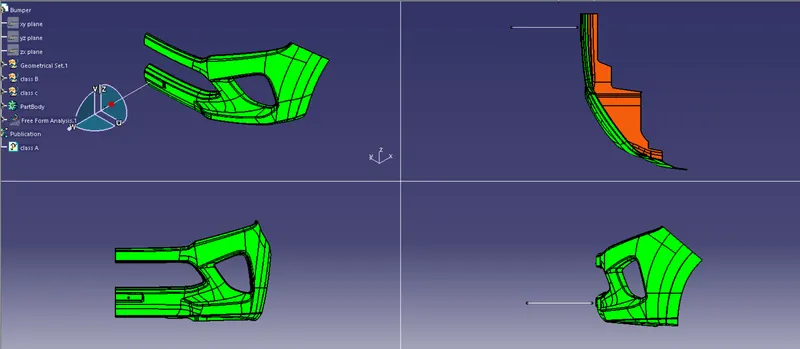

- Now the required solid body is ready
