Assignment 7-Side Pole Crash Simulation Challenge

                                    Side Pole Crash Simulation Challenge

AIM

• Check unit system and either follow [Mg mm s] or [Kg mm ms].
• Create appropriate interface ,friction 0.2 and recommended parameters.
• Make sure of no penetration and intersections.
• Create rigid wall with friction 0.1 as per referance model.
• Compare the model weight with the referance model and use added masses to reach target weight 700kg while getting CG about the required range.
• Initial velocity as shown in picture.
• Use model checker to ensure good quality.
• Timestep :0.5 to 0.1 microseconds.
• Run 80ms.

OUTPUT REQ

• Sectional force in the cross member.
• Intrusion at B pillar,hinge pillar and fuel tank region.Provide recommendation on what can help to reduce Fuel tank intrusion.
• Peak velocity of inner node of the door.

PROCEDURE

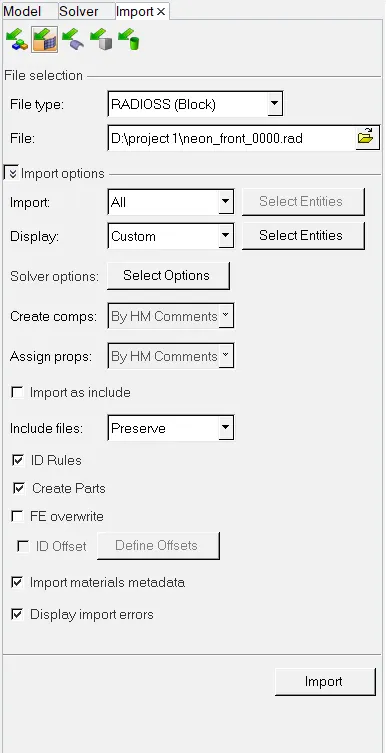

• To import the model in the graphic area
•
• after that we have to check the units of the model

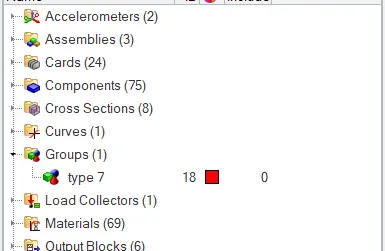

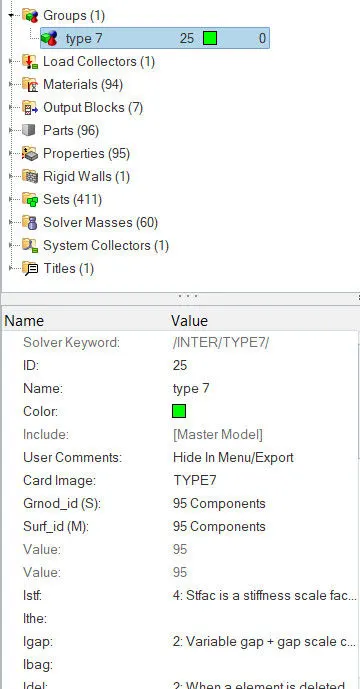

• and then we have to dlt the all groups and create the TYPE 7 only
•
• and enrol the details in the type 7
•

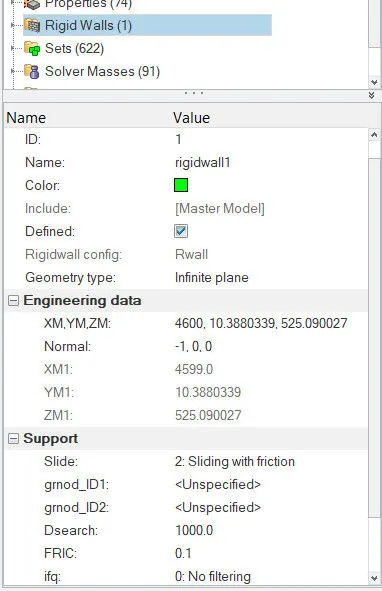

• and then we have to create the rigid wall in the side door
• this time we have to create the crash in the side pole

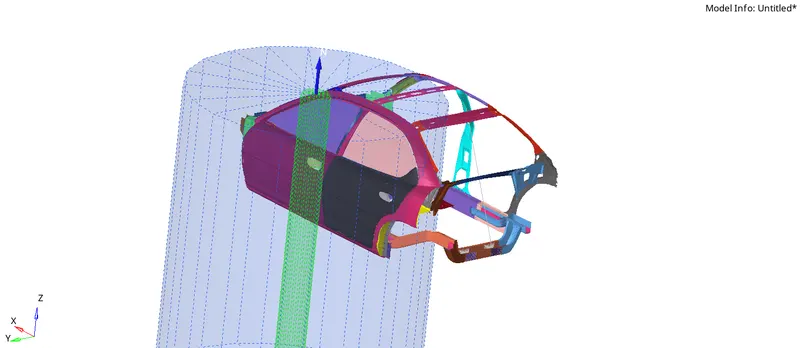

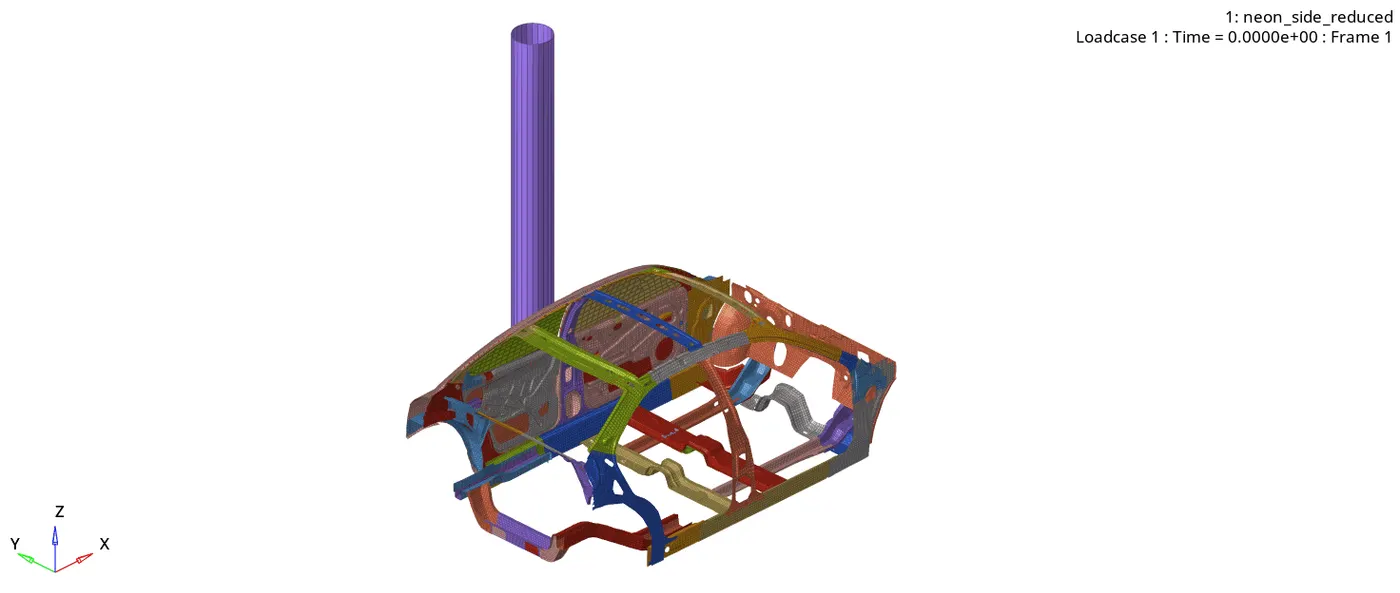

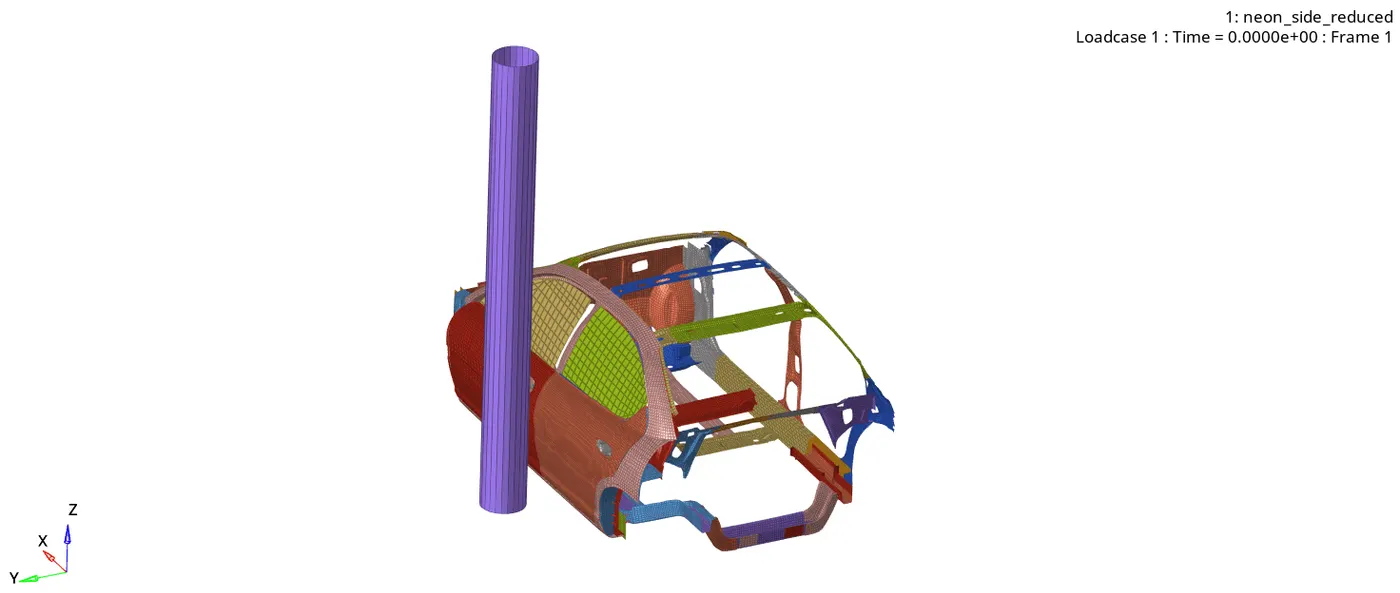

• so create the cylindrical type of rigid in side door
•
•

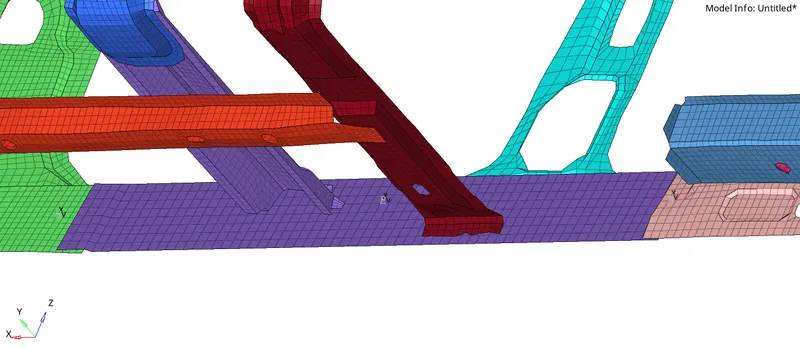

• after that, we have to create the crosssection in the middle rail

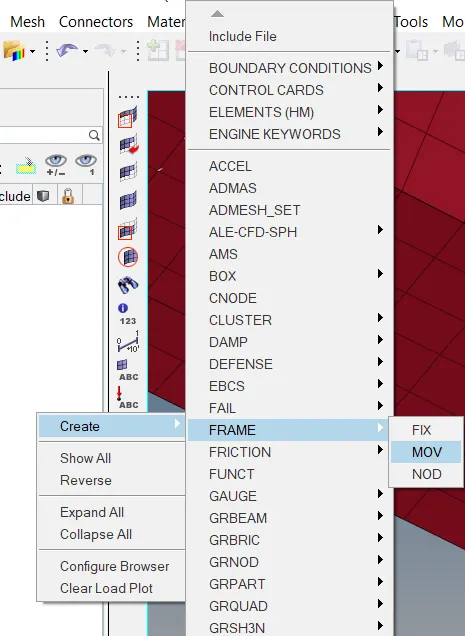

• go to solver - frame - mov
•

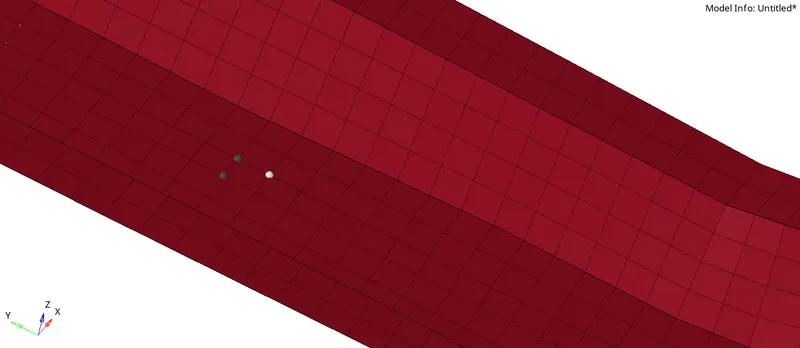

• select any three nodes in the form of triangle shape
• and then create a local coordinate system
•

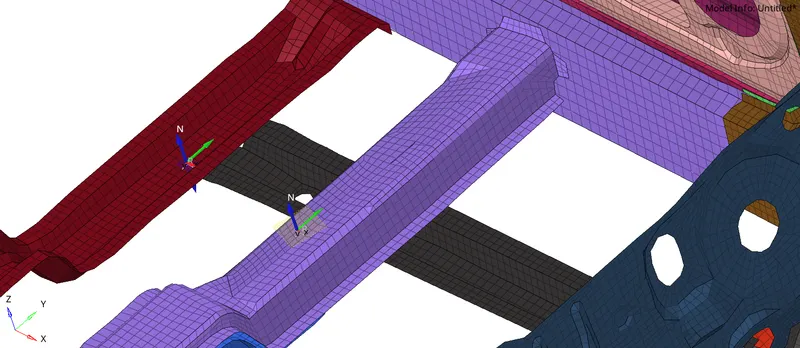

• after that we have to create the cross section
•
• and then we have to create the intrusion for the model
• we have to create the skew in 3 area
• b piller,petrol tank and hinge
•

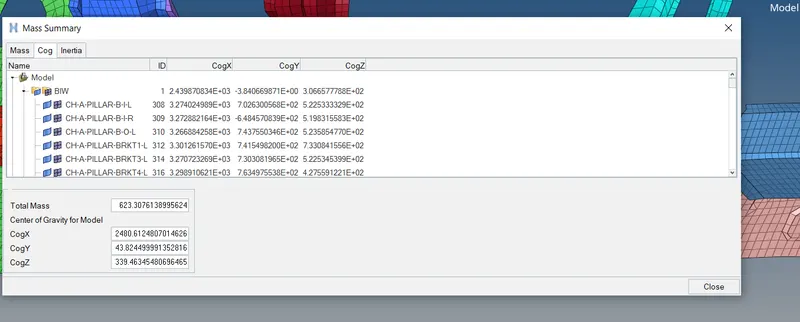

• after that we have to check the cog
•

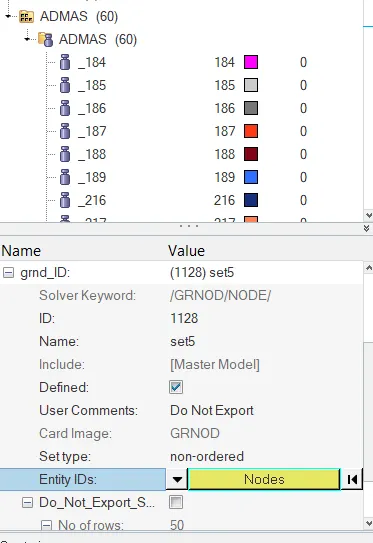

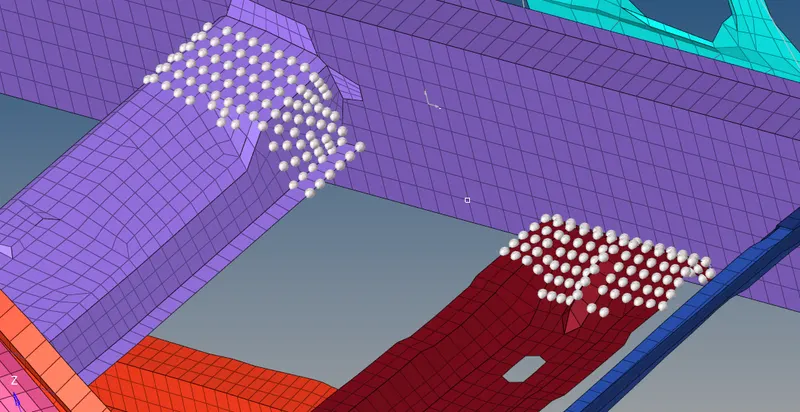

• if we want to increase the weight of the car or reduce
• then we want to increase the mass of the car what side we want
•
•
• and then we have to check the cog
• if it correct then we run the simulation
• other wise we have to keep the cog perfect
•
• after complete the simulation
• we have output like this
•

RESULT

•

•

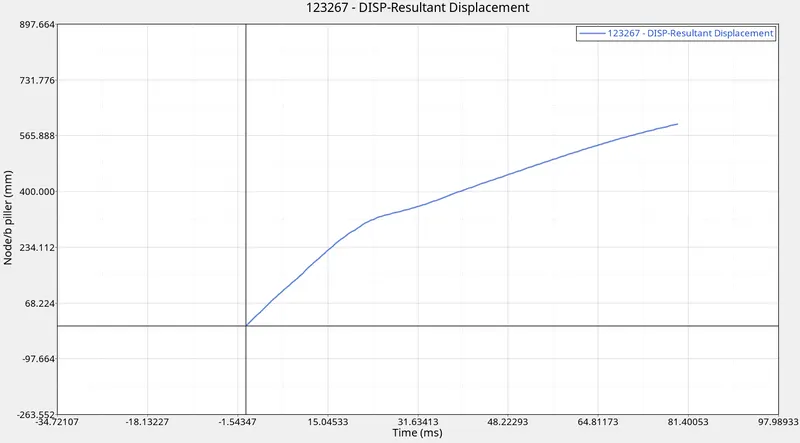

•                                                                    B PILLER

•

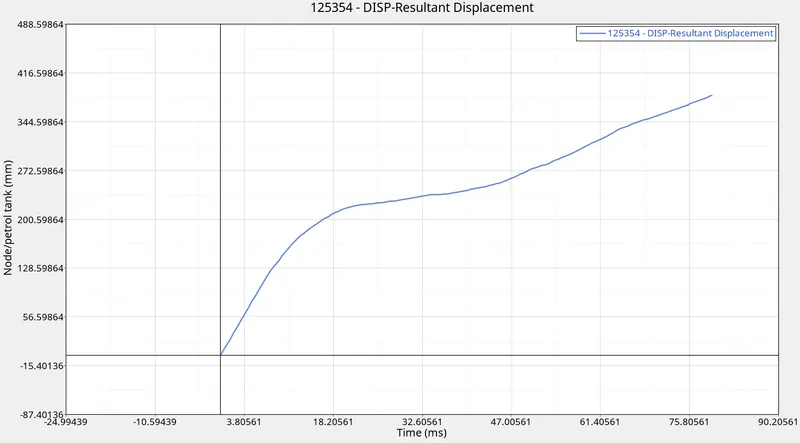

•                                                                          PETROL TANK

•

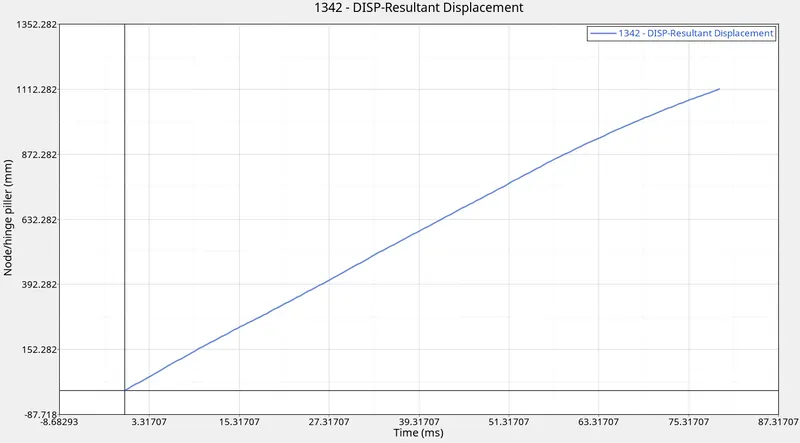

•                                                                        HINGE PILLER

•

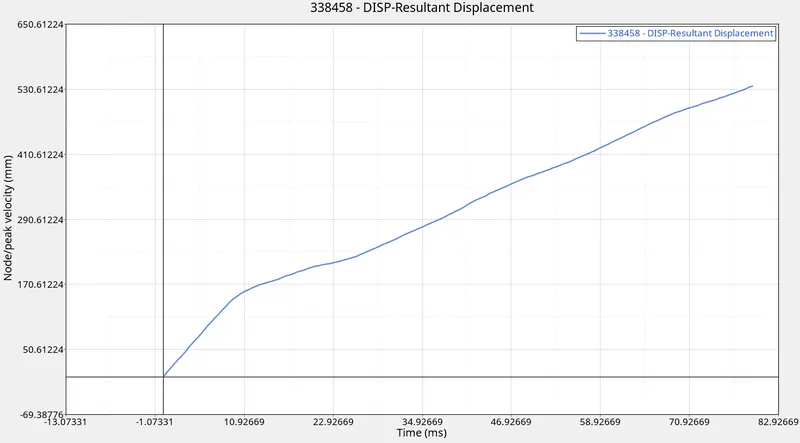

•                                                                                 PEAK VELOCITY

•

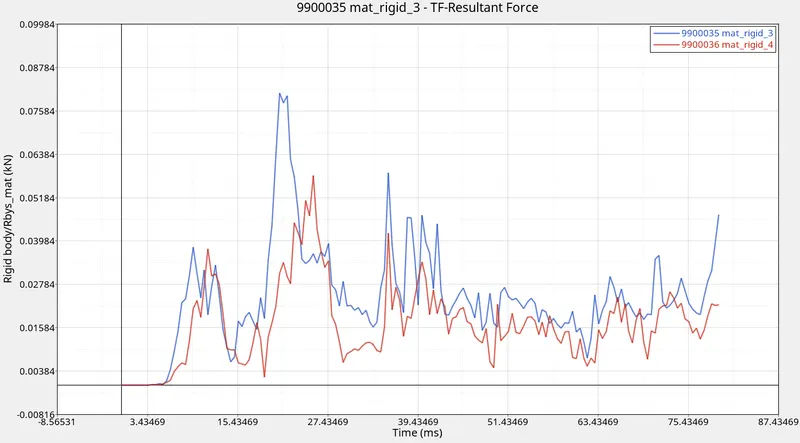

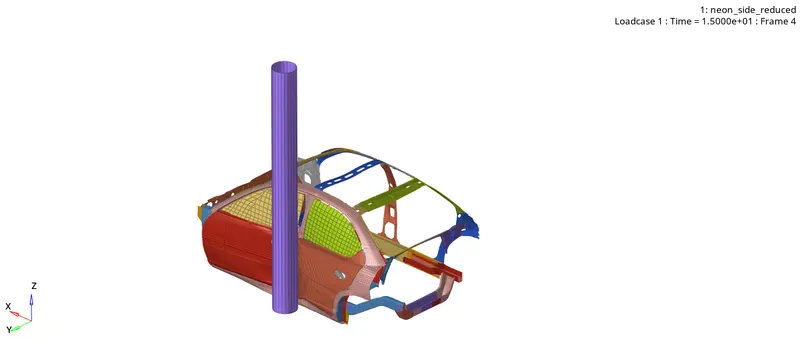

•                                                                                  RIGID

•

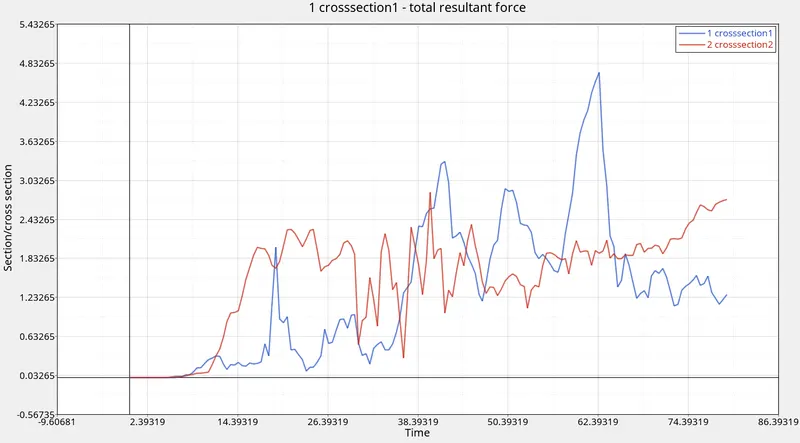

•                                                                   CROSS SECTION

•
•

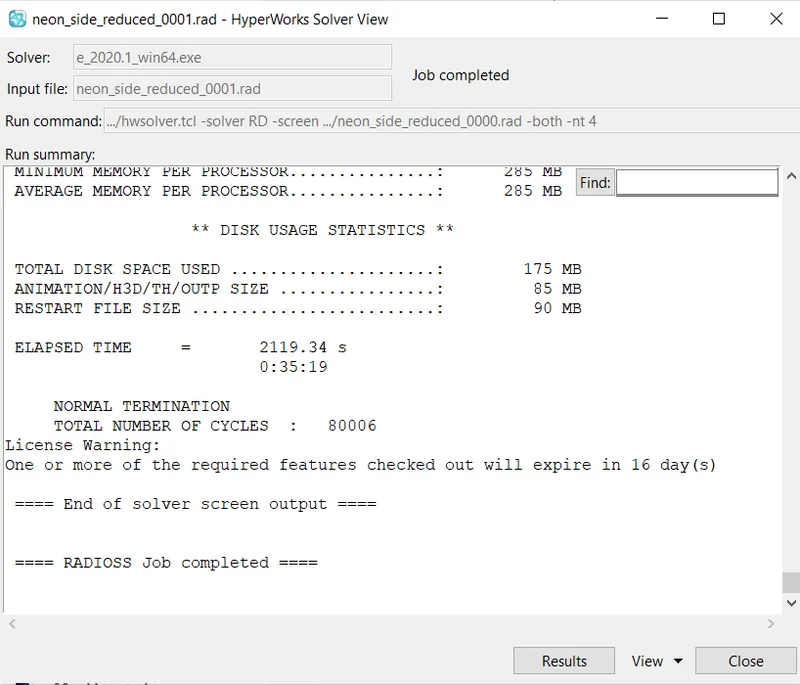

• NO.OF .CYCLES                    = 80006
• MASS ERROR                       = -2.6%

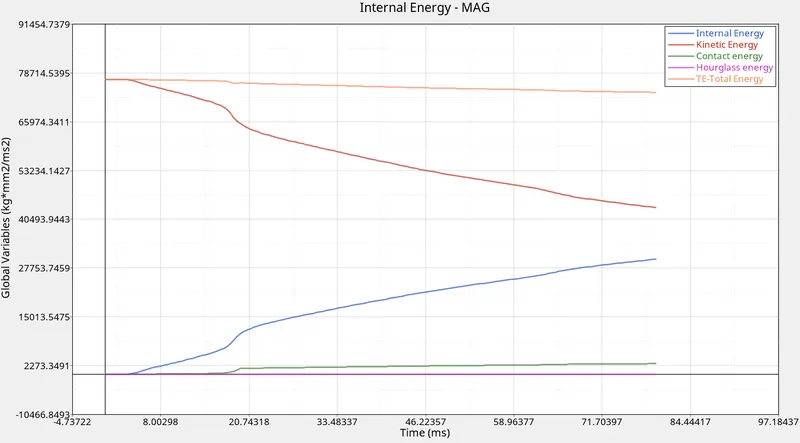

• ENERGY ERRROR                 = 1.199
• ELAPSED TIME TAKEN         =2119.34 s
