Assignment 6-Frontal Crash Simulation Challenge

Objective:

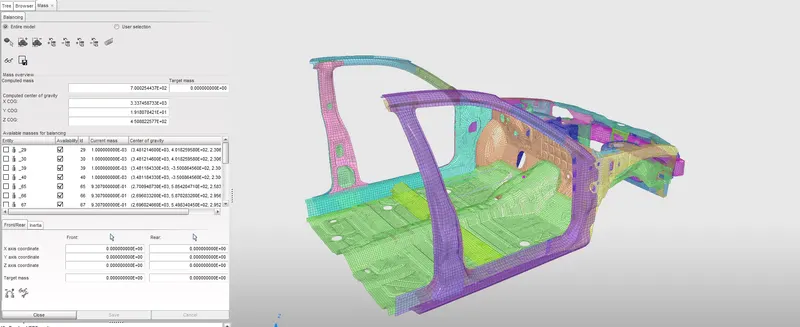

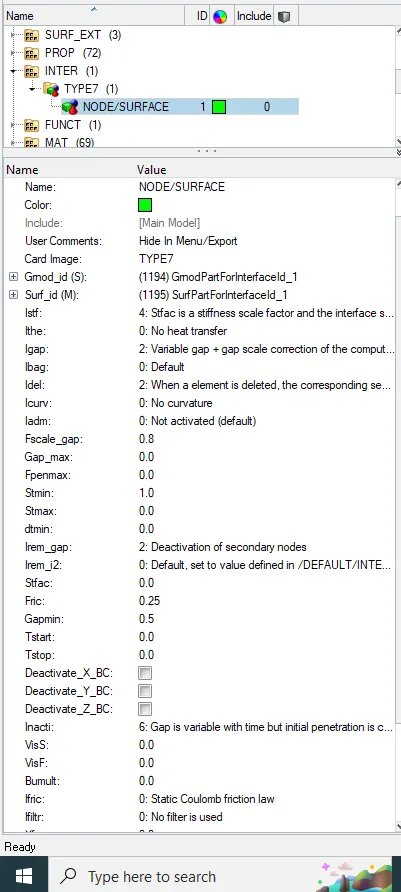

• Create interface type 7 , with friction 0.2 and recommended parameters.

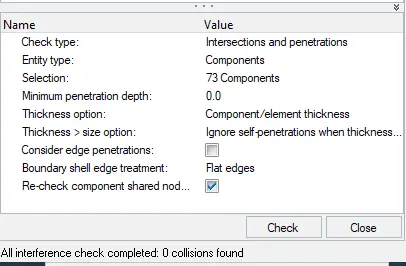

• Make sure of no penetrations and intersection by checking in Tools>Penetration check.

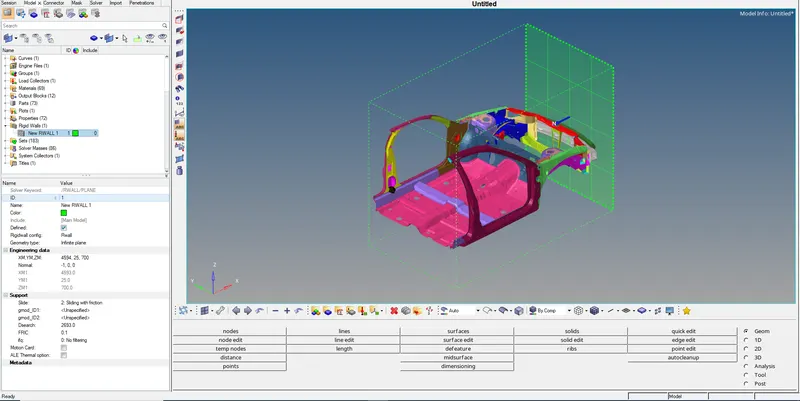

• Create rigid wall with friction 0.1. Provide proper dsearch value with cordinates.
• create initial velocity 35 mph=15.64m/s and assign it to car body.
• Use Tools>model checker to ensure good quality.
• For time-step 0.1 microseconds edit ENG_DT_NODA card Tmin value to 0.001.
• For run time to be 80 ms edit ENG_RUN car Tsop=80.

Output Requests;

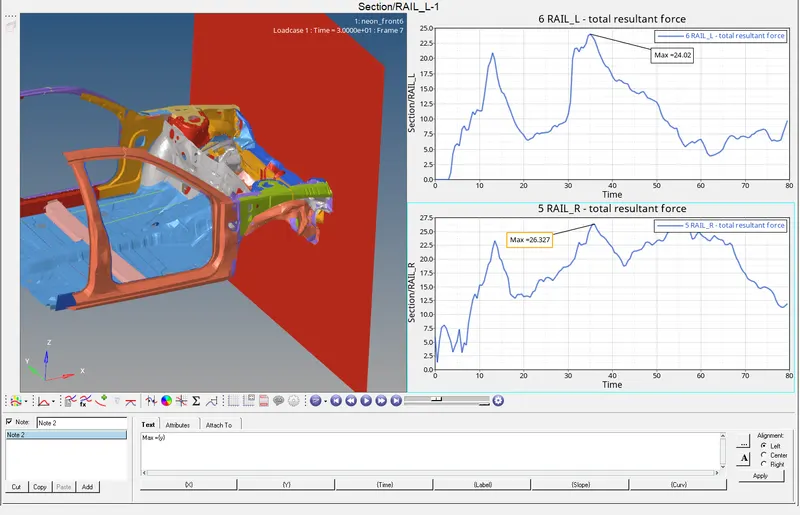

• Sectional force in the rails at location of indicated node 174247.

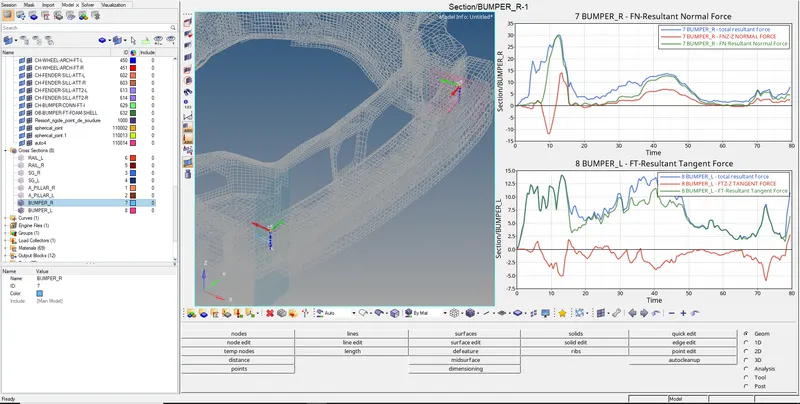

• Axial force received on the rails from bumper.

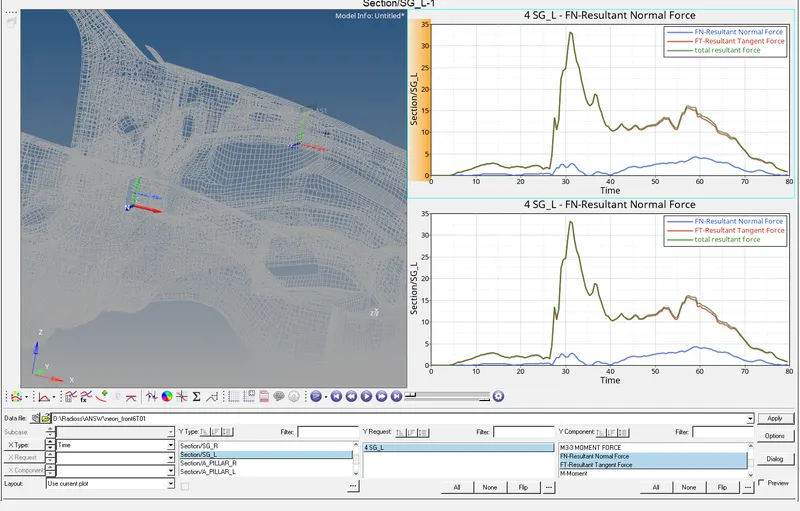

• Shotgun cross sectional forces.

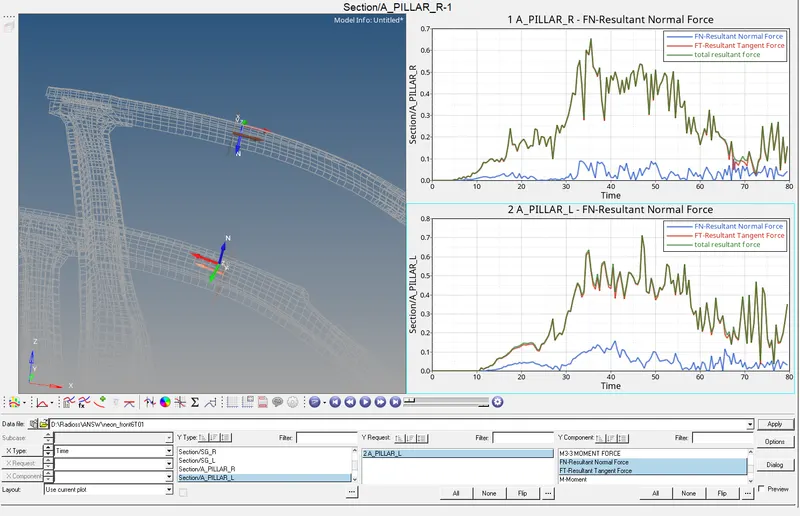

• A pillar cross section.

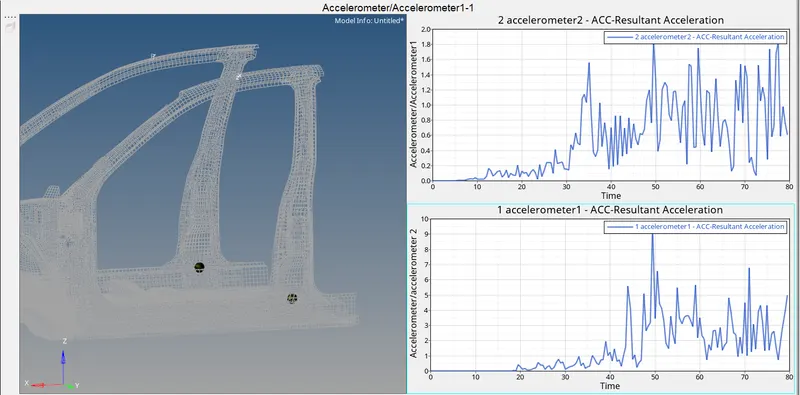

• Acceleration curve received on the accelerometer at base of B pillar (on B pillar rocker).

• Intrusions on the dash wall 66695,66244.

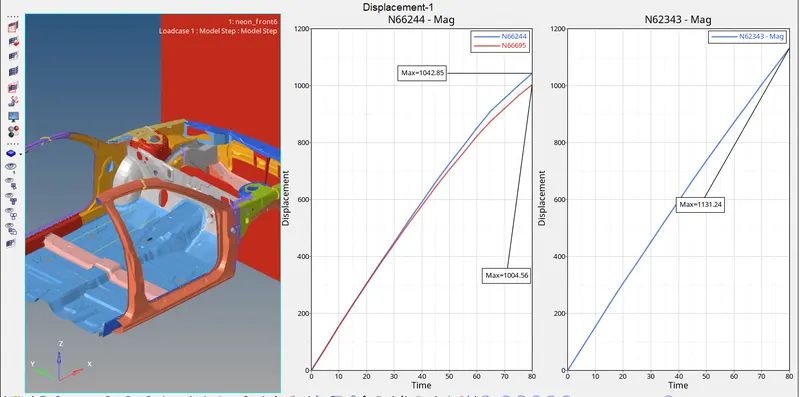

Total displacement of body=1131.24mm

Max Displacement of node 66695 = 1042.85

Max Displacement of node 66244 = 1004.56

Intrusion in Node 66695 = 88.39 mm

Intrusion in Node 66244 = 126.68 mm

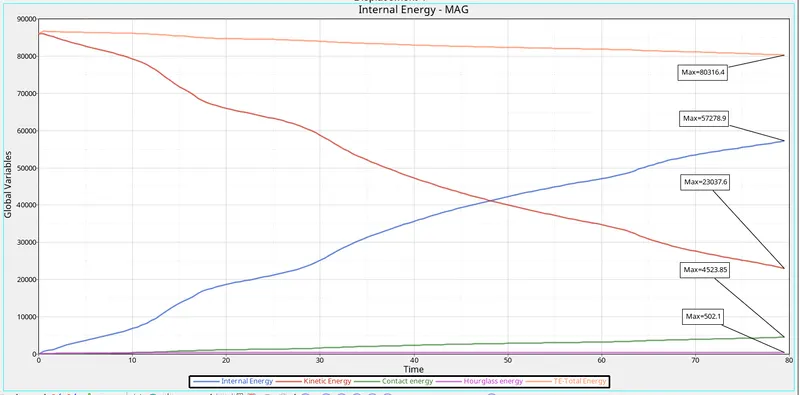

Energy Plots:
