Assignment 2-RADIOSS Engine File Editing & 3D Meshing Challenge

OBJECTIVE:- (1) Read the starter input file and extract information like material properties also calculate the speed of sound in steel rail.

(2) calculate the time the shock wave takes to reach one end to the other of a length of 1000 mm.

(3) edit the engine file to monitor the stress wave moving from one end to the other and change the animation output time to give 20 animation steps.

(4) Mesh the given component with 3d elements as per the given mesh quality criteria.

PROCEDURE:- (1) E= 210 gpa, `rho`= 0.0078 g/mm^3`

`C= 5188.75 m/sec`

(2) time = 0.19272482 sec,

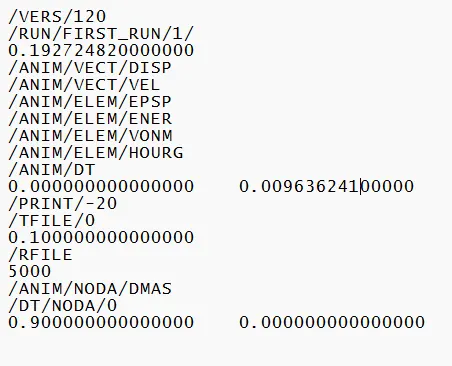

(3)

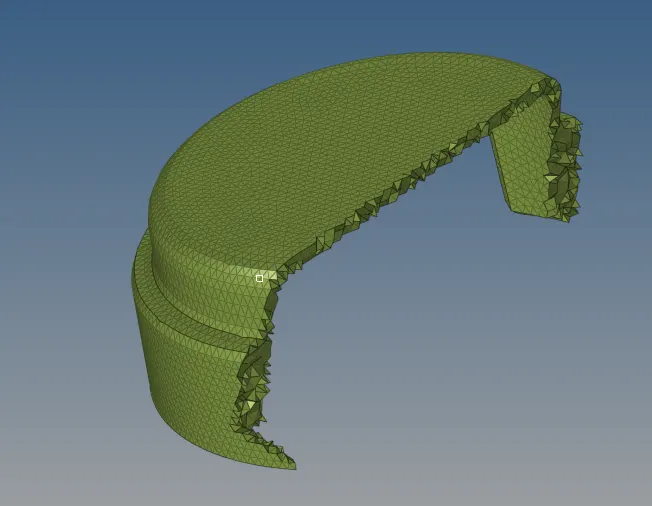

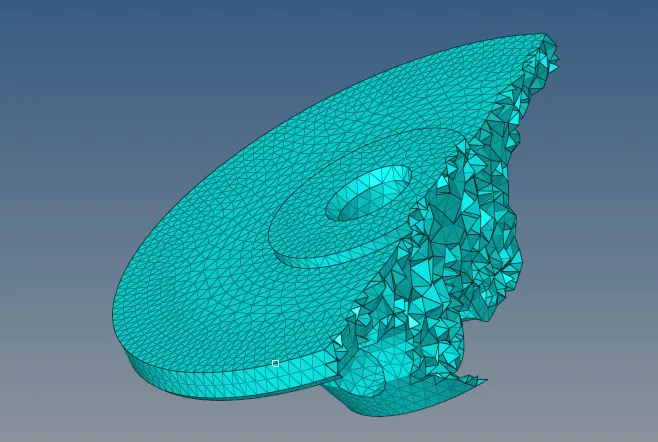

(4) 3d meshing of housing

(5) 3d meshing of arm bracket
