Assignment 1-2D Meshing Challenge

OBJECTIVE:- (1) GEOMETRY CLEAN UP OF GIVEN MODEL.

(2) CREATING THE MID SURFACE OF THE GIVEN MODEL.

(3) MESH ALL MODELS WITH A TARGET ELEMENT LENGTH OF 5 WITH A MINIMUM LIMIT OF 3.5 AND MAX LIMIT OF 7.

(4) ASSIGN THICKNESS TO THE ELEMENT BASED ON MODEL THICKNESS.

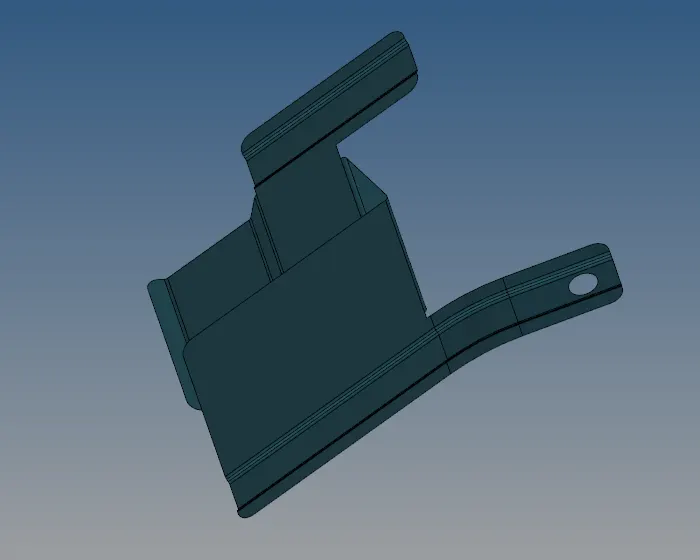

PROCEDURE:- (1) I IMPORTED ALL THE MODELS WHICH WERE PROVIDED AS HM FILES.

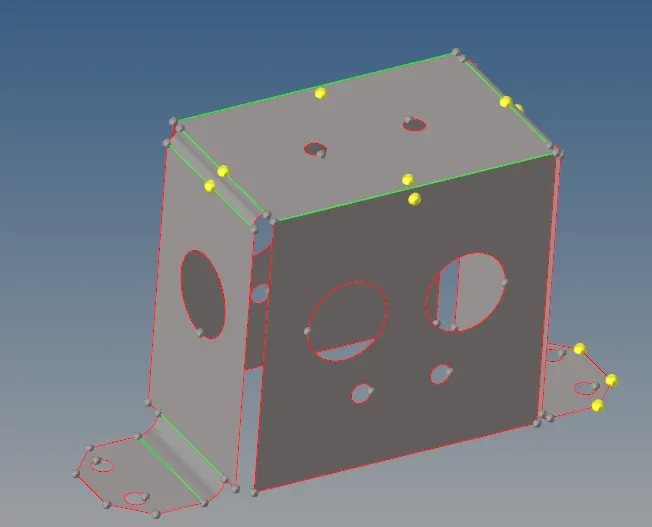

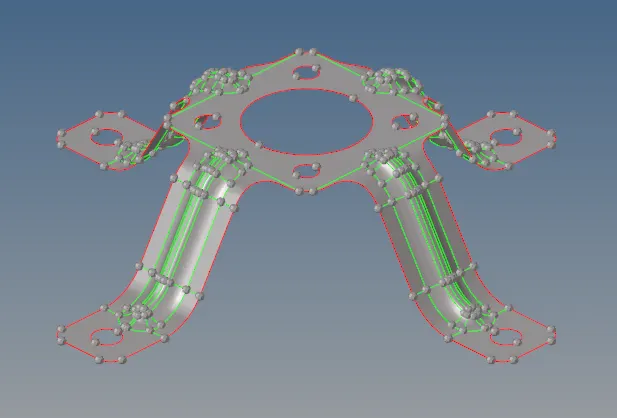

(2) AFTER THAT I DELETE ALL THE DUPLICATE SURFACES PRESENT IN THE MODEL AND REPAIR THE SURFACE OF THE MODEL.

(3) AFTER THAT CREATE A MID-SURFACE USING AUTO MID-SURFACE < PLANE + SWEEP + OFFSET OPTION.

(4) AFTER THE CREATION OF THE MID SURFACE I ANALYZED ALL MID SURFACES AND REPAIRED THE SURFACE WHERE SURFACES WERE NOT CONNECTED WHICH WERE SUPPOSED TO BE CONNECTED. TO REPAIR THE SURFACE I USED QUICK EDIT, SURFACE, AND SURFACE EDIT PANELS.

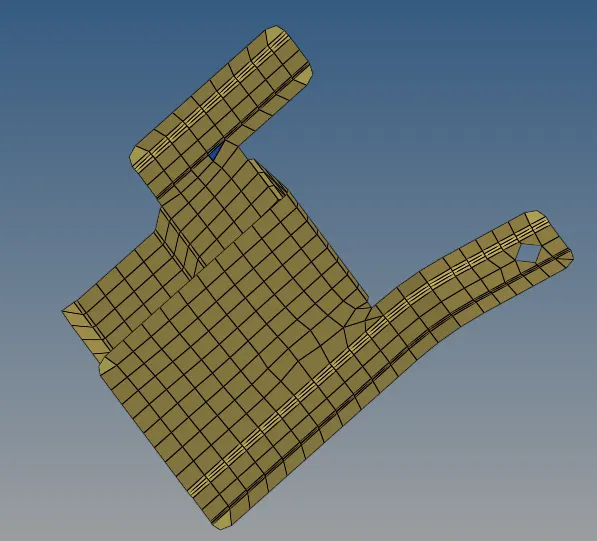

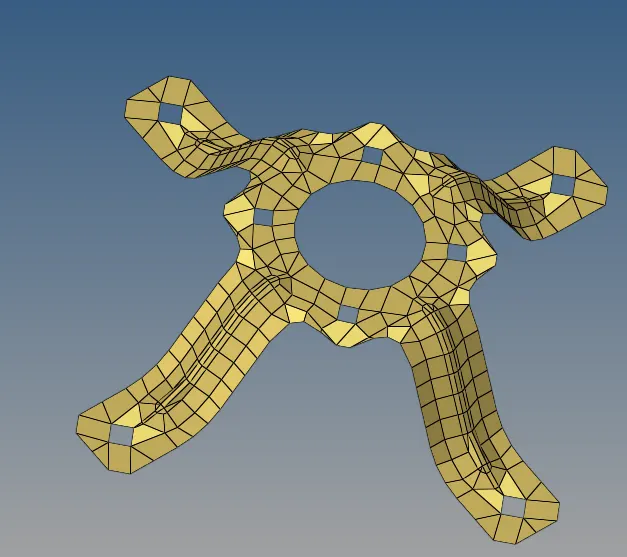

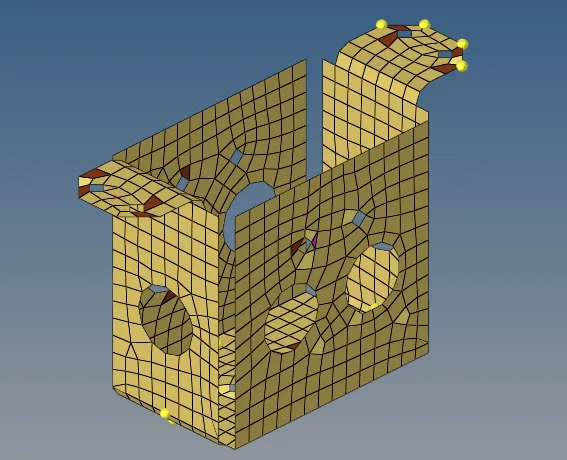

(5) AFTER THE SURFACE I MESH THE MID SURFACE AS PER MENTIONED QUALITY CRITERIA

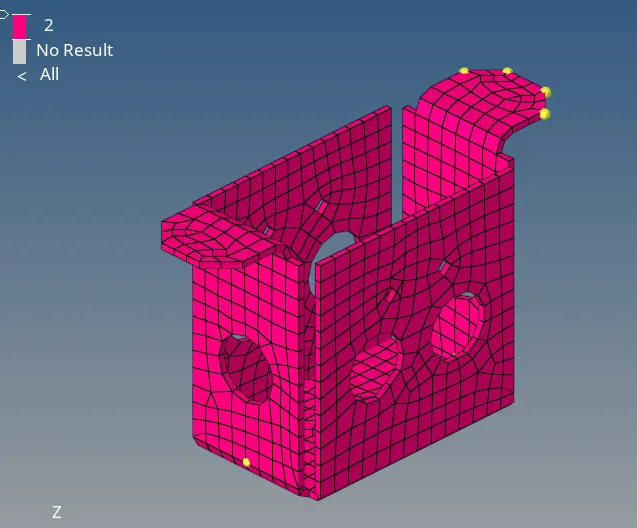

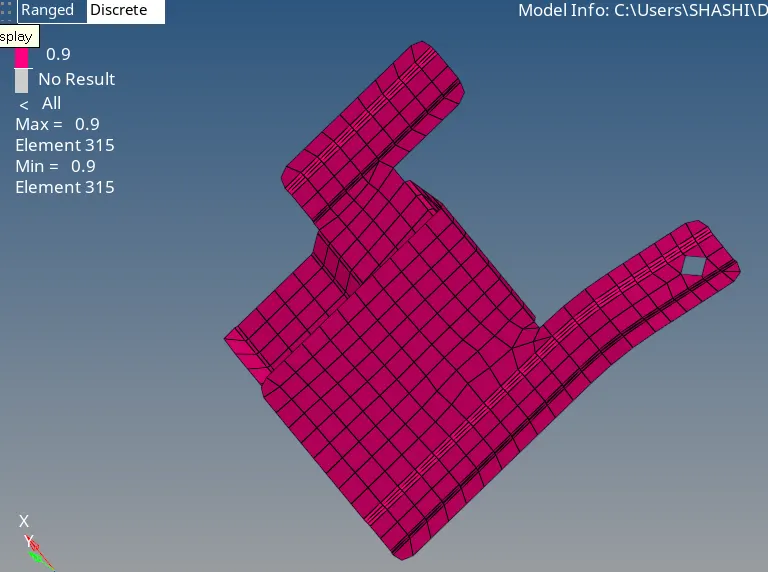

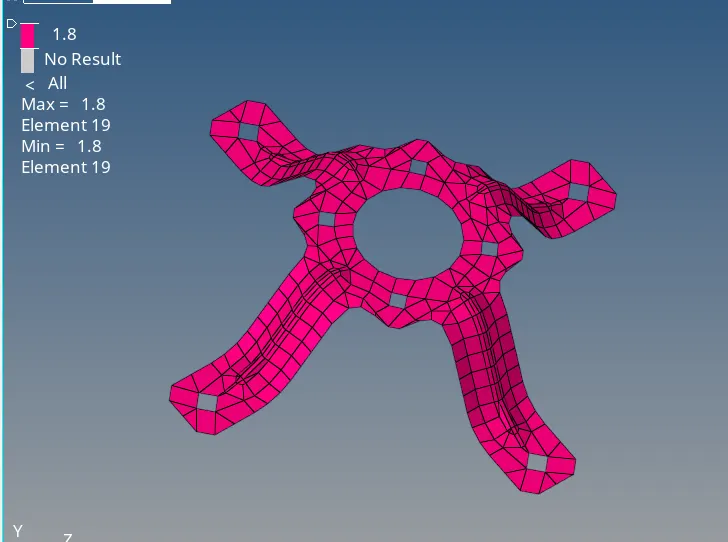

(6) THEN I CREATE THE PROPERTY BY LEFT-CLICKING ON THE TAB AREA < CREATE < PROPERTY AND THEN ENTERING THE THICKNESS VALUE BASED ON THE THICKNESS OF THE MODEL. THEN RIGHT-CLICK ON PROPERTY< ASSIGN < SELECT ALL ELEMENT < PROCEED.
