Assignment 1-2D Meshing Challenge

Objective:

• Part-1: Clean the geometry and mesh with proper quality criteria of geometry part-1.
  •
• Part-2: Clean the geometry and mesh part-2 with proper quality criteria.
  •
• Part-3: Clean the geometry and mesh part-3 model with quality criteria given in the question.
  •

Procedure:

• Part-1

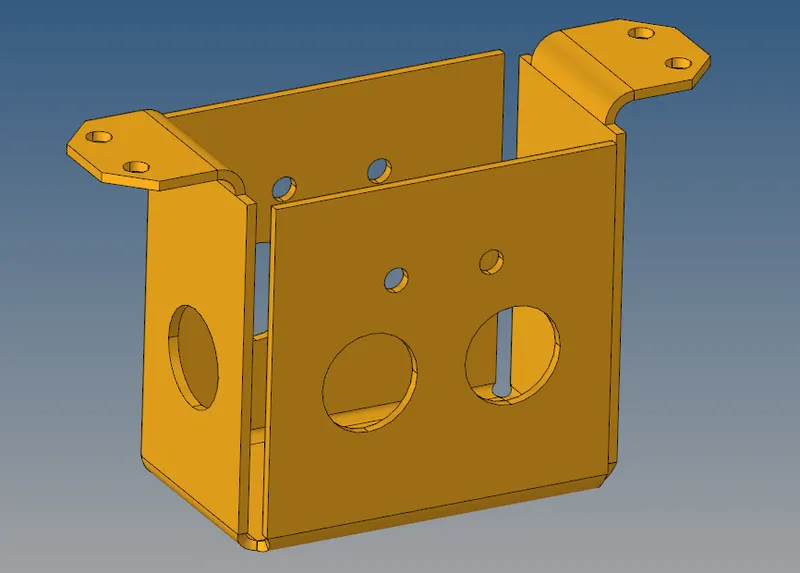

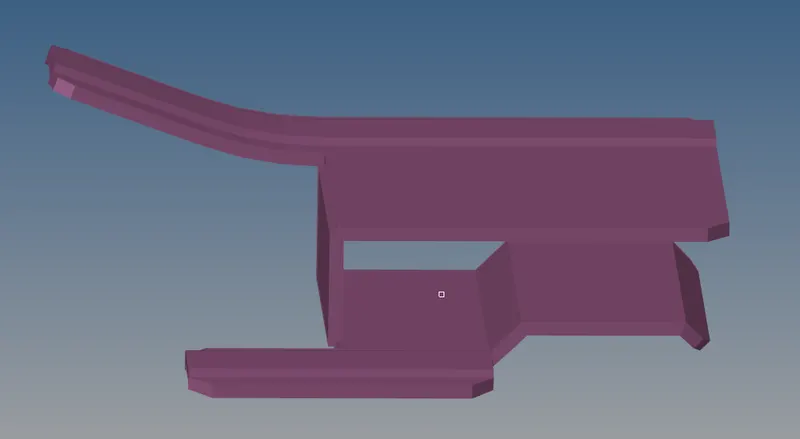

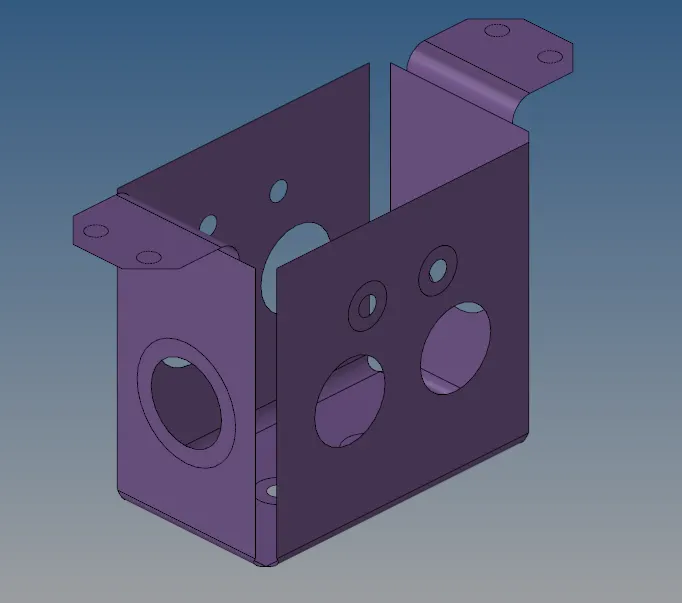

1. The first step is to open the model in the Hypermesh GUI.
   •
2. The next step is to extract mid surface from the model.
   •
3. The next step is to clean the geometry of the mid surface.
   •
4. Then start meshing the mid surface.
   •

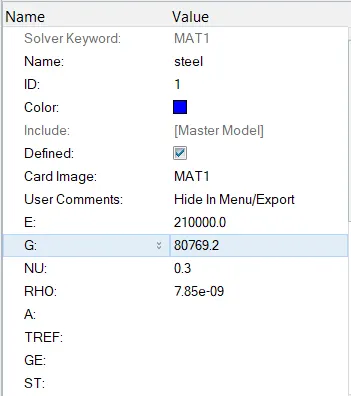

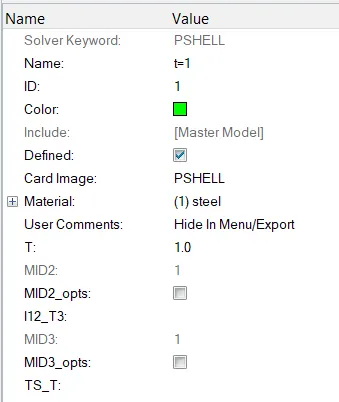

5. Then create property and material and apply to the mesh body.
   •

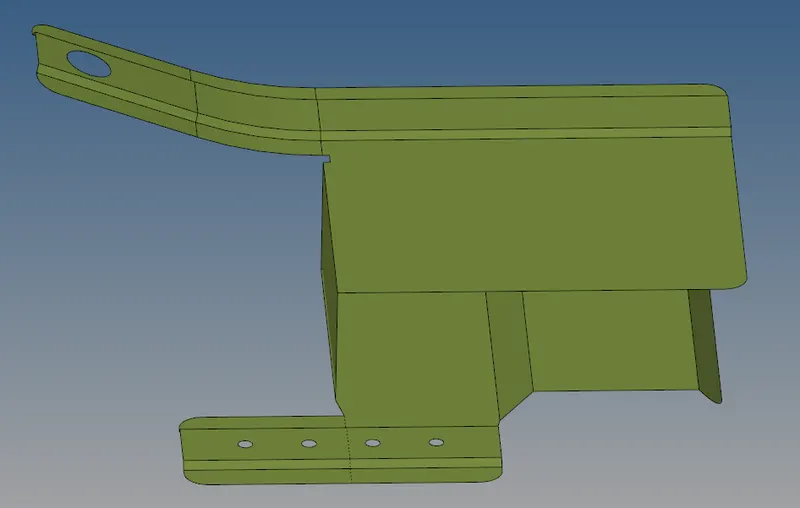

6. A detailed view of the final mesh body is given below.
   •

• Part-2

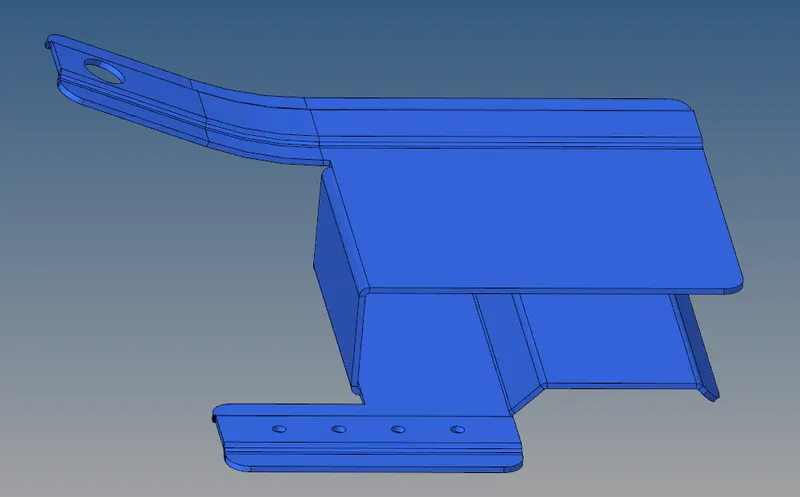

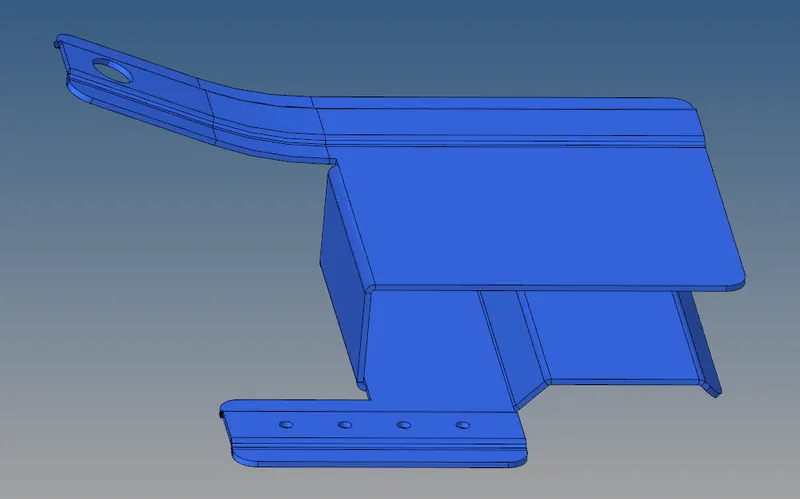

1. The first step is to import the model into Hypermesh GUI.
   •

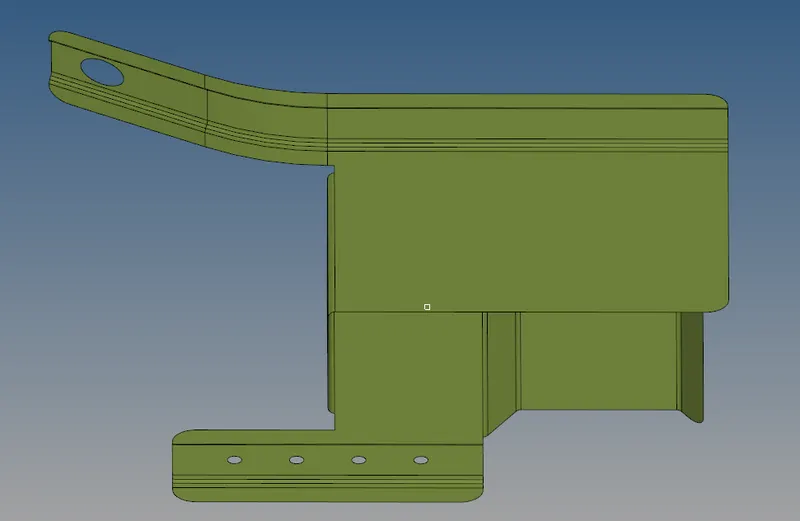

2. Then the next step is to clean the geometry and extract the mid surface out of the model.
   •

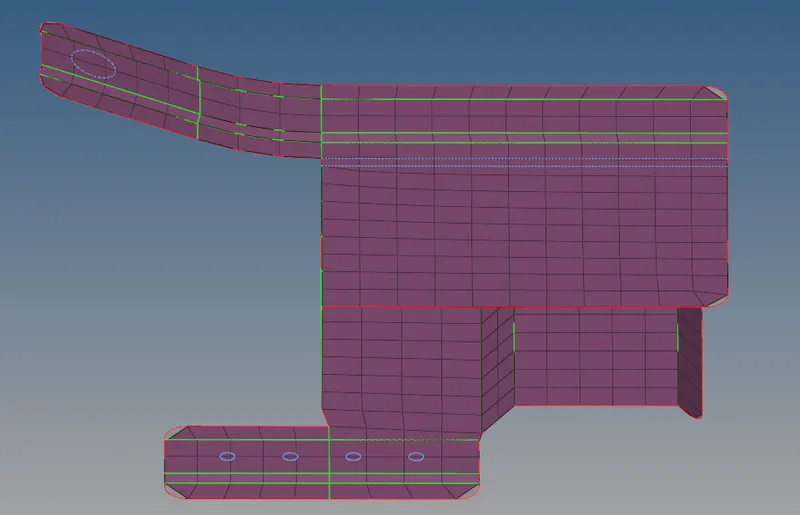

3. Then we start to mesh the mid surface and the mesh body is given below.
   •

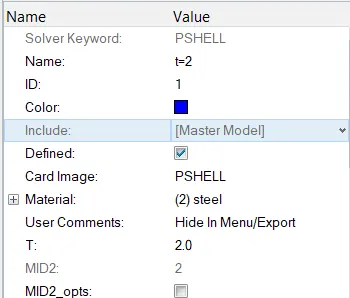

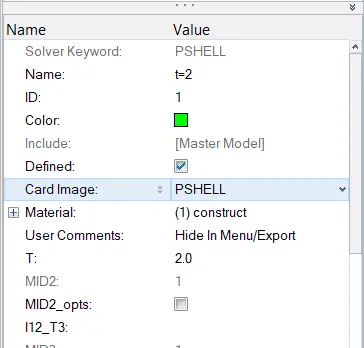

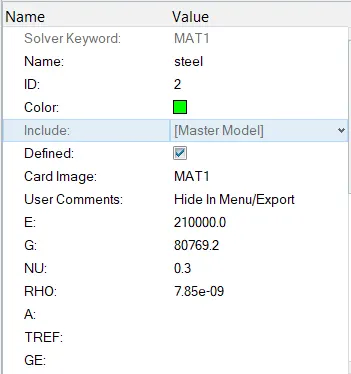

4. Then create property and material and apply it to the mesh body.
   •

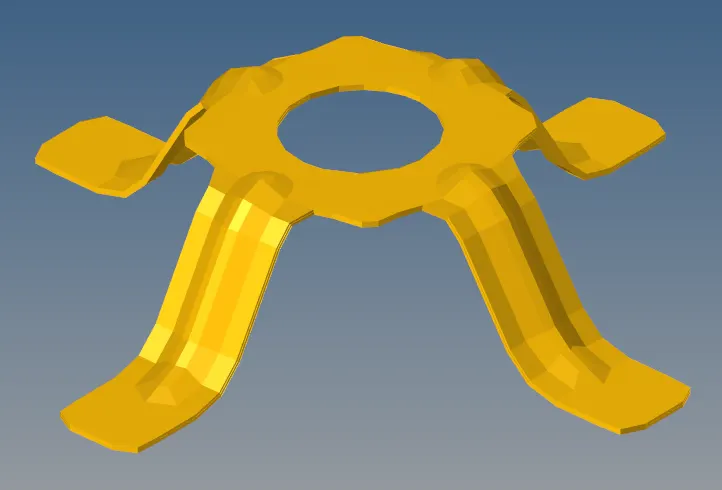

5. The detailed mesh body is given below.
   •

• Part-3

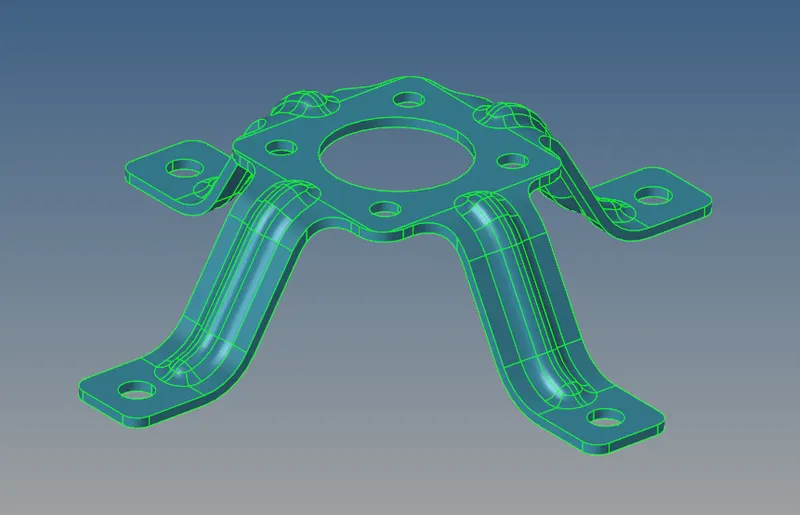

1. The first step is to import the model into the Hypemesh GUI.
   •

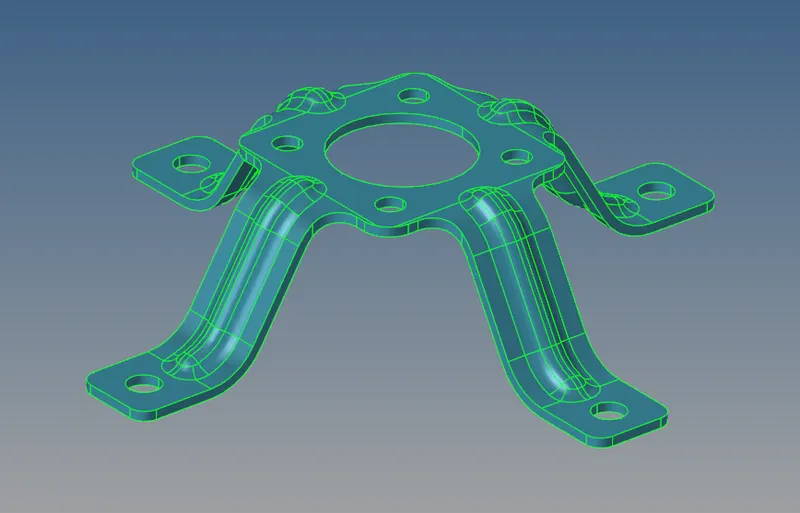

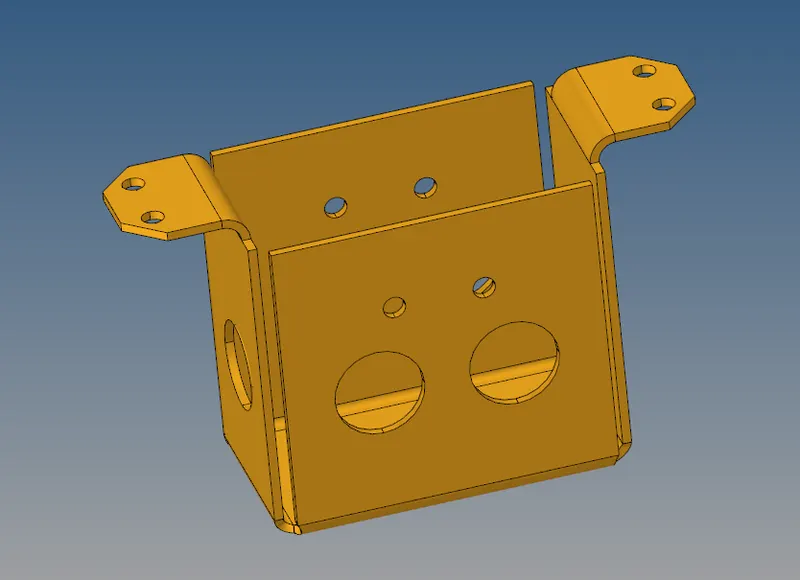

2. The next step is to clean the model and extract the mid surface out of the model.
   •
3. Then start to mesh the body.
   •

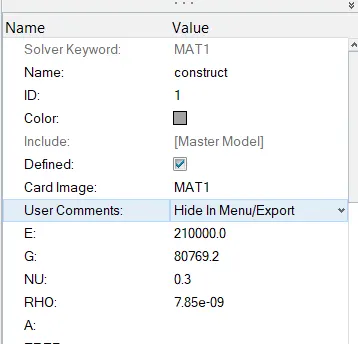

4. Then create a property and material collector and assign the property to the mesh body.
   •

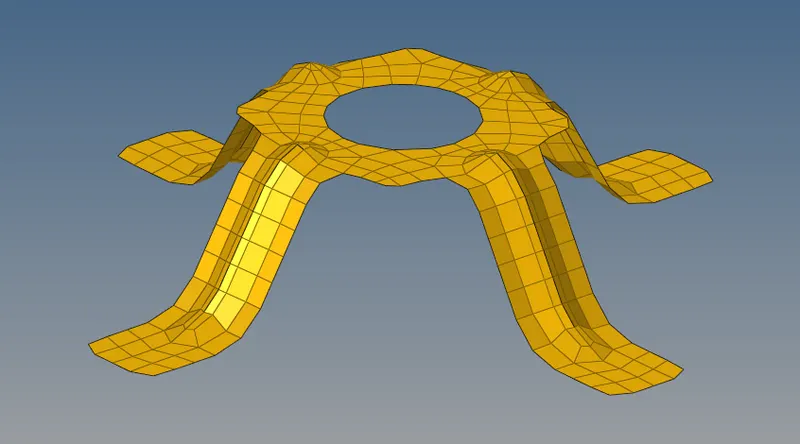

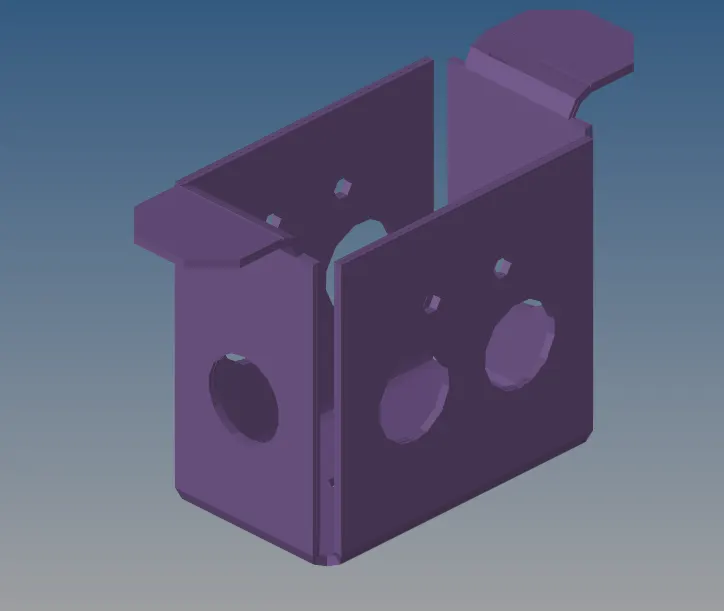

5. A detailed view of the mesh body is given below.
   •
