Assignment 1

Objective: is to repair and clean the geometry, extract the mid surface and then mesh the component under the quality criteria.

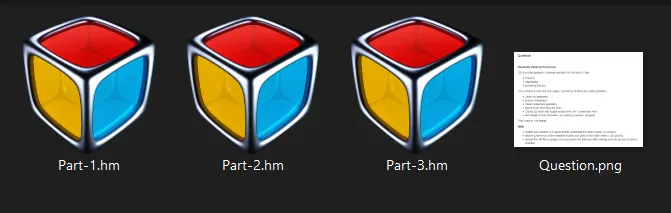

1. Open the .hm file in hypermesh one by one to persorm the upcoming tasks

2. Raw distorted geometry

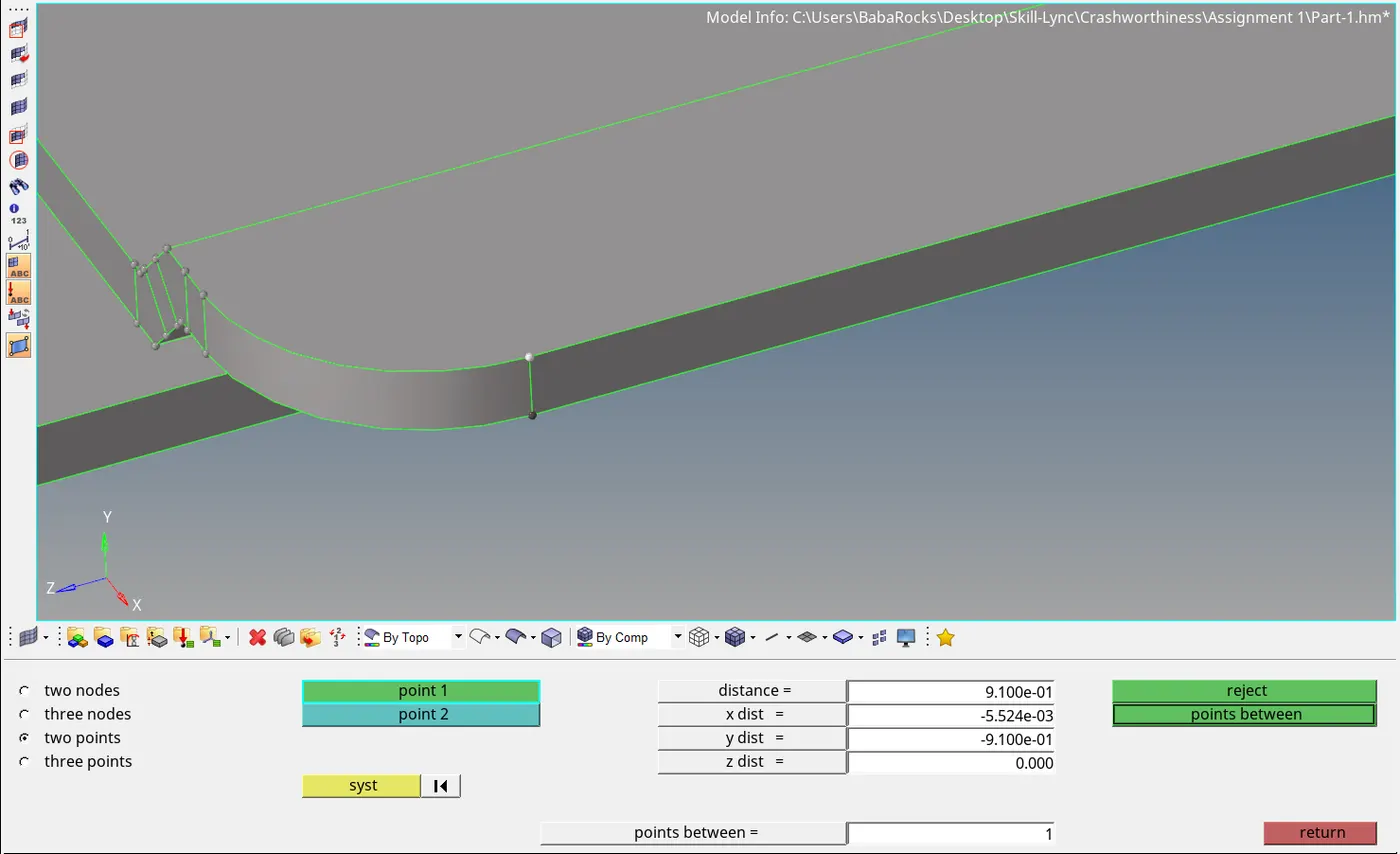

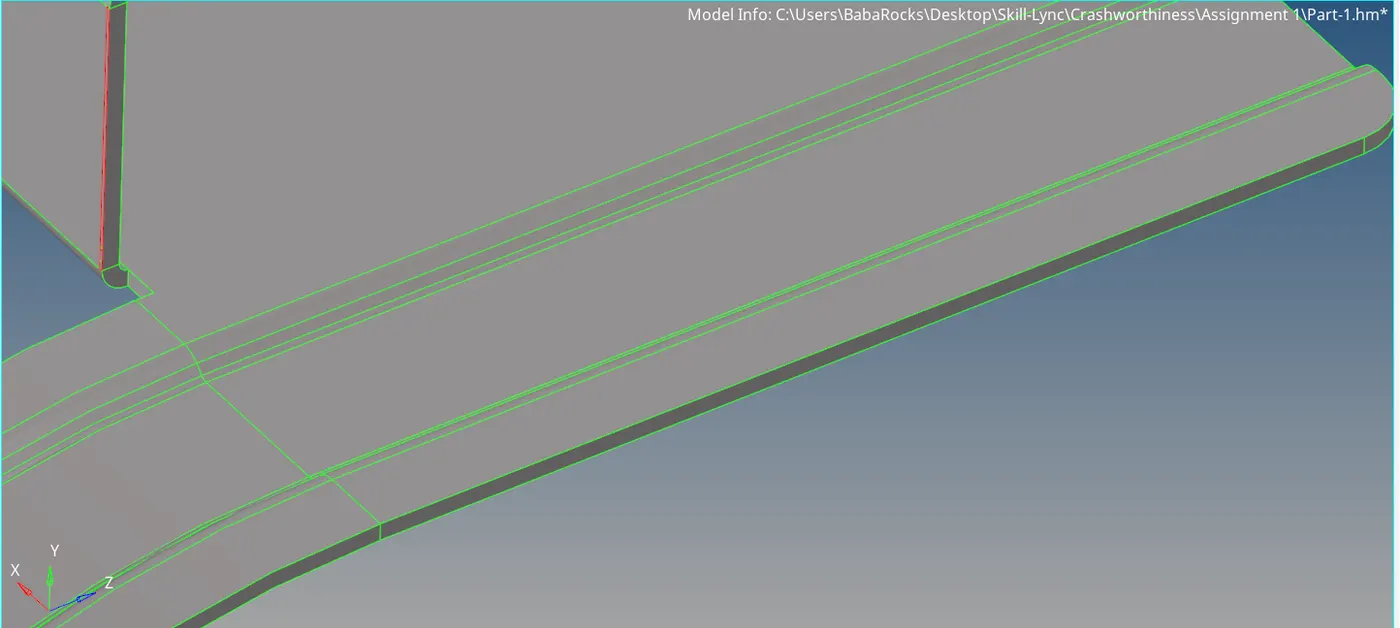

3. Measuring thickness(F4) for future reference

:thickness comes to be 0.91unit

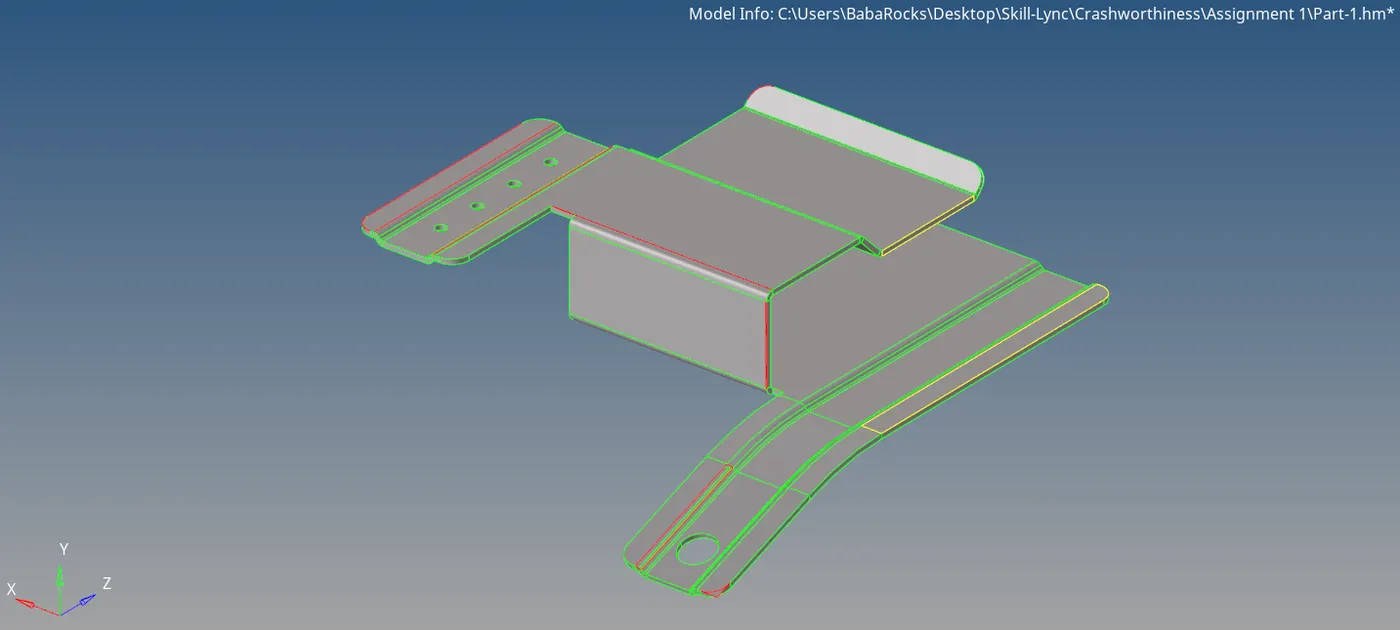

4. Topo mode of the geometry for better visual perspective

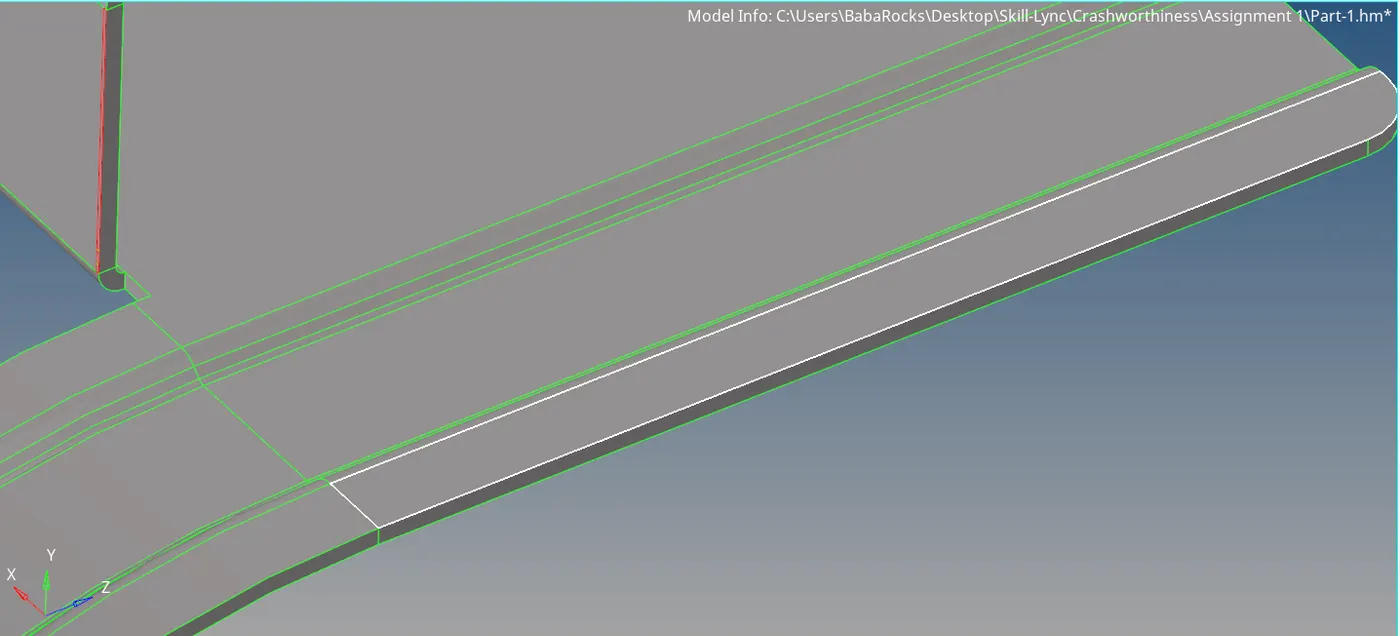

5. Duplicte surfaces requiring geometrical repairment

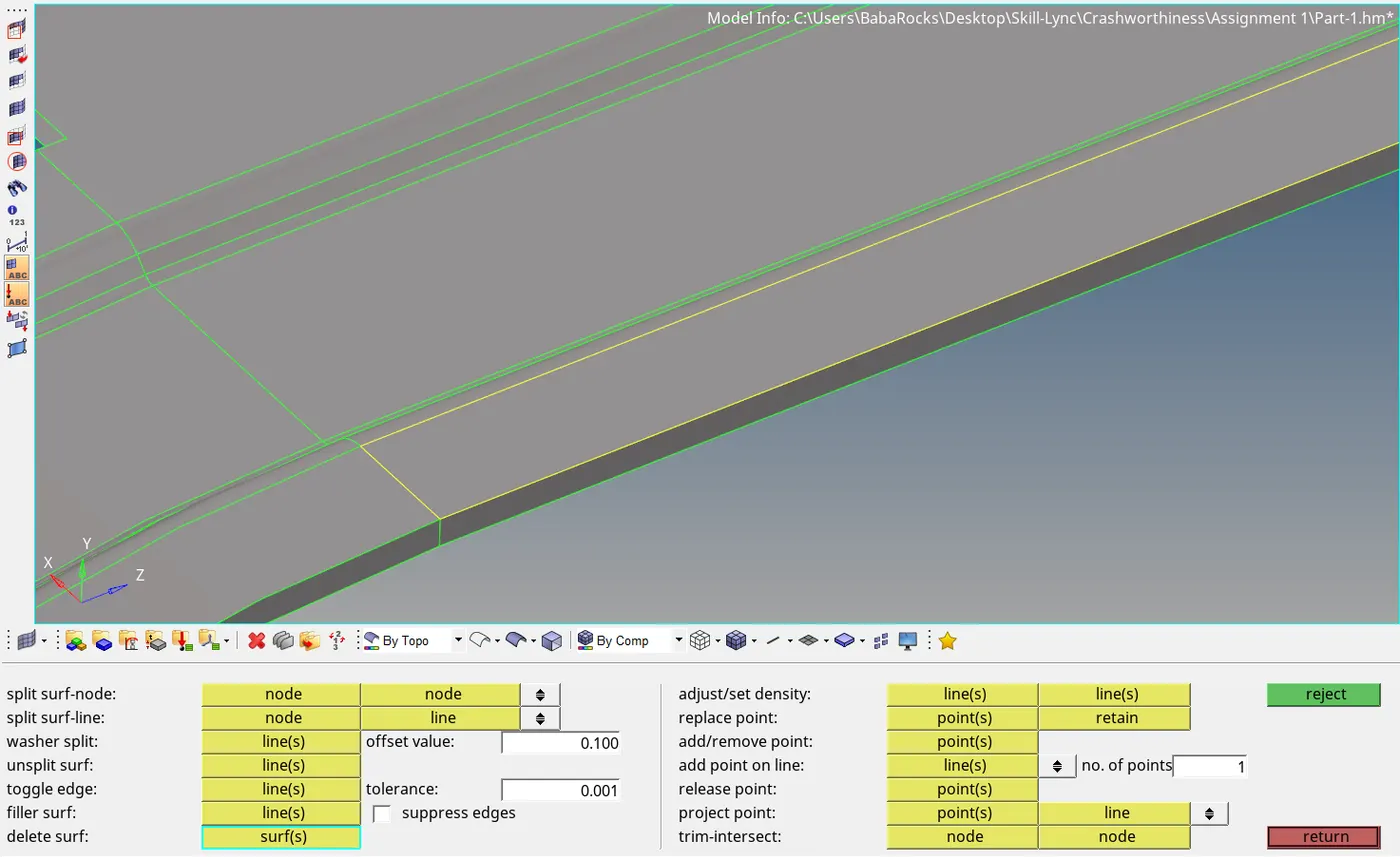

6. Delecting the unwanted duplicate surface using the quick edit menu(F11)

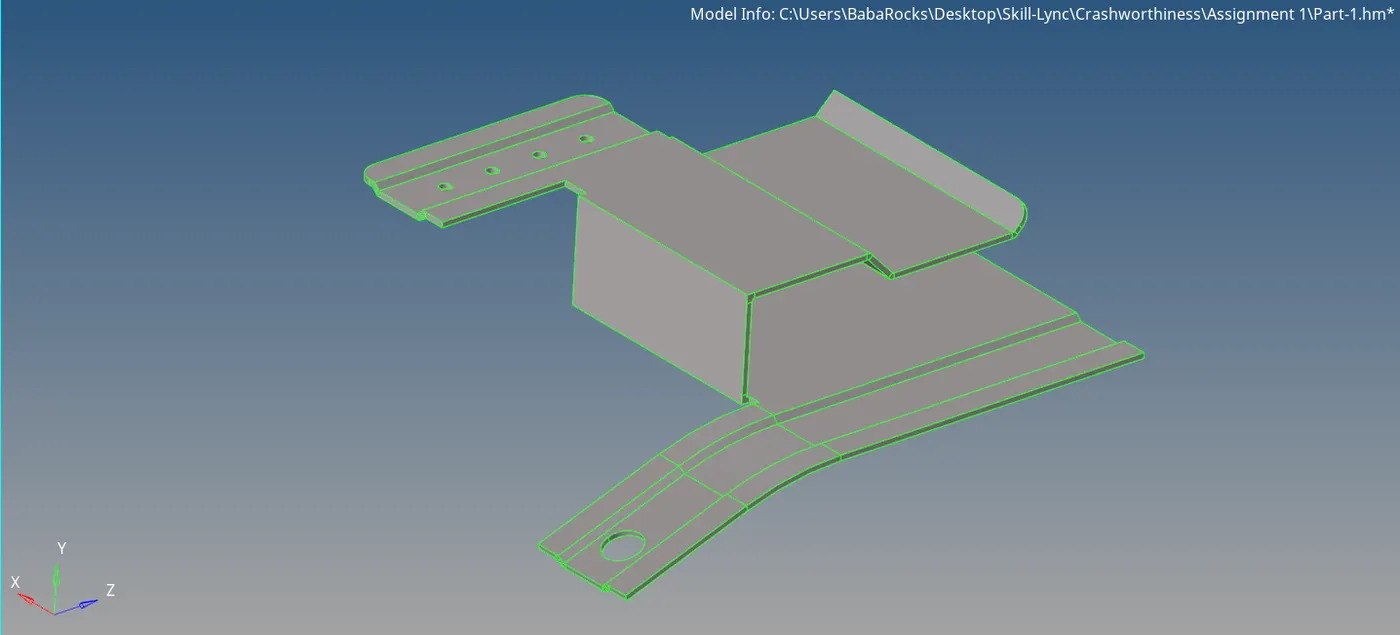

7. Cleaned geometry after repairing

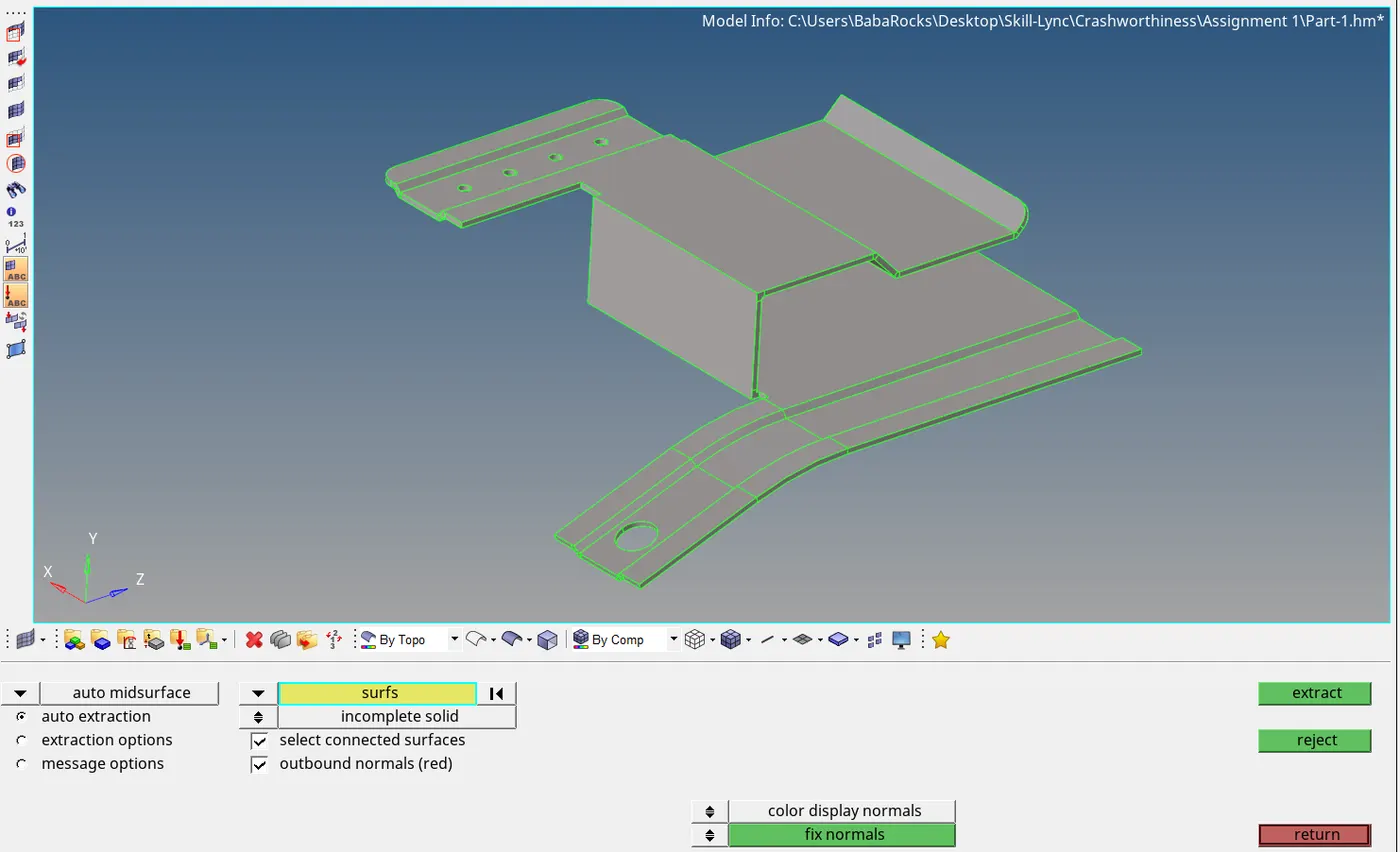

8. Extracting mid surface for the component

Extractioj Option: Offset and sweep

Incomplete solid

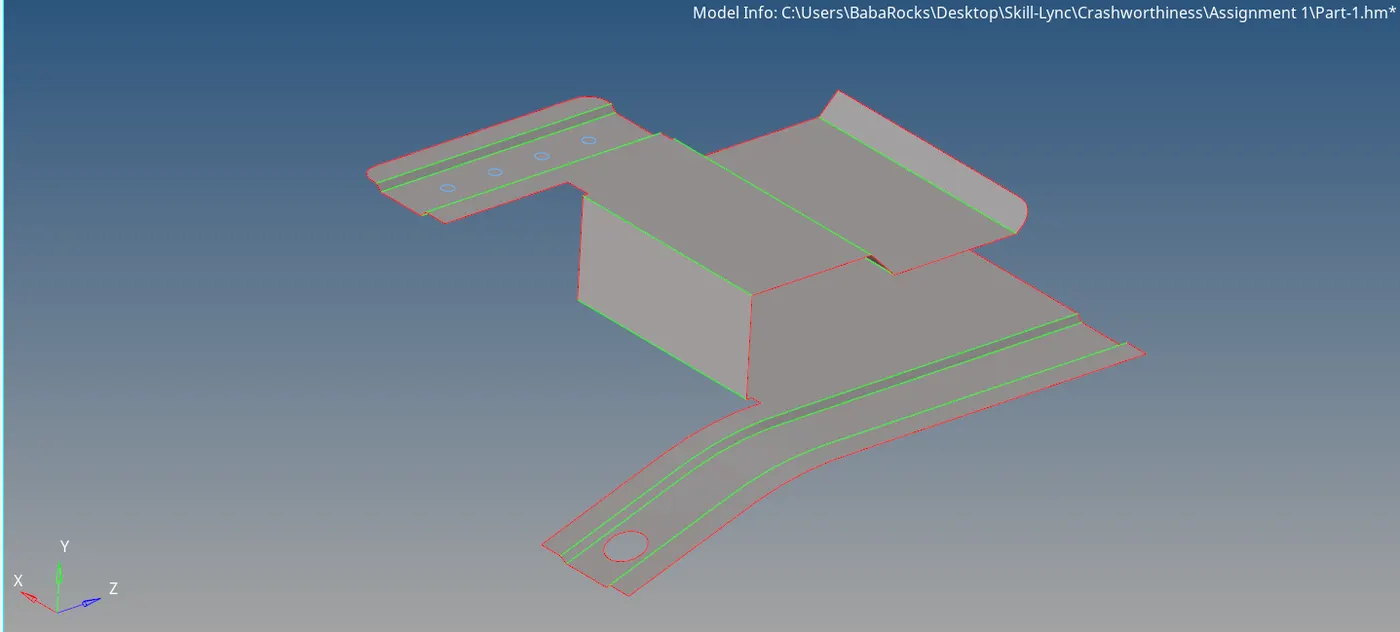

9. Mid surface for the component ready for meshing

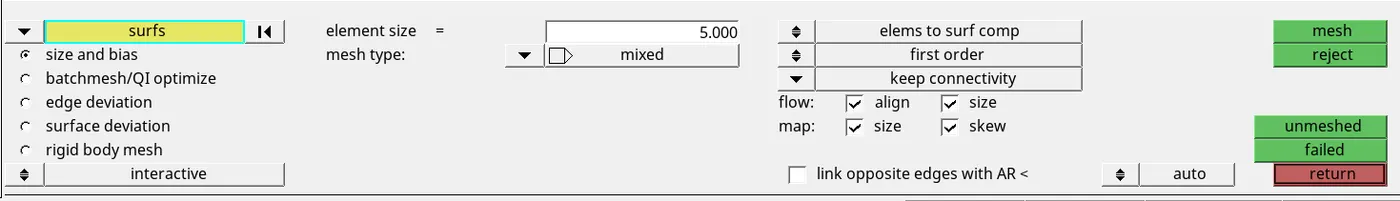

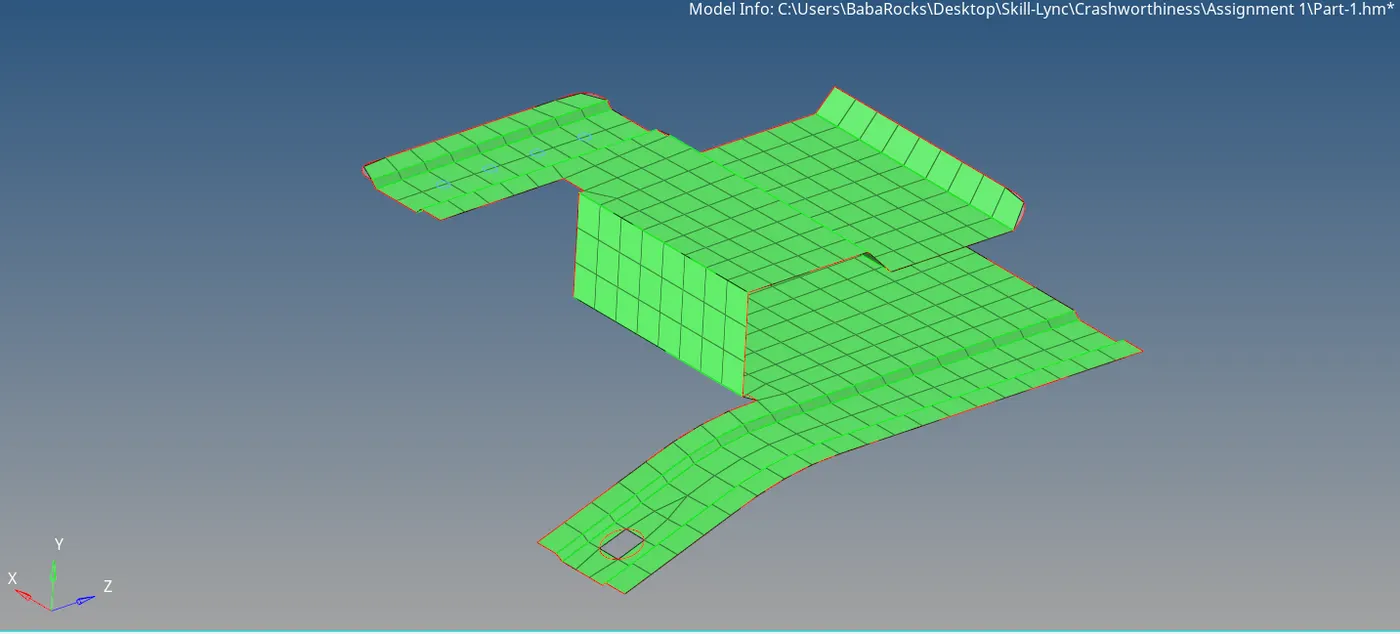

9. FE for the component with target sixe of 5unit

Note: One surface at a time was meshed to get bettr mesh flow

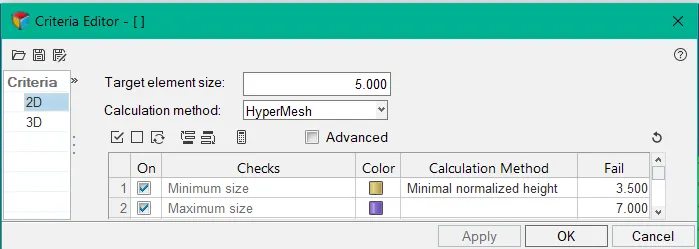

10. Input criteria in the criteria file

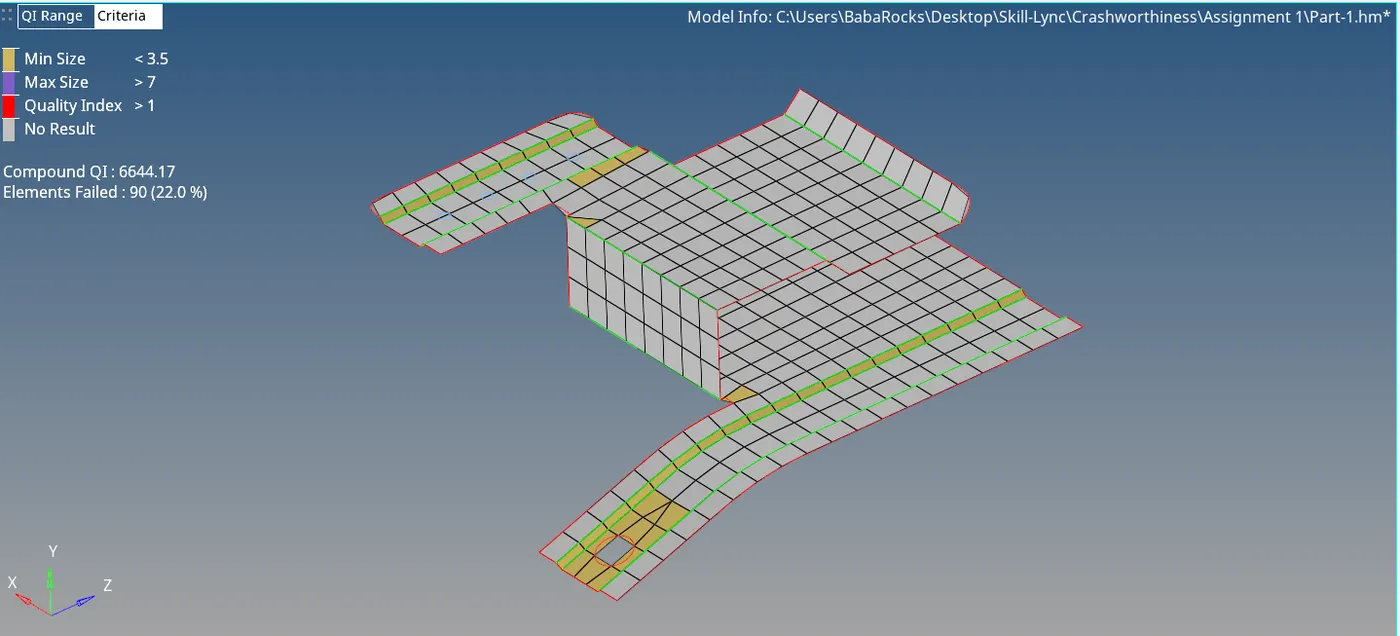

11. FE quality check

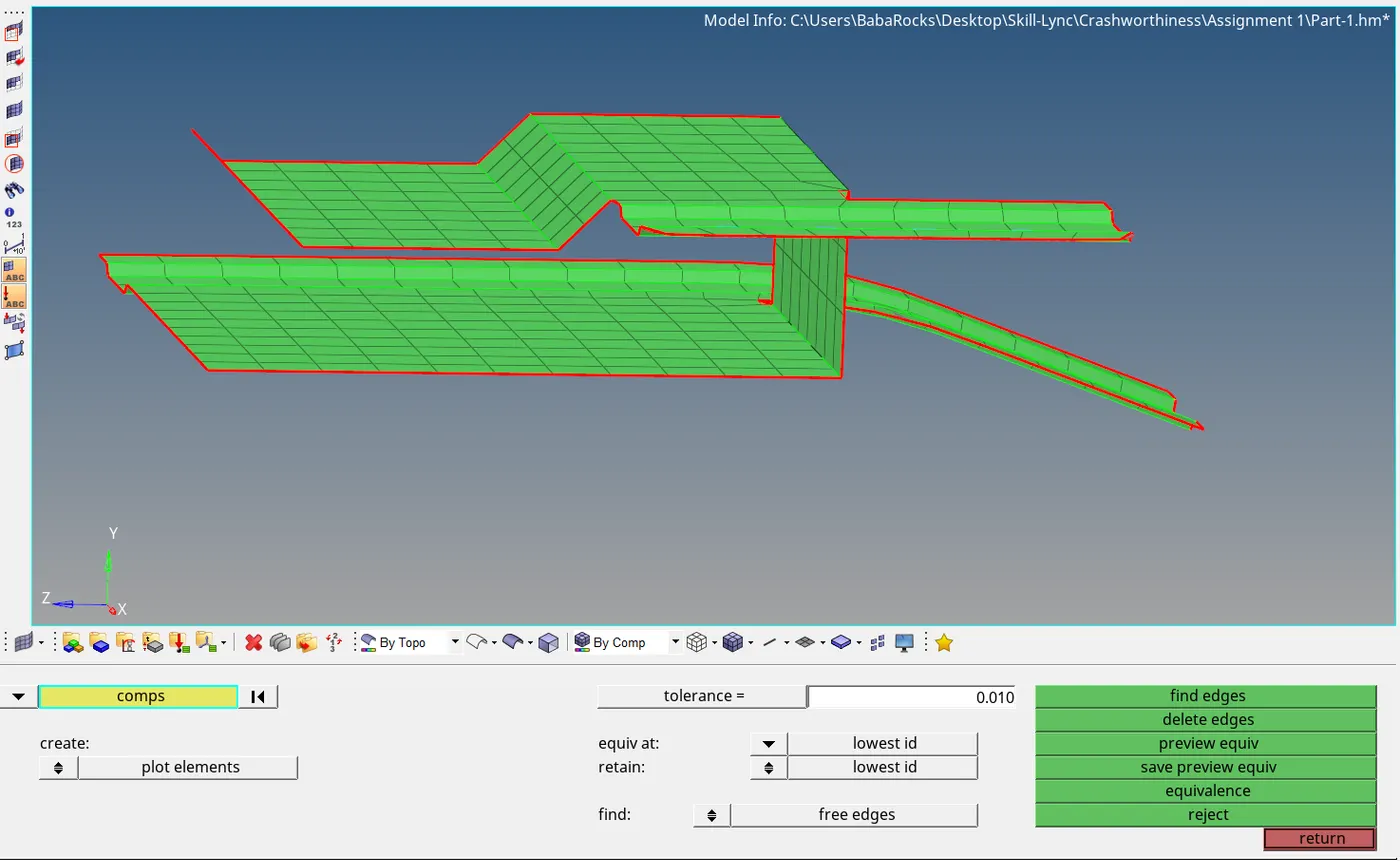

12. Free Edge check for the mesh

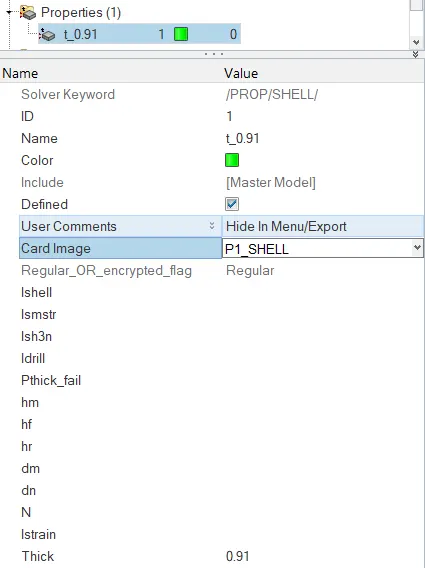

13. Creating proerty and material card for the component and specifying thickness for the same

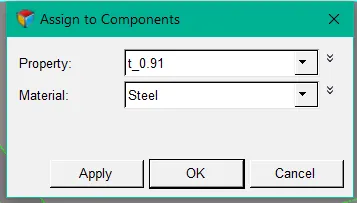

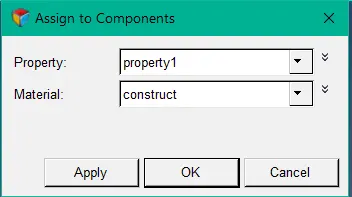

14. Assigning material and property to the component

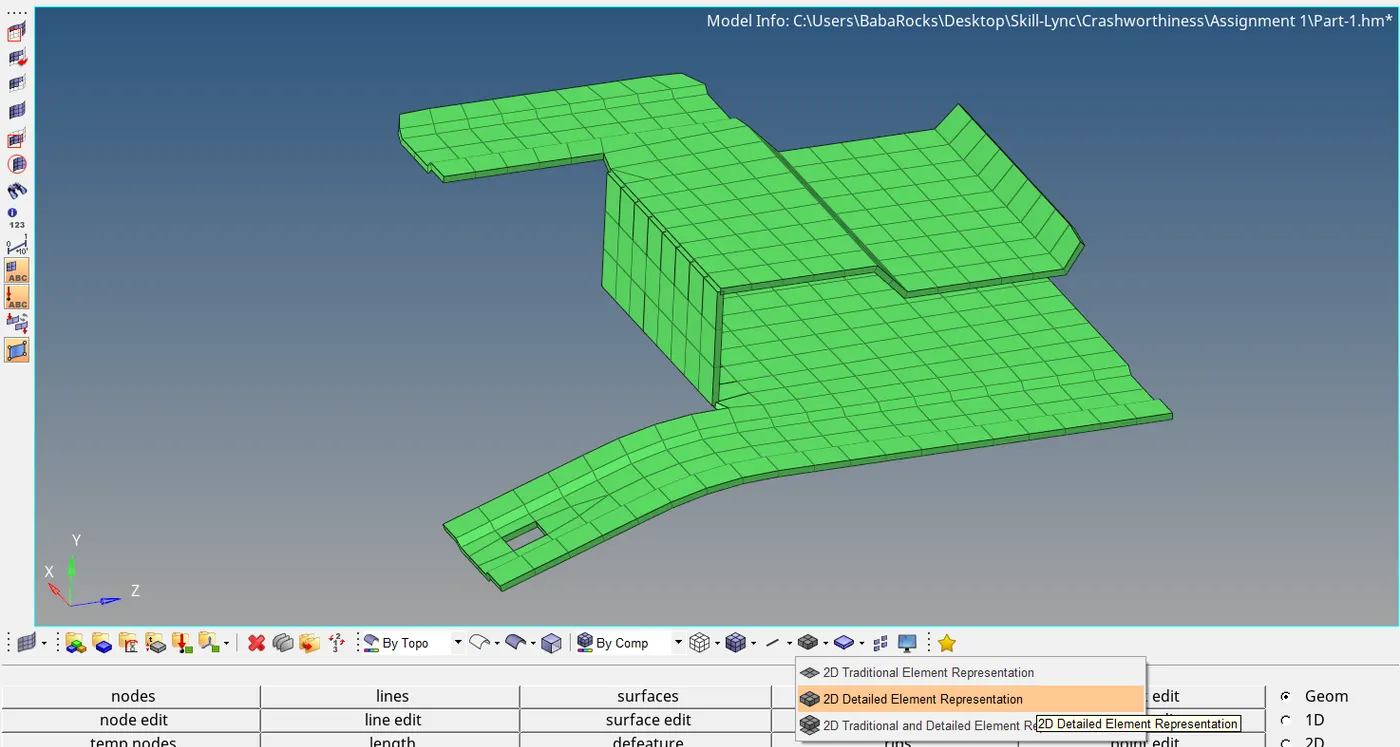

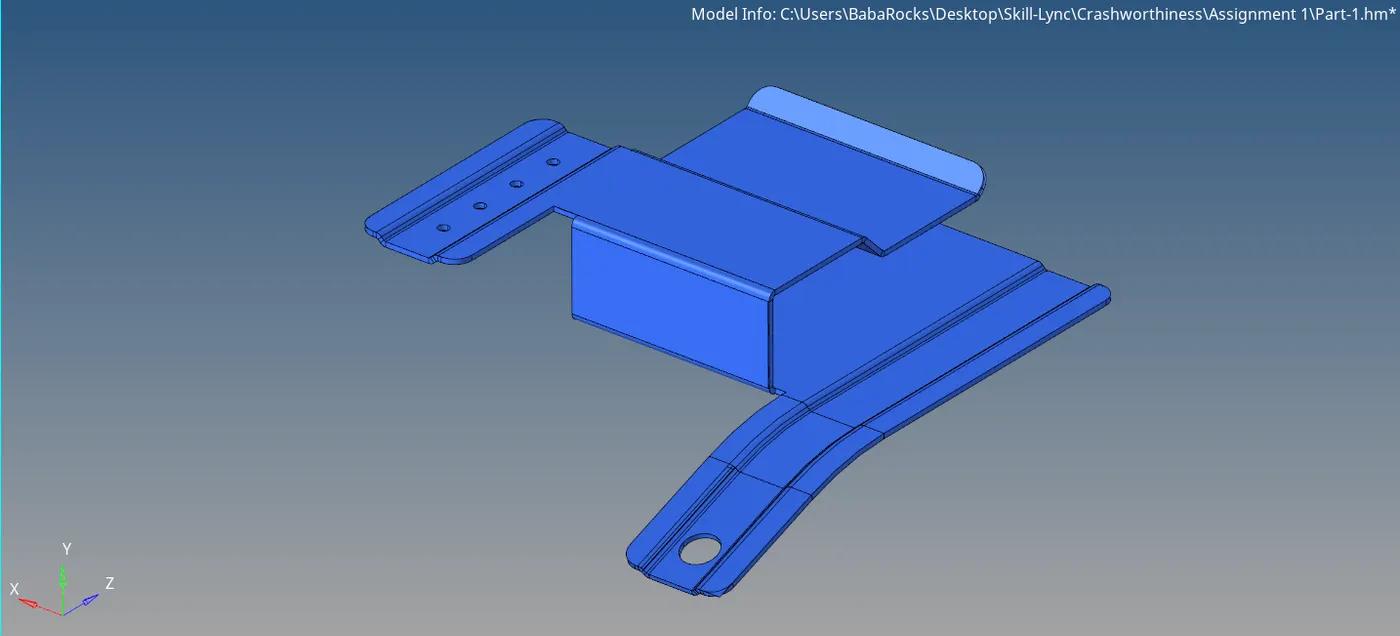

15.2D Detailed FE representation

2.

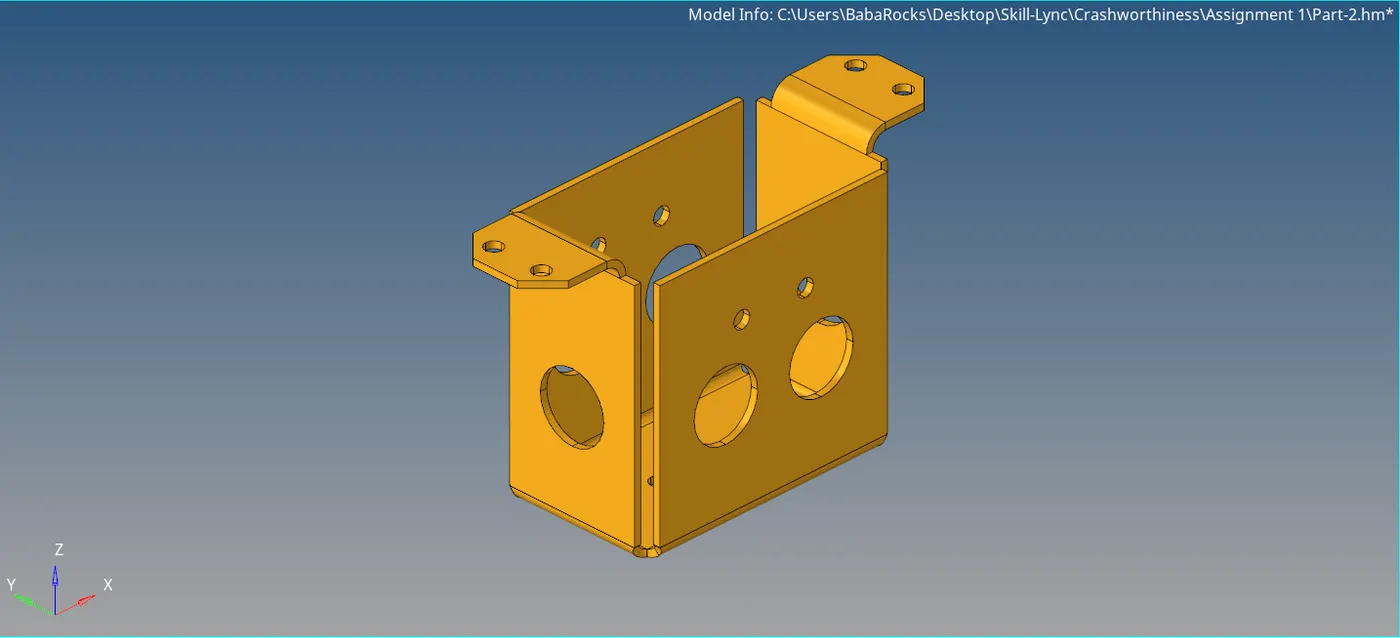

1. Open the .hm file of the model in the hyperworks

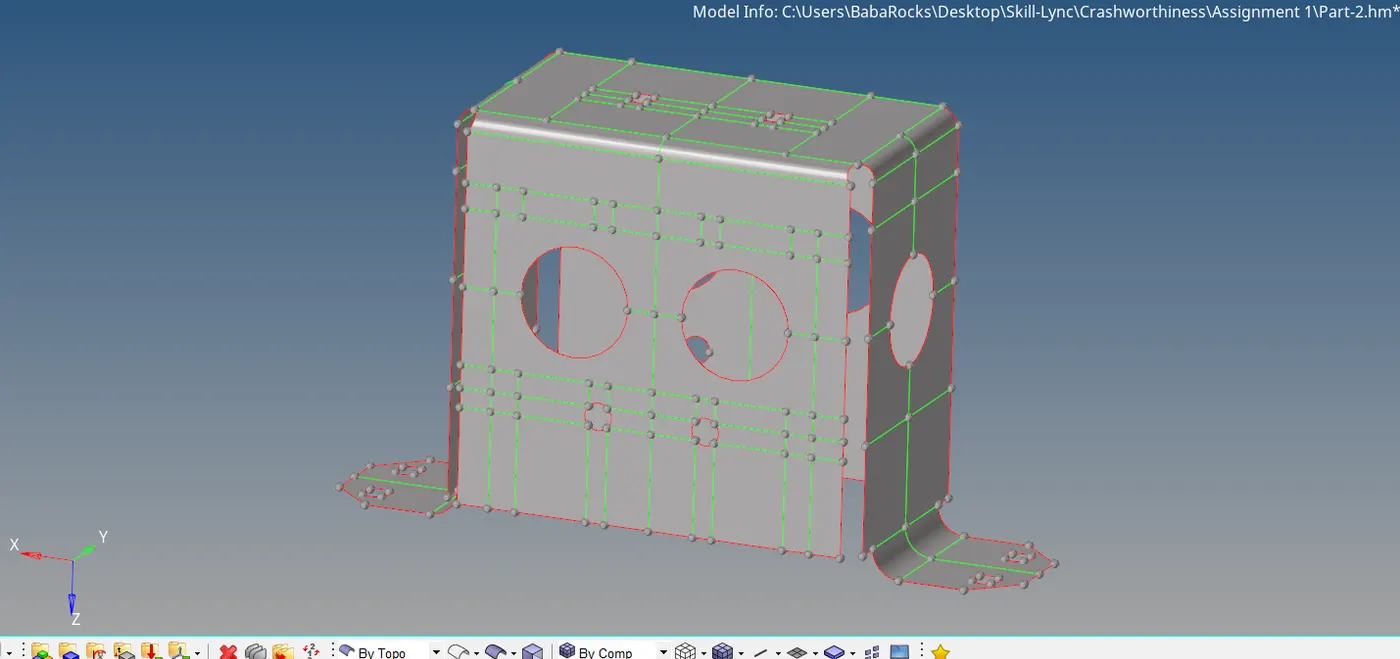

2. Extract the mid surface using the auto mid surface option

Note: Skin offset

3. Mesh the half component

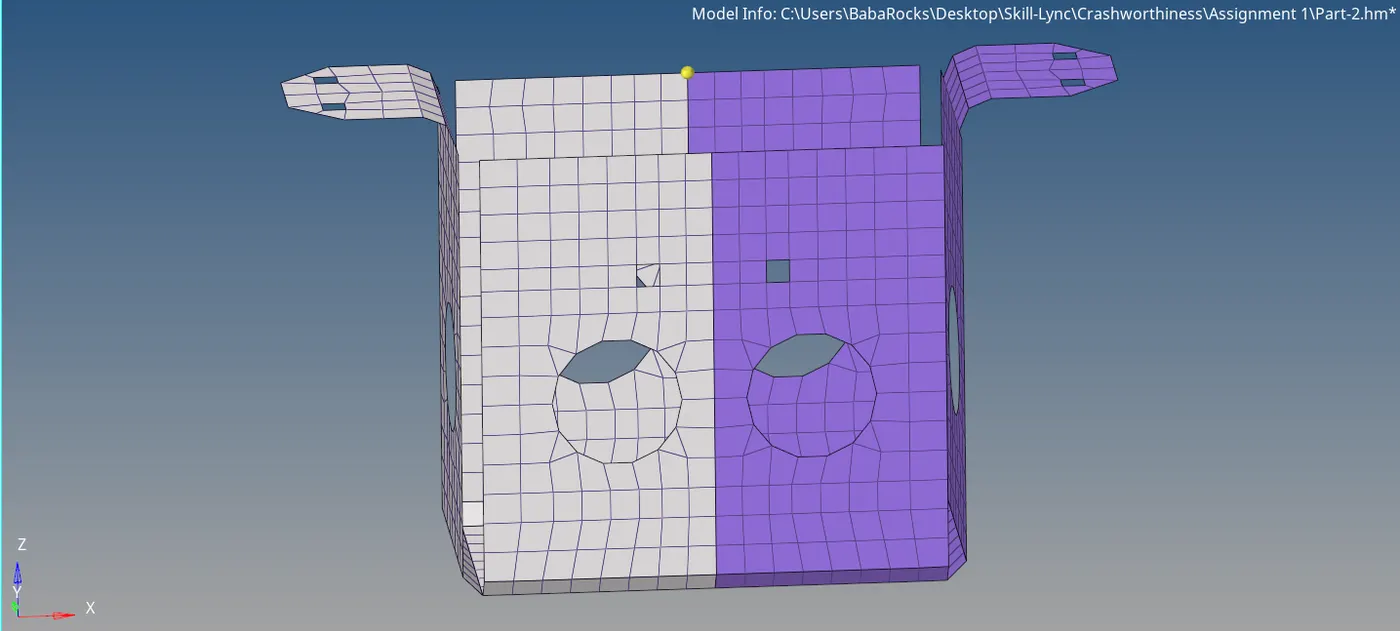

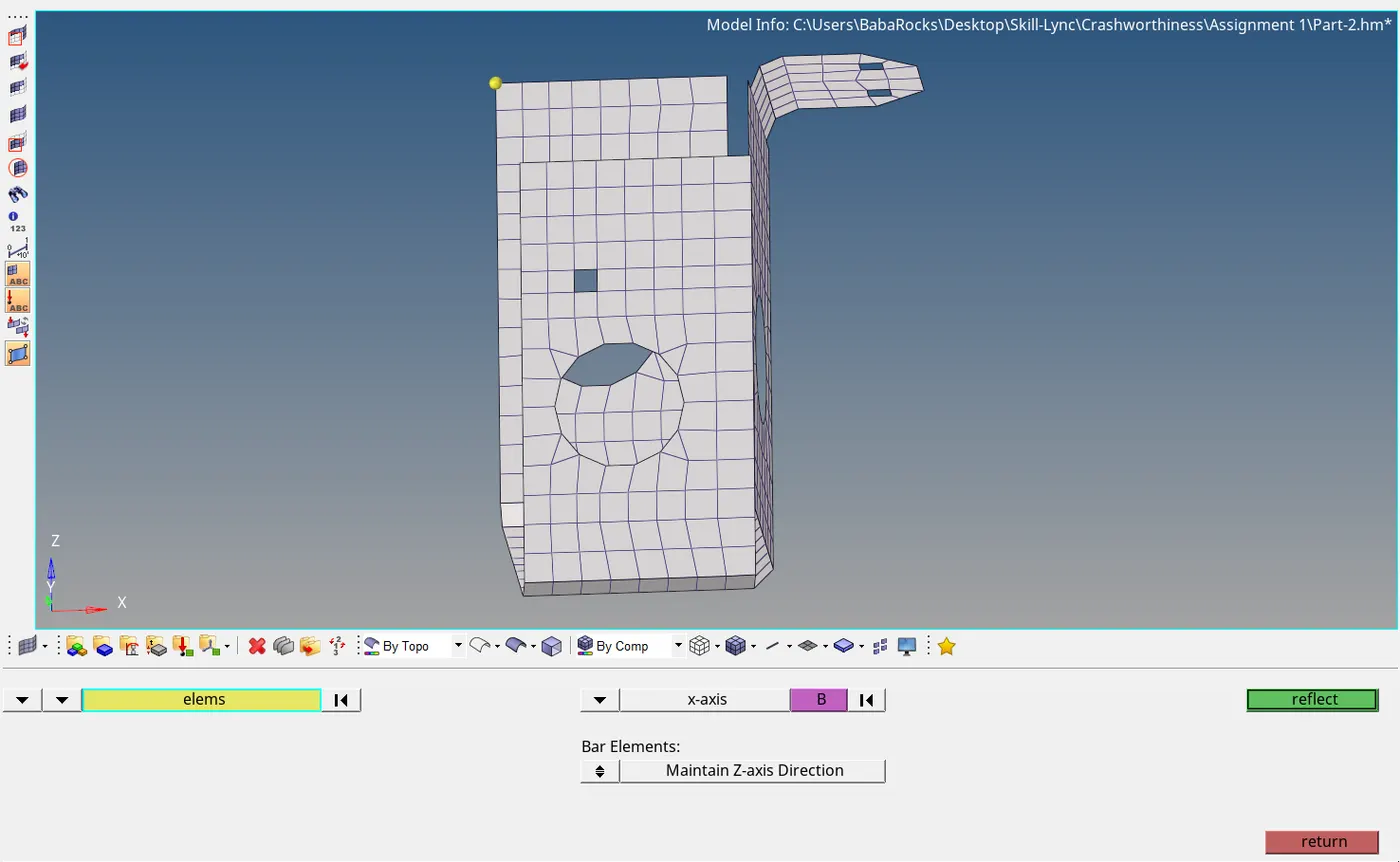

4. Reflect the FE for the rest half of the component

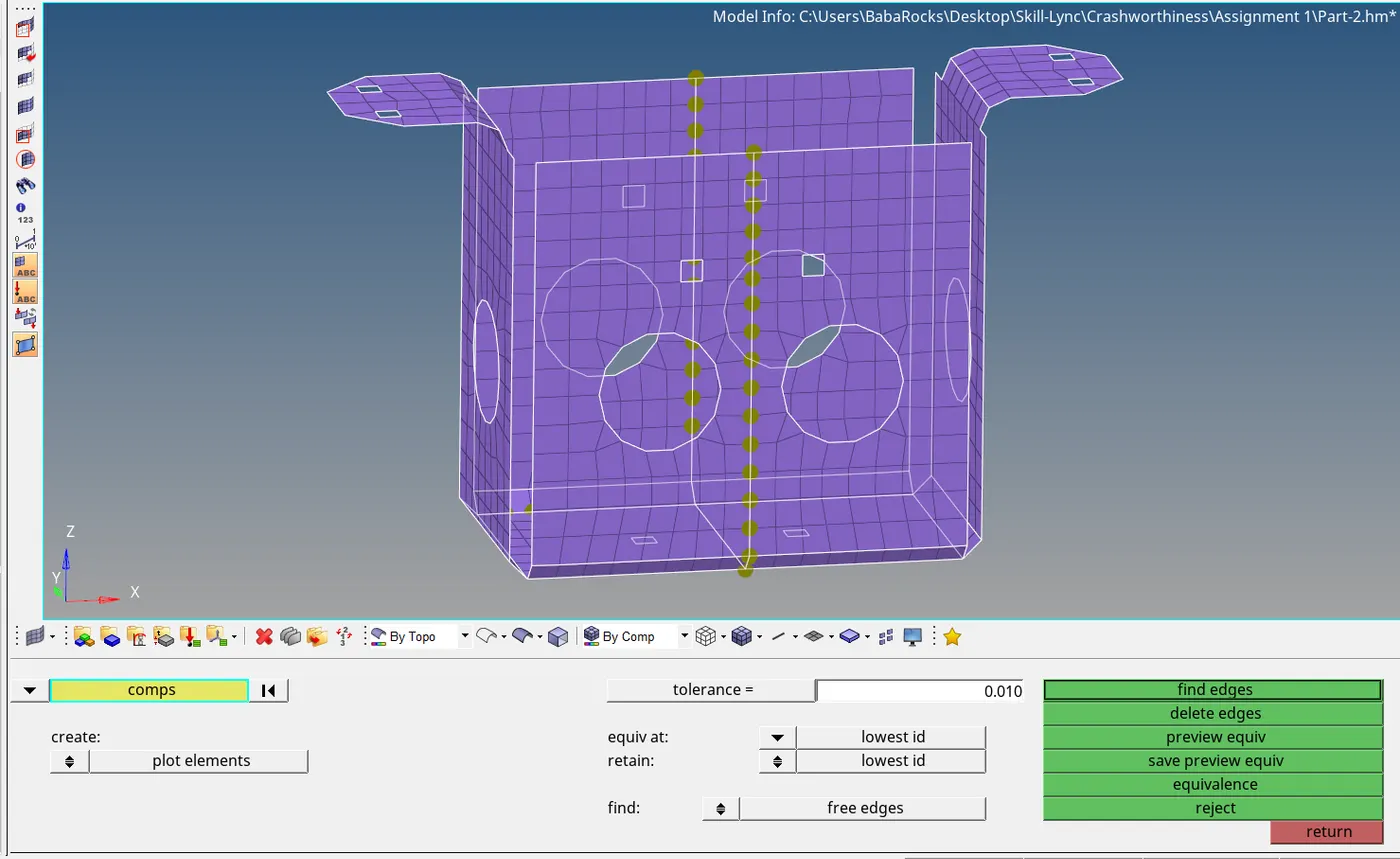

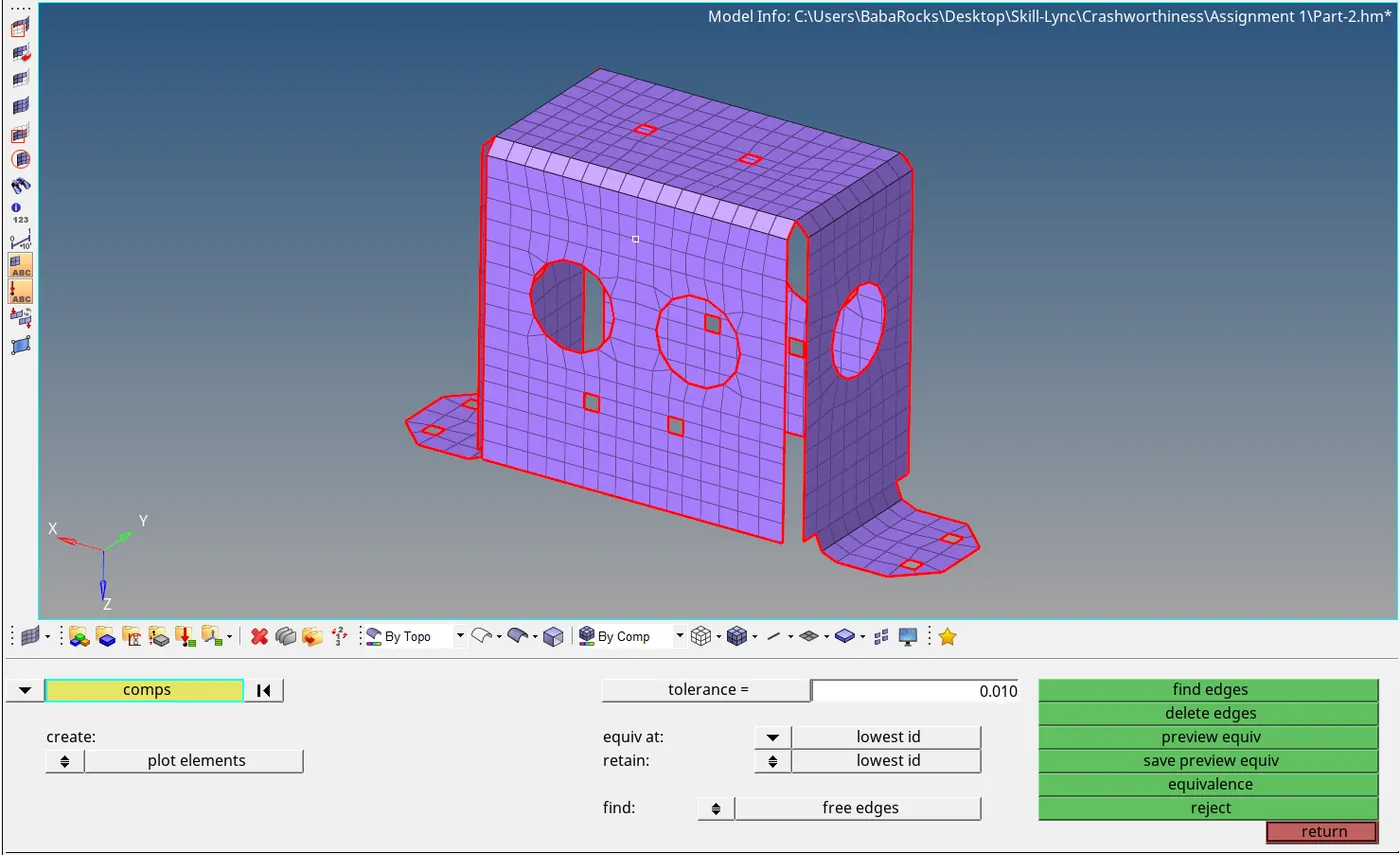

5. Equivelance to make the proper connectivity between the elements

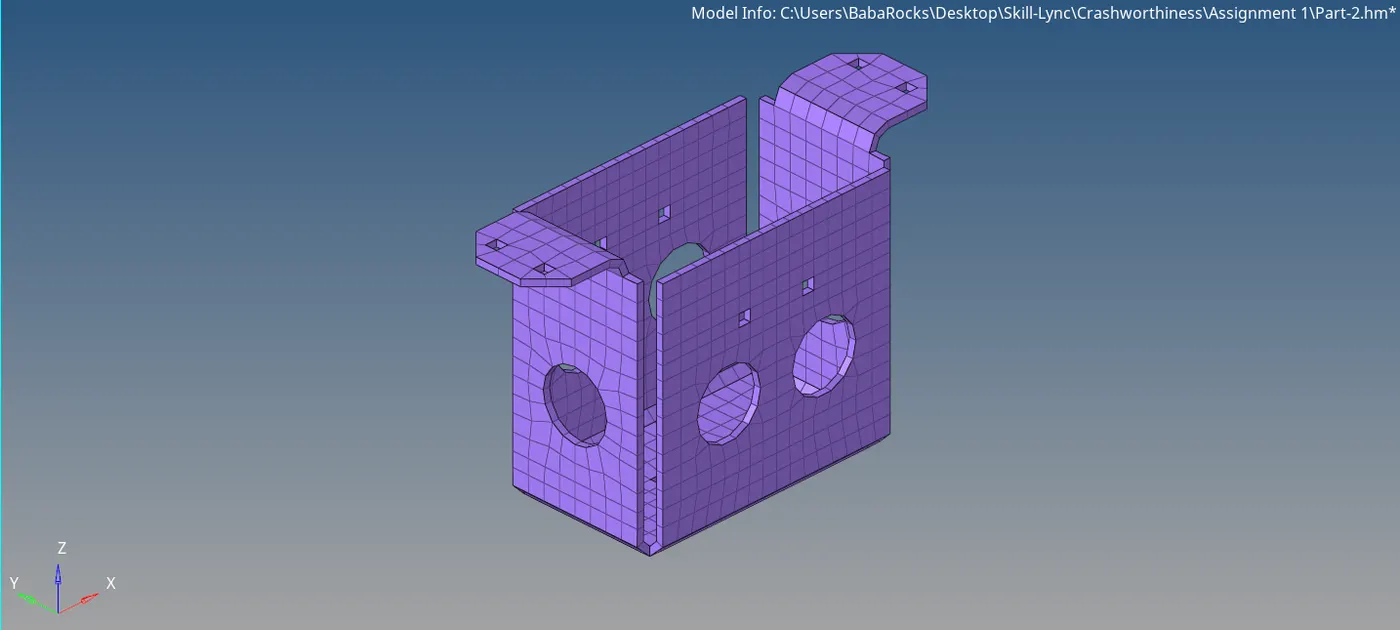

6. Final Mesh and the mid suurface

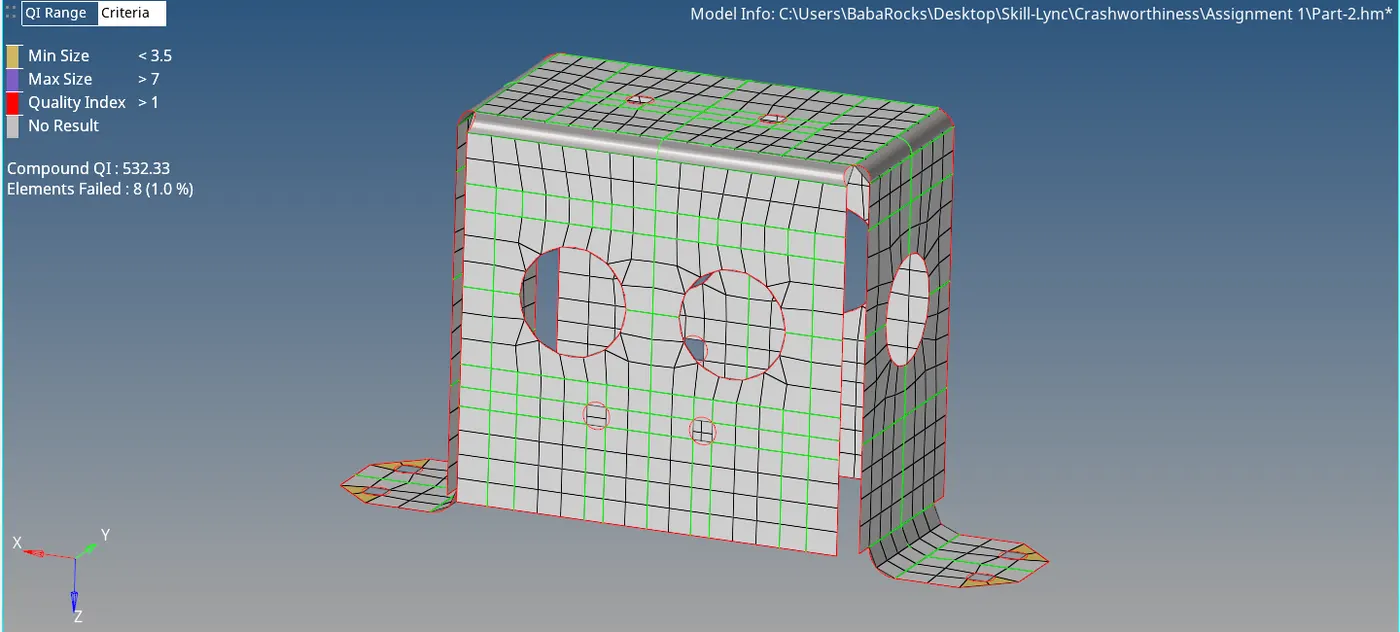

7. Quality check

8. Free edge check

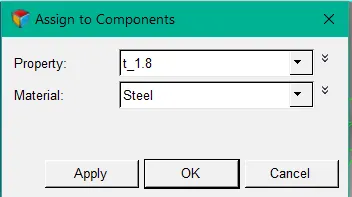

9. Assigning the material and thickness property

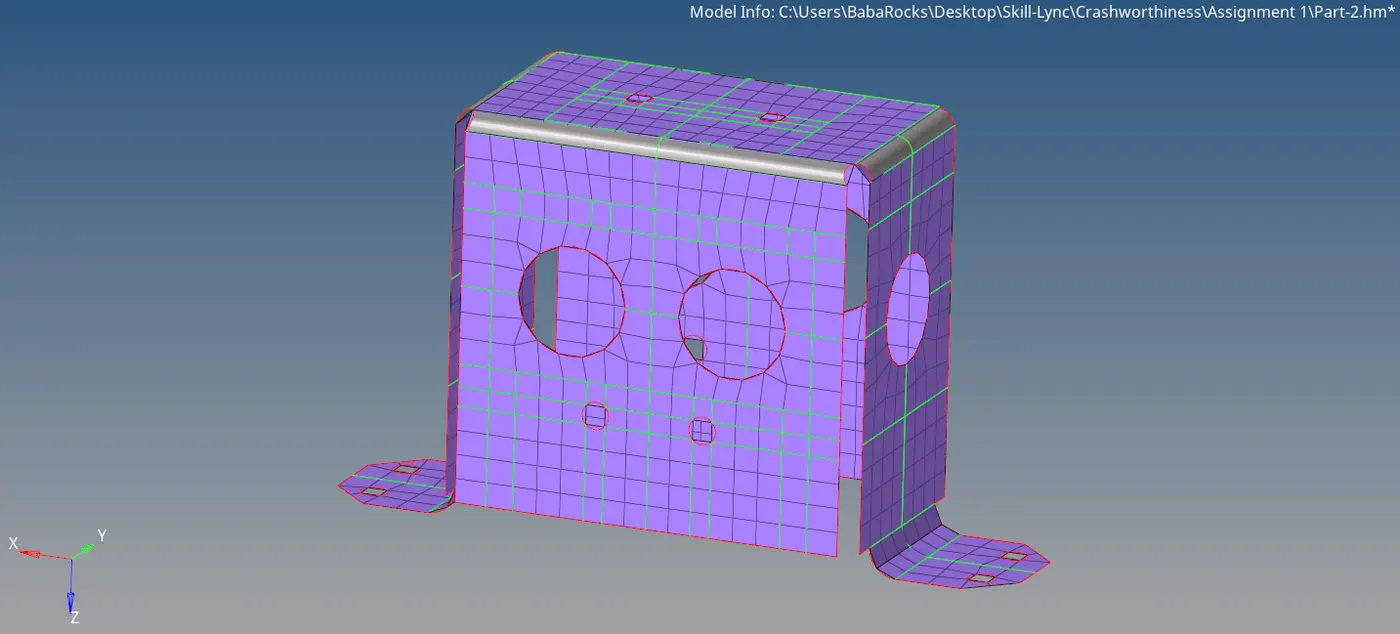

10. 2D Detailed representation of the final mesh

3.

1. Open the .hm file in the hyperworks

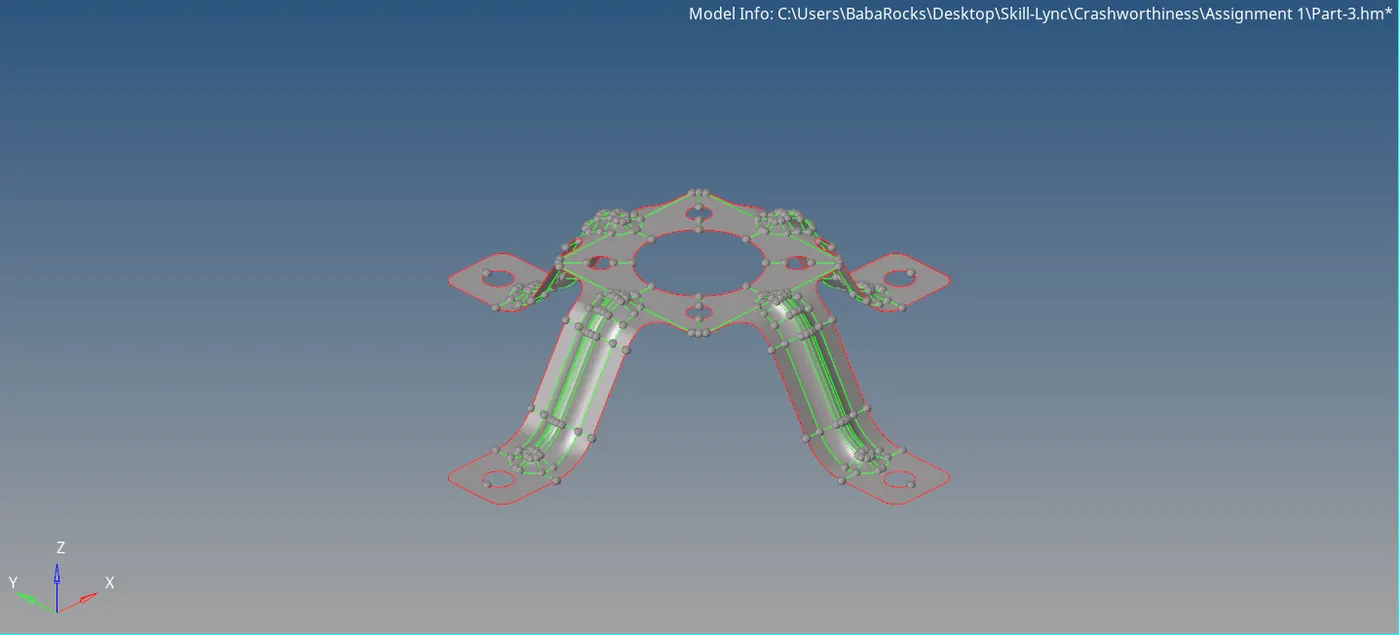

2. Extract the mid surface using the auto mid surface option

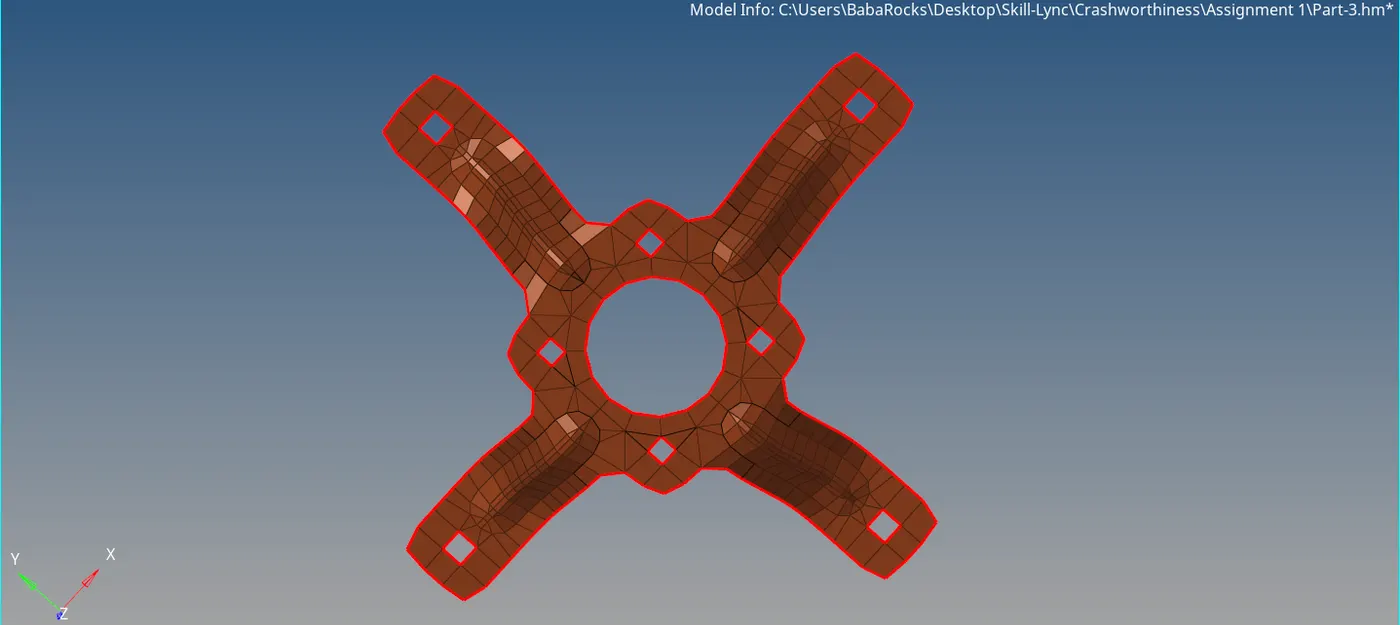

3. Mesh the component using the F12 automesh panel

3. Check for Free edge

4. Assign the material and the property

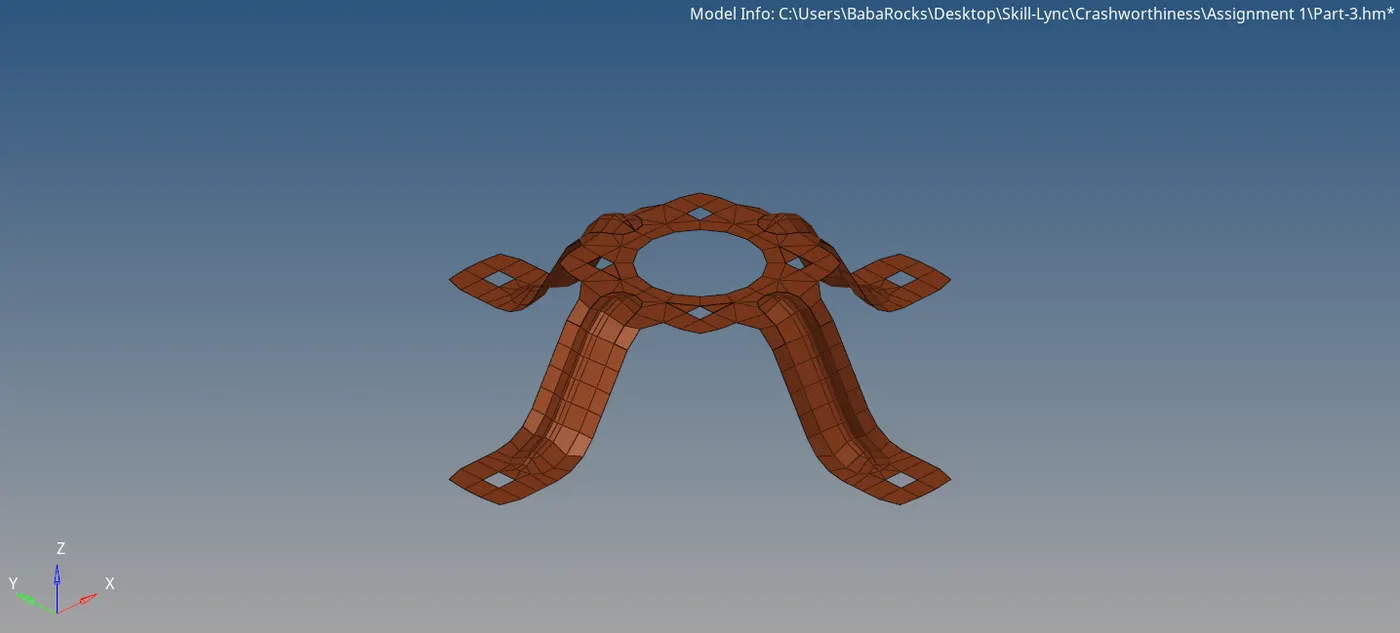

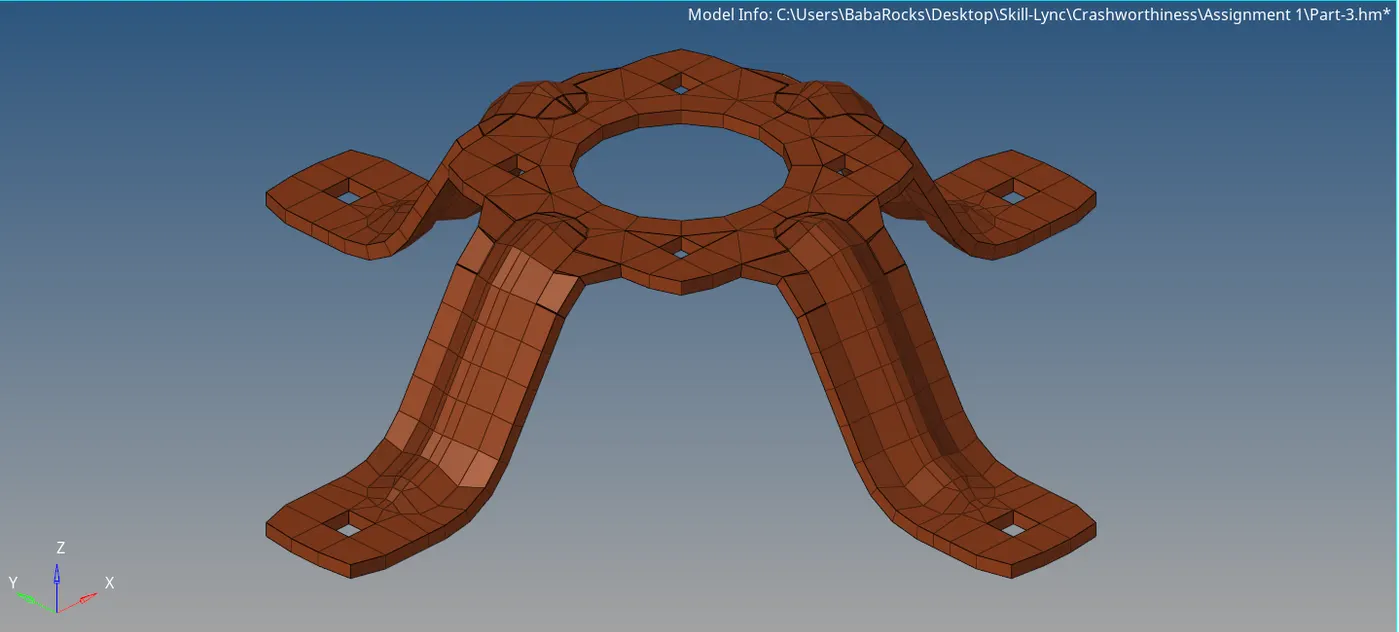

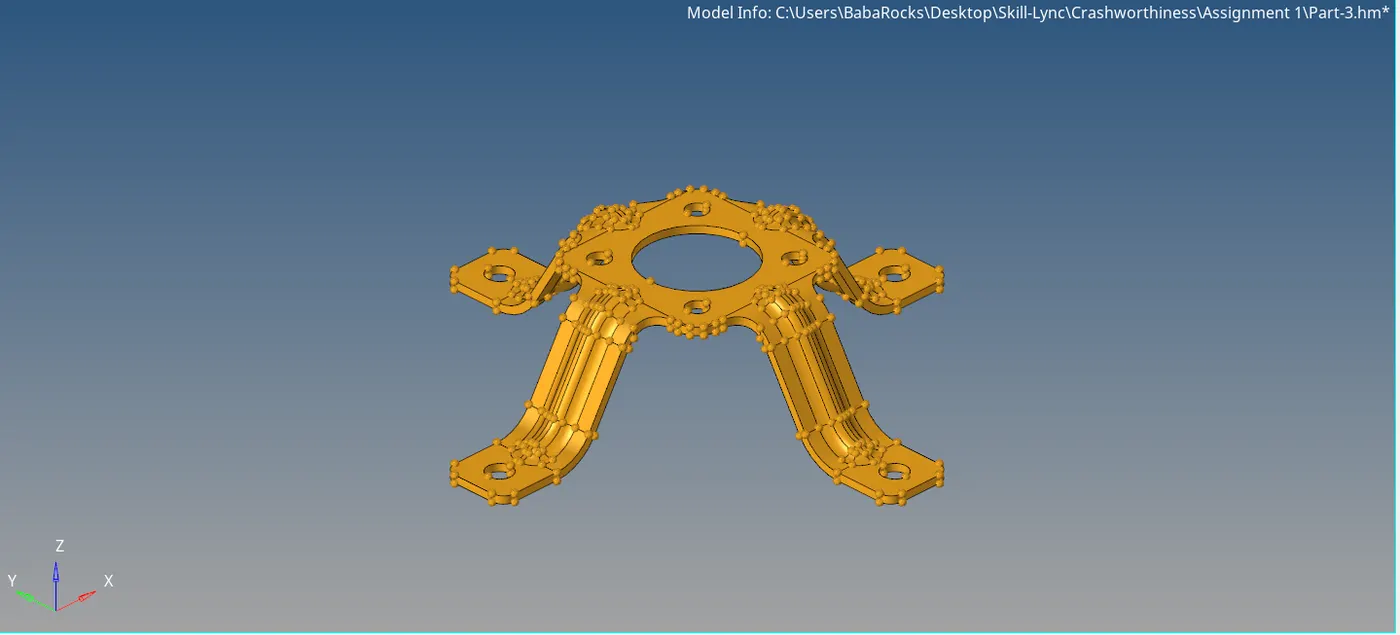

5. 2D detailed representation of the model

Conclusion: In this assignment various operations were performed on three different components in which the components were repaired and geometry were cleaned, then the mid surface were extracted. after the mid surface extraction the mid surface were cleaned and the meshing was done. Further the mesh was checked for quality and for free edge.
