MODELING AND RENDERING OF YACHT USING SOLIDWORKS:

OBJECTIVE:

The aim is to make a 3D model of a Yacht, its Components and Assembly using SolidWorks.

INTRODUCTION:

A yacht is a power vessel used for pleasure, cruising or racing. The term applies to such vessels that have a cabin with amenities that accommodate overnight usage, luxurious cabin and all the necessities are perfectly loaded in a small power vessel.

DESIGN PROCESSES:

• A reference sketch is drawnParts to be modelled are noted.
• Parts are made according to given dimensions and fixing constraints.
• Parts are assembled.
• The assembly is rendered to maximum perfection.

PARTS TO BE MODELLING:

The Yacht has following parts to be modelled:

• Hull
• Front Seat
• Middle Seat
• Rear Seat
• Radar
• Radar Mast
• Superstructure
• Propeller
• Garage Door

PARTS DESCRIPTION:

Hull:

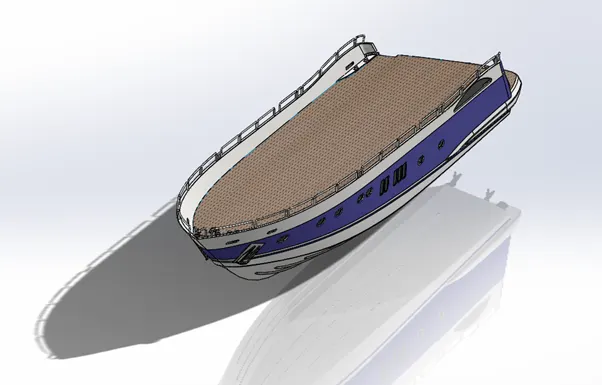

It is the most significant aspect of the model as it is watertight body of a yacht. A structure might be open from the top or completely or halfway secured by a deck. The half of it is modelled and the other half is mirrored. The blueprint setup plays a vital role in the complete modelling of the Yacht. The line where water and hull meet is known as waterline.

Tools Used: Revolve boss, extrude cut, projected curve, split line, shell, copy, delete face, mirror, lofted surface, extend surface, filled surface, extrude surface, trim surface and knit.

Front Seat:

It is situated at the front side of the yacht for the comfort of the passengers.

Tools Used: Revolve boss, extrude cut, fillet, dome, mirror, lofted surface, swept surface, extruded surface, filled surface, trim surface, knit surface.

Middle Seat:

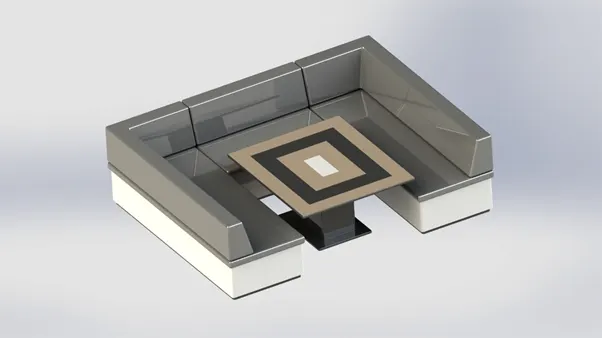

It is at the middle of the yacht for passenger’s luxury and comfort.

Tools used: Extrude boss, extrude cut, fillet, mirror, and chamfer.

Rear Seat:

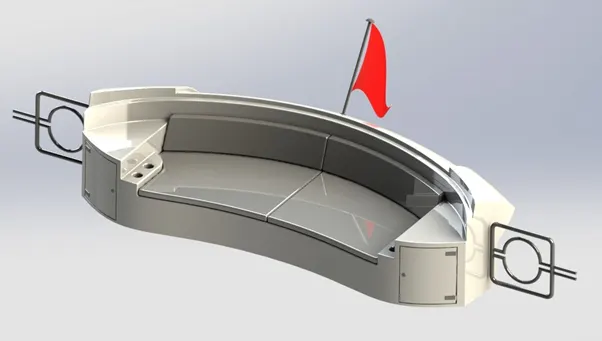

It is situated at the rear side of the yacht for passengers comfort. It is similar to front seat in modelling but extra geometries like flag, gate, cup holder etc. seek additional sketches and features to be used.

Tools Used: Extrude boss, revolve boss, extrude cut, fillet, chamfer, mirror, lofted surface, swept surface, offset surface, ruled surface, trim surface, knit surface.

Radar:

It is used to detect the objects and their position concerning our current location. Radar stands for- Radio Detection and Ranging.

Tools Used: Extrude boss, extrude cut, sketch driven pattern, mirror, fillet and split line.

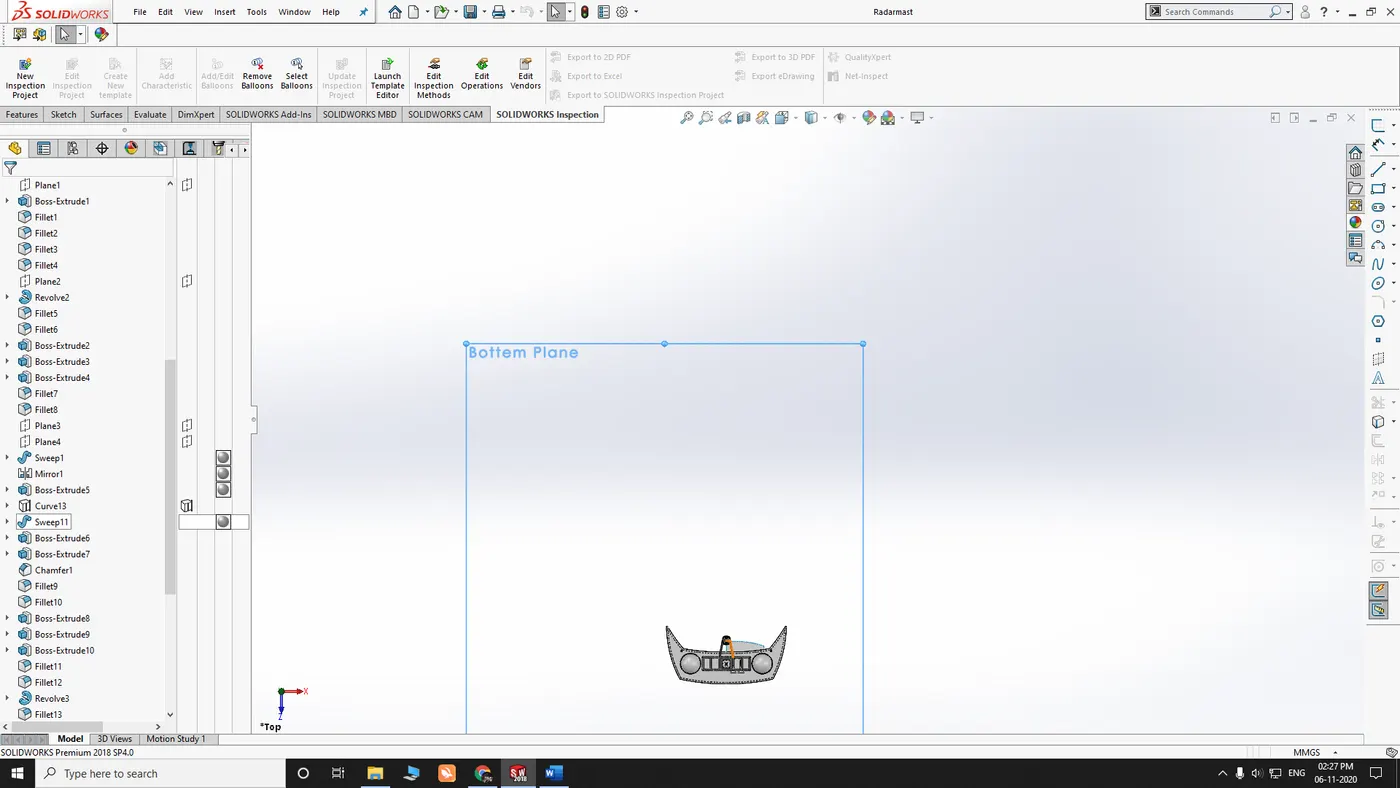

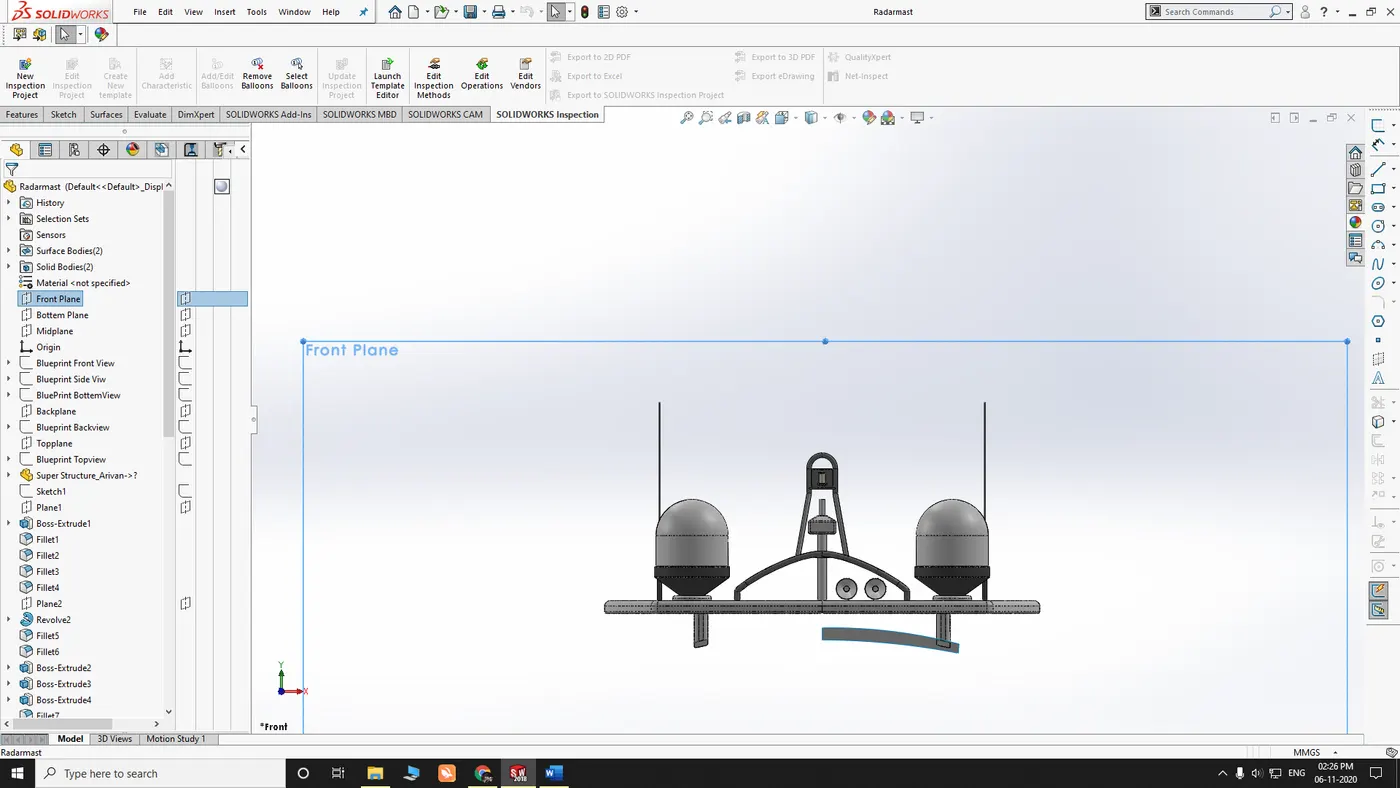

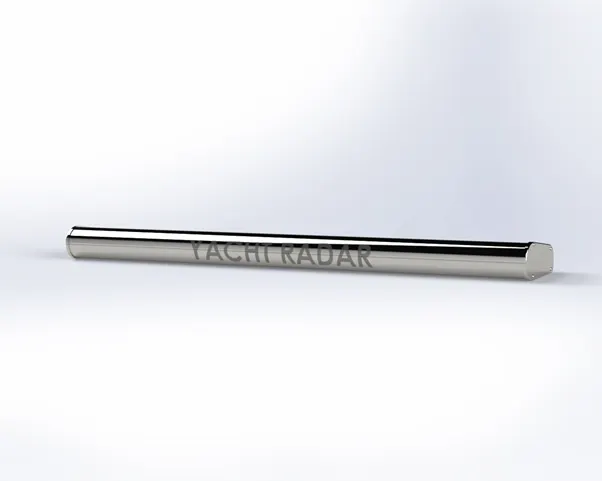

Radar Mast:

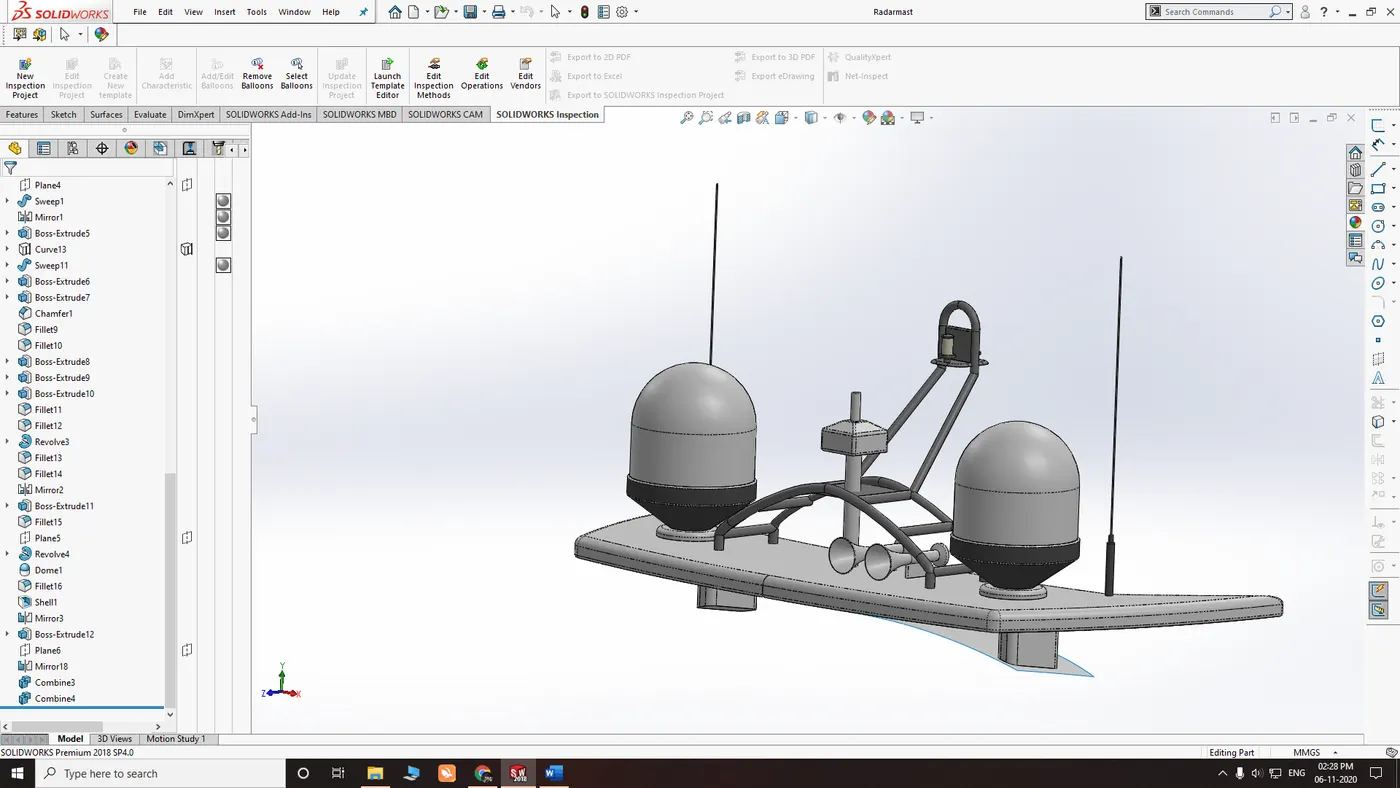

The radar mast/antenna is been installed in all the yacht. It helps and prevents the collision of vessels in fog and in low light. The Radar will be installed in the radar mast.

Tools used: Sweep, extrude boss, revolve boss, projected curve, dome, shell, mirror, fillet, chamfer.

Superstructure:

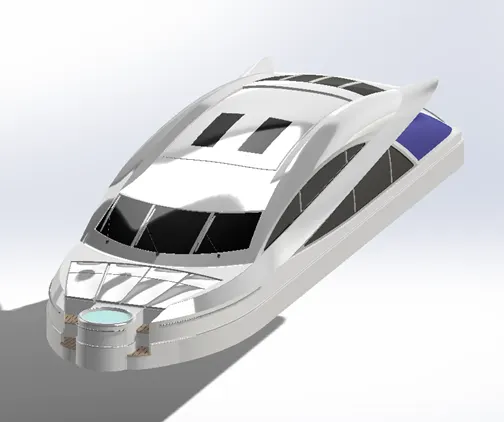

It is also one of the most complicated parts of the yacht. It is an upward augmentation of a structure. They can have significant effect on the exhibition of the yacht. A great deal of outside highlights like Jacuzzi, sundeck sleeping pads, wipers, and so on is constructed. The hull surface is used as reference for the superstructure.

Tools used: Extrude boss, extrude cut, projected curve, split line, delete face, mirror, swept boss, chamfer, fillet, lofted surface, extend surface, filled surface, extruded surface, ruled surface, trim surface, knit surface.

Propeller:

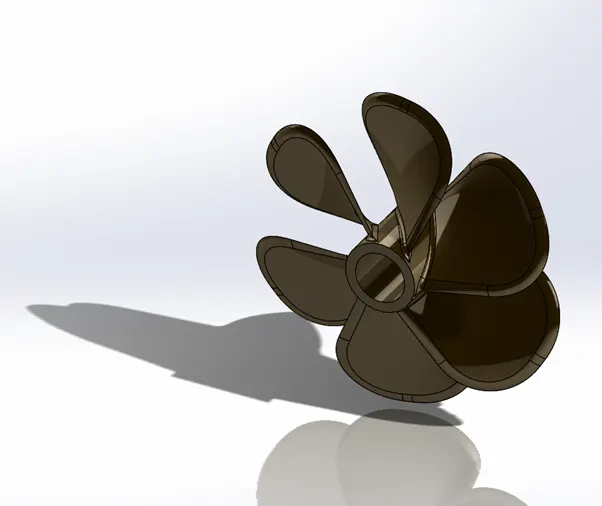

The propeller is a rotating element in the yacht, the power transmitted from the yacht engine to propeller, which provides motion to the yacht.

Tools Used: Revolve boss/ base, extrude cut, fillet, circular pattern, lofted surface.

Garage Door:

It is the door of the storage space in the yacht.

Tools Used: Extrude cut, fillet, and shell, extrude boss, mirror.

ASSEMBLING OF YACHT:

After the part designing and modelling and giving suitable appearance to the parts comes the next step of assembling all the parts to make our final product.

The assembly is done in the assembly file of Solid Works. The components are inserted one by one and different mates are applied to fix them. The hull is taken as the reference.

Assembly flowchart of Yacht:

YACHT PROPELLER

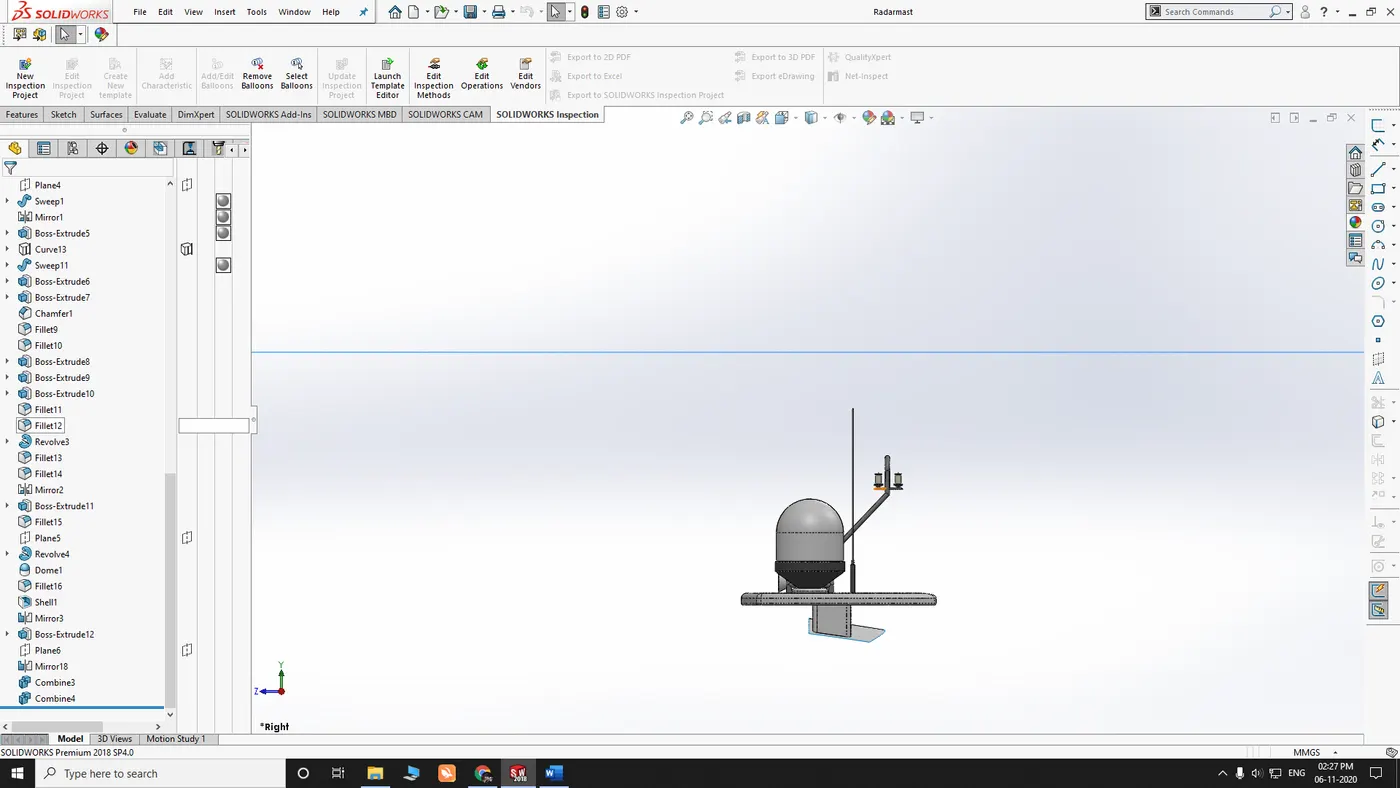

Yacht Radar

Yacht blueprint setup

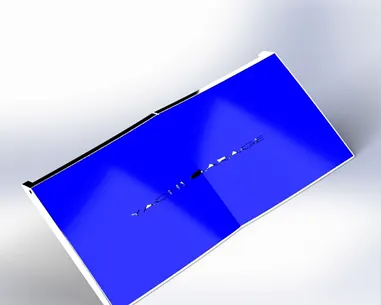

Yacht garage door

Yacht hull

Yacht front seat

Yacht middle seat

Yacht rear seat

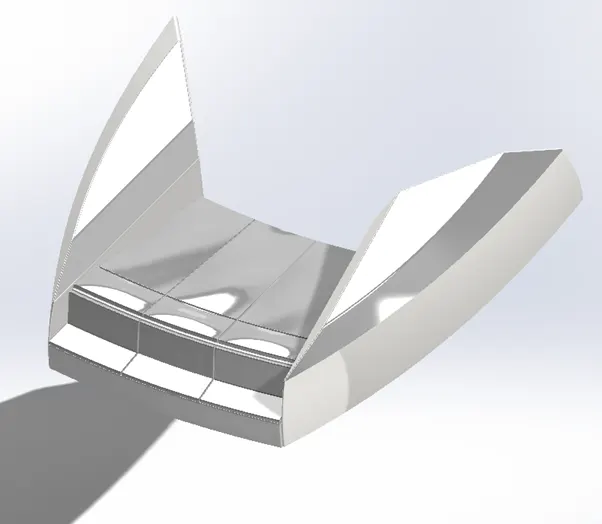

Yacht superstructure

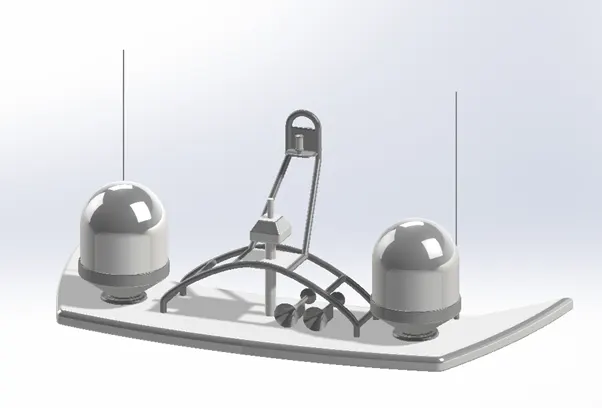

Yacht radar mast

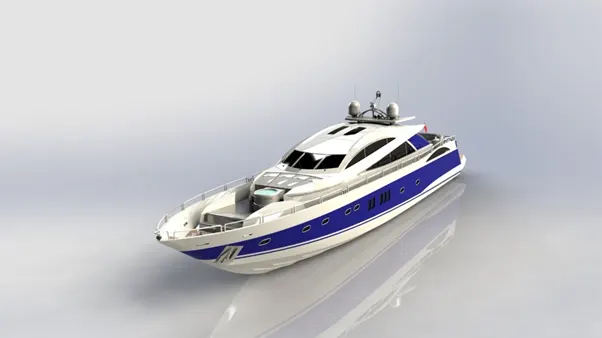

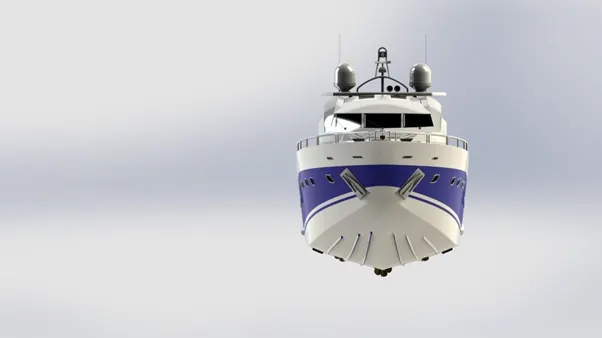

Yacht assembly

Yacht camera and scene setup

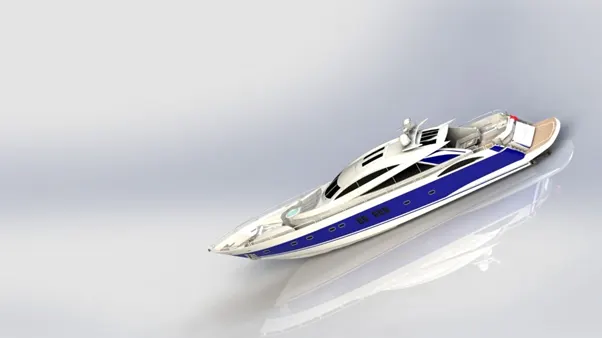

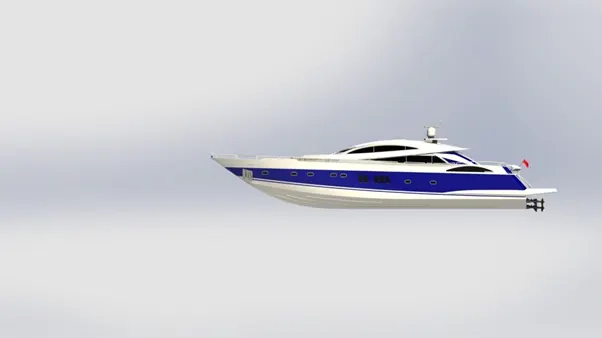

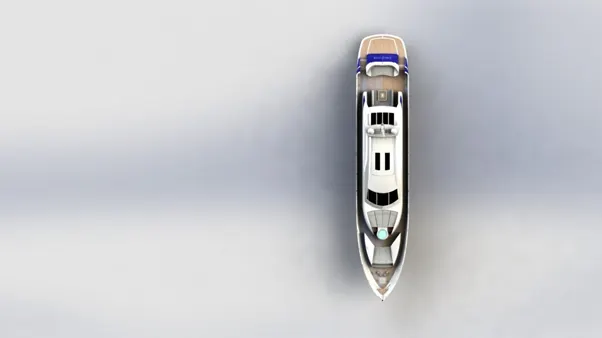

Yacht rendering

Mates used in this project are mentioned below:

• Concentricity
• Coincident
• Parallel Mate

CONCLUSION:

1. The parts were designed and modelled in Solid works. Got a good understanding of the surface modelling and about the different tools and features used in Solid works.

2. The parts were assembled together to get the final product. Learnt the different ways to assemble the parts by applying different mates.

3.The assembly was rendered using Photoview 360. Learnt to apply the background scene, light and set up camera. Also learnt to add the decal graphics to the product.

MENTOR: MR.SOUNDAR RAJAN.
