Analysis & Design of RCC shear walls in the model using ETABS

Aim - 1) To run the Analysis and Design the RCC Shear Wall

2) To extract values of Longitudinal Steel Ratio, Boundary Element Length and Shear Reinforcement ratio from Design results.

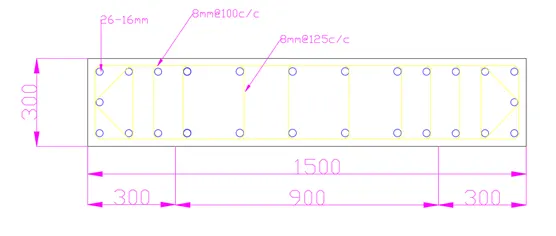

3) To provide the elevation drawings of the reinforcement details of shear wall .

Introduction -

Procedure -

Step 1)

i) Open the challenges 9 file and download it .

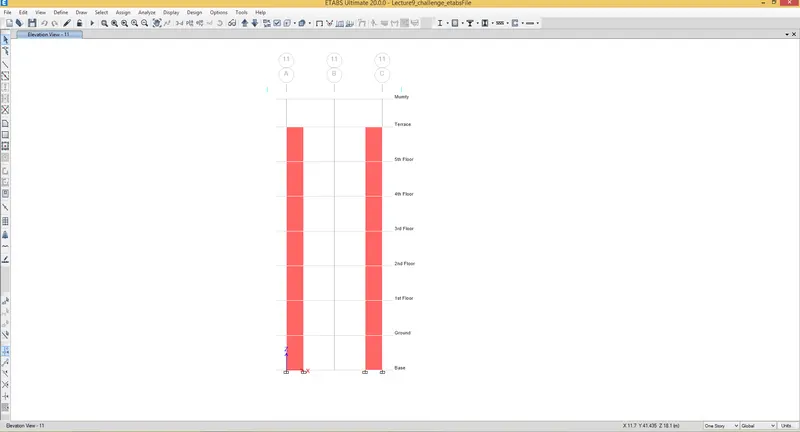

ii) Open this file in Etabs software

Step 2)

i) Before Ananlysis check the model if any error is there

ii) Click on Analyze - Check model

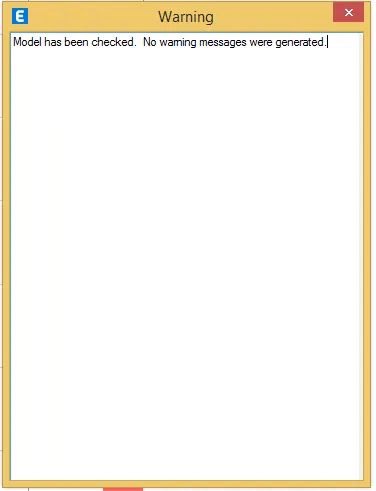

iii) You will see the following dialog box

Step 3)

i) Now Run the Analysis

ii) Once Analysis is done

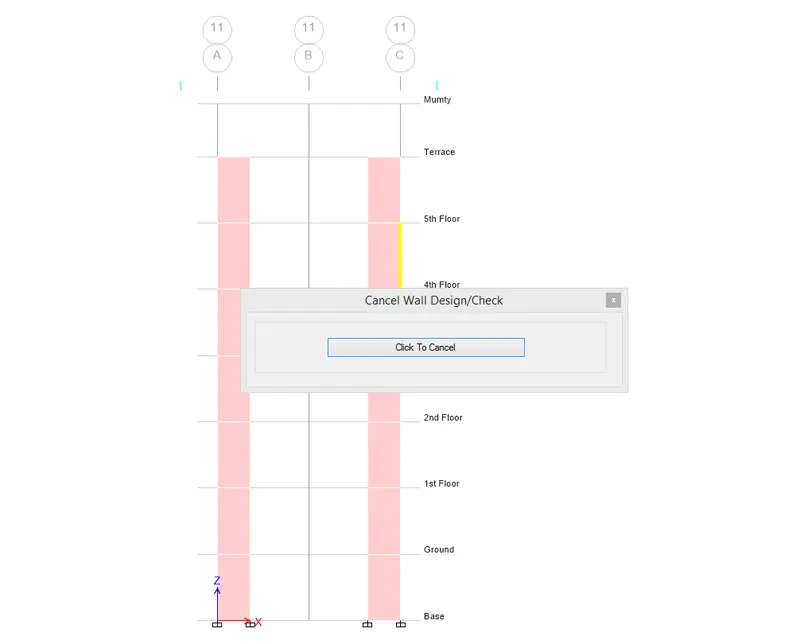

iii) Click on Start Design check for Shear wall

Step 4)

i) Once the Design check process is completed .

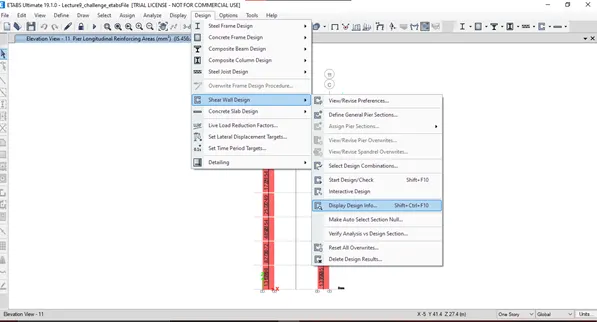

ii) Click on Design - Shear wall Design - Display Deign Info -

iii) Once you click Display Design Walls

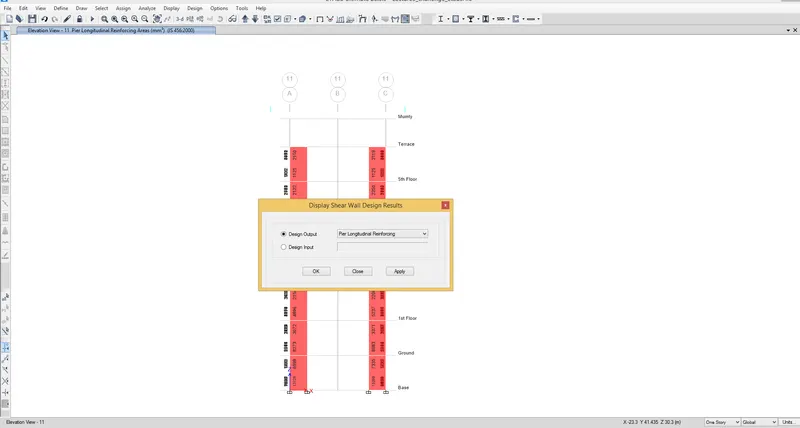

iv) Click on Display Output -

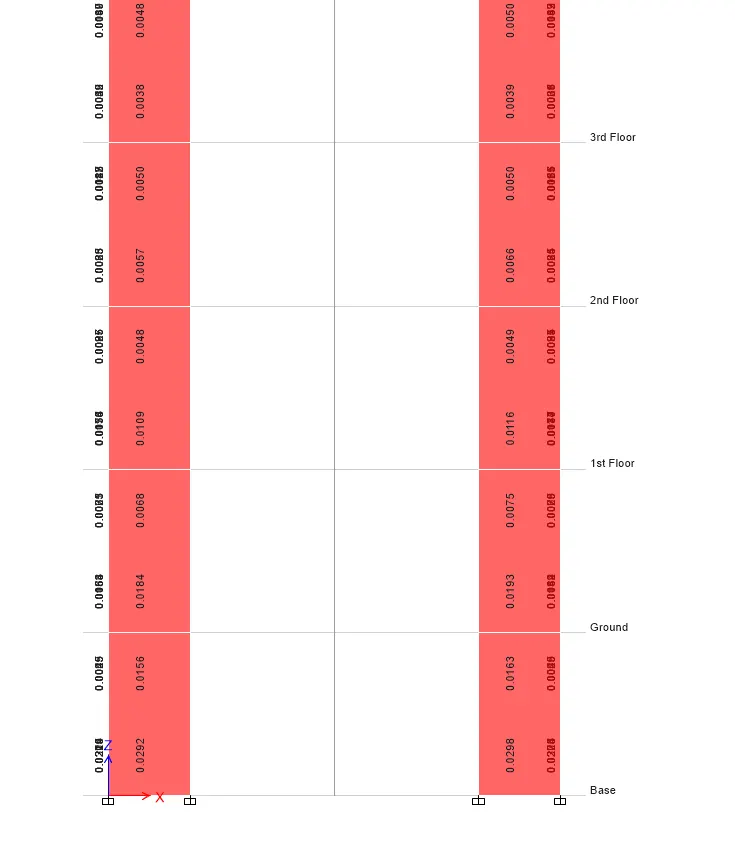

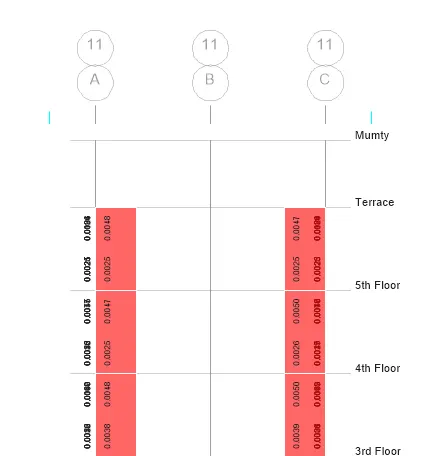

1) Click on - Pier Reinforcing Ratio

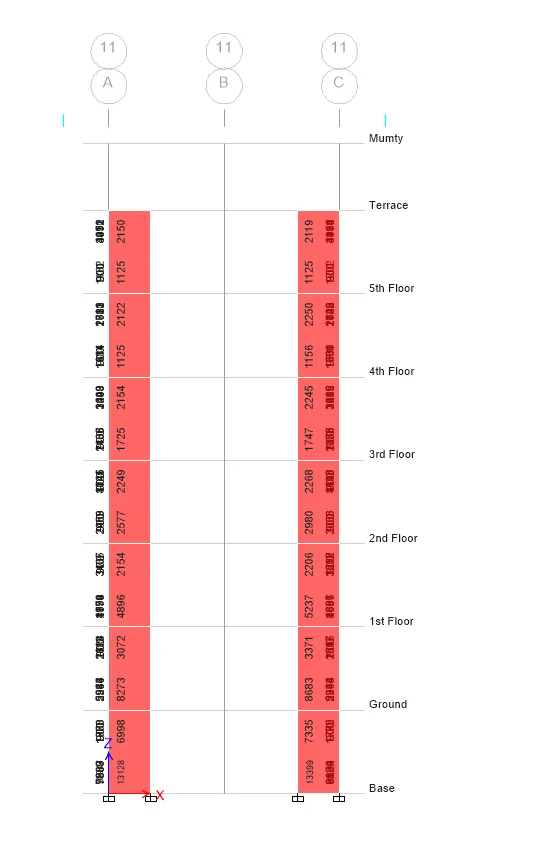

2) Pier Longitudinal reinforcing -

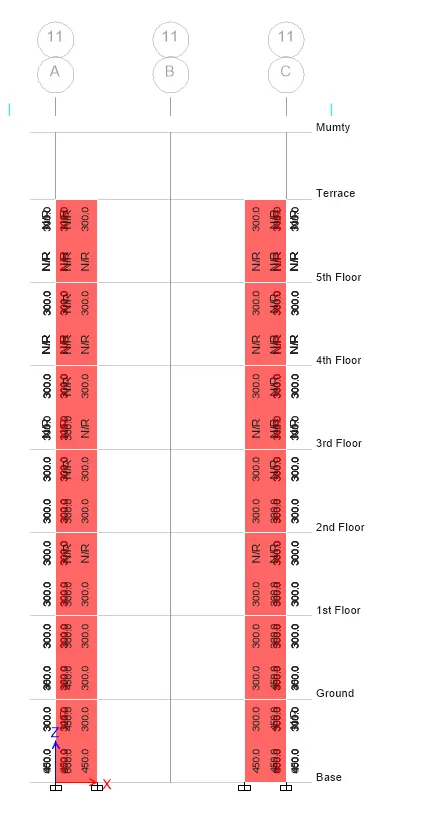

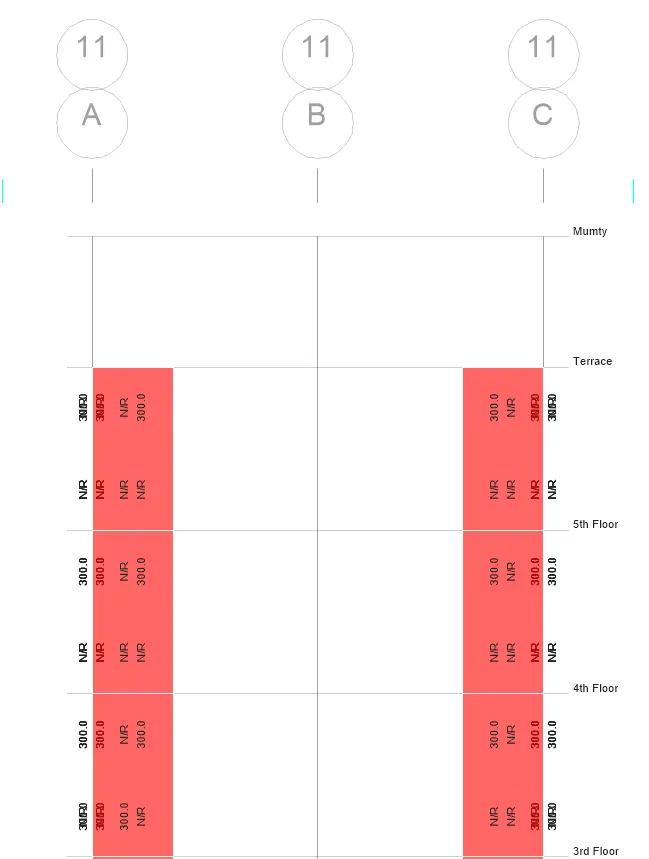

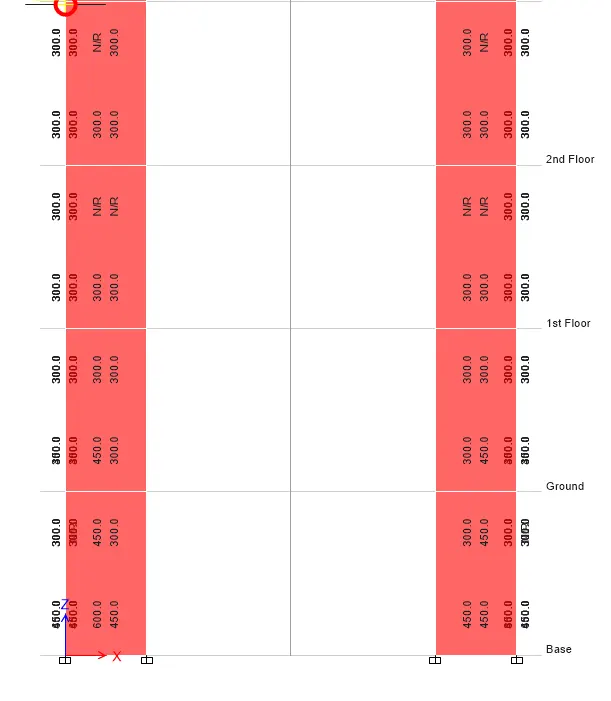

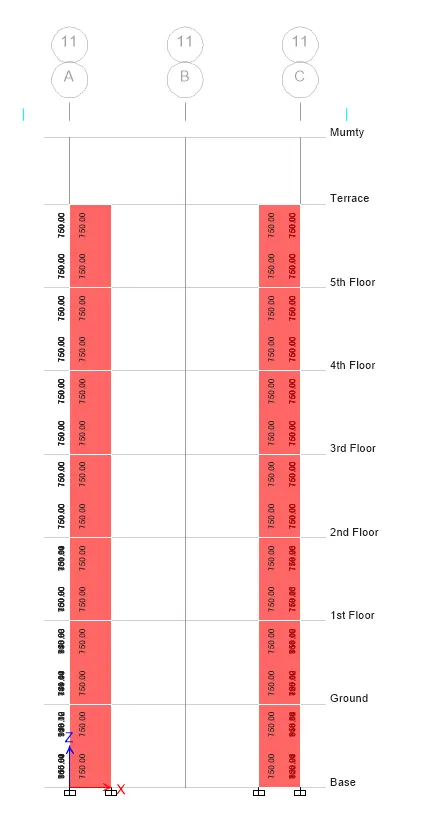

3) Pier edge / Boundary Zone width -

4) Pier Shear Reinforcing

Step 5) - Shear wall detailing calculation .

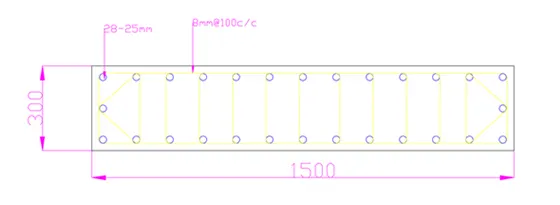

1) Base Floor to 1st Floor -

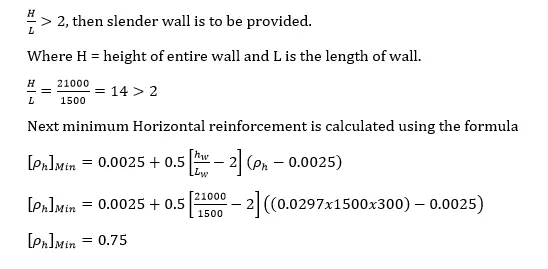

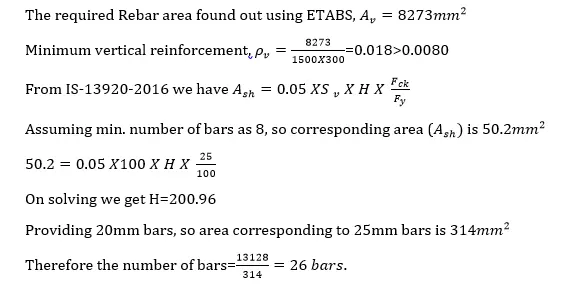

Therefore , Minimum vertical reinforcement

a)

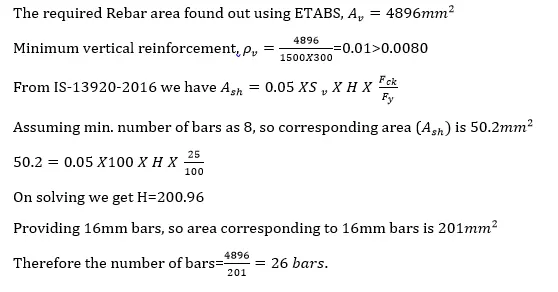

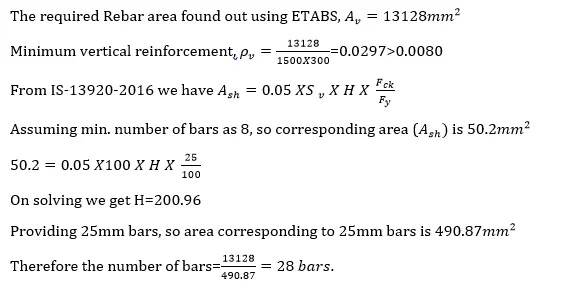

i) Longitudinal Reinforcement Calculations -

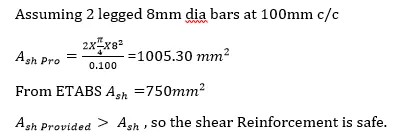

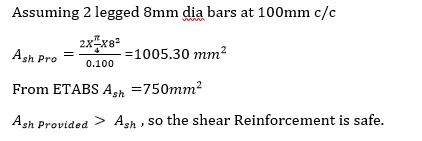

b) Shear Calculation -

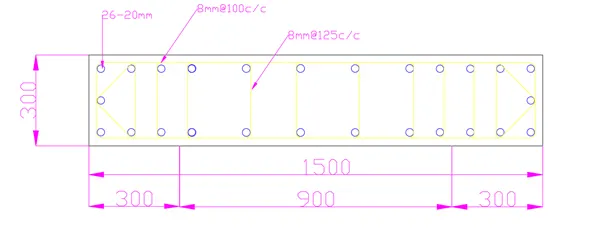

2) First Floor to Second Floor -

i) Longitudinal Reinforcement Calculations -

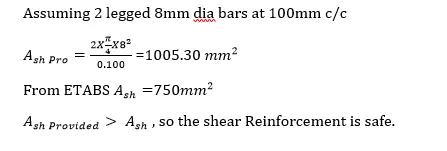

b) Shear Calculation -

Note - Boundary element length is reduced as we move up . It means that Stresses are reduces .

3) Second Floor to Third Floor -

i) Longitudinal Reinforcement Calculations -

b) Shear Calculation -

Result -

i) Shear wall is designed successfully .

ii) All the checks are done as per IS 13920 - 2016 .
