Analysis & Design of RCC shear walls in the model using ETABS

AIM: Provide longitudinal and shear confining reinforcement details for the Shear wall

INTRODUCTION: The ETABS file for a G+4 building is provided. Run the analysis and design the RC Shear wall

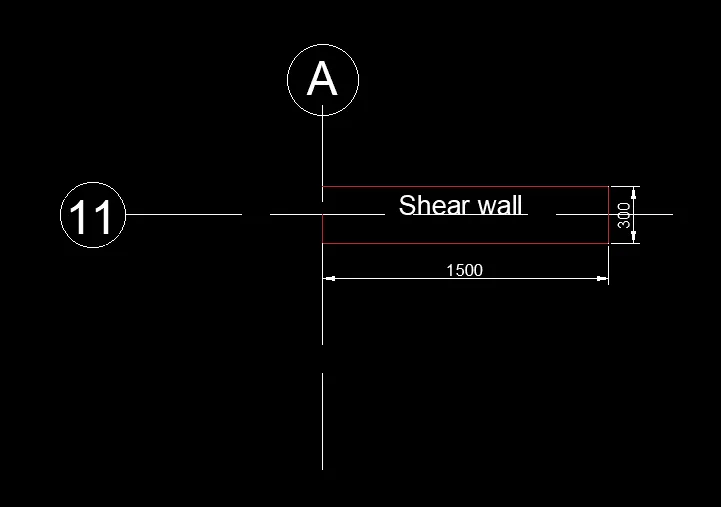

1) 11A

PROCEDURE:

• Run the analysis
• Click on the frame of the design and start the design check.

RESULT:

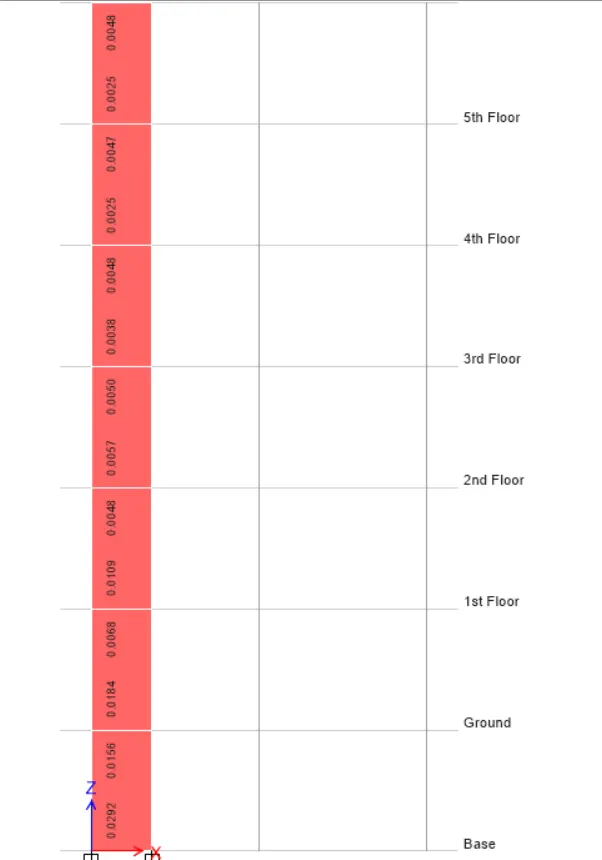

• Details of longitudinal reinforcement ratio for the shear wall from the ETABS result:

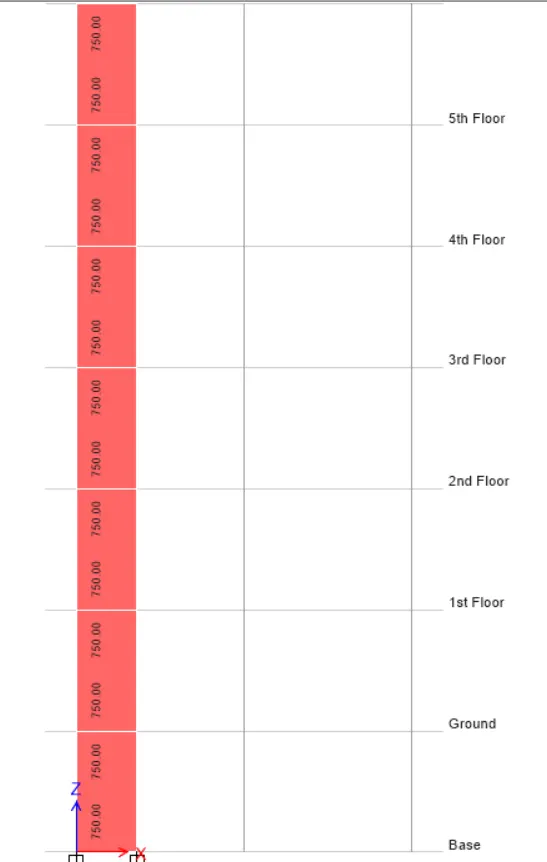

• Details of Boundary element length for the shear wall from the ETABS result:

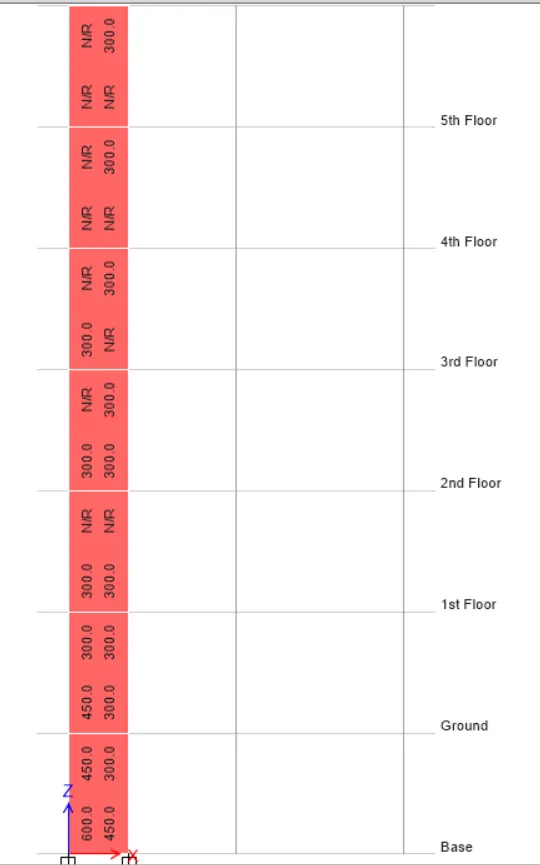

• Details of the shear reinforcement ratio for the shear wall from the ETABS result:

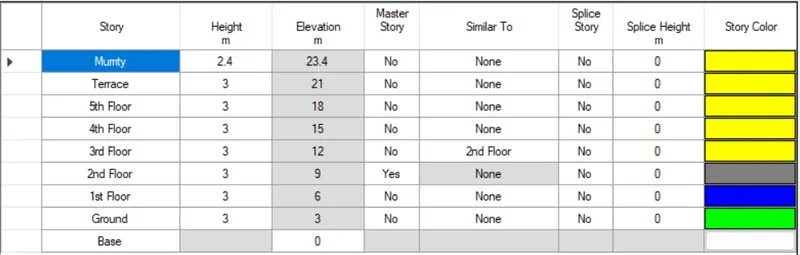

• Elevation height of the building:

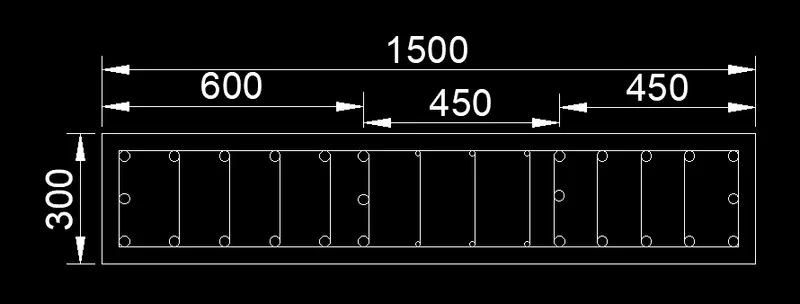

• cross-sectional steel arrangement of the shear wall from its base up to the terrace.

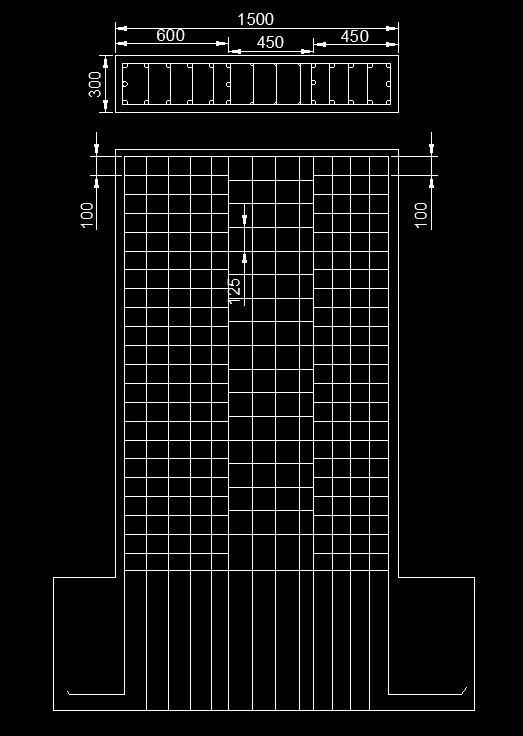

• elevation drawings of the reinforcement details of the shear wall from the base up to the terrace.

THANK YOU.
