Analysis & Design of RCC shear walls in the model using ETABS

Aim- To Run the analysis and design the RCC shear walls.

Introduction-The etabs file for a G+6 building is provided. The challenge deals specifically with the shear wall of size 300x1500 at grid A-11 in the structural model.

Procedure-

-Open attached file in ETABS

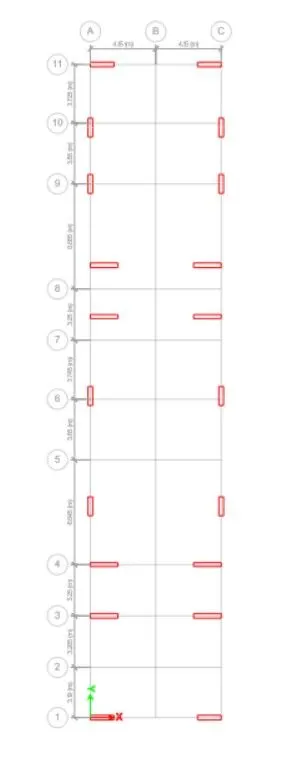

-Select terrce plan view

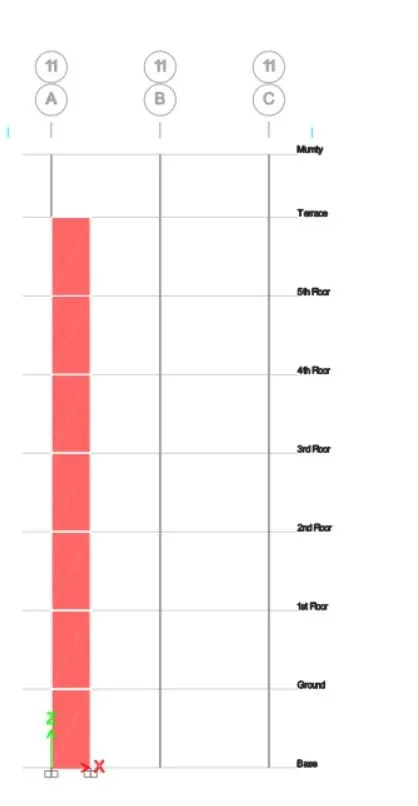

-Now select 11-A shear wall and make this visible only

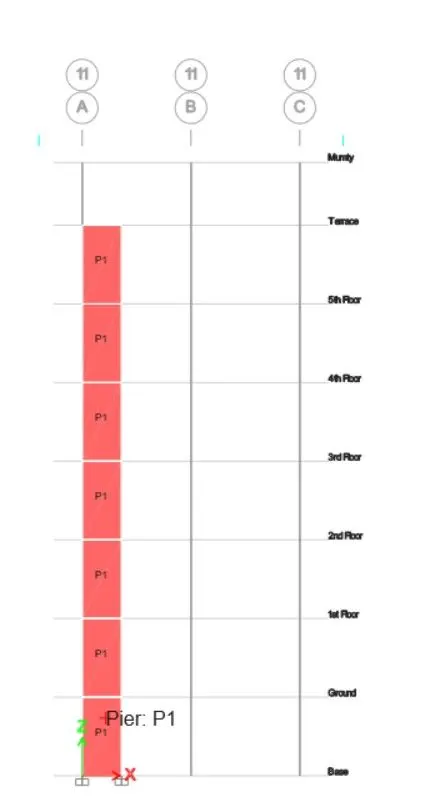

-Check for pier label

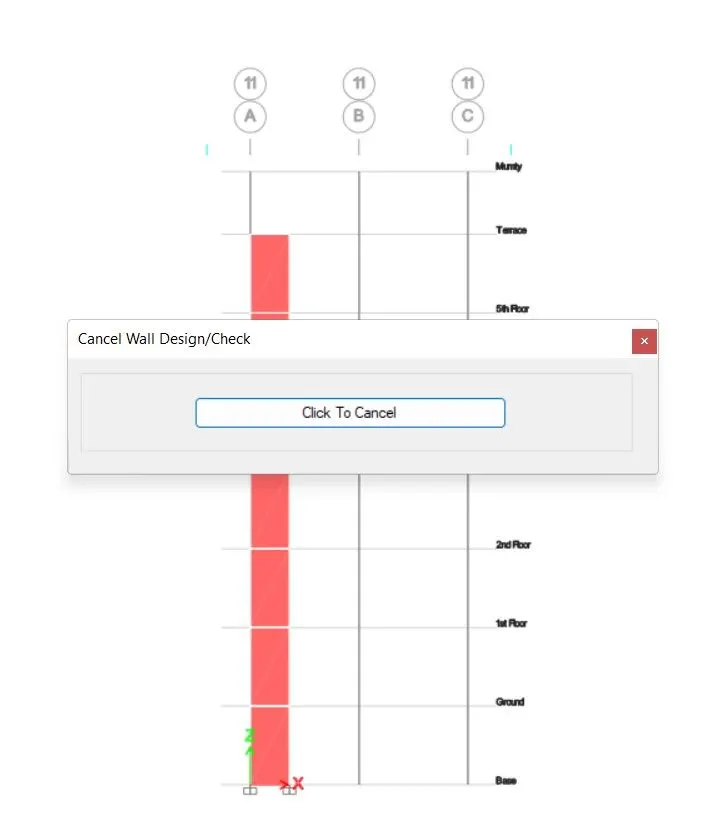

-Now Run Analysis

-Check for shear wall design

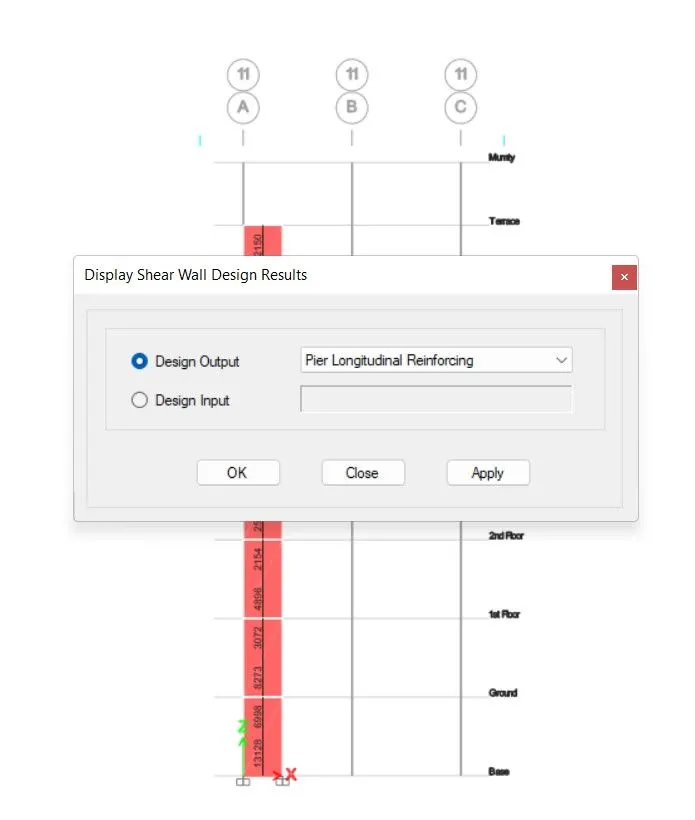

-Select Display Design Info>Select Pier longitudinal reinforcing

-Select Display Design Info>Select Pier shear reinforcing

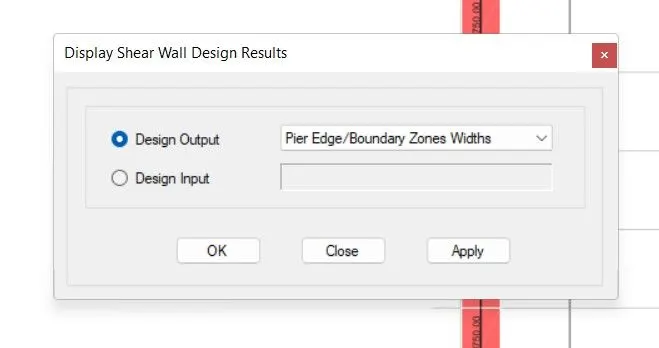

-Select Display Design Info>Select Pier Edge/ boundary zone width

-Detailing of shaer wall

• Classification of shear wall

As per IS 13920-2016 CL.10.1.4

=hw/lw

=2100/1500

=14>2

Hence it is slender wall

• Minimun net vertical reinforcement

As per IS 13920-2016 Table-1(iii)

=0.0025+0.01375(300/1500)

=2363 mm2

• Minimum vertical reinforcement within boundary element

As per IS 13920-2016 Table-1(iii)

1440mm2 on left (600mm width boundary element)

1080mm2 on right (450mm width boundary element)

• minimum horizontal reinforcement in shear wall

As per IS 13920-2016 Table-6(iii)

(ph)min=0.0025+0.5(hw/lw -2)(ph-0.0025)

ph=150(3000*1000)

=0.0025

(ph)min=0.0025+0.5(21/15 -2)*0

=0.0025

which is same 750mm2

• maximum dia of Rebar for shaer wall

As per IS 13920-2016 CL.10.1.8

1/10th of wall thickness=300/10

=30mm

Commercial Rebar dia 25mm shall be adopted

• Spacing

i)1/3rd of minimum member dimension =300/3

=100mm

ii)6times smallest main rebar=6*25

=150mm

iii)150mm permissible if vertical bars are spaced at maximum 200mm

maximum of above, i.e. 150mm

• Confining reinforcement within boundary element

As per IS 13920-2016 CL.10.1.4

Ash=0.05*Sv*h*fck/fy

=452mm2

Result-

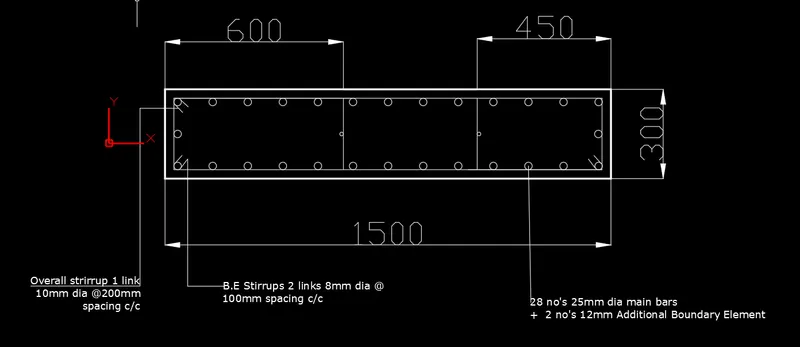

• Provided cross sectional steel arrangement of the shear wall from its base up to terrace, in compliance with provisions of IS 13920 – 2016.

• Provided elevation drawings of the reinforcement details of the shear wall from base up to terrace.

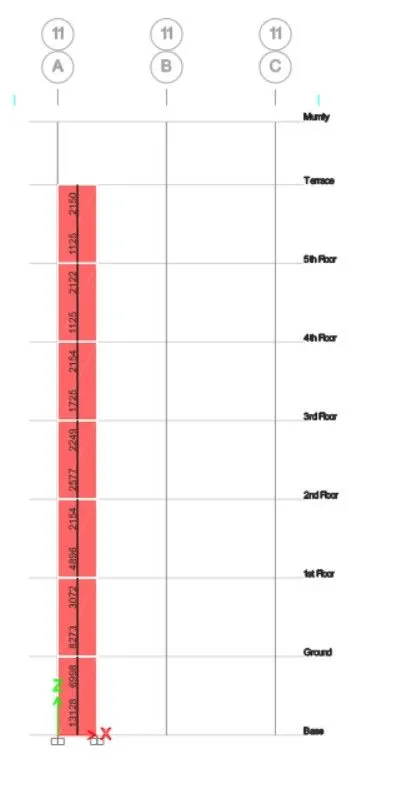

• Pier Longitudinal reinforcement

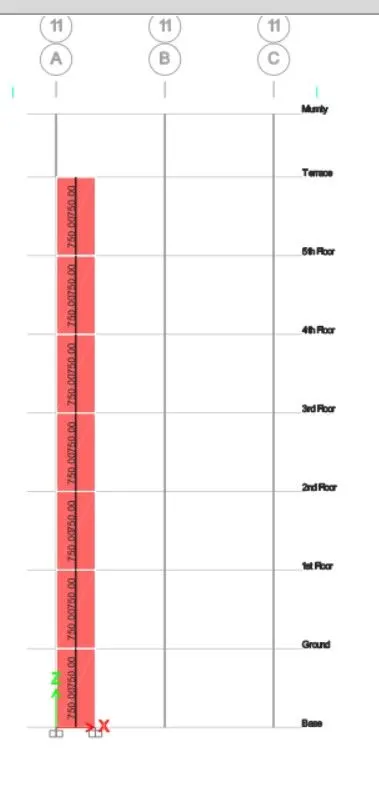

• Pier Shear Reinforcement

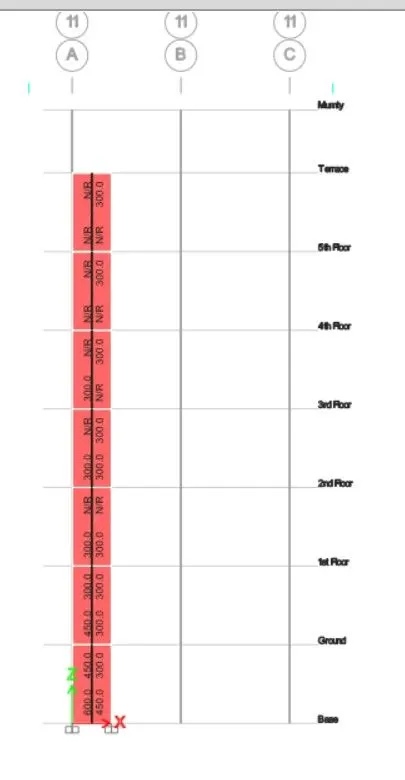

• Pier Edge/Boundary Zone Width
