Analysis & Design of RCC shear walls in the model using ETABS

Aim:

To run the analysis and design the RCC shear walls shown in the etabs model.

Step 1:

1) Open the ETABS file

2) After the analysis click Concrete frame design.

Step 2:

1) Need to check there is any failures occurs.

2) Click Shear wall design tool.

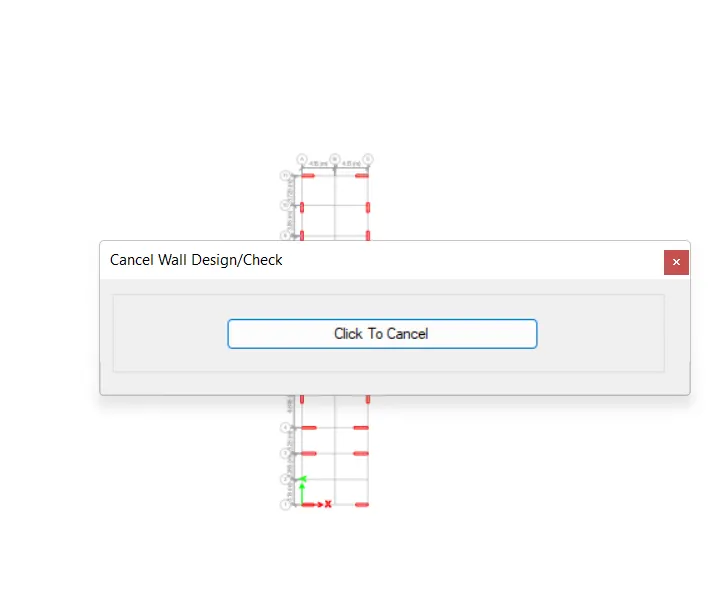

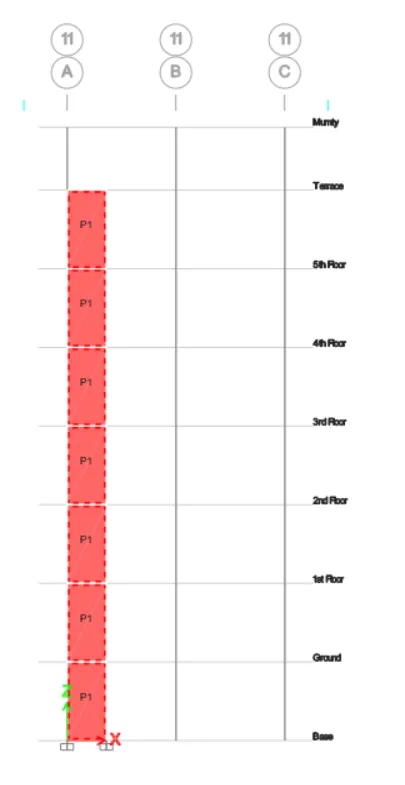

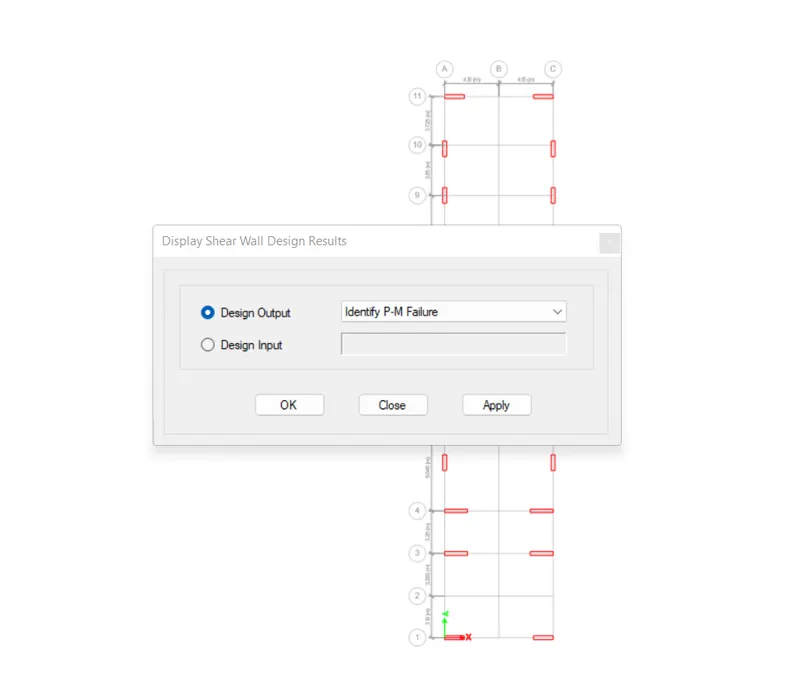

3) select Display info and choose PM failure.

Step 3:

1) Click any wall and check the details

2) Here there is no failure occurs all the values of reinforcement ratio is within 4%

Step 4:

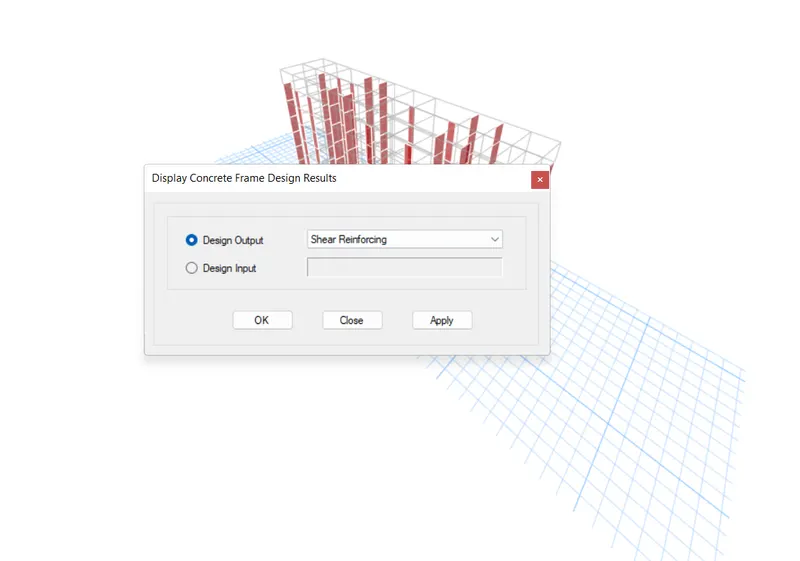

Shear Reinforcing

1) Go to concrete frame design.

2) Click Display design info.

3) Choose Shear reinforcing.

Step 5:

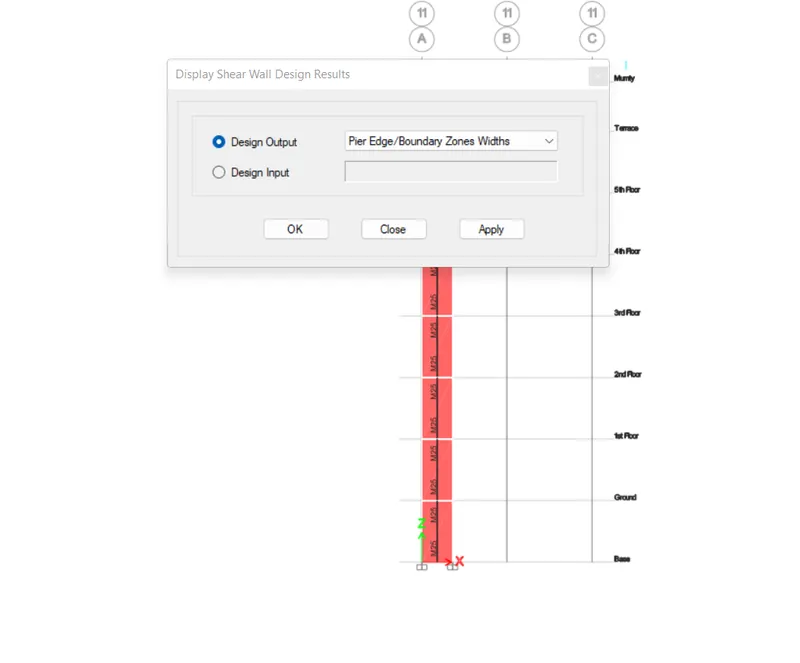

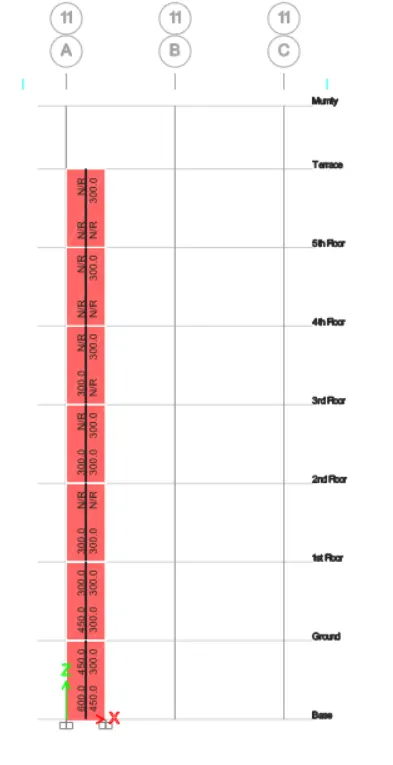

Boundary element width

1) Go to concrete frame design.

2) Click Display design info.

3) Choose Pier edge or boundary zone width.

Step 6:

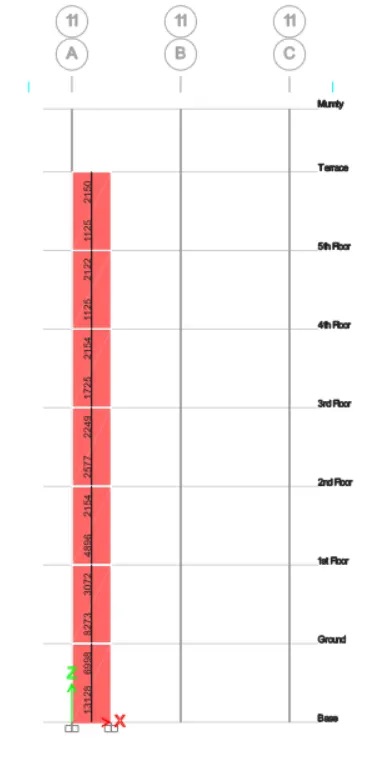

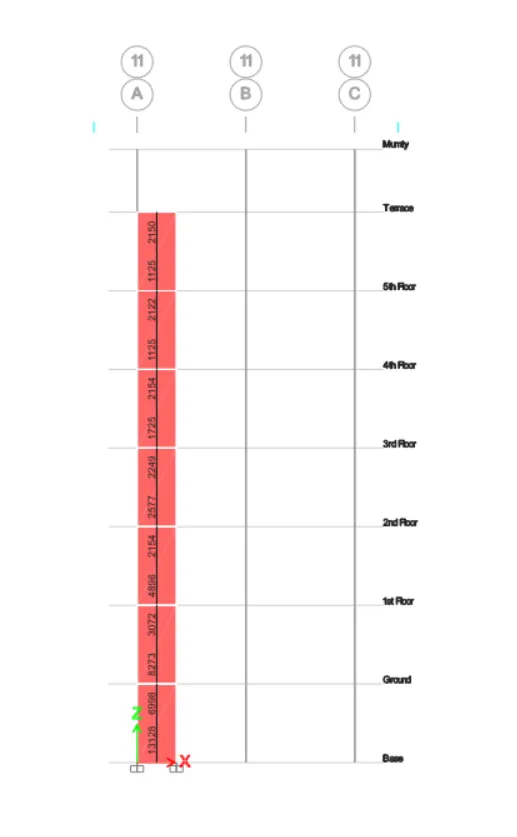

Longitudinal Reinforcement:

1) Go to concrete frame design.

2) Click Display design info.

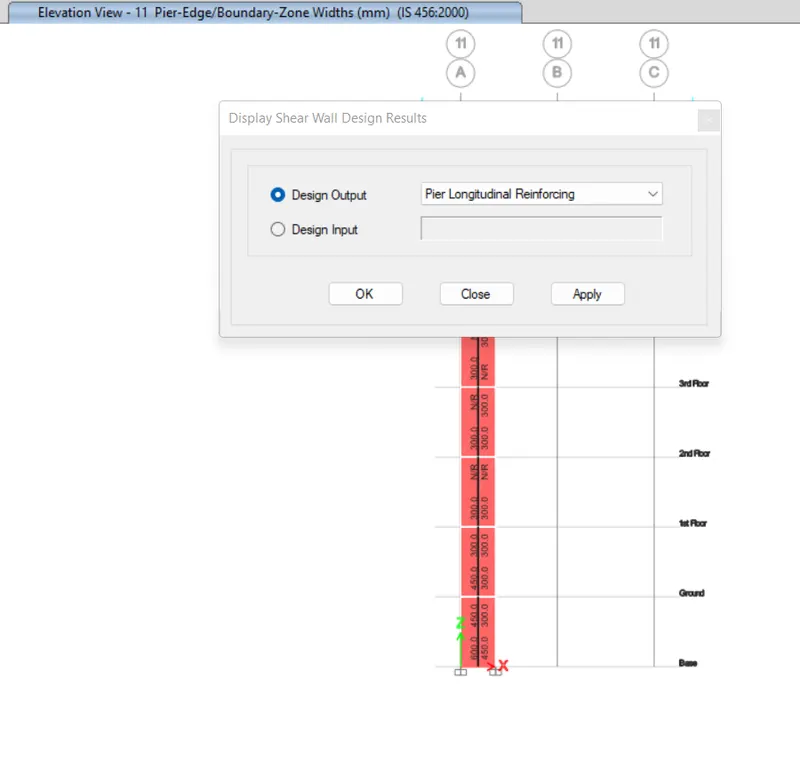

3) Choose Pier longitudinal reinforcing.

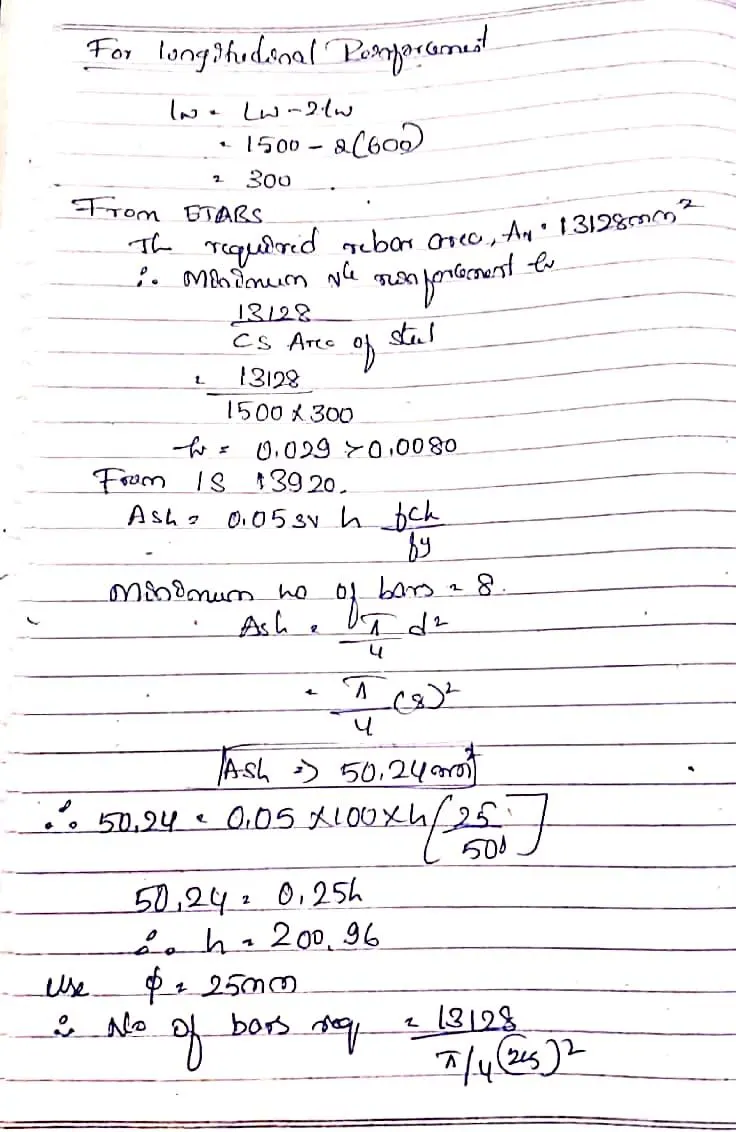

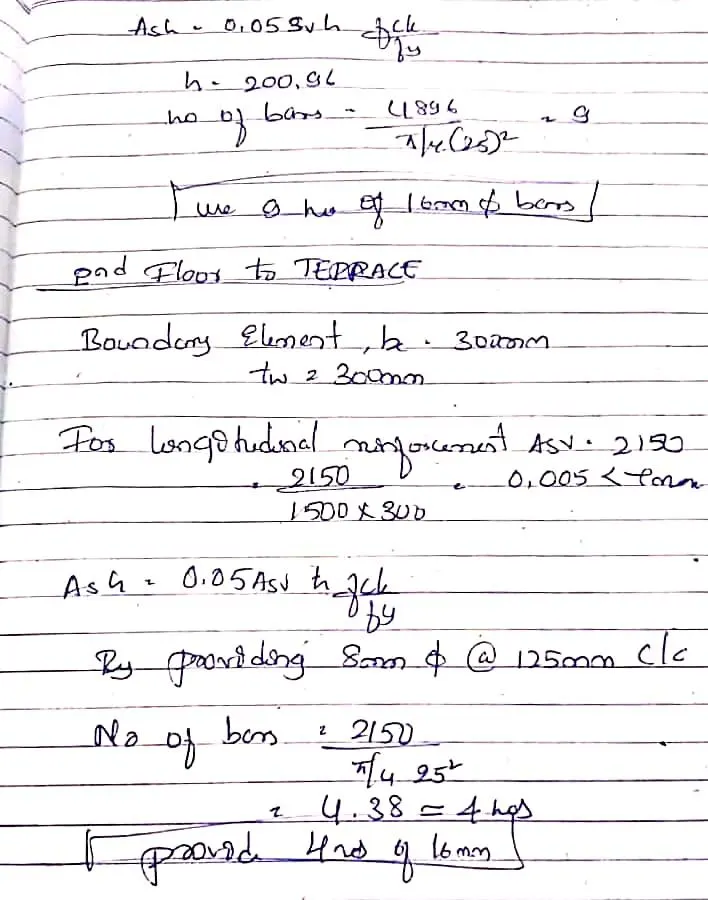

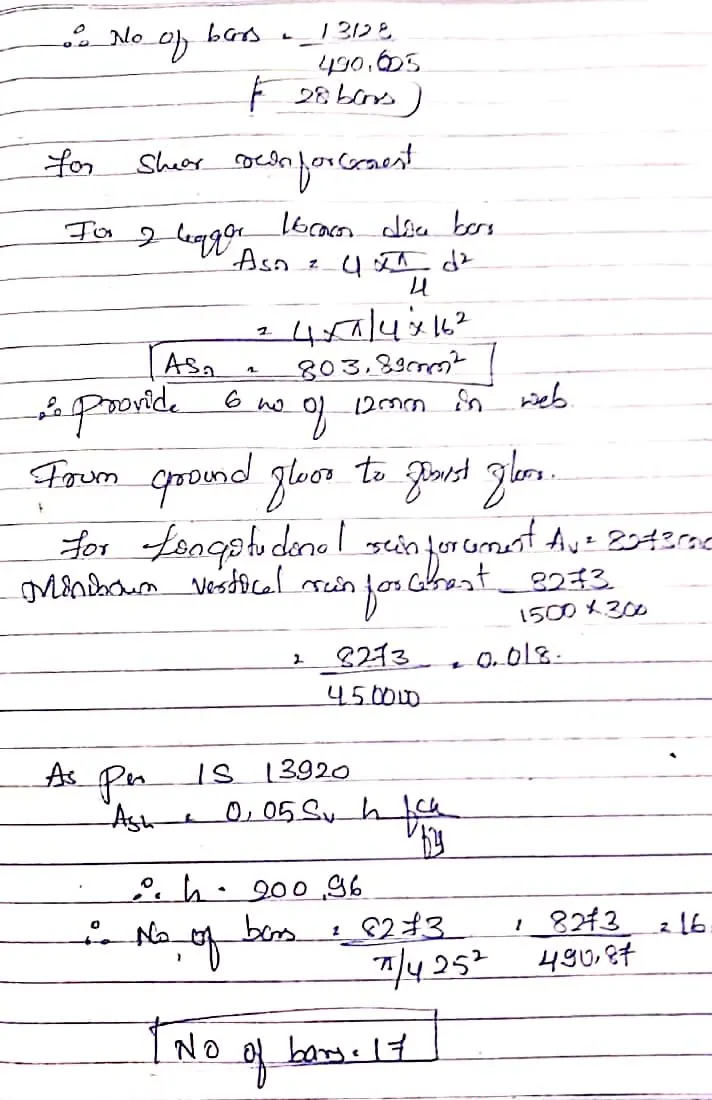

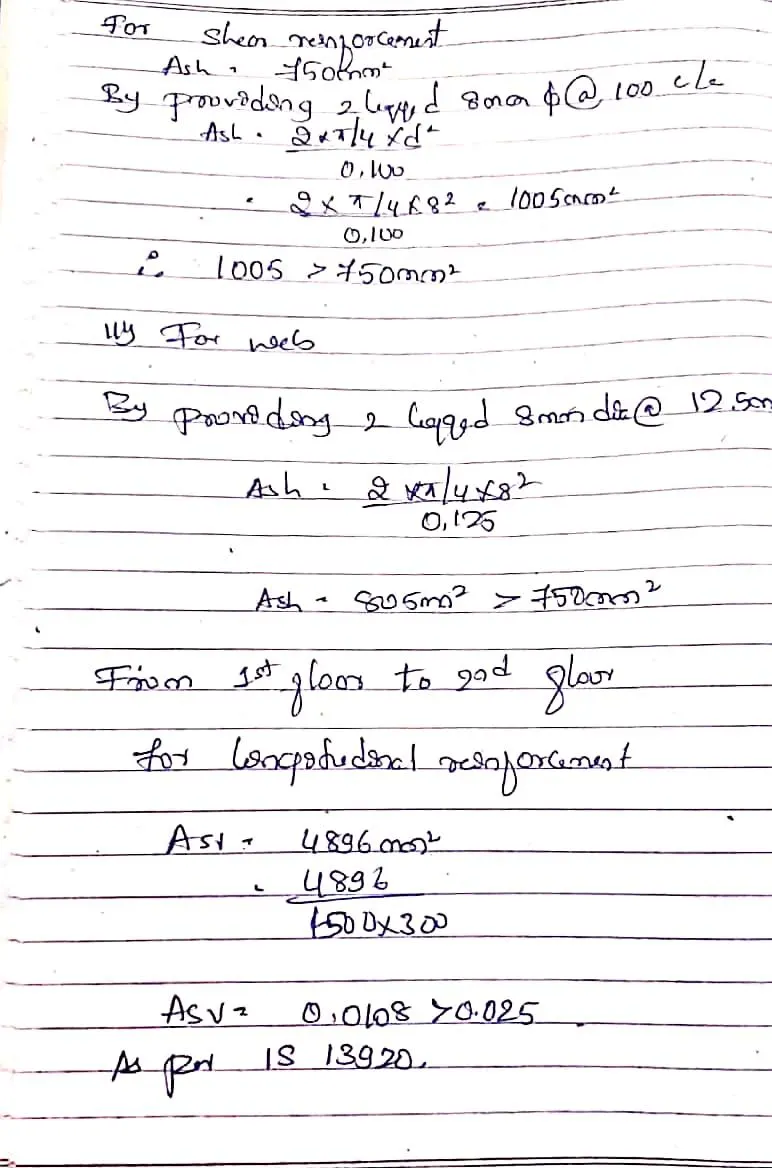

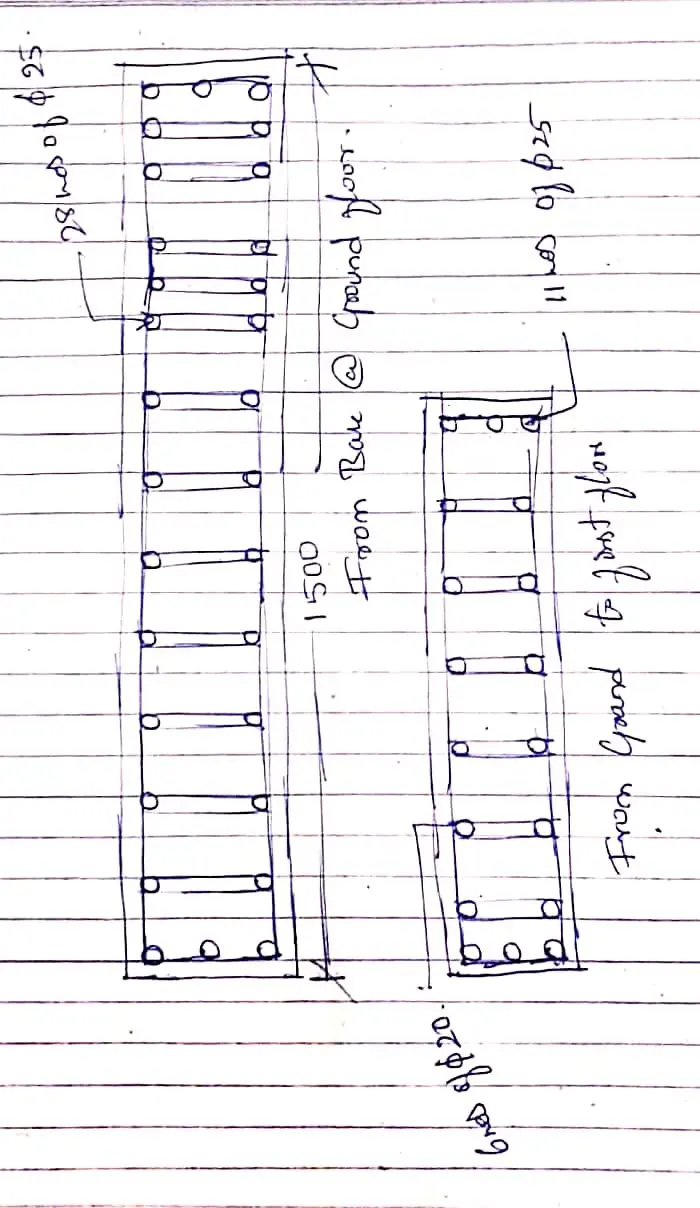

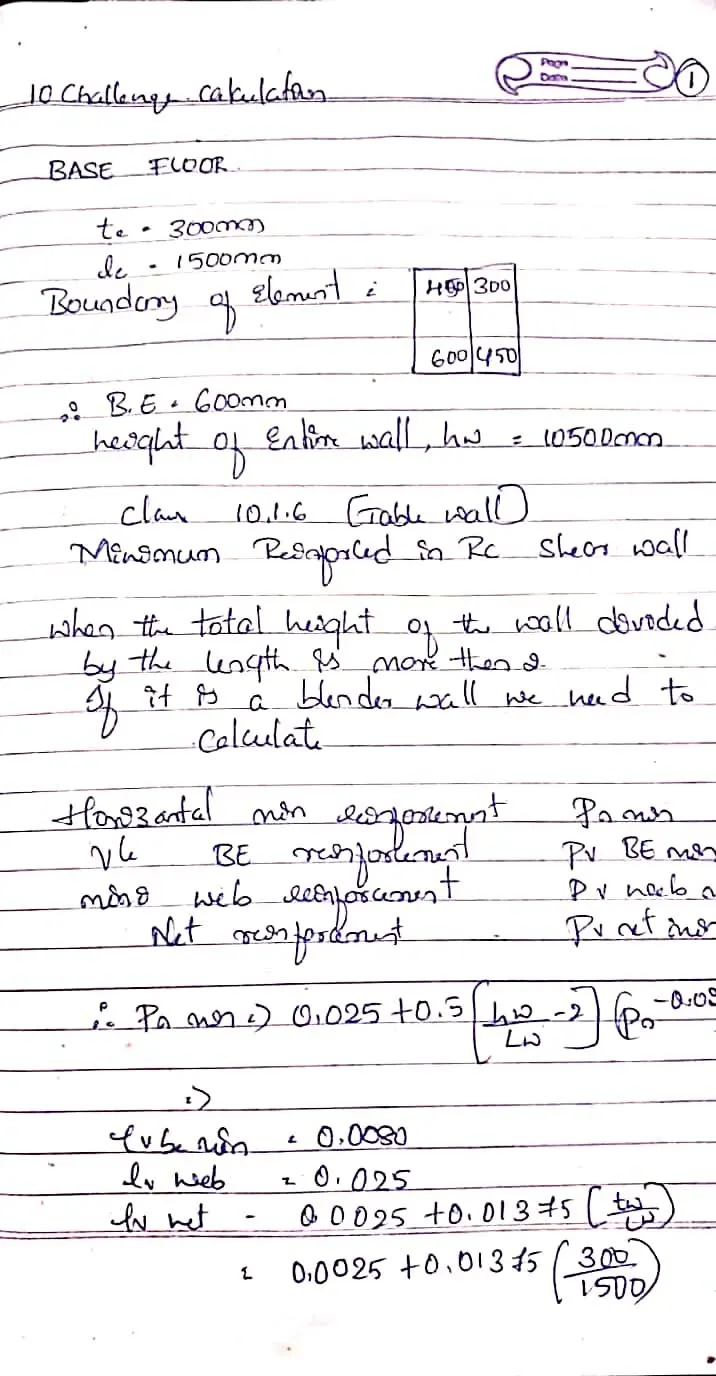

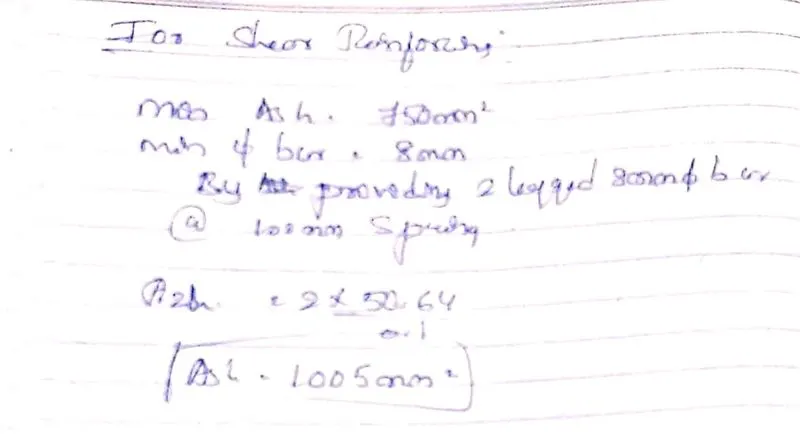

Calculations:
