Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II
BRACKET-II :-
OBJECTIVE:-
To design a Bracket-II in NX cad as per the given dimensions.
Introduction:-
A Bracket-II is a sheet metal part used to hold a particular device/component in the machine or a system in a particular position. Brackets are in different shapes according to the requirements.

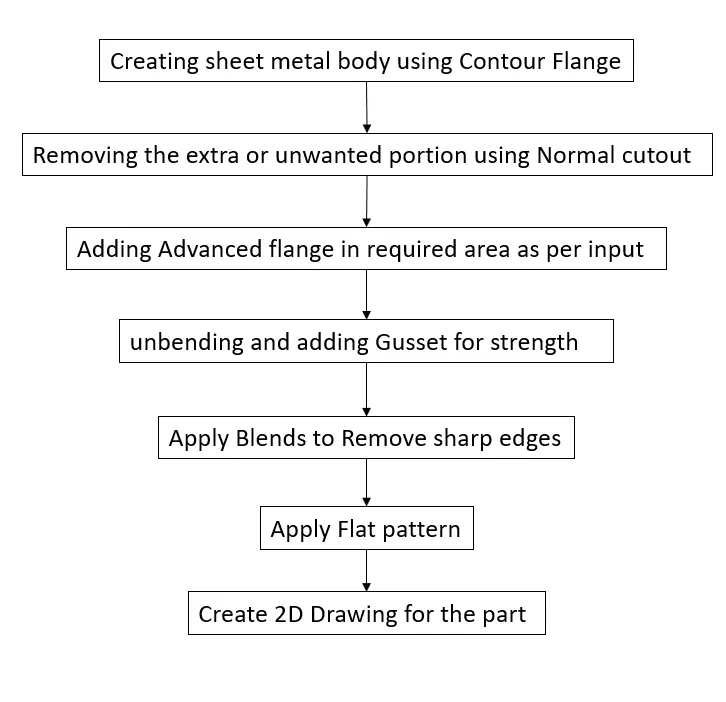

Design approach:-
Description:-

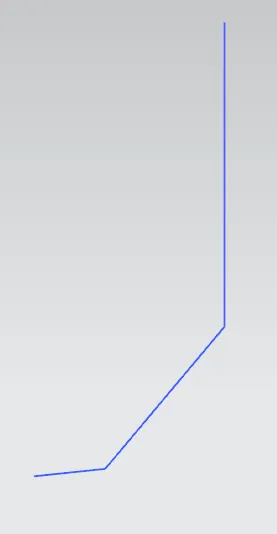

Sketch: Representing the geometry in two-dimensional (Wireframe).

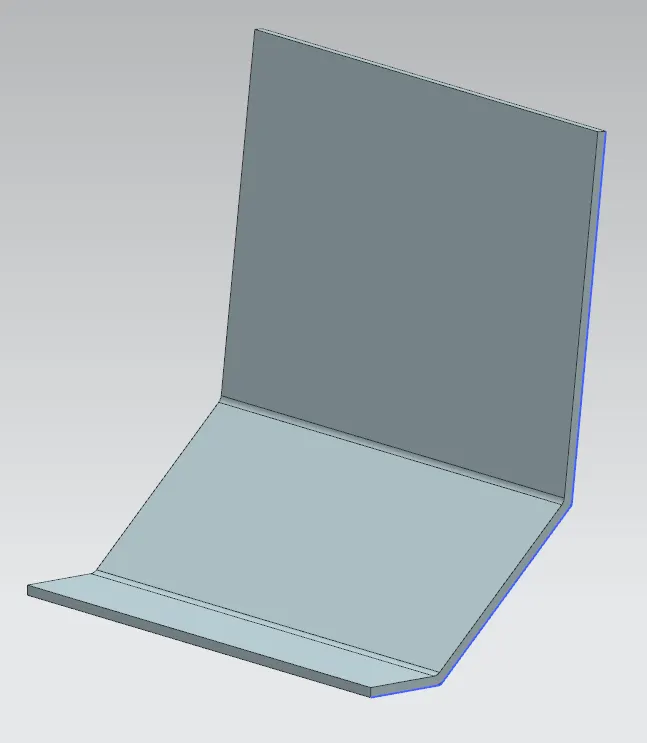

Contour Flange: Adding sheet body (with thickness value) to the required length with the sketch as a base.

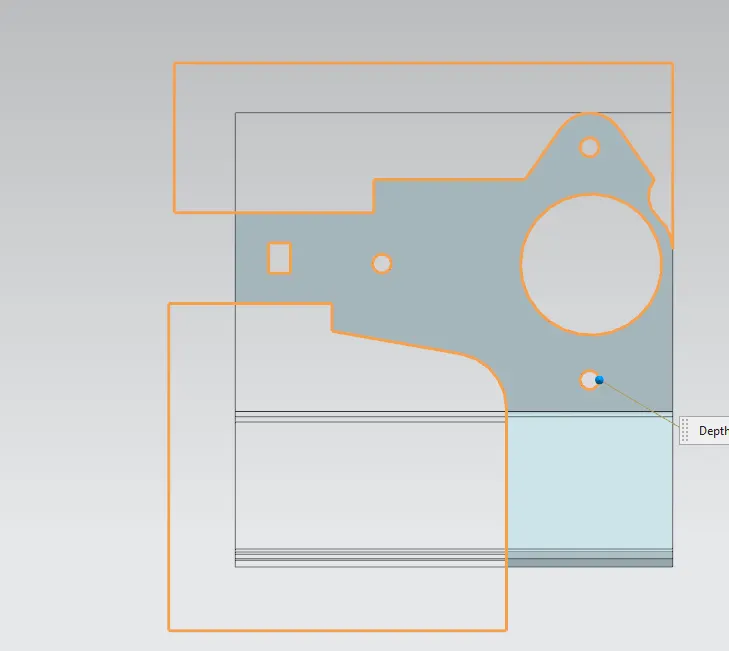

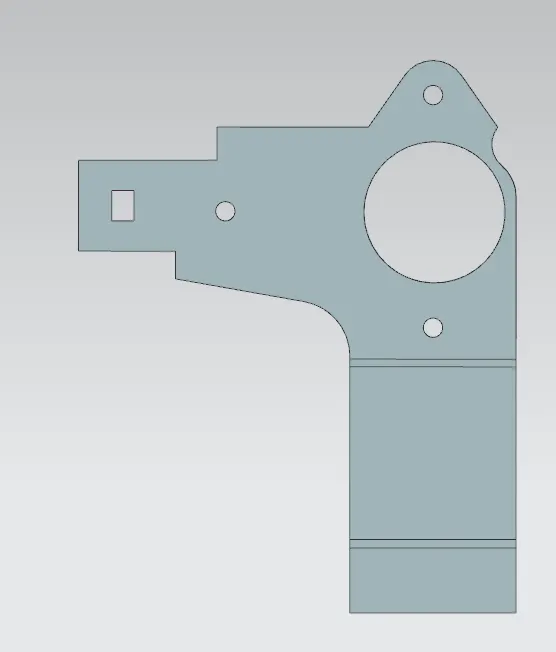

Normal Cutout: With Sketch as base material is removed.
Unbend: Unfolding the bends.
Break corner: adding Blend/Fillet to sharp corners of the Bracket.
Normal Cutout: With Sketch as base material is removed.
Rebend: Folding back the bends as before unbending feature.
Advanced Flange: Creating flange for closed sketch and non linear shaped sketch.

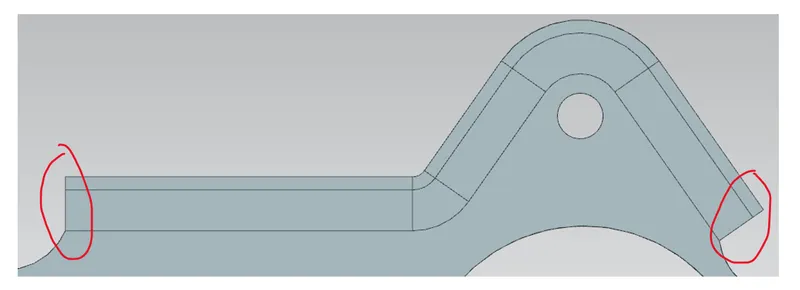

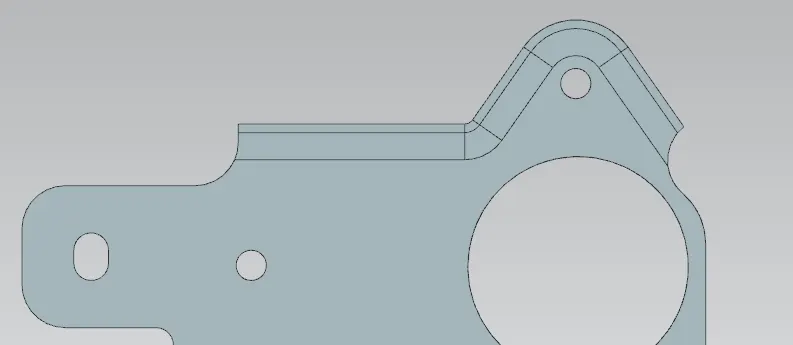

Unbending and removing Sharp corners.
Rebend: Folding back the bends as before unbending feature.
Gusset: Feature creats a dent in required area to increase stiffness if the sheet metal part.
Flat Pattern: This feature is added to add a view in dwg.
Snapshot:-

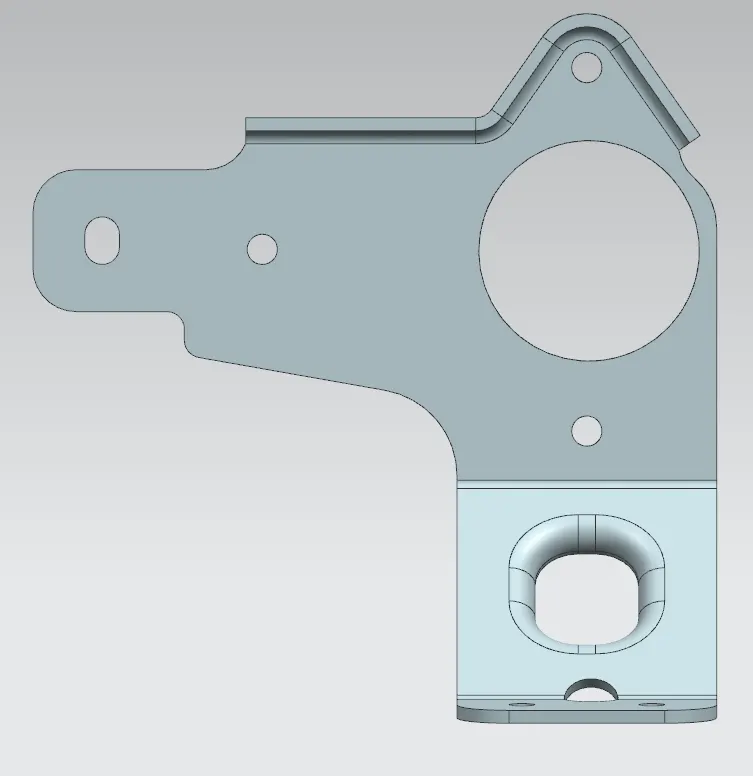

FRONT VIEW
TOP VIEW

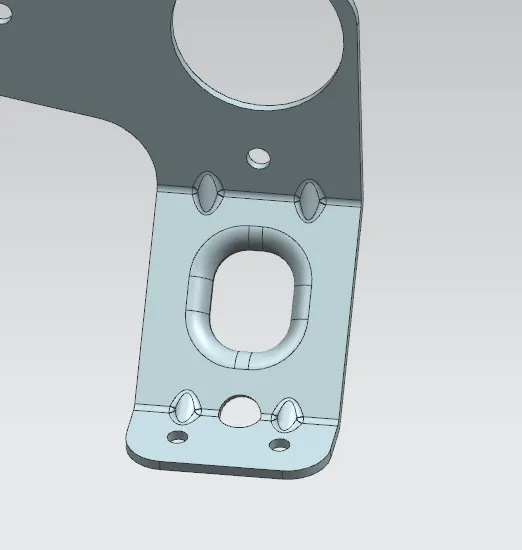

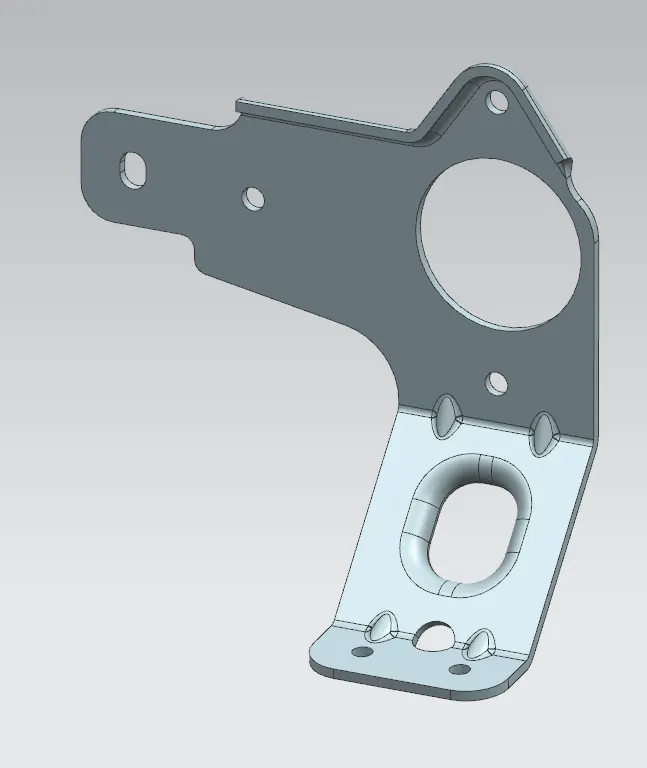

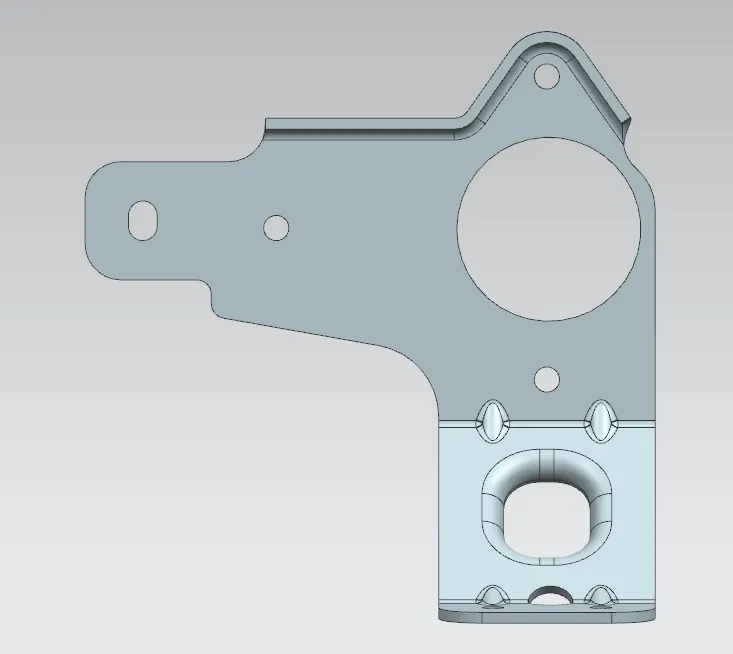

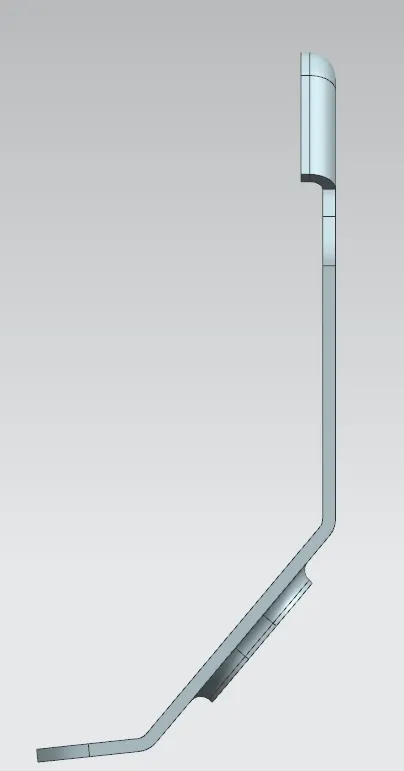

ISO VIEW

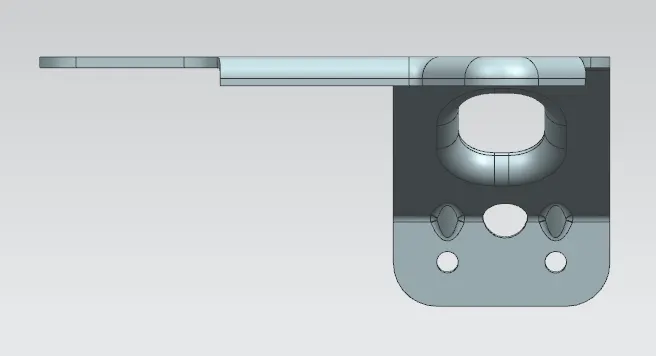

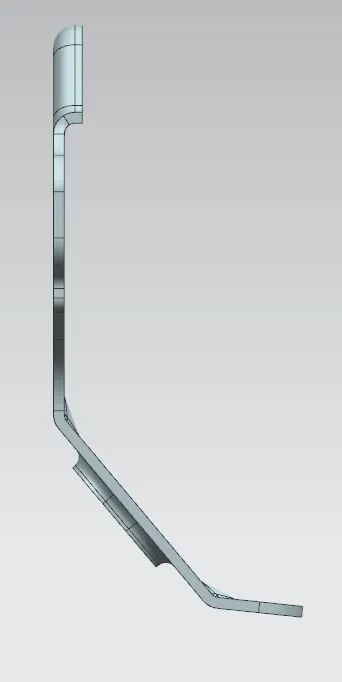

SIDE VIEW

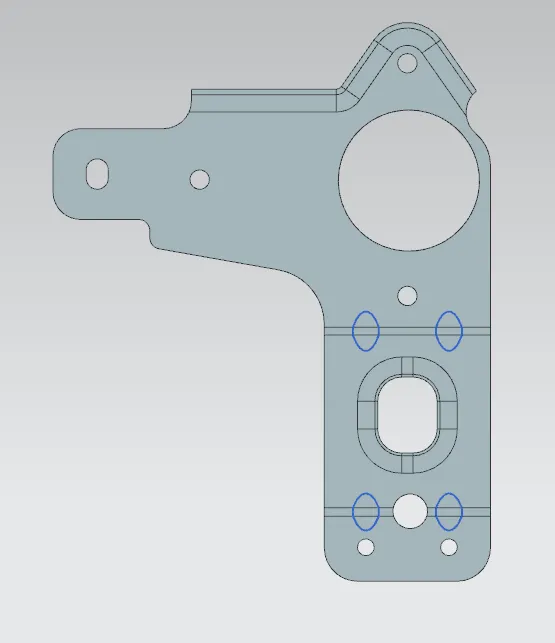

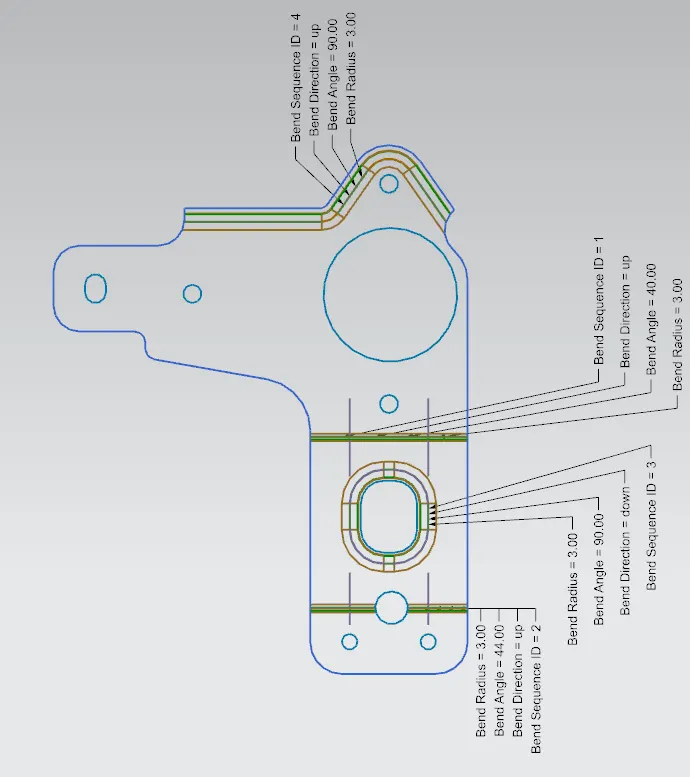

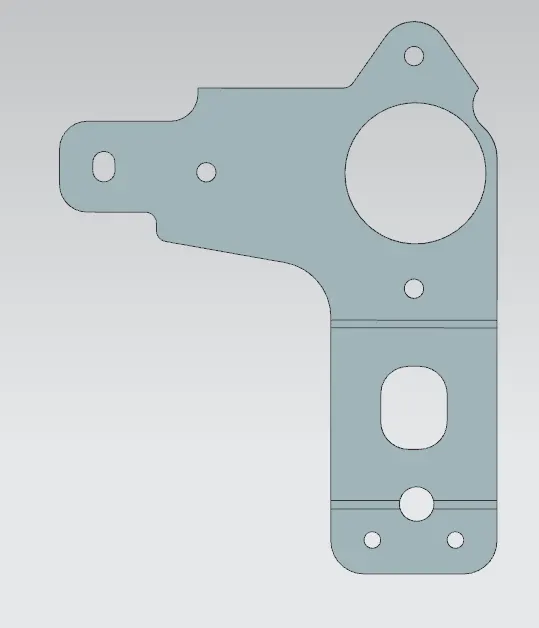

FLAT PATTERN

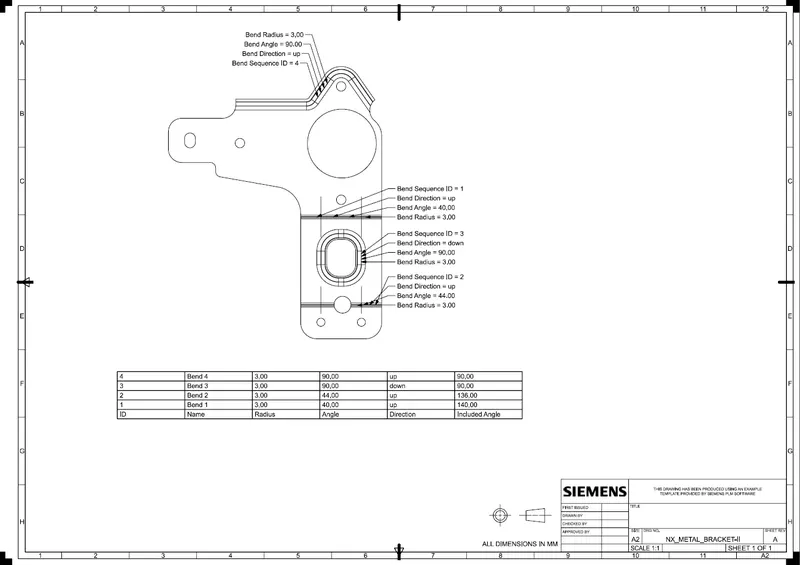

Drawing Sheet:-
Conclusion:-
Thus the project has been completed by designing the sheet metal bracket-II using the sheet metal application in Siemens NX and a drawing sheet was also created.
