Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

TITLE:- Metal bracket-II Using Advanced Sheet Metal options in NX Cad

OBJECTIVE:-

Metal bracket-II fabrication using NX cad command

INTRODUCTION :-

These basic guidelines for sheet metal fabrication include important design considerations to help improve part manufacturability, enhance cosmetic appearance, and reduce overall production time.

Sheet Metal Fabrication is the process of forming parts from a metal sheet by punching, cutting, stamping, and bending. 3D CAD files are converted into machine code, which controls a machine to precisely cut and form the sheets into the final part.

Sheet metal parts are known for their durability, which makes them great for end use applications (e.g. chassis). Parts used for low volume prototypes, and high volume production runs are most cost-effective due to large initial setup and material costs.

Because parts are formed from a single sheet of metal, designs must maintain a uniform thickness. Be sure to follow the design requirements and tolerances to ensure parts fall closer to design intent and cutting sheets of metal.

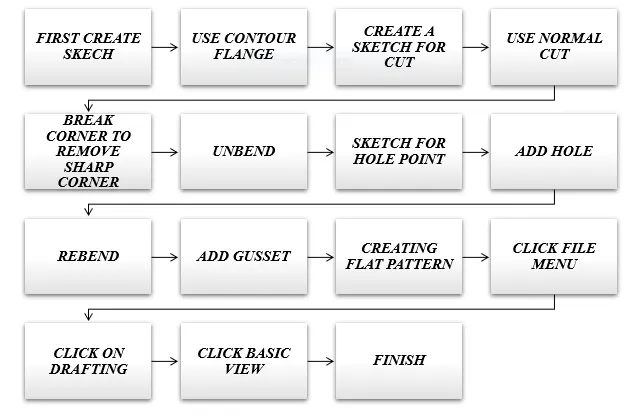

DESIGN METHODOLOGY



 DESCRIPTION (Need to explain tools/ Features used while designing)

1. Use the Contour Flange to Creates a base feature by extruding a sketch along a vector, or adds material by sweeping a sketch along an edge or a chain of edges.
2. Use the Normal Cutout command to cut material by projecting a sketch onto the model and then cutting perpendicular to the faces intersected by the projection.
3. Use the Break Corner command to round or chamfer sharp corners of a tab or flange.
4. Use the Unbend command to unbend a portion of the part to construct cutout features, hole features, or deform features across a bend. You can later reform the bend to represent the true formed state of the model.
5. Use the hole to one or more solid bodies in a part or assembly with options for counterbored, countersunk, and threaded.
6. Use the Rebend command to return an unbend feature to its previous bent state. Any features added after the unbend operation are properly repositioned during the rebend operation.
7. Use Advance flange to command to add a flange along an edge using a bend angle or a reference face. The edge and reference face can be curved.You can select a single edge or a chain of tangent edges.
8. Use the Gusset command to create a stiffening feature on a part.

   • Create strengthening features where extra strength is required in the bend region.

   • Create punched or embossed shapes in bend regions of sheet metal parts.

   • Specify default dimensions for the Gusset feature using customer defaults.

   • Create gussets on cylindrical blends that are created by deform features such as a dimple, a drawn cutout, a solid punch, and so on.

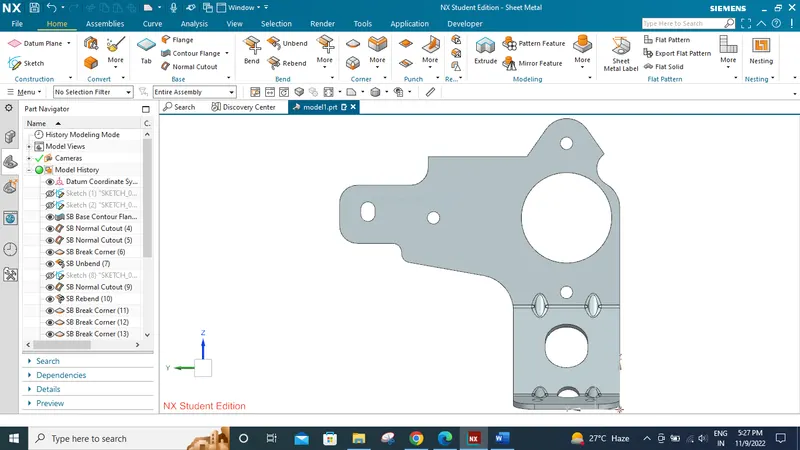

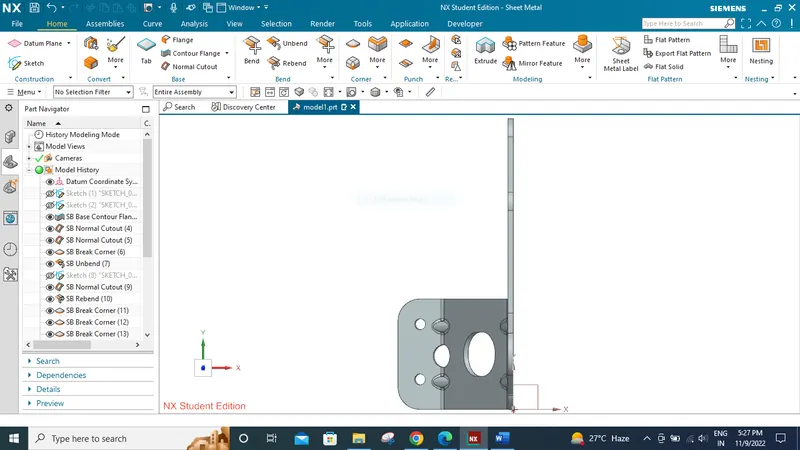

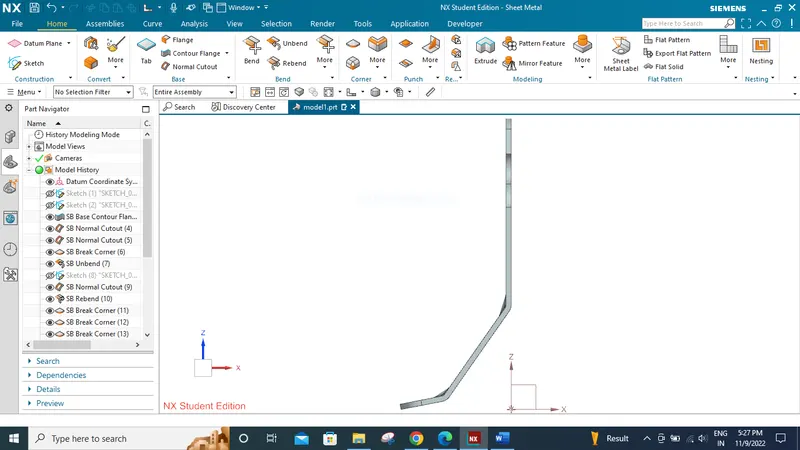

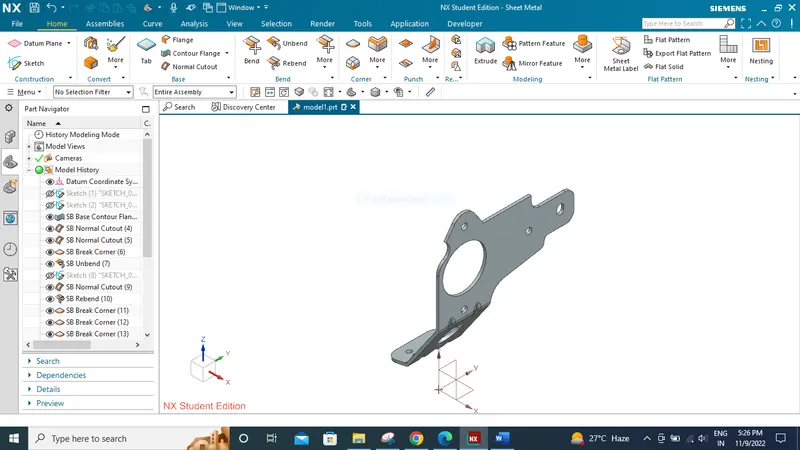

screenshots of Model . (Front View, Side View, Isometric View and the Top View)

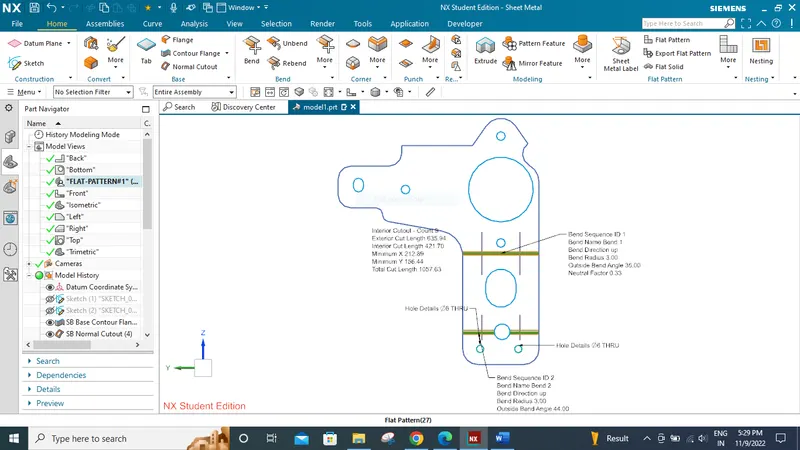

 Detailed Drawing

I had not added advance flange because i am using student version and advance flange is not available there it is asking for licence so, i created an Mentoring Session with sir and discused he  told to continue it without using advance flange command and told no marks will be reduce for it.

 CONCLUSION

HENCE COMPLEATED THE DESIGNING OF METAL BRACKET -II USING NX CAD ADVANCE FEATURE.
