Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II
Advanced Sheet Metal Design Using NX Cad Challenge-7- Metal bracket-II
Objectives- Design and modelling of metal bracket using sheetmetal operations in Siemens NX.

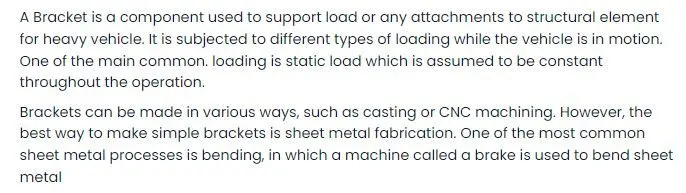

Introduction-

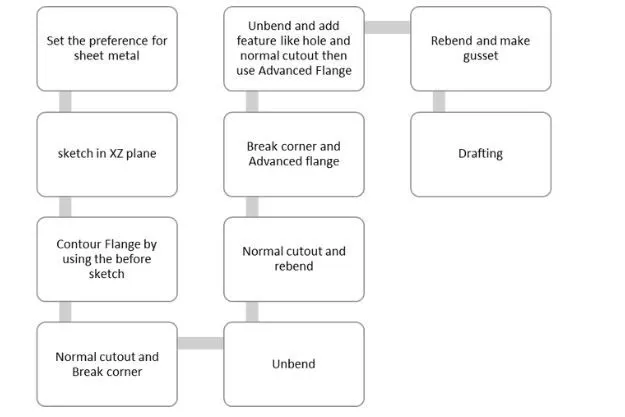

Design methodology-

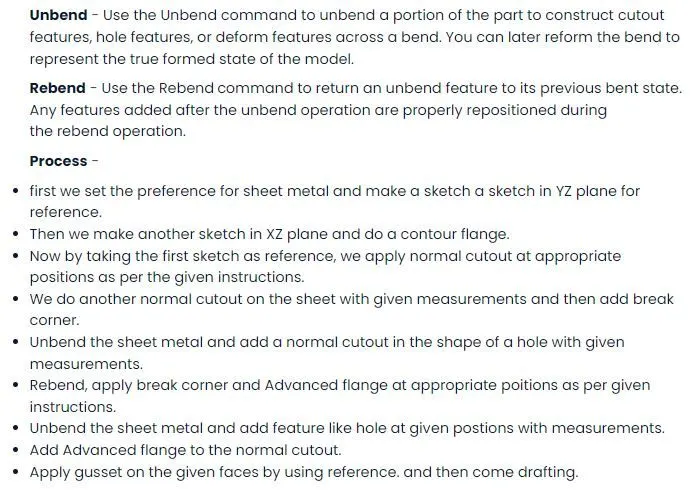

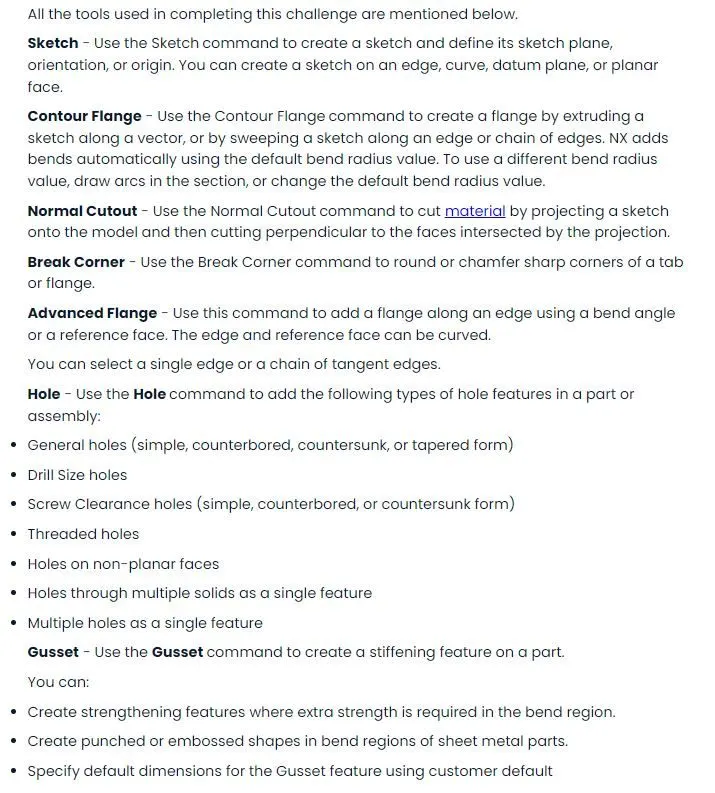

Features and tools used in designing-
Screenshots of model-

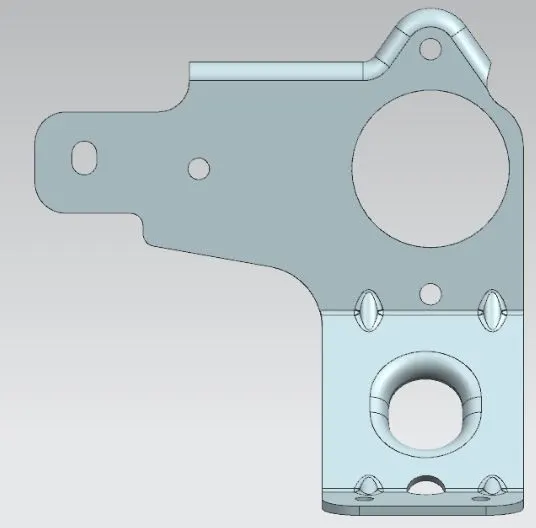

Front View-
Top View-

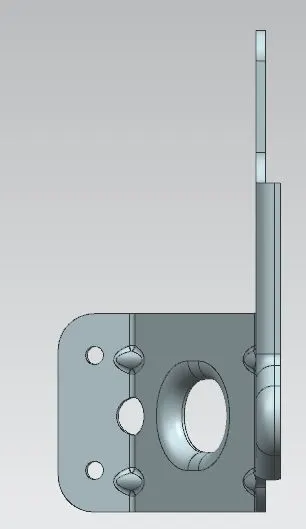

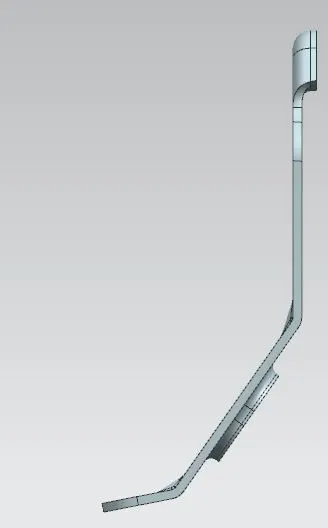

Side View-

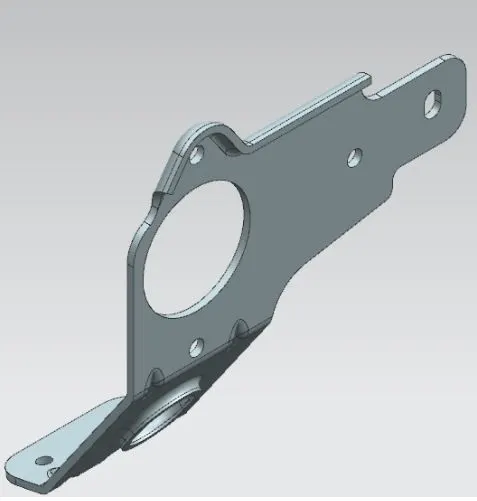

Isometric View-

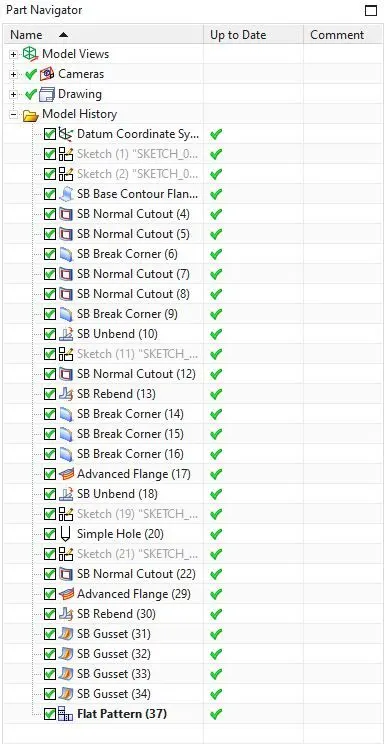

Feature tree-

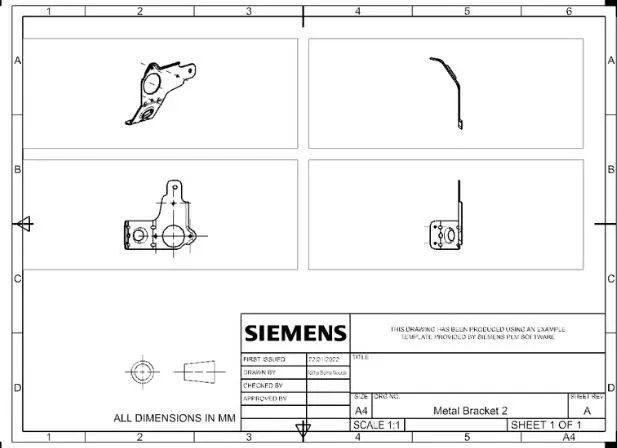

Drawing sheet-
Conclusion- All the objectives have been achieved and .stp file is also uploaded.
