Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II

Design of Metal Bracket:-

Objective:-

• The aim of the project is to design a metal bracket and create a detailed drawing for manufacturing using siemens NX sheet metal application.

Introduction:-

• The metal bracket is designed in NX 12.0 software by using sheet metal feature.

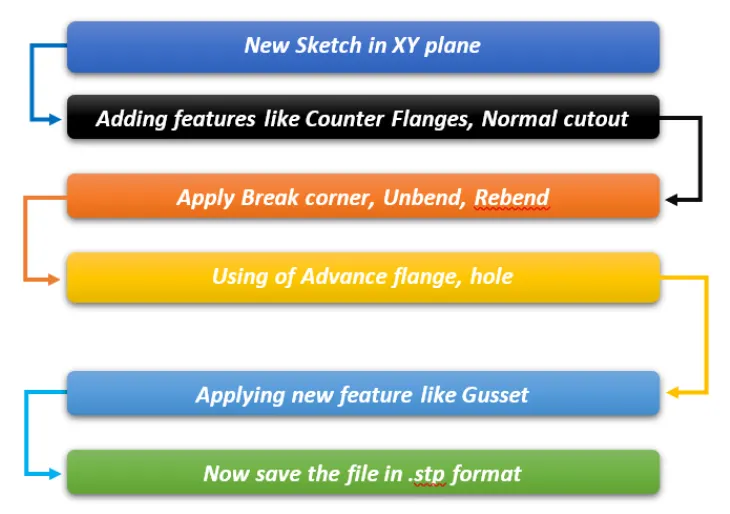

Design Methodology:-

Tools used while designing:-

Sketch: It is 2-D representation of 3-D part. it is predetermined drawing with dimensions and relation.

Contour Flange: We need to sketch as they mention curve their, aftar that it extrude with applying thickness which we want.

Normal Cutout: This command is use to create hole or cutout using sketch on a sheet metal.

Bend: It is modify the model by bending material on one side of a sketch line.

Flange: By using this command we add flange. it consist bend and web region.

Break Corner: It provides chamfer or blend to the sharp corners.

Unbend: It will flatten the bend region.

Rebend: After unbend, the rebend command will be use to bend region to its original form.

Hole: To create hole on the surface, several holes option are their.

Model Views:-

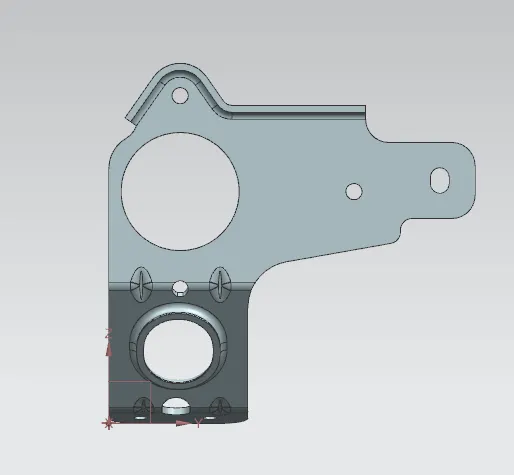

Front View:

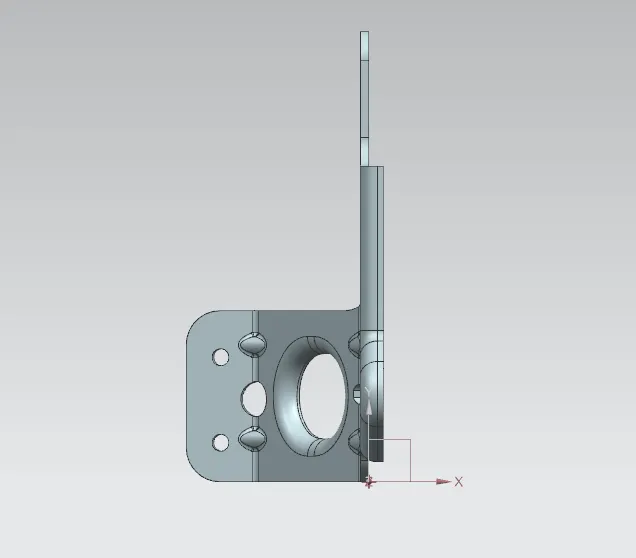

Side View:

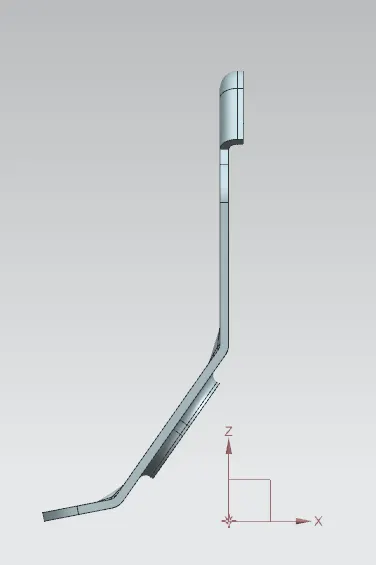

Top View:

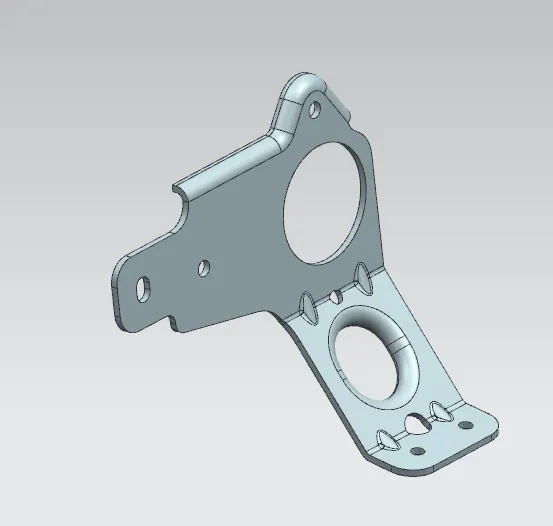

Isometric View:

Conclusion:-

• Successfully design metal bracket on NX cad 12.0, we used different features to create above model.
