Advanced Sheet Metal Design Using NX Cad Challenge_7_ Metal bracket-II
Title of the Project:- Bracket-ll Using Advanced Sheet Metal
Objective:- To design a bracket using advanced sheet metal application Siemens NX Cad.
Introduction:- Sheet metal is formaed by an industrial process. it is a design application that using manufacturing design in NX Cad appliaction.
NX Cad is formerly known as "Unigraphics" and is an advanced high-end which has been owned by Siemens NX software.

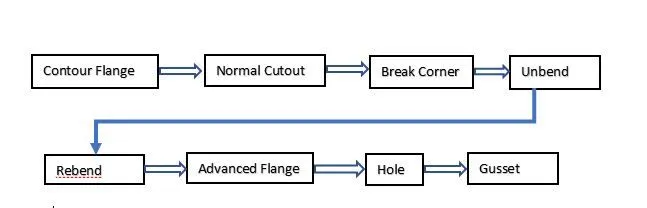

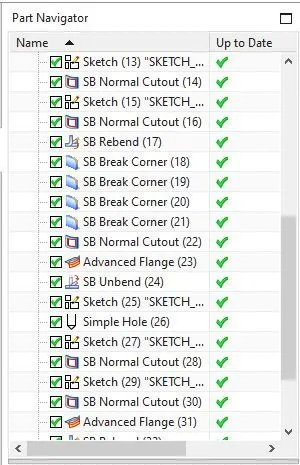

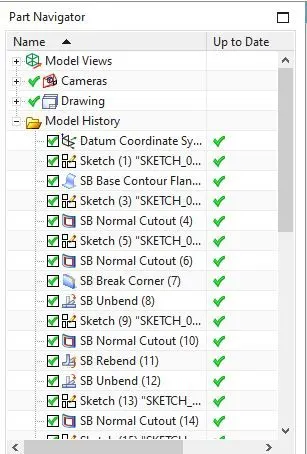

Design methodology:-

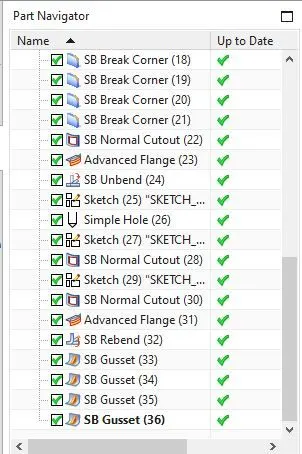

Description:-
Contour Flange- A 2D Sketch is created for contour flange it was created in Y-Axis of thickness 3mm and width of 200mm using the feature.
Normal Cut- Draw a 2D sketch from removing the unwanted material. And remove material using Normal cut feature.
Break Coner- Break corner is use to remove sharp edges with give desired dimension.
Unbend- Unbend is used to convert bends and solid boby to sheet metal and apply bead, dimple, hole and etc.
Rebend- Rebend is used to all unbend curves in the sheet metal.
Advanced Flange- This is the new feature of sheet metal and its similar to normal flange. normal flange extend the material along the strength edge where as advanced flange extend the material along the tangential edges.
Hole-Hole is a feature which cut given dimension is easy we will just plot a point in drawing and apply hole feature.
Gusset- Gusset is the stiffening feature which is mainly used for providing additional strength to the sheet metal. gusset can be applied on the bend face along specified plane direction.
Conclusion:- Hence, Design of sheet metal Bracket completed by using NX Cad software.
