Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
Title: Design of bracket and drawing methodology using NX.
Objective: To learn different methods and tools of NX for designing sheet metal parts.
Introduction:
Sheet metal is a vital material in automotive part manufacturing, known for its versatility, strength, and ease of fabrication.
Sheet Metals various applications in the automotive industry:
-
Body Panels: Sheet metal forms the exterior of vehicles, including doors, hoods, trunks, and fenders, providing the sleek, protective shell that defines a car's appearance.
-
Chassis and Frame Components: The chassis, subframes, and structural components are often made from sheet metal, as it balances strength and weight, ensuring stability and safety.
-
Exhaust Systems: Sheet metal is used for exhaust pipes, mufflers, and heat shields due to its resistance to high temperatures and corrosion.
-
Engine Components: Sheet metal plays a role in engine components such as cylinder heads, valve covers, and intake manifolds, offering durability and aiding heat management.
-
Interior Trim: In the cabin, sheet metal contributes to the structural integrity of components like dashboard supports and door panels, enhancing the overall quality of the interior.
-
Heat Shields: Sheet metal heat shields protect sensitive vehicle parts from excessive heat generated by the engine and exhaust, ensuring their longevity and performance.
-
Brackets and Mounts: Various brackets, mounts, and supports used throughout the vehicle, including engine mounts and suspension brackets, are crafted from sheet metal for their strength and stability.
-
Air Intake Systems: Sheet metal is employed to create air intake ducts, optimizing airflow to the engine, which is essential for performance and fuel efficiency.
-
Fuel Tanks: Some automotive fuel tanks are constructed from sheet metal, providing a sturdy and cost-effective solution for fuel containment.
-
Battery Trays: Sheet metal battery trays securely hold the vehicle's battery in place within the engine compartment.
-
Radiator Grilles: Grilles, often used for aesthetic and functional purposes, are made from sheet metal, allowing air to flow to the radiator.
-
Brake Shields: Sheet metal shields protect the braking system components from debris and environmental factors.

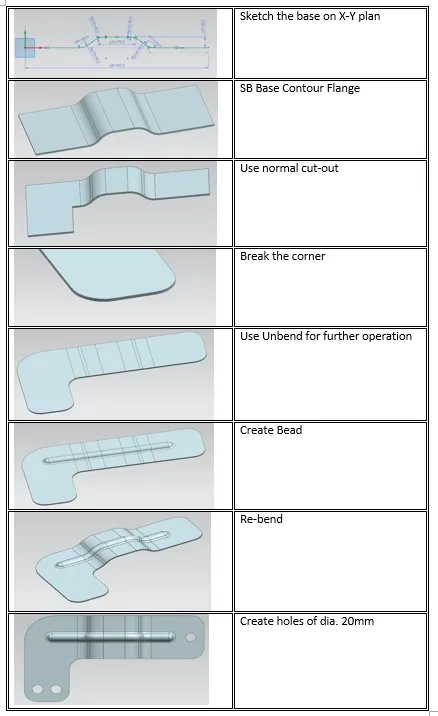

Design Methodology:

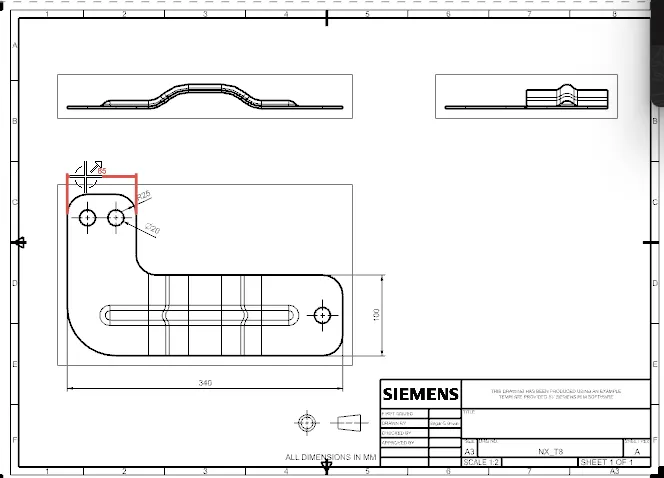

Drawing Sheet:

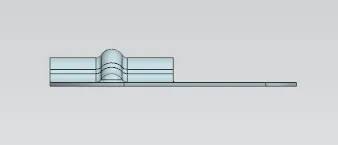

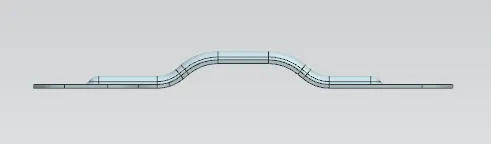

FRONT VIEW SIDE VIEW

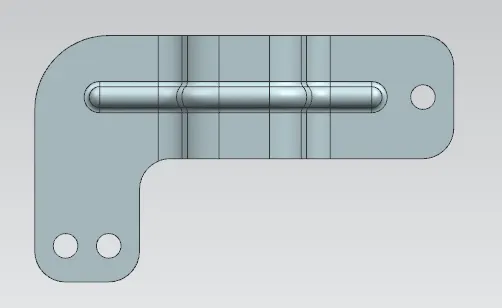

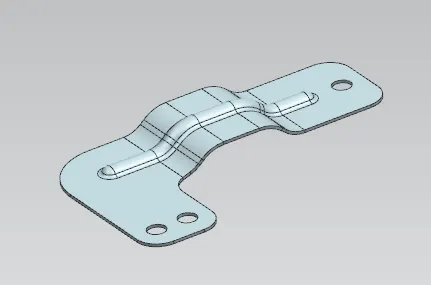

TOP VIEW ISO VIEW
Conclusion:
Understood the procedure for creating the sheet metal parts using NX.
also Learned about sheet metal application and its applications in various fields.
