Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
BRACKET
OBJECTIVE:
To observe the model and design the sheet metal by using given dimensions and instructions.
INTRODUCTION:
NX is widely used computer aided designing software for multi purposes like designing engineering and manufacturing. It used in various fields for different work. Using different feature and mothods we have designed here.

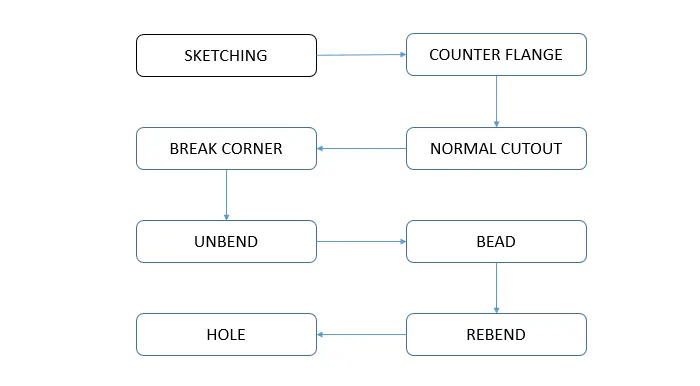

DESIGN METHODOLOGY:
DESCRIPTIONS:

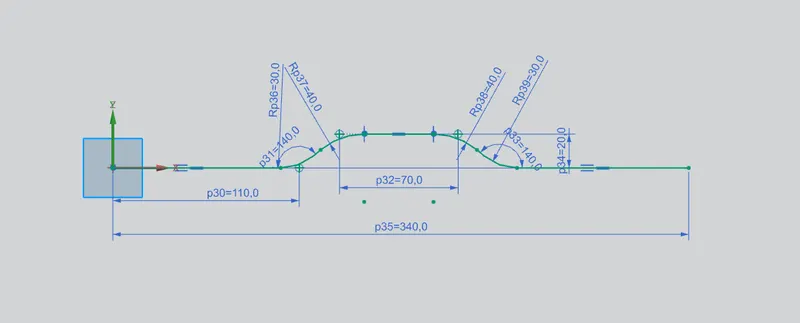

- Sketching – making a 2d drawing such as curves, arcs, circles, points, rectangles and many options to create a drawing or to create feature for upcoming designing.

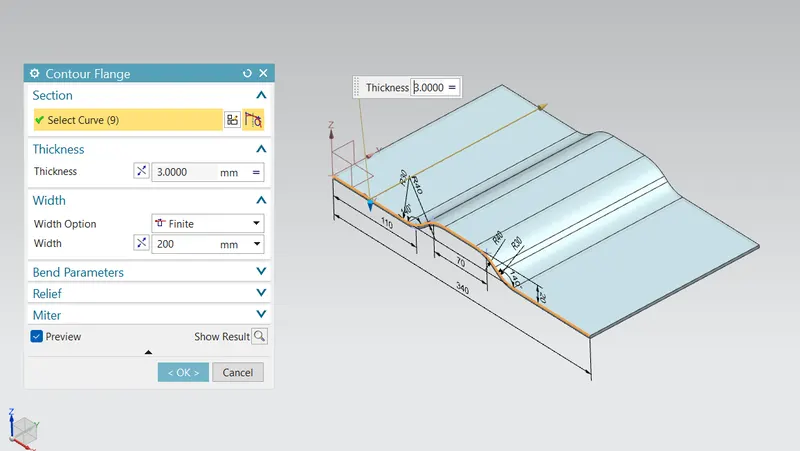

- Counter flange – it is created by extending the sketch on its respective axis with thickness as required from the base.

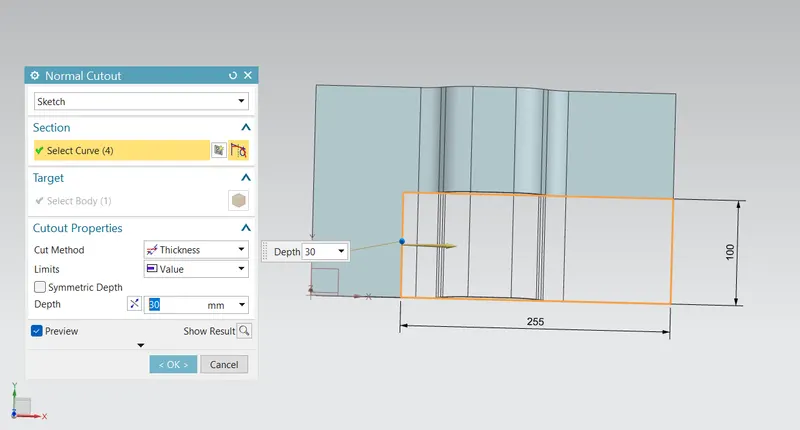

- Normal cutout – it is used to create a cut portion or a gap on the sketch where there is a requirement.

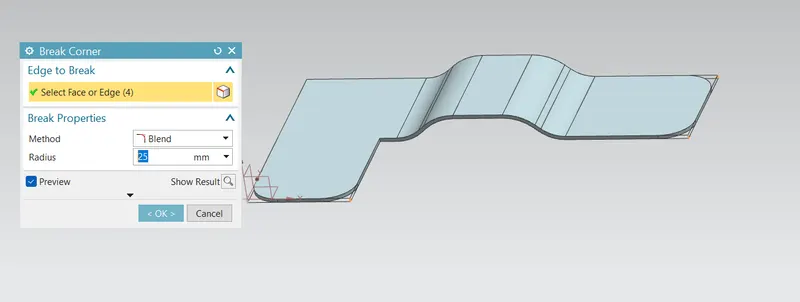

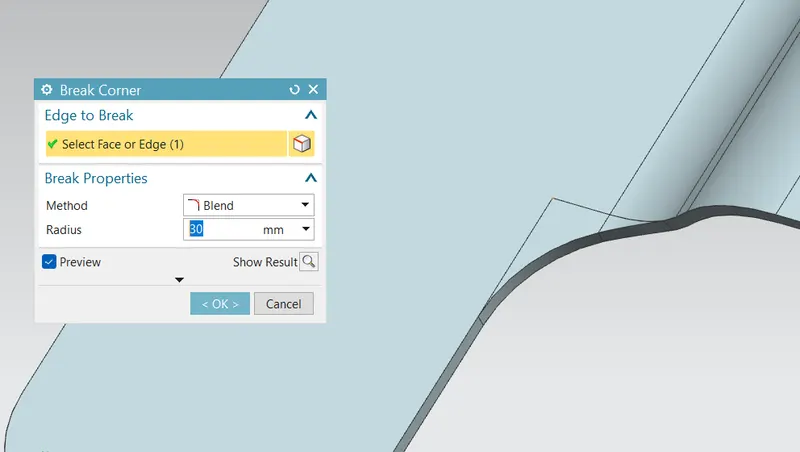

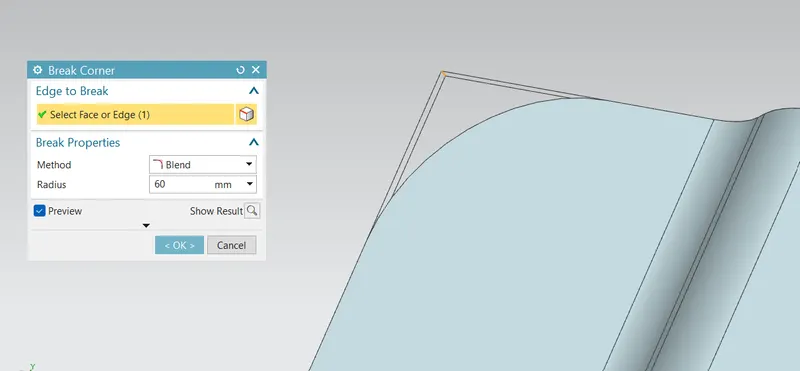

- Breal corner – this feature is for making the corner blend with some self-dimensioned radius in order to make the corner smooth.

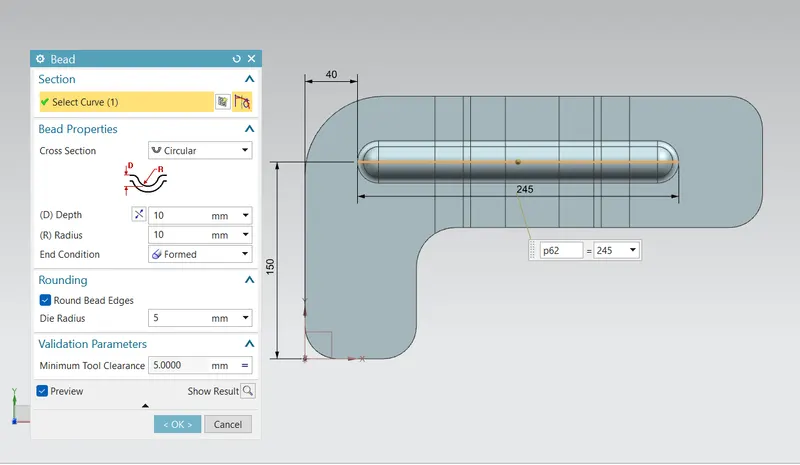

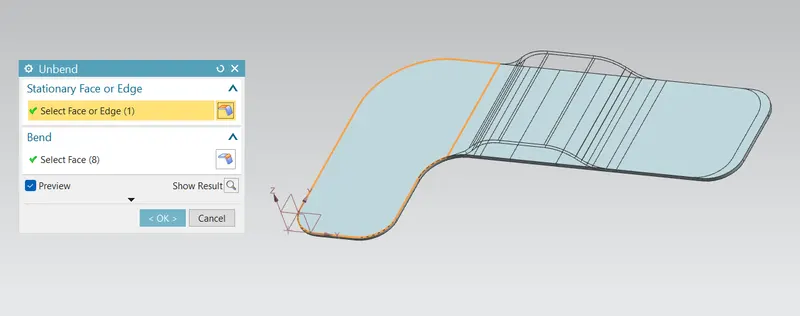

- Unbend – it is to flatten the bend sheet metal to from a flat sheet. It helps in making an extra features like bead, normal cutout on the sheet metal after bending.
- Bend – this is to create a contour shaped accordingly to their sketch in the required direction with required punch/die radius.

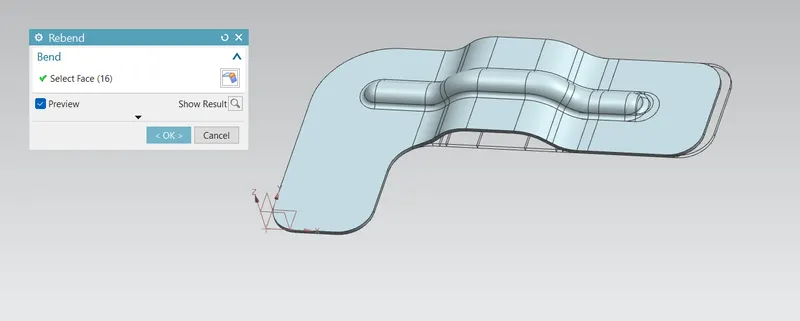

- Rebend – it is to make flat surface that is bend previously to do some extra features like holes, bead back to its original from.

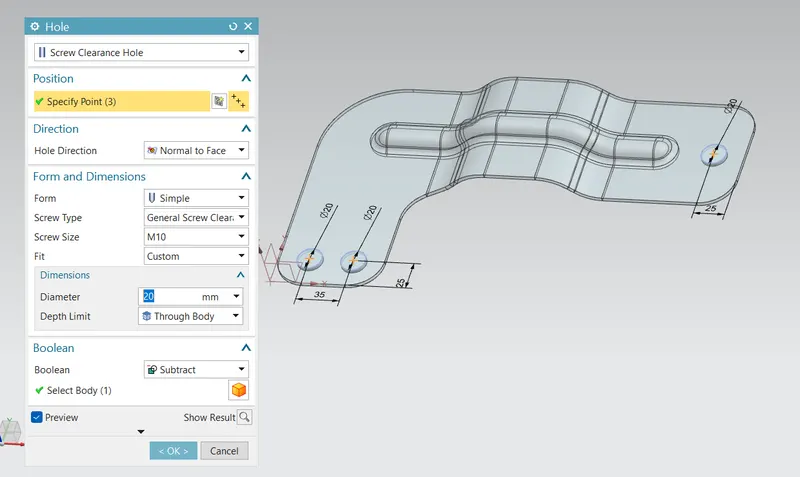

- Hole – it is creating a hole on sketch, or to create a counter bored, counter sink and several hole options to do.
SCREENSHOTS:

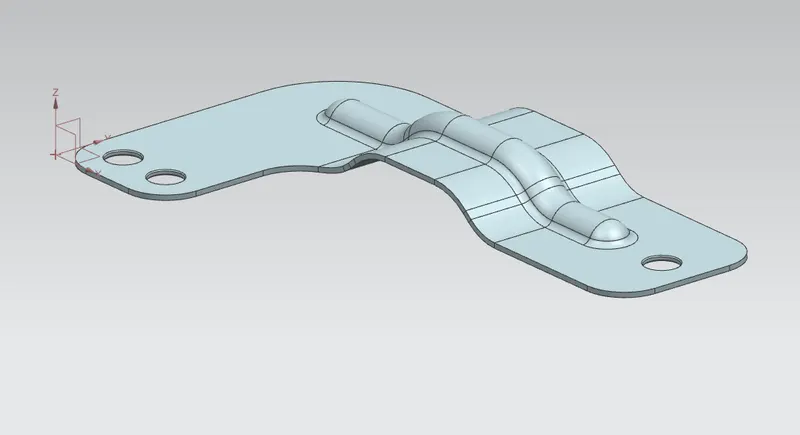

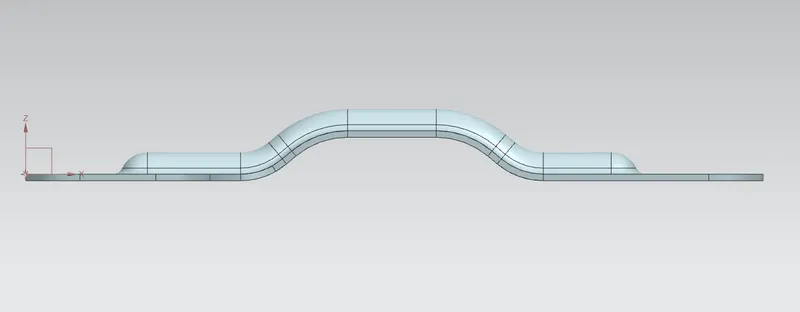

ISOMETRIC VIEW:

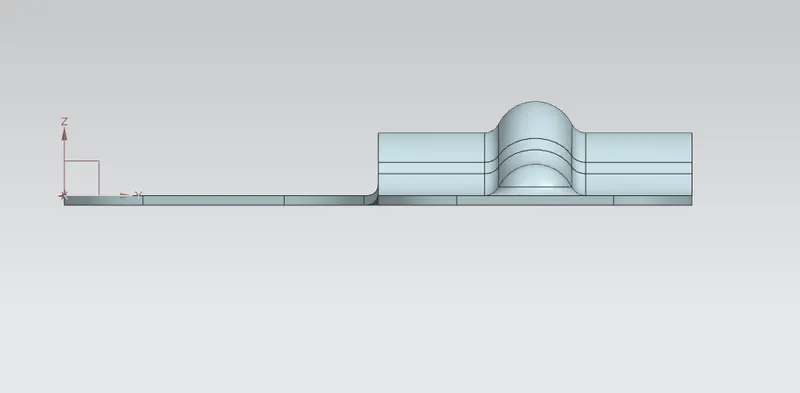

FRONT VIEW:

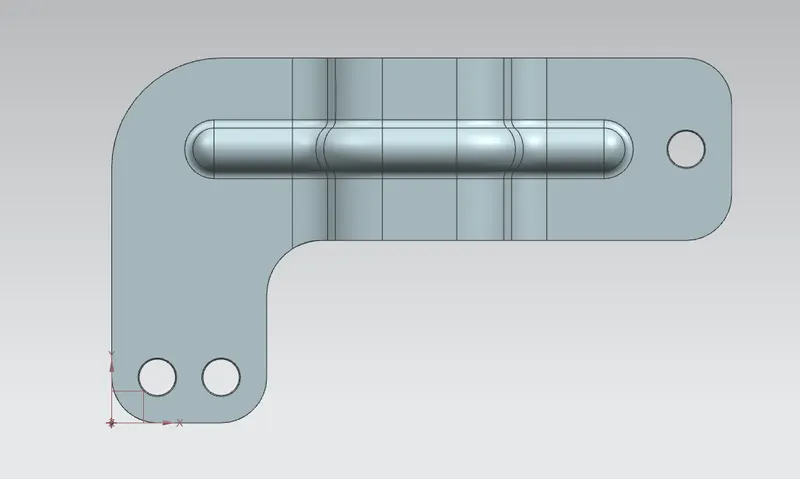

TOP VIEW:
RIGHT VIEW:
CONCLUSION:
The model has been designed and dimensioned as given in the instructions with proper constraints.
