Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
Advanced Sheet Metal Design Using NX Cad Challenge-6-Bracket
Objective- To design a bracket using Siemens NX sheet metal application.
Introduction-

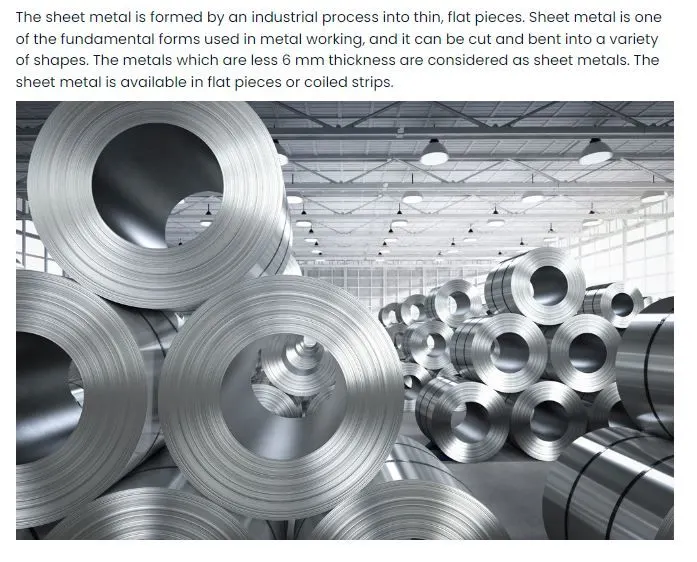

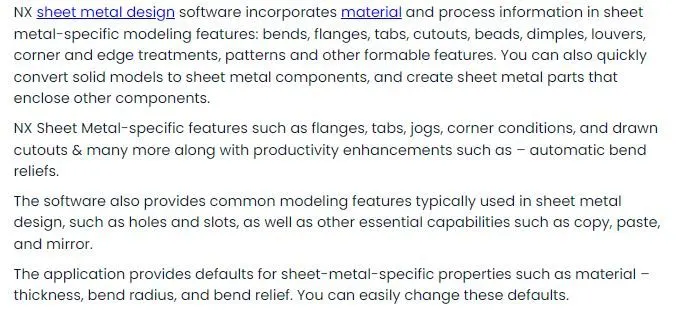

Sheet metal-

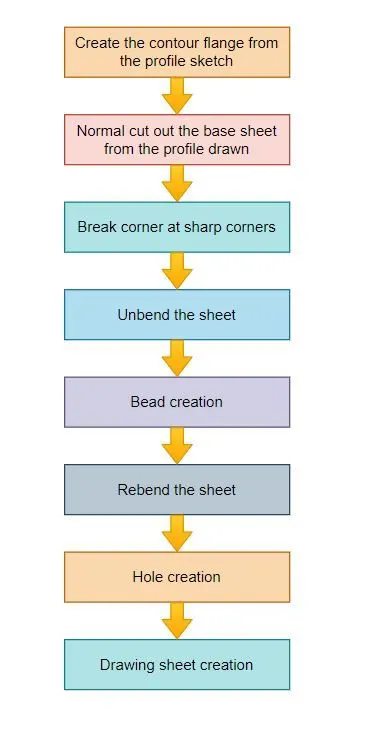

Design methodology-

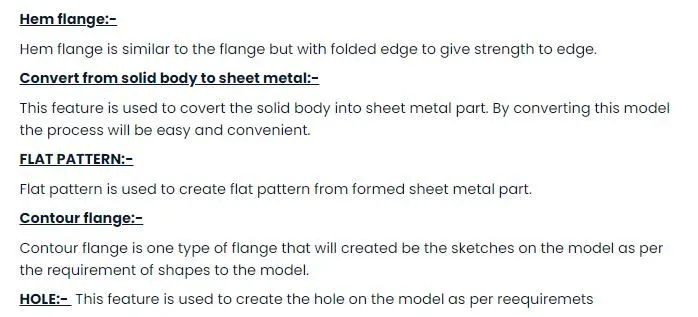

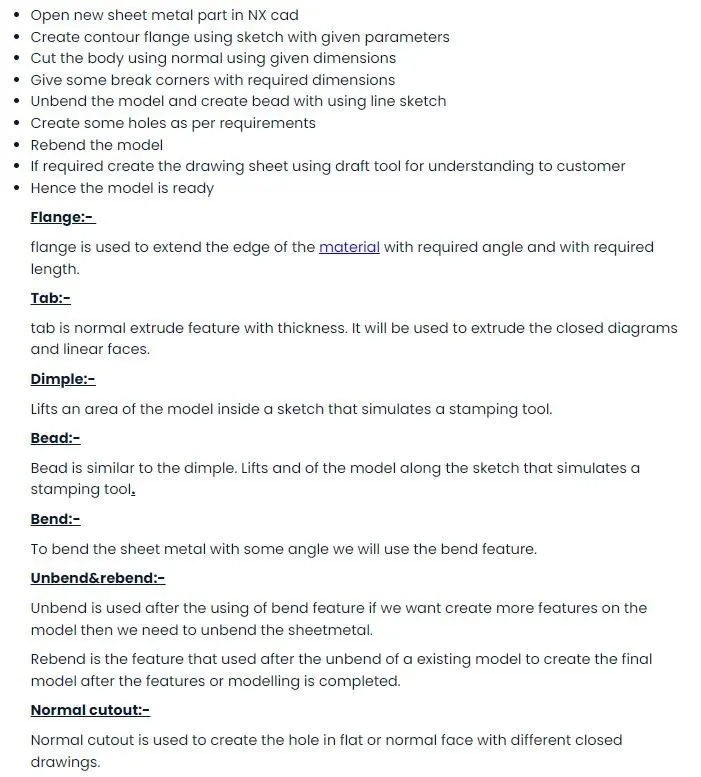

Description (Tools/ Features used while designing)-
Different Views-

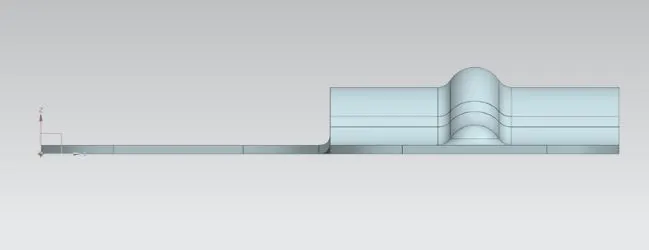

Front View-

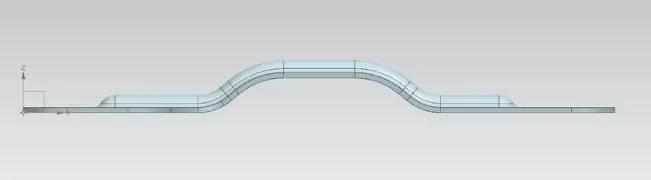

Side View-

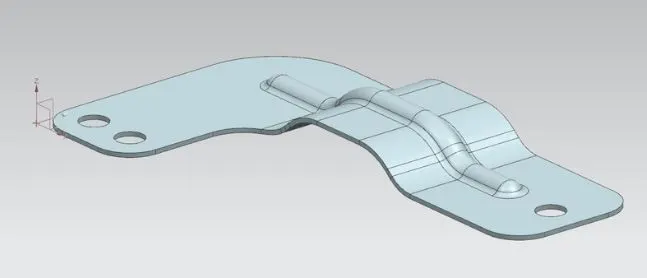

Isometric View-

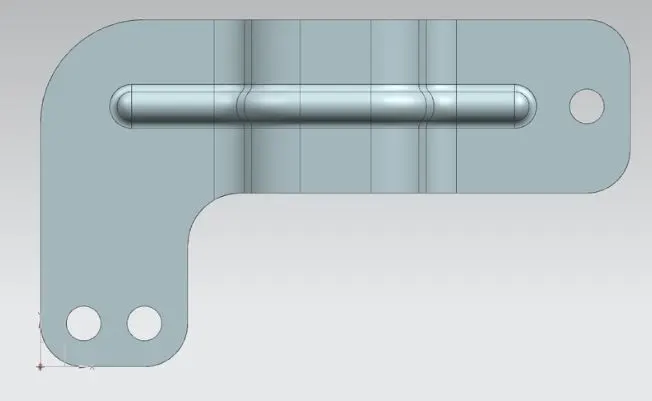

Top View-

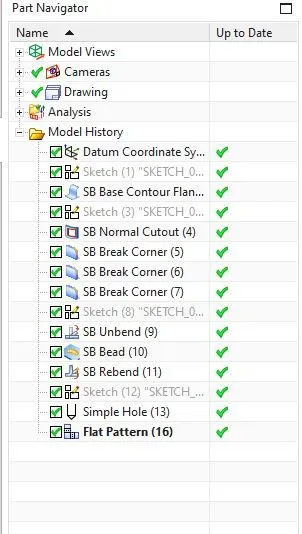

Feature tree-

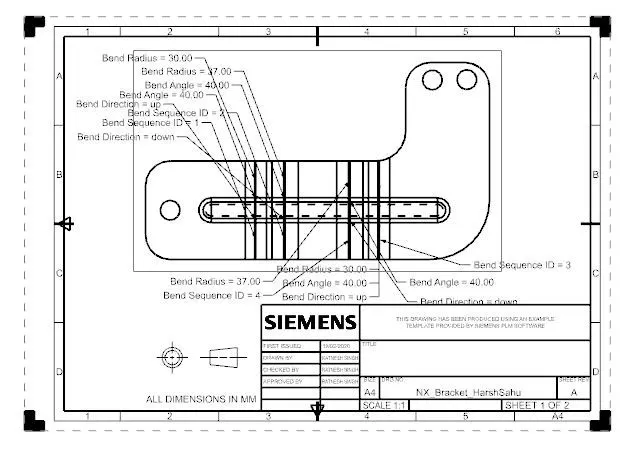

Drawing Sheet -
Conclusion- All the objectives have been achieved and zip file is also uploaded.
