Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket
BRACKET
Objective: To Create the basic model of sheet-metal
Introduction: NX-CAD is a PLM tool in Design, where we have n number of option to tweek the software to get optimal solution. It is highly used in complex models and its developement.
| Visualizing the Model |
| Understanding the basic Approach |
| Designing the model with efficient process |
| Analysing Design with design Standard. |
| Final Aesthetic design |
| end |
Description:
Tab -It is used in closed sketch to form sheet metal or base flange.
Flange- this is used in side cut or Flanges to base metal.
mirror: it is used to mirror with respect sketch
dimple: it is used to up raise the metal surface with respect the sketch
unite: it is used when two bodys are merged to form single body (combine)
datum plane: it is used to create secondary plane wrt to main coordinate XYZ plane.
Bead: it is used to raise the surface from flat with given dimension like punch or forming on sheetmetal surface as design aesthetic

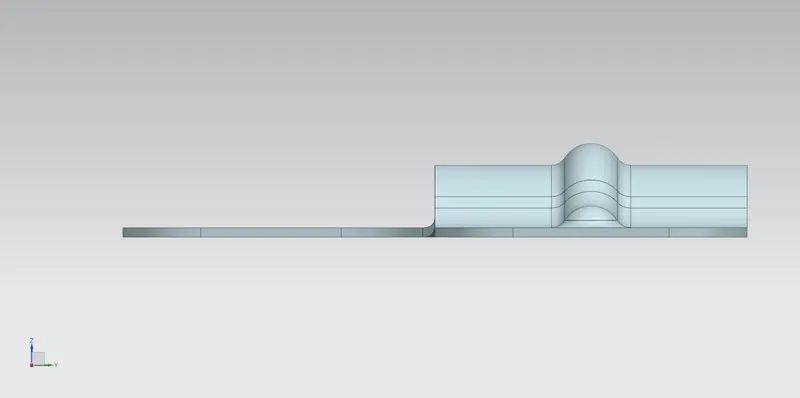

FRONT VIEW

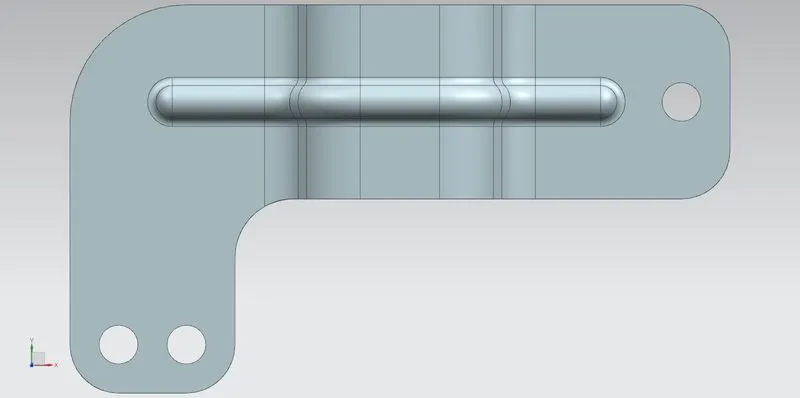

TOP VIEW

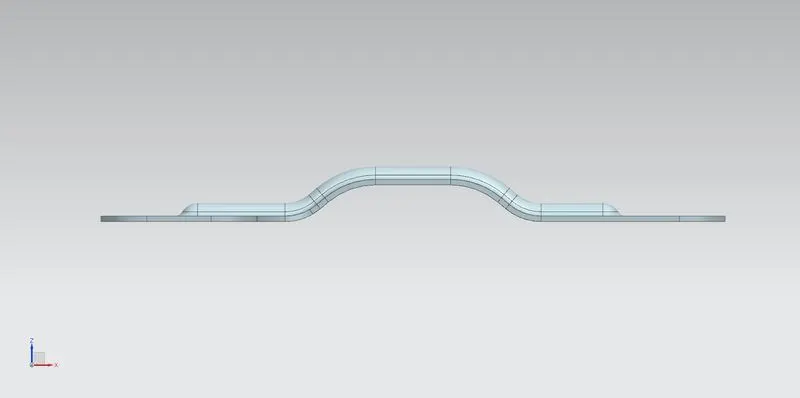

SIDE VIEW

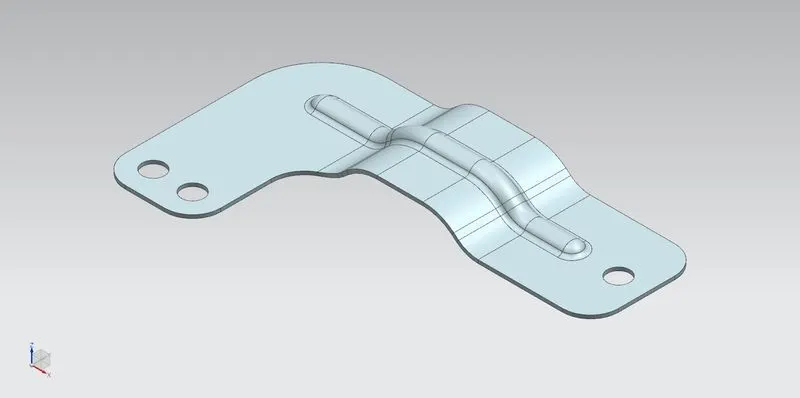

ISOMETRIC VIEW

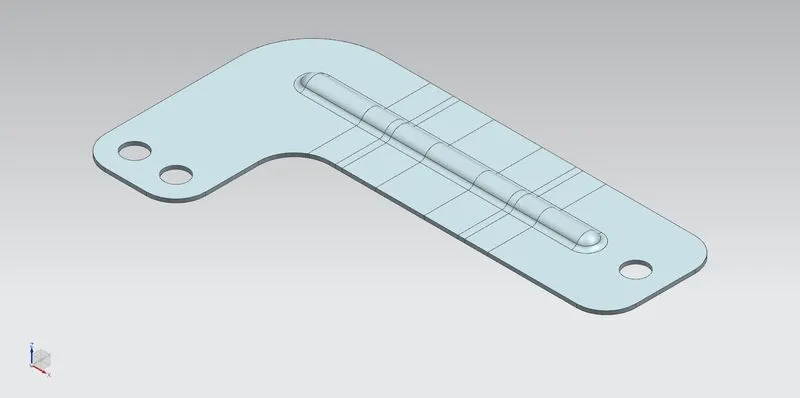

ISOMETRIC FLAT VIEW

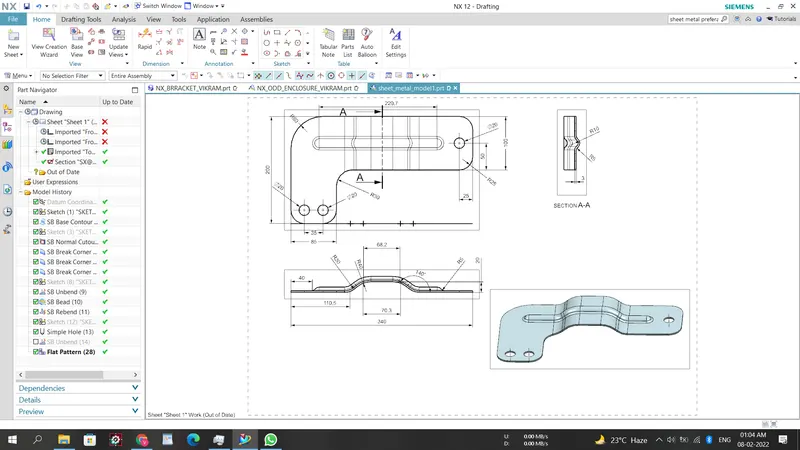

DRAWING
