Advanced Sheet Metal Design Using NX Cad Challenge_6_Bracket

AIM- DESIGN OF SHEET METAL BRACKET

OBJECTIVE-

Design the sheet metal bracket by following the design considerations.

INTRODUCTION- Base bracket is used to join the two saparate sheet metal parts with the help of fasteners or welding operations as per required conditions. We are specialized in manufacturing a sheet metal brackets. These are manufactured by conducting stamping or die casting operation. These brackets found their application for mounting of any products starting from antennas to TV, projectors or street lights and many more. Apart from this, we have the ability to conduct stress and mechanical testing on brackets depending on the application.

TYPES OF BRACKETS

SHEET METAL BRACKETS

METAL BRACKETS

WALL BRACKETS

MOUNTING BRACKETSE ETC...

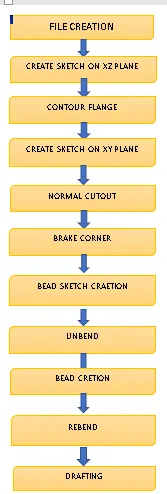

DESIGN METHADOLOGY

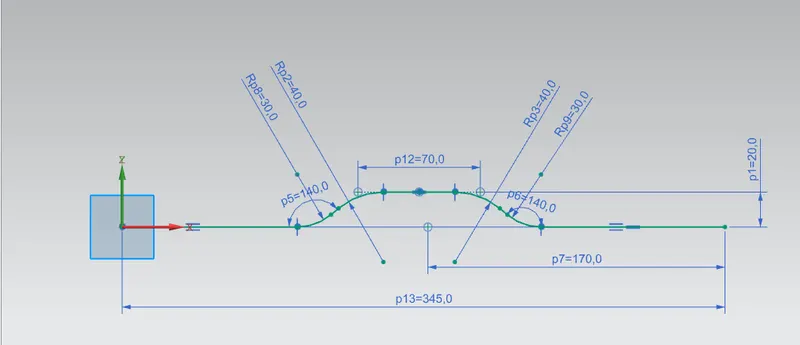

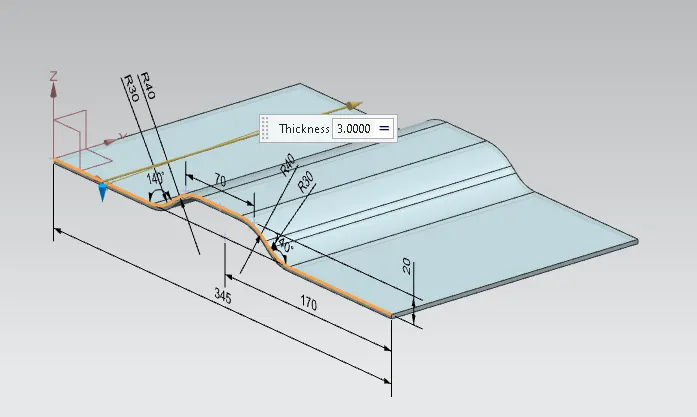

DESIGN PROCEDURE FOR SHEET METAL BRACKET DRAW A SKETCH ON THE XZ PLANE AS SHOWN IN THE PICTURE.

Create a countour flange by selecting the curve & gie the length of 200mm y direction

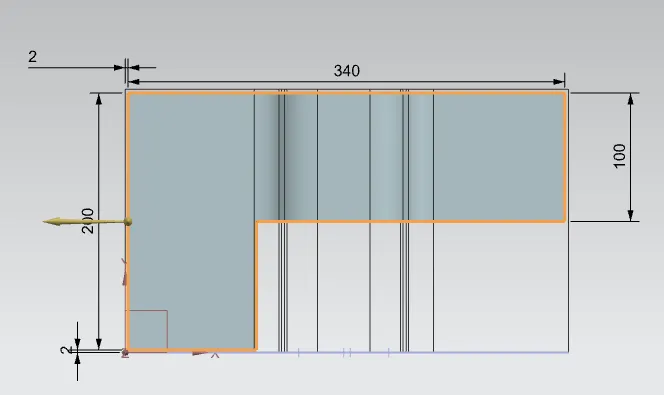

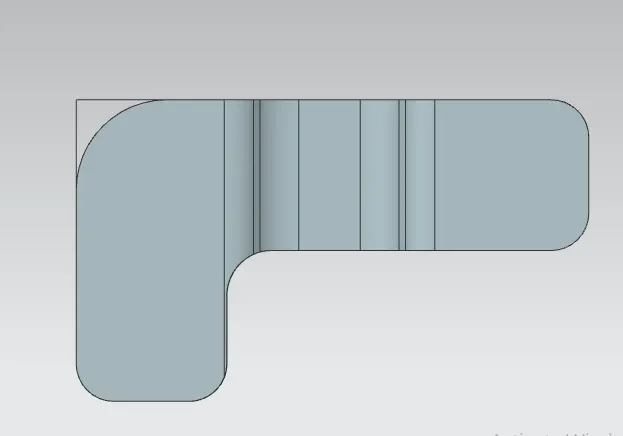

create a sketch on the top plane xy plane to cut the sheet in the required shape by giving the proper dimensions as in l shape.

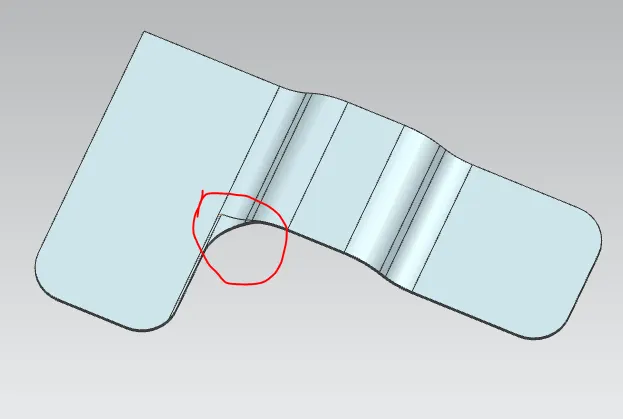

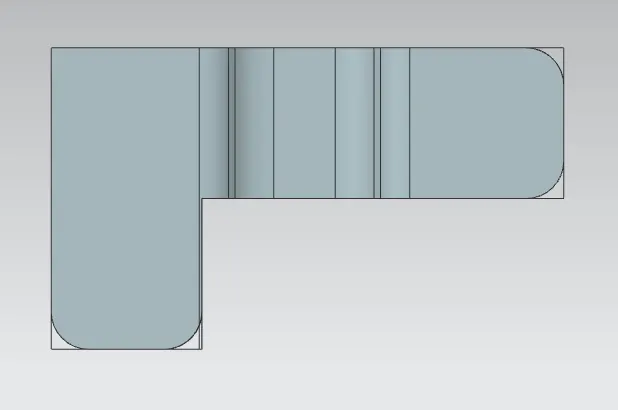

Add fillets to the sharpe edges with the brake corner command with teh radius of 25mm asper required corners only as shown in the picture.

with radius 30mm

radius 60mm

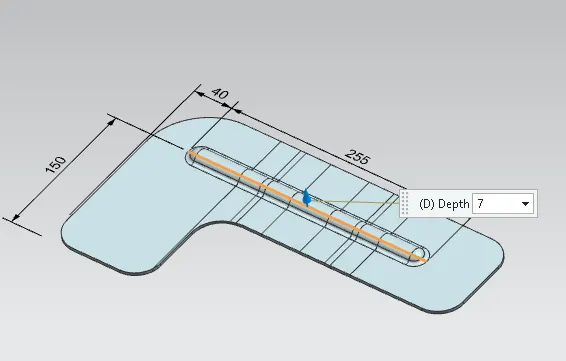

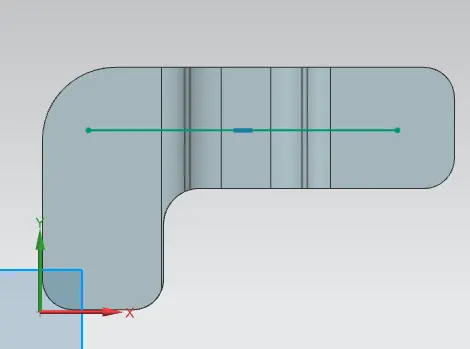

create a sketch on the xy plane to add bead

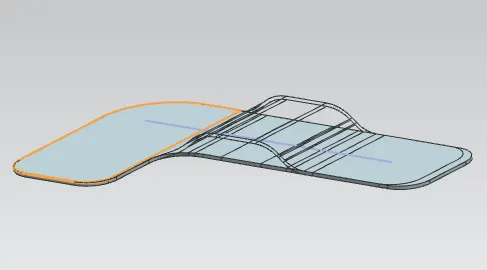

unbend the sheet metal to appeal the bead feature to the metal

BEAD

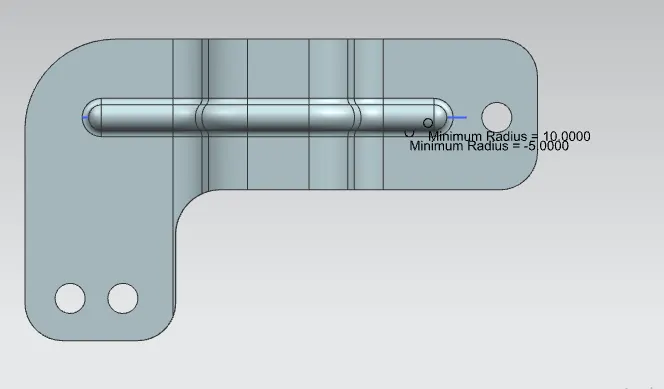

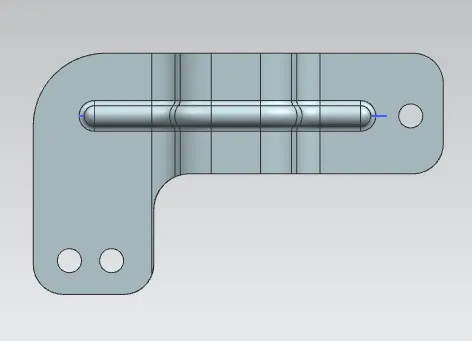

Rebend & create holes on the sheet. & min radius value

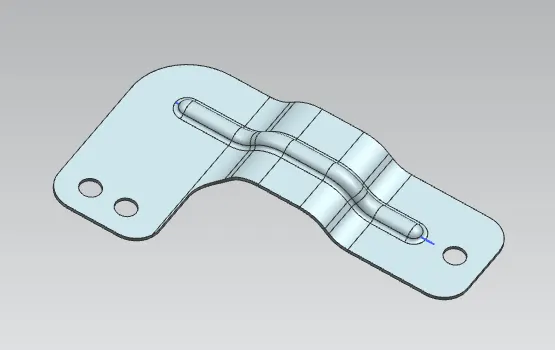

ISOMETRIC VIEW

TOP VIEW

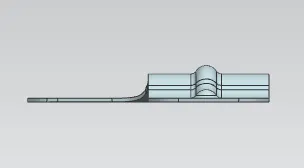

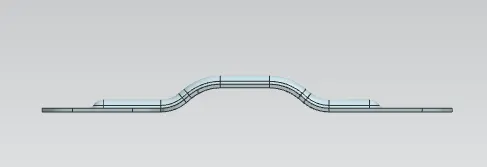

SIDE VIEW

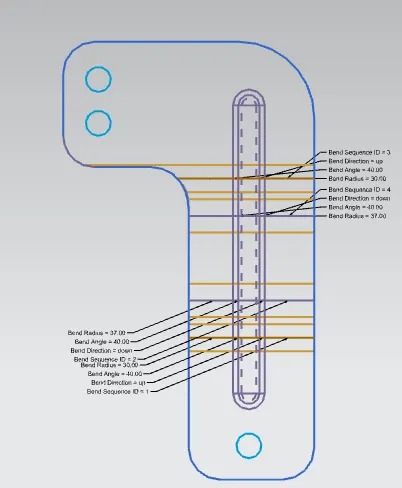

FLAT PATTERN VIEW

CONCLUSION: DESIGN OF SHEET METAL BRACKET & DRAFTING IS DONE & RELAVENT IMAGES ARE ATTACHED IN THE ANSWER BOX.
