Week 8 - Challenge 2 - Base Bracket Design
AIM: DRAFT ANALYSIS ON BASE BRACKET
DESCRIPTION : how to create the tooling axis & bysecting line method on class a surface
DRAFT ANALYSIS
IT is a analysis of a plastic component to determine weather the component is actually feasible to manufacture or not mainly used for thicken the surface.at certain angle (3deg)
REQUIREMENT FOR DRAFT ANALYSIS
solid body
main tooling direction
select material mode

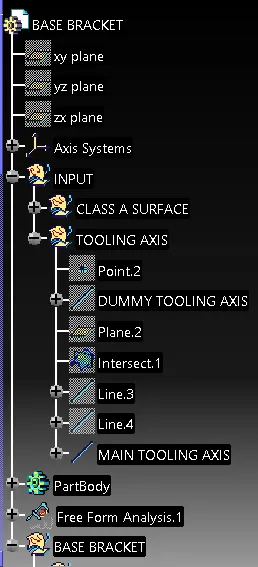

TOOLING AXIS CREATION
Check the correct direction that we can create the line on the class a surface
create the point at the hole as curve circle,ellipse option

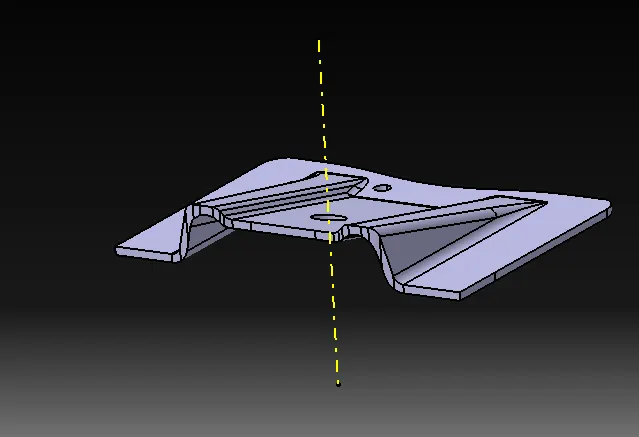

create the line of point direction through z direction & name it as a dummy tool axis change the colour, thickness & axis of the line so that we acan easily identify it.
after the creation of the tooling axis create the plane of yz referance * point ok
intersect the classa surface in to two parts

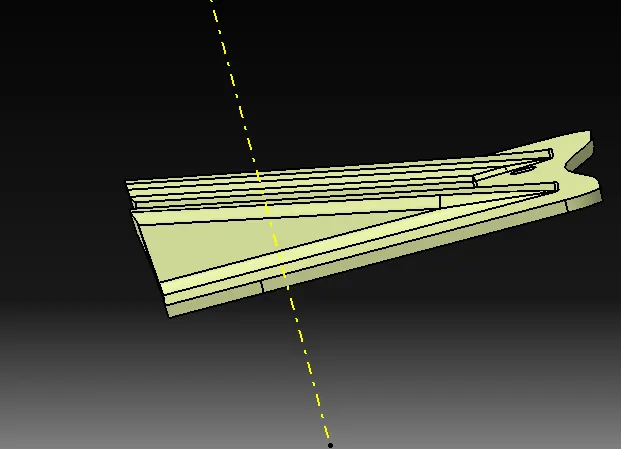

create the point to point line both side of the dummy tooling axis.with that two line create the bysecting line by selecting two line .that is the main tooling axis for draft analysis.
STEPS FOR DRAFT ANALYSIS
- switch to material mode
- activate feature draft analysis
- place the compass on main tooling direction
- activate compass logo 7 slightly move the compass over MTD line.
- set the angle & colour as per the requirement
GREEN- area clear in main tooling
RED- area have no draft in main tooling
BLUE- area undercut in main tooling
- click on bodu on which draft analysis to be done
- ckeck a surface feasibility.
TYPES OF DRAFT ANALYSIS
catia v5 has two types of draft analysis
1. Quick analysis
2. Full analysis
DRAFT ANALYSIS-is used to make the part thicken by the class A,B& C SURFACES at required dimensions.
TOOLING AXIS- it is used to sweep the surface at required direction as draft direction referance element.

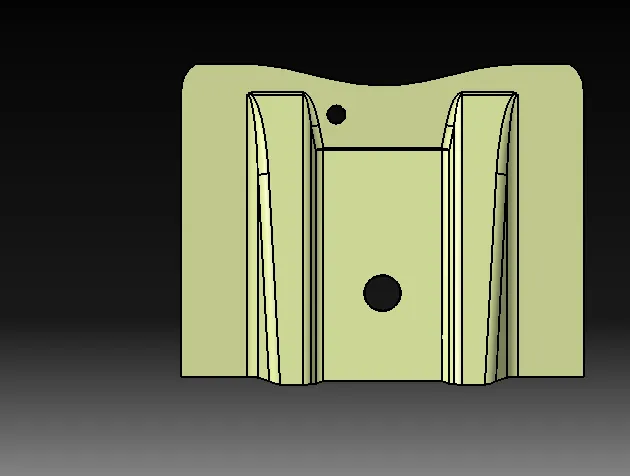

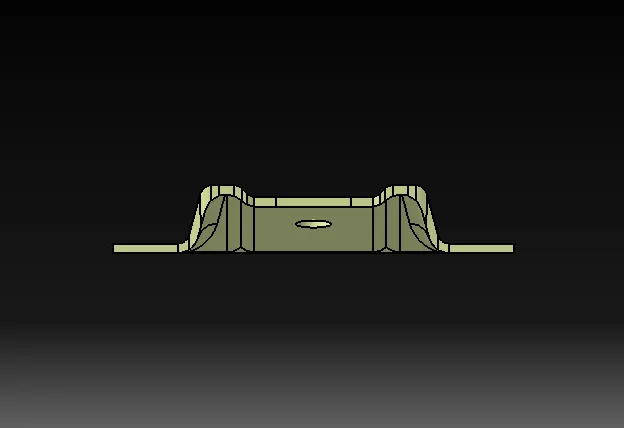

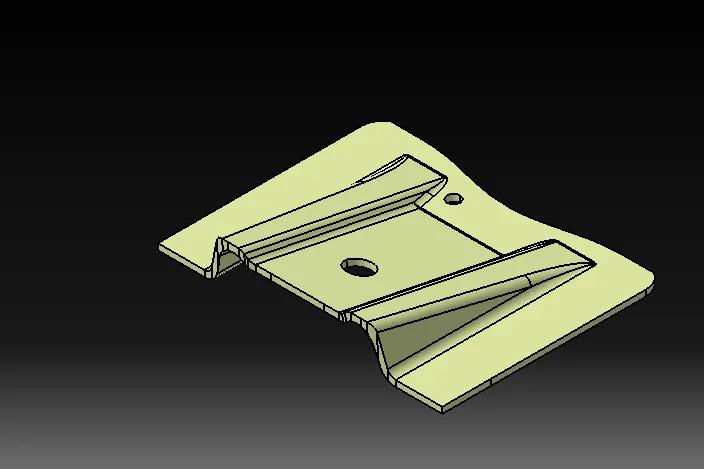

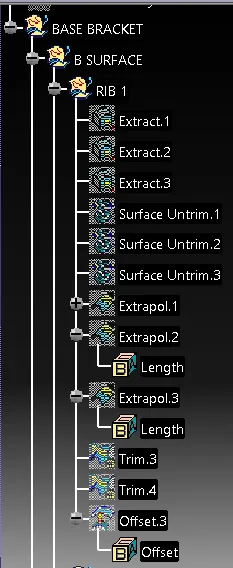

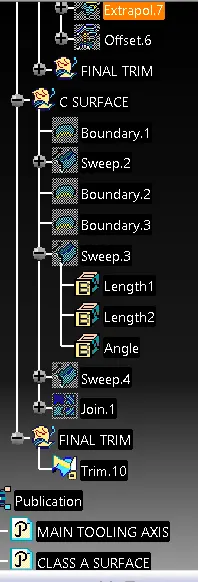

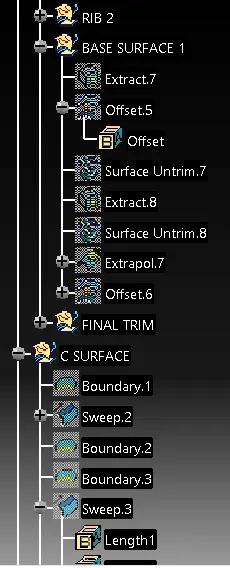

RESULT- after creating the sweep surface at 2.5 mm thickness add the fillets of R5.5 trim it with class a surface & b surface the obtained final trim is class c surface.
Define it in part body and ckeck the boundry line weather it is in close surface or not.after that change the part design & add the close surface now the solid class c surface is obtained.
DRAFT ANALYSIS & TOOLING AXIS.
